Vare nr.: F032132285

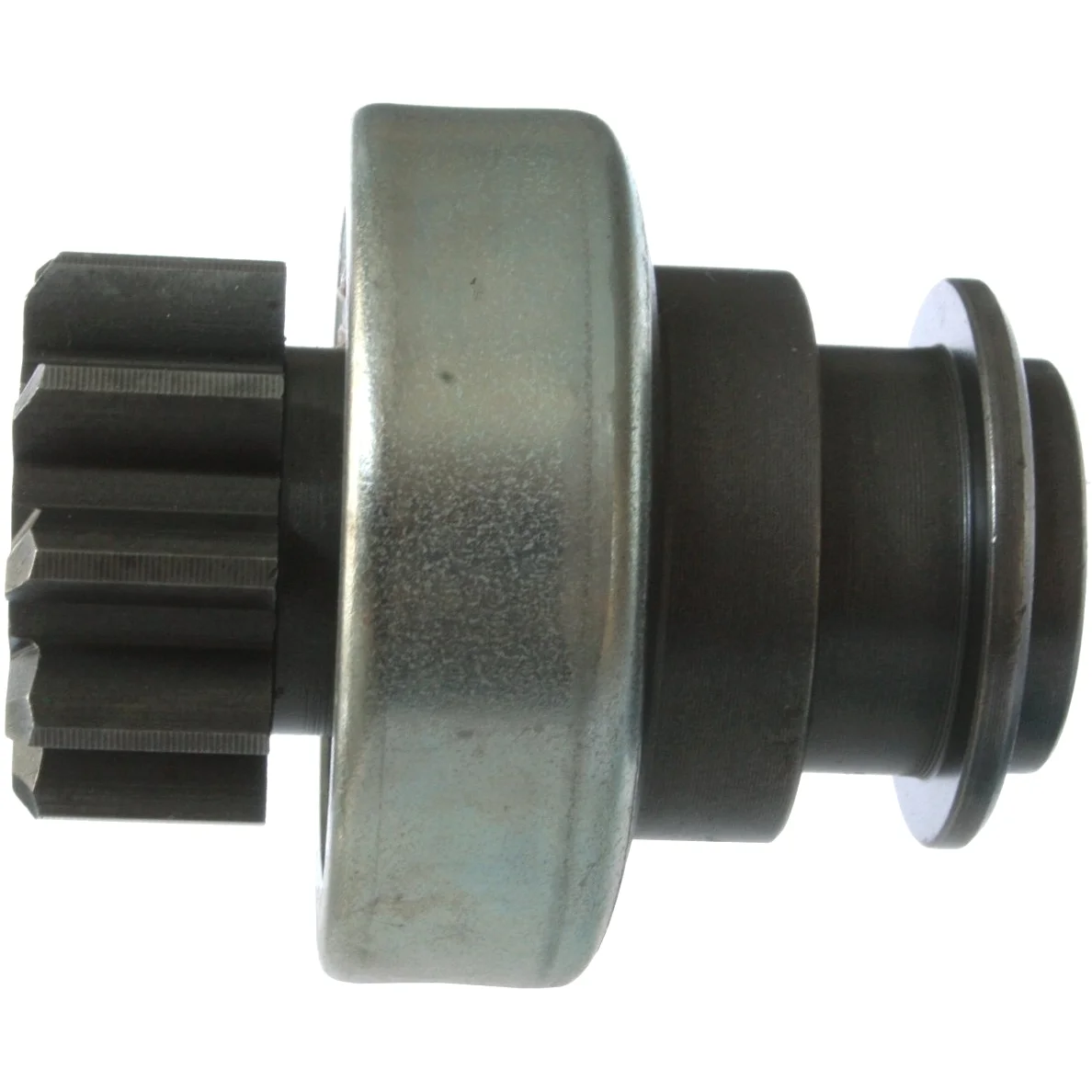

Drev

Tekniske oplysninger:

Nr./tand: 10, Rotation: CW, OD mm: 39.00, Total længde mm: 70.40

Beskrivelse

OD mm: 39.00
Total længde mm: 70.40
ID mm: 17.15
Drevtype: Stål
Nr./tænder: 10
Splejsninger indvendige: 12
Splejsninger b: N/A
OD/hus mm: 60.00
Rotation: CW
Skædedistanse: 4.50
Service: M127/2.8 kW

Specifikation

No./teeth 10
Rotation CW
Servicing M127/2.8 kW
Drive type Steel
Shaft dist. 4.50
Splines b N/A
Splines internal 12
Total length 70.40 mm
ID 17.15 mm
OD/housing 60.00 mm
OD 39.00 mm
  • OEM

    F032132285, tmb148, tmb170, 1.01.0480.0, 0480, 1667, 54247393, 54268139, 54290585, 85541462, 85541466, 054290585010, 085541462010, 085541466010
  • Konkurrentreferens

    SD4013, SD4013P, SDV31049, SDV3176, 4-768, 54-9213, 54-9213-5, 10083
  • NormaliseratArtNr

    f032132285, sd4013, sd4013p, sdv31049, sdv3176, tmb148, tmb170, 0480, 1667, 4768, 10083, 549213, 5492135, 10104800, 54247393, 54268139, 54290585, 85541462, 85541466, 054290585010, 085541462010, 085541466010
  • Beskrivelse
    OD mm: 39.00
    Total længde mm: 70.40
    ID mm: 17.15
    Drevtype: Stål
    Nr./tænder: 10
    Splejsninger indvendige: 12
    Splejsninger b: N/A
    OD/hus mm: 60.00
    Rotation: CW
    Skædedistanse: 4.50
    Service: M127/2.8 kW
  • Specifikation
    No./teeth 10
    Rotation CW
    Servicing M127/2.8 kW
    Drive type Steel
    Shaft dist. 4.50
    Splines b N/A
    Splines internal 12
    Total length 70.40 mm
    ID 17.15 mm
    OD/housing 60.00 mm
    OD 39.00 mm
  • Køretøjsmatchning
    • OEM

      F032132285, tmb148, tmb170, 1.01.0480.0, 0480, 1667, 54247393, 54268139, 54290585, 85541462, 85541466, 054290585010, 085541462010, 085541466010
    • Konkurrentreferens

      SD4013, SD4013P, SDV31049, SDV3176, 4-768, 54-9213, 54-9213-5, 10083
    • NormaliseratArtNr

      f032132285, sd4013, sd4013p, sdv31049, sdv3176, tmb148, tmb170, 0480, 1667, 4768, 10083, 549213, 5492135, 10104800, 54247393, 54268139, 54290585, 85541462, 85541466, 054290585010, 085541462010, 085541466010
