Vare nr.: F032113350

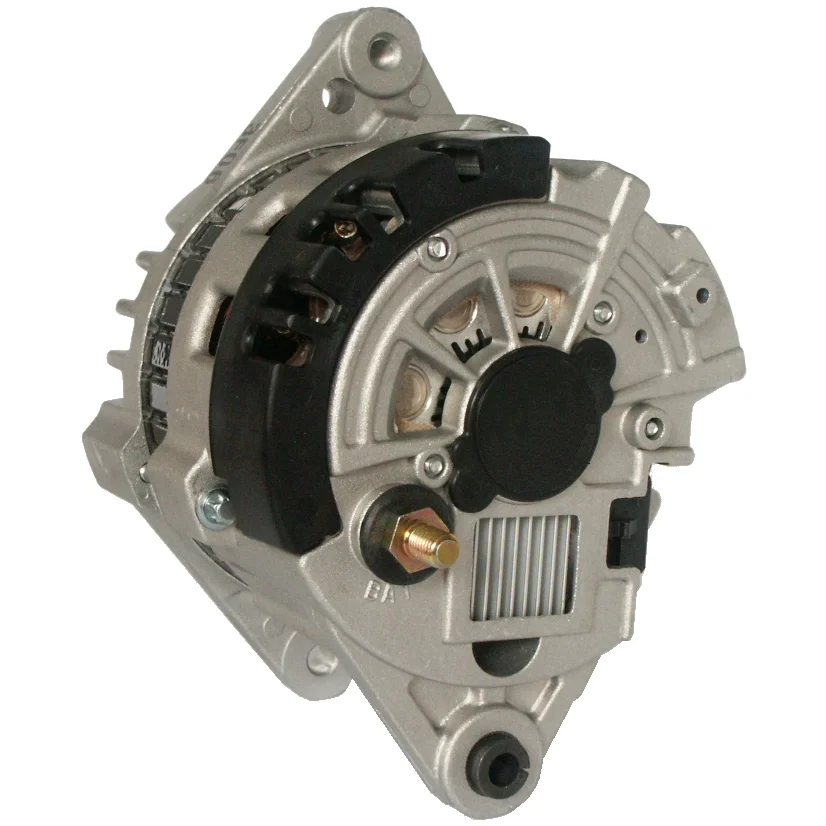

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 85, Rotation: T, Monteringsbeslag afstand: 81,30

Beskrivelse

Spænding: 14
Amp: 85
Drevskive dist.: 36.00
Bredde/holderarm: 13.20
Monteringsbeslag dist.: 81.30
Beslagshul: 8.30
Bæltejustering beslaghul position.: 60
Bæltejustering beslagshul 1: M8
Drevskive dia.: 47.80
Riller/drevskive: 5
Radius: 80.00
Radius 2: 86.00
B+: M8
Position/B+ i min.: 40
D+ Størrelse: Stik
Rotation: CW
Stik nr.: PL62
Samlet længde mm: 179.00
Drevskive: SP
Regulator type: IR
Produktinfo: BN
Service: Daewoo

Filer

Specifikation

B+ M8
Mount. bracket dist. 81.30
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 60
Plug no. PL62
Bracket hole 8.30
Position/B+ in min. 40
Prod. info BN
Pulley SP
Pulley dia. 47.80
Pulley dist. 36.00
Radius 80.00
D+ Size Plug
Radius 2 86.00
Regulator type IR
Rotation CW
Servicing Daewoo
Grooves/pulley 5
Voltage 14
Total length 179.00 mm
Width/holder arm 13.20
Amp 85

  • OEM
    F032113350, 1671ir, 219139, 96300550, 96303556, 96404012

  • Konkurrentreferens
    A1004, ALT-1210, ALT1210, ALT45204, BAO3289, CAL46103, dra3638, DRA3638N, F042300071, F042A00071, J5110907, LRB00433, 1-2403-01DR, 8EL012428-291, 8EL737997-001, 28-3502, 547.106.852, 8280N, 8280R, 210389, 210389A, 437666, 440715, 9212569, 12060796, 063532636, 0986049600, 063532636010, 944390901570

  • NormaliseratArtNr
    a1004, alt1210, alt45204, bao3289, cal46103, dra3638, dra3638n, f032113350, f042300071, f042a00071, j5110907, lrb00433, 8el012428291, 8el737997001, 1671ir, 8280n, 8280r, 210389, 210389a, 219139, 283502, 437666, 440715, 1240301dr, 9212569, 12060796, 063532636, 96300550, 96303556, 96404012, 547106852, 0986049600, 063532636010, 944390901570

  • Passar modeller
    Chevrolet Model: Lanos Model series: Lanos Size of motor: 1.5 Brand of engine: LX6 From date: 01-11-2005 To date: 01-12-2010 Fuel: Gasoline Approved: Yes
    Chevrolet Model: Rezzo/Tacuma Model series: Rezzo/Tacuma Size of motor: 1.6 Brand of engine: A16DMS Body: MPV From date: 01-03-2005 Fuel: Gasoline Approved: Yes
    Daewoo Model: Lanos Model series: Lanos Size of motor: 1.4 Brand of engine: A14SMS Type description: KLAT Body: Hatchback From date: 01-05-1997 Fuel: Gasoline Approved: Yes
    Daewoo Model: Lanos Model series: Lanos Size of motor: 1.4 Brand of engine: A14SMS Type description: KLAT From date: 01-05-1997 Fuel: Gasoline Approved: Yes
    Daewoo Model: Lanos Model series: Lanos Size of motor: 1.5 Brand of engine: A15SMS Type description: KLAT Body: Hatchback From date: 01-05-1997 Fuel: Gasoline Approved: Yes
    Daewoo Model: Lanos Model series: Lanos Size of motor: 1.5 Brand of engine: A15SMS Type description: KLAT From date: 01-05-1997 Fuel: Gasoline Approved: Yes
    Daewoo Model: Lanos Model series: Lanos Type of engine: 16V Size of motor: 1.6 Brand of engine: A16DMS Type description: KLAT Body: Hatchback From date: 01-05-1997 Fuel: Gasoline Approved: Yes
    Daewoo Model: Lanos Model series: Lanos Type of engine: 16V Size of motor: 1.6 Brand of engine: A16DMS Type description: KLAT From date: 01-02-1997 Fuel: Gasoline Approved: Yes
    1 / 2
  • Beskrivelse
    Spænding: 14
    Amp: 85
    Drevskive dist.: 36.00
    Bredde/holderarm: 13.20
    Monteringsbeslag dist.: 81.30
    Beslagshul: 8.30
    Bæltejustering beslaghul position.: 60
    Bæltejustering beslagshul 1: M8
    Drevskive dia.: 47.80
    Riller/drevskive: 5
    Radius: 80.00
    Radius 2: 86.00
    B+: M8
    Position/B+ i min.: 40
    D+ Størrelse: Stik
    Rotation: CW
    Stik nr.: PL62
    Samlet længde mm: 179.00
    Drevskive: SP
    Regulator type: IR
    Produktinfo: BN
    Service: Daewoo

    Filer

  • Specifikation
    B+ M8
    Mount. bracket dist. 81.30
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 60
    Plug no. PL62
    Bracket hole 8.30
    Position/B+ in min. 40
    Prod. info BN
    Pulley SP
    Pulley dia. 47.80
    Pulley dist. 36.00
    Radius 80.00
    D+ Size Plug
    Radius 2 86.00
    Regulator type IR
    Rotation CW
    Servicing Daewoo
    Grooves/pulley 5
    Voltage 14
    Total length 179.00 mm
    Width/holder arm 13.20
    Amp 85
  • Køretøjsmatchning

    • OEM
      F032113350, 1671ir, 219139, 96300550, 96303556, 96404012

    • Konkurrentreferens
      A1004, ALT-1210, ALT1210, ALT45204, BAO3289, CAL46103, dra3638, DRA3638N, F042300071, F042A00071, J5110907, LRB00433, 1-2403-01DR, 8EL012428-291, 8EL737997-001, 28-3502, 547.106.852, 8280N, 8280R, 210389, 210389A, 437666, 440715, 9212569, 12060796, 063532636, 0986049600, 063532636010, 944390901570

    • NormaliseratArtNr
      a1004, alt1210, alt45204, bao3289, cal46103, dra3638, dra3638n, f032113350, f042300071, f042a00071, j5110907, lrb00433, 8el012428291, 8el737997001, 1671ir, 8280n, 8280r, 210389, 210389a, 219139, 283502, 437666, 440715, 1240301dr, 9212569, 12060796, 063532636, 96300550, 96303556, 96404012, 547106852, 0986049600, 063532636010, 944390901570

    • Passar modeller
      Chevrolet Model: Lanos Model series: Lanos Size of motor: 1.5 Brand of engine: LX6 From date: 01-11-2005 To date: 01-12-2010 Fuel: Gasoline Approved: Yes
      Chevrolet Model: Rezzo/Tacuma Model series: Rezzo/Tacuma Size of motor: 1.6 Brand of engine: A16DMS Body: MPV From date: 01-03-2005 Fuel: Gasoline Approved: Yes
      Daewoo Model: Lanos Model series: Lanos Size of motor: 1.4 Brand of engine: A14SMS Type description: KLAT Body: Hatchback From date: 01-05-1997 Fuel: Gasoline Approved: Yes
      Daewoo Model: Lanos Model series: Lanos Size of motor: 1.4 Brand of engine: A14SMS Type description: KLAT From date: 01-05-1997 Fuel: Gasoline Approved: Yes
      Daewoo Model: Lanos Model series: Lanos Size of motor: 1.5 Brand of engine: A15SMS Type description: KLAT Body: Hatchback From date: 01-05-1997 Fuel: Gasoline Approved: Yes
      Daewoo Model: Lanos Model series: Lanos Size of motor: 1.5 Brand of engine: A15SMS Type description: KLAT From date: 01-05-1997 Fuel: Gasoline Approved: Yes
      Daewoo Model: Lanos Model series: Lanos Type of engine: 16V Size of motor: 1.6 Brand of engine: A16DMS Type description: KLAT Body: Hatchback From date: 01-05-1997 Fuel: Gasoline Approved: Yes
      Daewoo Model: Lanos Model series: Lanos Type of engine: 16V Size of motor: 1.6 Brand of engine: A16DMS Type description: KLAT From date: 01-02-1997 Fuel: Gasoline Approved: Yes
