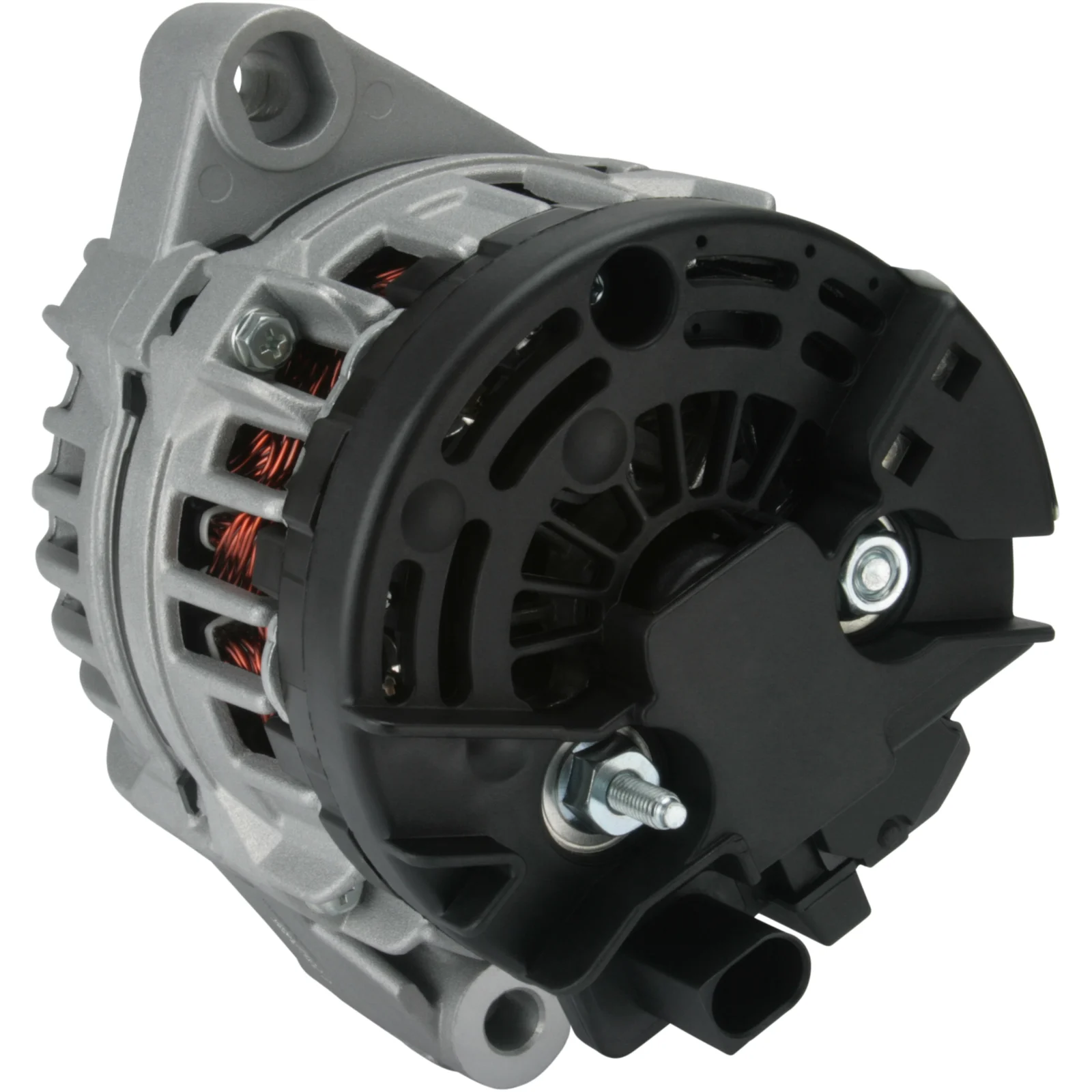

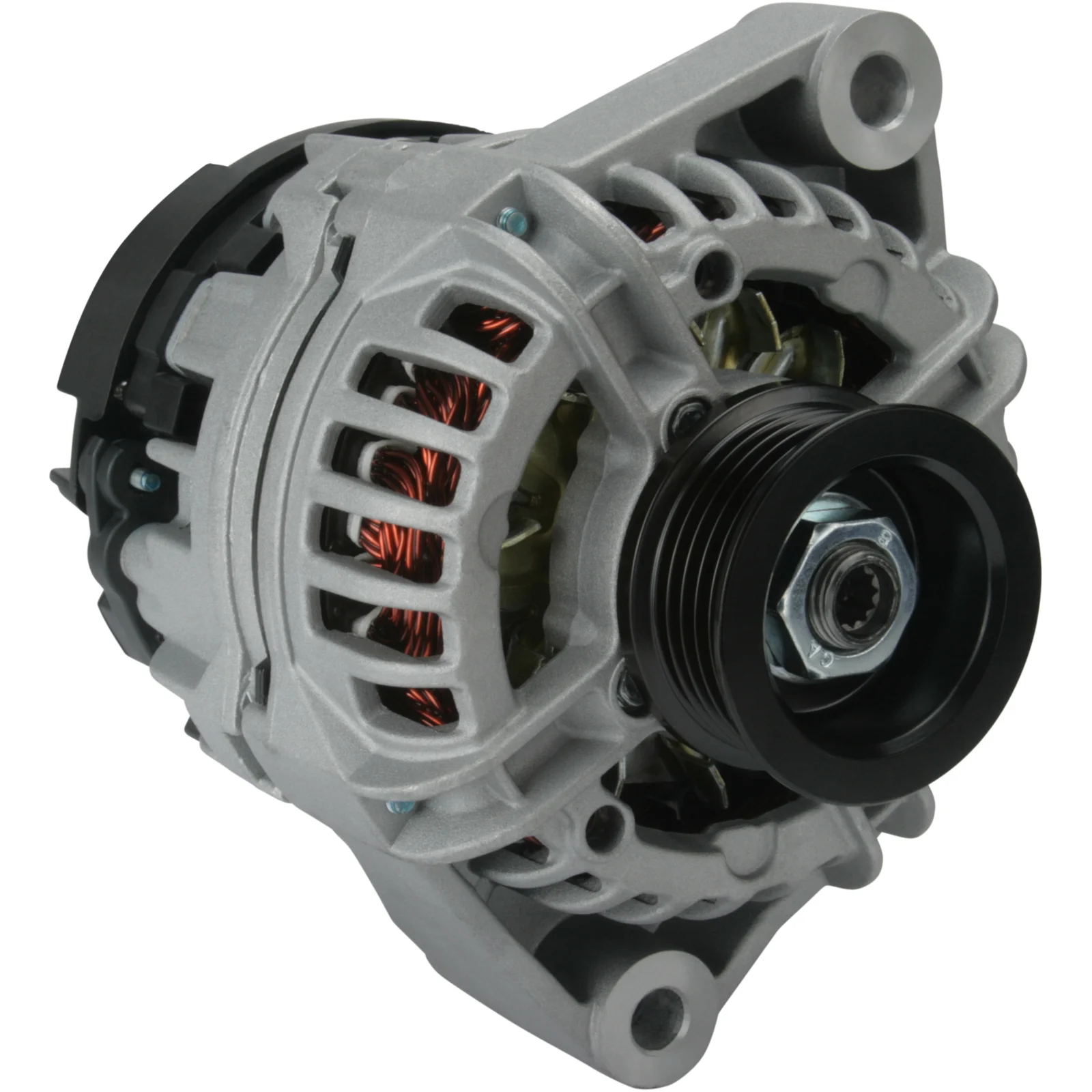

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032115746

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 90, Rotation: CW, Remskive dia.: 54.00

Beskrivelse

Spænding: 14
Amp: 90
Drevkugg. dist.: 90,50
Bredde/holderarm: 58,20
Bøsninghullet: 10,50
Bæltespændingsreg. bøsningpos.: 5
Bæltespændingsreg. bøsninghullet 1: 11,40
Drevkugg. dia.: 54,00
Riller/drevkugg.: 5
Radius: 80,00
Radius 2: 80,00
B+: M6
Position/B+ in min.: 37
Rotation: U + (med uret)
Stik nr.: PL181
Total længde mm: 174,00
Terminaltype: COM
Kommunikation: LIN
Drevkugg.: SP
Regulator type: IR
Produktinfo: BN
Bemærkninger: Denne Generator har en COM-terminal på regulatoren. Det anbefales at anvende OEM-nummeret for at kontrollere egnethed, før der bestilles.

Filer

Specifikation

B+ M6
Communication LIN
Belt. adj. bracket hole 1 11.40
Belt. adj. brackethole pos. 5
Plug no. PL181
Bracket hole 10.50
Position/B+ in min. 37
Prod. info BN
Pulley SP
Pulley dia. 54.00
Pulley dist. 90.50
Radius 80.00
Radius 2 80.00
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Grooves/pulley 5
Terminal type COM
Voltage 14
Total length 174.00 mm
Width/holder arm 58.20
Amp 90

  • OEM
    a0131546902, F032115746, 0124225058, 0124225074, 0131546902

  • Konkurrentreferens
    A0476, CAL10419, DRA1223, LRA03518, 28-6628, 525.136.902, 555.573.090, 209042, 209042A, 9090729, 12090470

  • NormaliseratArtNr
    a0131546902, a0476, cal10419, dra1223, f032115746, lra03518, 209042, 209042a, 286628, 9090729, 12090470, 0124225058, 0124225074, 0131546902, 525136902, 555573090

  • Passar modeller
    Smart (MCC) Model: Fortwo Model series: Fortwo Type of engine: CDi Size of motor: 0.8 Brand of engine: OM660.950 Type description: 451 Body: Convertible From date: 01-01-2007 Fuel: Diesel Approved: Yes
    Smart (MCC) Model: Fortwo Model series: Fortwo Type of engine: CDi Size of motor: 0.8 Brand of engine: OM660.950 Type description: 451 Body: Coupe From date: 01-01-2007 Fuel: Diesel Approved: Yes
    Smart (MCC) Model: Fortwo Model series: Fortwo Type of engine: CDi Size of motor: 0.8 Brand of engine: OM660.951 Type description: 451 Body: Convertible From date: 01-08-2009 Fuel: Diesel Approved: Yes
    Smart (MCC) Model: Fortwo Model series: Fortwo Type of engine: CDi Size of motor: 0.8 Brand of engine: OM660.951 Type description: 451 Body: Coupe From date: 01-08-2009 Fuel: Diesel Approved: Yes
  • Beskrivelse
    Spænding: 14
    Amp: 90
    Drevkugg. dist.: 90,50
    Bredde/holderarm: 58,20
    Bøsninghullet: 10,50
    Bæltespændingsreg. bøsningpos.: 5
    Bæltespændingsreg. bøsninghullet 1: 11,40
    Drevkugg. dia.: 54,00
    Riller/drevkugg.: 5
    Radius: 80,00
    Radius 2: 80,00
    B+: M6
    Position/B+ in min.: 37
    Rotation: U + (med uret)
    Stik nr.: PL181
    Total længde mm: 174,00
    Terminaltype: COM
    Kommunikation: LIN
    Drevkugg.: SP
    Regulator type: IR
    Produktinfo: BN
    Bemærkninger: Denne Generator har en COM-terminal på regulatoren. Det anbefales at anvende OEM-nummeret for at kontrollere egnethed, før der bestilles.

    Filer

  • Specifikation
    B+ M6
    Communication LIN
    Belt. adj. bracket hole 1 11.40
    Belt. adj. brackethole pos. 5
    Plug no. PL181
    Bracket hole 10.50
    Position/B+ in min. 37
    Prod. info BN
    Pulley SP
    Pulley dia. 54.00
    Pulley dist. 90.50
    Radius 80.00
    Radius 2 80.00
    Regulator type IR
    Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
    Rotation CW
    Grooves/pulley 5
    Terminal type COM
    Voltage 14
    Total length 174.00 mm
    Width/holder arm 58.20
    Amp 90
  • Køretøjsmatchning

    • OEM
      a0131546902, F032115746, 0124225058, 0124225074, 0131546902

    • Konkurrentreferens
      A0476, CAL10419, DRA1223, LRA03518, 28-6628, 525.136.902, 555.573.090, 209042, 209042A, 9090729, 12090470

    • NormaliseratArtNr
      a0131546902, a0476, cal10419, dra1223, f032115746, lra03518, 209042, 209042a, 286628, 9090729, 12090470, 0124225058, 0124225074, 0131546902, 525136902, 555573090

    • Passar modeller
      Smart (MCC) Model: Fortwo Model series: Fortwo Type of engine: CDi Size of motor: 0.8 Brand of engine: OM660.950 Type description: 451 Body: Convertible From date: 01-01-2007 Fuel: Diesel Approved: Yes
      Smart (MCC) Model: Fortwo Model series: Fortwo Type of engine: CDi Size of motor: 0.8 Brand of engine: OM660.950 Type description: 451 Body: Coupe From date: 01-01-2007 Fuel: Diesel Approved: Yes
      Smart (MCC) Model: Fortwo Model series: Fortwo Type of engine: CDi Size of motor: 0.8 Brand of engine: OM660.951 Type description: 451 Body: Convertible From date: 01-08-2009 Fuel: Diesel Approved: Yes
      Smart (MCC) Model: Fortwo Model series: Fortwo Type of engine: CDi Size of motor: 0.8 Brand of engine: OM660.951 Type description: 451 Body: Coupe From date: 01-08-2009 Fuel: Diesel Approved: Yes
