HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032112397

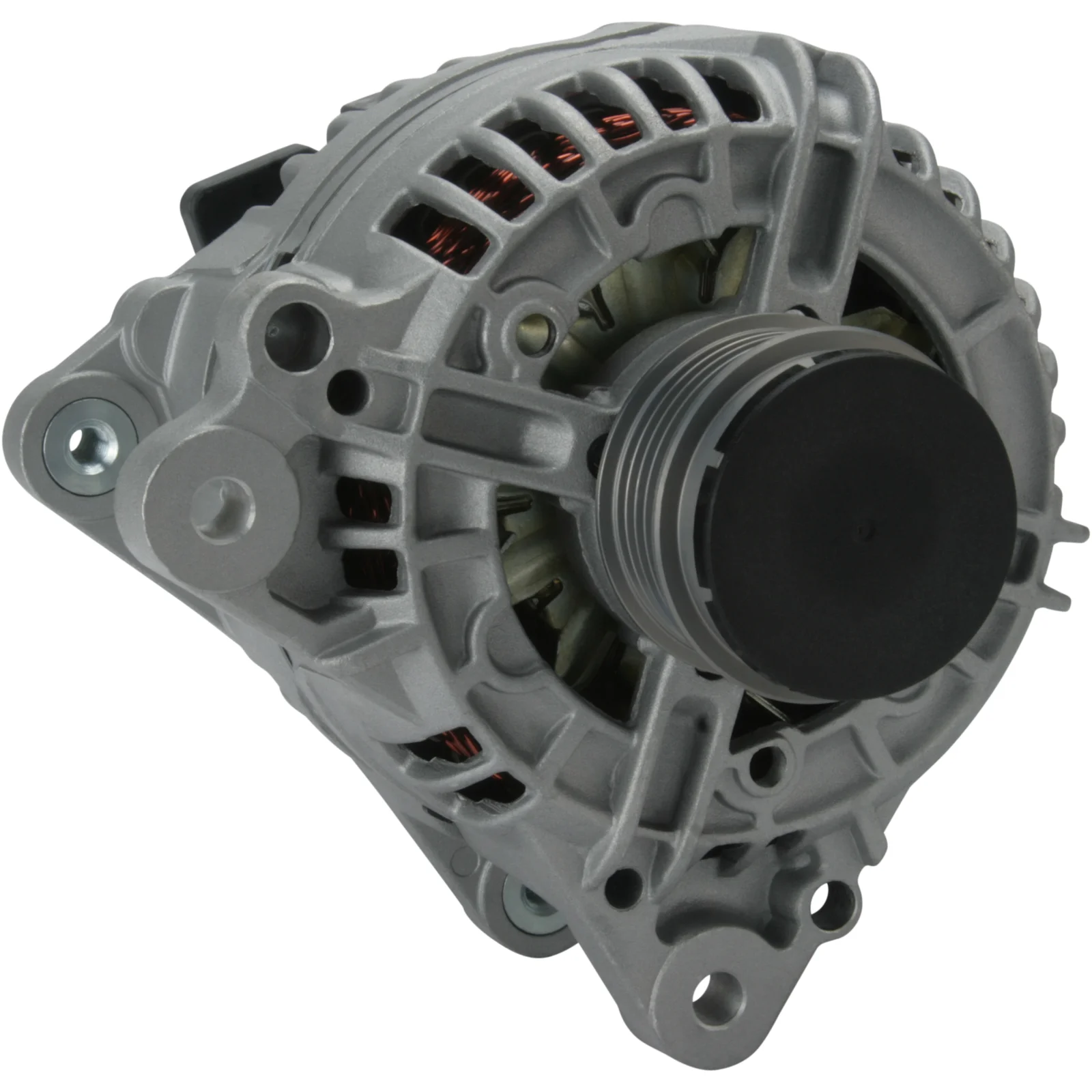

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 120, Rotation: CW, Monteringsbeslag for distribution: 61,00

Beskrivelse

Audi/VW Generator | Gen. 12V-120A 12V - 120A, 5 gr.frg, (L-DFM) 12V - 120A, 5 gr.frg, (L-DFM) For Yourex produkt bestilling 90-620-4283

Spænding: 14
Ampere: 120
Remskivelyd: 29.80
Bredde/holderarm: 14.00
Monteringsbeslag afstanden: 61.00
Beslagshuls diameter: 9.50
Bæltespændingsjustering beslag hul position: 45
Bæltespændingsjustering beslag hul 1: 9.50
Remskivens diameter: 55.80
Riller/remskive: 5
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ i min.: 50
D+ Størrelse: Plug
Rotation: CW
Plug nummer: PL61
Total længde mm: 188.00
Remskive: SP/FW
Regulator type: IR
Produktoplysninger: BN
Service: Audi

Filer

Specifikation

B+ M8
Mount. bracket dist. 61.00
Belt. adj. bracket hole 1 9.50
Belt. adj. brackethole pos. 45
Plug no. PL61
Bracket hole 9.50
Position/B+ in min. 50
Prod. info BN
Pulley SP/FW
Pulley dia. 55.80
Pulley dist. 29.80
Radius 90.00
D+ Size Plug
Radius 2 90.00
Regulator type IR
Rotation CW
Servicing Audi
Grooves/pulley 5
Voltage 14
Total length 188.00 mm
Width/holder arm 14.00
Amp 120

  • OEM
    F032112397, SG12B 012, SG12B 049, sg12b012, sg12b049, 028 903 029B, 028 903 029E, 028 903 031, 028 903 031A, 0124 515 026, 0124 515 083, 0986 042 830, 1541ir, 1986A00861, 112397, 437341, 2542234, 2542234A, 2542508, 2542508A, 2542508C, 2542508D, 2542508E, 2542508F, 028903018K, 028903029b, 028903029BX, 028903029e, 028903029EX, 028903031, 028903031a, 028903031AX, 028903031X, 0124515026, 0124515083, 0124515197

  • Konkurrentreferens
    A0046, A0046(P), A0046(P-INA), A0046PR, A0046SR, A0741S, A3424S, ALT-2312, ALT10184, CAL15130, DRB1870, DRB1870N, DRB1870X, F042A01194, ia1339, LRA02756, LRB00518, MG684, MG8, 8EL011360-321, 8EL011710-471, 28-3705, 28-4611, 211.197.1202, 4036, 11210N, 11210R, 119072, 119925, 200000, 210007, 210007A, 301541RI, 437341, 439328, 746008, 746808, 839018, 9042830, 9213685, 12041870, 12042830, 32042830, 0986041870, 0986042830, 0986042837, 944390428300

  • Bilmärken
    Audi, Skoda, VW

  • NormaliseratArtNr
    a0046, a0046p, a0046pina, a0046pr, a0046sr, a0741s, a3424s, alt10184, alt2312, cal15130, drb1870, drb1870n, drb1870x, f032112397, f042a01194, ia1339, lra02756, lrb00518, mg684, mg8, sg12b012, sg12b049, 8el011360321, 8el011710471, 1541ir, 1986a00861, 4036, 11210n, 11210r, 112397, 119072, 119925, 200000, 210007, 210007a, 283705, 284611, 301541ri, 437341, 439328, 746008, 746808, 839018, 2542234, 2542234a, 2542508, 2542508a, 2542508c, 2542508d, 2542508e, 2542508f, 9042830, 9213685, 12041870, 12042830, 028903018k, 028903029b, 028903029bx, 028903029e, 028903029ex, 028903031, 028903031a, 028903031ax, 028903031x, 32042830, 0124515026, 0124515083, 0124515197, 0986041870, 0986042830, 0986042837, 2111971202, 944390428300

  • Passar modeller
    Audi Model: A4 Model series: A4 Model type: Hybrid Duo Size of motor: 1.9 Brand of engine: AHU Type description: 8D5,B5 Body: Estate From date: 01-03-1998 To date: 01-09-2001 Fuel: Diesel Approved: Yes Manufacture type: AVANT
    Audi Model: A4 Model series: A4 Model type: Quattro Type of engine: TDi Size of motor: 1.9 Brand of engine: AJM Type description: 8D2 From date: 01-03-2000 To date: 01-11-2000 Fuel: Diesel Approved: Yes
    Audi Model: A4 Model series: A4 Model type: Quattro Type of engine: TDi Size of motor: 1.9 Brand of engine: AJM Type description: 8D5,B5 Body: Estate From date: 01-03-2000 To date: 01-09-2001 Fuel: Diesel Approved: Yes Manufacture type: AVANT
    Audi Model: A4 Model series: A4 Model type: Quattro Type of engine: TDi Size of motor: 1.9 Brand of engine: ATJ Type description: 8D2 From date: 01-03-2000 To date: 01-11-2000 Fuel: Diesel Approved: Yes
    Audi Model: A4 Model series: A4 Model type: Quattro Type of engine: TDi Size of motor: 1.9 Brand of engine: ATJ Type description: 8D5,B5 Body: Estate From date: 01-03-2000 To date: 01-09-2001 Fuel: Diesel Approved: Yes Manufacture type: AVANT
    Audi Model: A4 Model series: A4 Model type: Quattro Type of engine: TDi Size of motor: 1.9 Brand of engine: AVF Type description: 8E2 From date: 01-11-2001 To date: 01-12-2004 Fuel: Diesel Approved: Yes
    Audi Model: A4 Model series: A4 Model type: Quattro Type of engine: TDi Size of motor: 1.9 Brand of engine: AVF Type description: 8E5 Body: Estate From date: 01-11-2001 To date: 01-12-2004 Fuel: Diesel Approved: Yes Manufacture type: AVANT
    Audi Model: A4 Model series: A4 Model type: Quattro Type of engine: TDi Size of motor: 1.9 Brand of engine: AVG Type description: 8D2 From date: 01-09-1996 To date: 01-11-2000 Fuel: Diesel Approved: Yes
    Audi Model: A4 Model series: A4 Type of engine: Diesel Size of motor: 1.9 Brand of engine: AFF Type description: 8D2 From date: 01-12-1995 To date: 01-11-2000 Fuel: Diesel Approved: Yes
    Audi Model: A4 Model series: A4 Type of engine: Diesel Size of motor: 1.9 Brand of engine: AFF Type description: 8D5 Body: Estate From date: 01-03-1996 To date: 01-09-2001 Fuel: Diesel Approved: Yes Manufacture type: AVANT
    Audi Model: A4 Model series: A4 Type of engine: TDi Size of motor: 1.9 Brand of engine: 1Z Type description: 8D2 From date: 01-01-1995 To date: 01-11-2000 Fuel: Diesel Approved: Yes
    Audi Model: A4 Model series: A4 Type of engine: TDi Size of motor: 1.9 Brand of engine: AFN Type description: 8D2 From date: 01-10-1995 To date: 01-11-2000 Fuel: Diesel Approved: Yes
    Audi Model: A4 Model series: A4 Type of engine: TDi Size of motor: 1.9 Brand of engine: AFN Type description: 8D5 Body: Estate From date: 01-02-1996 To date: 01-09-2001 Fuel: Diesel Approved: Yes Manufacture type: AVANT
    Audi Model: A4 Model series: A4 Type of engine: TDi Size of motor: 1.9 Brand of engine: AHH Type description: 8D2 From date: 01-01-1995 To date: 01-11-2000 Fuel: Diesel Approved: Yes
    Audi Model: A4 Model series: A4 Type of engine: TDi Size of motor: 1.9 Brand of engine: AHU Type description: 8D2 From date: 01-01-1995 To date: 01-11-2000 Fuel: Diesel Approved: Yes
    Audi Model: A4 Model series: A4 Type of engine: TDi Size of motor: 1.9 Brand of engine: AHU Type description: 8D5 Body: Estate From date: 01-02-1996 To date: 01-09-2001 Fuel: Diesel Approved: Yes Manufacture type: AVANT
    Audi Model: A4 Model series: A4 Type of engine: TDi Size of motor: 1.9 Brand of engine: AJM Type description: 8D2 From date: 01-03-2000 To date: 01-11-2000 Fuel: Diesel Approved: Yes
    Audi Model: A4 Model series: A4 Type of engine: TDi Size of motor: 1.9 Brand of engine: AJM Type description: 8D5,B5 Body: Estate From date: 01-03-2000 To date: 01-09-2001 Fuel: Diesel Approved: Yes Manufacture type: AVANT
    Audi Model: A4 Model series: A4 Type of engine: TDi Size of motor: 1.9 Brand of engine: AVB Type description: 8E5 Body: Estate From date: 01-11-2001 To date: 01-12-2004 Fuel: Diesel Approved: Yes Manufacture type: AVANT
    Audi Model: A4 Model series: A4 Type of engine: TDi Size of motor: 1.9 Brand of engine: AVG Type description: 8D2 From date: 01-10-1995 To date: 01-11-2000 Fuel: Diesel Approved: Yes
    Audi Model: A4 Model series: A4 Type of engine: TDi Size of motor: 1.9 Brand of engine: AVG Type description: 8D5 Body: Estate From date: 01-02-1996 To date: 01-09-2001 Fuel: Diesel Approved: Yes Manufacture type: AVANT
    Audi Model: A6 Model series: A6 Type of engine: TDi Size of motor: 1.9 Brand of engine: AFN Type description: 4B Body: Estate From date: 01-02-1998 To date: 01-04-2001 Fuel: Diesel Approved: Yes Manufacture type: AVANT
    Audi Model: A6 Model series: A6 Type of engine: TDi Size of motor: 1.9 Brand of engine: AFN Type description: 4B,C5 From date: 01-04-1997 To date: 01-10-2000 Fuel: Diesel Approved: Yes
    Audi Model: A6 Model series: A6 Type of engine: TDi Size of motor: 1.9 Brand of engine: AJM Type description: 4B,C5 Body: Estate From date: 01-07-2000 To date: 01-01-2005 Fuel: Diesel Approved: Yes Manufacture type: AVANT
    Audi Model: A6 Model series: A6 Type of engine: TDi Size of motor: 1.9 Brand of engine: AJM Type description: 4B,C5 From date: 01-07-2000 To date: 01-01-2005 Fuel: Diesel Approved: Yes
    Audi Model: A6 Model series: A6 Type of engine: TDi Size of motor: 1.9 Brand of engine: AVF From date: 01-08-2001 To date: 01-01-2005 Fuel: Diesel Approved: Yes
    Audi Model: A6 Model series: A6 Type of engine: TDi Size of motor: 1.9 Brand of engine: AVF Type description: 4B,C5 Body: Estate From date: 01-08-2001 To date: 01-01-2005 Fuel: Diesel Approved: Yes Manufacture type: AVANT
    Audi Model: A6 Model series: A6 Type of engine: TDi Size of motor: 1.9 Brand of engine: AVG Type description: 4B Body: Estate From date: 01-02-1998 To date: 01-04-2001 Fuel: Diesel Approved: Yes Manufacture type: AVANT
    Audi Model: A6 Model series: A6 Type of engine: TDi Size of motor: 1.9 Brand of engine: AVG Type description: 4B,C5 From date: 01-04-1997 To date: 01-10-2000 Fuel: Diesel Approved: Yes
    Audi Model: A6 Model series: A6 Type of engine: TDi Size of motor: 1.9 Brand of engine: AWX From date: 01-08-2001 To date: 01-01-2005 Fuel: Diesel Approved: Yes
    Audi Model: A6 Model series: A6 Type of engine: TDi Size of motor: 1.9 Brand of engine: AWX Type description: 4B,C5 Body: Estate From date: 01-08-2001 To date: 01-01-2005 Fuel: Diesel Approved: Yes Manufacture type: AVANT
    Audi Series: A4 (B5) Model: 1.9 TDI Ch.nr.->8D..X..400 000 Engine volume: 1.9 Engine type: AFN Year: 02.96-06.99
    Audi Series: A4 Avant (B5) Model: 1.9 TDI Engine volume: 1.9 Engine type: AVG Year: 08.99-06.00
    Audi Series: A6 (C5) Model: 1.9 TDI Engine volume: 1.9 Engine type: AFN Year: 08.98-08.99
    Audi Series: A6 (C5) Model: 1.9 TDI Engine volume: 1.9 Engine type: AJM Year: 07.00-04.01
    Audi Series: A6 (C5) Model: 1.9 TDI Ch:4B..X..000 001-> Engine volume: 1.9 Engine type: AFN Year: 08.98-08.99
    Audi Series: A6 (C5) Model: 1.9 TDI Engine volume: 1.9 Engine type: AVG Year: 08.99-10.00
    Audi Series: A6 Avant (C5) Model: 1.9 TDI Ch.nr.4B..X..000 001.> Engine volume: 1.9 Engine type: AFN Year: 08.98-04.01
    Skoda Model: Superb Model series: Superb Type of engine: TDi Size of motor: 1.9 Brand of engine: AVB Type description: 3U4 From date: 01-08-2002 To date: 01-10-2005 Fuel: Diesel Approved: Yes
    Skoda Model: Superb Model series: Superb Type of engine: TDi Size of motor: 1.9 Brand of engine: AVF Type description: 3U4 From date: 01-12-2001 To date: 01-03-2008 Fuel: Diesel Approved: Yes
    Skoda Model: Superb Model series: Superb Type of engine: TDi Size of motor: 1.9 Brand of engine: AWX Type description: 3U4 From date: 01-12-2001 To date: 01-03-2008 Fuel: Diesel Approved: Yes
    Skoda Model: Superb Model series: Superb Type of engine: TDi Size of motor: 2.0 Brand of engine: BWW Type description: 3U4 From date: 01-02-2006 To date: 01-03-2008 Fuel: Diesel Approved: Yes
    Skoda Series: Superb Model: 1.9 TDI Engine volume: 1.9 Engine type: AWX / AVB Year: 02.02-
    VW Model: Passat Model series: Passat Model type: 4 Motion Type of engine: TDi Size of motor: 1.9 Brand of engine: AVF Type description: 3B3 From date: 01-11-2000 To date: 01-05-2005 Fuel: Diesel Approved: Yes
    VW Model: Passat Model series: Passat Model type: 4 Motion Type of engine: TDi Size of motor: 1.9 Brand of engine: AVF Type description: 3B6 Body: Estate From date: 01-11-2000 To date: 01-05-2005 Fuel: Diesel Approved: Yes Manufacture type: variant
    VW Model: Passat Model series: Passat Model type: Syncro 4 Motion Type of engine: TDi Size of motor: 1.9 Brand of engine: AFN Body: Estate From date: 01-06-1997 To date: 01-08-2000 Fuel: Diesel Approved: Yes Manufacture type: variant
    VW Model: Passat Model series: Passat Model type: Syncro 4 Motion Type of engine: TDi Size of motor: 1.9 Brand of engine: AFN From date: 01-06-1997 To date: 01-08-2000 Fuel: Diesel Approved: Yes
    VW Model: Passat Model series: Passat Model type: Syncro 4 Motion Type of engine: TDi Size of motor: 1.9 Brand of engine: ATJ Type description: 3B2 From date: 01-08-1999 To date: 01-11-2000 Fuel: Diesel Approved: Yes
    VW Model: Passat Model series: Passat Model type: Syncro 4 Motion Type of engine: TDi Size of motor: 1.9 Brand of engine: ATJ Type description: 3B5 Body: Estate From date: 01-08-1999 To date: 01-11-2000 Fuel: Diesel Approved: Yes Manufacture type: variant
    VW Model: Passat Model series: Passat Model type: Syncro 4 Motion Type of engine: TDi Size of motor: 1.9 Brand of engine: AVG Body: Estate From date: 01-06-1997 To date: 01-08-2000 Fuel: Diesel Approved: Yes Manufacture type: variant
    VW Model: Passat Model series: Passat Model type: Syncro 4 Motion Type of engine: TDi Size of motor: 1.9 Brand of engine: AVG From date: 01-06-1997 To date: 01-08-2000 Fuel: Diesel Approved: Yes
    VW Model: Passat Model series: Passat Type of engine: TDi Size of motor: 1.9 Brand of engine: AFN From date: 01-10-1996 To date: 01-11-2000 Fuel: Diesel Approved: Yes
    VW Model: Passat Model series: Passat Type of engine: TDi Size of motor: 1.9 Brand of engine: AFN Type description: 3B_ Body: Estate From date: 01-06-1997 To date: 01-11-2000 Fuel: Diesel Approved: Yes Manufacture type: variant
    VW Model: Passat Model series: Passat Type of engine: TDi Size of motor: 1.9 Brand of engine: AHH Body: Estate From date: 01-06-1997 To date: 01-11-2000 Fuel: Diesel Approved: Yes Manufacture type: variant
    VW Model: Passat Model series: Passat Type of engine: TDi Size of motor: 1.9 Brand of engine: AHH From date: 01-10-1996 To date: 01-11-2000 Fuel: Diesel Approved: Yes
    VW Model: Passat Model series: Passat Type of engine: TDi Size of motor: 1.9 Brand of engine: AHU Body: Estate From date: 01-06-1997 To date: 01-11-2000 Fuel: Diesel Approved: Yes Manufacture type: variant
    VW Model: Passat Model series: Passat Type of engine: TDi Size of motor: 1.9 Brand of engine: AHU From date: 01-10-1996 To date: 01-11-2000 Fuel: Diesel Approved: Yes
    VW Model: Passat Model series: Passat Type of engine: TDi Size of motor: 1.9 Brand of engine: AJM Type description: 3B Body: Estate From date: 01-08-1998 To date: 01-11-2000 Fuel: Diesel Approved: Yes Manufacture type: variant
    VW Model: Passat Model series: Passat Type of engine: TDi Size of motor: 1.9 Brand of engine: AJM Type description: 3B From date: 01-08-1998 To date: 01-11-2000 Fuel: Diesel Approved: Yes
    VW Model: Passat Model series: Passat Type of engine: TDi Size of motor: 1.9 Brand of engine: ATJ Type description: 3B Body: Estate From date: 01-08-1998 To date: 01-11-2000 Fuel: Diesel Approved: Yes Manufacture type: variant
    VW Model: Passat Model series: Passat Type of engine: TDi Size of motor: 1.9 Brand of engine: ATJ Type description: 3B From date: 01-08-1998 To date: 01-11-2000 Fuel: Diesel Approved: Yes
    VW Model: Passat Model series: Passat Type of engine: TDi Size of motor: 1.9 Brand of engine: AVB Type description: 3B2 From date: 01-02-2000 To date: 01-11-2000 Fuel: Diesel Approved: Yes
    VW Model: Passat Model series: Passat Type of engine: TDi Size of motor: 1.9 Brand of engine: AVB Type description: 3B3 From date: 01-11-2000 To date: 01-05-2005 Fuel: Diesel Approved: Yes
    VW Model: Passat Model series: Passat Type of engine: TDi Size of motor: 1.9 Brand of engine: AVB Type description: 3B5 Body: Estate From date: 01-02-2000 To date: 01-11-2000 Fuel: Diesel Approved: Yes Manufacture type: variant
    VW Model: Passat Model series: Passat Type of engine: TDi Size of motor: 1.9 Brand of engine: AVB Type description: 3B6 Body: Estate From date: 01-11-2000 To date: 01-05-2005 Fuel: Diesel Approved: Yes Manufacture type: variant
    VW Model: Passat Model series: Passat Type of engine: TDi Size of motor: 1.9 Brand of engine: AVF Type description: 3B3 From date: 01-11-2000 To date: 01-05-2005 Fuel: Diesel Approved: Yes
    VW Model: Passat Model series: Passat Type of engine: TDi Size of motor: 1.9 Brand of engine: AVF Type description: 3B6 Body: Estate From date: 01-11-2000 To date: 01-05-2005 Fuel: Diesel Approved: Yes Manufacture type: variant
    VW Model: Passat Model series: Passat Type of engine: TDi Size of motor: 1.9 Brand of engine: AVG From date: 01-10-1996 To date: 01-11-2000 Fuel: Diesel Approved: Yes
    VW Model: Passat Model series: Passat Type of engine: TDi Size of motor: 1.9 Brand of engine: AVG Type description: 3B_ Body: Estate From date: 01-06-1997 To date: 01-11-2000 Fuel: Diesel Approved: Yes Manufacture type: variant
    VW Model: Passat Model series: Passat Type of engine: TDi Size of motor: 1.9 Brand of engine: AWX Type description: 3B3 From date: 01-11-2000 To date: 01-05-2005 Fuel: Diesel Approved: Yes
    VW Model: Passat Model series: Passat Type of engine: TDi Size of motor: 1.9 Brand of engine: AWX Type description: 3B6 Body: Estate From date: 01-11-2000 To date: 01-05-2005 Fuel: Diesel Approved: Yes Manufacture type: variant
    VW Model: Passat Model series: Passat Type of engine: TDi Size of motor: 2.0 Brand of engine: BGH Type description: 3B3 From date: 01-12-2003 To date: 01-05-2005 Fuel: Diesel Approved: Yes
    VW Model: Passat Model series: Passat Type of engine: TDi Size of motor: 2.0 Brand of engine: BGH Type description: 3B6 Body: Estate From date: 01-12-2003 To date: 01-05-2005 Fuel: Diesel Approved: Yes Manufacture type: variant
    VW Model: Passat Model series: Passat Type of engine: TDi Size of motor: 2.0 Brand of engine: BGW Type description: 3B3 From date: 01-12-2003 To date: 01-05-2005 Fuel: Diesel Approved: Yes
    VW Model: Passat Model series: Passat Type of engine: TDi Size of motor: 2.0 Brand of engine: BGW Type description: 3B6 Body: Estate From date: 01-12-2003 To date: 01-05-2005 Fuel: Diesel Approved: Yes Manufacture type: variant
    VW Series: Passat (3B2) Model: 1.9 TDI Obs! Ch.nr.! Engine volume: 1.9 Engine type: AFN / AVG Year: 06.99-11.00
    VW Series: Passat (3B2) Model: 1.9 TDI Syncro/4 M, Ch. nr.! Engine volume: 1.9 Engine type: AFN / AVG Year: 09.98-08.00
    VW Series: Passat (3B2/3B5) Model: 1.9 TDI Engine volume: 1.9 Engine type: AFN/AHH/AHU/AVG Year: 09.98-11.00
    VW Series: Passat (3B3/3B6) Model: 1.9 TDI Engine volume: 1.9 Engine type: AWB Year: 11.00-
    VW Series: Passat CC Model: 1.9 TDI Obs! Ch.nr.! Engine volume: 1.9 Engine type: AJM / ATJ Year: 09.98-11.00
    VW Series: Passat Variant (3B5) Model: 1.9 TDI 4motion Engine volume: 1.9 Engine type: ATJ Year: 01.00-11.00
    VW Series: Passat Variant (3B5) Model: 1.9 TDI Engine volume: 1.9 Engine type: AFN / AVG Year: 09.98-11.00
    VW Series: Passat Variant (3B5) Model: 1.9 TDI Obs! Ch.nr.! Engine volume: 1.9 Engine type: AJM / ATJ Year: 03.99-11.00
    VW Series: Passat Variant (3B5) Model: 1.9 TDI Syncro 4M Engine volume: 1.9 Engine type: AFN Year: 09.98-08.99
    VW Series: Passat Variant (3B5) Model: 1.9 TDI Syncro 4M Engine volume: 1.9 Engine type: AVG Year: 08.99-10.00
    VW Series: Passat Variant (3B6) Model: 1.9 TDI 4motion Engine volume: 1.9 Engine type: AVF Year: 11.00-05.05
    VW Series: Passat Variant (3B6) Model: 1.9 TDI Engine volume: 1.9 Engine type: AVF / AWX Year: 11.00-05.05
    1 / 18
  • Beskrivelse
    Audi/VW Generator | Gen. 12V-120A 12V - 120A, 5 gr.frg, (L-DFM) 12V - 120A, 5 gr.frg, (L-DFM) For Yourex produkt bestilling 90-620-4283

    Spænding: 14
    Ampere: 120
    Remskivelyd: 29.80
    Bredde/holderarm: 14.00
    Monteringsbeslag afstanden: 61.00
    Beslagshuls diameter: 9.50
    Bæltespændingsjustering beslag hul position: 45
    Bæltespændingsjustering beslag hul 1: 9.50
    Remskivens diameter: 55.80
    Riller/remskive: 5
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ i min.: 50
    D+ Størrelse: Plug
    Rotation: CW
    Plug nummer: PL61
    Total længde mm: 188.00
    Remskive: SP/FW
    Regulator type: IR
    Produktoplysninger: BN
    Service: Audi

    Filer

  • Specifikation
    B+ M8
    Mount. bracket dist. 61.00
    Belt. adj. bracket hole 1 9.50
    Belt. adj. brackethole pos. 45
    Plug no. PL61
    Bracket hole 9.50
    Position/B+ in min. 50
    Prod. info BN
    Pulley SP/FW
    Pulley dia. 55.80
    Pulley dist. 29.80
    Radius 90.00
    D+ Size Plug
    Radius 2 90.00
    Regulator type IR
    Rotation CW
    Servicing Audi
    Grooves/pulley 5
    Voltage 14
    Total length 188.00 mm
    Width/holder arm 14.00
    Amp 120
  • Køretøjsmatchning

    • OEM
      F032112397, SG12B 012, SG12B 049, sg12b012, sg12b049, 028 903 029B, 028 903 029E, 028 903 031, 028 903 031A, 0124 515 026, 0124 515 083, 0986 042 830, 1541ir, 1986A00861, 112397, 437341, 2542234, 2542234A, 2542508, 2542508A, 2542508C, 2542508D, 2542508E, 2542508F, 028903018K, 028903029b, 028903029BX, 028903029e, 028903029EX, 028903031, 028903031a, 028903031AX, 028903031X, 0124515026, 0124515083, 0124515197

    • Konkurrentreferens
      A0046, A0046(P), A0046(P-INA), A0046PR, A0046SR, A0741S, A3424S, ALT-2312, ALT10184, CAL15130, DRB1870, DRB1870N, DRB1870X, F042A01194, ia1339, LRA02756, LRB00518, MG684, MG8, 8EL011360-321, 8EL011710-471, 28-3705, 28-4611, 211.197.1202, 4036, 11210N, 11210R, 119072, 119925, 200000, 210007, 210007A, 301541RI, 437341, 439328, 746008, 746808, 839018, 9042830, 9213685, 12041870, 12042830, 32042830, 0986041870, 0986042830, 0986042837, 944390428300

    • Bilmärken
      Audi, Skoda, VW

    • NormaliseratArtNr
      a0046, a0046p, a0046pina, a0046pr, a0046sr, a0741s, a3424s, alt10184, alt2312, cal15130, drb1870, drb1870n, drb1870x, f032112397, f042a01194, ia1339, lra02756, lrb00518, mg684, mg8, sg12b012, sg12b049, 8el011360321, 8el011710471, 1541ir, 1986a00861, 4036, 11210n, 11210r, 112397, 119072, 119925, 200000, 210007, 210007a, 283705, 284611, 301541ri, 437341, 439328, 746008, 746808, 839018, 2542234, 2542234a, 2542508, 2542508a, 2542508c, 2542508d, 2542508e, 2542508f, 9042830, 9213685, 12041870, 12042830, 028903018k, 028903029b, 028903029bx, 028903029e, 028903029ex, 028903031, 028903031a, 028903031ax, 028903031x, 32042830, 0124515026, 0124515083, 0124515197, 0986041870, 0986042830, 0986042837, 2111971202, 944390428300

    • Passar modeller
      Audi Model: A4 Model series: A4 Model type: Hybrid Duo Size of motor: 1.9 Brand of engine: AHU Type description: 8D5,B5 Body: Estate From date: 01-03-1998 To date: 01-09-2001 Fuel: Diesel Approved: Yes Manufacture type: AVANT
      Audi Model: A4 Model series: A4 Model type: Quattro Type of engine: TDi Size of motor: 1.9 Brand of engine: AJM Type description: 8D2 From date: 01-03-2000 To date: 01-11-2000 Fuel: Diesel Approved: Yes
      Audi Model: A4 Model series: A4 Model type: Quattro Type of engine: TDi Size of motor: 1.9 Brand of engine: AJM Type description: 8D5,B5 Body: Estate From date: 01-03-2000 To date: 01-09-2001 Fuel: Diesel Approved: Yes Manufacture type: AVANT
      Audi Model: A4 Model series: A4 Model type: Quattro Type of engine: TDi Size of motor: 1.9 Brand of engine: ATJ Type description: 8D2 From date: 01-03-2000 To date: 01-11-2000 Fuel: Diesel Approved: Yes
      Audi Model: A4 Model series: A4 Model type: Quattro Type of engine: TDi Size of motor: 1.9 Brand of engine: ATJ Type description: 8D5,B5 Body: Estate From date: 01-03-2000 To date: 01-09-2001 Fuel: Diesel Approved: Yes Manufacture type: AVANT
      Audi Model: A4 Model series: A4 Model type: Quattro Type of engine: TDi Size of motor: 1.9 Brand of engine: AVF Type description: 8E2 From date: 01-11-2001 To date: 01-12-2004 Fuel: Diesel Approved: Yes
      Audi Model: A4 Model series: A4 Model type: Quattro Type of engine: TDi Size of motor: 1.9 Brand of engine: AVF Type description: 8E5 Body: Estate From date: 01-11-2001 To date: 01-12-2004 Fuel: Diesel Approved: Yes Manufacture type: AVANT
      Audi Model: A4 Model series: A4 Model type: Quattro Type of engine: TDi Size of motor: 1.9 Brand of engine: AVG Type description: 8D2 From date: 01-09-1996 To date: 01-11-2000 Fuel: Diesel Approved: Yes
      Audi Model: A4 Model series: A4 Type of engine: Diesel Size of motor: 1.9 Brand of engine: AFF Type description: 8D2 From date: 01-12-1995 To date: 01-11-2000 Fuel: Diesel Approved: Yes
      Audi Model: A4 Model series: A4 Type of engine: Diesel Size of motor: 1.9 Brand of engine: AFF Type description: 8D5 Body: Estate From date: 01-03-1996 To date: 01-09-2001 Fuel: Diesel Approved: Yes Manufacture type: AVANT
      Audi Model: A4 Model series: A4 Type of engine: TDi Size of motor: 1.9 Brand of engine: 1Z Type description: 8D2 From date: 01-01-1995 To date: 01-11-2000 Fuel: Diesel Approved: Yes
      Audi Model: A4 Model series: A4 Type of engine: TDi Size of motor: 1.9 Brand of engine: AFN Type description: 8D2 From date: 01-10-1995 To date: 01-11-2000 Fuel: Diesel Approved: Yes
      Audi Model: A4 Model series: A4 Type of engine: TDi Size of motor: 1.9 Brand of engine: AFN Type description: 8D5 Body: Estate From date: 01-02-1996 To date: 01-09-2001 Fuel: Diesel Approved: Yes Manufacture type: AVANT
      Audi Model: A4 Model series: A4 Type of engine: TDi Size of motor: 1.9 Brand of engine: AHH Type description: 8D2 From date: 01-01-1995 To date: 01-11-2000 Fuel: Diesel Approved: Yes
      Audi Model: A4 Model series: A4 Type of engine: TDi Size of motor: 1.9 Brand of engine: AHU Type description: 8D2 From date: 01-01-1995 To date: 01-11-2000 Fuel: Diesel Approved: Yes
      Audi Model: A4 Model series: A4 Type of engine: TDi Size of motor: 1.9 Brand of engine: AHU Type description: 8D5 Body: Estate From date: 01-02-1996 To date: 01-09-2001 Fuel: Diesel Approved: Yes Manufacture type: AVANT
      Audi Model: A4 Model series: A4 Type of engine: TDi Size of motor: 1.9 Brand of engine: AJM Type description: 8D2 From date: 01-03-2000 To date: 01-11-2000 Fuel: Diesel Approved: Yes
      Audi Model: A4 Model series: A4 Type of engine: TDi Size of motor: 1.9 Brand of engine: AJM Type description: 8D5,B5 Body: Estate From date: 01-03-2000 To date: 01-09-2001 Fuel: Diesel Approved: Yes Manufacture type: AVANT
      Audi Model: A4 Model series: A4 Type of engine: TDi Size of motor: 1.9 Brand of engine: AVB Type description: 8E5 Body: Estate From date: 01-11-2001 To date: 01-12-2004 Fuel: Diesel Approved: Yes Manufacture type: AVANT
      Audi Model: A4 Model series: A4 Type of engine: TDi Size of motor: 1.9 Brand of engine: AVG Type description: 8D2 From date: 01-10-1995 To date: 01-11-2000 Fuel: Diesel Approved: Yes
      Audi Model: A4 Model series: A4 Type of engine: TDi Size of motor: 1.9 Brand of engine: AVG Type description: 8D5 Body: Estate From date: 01-02-1996 To date: 01-09-2001 Fuel: Diesel Approved: Yes Manufacture type: AVANT
      Audi Model: A6 Model series: A6 Type of engine: TDi Size of motor: 1.9 Brand of engine: AFN Type description: 4B Body: Estate From date: 01-02-1998 To date: 01-04-2001 Fuel: Diesel Approved: Yes Manufacture type: AVANT
      Audi Model: A6 Model series: A6 Type of engine: TDi Size of motor: 1.9 Brand of engine: AFN Type description: 4B,C5 From date: 01-04-1997 To date: 01-10-2000 Fuel: Diesel Approved: Yes
      Audi Model: A6 Model series: A6 Type of engine: TDi Size of motor: 1.9 Brand of engine: AJM Type description: 4B,C5 Body: Estate From date: 01-07-2000 To date: 01-01-2005 Fuel: Diesel Approved: Yes Manufacture type: AVANT
      Audi Model: A6 Model series: A6 Type of engine: TDi Size of motor: 1.9 Brand of engine: AJM Type description: 4B,C5 From date: 01-07-2000 To date: 01-01-2005 Fuel: Diesel Approved: Yes
      Audi Model: A6 Model series: A6 Type of engine: TDi Size of motor: 1.9 Brand of engine: AVF From date: 01-08-2001 To date: 01-01-2005 Fuel: Diesel Approved: Yes
      Audi Model: A6 Model series: A6 Type of engine: TDi Size of motor: 1.9 Brand of engine: AVF Type description: 4B,C5 Body: Estate From date: 01-08-2001 To date: 01-01-2005 Fuel: Diesel Approved: Yes Manufacture type: AVANT
      Audi Model: A6 Model series: A6 Type of engine: TDi Size of motor: 1.9 Brand of engine: AVG Type description: 4B Body: Estate From date: 01-02-1998 To date: 01-04-2001 Fuel: Diesel Approved: Yes Manufacture type: AVANT
      Audi Model: A6 Model series: A6 Type of engine: TDi Size of motor: 1.9 Brand of engine: AVG Type description: 4B,C5 From date: 01-04-1997 To date: 01-10-2000 Fuel: Diesel Approved: Yes
      Audi Model: A6 Model series: A6 Type of engine: TDi Size of motor: 1.9 Brand of engine: AWX From date: 01-08-2001 To date: 01-01-2005 Fuel: Diesel Approved: Yes
      Audi Model: A6 Model series: A6 Type of engine: TDi Size of motor: 1.9 Brand of engine: AWX Type description: 4B,C5 Body: Estate From date: 01-08-2001 To date: 01-01-2005 Fuel: Diesel Approved: Yes Manufacture type: AVANT
      Audi Series: A4 (B5) Model: 1.9 TDI Ch.nr.->8D..X..400 000 Engine volume: 1.9 Engine type: AFN Year: 02.96-06.99
      Audi Series: A4 Avant (B5) Model: 1.9 TDI Engine volume: 1.9 Engine type: AVG Year: 08.99-06.00
      Audi Series: A6 (C5) Model: 1.9 TDI Engine volume: 1.9 Engine type: AFN Year: 08.98-08.99
      Audi Series: A6 (C5) Model: 1.9 TDI Engine volume: 1.9 Engine type: AJM Year: 07.00-04.01
      Audi Series: A6 (C5) Model: 1.9 TDI Ch:4B..X..000 001-> Engine volume: 1.9 Engine type: AFN Year: 08.98-08.99
      Audi Series: A6 (C5) Model: 1.9 TDI Engine volume: 1.9 Engine type: AVG Year: 08.99-10.00
      Audi Series: A6 Avant (C5) Model: 1.9 TDI Ch.nr.4B..X..000 001.> Engine volume: 1.9 Engine type: AFN Year: 08.98-04.01
      Skoda Model: Superb Model series: Superb Type of engine: TDi Size of motor: 1.9 Brand of engine: AVB Type description: 3U4 From date: 01-08-2002 To date: 01-10-2005 Fuel: Diesel Approved: Yes
      Skoda Model: Superb Model series: Superb Type of engine: TDi Size of motor: 1.9 Brand of engine: AVF Type description: 3U4 From date: 01-12-2001 To date: 01-03-2008 Fuel: Diesel Approved: Yes
      Skoda Model: Superb Model series: Superb Type of engine: TDi Size of motor: 1.9 Brand of engine: AWX Type description: 3U4 From date: 01-12-2001 To date: 01-03-2008 Fuel: Diesel Approved: Yes
      Skoda Model: Superb Model series: Superb Type of engine: TDi Size of motor: 2.0 Brand of engine: BWW Type description: 3U4 From date: 01-02-2006 To date: 01-03-2008 Fuel: Diesel Approved: Yes
      Skoda Series: Superb Model: 1.9 TDI Engine volume: 1.9 Engine type: AWX / AVB Year: 02.02-
      VW Model: Passat Model series: Passat Model type: 4 Motion Type of engine: TDi Size of motor: 1.9 Brand of engine: AVF Type description: 3B3 From date: 01-11-2000 To date: 01-05-2005 Fuel: Diesel Approved: Yes
      VW Model: Passat Model series: Passat Model type: 4 Motion Type of engine: TDi Size of motor: 1.9 Brand of engine: AVF Type description: 3B6 Body: Estate From date: 01-11-2000 To date: 01-05-2005 Fuel: Diesel Approved: Yes Manufacture type: variant
      VW Model: Passat Model series: Passat Model type: Syncro 4 Motion Type of engine: TDi Size of motor: 1.9 Brand of engine: AFN Body: Estate From date: 01-06-1997 To date: 01-08-2000 Fuel: Diesel Approved: Yes Manufacture type: variant
      VW Model: Passat Model series: Passat Model type: Syncro 4 Motion Type of engine: TDi Size of motor: 1.9 Brand of engine: AFN From date: 01-06-1997 To date: 01-08-2000 Fuel: Diesel Approved: Yes
      VW Model: Passat Model series: Passat Model type: Syncro 4 Motion Type of engine: TDi Size of motor: 1.9 Brand of engine: ATJ Type description: 3B2 From date: 01-08-1999 To date: 01-11-2000 Fuel: Diesel Approved: Yes
      VW Model: Passat Model series: Passat Model type: Syncro 4 Motion Type of engine: TDi Size of motor: 1.9 Brand of engine: ATJ Type description: 3B5 Body: Estate From date: 01-08-1999 To date: 01-11-2000 Fuel: Diesel Approved: Yes Manufacture type: variant
      VW Model: Passat Model series: Passat Model type: Syncro 4 Motion Type of engine: TDi Size of motor: 1.9 Brand of engine: AVG Body: Estate From date: 01-06-1997 To date: 01-08-2000 Fuel: Diesel Approved: Yes Manufacture type: variant
      VW Model: Passat Model series: Passat Model type: Syncro 4 Motion Type of engine: TDi Size of motor: 1.9 Brand of engine: AVG From date: 01-06-1997 To date: 01-08-2000 Fuel: Diesel Approved: Yes
      VW Model: Passat Model series: Passat Type of engine: TDi Size of motor: 1.9 Brand of engine: AFN From date: 01-10-1996 To date: 01-11-2000 Fuel: Diesel Approved: Yes
      VW Model: Passat Model series: Passat Type of engine: TDi Size of motor: 1.9 Brand of engine: AFN Type description: 3B_ Body: Estate From date: 01-06-1997 To date: 01-11-2000 Fuel: Diesel Approved: Yes Manufacture type: variant
      VW Model: Passat Model series: Passat Type of engine: TDi Size of motor: 1.9 Brand of engine: AHH Body: Estate From date: 01-06-1997 To date: 01-11-2000 Fuel: Diesel Approved: Yes Manufacture type: variant
      VW Model: Passat Model series: Passat Type of engine: TDi Size of motor: 1.9 Brand of engine: AHH From date: 01-10-1996 To date: 01-11-2000 Fuel: Diesel Approved: Yes
      VW Model: Passat Model series: Passat Type of engine: TDi Size of motor: 1.9 Brand of engine: AHU Body: Estate From date: 01-06-1997 To date: 01-11-2000 Fuel: Diesel Approved: Yes Manufacture type: variant
      VW Model: Passat Model series: Passat Type of engine: TDi Size of motor: 1.9 Brand of engine: AHU From date: 01-10-1996 To date: 01-11-2000 Fuel: Diesel Approved: Yes
      VW Model: Passat Model series: Passat Type of engine: TDi Size of motor: 1.9 Brand of engine: AJM Type description: 3B Body: Estate From date: 01-08-1998 To date: 01-11-2000 Fuel: Diesel Approved: Yes Manufacture type: variant
      VW Model: Passat Model series: Passat Type of engine: TDi Size of motor: 1.9 Brand of engine: AJM Type description: 3B From date: 01-08-1998 To date: 01-11-2000 Fuel: Diesel Approved: Yes
      VW Model: Passat Model series: Passat Type of engine: TDi Size of motor: 1.9 Brand of engine: ATJ Type description: 3B Body: Estate From date: 01-08-1998 To date: 01-11-2000 Fuel: Diesel Approved: Yes Manufacture type: variant
      VW Model: Passat Model series: Passat Type of engine: TDi Size of motor: 1.9 Brand of engine: ATJ Type description: 3B From date: 01-08-1998 To date: 01-11-2000 Fuel: Diesel Approved: Yes
      VW Model: Passat Model series: Passat Type of engine: TDi Size of motor: 1.9 Brand of engine: AVB Type description: 3B2 From date: 01-02-2000 To date: 01-11-2000 Fuel: Diesel Approved: Yes
      VW Model: Passat Model series: Passat Type of engine: TDi Size of motor: 1.9 Brand of engine: AVB Type description: 3B3 From date: 01-11-2000 To date: 01-05-2005 Fuel: Diesel Approved: Yes
      VW Model: Passat Model series: Passat Type of engine: TDi Size of motor: 1.9 Brand of engine: AVB Type description: 3B5 Body: Estate From date: 01-02-2000 To date: 01-11-2000 Fuel: Diesel Approved: Yes Manufacture type: variant
      VW Model: Passat Model series: Passat Type of engine: TDi Size of motor: 1.9 Brand of engine: AVB Type description: 3B6 Body: Estate From date: 01-11-2000 To date: 01-05-2005 Fuel: Diesel Approved: Yes Manufacture type: variant
      VW Model: Passat Model series: Passat Type of engine: TDi Size of motor: 1.9 Brand of engine: AVF Type description: 3B3 From date: 01-11-2000 To date: 01-05-2005 Fuel: Diesel Approved: Yes
      VW Model: Passat Model series: Passat Type of engine: TDi Size of motor: 1.9 Brand of engine: AVF Type description: 3B6 Body: Estate From date: 01-11-2000 To date: 01-05-2005 Fuel: Diesel Approved: Yes Manufacture type: variant
      VW Model: Passat Model series: Passat Type of engine: TDi Size of motor: 1.9 Brand of engine: AVG From date: 01-10-1996 To date: 01-11-2000 Fuel: Diesel Approved: Yes
      VW Model: Passat Model series: Passat Type of engine: TDi Size of motor: 1.9 Brand of engine: AVG Type description: 3B_ Body: Estate From date: 01-06-1997 To date: 01-11-2000 Fuel: Diesel Approved: Yes Manufacture type: variant
      VW Model: Passat Model series: Passat Type of engine: TDi Size of motor: 1.9 Brand of engine: AWX Type description: 3B3 From date: 01-11-2000 To date: 01-05-2005 Fuel: Diesel Approved: Yes
      VW Model: Passat Model series: Passat Type of engine: TDi Size of motor: 1.9 Brand of engine: AWX Type description: 3B6 Body: Estate From date: 01-11-2000 To date: 01-05-2005 Fuel: Diesel Approved: Yes Manufacture type: variant
      VW Model: Passat Model series: Passat Type of engine: TDi Size of motor: 2.0 Brand of engine: BGH Type description: 3B3 From date: 01-12-2003 To date: 01-05-2005 Fuel: Diesel Approved: Yes
      VW Model: Passat Model series: Passat Type of engine: TDi Size of motor: 2.0 Brand of engine: BGH Type description: 3B6 Body: Estate From date: 01-12-2003 To date: 01-05-2005 Fuel: Diesel Approved: Yes Manufacture type: variant
      VW Model: Passat Model series: Passat Type of engine: TDi Size of motor: 2.0 Brand of engine: BGW Type description: 3B3 From date: 01-12-2003 To date: 01-05-2005 Fuel: Diesel Approved: Yes
      VW Model: Passat Model series: Passat Type of engine: TDi Size of motor: 2.0 Brand of engine: BGW Type description: 3B6 Body: Estate From date: 01-12-2003 To date: 01-05-2005 Fuel: Diesel Approved: Yes Manufacture type: variant
      VW Series: Passat (3B2) Model: 1.9 TDI Obs! Ch.nr.! Engine volume: 1.9 Engine type: AFN / AVG Year: 06.99-11.00
      VW Series: Passat (3B2) Model: 1.9 TDI Syncro/4 M, Ch. nr.! Engine volume: 1.9 Engine type: AFN / AVG Year: 09.98-08.00
      VW Series: Passat (3B2/3B5) Model: 1.9 TDI Engine volume: 1.9 Engine type: AFN/AHH/AHU/AVG Year: 09.98-11.00
      VW Series: Passat (3B3/3B6) Model: 1.9 TDI Engine volume: 1.9 Engine type: AWB Year: 11.00-
      VW Series: Passat CC Model: 1.9 TDI Obs! Ch.nr.! Engine volume: 1.9 Engine type: AJM / ATJ Year: 09.98-11.00
      VW Series: Passat Variant (3B5) Model: 1.9 TDI 4motion Engine volume: 1.9 Engine type: ATJ Year: 01.00-11.00
      VW Series: Passat Variant (3B5) Model: 1.9 TDI Engine volume: 1.9 Engine type: AFN / AVG Year: 09.98-11.00
      VW Series: Passat Variant (3B5) Model: 1.9 TDI Obs! Ch.nr.! Engine volume: 1.9 Engine type: AJM / ATJ Year: 03.99-11.00
      VW Series: Passat Variant (3B5) Model: 1.9 TDI Syncro 4M Engine volume: 1.9 Engine type: AFN Year: 09.98-08.99
      VW Series: Passat Variant (3B5) Model: 1.9 TDI Syncro 4M Engine volume: 1.9 Engine type: AVG Year: 08.99-10.00
      VW Series: Passat Variant (3B6) Model: 1.9 TDI 4motion Engine volume: 1.9 Engine type: AVF Year: 11.00-05.05
      VW Series: Passat Variant (3B6) Model: 1.9 TDI Engine volume: 1.9 Engine type: AVF / AWX Year: 11.00-05.05
      1 / 18

Vi bruger cookies for at give dig den bedste oplevelse på vores hjemmeside. Du accepterer brugen af ​​cookies ved at trykke på OK og fortsætte med at navigere på hjemmesiden.
