Vare nr.: F032113519

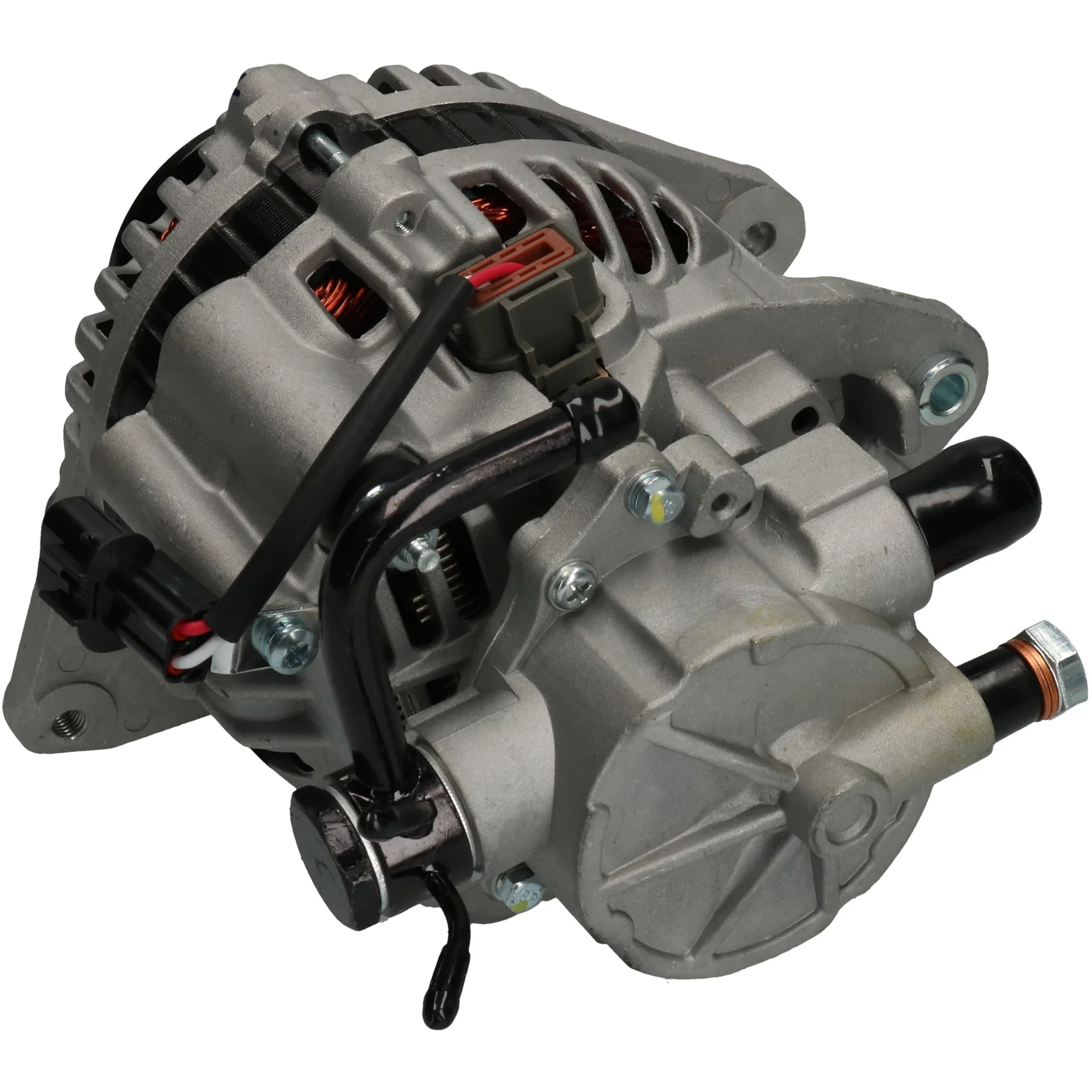

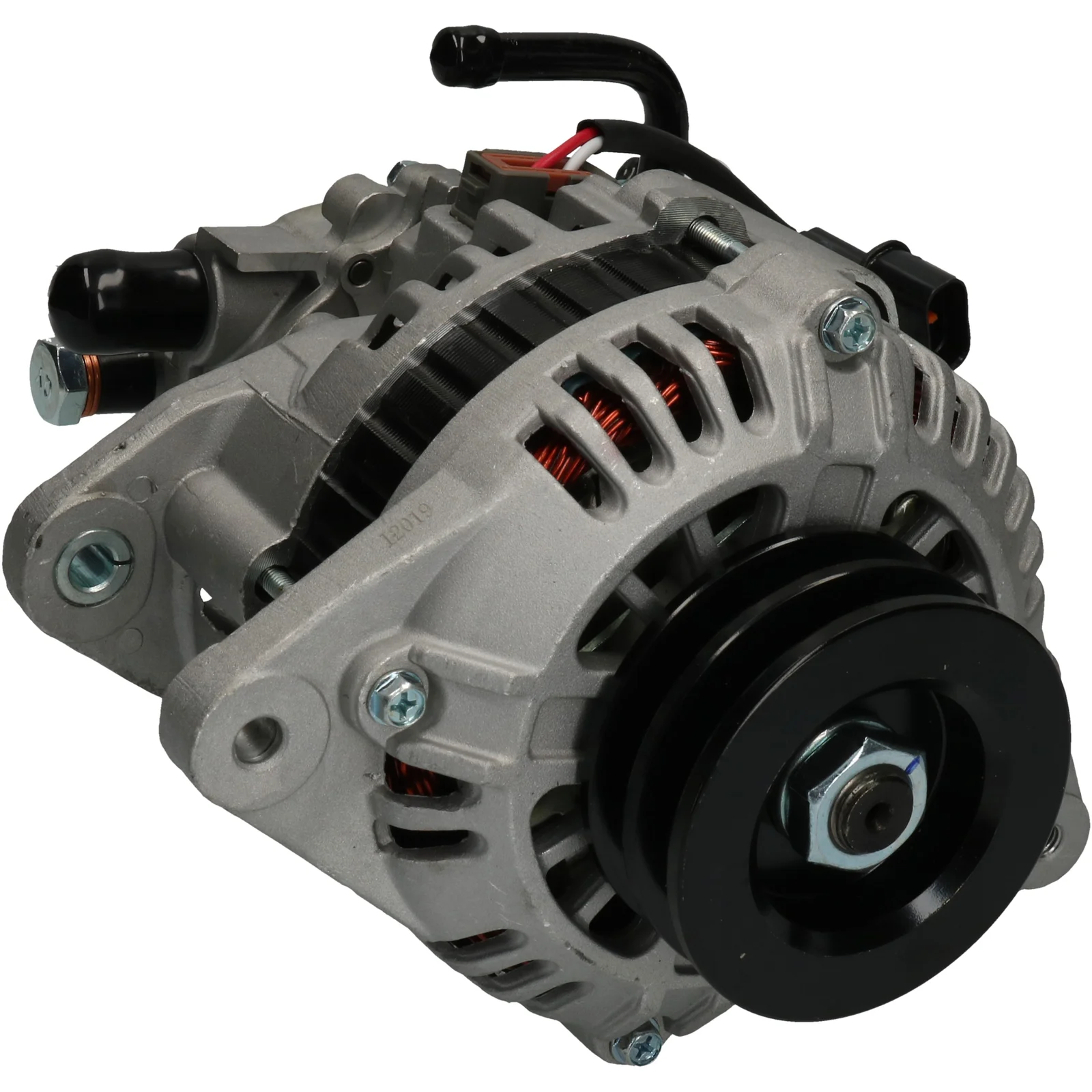

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 90, Rotation: CW, Mount. bøjle afstand: 55,00

Beskrivelse

Spænding: 14
Amp: 90
Remskive dist.: 42,00
Bredde/holderarm: 13,00
Monteringsbeslag dist.: 55,00
Beslagshul: 8,50
Bæltejustering beslagshul pos.: 5
Bæltejustering beslagshul 1: M8
Remskive dia.: 79,50
Riller/remskive: 2
Radius: 90,00
Radius 2: 98,00
B+: M6
Posisjon/B+ i min.: 10
D+ Størrelse: Stikkontakt
Rotation: Med uret
Stiknummer: PL111
Total længde mm: 223,00
Remskive: DP
Regulator type: IR
Kølepumpe: Ja
Produktinfo: BN
Service: Hyundai

Specifikation

B+ M6
Mount. bracket dist. 55.00
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 5
Plug no. PL111
Bracket hole 8.50
Position/B+ in min. 10
Prod. info BN
Pulley DP
Pulley dia. 79.50
Pulley dist. 42.00
Radius 90.00
D+ Size Plug
Radius 2 98.00
Regulator type IR
Rotation CW
Servicing Hyundai
Grooves/pulley 2
Vac. pump Yes
Voltage 14
Total length 223.00 mm
Width/holder arm 13.00
Amp 90
  • OEM

    af175207, AF175362, AF175385, af190216, AF190217, F032113519, ja1717ir, N370-18-300, N370-18-300A, N370-18-300B, N370-18-300H, TA000A58602, 37300-42542, 37300-42860, 37300-42870, 37300-42871, 37300-47500, 37300-47501, 37300-47502, 37300-47503
  • Konkurrentreferens

    A3246(VALEO), A3255(VALEO), A5244, A9037, A9280S, ALT-H145, ama-392, CAL32113, CAL32118, dra3178, DRA4175, DRA4176, DRA4176X, F042A0H145, J5110516, J5110526, J5113028, LRA01372, LRA01682, LRA01956, lra02340, 8EL011711-261, 8EL011711-271, 8EL738103-001, 8EL738104-001, 24-51.328, 24-51.329, 28-1780, 28-2906, 28-3852, 28-4840, 224.128.802, 526.127.752, 526.127.902, 526.139.752, 9404, 13337N, 13337R, 22956N, 111215, 210331, 210331A, 210332, 210332A, 210385, 210385A, 210644, 210644A, 401716RI, 401717RI, 600006, 600018, 600021, 600278, 600283, 608359, 9213286, 12060115, 12060764, 12060811, 063532603, 063532606, 0986049720, 0986080130, 063532603010, 063532606010, 944390605030, 944390904510
  • NormaliseratArtNr

    a3246valeo, a3255valeo, a5244, a9037, a9280s, af175207, af175362, af175385, af190216, af190217, alth145, ama392, cal32113, cal32118, dra3178, dra4175, dra4176, dra4176x, f032113519, f042a0h145, j5110516, j5110526, j5113028, ja1717ir, lra01372, lra01682, lra01956, lra02340, n37018300, n37018300a, n37018300b, n37018300h, ta000a58602, 8el011711261, 8el011711271, 8el738103001, 8el738104001, 9404, 13337n, 13337r, 22956n, 111215, 210331, 210331a, 210332, 210332a, 210385, 210385a, 210644, 210644a, 281780, 282906, 283852, 284840, 401716ri, 401717ri, 600006, 600018, 600021, 600278, 600283, 608359, 2451328, 2451329, 9213286, 12060115, 12060764, 12060811, 063532603, 063532606, 224128802, 526127752, 526127902, 526139752, 0986049720, 0986080130, 3730042542, 3730042860, 3730042870, 3730042871, 3730047500, 3730047501, 3730047502, 3730047503, 063532603010, 063532606010, 944390605030, 944390904510
  • Passar modeller

    Hyundai Model: Galloper Model series: Galloper Model type: Intercooler Type of engine: Diesel Size of motor: 2.5 Brand of engine: D4BH Type description: JK-01 From date: 01-08-1998 To date: 01-12-2003 Fuel: Diesel Approved: Yes
    Hyundai Model: Galloper Model series: Galloper Model type: Intercooler Type of engine: TCi Size of motor: 2.5 Brand of engine: D4BH Type description: JK-01 From date: 01-08-1998 To date: 01-12-2003 Fuel: Diesel Approved: Yes
    Hyundai Model: Galloper Model series: Galloper Type of engine: TD Size of motor: 2.5 Brand of engine: D4BA Type description: JK-01 From date: 01-08-1998 To date: 01-12-2003 Fuel: Diesel Approved: Yes
    Hyundai Model: Grace Model series: Grace Type of engine: Diesel Size of motor: 2.6 Brand of engine: D4BB Body: Bus From date: 01-10-1999 To date: 01-10-2004 Fuel: Diesel Approved: Yes
    Hyundai Model: Grace Model series: Grace Type of engine: Diesel Size of motor: 2.6 Brand of engine: D4BB Body: Van From date: 01-10-1999 To date: 01-12-2004 Fuel: Diesel Approved: Yes
    Mitsubishi Model: Galloper Model series: Galloper Model type: Intercooler Type of engine: Diesel Size of motor: 2.5 Brand of engine: D4BH From date: 01-09-1998 To date: 01-12-2003 Fuel: Diesel Approved: Yes
    Mitsubishi Model: Galloper Model series: Galloper Type of engine: TD Size of motor: 2.5 Brand of engine: D4BF Type description: JK-01 From date: 01-09-1998 To date: 01-12-2003 Fuel: Diesel Approved: Yes
