HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032116732

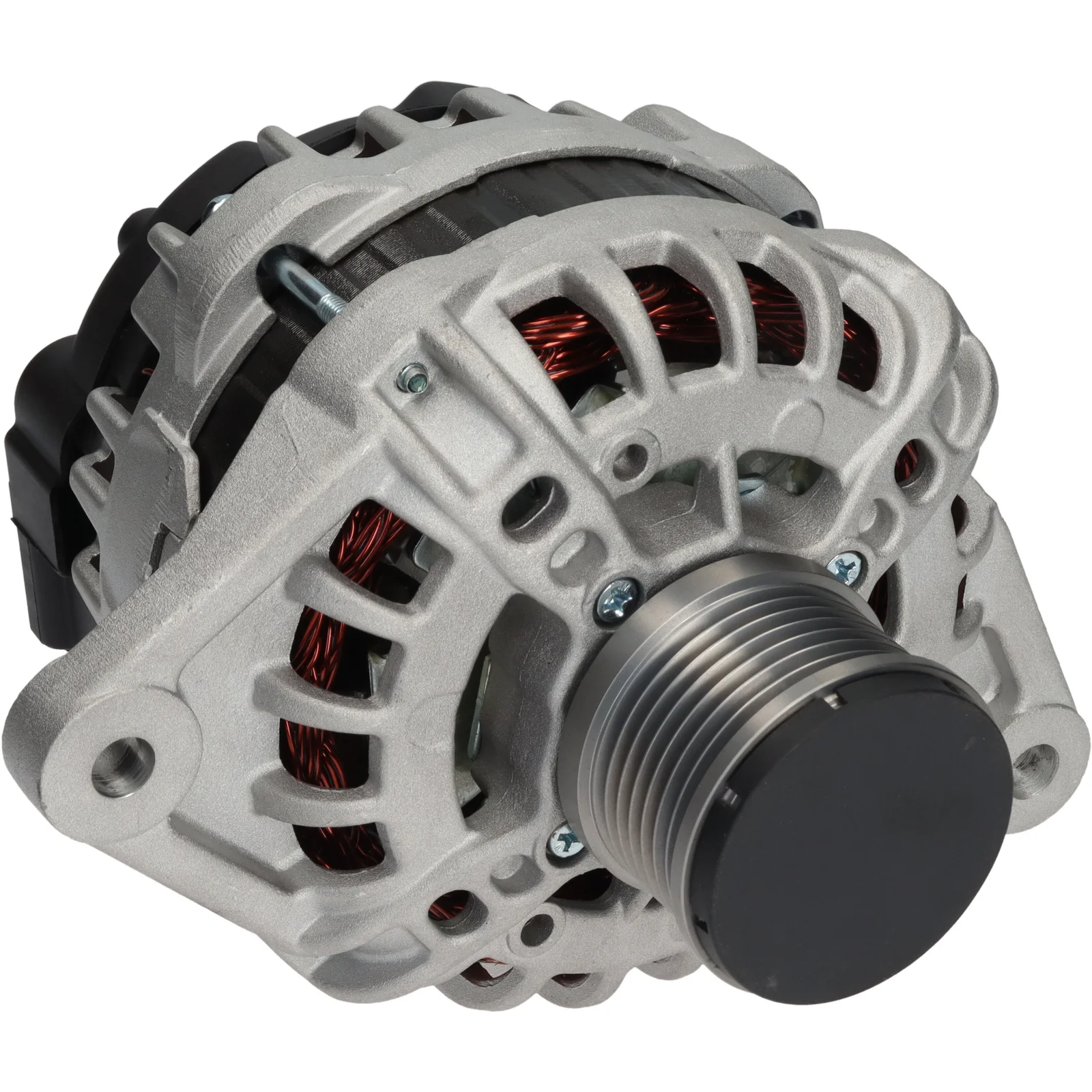

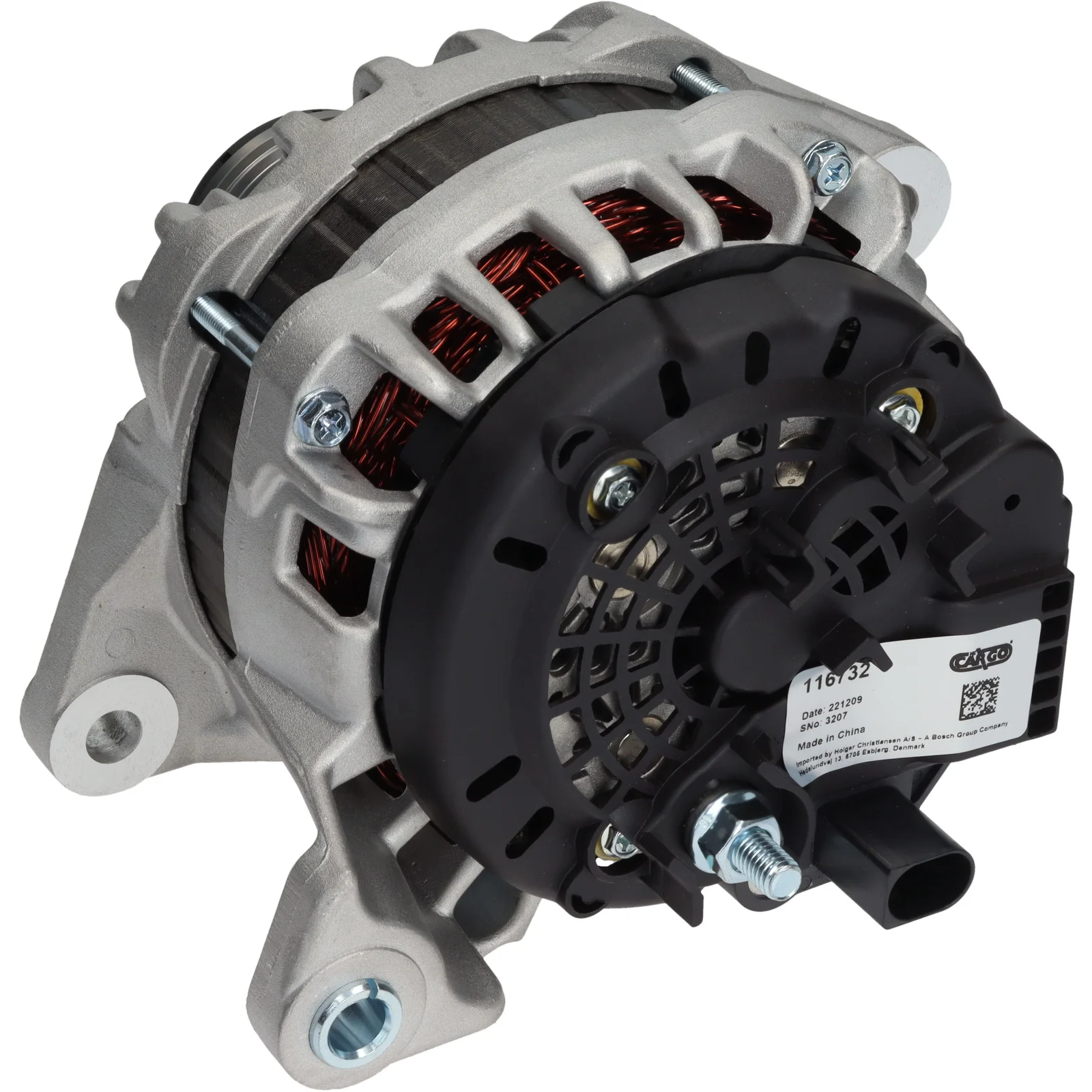

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 150, Rotation: CW, Monteringsbeslag afstand.: 83,50

Beskrivelse

HC-Cargo Generator 14V - 150A, 7g

Spænding: 14
Ampere: 150
Remskive dist.: 40.90
Bredde/beslag arm: 14.00
Monteringsbeslag dist.: 83.50
Beslaghul: 11.00
Bæltespændingsbeslag hull position: 56
Bæltespændingsbeslag hul 1: 10.50
Remskive dia.: 55.00
Riller/remskive: 7
Radius: 94.20
Radius 2: 95.80
B+: M8
Position/B+ i min.: 22
D+ Størrelse: Stik
Rotation: med uret
Stik no.: PL61
Samlet længde mm: 188.00
Terminaltype: L-DFM
Remskive: SP/FW
Vifte: IF
Regulator type: IR

Filer

Specifikation

B+ M8
Mount. bracket dist. 83.50
Belt. adj. bracket hole 1 10.50
Belt. adj. brackethole pos. 56
Plug no. PL61
Bracket hole 11.00
Position/B+ in min. 22
Pulley SP/FW
Pulley dia. 55.00
Pulley dist. 40.90
Radius 94.20
D+ Size Plug
Radius 2 95.80
Regulator type IR
Rotation CW
Fan IF
Grooves/pulley 7
Terminal type L-DFM
Voltage 14
Total length 188.00 mm
Width/holder arm 14.00
Amp 150

  • OEM
    F000 BL0 7CA, F000 BL0 7CB, F000BL07CA, F000BL07CB, F032116732, K5802170711, 1986 A01 493, 1986A01493, 116732, 71796484, 5802170711

  • Konkurrentreferens
    CAL10A40, LRA04414, 28-8523, 505.937.150, 443389, 444294, 553872RI, 12091000, 0986085490

  • Bilmärken
    Fiat

  • NormaliseratArtNr
    cal10a40, f000bl07ca, f000bl07cb, f032116732, k5802170711, lra04414, 1986a01493, 116732, 288523, 443389, 444294, 553872ri, 12091000, 71796484, 505937150, 0986085490, 5802170711

  • Passar modeller
    Fiat Model: Ducato Model series: Ducato Model type: 150 Type of engine: Multijet Size of motor: 2.3 Brand of engine: F1AGL411C Type description: 250_, 290_ Body: Platform / Chassis From date: 01-12-2015 Fuel: Diesel Approved: Yes
    Fiat Model: Ducato Model series: Ducato Model type: 150 Type of engine: Multijet Size of motor: 2.3 Brand of engine: F1AGL411C Type description: 250_, 290_ Body: Van From date: 01-12-2015 Fuel: Diesel Approved: Yes
    Fiat Model: Ducato Model series: Ducato Model type: 180 Type of engine: Multijet Size of motor: 2.3 Brand of engine: F1AGL411B Type description: 250_, 290_ Body: Platform / Chassis From date: 01-12-2015 Fuel: Diesel Approved: Yes
    Fiat Model: Ducato Model series: Ducato Model type: 180 Type of engine: Multijet Size of motor: 2.3 Brand of engine: F1AGL411B Type description: 250_, 290_ Body: Van From date: 01-12-2015 Fuel: Diesel Approved: Yes
    Fiat Model: Ducato Model series: Ducato Model type: 4x4 Type of engine: Multijet Size of motor: 2.3 Brand of engine: F1AE0481N Type description: 250_, 290_ Body: Bus From date: 01-06-2011 Fuel: Diesel Approved: Yes
    Fiat Model: Ducato Model series: Ducato Model type: 4x4 Type of engine: Multijet Size of motor: 2.3 Brand of engine: F1AE0481N Type description: 250_, 290_ Body: Van From date: 01-06-2011 Fuel: Diesel Approved: Yes
    Fiat Model: Ducato Model series: Ducato Model type: 4x4 Type of engine: Multijet Size of motor: 2.3 Brand of engine: F1AE3481D Type description: 250_, 290_ Body: Bus From date: 01-06-2011 Fuel: Diesel Approved: Yes
    Fiat Model: Ducato Model series: Ducato Model type: 4x4 Type of engine: Multijet Size of motor: 2.3 Brand of engine: F1AE3481D Type description: 250_, 290_ Body: Van From date: 01-06-2011 Fuel: Diesel Approved: Yes
    Fiat Model: Ducato Model series: Ducato Model type: 4x4 Type of engine: Multijet Size of motor: 2.3 Brand of engine: F1AGL411A Type description: 250_, 290_ Body: Bus From date: 01-04-2015 Fuel: Diesel Approved: Yes
    Fiat Model: Ducato Model series: Ducato Model type: 4x4 Type of engine: Multijet Size of motor: 2.3 Brand of engine: F1AGL411A Type description: 250_, 290_ Body: Van From date: 01-04-2015 Fuel: Diesel Approved: Yes
    Fiat Model: Ducato Model series: Ducato Model type: 4x4 Type of engine: Multijet Size of motor: 2.3 Brand of engine: F1AGL411C Type description: 250_, 290_ Body: Bus From date: 01-04-2015 Fuel: Diesel Approved: Yes
    Fiat Model: Ducato Model series: Ducato Model type: 4x4 Type of engine: Multijet Size of motor: 2.3 Brand of engine: F1AGL411C Type description: 250_, 290_ Body: Van From date: 01-04-2015 Fuel: Diesel Approved: Yes
    Fiat Model: Ducato Model series: Ducato Model type: 4x4 Type of engine: Multijet Size of motor: 2.3 Brand of engine: F1AGL411D Type description: 250_, 290_ Body: Bus From date: 01-06-2011 Fuel: Diesel Approved: Yes
    Fiat Model: Ducato Model series: Ducato Model type: 4x4 Type of engine: Multijet Size of motor: 2.3 Brand of engine: F1AGL411D Type description: 250_, 290_ Body: Van From date: 01-06-2011 Fuel: Diesel Approved: Yes
    Fiat Model: Ducato Model series: Ducato Model type: 4x4 Type of engine: Multijet Size of motor: 2.3 Brand of engine: F1AGL411M Type description: 250_, 290_ Body: Bus From date: 01-06-2011 Fuel: Diesel Approved: Yes
    Fiat Model: Ducato Model series: Ducato Model type: 4x4 Type of engine: Multijet Size of motor: 2.3 Brand of engine: F1AGL411M Type description: 250_, 290_ Body: Van From date: 01-06-2011 Fuel: Diesel Approved: Yes
    Fiat Model: Ducato Model series: Ducato Type of engine: Multijet Size of motor: 2.3 Brand of engine: F1AE0481D Body: Platform / Chassis From date: 01-07-2006 Fuel: Diesel Approved: Yes
    Fiat Model: Ducato Model series: Ducato Type of engine: Multijet Size of motor: 2.3 Brand of engine: F1AE0481N Body: Platform / Chassis From date: 01-07-2006 Fuel: Diesel Approved: Yes
    Fiat Model: Ducato Model series: Ducato Type of engine: Multijet Size of motor: 2.3 Brand of engine: F1AE0481N Type description: 250 Body: Van From date: 01-06-2011 Fuel: Diesel Approved: Yes
    Fiat Model: Ducato Model series: Ducato Type of engine: Multijet Size of motor: 2.3 Brand of engine: F1AE3481D Type description: 250 Body: Bus From date: 01-06-2011 Fuel: Diesel Approved: Yes
    Fiat Model: Ducato Model series: Ducato Type of engine: Multijet Size of motor: 2.3 Brand of engine: F1AE3481D Type description: 250 Body: Van From date: 01-06-2011 Fuel: Diesel Approved: Yes
    Fiat Model: Ducato Model series: Ducato Type of engine: Multijet Size of motor: 2.3 Brand of engine: F1AE3481E Type description: 250, 290 Body: Bus From date: 01-04-2015 Fuel: Diesel Approved: Yes
    Fiat Series: Ducato Skåp (250_) Model: 150 Multijet 2,3 D 4x4 Engine volume: 2.3 Engine type: F1AGL411A, F1AGL411C Year: 12.15-
    Fiat Series: Ducato Buss (250_) Model: 130 Multijet 2,3 D 4x4 Engine volume: 2,3 Engine type: Samtliga Year: 06.11-
    Fiat Series: DUCATO Buss Model: 130 Multijet 2,3 D Engine volume: 2.3 Engine type: Samtliga Year: 01.07-
    Fiat Series: DUCATO Buss Model: 150 Multijet 2,3 D 4x4 Engine volume: 2.3 Engine type: F1AGL411A/F1AGL411C Year: 04.15-
    Fiat Series: DUCATO Buss Model: 150 Multijet 2,3 D Engine volume: 2.3 Engine type: F1AGL411A/F1AGL411C Year: 04.15-
    Fiat Series: DUCATO Flak/chassi Model: 130 Multijet 2,3 D Engine volume: 2.3 Engine type: Samtliga Year: 08.06-
    Fiat Series: DUCATO Flak/chassi Model: 150 Multijet 2,3 D Engine volume: 2.3 Engine type: F1AGL411C Year: 12.15-
    Fiat Series: DUCATO Flak/chassi Model: 180 Multijet 2,3 D Engine volume: 2.3 Engine type: F1AGL4111/F1AGL411B Year: 12.15-
    Fiat Series: DUCATO Skåp Model: 130 Multijet 2,3 D 4x4 Engine volume: 2.3 Engine type: Samtliga Year: 06.11-
    Fiat Series: DUCATO Skåp Model: 130 Multijet 2,3 D Engine volume: 2.3 Engine type: Samtliga Year: 08.06-
    Fiat Series: DUCATO Skåp Model: 150 Multijet 2,3 D Engine volume: 2.3 Engine type: F1AGL411A/F1AGL411C Year: 12.15-
    Fiat Series: DUCATO Skåp Model: 180 Multijet 2,3 D Engine volume: 2.3 Engine type: Samtliga Year: 12.15-
