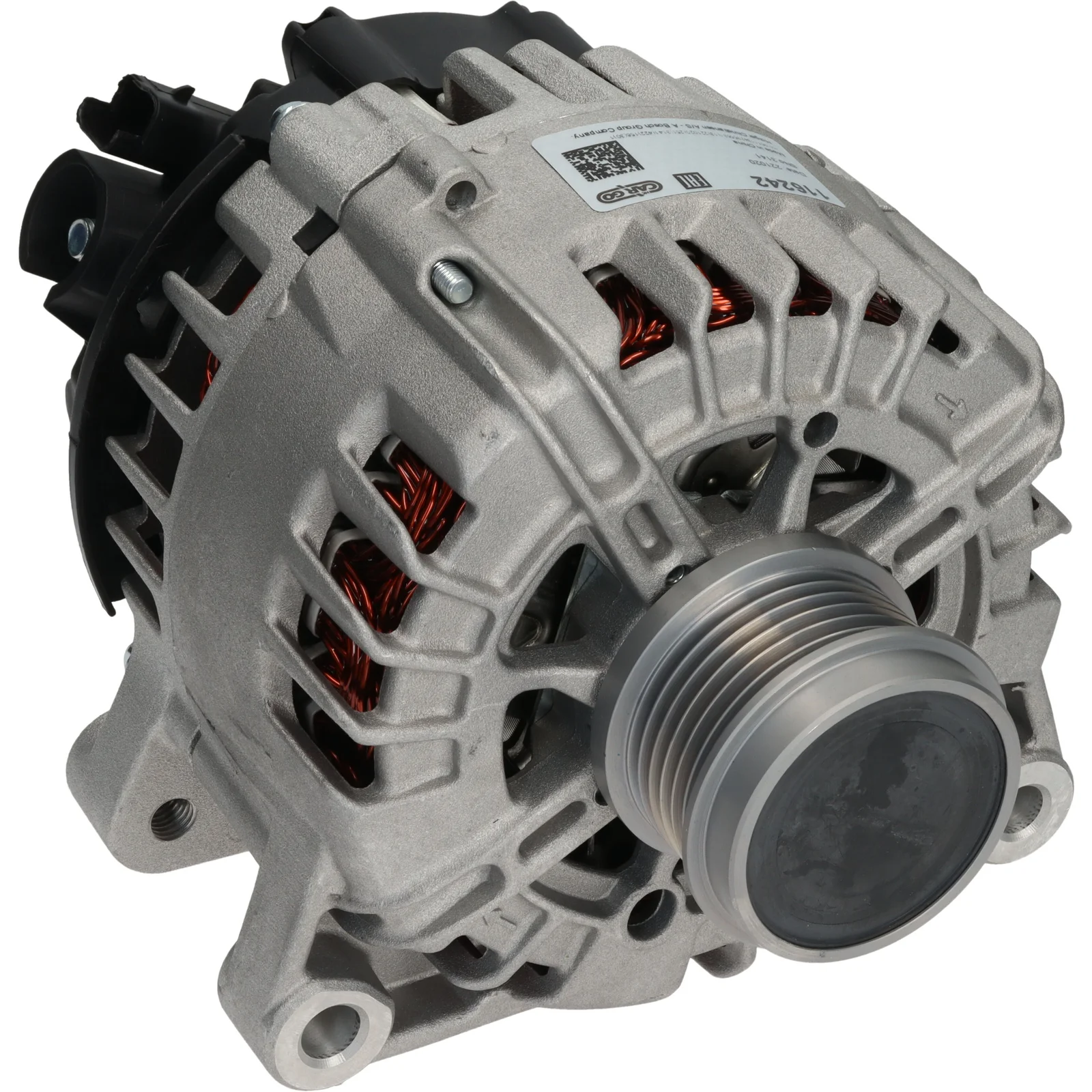

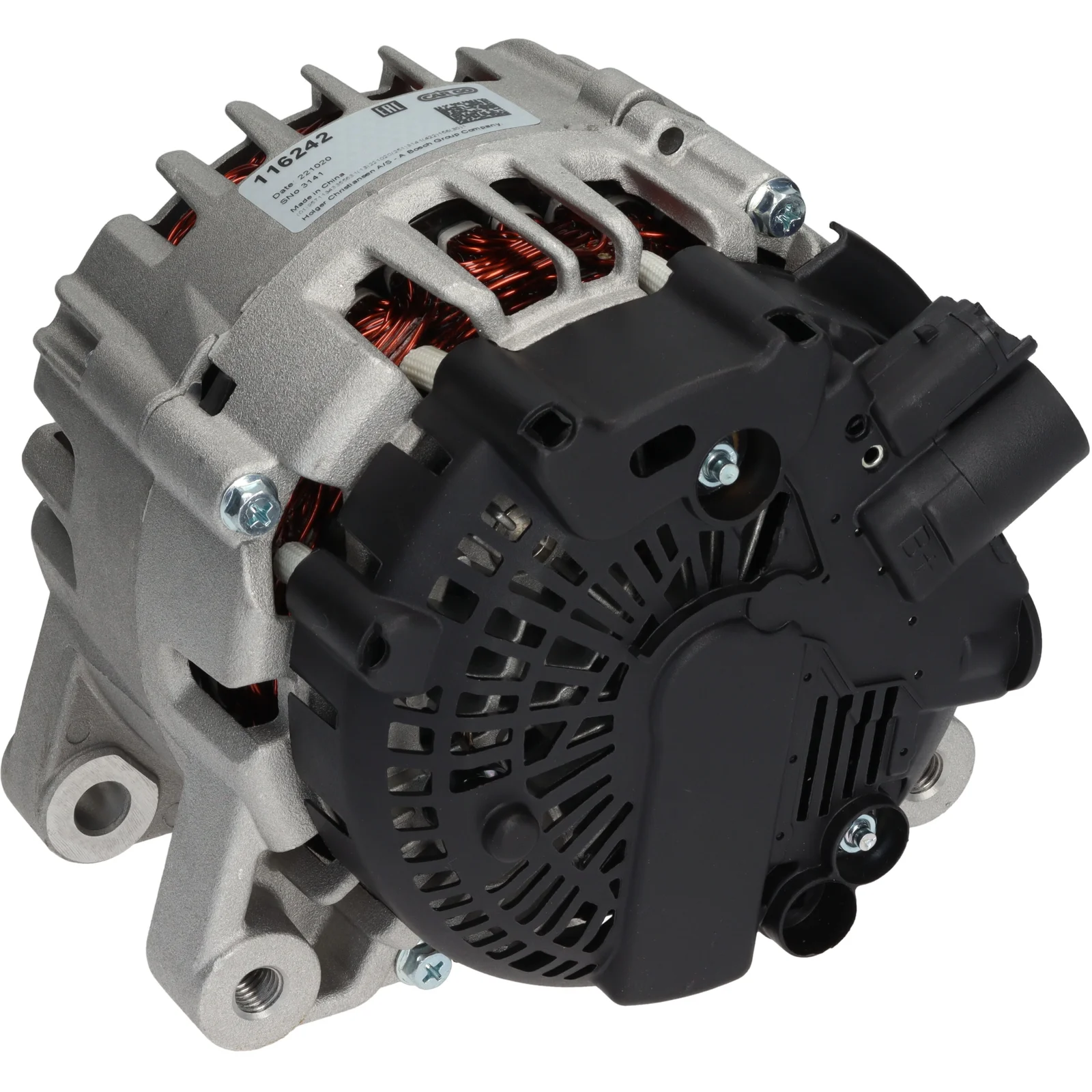

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032116242

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 180, Rotation: CW, Monteringsbeslag fordeler: 45.50

Beskrivelse

Spænding: 14
Amp: 180
Remskive fordeling: 42,50
Bredde/holderarm: 21,00
montering brackets afstand: 45,50
Bracket hul: 10,00
Vevremskive justering brackets hul position: 47
Vevremskive justering brackets hul 1: 10,50
Remskive dia.: 54,00
Riller/remskive: 6
Radi: 90,00
Radi 2: 90,00
B+: M8
Position/B+ i min.: 2
Rotation: med uret
Stik nr.: PL132
Total længde mm: 186,00
Terminal type: COM
ID-kode: 41
Kommunikation: LIN
Remskive: SP/FW
Blæser: IF
Regulator type: IR
Bemærkninger: Denne generator har en COM-terminal på regulatoren. Det anbefales at bruge OEM-nummeret til at kontrollere egnethed, inden bestilling.

Filer

Specifikation

B+ M8
Communication LIN
Mount. bracket dist. 45.50
Belt. adj. bracket hole 1 10.50
Belt. adj. brackethole pos. 47
Plug no. PL132
Bracket hole 10.00
Position/B+ in min. 2
Pulley SP/FW
Pulley dia. 54.00
Pulley dist. 42.50
Radius 90.00
Radius 2 90.00
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Fan IF
Grooves/pulley 6
ID Code 41
Terminal type COM
Voltage 14
Total length 186.00 mm
Width/holder arm 21.00
Amp 180

  • OEM
    A3193PR, A3193S, CAL15030, DRA1599, F032116242, FG18T 145, FG18T106, FG18T145, SU001-A4986, 225.572.180, 1986A00601, 20649N, 20649N-OE, 439932, 440676, 2624328, 2624328A, 32082510, 0986084650, 9678058480, 9810527180

  • Konkurrentreferens
    A3193PR, A3193S, CAL15030, DRA1599, 225.572.180, 20649N, 20649N-OE, 439932, 440676, 32082510, 0986084650

  • Bilmärken
    CITROËN, DS, PEUGEOT

  • NormaliseratArtNr
    a3193pr, a3193s, cal15030, dra1599, f032116242, fg18t106, fg18t145, su001a4986, 1986a00601, 20649n, 20649noe, 439932, 440676, 2624328, 2624328a, 32082510, 225572180, 0986084650, 9678058480, 9810527180

  • Passar modeller
    CITROËN BERLINGO MULTISPACE (B9) 1.6 BlueHDi 120 Engine volume: 1.6 Engine type: BHZ (DV6FC) Year: 12.14-08.18
    CITROËN BERLINGO Skåp/stor limousine (K9) 1.6 BlueHDi 100 Engine volume: 1.6 Engine type: BHY (DV6FD) Year: 06.18-04.21
    CITROËN BERLINGO Skåp/stor limousine (K9) 1.6 BlueHDi 75 Engine volume: 1.6 Engine type: BHW (DV6FE) Year: 06.18-04.20
    CITROËN BERLINGO Skåpbil/minivan (B9) 1.6 BlueHDi 100 4x4 Engine volume: 1.6 Engine type: BHY (DV6FD) Year: 12.14-12.18
    CITROËN BERLINGO Skåpbil/minivan (B9) 1.6 BlueHDi 120 Engine volume: 1.6 Engine type: BHZ (DV6FC) Year: 12.14-08.18
    CITROËN C3 AIRCROSS II (2R_, 2C_) 1.6 BlueHDi 100 (2CBHYB) Engine volume: 1.6 Engine type: BHY (DV6FD) Year: 07.17-08.18
    CITROËN C3 AIRCROSS II (2R_, 2C_) 1.6 BlueHDi 120 (2CBHZH) Engine volume: 1.6 Engine type: BHZ (DV6FC) Year: 07.17-05.18
    CITROËN C3 AIRCROSS II Van (2R_, 2C_) 1.6 BlueHDI 100 Engine volume: 1.6 Engine type: BHY (DV6FD) Year: 05.19-
    CITROËN C3 II (SC_) 1.6 BlueHDi 100 Engine volume: 1.6 Engine type: BHY (DV6FD) Year: 07.14-09.16
    CITROËN C3 II (SC_) 1.6 BlueHDi 75 Engine volume: 1.6 Engine type: 9HK (DV6ETEDM), BHW (DV6FE) Year: 04.15-09.16
    CITROËN C3 II Skåpbil/halvkombi (SC_) 1.6 BlueHDi Engine volume: 1.6 Engine type: BHW (DV6FE) Year: 03.15-09.16
    CITROËN C4 GRAND PICASSO II (DA_, DE_) 1.6 BlueHDi 100 Engine volume: 1.6 Engine type: BHY (DV6FD) Year: 01.15-04.16
    CITROËN C4 II Skåpbil/halvkombi (NC_) 1.6 BlueHDi Engine volume: 1.6 Engine type: BHY (DV6FD) Year: 07.14-
    CITROËN C4 II Skåpbil/halvkombi (NC_) 1.6 BlueHDi Engine volume: 1.6 Engine type: BHZ (DV6FC) Year: 02.15-
    CITROËN C4 PICASSO II 1.6 BlueHDi 100 Engine volume: 1.6 Engine type: BHY (DV6FD) Year: 12.14-12.18
    CITROËN C4 SPACETOURER (3D_) 1.6 BlueHDi 100 Engine volume: 1.6 Engine type: BHY (DV6FD) Year: 04.18-04.19
    CITROËN C4 SPACETOURER (3D_) 1.6 BlueHDi 120 Engine volume: 1.6 Engine type: BHZ (DV6FC) Year: 04.18-04.19
    CITROËN C4 SPACETOURER Van (3D_) BlueHDi 120 Engine volume: 1.6 Engine type: BHZ (DV6FC) Year: 05.19-
    CITROËN GRAND C4 SPACETOURER (3A_, 3E_) 1.6 BlueHDi 100 Engine volume: 1.6 Engine type: BHY (DV6FD) Year: 04.18-04.19
    CITROËN GRAND C4 SPACETOURER (3A_, 3E_) 1.6 BlueHDi 120 Engine volume: 1.6 Engine type: BHZ (DV6FC) Year: 04.18-08.18
    CITROËN JUMPY III Buss (V_) 1.6 BlueHDi 115 Engine volume: 1.6 Engine type: BHX (DV6FCU) Year: 04.16-06.22
    CITROËN JUMPY III Buss (V_) 1.6 BlueHDi 95 Engine volume: 1.6 Engine type: BHS (DV6FDU) Year: 04.16-
    CITROËN JUMPY III Flak/chassi (V_) 1.6 BlueHDi 95 Engine volume: 1.6 Engine type: BHV (DV6FDU), BHS (DV6FDU) Year: 09.16-04.20
    CITROËN SPACETOURER Buss (V_) 1.5 BlueHDi 100 Engine volume: 1.5 Engine type: YHR (DV5RUCd) Year: 06.18-04.25
    DS DS 4 / DS 4 CROSSBACK (NX_) 1.6 BlueHDi 115 Engine volume: 1.6 Engine type: BHX (DV6FC) Year: 07.15-12.18
    DS DS 4 / DS 4 CROSSBACK (NX_) 1.6 BlueHDi 120 Engine volume: 1.6 Engine type: BHZ (DV6FC) Year: 07.15-12.18
    DS DS 5 (KF_) 1.6 BlueHDi 115 Engine volume: 1.6 Engine type: BHX (DV6FC) Year: 06.15-12.18
    PEUGEOT 3008 I Minivan (0U_) 1.6 HDi 115 / BlueHDi 115 Engine volume: 1.6 Engine type: 9HC (DV6C), BHX (DV6FC) Year: 02.13-08.16
    PEUGEOT 3008 II SUV (MC_, MR_, MJ_, M4_) 1.6 BlueHDi 100 Engine volume: 1.6 Engine type: BHY (DV6FD) Year: 11.16-12.19
    PEUGEOT 3008 II SUV (MC_, MR_, MJ_, M4_) 1.6 BlueHDi 120 Engine volume: 1.6 Engine type: BHZ (DV6FC) Year: 05.16-12.19
    PEUGEOT 308 Skåpbil/halvkombi (LB_) 1.6 BlueHDi 120 (LBBHZM) Engine volume: 1.6 Engine type: BHX (DV6FC) Year: 03.15-06.21
    PEUGEOT 308 SW II (LC_) 1.6 BlueHDi Engine volume: 1.6 Engine type: BHY (DV6FD) Year: 04.14-06.21
    PEUGEOT 308 SW II (LC_, LJ_, LR_, LX_, L4_) 1.6 BlueHDi 120 Engine volume: 1.6 Engine type: BHZ (DV6FC) Year: 03.14-06.21
    PEUGEOT 5008 (0U_, 0E_) 1.6 BlueHDi 115 Engine volume: 1.6 Engine type: BHX (DV6FC) Year: 11.14-03.17
    PEUGEOT 5008 II (MC_, MJ_, MR_, M4_) 1.6 BlueHDi 115 (MCBHXH, MCBHXW) Engine volume: 1.6 Engine type: BHX (DV6FC) Year: 12.16-11.19
    PEUGEOT 5008 II (MC_, MJ_, MR_, M4_) 1.6 BlueHDi 120 (MCBHZH, MCBHZW) Engine volume: 1.6 Engine type: BHZ (DV6FC) Year: 12.16-11.19
    PEUGEOT EXPERT Buss (V_) 1.6 BlueHDi 115 Engine volume: 1.6 Engine type: BHX (DV6FCU) Year: 04.16-12.19
    PEUGEOT EXPERT Buss (V_) 1.6 BlueHDi 95 Engine volume: 1.6 Engine type: BHV (DV6FDU), BHS (DV6FDU) Year: 04.16-12.19
    PEUGEOT EXPERT Flak/chassi (V_) 1.6 BlueHDi 95 Engine volume: 1.6 Engine type: BHV (DV6FDU) Year: 09.16-12.19
    PEUGEOT PARTNER Flak/chassi 1.6 BlueHDi 100 Engine volume: 1.6 Engine type: BHY (DV6FD) Year: 04.15-
    PEUGEOT PARTNER Skåp/stor limousine (K9) 1.6 BlueHDI 100 Engine volume: 1.6 Engine type: BHY (DV6FD) Year: 09.18-
    PEUGEOT PARTNER Skåp/stor limousine (K9) 1.6 BlueHDI 75 Engine volume: 1.6 Engine type: BHW (DV6FE) Year: 09.18-
    PEUGEOT PARTNER Skåpbil/minivan 1.6 BlueHDi 100 4x4 Engine volume: 1.6 Engine type: BHY (DV6FD) Year: 04.15-
    PEUGEOT PARTNER TEPEE 1.6 BlueHDi 100 4x4 Engine volume: 1.6 Engine type: BHY (DV6FD) Year: 04.15-
    PEUGEOT RIFTER 1.6 BlueHDi 100 Engine volume: 1.6 Engine type: BHY (DV6FD) Year: 09.18-
    PEUGEOT RIFTER 1.6 HDi 75 / BlueHDi 75 Engine volume: 1.6 Engine type: 9HN (DV6ETED), BHW (DV6FE) Year: 09.18-
    1 / 10
