Vare nr.: F032113338

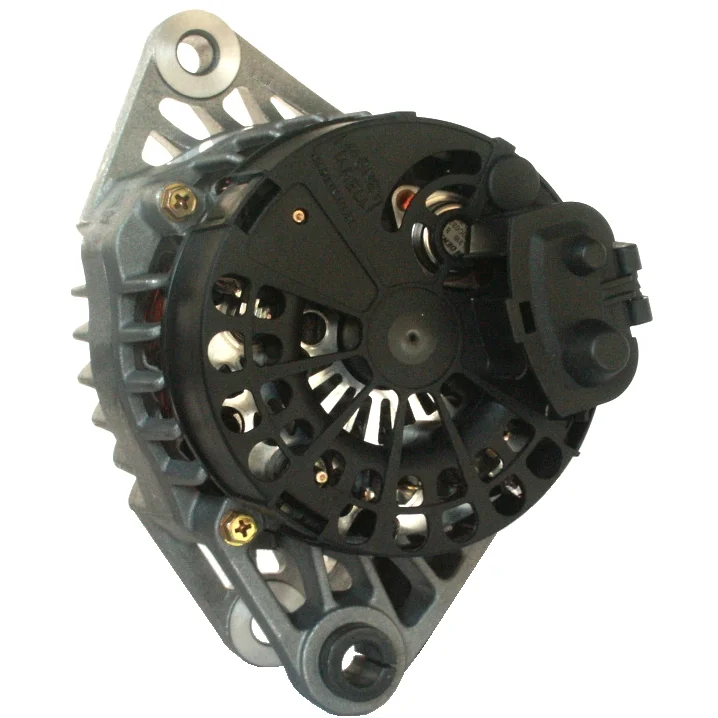

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 65, Rotation: CW, Mount. bøsning dist.: 54.40

Beskrivelse

Spenning: 14
Amp: 65
Hjuldist.: 44.00
Bredde/beslagarm: 17.10
Monteringsbeslag dist.: 54.40
Beslagshul: 12.20
Bæltes justeringsbeslagshul pos.: 3
Bæltes justeringsbeslagshul 1: 10.70
Hjul diameter: 61.50
Riller/hjul: 6
Radius: 90.00
Radius 2: 88.50
B+: M8
Position/B+ i min.: 15
D+ Størrelse: M5
Rotation: CW
Samlet længde mm: 200.00
Hjul: SP/FW
Regulator type: IR
Producentinfo: BN
Service: Fiat

Filer

Specifikation

B+ M8
Mount. bracket dist. 54.40
Belt. adj. bracket hole 1 10.70
Belt. adj. brackethole pos. 3
Bracket hole 12.20
Position/B+ in min. 15
Prod. info BN
Pulley SP/FW
Pulley dia. 61.50
Pulley dist. 44.00
Radius 90.00
D+ Size M5
Radius 2 88.50
Regulator type IR
Rotation CW
Servicing Fiat
Grooves/pulley 6
Voltage 14
Total length 200.00 mm
Width/holder arm 17.10
Amp 65

  • OEM
    F032113338, 1696ir, 46782218, 63321833

  • Konkurrentreferens
    A4090, ALT12066, CAL30184, DAN640, DRA1241, 8EL012426-791, 8EL738057-001, 28-4828, 218.168.652, 21244R, 111676, 210686, 210686A, 301696RI, 444228, 12090163, 0986049760, 063321833010

  • NormaliseratArtNr
    a4090, alt12066, cal30184, dan640, dra1241, f032113338, 8el012426791, 8el738057001, 1696ir, 21244r, 111676, 210686, 210686a, 284828, 301696ri, 444228, 12090163, 46782218, 63321833, 218168652, 0986049760, 063321833010

  • Passar modeller
    Fiat Model: Doblo Model series: Doblo Type of engine: Diesel Size of motor: 1.9 Brand of engine: 223A6.000 Type description: 223AXB1A Body: MPV From date: 01-03-2001 Fuel: Diesel Approved: Yes
    Fiat Model: Doblo Model series: Doblo Type of engine: Diesel Size of motor: 1.9 Brand of engine: 223A6.000 Type description: 223ZXB1A Body: Van From date: 01-03-2001 Fuel: Diesel Approved: Yes Manufacture type: Cargo
    Fiat Model: Palio Model series: Palio Type of engine: Diesel Size of motor: 1.9 Brand of engine: 223A6.000 Type description: 178DYD1A07 Body: Estate From date: 01-03-2001 Fuel: Diesel Approved: Yes Manufacture type: weekend
    Fiat Model: Strada Model series: Strada Type of engine: Diesel Size of motor: 1.9 Brand of engine: 223A6.000 Type description: 178E Body: Pick Up From date: 01-12-2000 Fuel: Diesel Approved: Yes
    Fiat Model: Strada Model series: Strada Type of engine: JTD Size of motor: 1.9 Brand of engine: 188A2.000 Type description: 178E Body: Pick Up From date: 01-04-2003 Fuel: Diesel Approved: Yes
  • Beskrivelse
    Spenning: 14
    Amp: 65
    Hjuldist.: 44.00
    Bredde/beslagarm: 17.10
    Monteringsbeslag dist.: 54.40
    Beslagshul: 12.20
    Bæltes justeringsbeslagshul pos.: 3
    Bæltes justeringsbeslagshul 1: 10.70
    Hjul diameter: 61.50
    Riller/hjul: 6
    Radius: 90.00
    Radius 2: 88.50
    B+: M8
    Position/B+ i min.: 15
    D+ Størrelse: M5
    Rotation: CW
    Samlet længde mm: 200.00
    Hjul: SP/FW
    Regulator type: IR
    Producentinfo: BN
    Service: Fiat

    Filer

  • Specifikation
    B+ M8
    Mount. bracket dist. 54.40
    Belt. adj. bracket hole 1 10.70
    Belt. adj. brackethole pos. 3
    Bracket hole 12.20
    Position/B+ in min. 15
    Prod. info BN
    Pulley SP/FW
    Pulley dia. 61.50
    Pulley dist. 44.00
    Radius 90.00
    D+ Size M5
    Radius 2 88.50
    Regulator type IR
    Rotation CW
    Servicing Fiat
    Grooves/pulley 6
    Voltage 14
    Total length 200.00 mm
    Width/holder arm 17.10
    Amp 65
  • Køretøjsmatchning

    • OEM
      F032113338, 1696ir, 46782218, 63321833

    • Konkurrentreferens
      A4090, ALT12066, CAL30184, DAN640, DRA1241, 8EL012426-791, 8EL738057-001, 28-4828, 218.168.652, 21244R, 111676, 210686, 210686A, 301696RI, 444228, 12090163, 0986049760, 063321833010

    • NormaliseratArtNr
      a4090, alt12066, cal30184, dan640, dra1241, f032113338, 8el012426791, 8el738057001, 1696ir, 21244r, 111676, 210686, 210686a, 284828, 301696ri, 444228, 12090163, 46782218, 63321833, 218168652, 0986049760, 063321833010

    • Passar modeller
      Fiat Model: Doblo Model series: Doblo Type of engine: Diesel Size of motor: 1.9 Brand of engine: 223A6.000 Type description: 223AXB1A Body: MPV From date: 01-03-2001 Fuel: Diesel Approved: Yes
      Fiat Model: Doblo Model series: Doblo Type of engine: Diesel Size of motor: 1.9 Brand of engine: 223A6.000 Type description: 223ZXB1A Body: Van From date: 01-03-2001 Fuel: Diesel Approved: Yes Manufacture type: Cargo
      Fiat Model: Palio Model series: Palio Type of engine: Diesel Size of motor: 1.9 Brand of engine: 223A6.000 Type description: 178DYD1A07 Body: Estate From date: 01-03-2001 Fuel: Diesel Approved: Yes Manufacture type: weekend
      Fiat Model: Strada Model series: Strada Type of engine: Diesel Size of motor: 1.9 Brand of engine: 223A6.000 Type description: 178E Body: Pick Up From date: 01-12-2000 Fuel: Diesel Approved: Yes
      Fiat Model: Strada Model series: Strada Type of engine: JTD Size of motor: 1.9 Brand of engine: 188A2.000 Type description: 178E Body: Pick Up From date: 01-04-2003 Fuel: Diesel Approved: Yes
