Vare nr.: F032113349

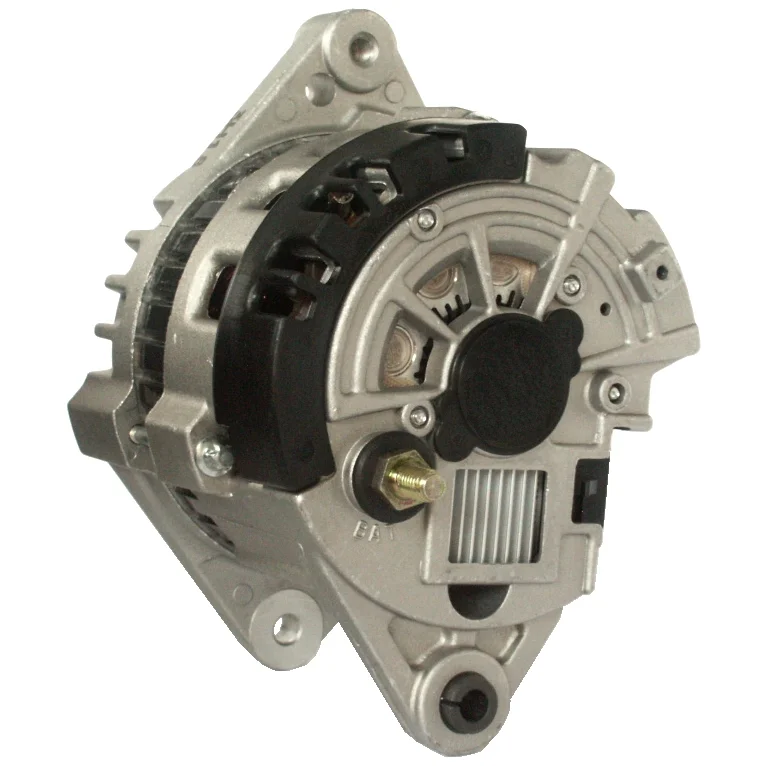

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 85, Rotation: U, Monteringsbeslag afstand: 81,50

Beskrivelse

Spænding: 14
Ampere: 85
Remskive dist.: 36.00
Bredde/holderarm: 13.00
Monteringsbeslag dist.: 81.50
Beslagshul: 8.30
Bælte justeres. beslagshul pos.: 60
Bælte justeres. beslagshul 1: M8
Remskivedia.: 50.00
Grooves/remskive: 6
Radius: 78.50
Radius 2: 86.50
B+: M8
Position/B+ i min.: 40
D+ Størrelse: Stik
Rotation: Drev時計方向
Stik nr.: PL62
Total længde mm: 183.50
Remskive: SP
Regulator type: IR
Produktinfo: BN
Service: Daewoo

Specifikation

B+ M8
Mount. bracket dist. 81.50
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 60
Plug no. PL62
Bracket hole 8.30
Position/B+ in min. 40
Prod. info BN
Pulley SP
Pulley dia. 50.00
Pulley dist. 36.00
Radius 78.50
D+ Size Plug
Radius 2 86.50
Regulator type IR
Rotation CW
Servicing Daewoo
Grooves/pulley 6
Voltage 14
Total length 183.50 mm
Width/holder arm 13.00
Amp 85
  • OEM

    F032113349, 1672ir, 219138, 219202, 96190262, 96258990, 96288095, 96404010
  • Konkurrentreferens

    A1005, ALT-1209, ALT1209, CAL46105, CAL46109, dra3637, DRA4137, DRA4137N, F042300070, F042A00070, J5110902, J5110910, LRA01732, 28-3507, 547.104.852, 22732N, 22732R, 210388, 210388A, 9212420, 12060897, 063532633, 0986080650, 063532633010
  • NormaliseratArtNr

    a1005, alt1209, cal46105, cal46109, dra3637, dra4137, dra4137n, f032113349, f042300070, f042a00070, j5110902, j5110910, lra01732, 1672ir, 22732n, 22732r, 210388, 210388a, 219138, 219202, 283507, 9212420, 12060897, 063532633, 96190262, 96258990, 96288095, 96404010, 547104852, 0986080650, 063532633010
  • Passar modeller

    Daewoo Model: Nubira Model series: Nubira Saloon Size of motor: 1.6 Brand of engine: A16DMS Type description: J150 Body: Saloon From date: 01-06-1999 To date: 01-07-2002 Fuel: Petrol Approved: Yes
    Daewoo Model: Nubira Model series: Nubira Size of motor: 1.6 Brand of engine: A16DMS Type description: J150 Body: Estate From date: 01-06-1999 To date: 01-12-2002 Fuel: Gasoline Approved: Yes Manufacture type: Estate
    Daewoo Model: Nubira Model series: Nubira Type of engine: 16V Size of motor: 1.6 Brand of engine: A16DMS Body: Hatchback From date: 01-05-1997 To date: 01-05-1999 Fuel: Gasoline Approved: Yes
    Daewoo Model: Nubira Model series: Nubira Type of engine: 16V Size of motor: 1.6 Brand of engine: A16DMS Type description: KLAJ Body: Estate From date: 01-12-2000 Fuel: Gasoline Approved: Yes
    Daewoo Model: Nubira Model series: Nubira Type of engine: 16V Size of motor: 1.6 Brand of engine: A16DMS Type description: KLAJ From date: 01-07-2000 Fuel: Gasoline Approved: Yes
    Daewoo Model: Nubira Model series: Nubira Type of engine: 16V Size of motor: 1.6 Brand of engine: A16DMS Type description: KLJA Body: Estate From date: 01-05-1997 To date: 01-05-1999 Fuel: Gasoline Approved: Yes
    Daewoo Model: Nubira Model series: Nubira Type of engine: 16V Size of motor: 1.6 Brand of engine: A16DMS Type description: KLJA From date: 01-05-1997 To date: 01-05-1999 Fuel: Gasoline Approved: Yes
    Daewoo Model: Rezzo Model series: Rezzo Size of motor: 1.6 Brand of engine: A16DMS Type description: U100 Body: MPV From date: 01-02-2002 To date: 01-12-2004 Fuel: Gasoline Approved: Yes
    Daewoo Model: Rezzo/Tacuma Model series: Rezzo/Tacuma Size of motor: 1.6 Brand of engine: A16DMS Body: MPV From date: 01-09-2000 Fuel: Gasoline Approved: Yes
