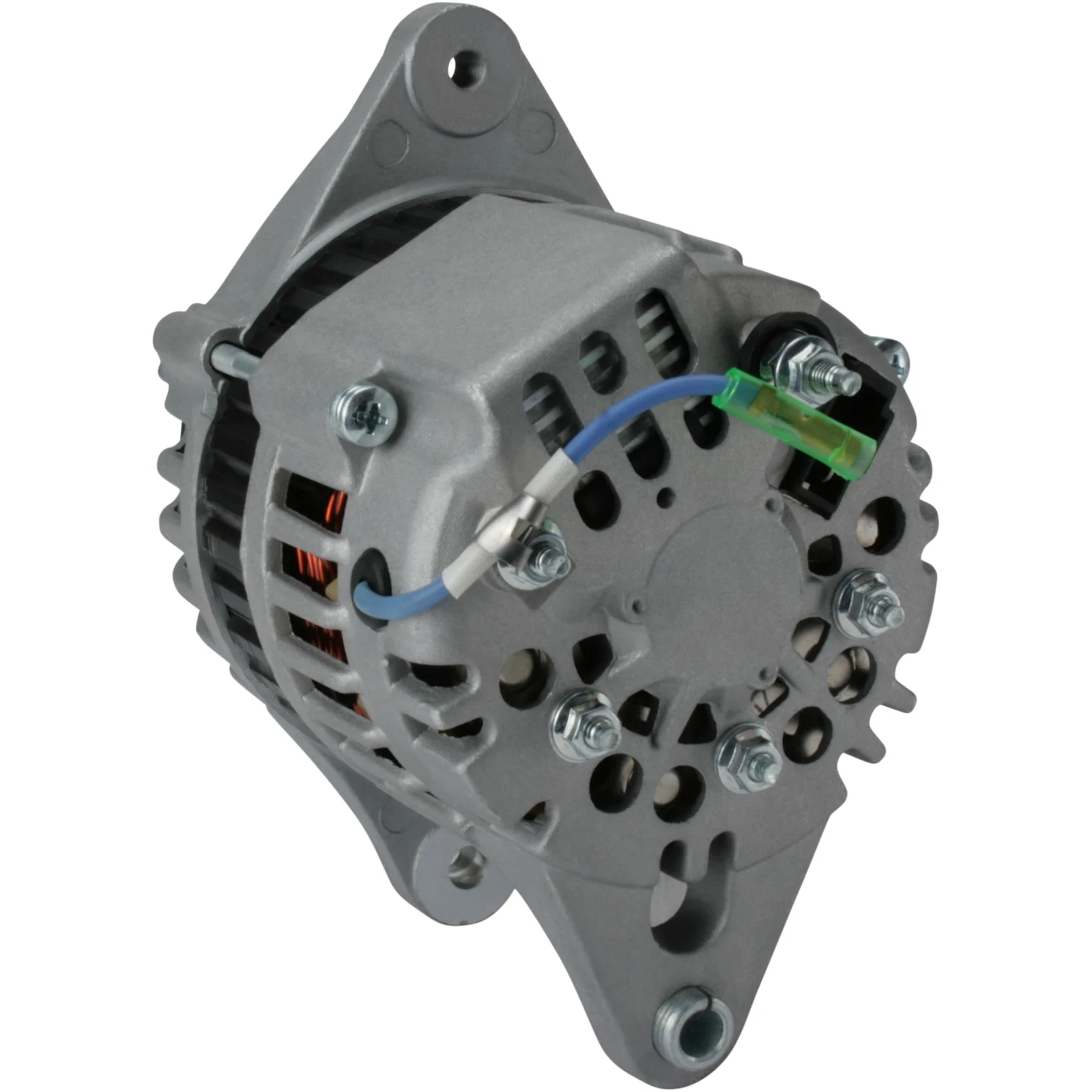

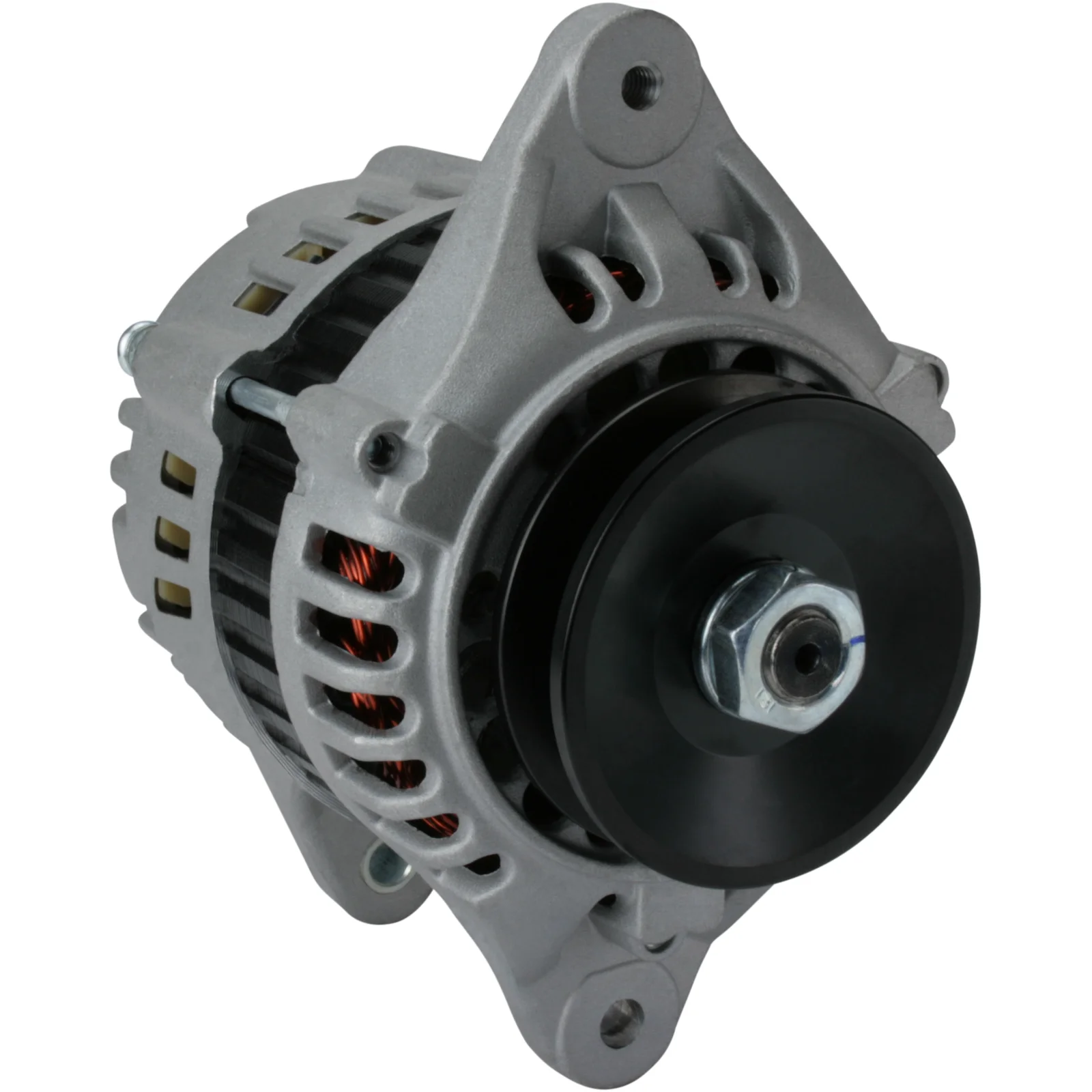

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032113401

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 40, Rotation: CW, Monteringsbeslag fordeler.: 67,20

Beskrivelse

Spænding: 14
Amp: 40
Terminal: W
Remskive afstand: 41.50
Bredde/holder arm: 12.00
monteringsbeslag afstand: 67.20
Beslag hul: 8.40
Bælte just. beslag hul pos.: 60
Bælte just. beslag hul 1: M8
Remskive dia.: 72.00
Riller/remskive: 1
Radius: 78.00
Radius 2: 78.00
B+: M6
Position/B+ i min.: 5
D+ Størrelse: Stik
Rotation: CW
Stik nr.: PL10
W stiktype: Stik
Samlet længde mm: 142.00
Remskive: P
Regulator type: IR
Produktion info: BN
Service: John Deere

Filer

Specifikation

B+ M6
Mount. bracket dist. 67.20
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 60
Plug no. PL10
Bracket hole 8.40
Position/B+ in min. 5
Prod. info BN
Pulley P
Pulley dia. 72.00
Pulley dist. 41.50
Radius 78.00
D+ Size Plug
Radius 2 78.00
Regulator type IR
Rotation CW
Servicing John Deere
Grooves/pulley 1
Terminal W
Voltage 14
W plug type Plug
Total length 142.00 mm
Width/holder arm 12.00
Amp 40

  • OEM
    am878581, am880733, F032113401, lr140-714, lr140-714b, lr140-716, lr140-719, lr140-721, lr140-721b, lr140-721c, lr140-721d, lr140-721e, lr140-723b, lr140-727, 17525-64011, 19836-77200, 119624-77201, 119836-77200, 119836-77201, 119836-77202, 119836-77203, 129612-77230, 129930-77210, 129930-77212, 1752564011, 119836772002

  • Konkurrentreferens
    A2124S, ALT-5024, ALT5024, CAL20104, F042302012, F042A02012, LRA01950, LRA03026, 1-2315-01HI, 8EL015643-371, 28-3845, 36.51.705, 12112N, 553250RI, 9214293, 12060312

  • NormaliseratArtNr
    a2124s, alt5024, am878581, am880733, cal20104, f032113401, f042302012, f042a02012, lr140714, lr140714b, lr140716, lr140719, lr140721, lr140721b, lr140721c, lr140721d, lr140721e, lr140723b, lr140727, lra01950, lra03026, 8el015643371, 12112n, 283845, 553250ri, 1231501hi, 3651705, 9214293, 12060312, 1752564011, 1983677200, 11962477201, 11983677200, 11983677201, 11983677202, 11983677203, 12961277230, 12993077210, 12993077212, 119836772002

  • Passar modeller
    Caterpillar Model: 2PD4000 Model series: 2PD4000 Model type: Forklifts Brand of engine: S4S Approved: Yes
    Caterpillar Model: 2PD5000 Model series: 2PD5000 Model type: Forklifts Brand of engine: S4S Approved: Yes
    Caterpillar Model: 2PD5500 Model series: 2PD5500 Model type: Forklifts Brand of engine: S4S Approved: Yes
    Caterpillar Model: 2PD6000 Model series: 2PD6000 Model type: Forklifts Brand of engine: S4S Approved: Yes
    Caterpillar Model: 2PD6500 Model series: 2PD6500 Model type: Forklifts Brand of engine: S4S Approved: Yes
    Caterpillar Model: 2PD7000 Model series: 2PD7000 Model type: Forklifts Brand of engine: S4S Approved: Yes
    Caterpillar Model: CAT P4000D - P7000D SERIES Model series: CAT P4000D - P7000D SERIES Model type: Forklifts Brand of engine: S4S Approved: Yes
    Caterpillar Model: DP15N Model series: DP15N Model type: Forklifts Brand of engine: S4Q2 Approved: Yes
    Caterpillar Model: DP18N Model series: DP18N Model type: Forklifts Brand of engine: S4Q2 Approved: Yes
    Caterpillar Model: DP20CN Model series: DP20CN Model type: Forklifts Brand of engine: S4Q2 Approved: Yes
    Caterpillar Model: DP20K Model series: DP20K Model type: Forklifts Brand of engine: S4S Approved: Yes
    Caterpillar Model: DP20N Model series: DP20N Model type: Forklifts Brand of engine: S4S Approved: Yes
    Caterpillar Model: DP20NM MEXICO Model series: DP20NM MEXICO Model type: Forklifts Brand of engine: S4S Approved: Yes
    Caterpillar Model: DP25K Model series: DP25K Model type: Forklifts Brand of engine: S4S Approved: Yes
    Caterpillar Model: DP25N Model series: DP25N Model type: Forklifts Brand of engine: S4S Approved: Yes
    Caterpillar Model: DP25NM MEXICO Model series: DP25NM MEXICO Model type: Forklifts Brand of engine: S4S Approved: Yes
    Caterpillar Model: DP28NM MEXICO Model series: DP28NM MEXICO Model type: Forklifts Brand of engine: S4S Approved: Yes
    Caterpillar Model: DP30K Model series: DP30K Model type: Forklifts Brand of engine: S4S Approved: Yes
    Caterpillar Model: DP30N Model series: DP30N Model type: Forklifts Brand of engine: S4S Approved: Yes
    Caterpillar Model: DP30NM MEXICO Model series: DP30NM MEXICO Model type: Forklifts Brand of engine: S4S Approved: Yes
    Caterpillar Model: DP33NM MEXICO Model series: DP33NM MEXICO Model type: Forklifts Brand of engine: S4S Approved: Yes
    Caterpillar Model: DP35K Model series: DP35K Model type: Forklifts Brand of engine: S4S Approved: Yes
    Caterpillar Model: DP35N Model series: DP35N Model type: Forklifts Brand of engine: S4S Approved: Yes
    Caterpillar Model: DP35NM MEXICO Model series: DP35NM MEXICO Model type: Forklifts Brand of engine: S4S Approved: Yes
    Clark Model: C25D Model series: C25D Model type: Forklifts Brand of engine: 4TNE94 Approved: Yes
    Clark Model: C30D Model series: C30D Model type: Forklifts Brand of engine: 4TNE94 Approved: Yes
    Clark Model: C35D Model series: C35D Model type: Forklifts Brand of engine: 4TNE94 Approved: Yes
    Doosan Model: G25 Model series: G25 Model type: Generator Sets Brand of engine: S4Q2 Approved: Yes
    Doosan Model: G40 Model series: G40 Model type: Generator Sets Brand of engine: S4S Approved: Yes
    Doosan Model: L20 Model series: L20 Model type: Light Plants and Signal B Brand of engine: S4Q2 Approved: Yes
    Ingersoll-Rand Model: G25 Model series: G25 Model type: Generator Sets Brand of engine: S4Q2 Approved: Yes
    Ingersoll-Rand Model: G40 Model series: G40 Model type: Generator Sets Brand of engine: S4S Approved: Yes
    Ingersoll-Rand Model: L20 Model series: L20 Model type: Light Plants and Signal B Brand of engine: S4Q2 Approved: Yes
    John Deere Model: Various Models Model series: Various Models Fuel: Diesel Approved: Yes
    Kubota Model: Engine Model series: Various Models Approved: Yes
    Massey Ferguson Model: MF24.3 50HZ Model series: MF24.3 50HZ Model type: Generator Sets Brand of engine: S4Q2 Approved: Yes
    Massey Ferguson Model: MF25.5 60HZ Model series: MF25.5 60HZ Model type: Generator Sets Brand of engine: S4Q2 Approved: Yes
    Mitsubishi Model: FD SERIES Model series: FD SERIES Model type: Forklifts Brand of engine: S4S Approved: Yes
    Mitsubishi Model: FD15/18K Model series: FD15/18K Model type: Forklifts Brand of engine: S4Q2 Approved: Yes
    Mitsubishi Model: FD15N Model series: FD15N Model type: Forklifts Brand of engine: S4Q2 Approved: Yes
    Mitsubishi Model: FD18N Model series: FD18N Model type: Forklifts Brand of engine: S4Q2 Approved: Yes
    Mitsubishi Model: FD20/25K Model series: FD20/25K Model type: Forklifts Brand of engine: S4S Approved: Yes
    Mitsubishi Model: FD20CN Model series: FD20CN Model type: Forklifts Brand of engine: S4Q2 Approved: Yes
    Mitsubishi Model: FD20K Model series: FD20K Model type: Forklifts Brand of engine: S4S Approved: Yes
    Mitsubishi Model: FD20N & FD25N Model series: FD20N & FD25N Model type: Forklifts Brand of engine: S4S Approved: Yes
    Mitsubishi Model: FD20N Model series: FD20N Model type: Forklifts Brand of engine: S4Q2 Approved: Yes
    Mitsubishi Model: FD25K Model series: FD25K Model type: Forklifts Brand of engine: S4S Approved: Yes
    Mitsubishi Model: FD25N Model series: FD25N Model type: Forklifts Brand of engine: S4Q2 Approved: Yes
    Mitsubishi Model: FD28N Model series: FD28N Model type: Forklifts Brand of engine: S4S Approved: Yes
    Mitsubishi Model: FD30K Model series: FD30K Model type: Forklifts Brand of engine: S4S Approved: Yes
    Mitsubishi Model: FD30N Model series: FD30N Model type: Forklifts Brand of engine: S4Q2 Approved: Yes
    Mitsubishi Model: FD30N, FD33N & FD35N Model series: FD30N, FD33N & FD35N Model type: Forklifts Brand of engine: S4S Approved: Yes
    Mitsubishi Model: FD35K Model series: FD35K Model type: Forklifts Brand of engine: S4S Approved: Yes
    Mitsubishi Model: FD35N Model series: FD35N Model type: Forklifts Brand of engine: S4Q2 Approved: Yes
    Mitsubishi Model: FDC SERIES Model series: FDC SERIES Model type: Forklifts Brand of engine: S4S Approved: Yes
    Mitsubishi Model: GX5000 Model series: GX5000 Model type: Ag Tractors Brand of engine: S4Q2 Approved: Yes
    Mitsubishi Model: GX511 Model series: GX511 Model type: Ag Tractors Brand of engine: S4Q2 Approved: Yes
    Mitsubishi Model: GXK511 Model series: GXK511 Model type: Ag Tractors Brand of engine: S4Q2 Approved: Yes
    Mitsubishi Model: PF57QX Model series: PF57QX Model type: Generator Sets Brand of engine: S4S Approved: Yes
    Mitsubishi Model: PG45QX Model series: PG45QX Model type: Generator Sets Brand of engine: S4Q2 Approved: Yes
    Nissan Model: PLD40/PLD50/PLD Model series: PLD40/PLD50/PLD Model type: Forklifts Brand of engine: S4S Approved: Yes
    Nissan Model: PLD60/PLD70 Model series: PLD60/PLD70 Model type: Forklifts Brand of engine: S4S Approved: Yes
    Terex Model: HR 18 Model series: HR 18 Model type: Excavators Brand of engine: S4Q2 Approved: Yes
    Terex Model: HR20 Model series: HR20 Model type: Excavators Brand of engine: S4Q2 Approved: Yes
    Terex Model: TC48 Model series: TC48 Model type: Excavators Brand of engine: S4Q2 Approved: Yes
    Terex Model: TC60 Model series: TC60 Model type: Excavators Brand of engine: S4Q2 Approved: Yes
    Volvo Model: EB 706 SRS Model series: EB 706 SRS Model type: Excavators Brand of engine: S4S Approved: Yes
    Volvo Model: VOLVO EC/EW70 Model series: VOLVO EC/EW70 Model type: Excavators Brand of engine: S4S Approved: Yes
    Yanmar Model: Engine Model series: Various Models Brand of engine: 3TG66 Approved: Yes
    Yanmar Model: Engine Model series: Various Models Brand of engine: 3TG72 Approved: Yes
