HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032111295

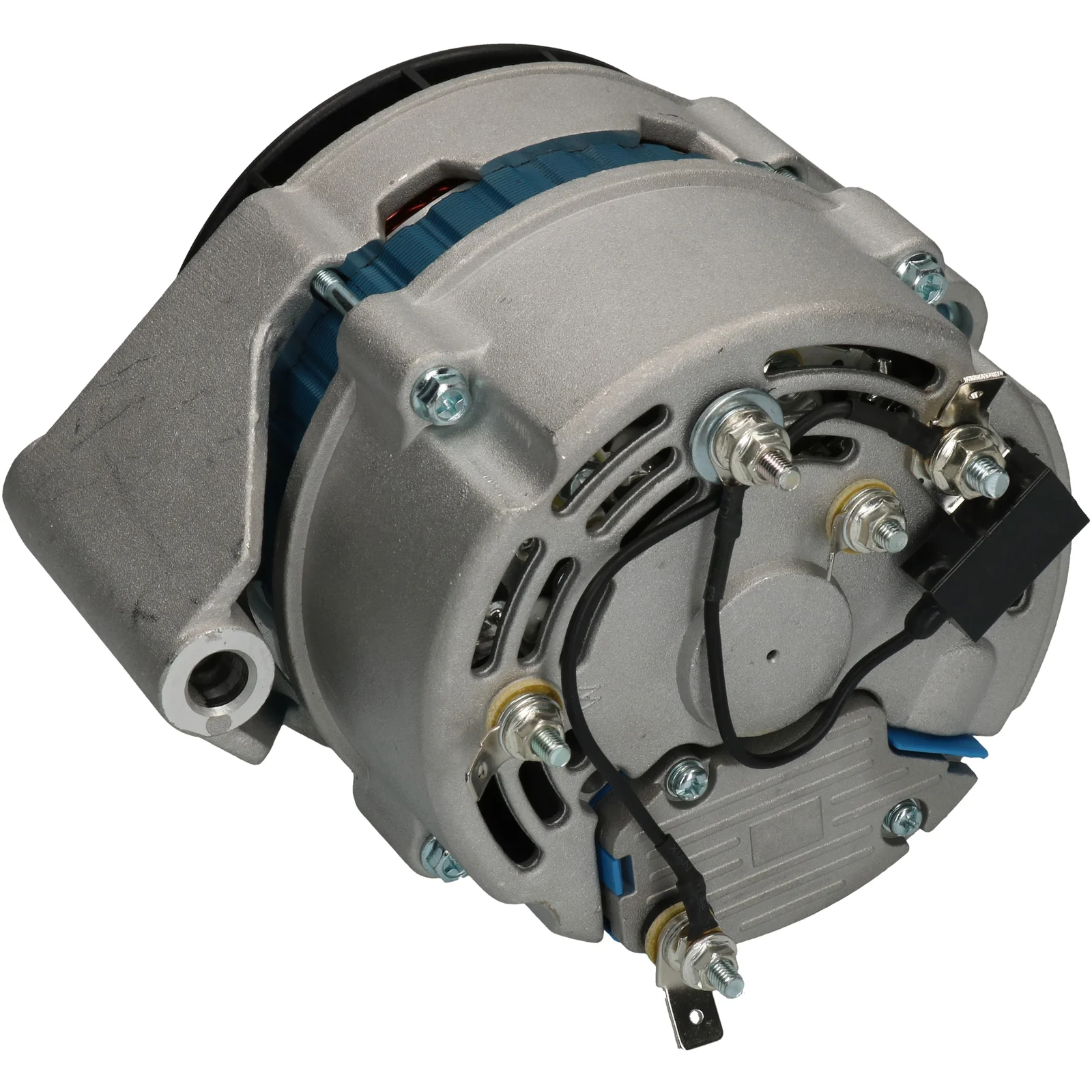

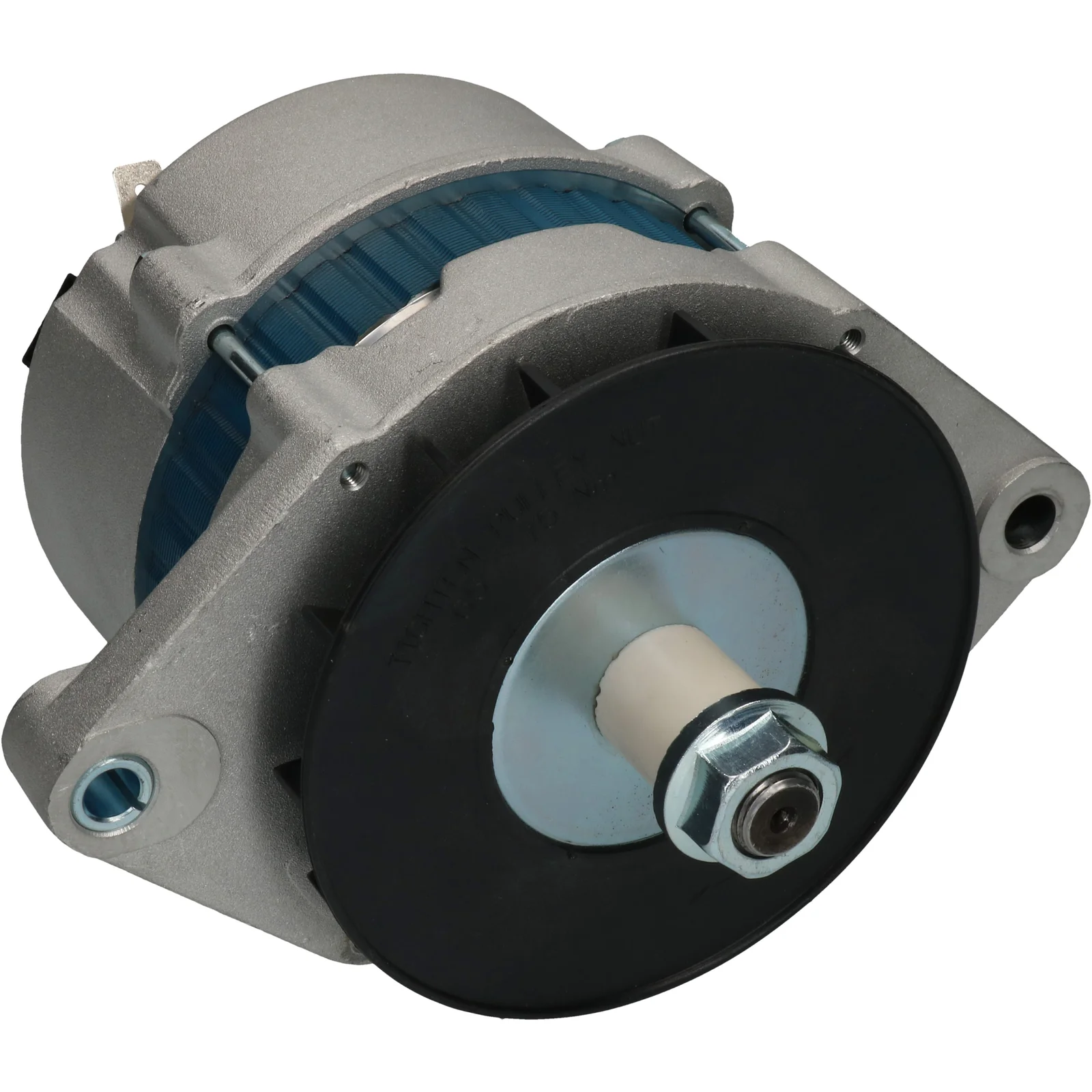

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 28, Amp: 55, Rotation: med uret, Radius: 90.00

Beskrivelse

Spænding: 28
Amp: 55
Isoleret return: Ja
Terminal: W
Bredde / holder arm: 76,20
Fæstningshull: 9,70
Bæltespændings regulering. fæstningshull pos.: 60
Bæltespændings regulering. fæstningshull 1: 10,30
Radius: 90,00
Radius 2: 94,50
B+: M5
Position/B+ i min.: 42
D+ Størrelse: 6,30
Rotation: U.I.
W stikkertype: M6
Total længde mm: 189,00
Drev: uden
Regulator type: IR
Produktinfo: BN/OE
Bemærkninger: Skaftdiameter: 19,00 mm

Filer

Specifikation

B+ M5
Belt. adj. bracket hole 1 10.30
Belt. adj. brackethole pos. 60
Bracket hole 9.70
Position/B+ in min. 42
Prod. info BN/OE
Pulley w/o
Radius 90.00
D+ Size 6.30
Radius 2 94.50
Regulator type IR
Remarks Shaft diameter: 19.00 mm
Rotation CW
Terminal W
Insulated return Yes
Voltage 28
W plug type M6
Total length 189.00 mm
Width/holder arm 76.20
Amp 55

  • OEM
    a5524/0, a5524/1, a5524/2, a5524/3, a5524/30, a5524/37, a5524/46, a5524/56, a5524/58, a5524/7, F032111295, 5rs-24, 1193ir, 2871A003, 854477, 857612, 857621, 857626, 857633, 857638, 858085, 858693, 859327, 859437, 859438, 859440, 859544, 859605, 860052, 860627, 860628, 860629, 880624, 880626, 880627Z, 880655, 1266450, 1266530, 1266720, 1268520, 1268560, 1268580, 1268590, 1268590C, 1268590M, 1268600m, 1268610, 1268620, 1268630M, 1268650, 1268660, 1268690

  • Konkurrentreferens
    A9351S, ALT21000, ALT32005, ALT32009, ALT32013, BAO3309, CAL11600, CAL11601, CAL11602, DRA3603, DRA3608, lra02511, lrb00606, lrb00627, lrb00628, lrb00630, 8el737213-001, 48-0508, 48-3780, 48-3844, 237.103.354, 500.147.554, 706.006.055, 5624, 301193RI, 66021507

  • NormaliseratArtNr
    a55240, a55241, a55242, a55243, a552430, a552437, a552446, a552456, a552458, a55247, a9351s, alt21000, alt32005, alt32009, alt32013, bao3309, cal11600, cal11601, cal11602, dra3603, dra3608, f032111295, lra02511, lrb00606, lrb00627, lrb00628, lrb00630, 5rs24, 8el737213001, 1193ir, 2871a003, 5624, 301193ri, 480508, 483780, 483844, 854477, 857612, 857621, 857626, 857633, 857638, 858085, 858693, 859327, 859437, 859438, 859440, 859544, 859605, 860052, 860627, 860628, 860629, 880624, 880626, 880627z, 880655, 1266450, 1266530, 1266720, 1268520, 1268560, 1268580, 1268590, 1268590c, 1268590m, 1268600m, 1268610, 1268620, 1268630m, 1268650, 1268660, 1268690, 66021507, 237103354, 500147554, 706006055

  • Passar modeller
    Cummins Model: Various Models Model series: Various Models From date: 01-01-1987 Approved: Yes
    Perkins Model: 4 Model series: 4-236 Size of motor: 3.9 Approved: Yes
  • Beskrivelse
    Spænding: 28
    Amp: 55
    Isoleret return: Ja
    Terminal: W
    Bredde / holder arm: 76,20
    Fæstningshull: 9,70
    Bæltespændings regulering. fæstningshull pos.: 60
    Bæltespændings regulering. fæstningshull 1: 10,30
    Radius: 90,00
    Radius 2: 94,50
    B+: M5
    Position/B+ i min.: 42
    D+ Størrelse: 6,30
    Rotation: U.I.
    W stikkertype: M6
    Total længde mm: 189,00
    Drev: uden
    Regulator type: IR
    Produktinfo: BN/OE
    Bemærkninger: Skaftdiameter: 19,00 mm

    Filer

  • Specifikation
    B+ M5
    Belt. adj. bracket hole 1 10.30
    Belt. adj. brackethole pos. 60
    Bracket hole 9.70
    Position/B+ in min. 42
    Prod. info BN/OE
    Pulley w/o
    Radius 90.00
    D+ Size 6.30
    Radius 2 94.50
    Regulator type IR
    Remarks Shaft diameter: 19.00 mm
    Rotation CW
    Terminal W
    Insulated return Yes
    Voltage 28
    W plug type M6
    Total length 189.00 mm
    Width/holder arm 76.20
    Amp 55
  • Køretøjsmatchning

    • OEM
      a5524/0, a5524/1, a5524/2, a5524/3, a5524/30, a5524/37, a5524/46, a5524/56, a5524/58, a5524/7, F032111295, 5rs-24, 1193ir, 2871A003, 854477, 857612, 857621, 857626, 857633, 857638, 858085, 858693, 859327, 859437, 859438, 859440, 859544, 859605, 860052, 860627, 860628, 860629, 880624, 880626, 880627Z, 880655, 1266450, 1266530, 1266720, 1268520, 1268560, 1268580, 1268590, 1268590C, 1268590M, 1268600m, 1268610, 1268620, 1268630M, 1268650, 1268660, 1268690

    • Konkurrentreferens
      A9351S, ALT21000, ALT32005, ALT32009, ALT32013, BAO3309, CAL11600, CAL11601, CAL11602, DRA3603, DRA3608, lra02511, lrb00606, lrb00627, lrb00628, lrb00630, 8el737213-001, 48-0508, 48-3780, 48-3844, 237.103.354, 500.147.554, 706.006.055, 5624, 301193RI, 66021507

    • NormaliseratArtNr
      a55240, a55241, a55242, a55243, a552430, a552437, a552446, a552456, a552458, a55247, a9351s, alt21000, alt32005, alt32009, alt32013, bao3309, cal11600, cal11601, cal11602, dra3603, dra3608, f032111295, lra02511, lrb00606, lrb00627, lrb00628, lrb00630, 5rs24, 8el737213001, 1193ir, 2871a003, 5624, 301193ri, 480508, 483780, 483844, 854477, 857612, 857621, 857626, 857633, 857638, 858085, 858693, 859327, 859437, 859438, 859440, 859544, 859605, 860052, 860627, 860628, 860629, 880624, 880626, 880627z, 880655, 1266450, 1266530, 1266720, 1268520, 1268560, 1268580, 1268590, 1268590c, 1268590m, 1268600m, 1268610, 1268620, 1268630m, 1268650, 1268660, 1268690, 66021507, 237103354, 500147554, 706006055

    • Passar modeller
      Cummins Model: Various Models Model series: Various Models From date: 01-01-1987 Approved: Yes
      Perkins Model: 4 Model series: 4-236 Size of motor: 3.9 Approved: Yes
