Vare nr.: F032111484

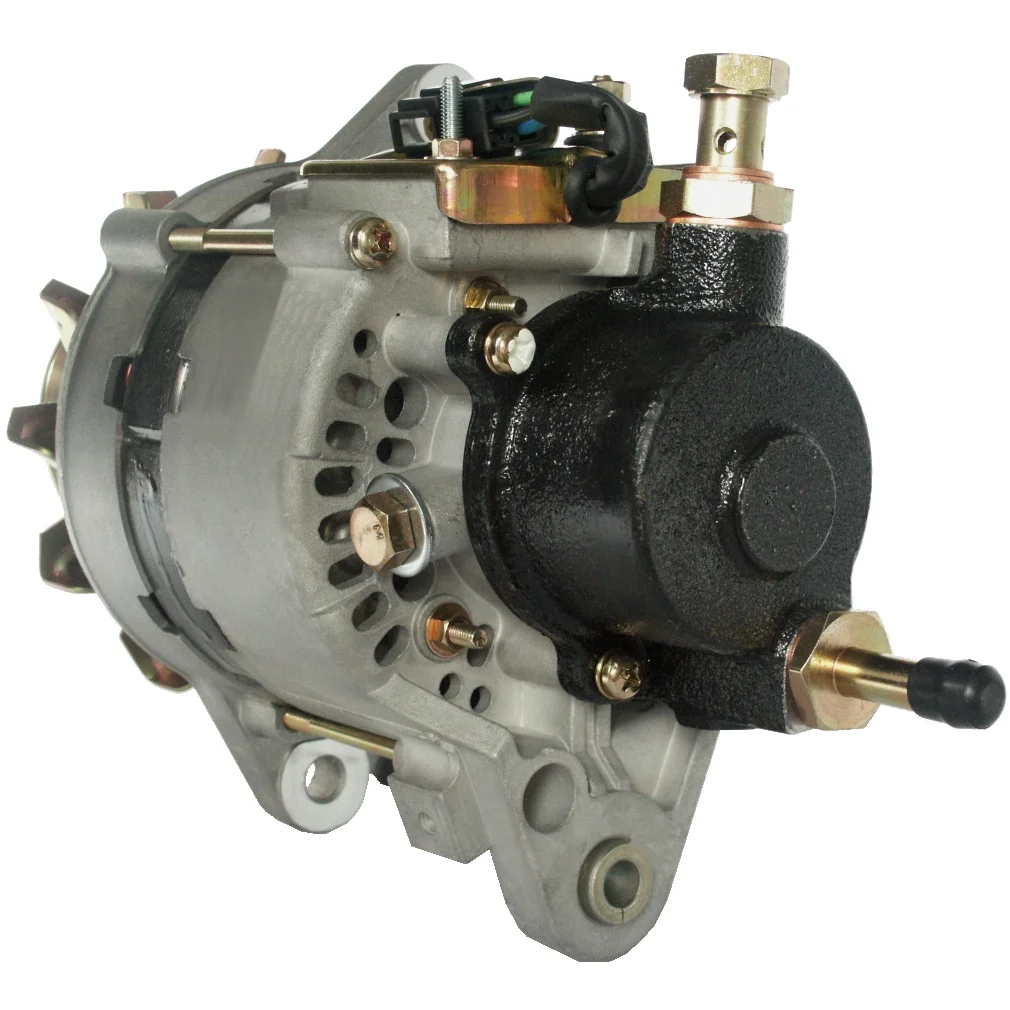

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 28, Amp: 50, Rotation: CW, Monteringsbeslag fordelingsdække: 97,00

Beskrivelse

Spænding: 28
Amp: 50
Remskive dist.: 63,00
Bredde/holderarms: 14,20
Monteringsbeslag dist.: 97,00
Beslagshul: 10,50
Bælte. just. beslagshul pos.: 55
Bælte. just. beslagshul 1: M8
Remskivedia.: 95,00
Riller/remskive: 1
Radius: 89,00
Radius 2: 90,00
B+: M6
Position/B+ i min.: 2
Rotation: med uret
Stik nr.: PL15
Total længde mm: 276,00
Remskive: P
Regulator: uden
Kølepumpe: Ja
Produktion info: BN
Service: Toyota
Bemærkninger: Regulator: HC-CARGO 135376

Filer

Specifikation

B+ M6
Mount. bracket dist. 97.00
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 55
Plug no. PL15
Bracket hole 10.50
Position/B+ in min. 2
Prod. info BN
Pulley P
Pulley dia. 95.00
Pulley dist. 63.00
Radius 89.00
Radius 2 90.00
Regulator w/o
Remarks Regulator: HC-CARGO 135376
Rotation CW
Servicing Toyota
Grooves/pulley 1
Vac. pump Yes
Voltage 28
Total length 276.00 mm
Width/holder arm 14.20
Amp 50

  • OEM
    F032111484, ja982, 021000-9980, 27020-56180, 27030-56150, 100210-2290

  • Konkurrentreferens
    CAL40607, dra3746, J5112081, LRA02403, 8el737057-001, 39-51.281, 47-1606, 235.027.254, 5472, 40982, 56084, 119279, 12060349

  • NormaliseratArtNr
    cal40607, dra3746, f032111484, j5112081, ja982, lra02403, 8el737057001, 5472, 40982, 56084, 119279, 471606, 3951281, 12060349, 0210009980, 235027254, 1002102290, 2702056180, 2703056150

  • Passar modeller
    Toyota Model: Land Cruiser Model series: Land Cruiser Type of engine: Diesel Size of motor: 3.0 Brand of engine: B Type description: BJ40_V, BJ43_ From date: 01-03-1969 To date: 01-10-1984 Fuel: Diesel Approved: Yes
    Toyota Model: Land Cruiser Model series: Land Cruiser Type of engine: Diesel Size of motor: 3.4 Brand of engine: 3B Type description: BJ42_V, BJ45_V, BJ46 From date: 01-08-1980 To date: 01-10-1984 Fuel: Diesel Approved: Yes
    Toyota Model: Land Cruiser Model series: Land Cruiser Type of engine: Diesel Size of motor: 3.4 Brand of engine: 3B Type description: BJ45_P Body: Pick Up From date: 01-08-1980 To date: 01-10-1984 Fuel: Diesel Approved: Yes
    Toyota Model: Land Cruiser Model series: Land Cruiser Type of engine: Diesel Size of motor: 3.4 Brand of engine: 3B Type description: BJ60_V From date: 01-10-1981 To date: 01-08-1987 Fuel: Diesel Approved: Yes
    Toyota Model: Land Cruiser Model series: Land Cruiser Type of engine: Diesel Size of motor: 3.4 Brand of engine: 3B Type description: BJ70LV-MRW From date: 01-11-1984 To date: 01-12-1996 Fuel: Diesel Approved: Yes
  • Beskrivelse
    Spænding: 28
    Amp: 50
    Remskive dist.: 63,00
    Bredde/holderarms: 14,20
    Monteringsbeslag dist.: 97,00
    Beslagshul: 10,50
    Bælte. just. beslagshul pos.: 55
    Bælte. just. beslagshul 1: M8
    Remskivedia.: 95,00
    Riller/remskive: 1
    Radius: 89,00
    Radius 2: 90,00
    B+: M6
    Position/B+ i min.: 2
    Rotation: med uret
    Stik nr.: PL15
    Total længde mm: 276,00
    Remskive: P
    Regulator: uden
    Kølepumpe: Ja
    Produktion info: BN
    Service: Toyota
    Bemærkninger: Regulator: HC-CARGO 135376

    Filer

  • Specifikation
    B+ M6
    Mount. bracket dist. 97.00
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 55
    Plug no. PL15
    Bracket hole 10.50
    Position/B+ in min. 2
    Prod. info BN
    Pulley P
    Pulley dia. 95.00
    Pulley dist. 63.00
    Radius 89.00
    Radius 2 90.00
    Regulator w/o
    Remarks Regulator: HC-CARGO 135376
    Rotation CW
    Servicing Toyota
    Grooves/pulley 1
    Vac. pump Yes
    Voltage 28
    Total length 276.00 mm
    Width/holder arm 14.20
    Amp 50
  • Køretøjsmatchning

    • OEM
      F032111484, ja982, 021000-9980, 27020-56180, 27030-56150, 100210-2290

    • Konkurrentreferens
      CAL40607, dra3746, J5112081, LRA02403, 8el737057-001, 39-51.281, 47-1606, 235.027.254, 5472, 40982, 56084, 119279, 12060349

    • NormaliseratArtNr
      cal40607, dra3746, f032111484, j5112081, ja982, lra02403, 8el737057001, 5472, 40982, 56084, 119279, 471606, 3951281, 12060349, 0210009980, 235027254, 1002102290, 2702056180, 2703056150

    • Passar modeller
      Toyota Model: Land Cruiser Model series: Land Cruiser Type of engine: Diesel Size of motor: 3.0 Brand of engine: B Type description: BJ40_V, BJ43_ From date: 01-03-1969 To date: 01-10-1984 Fuel: Diesel Approved: Yes
      Toyota Model: Land Cruiser Model series: Land Cruiser Type of engine: Diesel Size of motor: 3.4 Brand of engine: 3B Type description: BJ42_V, BJ45_V, BJ46 From date: 01-08-1980 To date: 01-10-1984 Fuel: Diesel Approved: Yes
      Toyota Model: Land Cruiser Model series: Land Cruiser Type of engine: Diesel Size of motor: 3.4 Brand of engine: 3B Type description: BJ45_P Body: Pick Up From date: 01-08-1980 To date: 01-10-1984 Fuel: Diesel Approved: Yes
      Toyota Model: Land Cruiser Model series: Land Cruiser Type of engine: Diesel Size of motor: 3.4 Brand of engine: 3B Type description: BJ60_V From date: 01-10-1981 To date: 01-08-1987 Fuel: Diesel Approved: Yes
      Toyota Model: Land Cruiser Model series: Land Cruiser Type of engine: Diesel Size of motor: 3.4 Brand of engine: 3B Type description: BJ70LV-MRW From date: 01-11-1984 To date: 01-12-1996 Fuel: Diesel Approved: Yes
