Vare nr.: F032111316

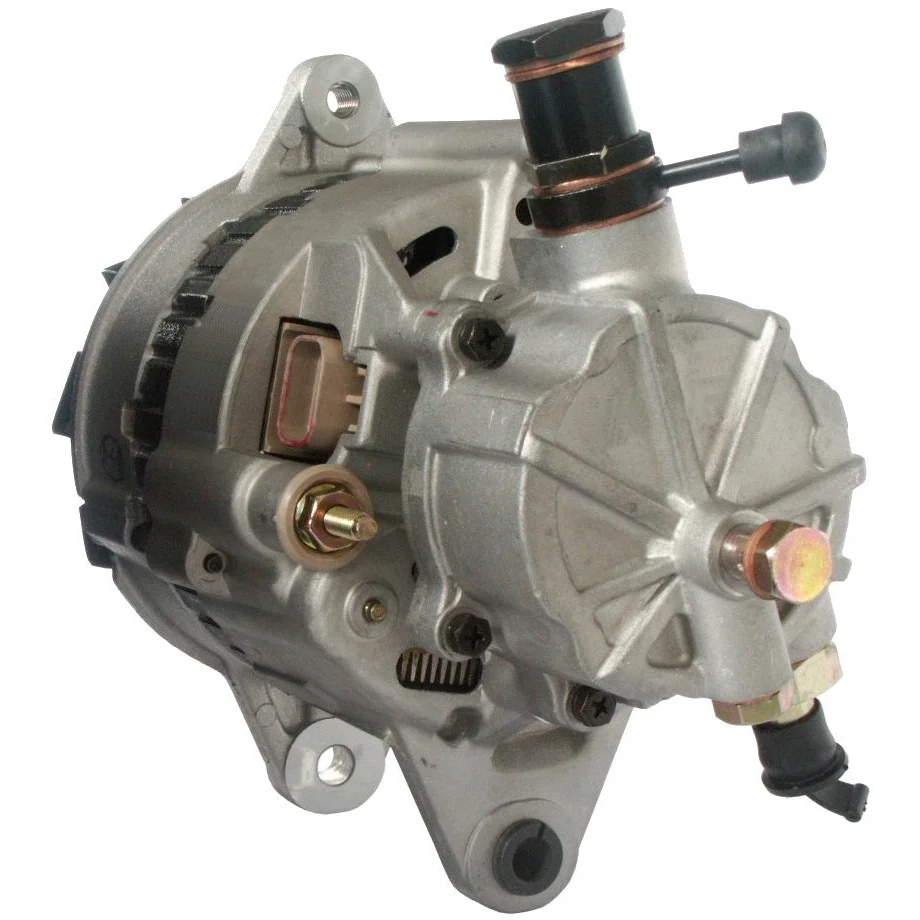

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 60, Rotation: CW, Mount. bøjle fordeling: 81,00

Beskrivelse

HC-Cargo Generator 14V - 60A, 2gr

Spænding: 14
Ampere: 60
Skiveafstand: 42.00
Bredde/festearm: 14.00
Mount. beslagafstand: 81.00
Beslaghul: 10.30
Belte justering beslaghul position: 60
Belte justering beslaghul 1: M8
Skivediameter: 84.00
Riller/skive: 2
Radius: 91.50
Radius 2: 86.00
B+: M6
Position/B+ i min.: 45
D+ Størrelse: Stik
Rotation: med uret
Stik nr.: PL07
Samlet længde mm: 249.00
Skive: DP
Regulator type: IR
Vakuumpumpe: Ja
Produktinfo: BN
Service: Nissan

Filer

Specifikation

B+ M6
Mount. bracket dist. 81.00
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 60
Plug no. PL07
Bracket hole 10.30
Position/B+ in min. 45
Prod. info BN
Pulley DP
Pulley dia. 84.00
Pulley dist. 42.00
Radius 91.50
D+ Size Plug
Radius 2 86.00
Regulator type IR
Rotation CW
Servicing Nissan
Grooves/pulley 2
Vac. pump Yes
Voltage 14
Total length 249.00 mm
Width/holder arm 14.00
Amp 60

  • OEM
    F032111316, JA780IR, ja780ir, LR160-426, lr160-426, LR160-426E, lr160-426e, LR160-426S, lr160-426s, LR160-426T, lr160-426t, LR160-427, lr160-427, LR160-427C, lr160-427c, LR160-427S, lr160-427s, LR160-427T, lr160-427t, LR160-436, lr160-436, LR160-436S, lr160-436s, LR160-436T, lr160-436t, LR160-437, lr160-437, LR160-437S, lr160-437s, LR160-437T, lr160-437t, 23100-02N13, 23100-02n13, 23100-02N17, 23100-02n17, 23100-02N21, 23100-02n21, 23100-43G05, 23100-43g05, 23100-43G07, 23100-43g07, 23100-43G09, 23100-43g09, 111316

  • Konkurrentreferens
    A2033, ada-392, ada-393, CAL20114, dra3208, LRA01479, 8EL012429-551, 8el730114-001, 28-2519, 28-51.143, 28-51.146, 28-51.157, 227.112.602, 227.140.602, 5410, 40780RI, 56423, 119359, 210104, 210104A, 437685, 9212763, 12060241, 12060276, 0986038501, 0986038930

  • Bilmärken
    Nissan

  • NormaliseratArtNr
    a2033, ada392, ada393, cal20114, dra3208, f032111316, ja780ir, lr160426, lr160426e, lr160426s, lr160426t, lr160427, lr160427c, lr160427s, lr160427t, lr160436, lr160436s, lr160436t, lr160437, lr160437s, lr160437t, lra01479, 8el012429551, 8el730114001, 5410, 40780ri, 56423, 111316, 119359, 210104, 210104a, 282519, 437685, 2310002n13, 2310002n17, 2310002n21, 2310043g05, 2310043g07, 2310043g09, 2851143, 2851146, 2851157, 9212763, 12060241, 12060276, 227112602, 227140602, 0986038501, 0986038930

  • Passar modeller
    Nissan Model: Patrol Gr Model series: Patrol Gr Model type: D 4x4 Type of engine: Diesel Size of motor: 4.2 Brand of engine: TD42 Type description: Y60, GR Body: Closed Off-Road Vehicle From date: 01-07-1992 To date: 01-05-1994 Fuel: Diesel Approved: Yes
    Nissan Model: Pick-Up Model series: Pick-Up Model type: 4WD Type of engine: Diesel Size of motor: 2.5 Brand of engine: TD25 Type description: D21 Body: Pick Up From date: 01-03-1996 To date: 01-02-1998 Fuel: Diesel Approved: Yes
    Nissan Model: Pick-Up Model series: Pick-Up Model type: 4WD Type of engine: Diesel Size of motor: 2.5 Brand of engine: TD25 Type description: D21 Body: Pick Up From date: 01-08-1987 To date: 01-02-1998 Fuel: Diesel Approved: Yes
    Nissan Model: Pick-Up Model series: Pick-Up Type of engine: Diesel Size of motor: 2.5 Brand of engine: TD25 Type description: D21 Body: Pick Up From date: 01-08-1992 To date: 01-02-1998 Fuel: Diesel Approved: Yes
    Nissan Model: Pick-Up Model series: Pick-Up Type of engine: Diesel Size of motor: 2.5 Brand of engine: TD25 Type description: D21 Body: Pick Up From date: 01-09-1987 To date: 01-02-1998 Fuel: Diesel Approved: Yes
    Nissan Model: Pick-Up Model series: Pick-Up Type of engine: Diesel Size of motor: 2.5 Brand of engine: TD25 Type description: D21 Body: Pick Up From date: 01-09-1994 To date: 01-08-1996 Fuel: Diesel Approved: Yes
    Nissan Model: Terrano Model series: Terrano Type of engine: TD Size of motor: 2.7 Brand of engine: TD27T Type description: R20 From date: 01-02-1993 To date: 01-01-2002 Fuel: Diesel Approved: Yes
    Nissan Model: Terrano Model series: Terrano Type of engine: TD Size of motor: 2.7 Brand of engine: TD27T Type description: WD21 From date: 01-02-1989 To date: 01-02-1996 Fuel: Diesel Approved: Yes
    Nissan Series: PICK UP (D21) Model: 2.5 D 4WD Engine volume: 2.5 Engine type: TD25 Year: 03.96-02.98
    Nissan Series: PICK UP (D21) Model: 2.5 D 4WD Engine volume: 2.5 Engine type: TD25 Year: 08.87-02.98
    Nissan Series: Pick-Up (D21) Model: 2.5 D Engine volume: 2.5 Engine type: TD 25 Year: 08.92-02.98
    Nissan Series: TERRANO I (WD21) Model: 2.7 TD 4WD Engine volume: 2.7 Engine type: TD27T Year: 02.89-02.96
    Nissan Series: TERRANO II (R20) Model: 2.7 TD 4WD Engine volume: 2.7 Engine type: TD27T Year: 02.93-01.02
    1 / 3
  • Beskrivelse
    HC-Cargo Generator 14V - 60A, 2gr

    Spænding: 14
    Ampere: 60
    Skiveafstand: 42.00
    Bredde/festearm: 14.00
    Mount. beslagafstand: 81.00
    Beslaghul: 10.30
    Belte justering beslaghul position: 60
    Belte justering beslaghul 1: M8
    Skivediameter: 84.00
    Riller/skive: 2
    Radius: 91.50
    Radius 2: 86.00
    B+: M6
    Position/B+ i min.: 45
    D+ Størrelse: Stik
    Rotation: med uret
    Stik nr.: PL07
    Samlet længde mm: 249.00
    Skive: DP
    Regulator type: IR
    Vakuumpumpe: Ja
    Produktinfo: BN
    Service: Nissan

    Filer

  • Specifikation
    B+ M6
    Mount. bracket dist. 81.00
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 60
    Plug no. PL07
    Bracket hole 10.30
    Position/B+ in min. 45
    Prod. info BN
    Pulley DP
    Pulley dia. 84.00
    Pulley dist. 42.00
    Radius 91.50
    D+ Size Plug
    Radius 2 86.00
    Regulator type IR
    Rotation CW
    Servicing Nissan
    Grooves/pulley 2
    Vac. pump Yes
    Voltage 14
    Total length 249.00 mm
    Width/holder arm 14.00
    Amp 60
  • Køretøjsmatchning

    • OEM
      F032111316, JA780IR, ja780ir, LR160-426, lr160-426, LR160-426E, lr160-426e, LR160-426S, lr160-426s, LR160-426T, lr160-426t, LR160-427, lr160-427, LR160-427C, lr160-427c, LR160-427S, lr160-427s, LR160-427T, lr160-427t, LR160-436, lr160-436, LR160-436S, lr160-436s, LR160-436T, lr160-436t, LR160-437, lr160-437, LR160-437S, lr160-437s, LR160-437T, lr160-437t, 23100-02N13, 23100-02n13, 23100-02N17, 23100-02n17, 23100-02N21, 23100-02n21, 23100-43G05, 23100-43g05, 23100-43G07, 23100-43g07, 23100-43G09, 23100-43g09, 111316

    • Konkurrentreferens
      A2033, ada-392, ada-393, CAL20114, dra3208, LRA01479, 8EL012429-551, 8el730114-001, 28-2519, 28-51.143, 28-51.146, 28-51.157, 227.112.602, 227.140.602, 5410, 40780RI, 56423, 119359, 210104, 210104A, 437685, 9212763, 12060241, 12060276, 0986038501, 0986038930

    • Bilmärken
      Nissan

    • NormaliseratArtNr
      a2033, ada392, ada393, cal20114, dra3208, f032111316, ja780ir, lr160426, lr160426e, lr160426s, lr160426t, lr160427, lr160427c, lr160427s, lr160427t, lr160436, lr160436s, lr160436t, lr160437, lr160437s, lr160437t, lra01479, 8el012429551, 8el730114001, 5410, 40780ri, 56423, 111316, 119359, 210104, 210104a, 282519, 437685, 2310002n13, 2310002n17, 2310002n21, 2310043g05, 2310043g07, 2310043g09, 2851143, 2851146, 2851157, 9212763, 12060241, 12060276, 227112602, 227140602, 0986038501, 0986038930

    • Passar modeller
      Nissan Model: Patrol Gr Model series: Patrol Gr Model type: D 4x4 Type of engine: Diesel Size of motor: 4.2 Brand of engine: TD42 Type description: Y60, GR Body: Closed Off-Road Vehicle From date: 01-07-1992 To date: 01-05-1994 Fuel: Diesel Approved: Yes
      Nissan Model: Pick-Up Model series: Pick-Up Model type: 4WD Type of engine: Diesel Size of motor: 2.5 Brand of engine: TD25 Type description: D21 Body: Pick Up From date: 01-03-1996 To date: 01-02-1998 Fuel: Diesel Approved: Yes
      Nissan Model: Pick-Up Model series: Pick-Up Model type: 4WD Type of engine: Diesel Size of motor: 2.5 Brand of engine: TD25 Type description: D21 Body: Pick Up From date: 01-08-1987 To date: 01-02-1998 Fuel: Diesel Approved: Yes
      Nissan Model: Pick-Up Model series: Pick-Up Type of engine: Diesel Size of motor: 2.5 Brand of engine: TD25 Type description: D21 Body: Pick Up From date: 01-08-1992 To date: 01-02-1998 Fuel: Diesel Approved: Yes
      Nissan Model: Pick-Up Model series: Pick-Up Type of engine: Diesel Size of motor: 2.5 Brand of engine: TD25 Type description: D21 Body: Pick Up From date: 01-09-1987 To date: 01-02-1998 Fuel: Diesel Approved: Yes
      Nissan Model: Pick-Up Model series: Pick-Up Type of engine: Diesel Size of motor: 2.5 Brand of engine: TD25 Type description: D21 Body: Pick Up From date: 01-09-1994 To date: 01-08-1996 Fuel: Diesel Approved: Yes
      Nissan Model: Terrano Model series: Terrano Type of engine: TD Size of motor: 2.7 Brand of engine: TD27T Type description: R20 From date: 01-02-1993 To date: 01-01-2002 Fuel: Diesel Approved: Yes
      Nissan Model: Terrano Model series: Terrano Type of engine: TD Size of motor: 2.7 Brand of engine: TD27T Type description: WD21 From date: 01-02-1989 To date: 01-02-1996 Fuel: Diesel Approved: Yes
      Nissan Series: PICK UP (D21) Model: 2.5 D 4WD Engine volume: 2.5 Engine type: TD25 Year: 03.96-02.98
      Nissan Series: PICK UP (D21) Model: 2.5 D 4WD Engine volume: 2.5 Engine type: TD25 Year: 08.87-02.98
      Nissan Series: Pick-Up (D21) Model: 2.5 D Engine volume: 2.5 Engine type: TD 25 Year: 08.92-02.98
      Nissan Series: TERRANO I (WD21) Model: 2.7 TD 4WD Engine volume: 2.7 Engine type: TD27T Year: 02.89-02.96
      Nissan Series: TERRANO II (R20) Model: 2.7 TD 4WD Engine volume: 2.7 Engine type: TD27T Year: 02.93-01.02
      1 / 3
