Vare nr.: F032113990

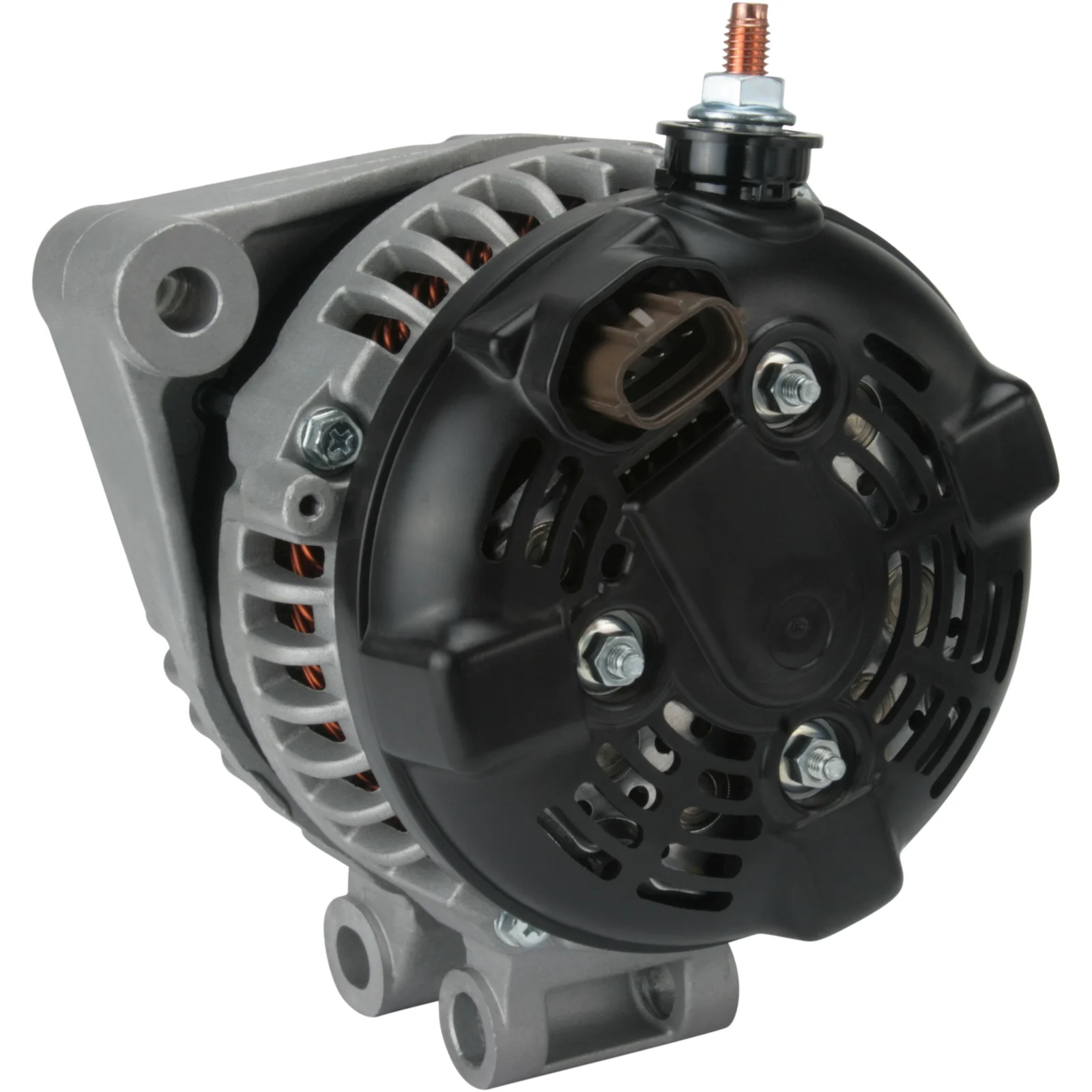

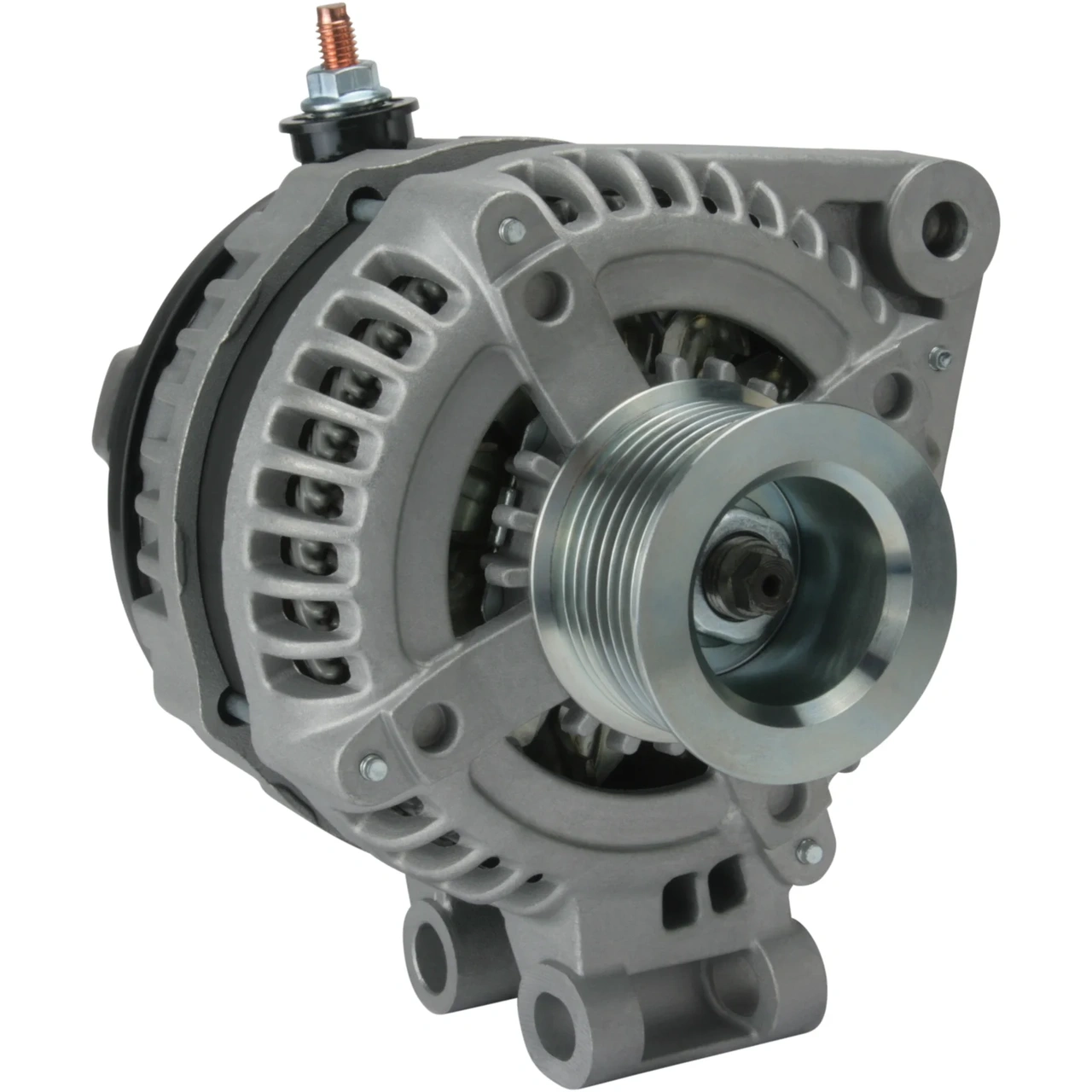

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 150, Rotation: CW, Monteringsbøsning for fordelingsbøsning: 47,00

Beskrivelse

Spænding: 14
Amp.: 150
Remskive afstand: 22,50
Bredde/beslagarm: 50,00
monteringsbeslag afstand: 47,00
Beslaghuls: 14,50x11,80
Bæltejustering beslagshul: 8
Bæltejustering beslags hul 1: 10,30
Remskive dia.: 52,00
Riller/remskive: 8
B+: M8
Position/B+ i min.: 8
D+ størrelse: Stik
Rotation: CW
Stik nr.: PL136
Total længde mm: 170,00
Remskive: SP
Regulator type: IR
Prod. info: BN

Specifikation

B+ M8
Mount. bracket dist. 47.00
Belt. adj. bracket hole 1 10.30
Belt. adj. brackethole pos. 8
Plug no. PL136
Bracket hole 14.50x11.80
Position/B+ in min. 8
Prod. info BN
Pulley SP
Pulley dia. 52.00
Pulley dist. 22.50
D+ Size Plug
Regulator type IR
Rotation CW
Grooves/pulley 8
Voltage 14
Total length 170.00 mm
Width/holder arm 50.00
Amp 150
  • OEM

    F032113990, YLE500300, yle500340, YLE500440, 104210-4010, 104210-4011, 104210-4012
  • Konkurrentreferens

    A3538(VALEO), A6044, A6044(DENSO), CAL40276, DAN989, DRA0519, 8EL015637-661, 28-5878, 20358, 20358R, 439984, 440758, 440762, 553392RI, 12090396, 32118820, 32439984
  • NormaliseratArtNr

    a3538valeo, a6044, a6044denso, cal40276, dan989, dra0519, f032113990, yle500300, yle500340, yle500440, 8el015637661, 20358, 20358r, 285878, 439984, 440758, 440762, 553392ri, 12090396, 32118820, 32439984, 1042104010, 1042104011, 1042104012
  • Passar modeller

    Land Rover Model: Range Rover Model series: Range Rover Type of engine: TD8 Size of motor: 3.6 Brand of engine: 368DT From date: 01-04-2006 To date: 01-03-2013 Fuel: Diesel Approved: Yes
    Land Rover Model: Range Rover Model series: Range Rover Type of engine: TD8 Size of motor: 3.6 Brand of engine: 368DT From date: 01-04-2006 To date: 01-08-2012 Fuel: Diesel Approved: Yes
  • Beskrivelse
    Spænding: 14
    Amp.: 150
    Remskive afstand: 22,50
    Bredde/beslagarm: 50,00
    monteringsbeslag afstand: 47,00
    Beslaghuls: 14,50x11,80
    Bæltejustering beslagshul: 8
    Bæltejustering beslags hul 1: 10,30
    Remskive dia.: 52,00
    Riller/remskive: 8
    B+: M8
    Position/B+ i min.: 8
    D+ størrelse: Stik
    Rotation: CW
    Stik nr.: PL136
    Total længde mm: 170,00
    Remskive: SP
    Regulator type: IR
    Prod. info: BN
  • Specifikation
    B+ M8
    Mount. bracket dist. 47.00
    Belt. adj. bracket hole 1 10.30
    Belt. adj. brackethole pos. 8
    Plug no. PL136
    Bracket hole 14.50x11.80
    Position/B+ in min. 8
    Prod. info BN
    Pulley SP
    Pulley dia. 52.00
    Pulley dist. 22.50
    D+ Size Plug
    Regulator type IR
    Rotation CW
    Grooves/pulley 8
    Voltage 14
    Total length 170.00 mm
    Width/holder arm 50.00
    Amp 150
  • Køretøjsmatchning
    • OEM

      F032113990, YLE500300, yle500340, YLE500440, 104210-4010, 104210-4011, 104210-4012
    • Konkurrentreferens

      A3538(VALEO), A6044, A6044(DENSO), CAL40276, DAN989, DRA0519, 8EL015637-661, 28-5878, 20358, 20358R, 439984, 440758, 440762, 553392RI, 12090396, 32118820, 32439984
    • NormaliseratArtNr

      a3538valeo, a6044, a6044denso, cal40276, dan989, dra0519, f032113990, yle500300, yle500340, yle500440, 8el015637661, 20358, 20358r, 285878, 439984, 440758, 440762, 553392ri, 12090396, 32118820, 32439984, 1042104010, 1042104011, 1042104012
    • Passar modeller

      Land Rover Model: Range Rover Model series: Range Rover Type of engine: TD8 Size of motor: 3.6 Brand of engine: 368DT From date: 01-04-2006 To date: 01-03-2013 Fuel: Diesel Approved: Yes
      Land Rover Model: Range Rover Model series: Range Rover Type of engine: TD8 Size of motor: 3.6 Brand of engine: 368DT From date: 01-04-2006 To date: 01-08-2012 Fuel: Diesel Approved: Yes
