Vare nr.: F032114000

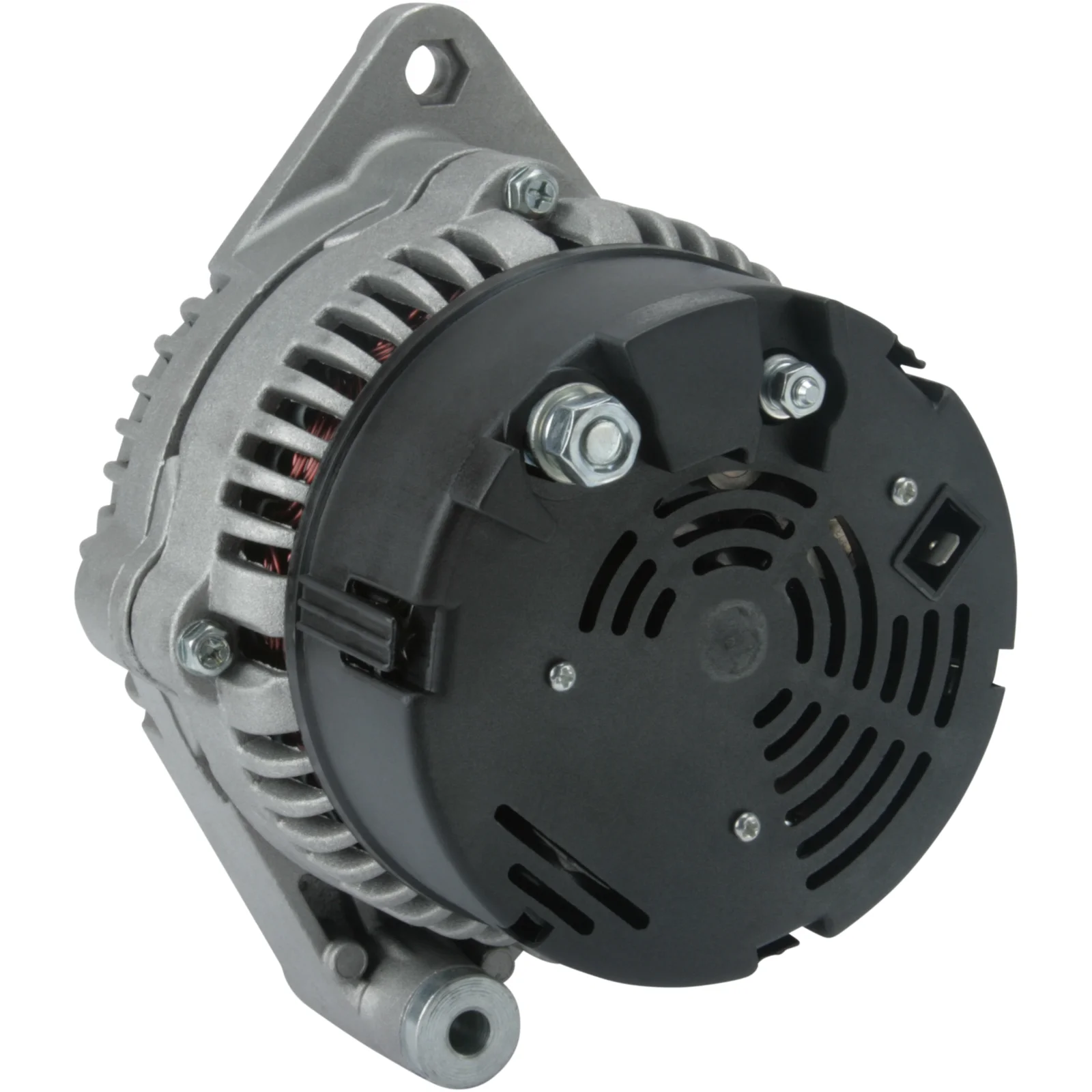

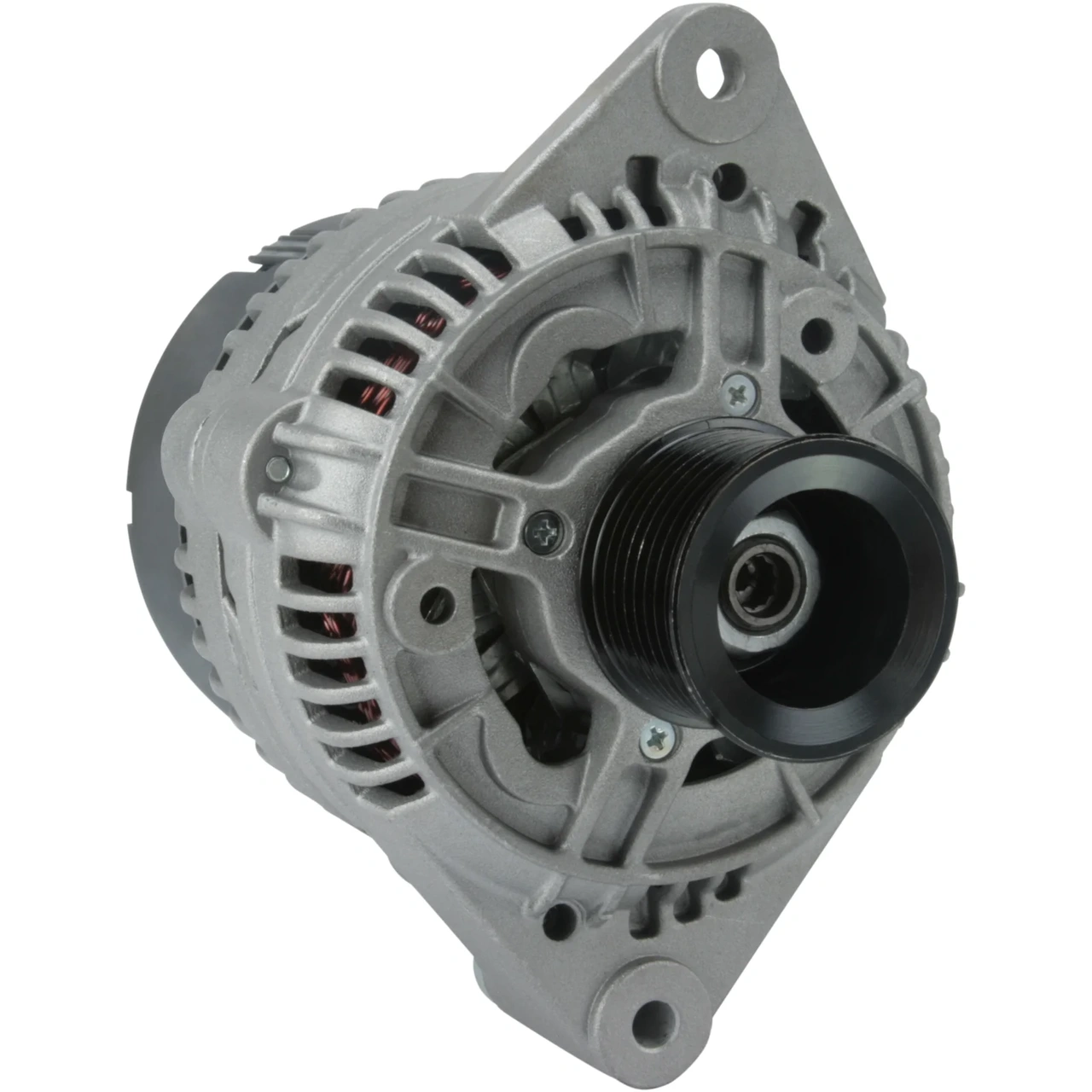

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 120, Rotation: CW, Remskive dia.: 50.00

Beskrivelse

Spænding: 14
Ampere: 120
Terminal: W
Drevskive: 83,00
Bredde/bærehåndtag: 56,00
Bøjlehull: 8,50
Remspændingsjusteringsbøjlehull pos.: 2
Remspændingsjusteringsbøjlehull 1: 9,00
Drevskivens diameter: 50,00
Riller/drevskive: 8
Radius: 86,00
Radius 2: 86,00
B+: M8
Position/B+ i min.: 50
D+ Størrelse: M5
Rotation: med uret
W stikkontakttype: 6,30
Total længde mm: 187,00
Drevskive: SP

Specifikation

B+ M8
Belt. adj. bracket hole 1 9.00
Belt. adj. brackethole pos. 2
Bracket hole 8.50
Position/B+ in min. 50
Pulley SP
Pulley dia. 50.00
Pulley dist. 83.00
Radius 86.00
D+ Size M5
Radius 2 86.00
Rotation CW
Grooves/pulley 8
Terminal W
Voltage 14
W plug type 6.30
Total length 187.00 mm
Width/holder arm 56.00
Amp 120
  • OEM

    AAK5533, F032114000, 11.203.281, 7700071558
  • Konkurrentreferens

    A9179, CAL21122, IA1161, LRA03663, MG339, 28-6803, 500.184.1202, 24097N, 210991, 210991A
  • NormaliseratArtNr

    a9179, aak5533, cal21122, f032114000, ia1161, lra03663, mg339, 24097n, 210991, 210991a, 286803, 11203281, 5001841202, 7700071558
  • Passar modeller

    Claas Model: Various Models Model series: Various Models Approved: Yes
  • Beskrivelse
    Spænding: 14
    Ampere: 120
    Terminal: W
    Drevskive: 83,00
    Bredde/bærehåndtag: 56,00
    Bøjlehull: 8,50
    Remspændingsjusteringsbøjlehull pos.: 2
    Remspændingsjusteringsbøjlehull 1: 9,00
    Drevskivens diameter: 50,00
    Riller/drevskive: 8
    Radius: 86,00
    Radius 2: 86,00
    B+: M8
    Position/B+ i min.: 50
    D+ Størrelse: M5
    Rotation: med uret
    W stikkontakttype: 6,30
    Total længde mm: 187,00
    Drevskive: SP
  • Specifikation
    B+ M8
    Belt. adj. bracket hole 1 9.00
    Belt. adj. brackethole pos. 2
    Bracket hole 8.50
    Position/B+ in min. 50
    Pulley SP
    Pulley dia. 50.00
    Pulley dist. 83.00
    Radius 86.00
    D+ Size M5
    Radius 2 86.00
    Rotation CW
    Grooves/pulley 8
    Terminal W
    Voltage 14
    W plug type 6.30
    Total length 187.00 mm
    Width/holder arm 56.00
    Amp 120
  • Køretøjsmatchning
    • OEM

      AAK5533, F032114000, 11.203.281, 7700071558
    • Konkurrentreferens

      A9179, CAL21122, IA1161, LRA03663, MG339, 28-6803, 500.184.1202, 24097N, 210991, 210991A
    • NormaliseratArtNr

      a9179, aak5533, cal21122, f032114000, ia1161, lra03663, mg339, 24097n, 210991, 210991a, 286803, 11203281, 5001841202, 7700071558
    • Passar modeller

      Claas Model: Various Models Model series: Various Models Approved: Yes
