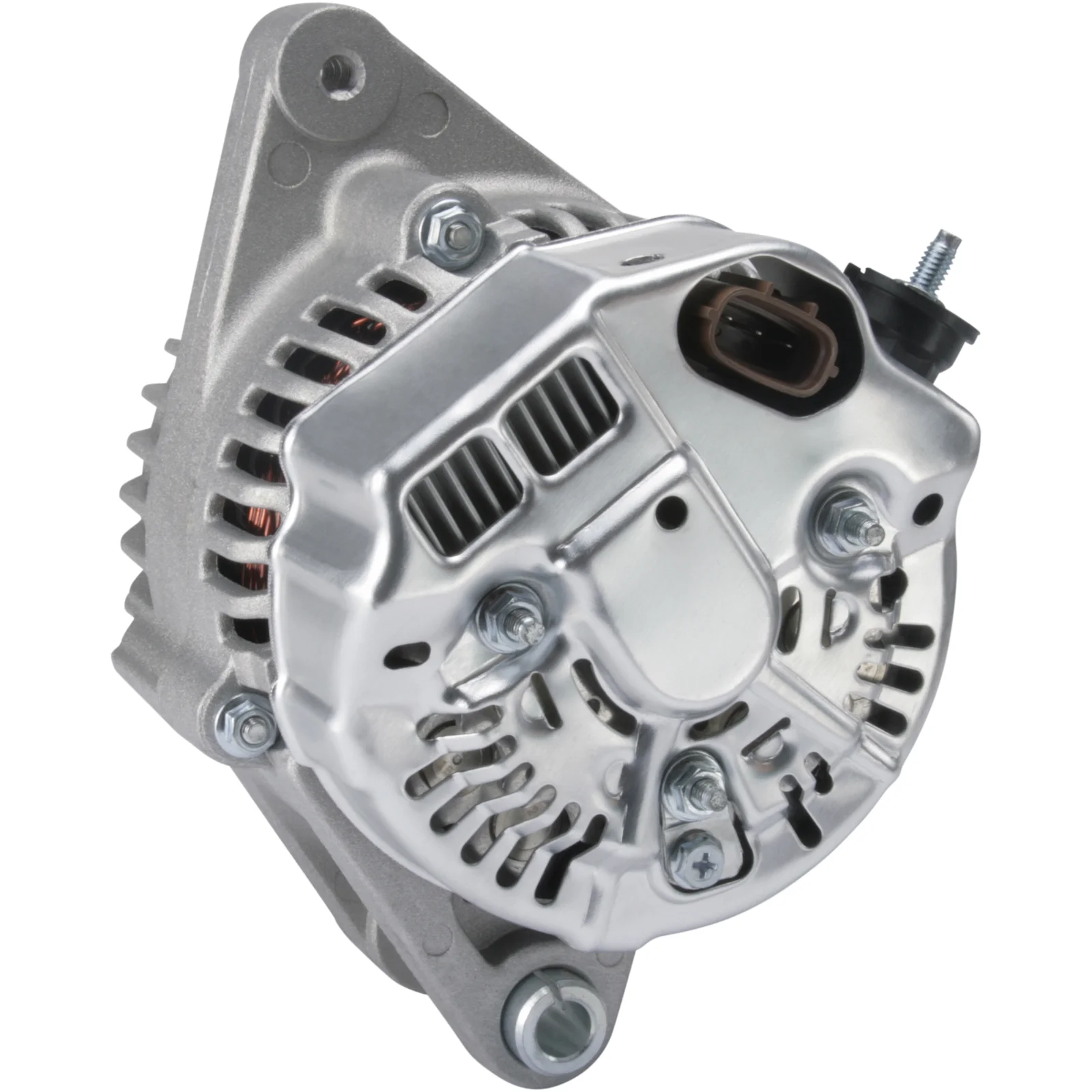

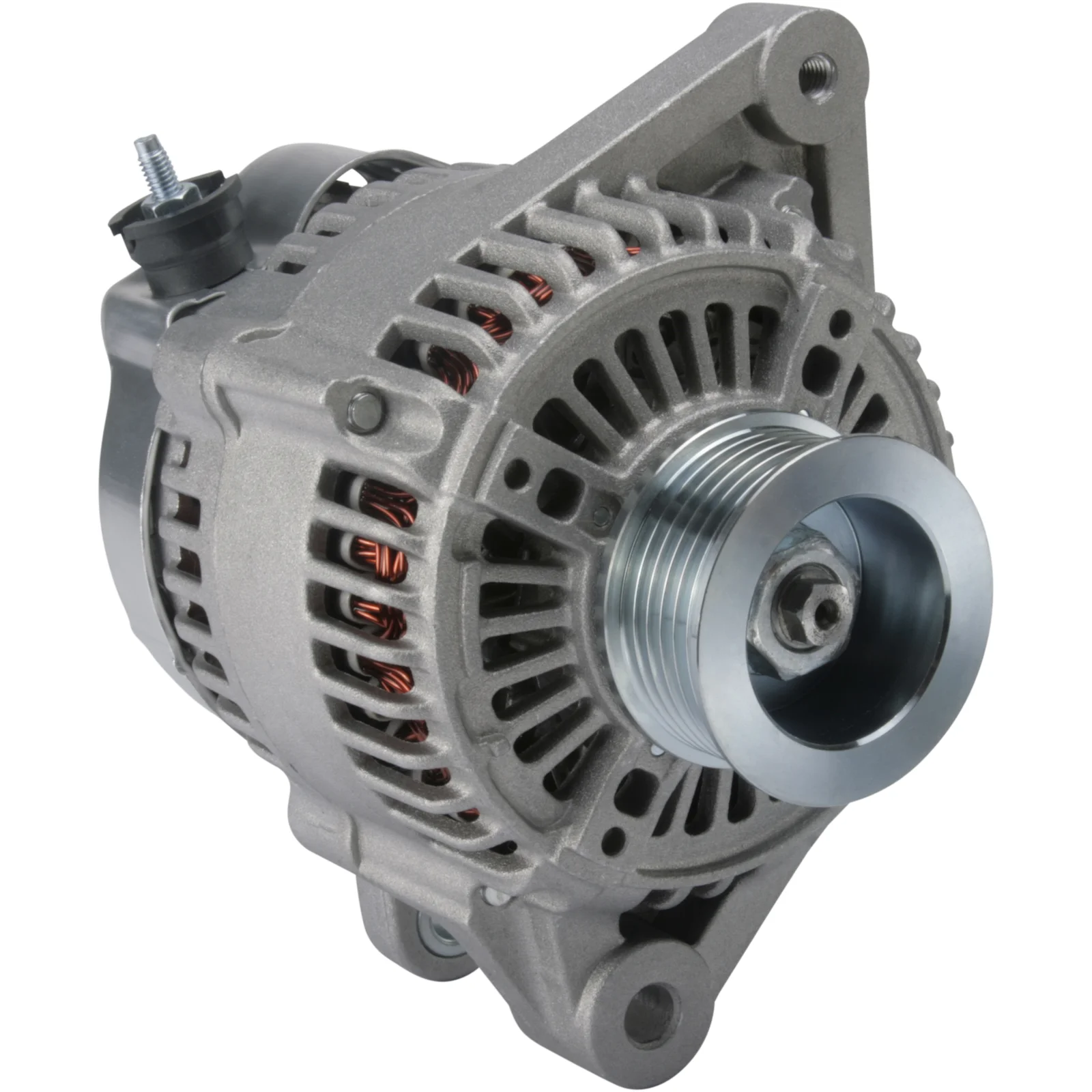

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032114005

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 70, Rotation: CW, Montagebeslag fordelere: 39.00

Beskrivelse

Spænding: 14
Ampere: 70
Remskive dist.: 48,00
Bredde/holderarm: 27,00
Monteringsbeslag dist.: 39,00
Beslagshul: 10,00
Bæltejust. beslagshul pos.: 5
Bæltejust. beslagshul 1: M8
Remskive dia.: 55,00
Riller/remskive: 6
Radius: 80,00
Radius 2: 90,00
B+: M6
Position/B+ i min.: 5
D+ Størrelse: Beware
Rotation: CW
Plug nr.: PL67
Total længde mm: 166,00
Remskive: SP
Regulator type: IR
Prod. info: BN

Filer

Specifikation

B+ M6
Mount. bracket dist. 39.00
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 5
Plug no. PL67
Bracket hole 10.00
Position/B+ in min. 5
Prod. info BN
Pulley SP
Pulley dia. 55.00
Pulley dist. 48.00
Radius 80.00
D+ Size Plug
Radius 2 90.00
Regulator type IR
Rotation CW
Grooves/pulley 6
Voltage 14
Total length 166.00 mm
Width/holder arm 27.00
Amp 70

  • OEM
    F032114005, ja1809ir, 27060-0J010, 27060-0J030, 27060-23040, 27060-23070, 102211-5300, 102211-5410, 102211-6150, 102211-6170, 102211-8000, 102211-8190

  • Konkurrentreferens
    A6202, A6202(DENSO), A6202PR, A6657(DENSO), ALT-H183, CAL40287, DAN960, DENDAN960, dra0112, F042A0H183, J5112119, 8EL012426-301, 8EL012429-461, 8EL738211-071, 28-4757, 195.573.070, 195.588.070, 21471R, 23276N, 210727, 210727A, 401809RI, 443039, 9212926, 12060803, 12060909, 063377439, 0986045841, 0986080590, 063377439010

  • NormaliseratArtNr
    a6202, a6202denso, a6202pr, a6657denso, alth183, cal40287, dan960, dendan960, dra0112, f032114005, f042a0h183, j5112119, ja1809ir, 8el012426301, 8el012429461, 8el738211071, 21471r, 23276n, 210727, 210727a, 270600j010, 270600j030, 284757, 401809ri, 443039, 9212926, 12060803, 12060909, 063377439, 195573070, 195588070, 0986045841, 0986080590, 1022115300, 1022115410, 1022116150, 1022116170, 1022118000, 1022118190, 2706023040, 2706023070, 063377439010

  • Passar modeller
    Toyota Model: Yaris Model series: Yaris Size of motor: 1.3 Brand of engine: 2SZ-FE Body: Hatchback From date: 01-04-2002 To date: 01-09-2005 Fuel: Gasoline Approved: Yes
    Toyota Model: Yaris Model series: Yaris Type of engine: 16V Size of motor: 1.0 Brand of engine: 1SZ-FE Type description: _CP10_ Body: Hatchback From date: 01-03-2003 To date: 01-09-2005 Fuel: Gasoline Approved: Yes
    Toyota Model: Yaris Model series: Yaris Type of engine: i Size of motor: 1.0 Brand of engine: 1SZ-FE Type description: SCP10 Body: Hatchback From date: 01-04-1999 To date: 01-09-2005 Fuel: Gasoline Approved: Yes
  • Beskrivelse
    Spænding: 14
    Ampere: 70
    Remskive dist.: 48,00
    Bredde/holderarm: 27,00
    Monteringsbeslag dist.: 39,00
    Beslagshul: 10,00
    Bæltejust. beslagshul pos.: 5
    Bæltejust. beslagshul 1: M8
    Remskive dia.: 55,00
    Riller/remskive: 6
    Radius: 80,00
    Radius 2: 90,00
    B+: M6
    Position/B+ i min.: 5
    D+ Størrelse: Beware
    Rotation: CW
    Plug nr.: PL67
    Total længde mm: 166,00
    Remskive: SP
    Regulator type: IR
    Prod. info: BN

    Filer

  • Specifikation
    B+ M6
    Mount. bracket dist. 39.00
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 5
    Plug no. PL67
    Bracket hole 10.00
    Position/B+ in min. 5
    Prod. info BN
    Pulley SP
    Pulley dia. 55.00
    Pulley dist. 48.00
    Radius 80.00
    D+ Size Plug
    Radius 2 90.00
    Regulator type IR
    Rotation CW
    Grooves/pulley 6
    Voltage 14
    Total length 166.00 mm
    Width/holder arm 27.00
    Amp 70
  • Køretøjsmatchning

    • OEM
      F032114005, ja1809ir, 27060-0J010, 27060-0J030, 27060-23040, 27060-23070, 102211-5300, 102211-5410, 102211-6150, 102211-6170, 102211-8000, 102211-8190

    • Konkurrentreferens
      A6202, A6202(DENSO), A6202PR, A6657(DENSO), ALT-H183, CAL40287, DAN960, DENDAN960, dra0112, F042A0H183, J5112119, 8EL012426-301, 8EL012429-461, 8EL738211-071, 28-4757, 195.573.070, 195.588.070, 21471R, 23276N, 210727, 210727A, 401809RI, 443039, 9212926, 12060803, 12060909, 063377439, 0986045841, 0986080590, 063377439010

    • NormaliseratArtNr
      a6202, a6202denso, a6202pr, a6657denso, alth183, cal40287, dan960, dendan960, dra0112, f032114005, f042a0h183, j5112119, ja1809ir, 8el012426301, 8el012429461, 8el738211071, 21471r, 23276n, 210727, 210727a, 270600j010, 270600j030, 284757, 401809ri, 443039, 9212926, 12060803, 12060909, 063377439, 195573070, 195588070, 0986045841, 0986080590, 1022115300, 1022115410, 1022116150, 1022116170, 1022118000, 1022118190, 2706023040, 2706023070, 063377439010

    • Passar modeller
      Toyota Model: Yaris Model series: Yaris Size of motor: 1.3 Brand of engine: 2SZ-FE Body: Hatchback From date: 01-04-2002 To date: 01-09-2005 Fuel: Gasoline Approved: Yes
      Toyota Model: Yaris Model series: Yaris Type of engine: 16V Size of motor: 1.0 Brand of engine: 1SZ-FE Type description: _CP10_ Body: Hatchback From date: 01-03-2003 To date: 01-09-2005 Fuel: Gasoline Approved: Yes
      Toyota Model: Yaris Model series: Yaris Type of engine: i Size of motor: 1.0 Brand of engine: 1SZ-FE Type description: SCP10 Body: Hatchback From date: 01-04-1999 To date: 01-09-2005 Fuel: Gasoline Approved: Yes
