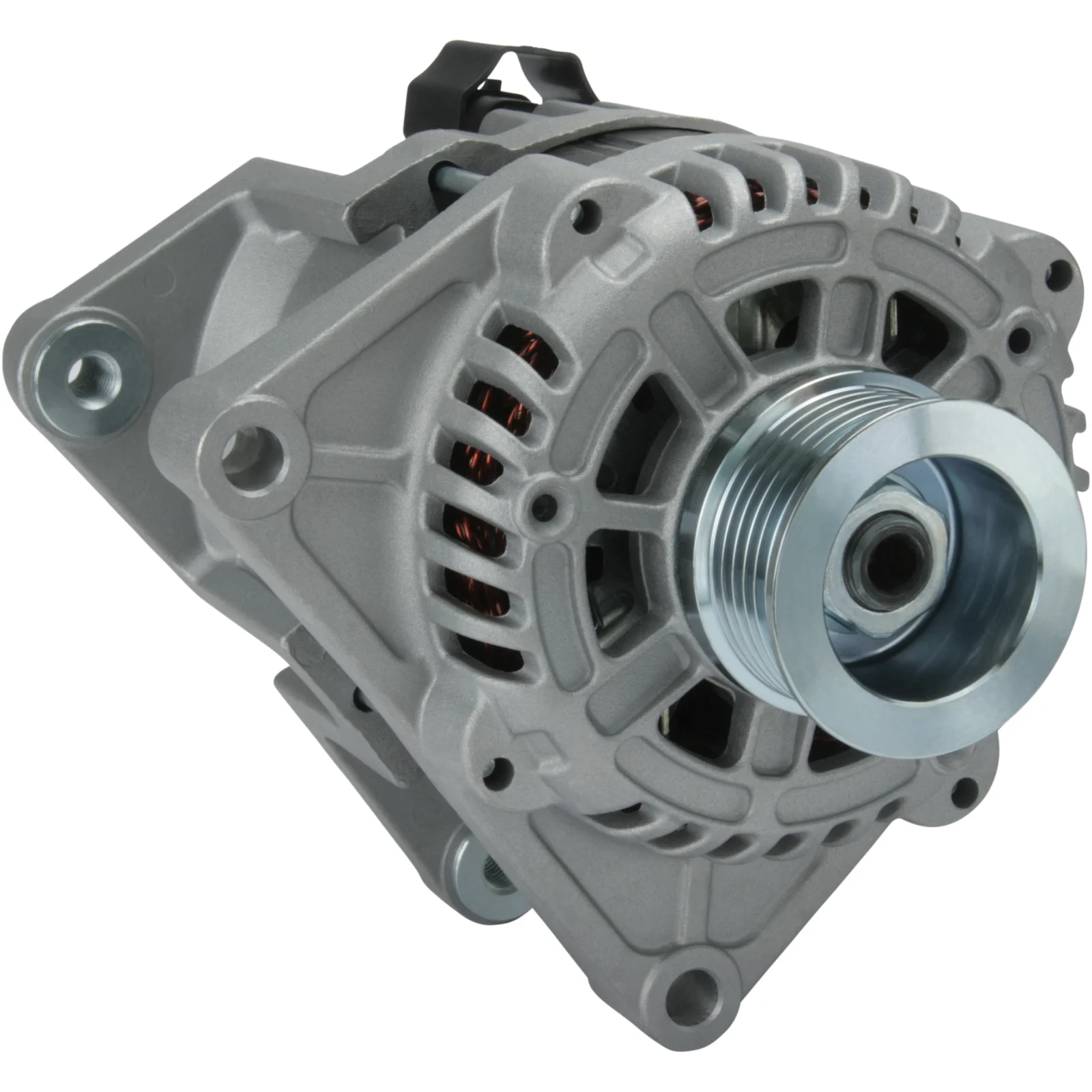

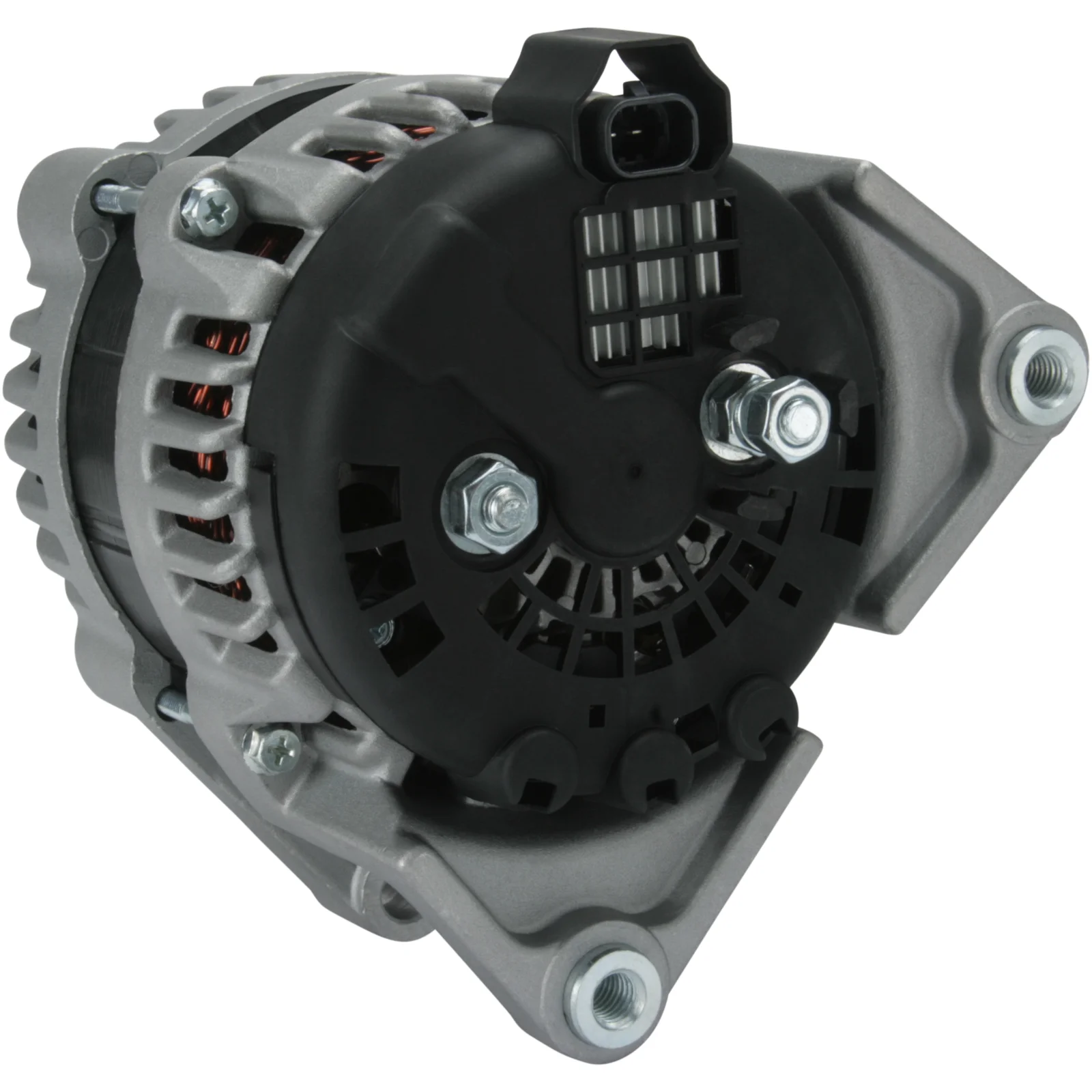

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032115410

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 100, Rotation: CW, Monteringsbeslag forfordeling: 56,00

Beskrivelse

Spænding: 14
Amp.: 100
Bøsning divers.: 64,00
Bredde/bærehåndtag: 23,20
Monteringsbeslag afstanden.: 56,00
Beslagshul: 10,50
Bæltespændingsbeslag hulposition.: 13
Bæltespændingsbeslag hul 1: 10,50
Bøsning dia.: 53,80
Riller/bøsning: 6
Radie: 92,00
Radie 2: 92,00
B+: M8
Position/B+ i min.: 10
D+ Størrelse: Stik
Rotation: med uret
Stik nr.: PL180
Terminaltype: L-F
Kommunikation: PWM
Bøsning: SP
Regulator type: IR
Produktoplysninger: BN
Bemærkninger: Denne Generator har en PWM terminal på regulatoren. Det anbefales, at OEM-nummeret bruges for at kontrollere egnethed før bestilling.

Filer

Specifikation

B+ M8
Communication PWM
Mount. bracket dist. 56.00
Belt. adj. bracket hole 1 10.50
Belt. adj. brackethole pos. 13
Plug no. PL180
Bracket hole 10.50
Position/B+ in min. 10
Prod. info BN
Pulley SP
Pulley dia. 53.80
Pulley dist. 64.00
Radius 92.00
D+ Size Plug
Radius 2 92.00
Regulator type IR
Remarks This Alternator has a PWM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Grooves/pulley 6
Terminal type L-F
Voltage 14
Width/holder arm 23.20
Amp 100

  • OEM
    F032115410, FG12S032, FG12S096, 1986A00070, 2120ir, 1202262, 1204180, 13502595, 13579667, 13588298, 13595629

  • Konkurrentreferens
    A1027, CAL42116, DRA0905, DRA0905N, LRA03359, 28-5971, 135.574.100, 228.184.1002, 835.986.130, 21513N, 210827, 210827A, 553495RI, 849049, 12090467, 0986083410

  • NormaliseratArtNr
    a1027, cal42116, dra0905, dra0905n, f032115410, fg12s032, fg12s096, lra03359, 1986a00070, 2120ir, 21513n, 210827, 210827a, 285971, 553495ri, 849049, 1202262, 1204180, 12090467, 13502595, 13579667, 13588298, 13595629, 135574100, 835986130, 0986083410, 2281841002

  • Passar modeller
    Chevrolet Model: Aveo Model series: Aveo Saloon Size of motor: 1.6 Brand of engine: LXT Type description: T300 Body: Saloon Fuel: Petrol Approved: Yes Manufacture type: Saloon
    Chevrolet Model: Cruze Hatchback Model series: Cruze Hatchback Size of motor: 1.6 Brand of engine: LDE Type description: J305 Body: Hatchback Fuel: Petrol Approved: Yes
    Chevrolet Model: Cruze Model series: Cruze Model type: LPG Size of motor: 1.8 Brand of engine: F18D4 Type description: J305 Body: Hatchback From date: 01-06-2011 Fuel: Gasoline Approved: Yes
    Chevrolet Model: Cruze Model series: Cruze Size of motor: 1.6 Brand of engine: F16D4 Type description: J300 From date: 01-05-2009 Fuel: Gasoline Approved: Yes
    Chevrolet Model: Cruze Model series: Cruze Size of motor: 1.6 Brand of engine: LDE Type description: J300 From date: 01-12-2012 Fuel: Petrol Approved: Yes
    Chevrolet Model: Cruze Model series: Cruze Size of motor: 1.8 Brand of engine: F18D4 Type description: J300 From date: 01-05-2009 Fuel: Gasoline Approved: Yes
    Chevrolet Model: Trax Model series: Trax Model type: Flex Size of motor: 1.8 Brand of engine: LFH Body: SUV Fuel: Petrol/Ethanol Approved: Yes
    Opel Model: Astra Model series: Astra J Model type: Ecotec Size of motor: 1.6 Brand of engine: A16XER Body: Hatchback From date: 01-12-2009 To date: 01-10-2015 Fuel: Gasoline Approved: Yes
    Opel Model: Astra Model series: Astra J Model type: GTC Size of motor: 1.8 Brand of engine: A18XER Body: Hatchback From date: 01-10-2011 To date: 01-10-2015 Fuel: Gasoline Approved: Yes
    Opel Model: Zafira Model series: Zafira C Size of motor: 1.8 Brand of engine: A18XEL Type description: P12 Body: MPV From date: 01-10-2011 Fuel: Gasoline Approved: Yes
    Opel Model: Zafira Model series: Zafira C Size of motor: 1.8 Brand of engine: A18XER Type description: P12 Body: MPV From date: 01-10-2011 Fuel: Gasoline Approved: Yes
    Vauxhall Model: Astra Model series: Astra MK VI Type of engine: 16V VVT Size of motor: 1.6 Brand of engine: A16XER Body: Hatchback From date: 01-12-2009 To date: 01-10-2015 Fuel: Gasoline Approved: Yes
    Vauxhall Model: Zafira Model series: Zafira MK III Model type: CNG Size of motor: 1.6 Brand of engine: A16XNT Type description: P12 Body: MPV From date: 01-10-2011 To date: 01-08-2018 Fuel: Bi-Fuel Approved: Yes
    Vauxhall Model: Zafira Model series: Zafira MK III Size of motor: 1.8 Brand of engine: A18XEL Type description: P12 Body: MPV From date: 01-10-2011 To date: 01-08-2018 Fuel: Gasoline Approved: Yes
