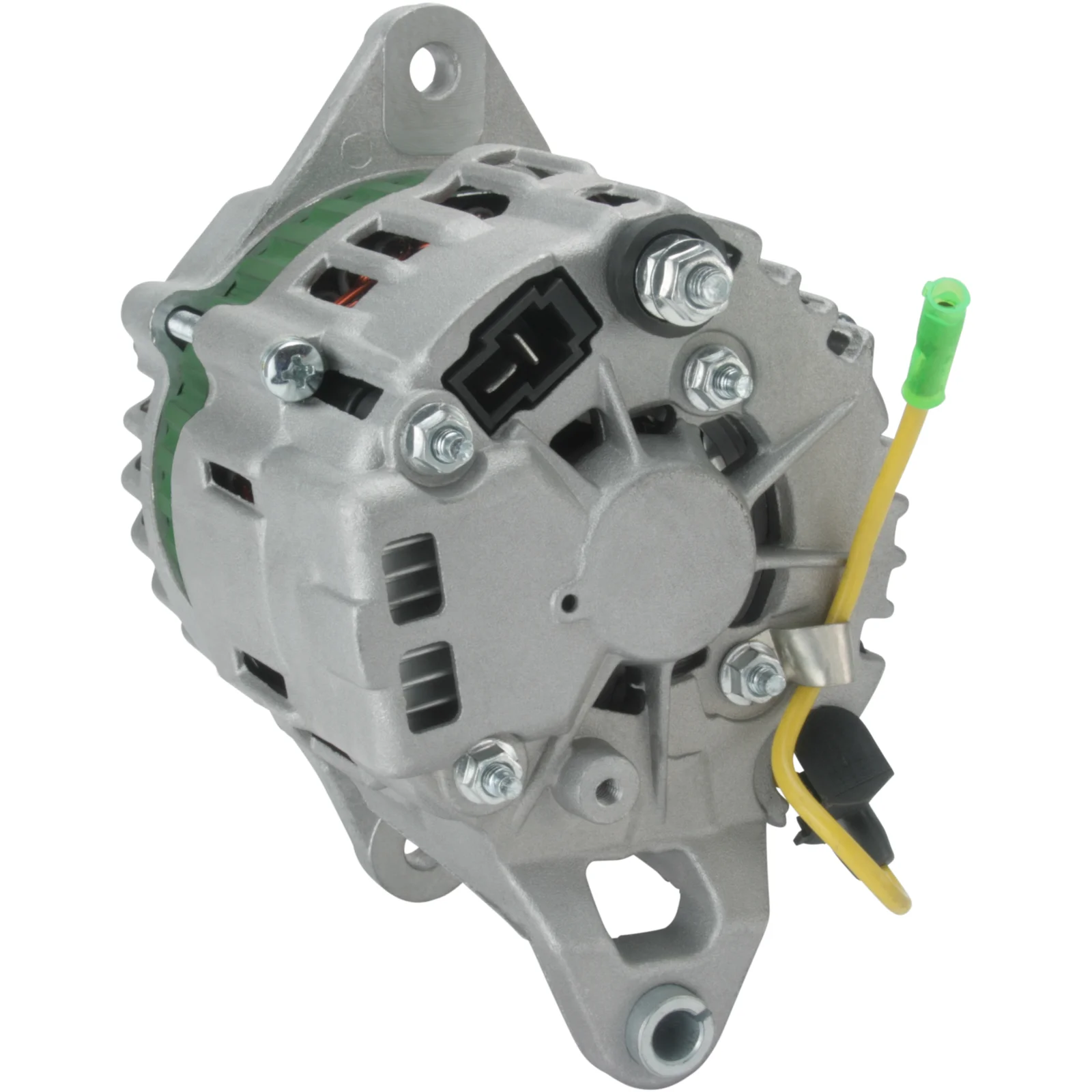

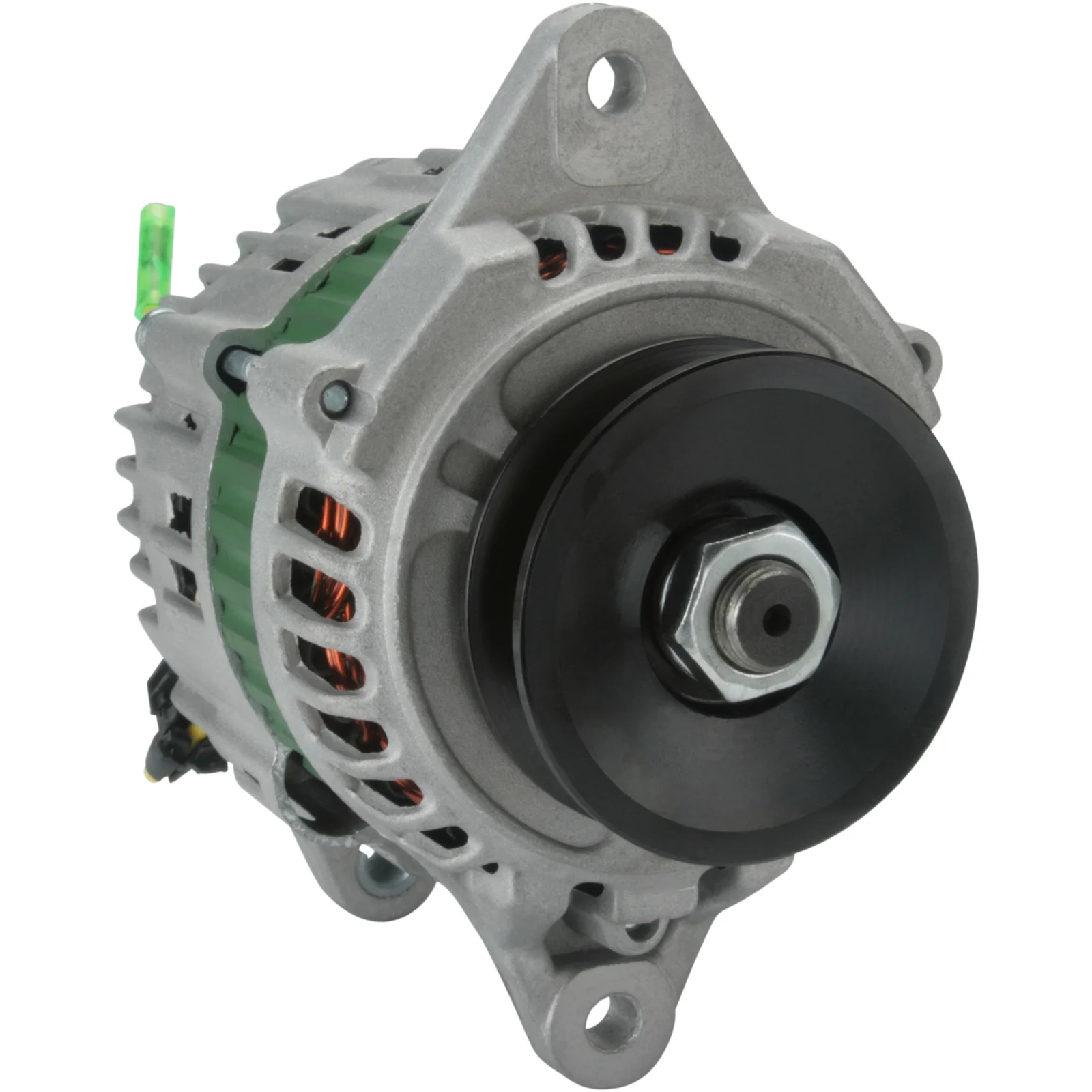

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032115432

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 50, Rotation: CW, Monteringsbøjle afstand: 81.50

Beskrivelse

Spænding: 14
Amp: 50
Terminal: W
Drevskive dist.: 46,00
Bredde/holder arm: 12,00
Monteringsbeslag dist.: 81,50
Beslaghul: 8,20
Bæltejustering beslaghul pos.: 60
Bæltejustering beslaghul 1: 8,20
Drevskive dia.: 74,50
Riller/drevskive: 1
Radius: 75,00
Radius 2: 72,50
B+: M6
Position/B+ i min.: 60
D+ Størrelse: Stik
Rotation: CW
Stik nr.: PL10
Samlet længde mm: 152,00
Terminaltype: IG-L
Drevskive: P
Regulator type: IR
Produkt info: BN

Filer

Specifikation

B+ M6
Mount. bracket dist. 81.50
Belt. adj. bracket hole 1 8.20
Belt. adj. brackethole pos. 60
Plug no. PL10
Bracket hole 8.20
Position/B+ in min. 60
Prod. info BN
Pulley P
Pulley dia. 74.50
Pulley dist. 46.00
Radius 75.00
D+ Size Plug
Radius 2 72.50
Regulator type IR
Rotation CW
Grooves/pulley 1
Terminal W
Terminal type IG-L
Voltage 14
Total length 152.00 mm
Width/holder arm 12.00
Amp 50

  • OEM
    F032115432, lr150-714, LR150-715, LR150-715A, 714-40090, 8972012810, 8972283180

  • Konkurrentreferens
    A2106S, CAL20192, CAL20196, 135.556.050, 14862, 14863N, 111729, 553202RI, 12060979

  • NormaliseratArtNr
    a2106s, cal20192, cal20196, f032115432, lr150714, lr150715, lr150715a, 14862, 14863n, 111729, 553202ri, 12060979, 71440090, 135556050, 8972012810, 8972283180

  • Passar modeller
    Bobcat Model: Various Models Model series: Various Models Approved: Yes
    Gehl Model: CTL70 Model series: CTL70 Model type: Terrain Loader Brand of engine: Isuzu Approved: Yes
    Hitachi Model: 80 Model series: 80 Model type: Excavators Brand of engine: 4JG1 Approved: Yes
    Hitachi Model: Zaxis 70 Model series: Zaxis 70 Model type: Excavators Brand of engine: 4JG1 Approved: Yes
    Hitachi Model: ZX60 Model series: ZX60 Model type: Excavators Brand of engine: 4JG1 Approved: Yes
    Hitachi Model: ZX70 Model series: ZX70 Model type: Excavators Brand of engine: 4JG1 Approved: Yes
    Hitachi Model: ZX75US-A Model series: ZX75US-A Model type: Excavators Brand of engine: 4JG1 Approved: Yes
    Ingersoll-Rand Model: P185WIR Model series: P185WIR Model type: Air Compressors Brand of engine: 4JG1 Approved: Yes
    JCB Model: 8060 Model series: 8060 Model type: Excavators Brand of engine: 4JG1 Approved: Yes
    JCB Model: 8080 ZTS Model series: 8080 ZTS Model type: Excavators Brand of engine: 4JG1 Approved: Yes
    JCB Model: JZ70 Model series: JZ70 Model type: Excavators Brand of engine: 4JG1 Approved: Yes
    Mustang Model: Skid Steer Loader Model series: MTL20 Model type: Skid Steer Loader Brand of engine: 4JG1 Fuel: Diesel Approved: Yes
    Takeuchi Model: TL140 Model series: TL140 Model type: Terrain Loader Brand of engine: Isuzu Approved: Yes
    1 / 3
  • Beskrivelse
    Spænding: 14
    Amp: 50
    Terminal: W
    Drevskive dist.: 46,00
    Bredde/holder arm: 12,00
    Monteringsbeslag dist.: 81,50
    Beslaghul: 8,20
    Bæltejustering beslaghul pos.: 60
    Bæltejustering beslaghul 1: 8,20
    Drevskive dia.: 74,50
    Riller/drevskive: 1
    Radius: 75,00
    Radius 2: 72,50
    B+: M6
    Position/B+ i min.: 60
    D+ Størrelse: Stik
    Rotation: CW
    Stik nr.: PL10
    Samlet længde mm: 152,00
    Terminaltype: IG-L
    Drevskive: P
    Regulator type: IR
    Produkt info: BN

    Filer

  • Specifikation
    B+ M6
    Mount. bracket dist. 81.50
    Belt. adj. bracket hole 1 8.20
    Belt. adj. brackethole pos. 60
    Plug no. PL10
    Bracket hole 8.20
    Position/B+ in min. 60
    Prod. info BN
    Pulley P
    Pulley dia. 74.50
    Pulley dist. 46.00
    Radius 75.00
    D+ Size Plug
    Radius 2 72.50
    Regulator type IR
    Rotation CW
    Grooves/pulley 1
    Terminal W
    Terminal type IG-L
    Voltage 14
    Total length 152.00 mm
    Width/holder arm 12.00
    Amp 50
  • Køretøjsmatchning

    • OEM
      F032115432, lr150-714, LR150-715, LR150-715A, 714-40090, 8972012810, 8972283180

    • Konkurrentreferens
      A2106S, CAL20192, CAL20196, 135.556.050, 14862, 14863N, 111729, 553202RI, 12060979

    • NormaliseratArtNr
      a2106s, cal20192, cal20196, f032115432, lr150714, lr150715, lr150715a, 14862, 14863n, 111729, 553202ri, 12060979, 71440090, 135556050, 8972012810, 8972283180

    • Passar modeller
      Bobcat Model: Various Models Model series: Various Models Approved: Yes
      Gehl Model: CTL70 Model series: CTL70 Model type: Terrain Loader Brand of engine: Isuzu Approved: Yes
      Hitachi Model: 80 Model series: 80 Model type: Excavators Brand of engine: 4JG1 Approved: Yes
      Hitachi Model: Zaxis 70 Model series: Zaxis 70 Model type: Excavators Brand of engine: 4JG1 Approved: Yes
      Hitachi Model: ZX60 Model series: ZX60 Model type: Excavators Brand of engine: 4JG1 Approved: Yes
      Hitachi Model: ZX70 Model series: ZX70 Model type: Excavators Brand of engine: 4JG1 Approved: Yes
      Hitachi Model: ZX75US-A Model series: ZX75US-A Model type: Excavators Brand of engine: 4JG1 Approved: Yes
      Ingersoll-Rand Model: P185WIR Model series: P185WIR Model type: Air Compressors Brand of engine: 4JG1 Approved: Yes
      JCB Model: 8060 Model series: 8060 Model type: Excavators Brand of engine: 4JG1 Approved: Yes
      JCB Model: 8080 ZTS Model series: 8080 ZTS Model type: Excavators Brand of engine: 4JG1 Approved: Yes
      JCB Model: JZ70 Model series: JZ70 Model type: Excavators Brand of engine: 4JG1 Approved: Yes
      Mustang Model: Skid Steer Loader Model series: MTL20 Model type: Skid Steer Loader Brand of engine: 4JG1 Fuel: Diesel Approved: Yes
      Takeuchi Model: TL140 Model series: TL140 Model type: Terrain Loader Brand of engine: Isuzu Approved: Yes
      1 / 3
