Vare nr.: F032115435

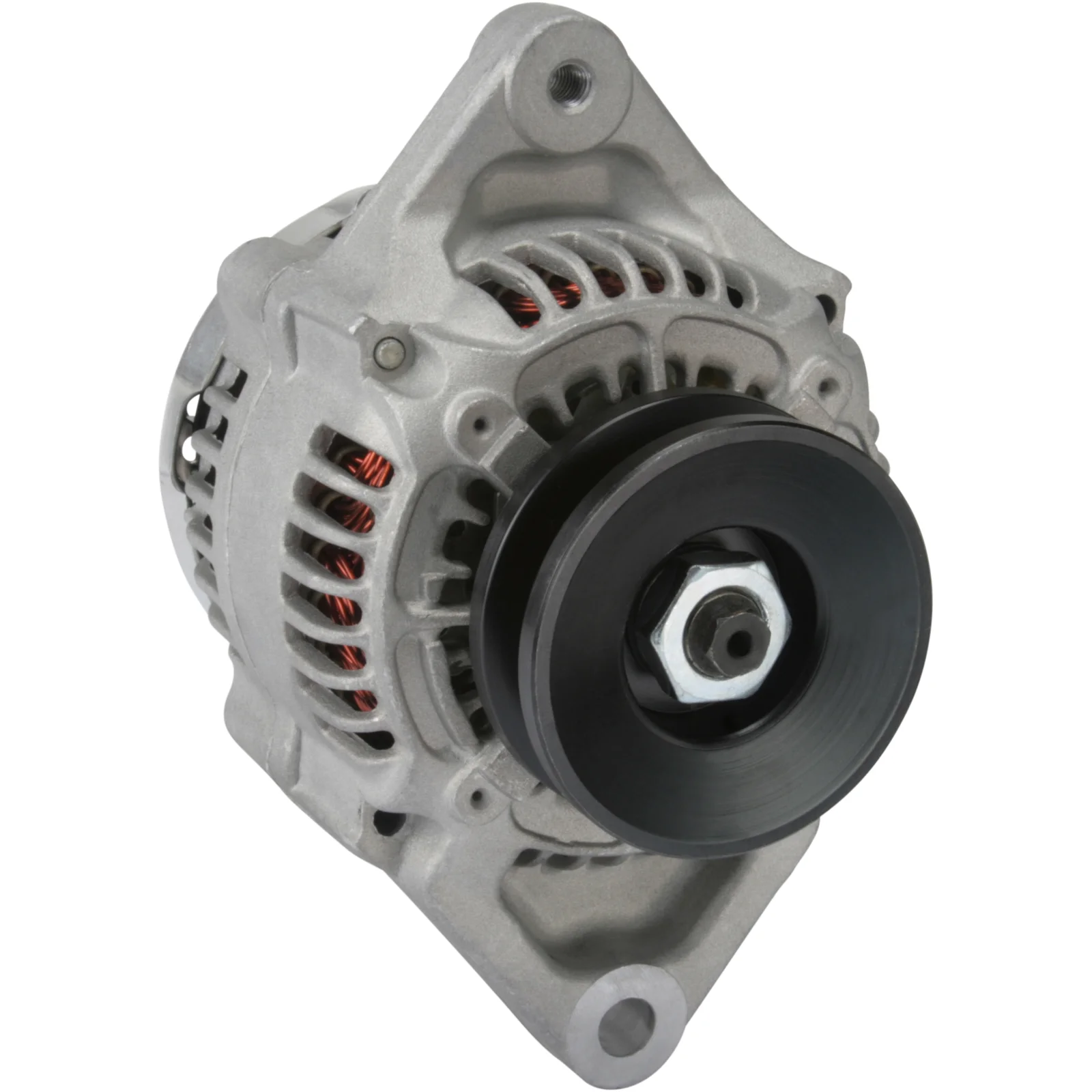

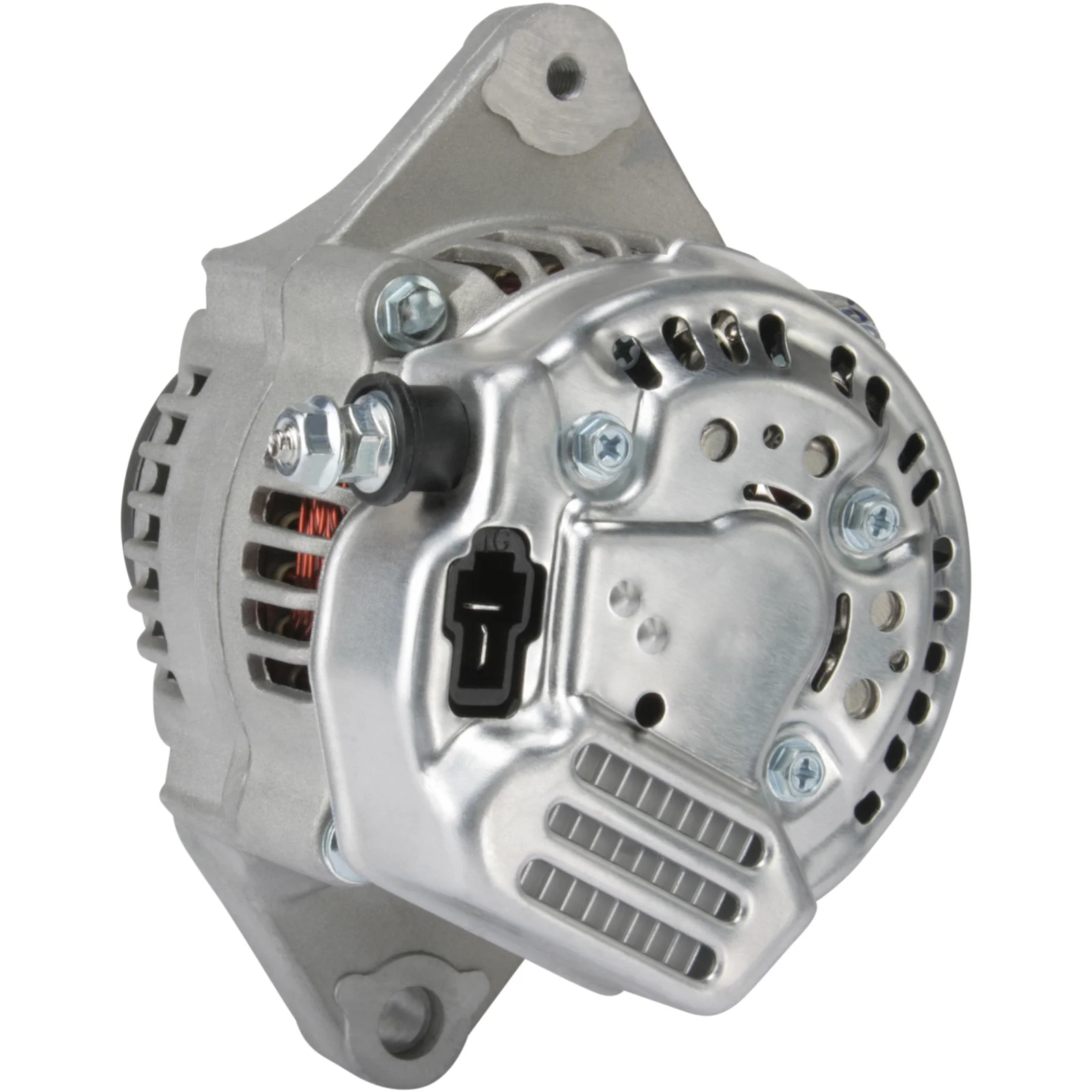

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 50, Rotation: CW, Remskive diameter: 69,00

Beskrivelse

Spænding: 14
Amp: 50
Remskive dist.: 42.00
Bredde/holderarm: 21.00
Støttebeslag hul: 10.20
Bæltejustering. beslagshul pos.: 60
Bæltejustering. beslag hul 1: M8
Remskive dia.: 69.00
Gyrelser/remskive: 1
Radius: 77.50
Radius 2: 75.00
B+: M6
Position/B+ i min.: 48
D+ Størrelse: Stik
Rotation: CW
Stik nr.: PL10
Total længde mm: 145.00
Remskive: P
Spændingsregulator type: IR
Produktinfo: BN

Specifikation

B+ M6
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 60
Plug no. PL10
Bracket hole 10.20
Position/B+ in min. 48
Prod. info BN
Pulley P
Pulley dia. 69.00
Pulley dist. 42.00
Radius 77.50
D+ Size Plug
Radius 2 75.00
Regulator type IR
Rotation CW
Grooves/pulley 1
Voltage 14
Total length 145.00 mm
Width/holder arm 21.00
Amp 50
  • Beskrivelse
    Spænding: 14
    Amp: 50
    Remskive dist.: 42.00
    Bredde/holderarm: 21.00
    Støttebeslag hul: 10.20
    Bæltejustering. beslagshul pos.: 60
    Bæltejustering. beslag hul 1: M8
    Remskive dia.: 69.00
    Gyrelser/remskive: 1
    Radius: 77.50
    Radius 2: 75.00
    B+: M6
    Position/B+ i min.: 48
    D+ Størrelse: Stik
    Rotation: CW
    Stik nr.: PL10
    Total længde mm: 145.00
    Remskive: P
    Spændingsregulator type: IR
    Produktinfo: BN
  • Specifikation
    B+ M6
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 60
    Plug no. PL10
    Bracket hole 10.20
    Position/B+ in min. 48
    Prod. info BN
    Pulley P
    Pulley dia. 69.00
    Pulley dist. 42.00
    Radius 77.50
    D+ Size Plug
    Radius 2 75.00
    Regulator type IR
    Rotation CW
    Grooves/pulley 1
    Voltage 14
    Total length 145.00 mm
    Width/holder arm 21.00
    Amp 50
