Vare nr.: F032115462

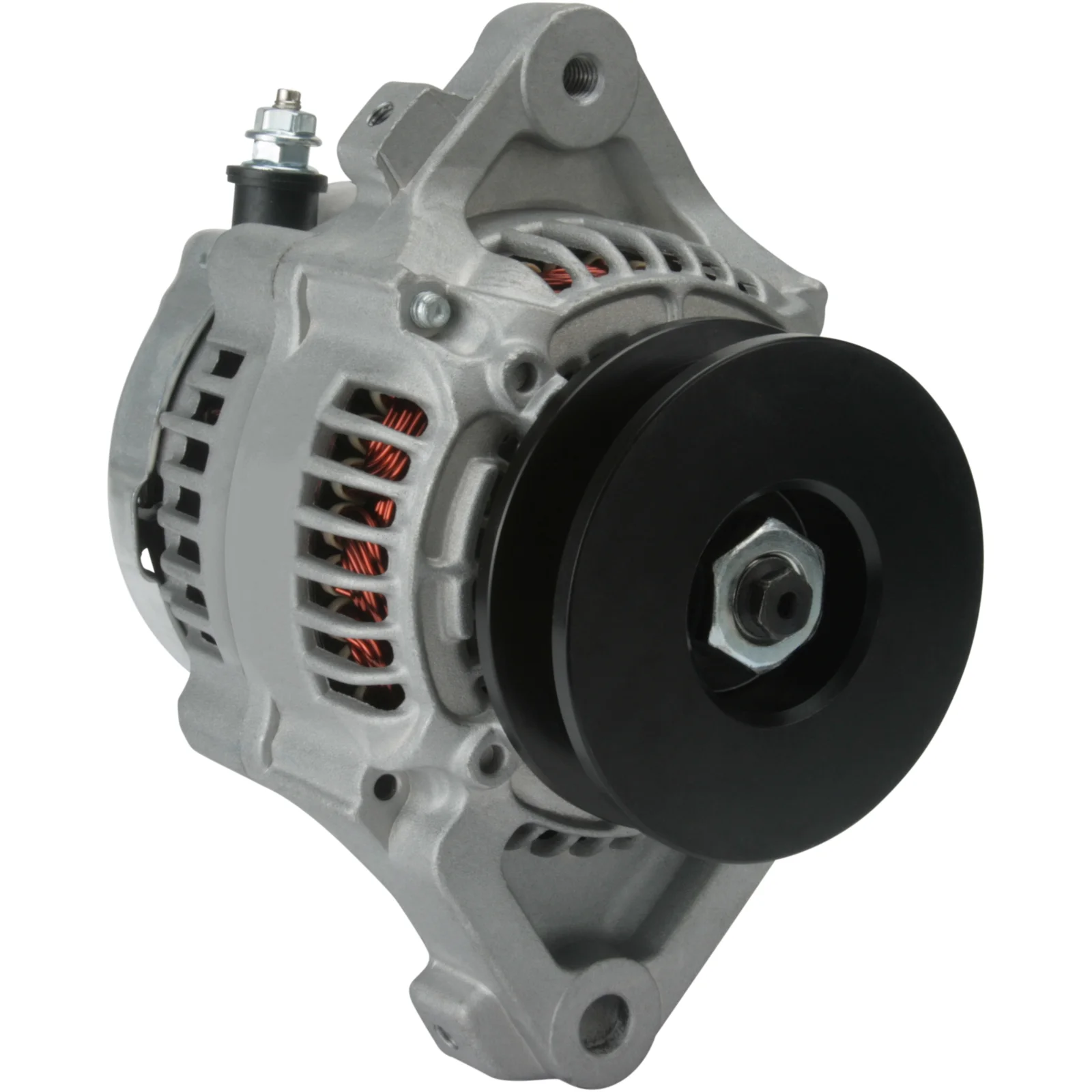

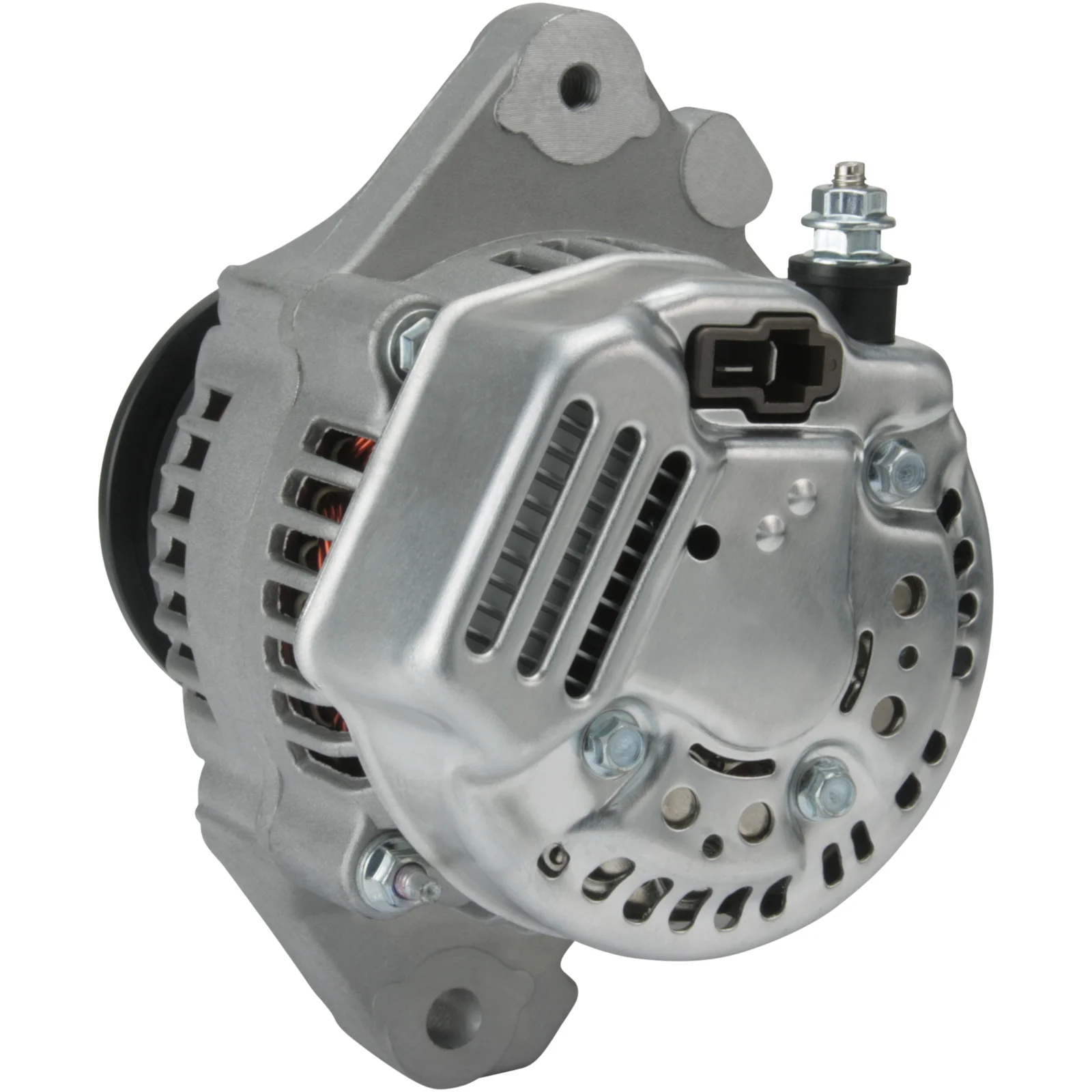

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 60, Rotation: CW, Remskive diameter: 82.00

Beskrivelse

Spænding: 14
Amp: 60
Remskiva dist.: 46,50
Bredde/holderarm: 24,00
Bøjlehull: 10,00
Rebmåtte. justering bøjlehull pos.: 60
Rebmåtte. justering bøjlehull 1: M8
Remskiva dia.: 82,00
Riller/remskive: 1
Radius: 75,00
Radius 2: 77,50
B+: M6
Position/B+ i min.: 5
D+ Størrelse: Stik
Rotation: med uret
Stik nr.: PL10
Total længde mm: 148,00
Remskiva: P
Regulator type: IR
Prod. info: BN

Specifikation

B+ M6
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 60
Plug no. PL10
Bracket hole 10.00
Position/B+ in min. 5
Prod. info BN
Pulley P
Pulley dia. 82.00
Pulley dist. 46.50
Radius 75.00
D+ Size Plug
Radius 2 77.50
Regulator type IR
Rotation CW
Grooves/pulley 1
Voltage 14
Total length 148.00 mm
Width/holder arm 24.00
Amp 60
  • OEM

    F032115462, RE46043, RE72917, 101211-2470, 101211-2471
  • Konkurrentreferens

    CAL40262, 635.505.060, 12081, 12081N, 12081R, 112023
  • NormaliseratArtNr

    cal40262, f032115462, re46043, re72917, 12081, 12081n, 12081r, 112023, 635505060, 1012112470, 1012112471
  • Passar modeller

    John Deere Model: 5000 Series Model series: 5320, 5320N, 5400, 5400N,RE46043 Body: Tractor Approved: Yes
  • Beskrivelse
    Spænding: 14
    Amp: 60
    Remskiva dist.: 46,50
    Bredde/holderarm: 24,00
    Bøjlehull: 10,00
    Rebmåtte. justering bøjlehull pos.: 60
    Rebmåtte. justering bøjlehull 1: M8
    Remskiva dia.: 82,00
    Riller/remskive: 1
    Radius: 75,00
    Radius 2: 77,50
    B+: M6
    Position/B+ i min.: 5
    D+ Størrelse: Stik
    Rotation: med uret
    Stik nr.: PL10
    Total længde mm: 148,00
    Remskiva: P
    Regulator type: IR
    Prod. info: BN
  • Specifikation
    B+ M6
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 60
    Plug no. PL10
    Bracket hole 10.00
    Position/B+ in min. 5
    Prod. info BN
    Pulley P
    Pulley dia. 82.00
    Pulley dist. 46.50
    Radius 75.00
    D+ Size Plug
    Radius 2 77.50
    Regulator type IR
    Rotation CW
    Grooves/pulley 1
    Voltage 14
    Total length 148.00 mm
    Width/holder arm 24.00
    Amp 60
  • Køretøjsmatchning
    • OEM

      F032115462, RE46043, RE72917, 101211-2470, 101211-2471
    • Konkurrentreferens

      CAL40262, 635.505.060, 12081, 12081N, 12081R, 112023
    • NormaliseratArtNr

      cal40262, f032115462, re46043, re72917, 12081, 12081n, 12081r, 112023, 635505060, 1012112470, 1012112471
    • Passar modeller

      John Deere Model: 5000 Series Model series: 5320, 5320N, 5400, 5400N,RE46043 Body: Tractor Approved: Yes
