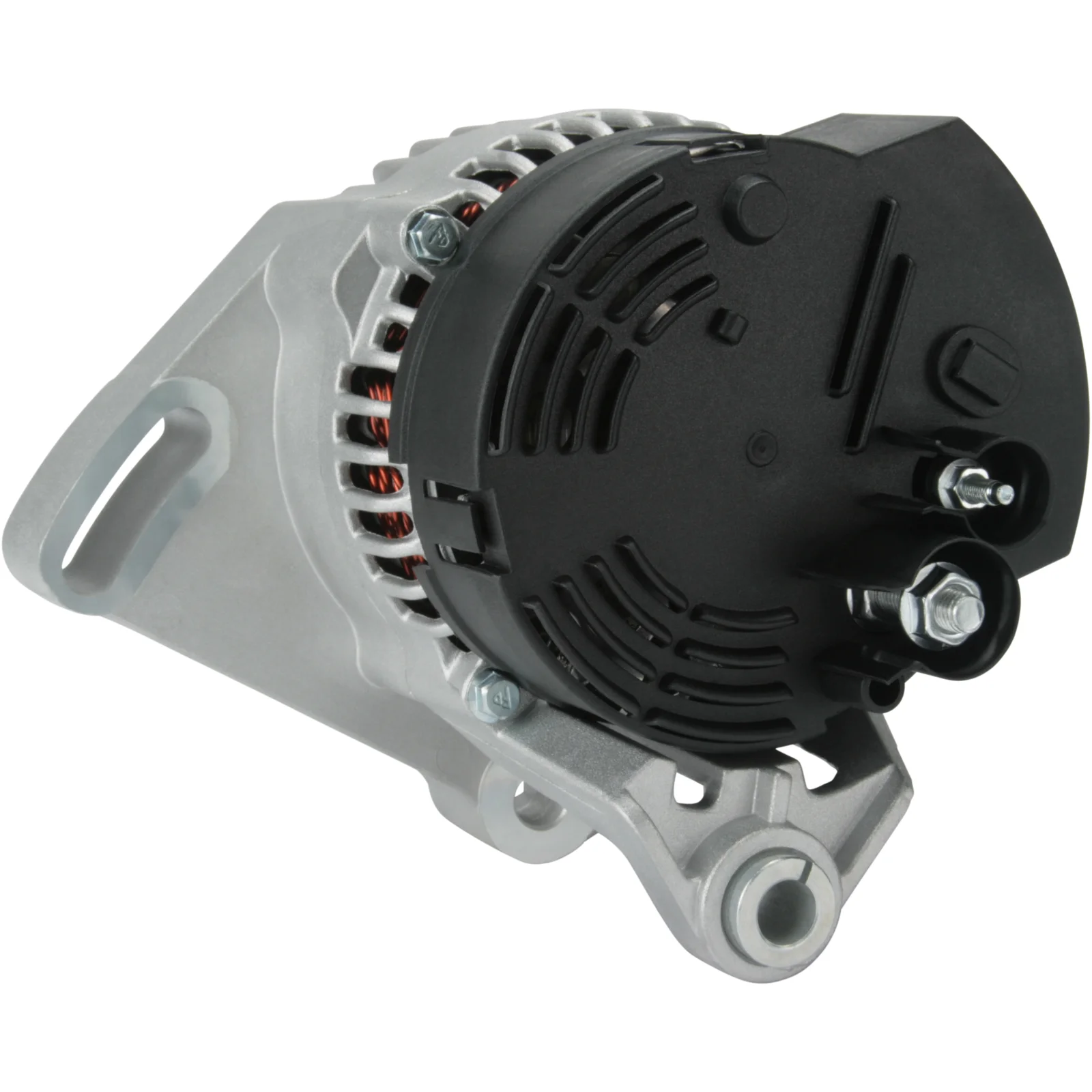

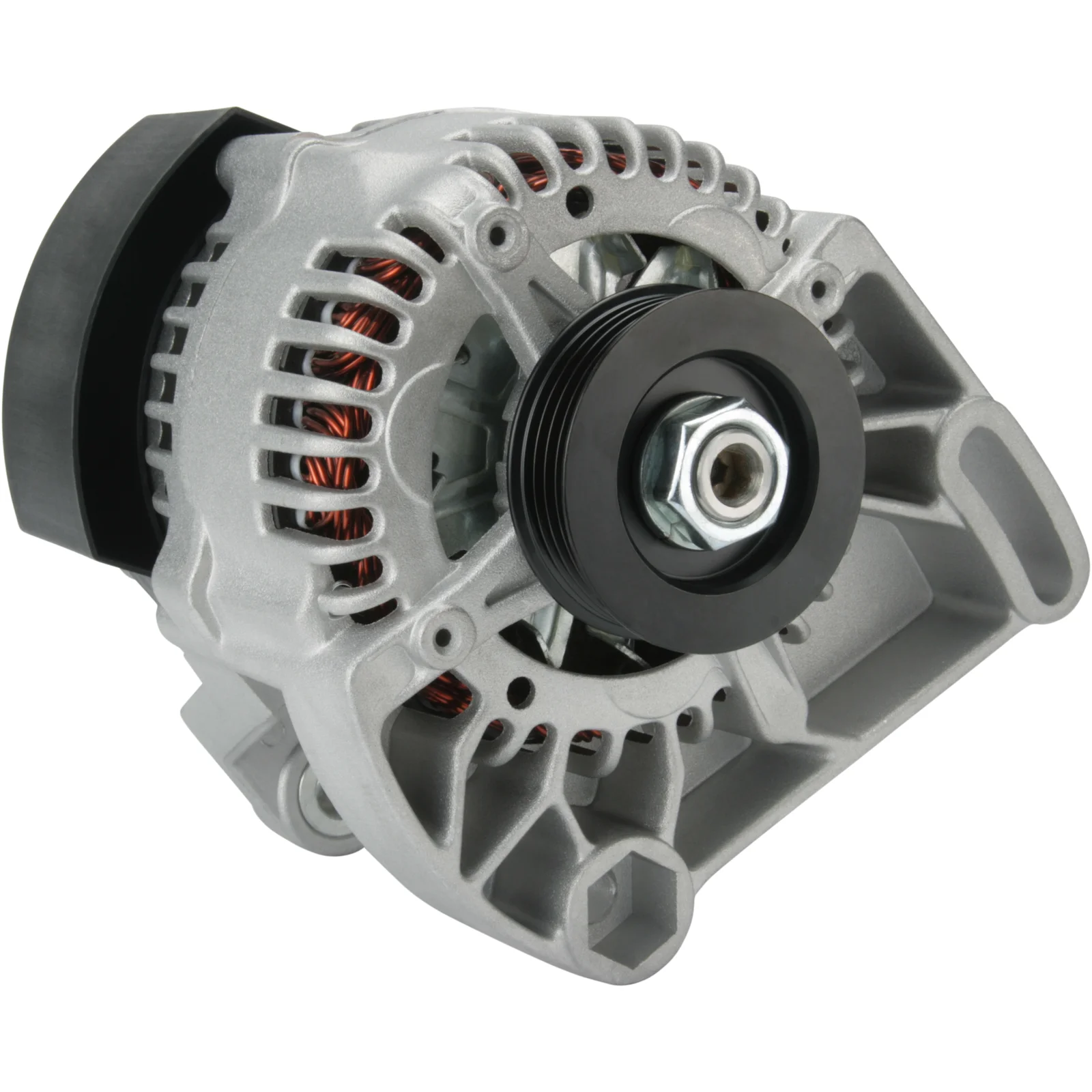

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032115476

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 85, Rotation: CW, Mount. bøjle dist.: 83.50

Beskrivelse

Spænding: 14
Amp: 85
Remskive afstand: 44,00
Bredde/holder arm: 32,00
Monteringsbeslag afstand: 83,50
Beslagshul: 12,20
Bæltejustering beslagshul position: 20
Bæltejustering beslagshul 1: 10,50
Remskive dia.: 60,00
Riller/remskive: 4
Radius: 83,50
Radius 2: 107,00
B+: M8
Position/B+ i min.: 23
D+ Størrelse: M5
Rotation: CW
Total længde mm: 184,00
Remskive: SP
Regulator type: IR
Produktoplysninger: BN

Filer

Specifikation

B+ M8
Mount. bracket dist. 83.50
Belt. adj. bracket hole 1 10.50
Belt. adj. brackethole pos. 20
Bracket hole 12.20
Position/B+ in min. 23
Prod. info BN
Pulley SP
Pulley dia. 60.00
Pulley dist. 44.00
Radius 83.50
D+ Size M5
Radius 2 107.00
Regulator type IR
Rotation CW
Grooves/pulley 4
Voltage 14
Total length 184.00 mm
Width/holder arm 32.00
Amp 85

  • OEM
    F032115476, 1350ir, 46231696, 46437413, 46516740, 46758245, 46769375, 63321629, 63321715, 63321782, 63321791

  • Konkurrentreferens
    A4095, A4095PR, CAL30151, DAN629, DENDAN629, dra3644, 8EL012240-801, 8el737552-001, 28-3748, 6014, 20574N, 22885R, 209386, 209386A, 210086, 210086A, 301350RI, 443122, 446773, 12090040, 32080550, 0986080550

  • NormaliseratArtNr
    a4095, a4095pr, cal30151, dan629, dendan629, dra3644, f032115476, 8el012240801, 8el737552001, 1350ir, 6014, 20574n, 22885r, 209386, 209386a, 210086, 210086a, 283748, 301350ri, 443122, 446773, 12090040, 32080550, 46231696, 46437413, 46516740, 46758245, 46769375, 63321629, 63321715, 63321782, 63321791, 0986080550

  • Passar modeller
    Fiat Model: Brava Model series: Brava Type of engine: 16V Size of motor: 1.2 Brand of engine: 182B2.000 Type description: 182 Body: Hatchback From date: 01-12-1998 To date: 01-12-2002 Fuel: Gasoline Approved: Yes
    Fiat Model: Bravo Model series: Bravo Type of engine: 16V Size of motor: 1.2 Brand of engine: 182B2.000 Type description: 182 Body: Hatchback From date: 01-12-1998 To date: 01-10-2000 Fuel: Gasoline Approved: Yes
    Fiat Model: Marea Model series: Marea Type of engine: 16V Size of motor: 1.2 Brand of engine: 182B2.000 Type description: 185_ Body: Estate From date: 01-10-1998 To date: 01-05-2002 Fuel: Gasoline Approved: Yes Manufacture type: weekend
    Fiat Model: Marea Model series: Marea Type of engine: 16V Size of motor: 1.2 Brand of engine: 182B2.000 Type description: 185_ From date: 01-10-1998 To date: 01-05-2002 Fuel: Gasoline Approved: Yes
    Fiat Model: Punto Model series: Punto Type of engine: 16V Size of motor: 1.2 Brand of engine: 176B9.000 Type description: 176 Body: Hatchback From date: 01-04-1997 To date: 01-09-1999 Fuel: Gasoline Approved: Yes
    Fiat Model: Punto Model series: Punto Type of engine: 16V Size of motor: 1.2 Brand of engine: 176B9.000 Type description: 176C Body: Convertible From date: 01-04-1997 To date: 01-06-2000 Fuel: Gasoline Approved: Yes
    Lancia Model: Y Model series: Y Type of engine: 16V Size of motor: 1.2 Brand of engine: 176B9.000 Type description: 840 Body: Hatchback From date: 01-04-1997 To date: 01-09-2003 Fuel: Gasoline Approved: Yes
    1 / 2
  • Beskrivelse
    Spænding: 14
    Amp: 85
    Remskive afstand: 44,00
    Bredde/holder arm: 32,00
    Monteringsbeslag afstand: 83,50
    Beslagshul: 12,20
    Bæltejustering beslagshul position: 20
    Bæltejustering beslagshul 1: 10,50
    Remskive dia.: 60,00
    Riller/remskive: 4
    Radius: 83,50
    Radius 2: 107,00
    B+: M8
    Position/B+ i min.: 23
    D+ Størrelse: M5
    Rotation: CW
    Total længde mm: 184,00
    Remskive: SP
    Regulator type: IR
    Produktoplysninger: BN

    Filer

  • Specifikation
    B+ M8
    Mount. bracket dist. 83.50
    Belt. adj. bracket hole 1 10.50
    Belt. adj. brackethole pos. 20
    Bracket hole 12.20
    Position/B+ in min. 23
    Prod. info BN
    Pulley SP
    Pulley dia. 60.00
    Pulley dist. 44.00
    Radius 83.50
    D+ Size M5
    Radius 2 107.00
    Regulator type IR
    Rotation CW
    Grooves/pulley 4
    Voltage 14
    Total length 184.00 mm
    Width/holder arm 32.00
    Amp 85
  • Køretøjsmatchning

    • OEM
      F032115476, 1350ir, 46231696, 46437413, 46516740, 46758245, 46769375, 63321629, 63321715, 63321782, 63321791

    • Konkurrentreferens
      A4095, A4095PR, CAL30151, DAN629, DENDAN629, dra3644, 8EL012240-801, 8el737552-001, 28-3748, 6014, 20574N, 22885R, 209386, 209386A, 210086, 210086A, 301350RI, 443122, 446773, 12090040, 32080550, 0986080550

    • NormaliseratArtNr
      a4095, a4095pr, cal30151, dan629, dendan629, dra3644, f032115476, 8el012240801, 8el737552001, 1350ir, 6014, 20574n, 22885r, 209386, 209386a, 210086, 210086a, 283748, 301350ri, 443122, 446773, 12090040, 32080550, 46231696, 46437413, 46516740, 46758245, 46769375, 63321629, 63321715, 63321782, 63321791, 0986080550

    • Passar modeller
      Fiat Model: Brava Model series: Brava Type of engine: 16V Size of motor: 1.2 Brand of engine: 182B2.000 Type description: 182 Body: Hatchback From date: 01-12-1998 To date: 01-12-2002 Fuel: Gasoline Approved: Yes
      Fiat Model: Bravo Model series: Bravo Type of engine: 16V Size of motor: 1.2 Brand of engine: 182B2.000 Type description: 182 Body: Hatchback From date: 01-12-1998 To date: 01-10-2000 Fuel: Gasoline Approved: Yes
      Fiat Model: Marea Model series: Marea Type of engine: 16V Size of motor: 1.2 Brand of engine: 182B2.000 Type description: 185_ Body: Estate From date: 01-10-1998 To date: 01-05-2002 Fuel: Gasoline Approved: Yes Manufacture type: weekend
      Fiat Model: Marea Model series: Marea Type of engine: 16V Size of motor: 1.2 Brand of engine: 182B2.000 Type description: 185_ From date: 01-10-1998 To date: 01-05-2002 Fuel: Gasoline Approved: Yes
      Fiat Model: Punto Model series: Punto Type of engine: 16V Size of motor: 1.2 Brand of engine: 176B9.000 Type description: 176 Body: Hatchback From date: 01-04-1997 To date: 01-09-1999 Fuel: Gasoline Approved: Yes
      Fiat Model: Punto Model series: Punto Type of engine: 16V Size of motor: 1.2 Brand of engine: 176B9.000 Type description: 176C Body: Convertible From date: 01-04-1997 To date: 01-06-2000 Fuel: Gasoline Approved: Yes
      Lancia Model: Y Model series: Y Type of engine: 16V Size of motor: 1.2 Brand of engine: 176B9.000 Type description: 840 Body: Hatchback From date: 01-04-1997 To date: 01-09-2003 Fuel: Gasoline Approved: Yes
