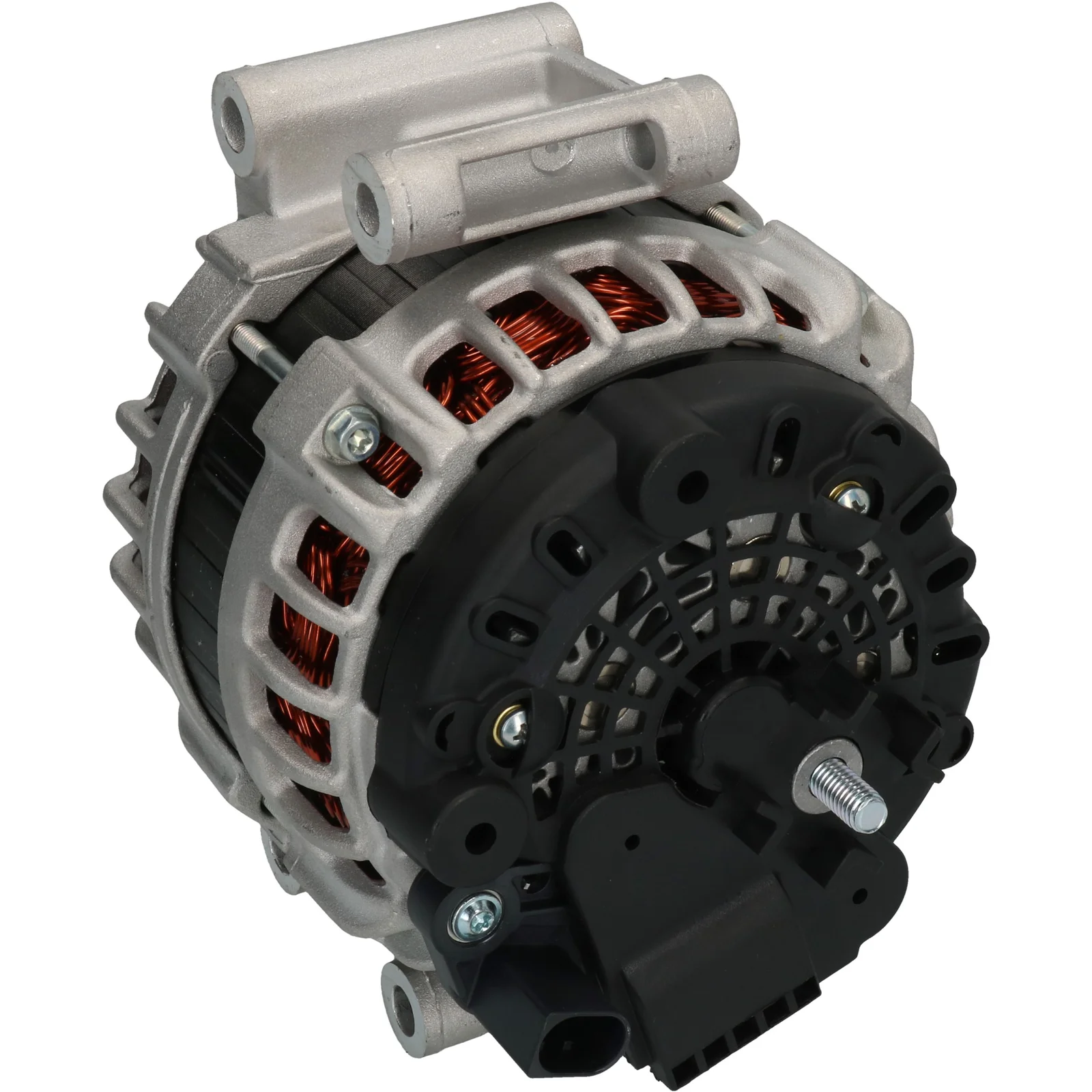

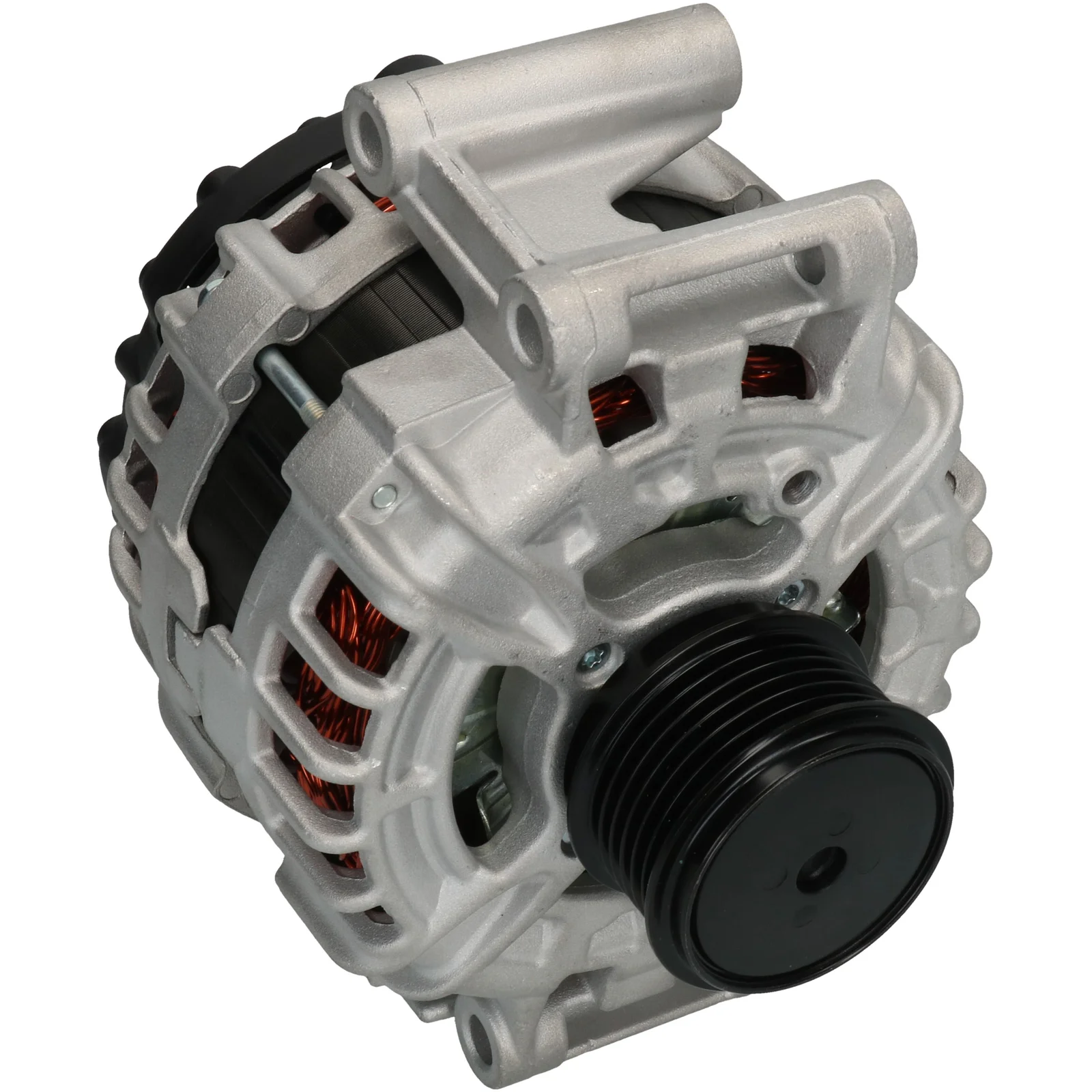

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032116387

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 140, Rotation: CW, Monteringsbeslag afstand: 56.00

Beskrivelse

Generator 12V-140A til VAG 12V - 140A, 6gr.frg, (LIN)

Spænding: 14
Amp: 140
Bøsningafstand: 29,50
Bredde/holderarm: 70,00
Monteringsbeslag afstand: 56,00
Beslaghullet: 9,00
Beslaghul 2: 9,00
Bæltejusteringsbeslag hul 1: 9,00
Bæltejusteringsbeslag hul 2: 9,00
Kuglekrans dia.: 56,00
Grove/kuglekrans: 6
Radius: 81,50
Radius 2: 81,50
B+: M8
Position/B+ i min.: 50
Rotation: CW
Stik nr.: PL125
Samlet længde mm: 190,00
Terminaltype: COM
Kommunikation: LIN
Kuglekrans: SP/FW
Fan: IF
Bemærkninger: Denne generator har en COM-terminal på regulatoren. Det anbefales at bruge OEM-nummeret til at kontrollere egnethed, inden der bestilles.

Filer

Specifikation

B+ M8
Communication LIN
Mount. bracket dist. 56.00
Belt. adj. bracket hole 1 9.00
Belt. adj. bracket hole 2 9.00
Plug no. PL125
Bracket hole 9.00
Bracket hole 2 9.00
Position/B+ in min. 50
Pulley SP/FW
Pulley dia. 56.00
Pulley dist. 29.50
Radius 81.50
Radius 2 81.50
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Fan IF
Grooves/pulley 6
Terminal type COM
Voltage 14
Total length 190.00 mm
Width/holder arm 70.00
Amp 140

  • OEM
    F000 BL0 8K2, F000BL0803, F000BL0829, F000BL08K1, F000BL08K2, F000BL08P1, F000BL08P2, F00E100658, F032116386, F032116387, TG14C 096, TG14C 104, TG14C 131, TG14C041, 06J 903 023B, 06J 903 023D, 06J 903 023H, 06J 903 024A, 06J 903 024D, 06J903023A, 06J903023AX, 06J903023G, 06J903023GX, 06K 903 024A, 06K903024A, 0986 086 080, 1986A01373, 1986A01391, 1986A01456, 1986A01519, 116386, 116387, 439814, 440468

  • Konkurrentreferens
    DRA0353, DRA1221, 8EL015630-031, 205.517.140, 24226N, 442300, 12090486, 0986086080, 0986086320

  • Bilmärken
    Audi, Seat, Skoda, VW

  • NormaliseratArtNr
    dra0353, dra1221, f000bl0803, f000bl0829, f000bl08k1, f000bl08k2, f000bl08p1, f000bl08p2, f00e100658, f032116386, f032116387, tg14c041, tg14c096, tg14c104, tg14c131, 06j903023a, 06j903023ax, 06j903023b, 06j903023d, 06j903023g, 06j903023gx, 06j903023h, 06j903024a, 06j903024d, 06k903024a, 8el015630031, 1986a01373, 1986a01391, 1986a01456, 1986a01519, 24226n, 116386, 116387, 439814, 440468, 442300, 12090486, 205517140, 0986086080, 0986086320

  • Passar modeller
    Audi Model: A1 Model series: A1 Sportback Model type: Sportback Type of engine: TFSi Size of motor: 2.0 Brand of engine: DKZC,CZPC Type description: GBA Body: Hatchback From date: 01-09-2018 Fuel: Gasoline Approved: Yes
    Audi Model: A3 Limousine Model series: A3 Limousine Model type: S3 quattro Size of motor: 2.0 Brand of engine: CYFB Type description: 8VS, 8VM Body: Saloon From date: 01-05-2014 To date: 01-10-2020 Fuel: Petrol Approved: Yes
    Audi Model: A3 Limousine Model series: A3 Limousine Type of engine: TFSI Size of motor: 2.0 Brand of engine: CNTC Type description: 8VS, 8VM Body: Saloon From date: 01-11-2015 To date: 01-10-2020 Fuel: Petrol Approved: Yes
    Audi Model: A3 Model series: A3 Limousine Model type: TFSI Type of engine: TFSI Size of motor: 2.0 Brand of engine: CZRA Type description: 8VS, 8VM Body: Saloon Fuel: Petrol Approved: Yes
    Audi Model: A3 Model series: A3 Model type: S3 Limousine Type of engine: TFSi Size of motor: 2.0 Brand of engine: DKZA Type description: 8V7, 8VE Body: Convertible From date: 01-11-2018 Fuel: Gasoline Approved: Yes
    Audi Model: A3 Model series: A3 Model type: S3 Limousine Type of engine: TFSi Size of motor: 2.0 Brand of engine: DKZA Type description: 8VS, 8VM From date: 01-07-2018 Fuel: Gasoline Approved: Yes
    Audi Model: A3 Model series: A3 Sportback Model type: Sportback Type of engine: TFSi Size of motor: 2.0 Brand of engine: DKZA Type description: 8VA, 8VF Body: Hatchback From date: 01-07-2018 Fuel: Gasoline Approved: Yes
    Audi Model: Q3 Model series: Q3 Model type: Quattro Type of engine: TFSi Size of motor: 2.0 Brand of engine: CULC Type description: 8U From date: 01-11-2014 To date: 01-10-2018 Fuel: Gasoline Approved: Yes
    Audi Model: Q3 Model series: Q3 Model type: Quattro Type of engine: TFSi Size of motor: 2.0 Brand of engine: DKTA Type description: F3B Body: Closed Off-Road Vehicle From date: 01-07-2018 Fuel: Gasoline Approved: Yes
    Audi Model: Q3 Model series: Q3 Model type: Quattro Type of engine: TFSi Size of motor: 2.0 Brand of engine: DKTC Type description: F3B Body: Closed Off-Road Vehicle From date: 01-07-2018 Fuel: Gasoline Approved: Yes
    Audi Model: Q3 Model series: Q3 Sportback Model type: Quattro 40 Type of engine: TFSi Size of motor: 2.0 Brand of engine: DKTC Type description: F3N Body: Closed Off-Road Vehicle From date: 01-11-2019 Fuel: Petrol Approved: Yes
    Audi Model: Q3 Model series: Q3 Sportback Model type: Quattro 45 Type of engine: TFSi Size of motor: 2.0 Brand of engine: DKTA Type description: F3N Body: Closed Off-Road Vehicle From date: 01-06-2019 Fuel: Petrol Approved: Yes
    Audi Model: TT Model series: TT Type of engine: TFSi Size of motor: 2.0 Brand of engine: DKZB Type description: FV9, FVR Body: Convertible From date: 01-07-2018 Fuel: Gasoline Approved: Yes
    Audi Model: TT Roadster Model series: TT Roadster Model type: quattro Type of engine: TFSI Size of motor: 2.0 Brand of engine: CNTC Type description: FV9, FVR Body: Convertible From date: 01-04-2015 Fuel: Petrol Approved: Yes
    Audi Series: A1 (8X1, 8XK) Model: S1 quattro Engine volume: 2,0 Engine type: CWZA Year: 03.14-10.18
    Audi Series: A3 (8V1, 8VK) Model: 1.8 TFSI Engine volume: 1.8 Engine type: CJSA Year: 04.12-10.16
    Audi Series: TT (FV3) Model: 2.0 TTS Quattro Engine volume: 2.0 Engine type: CJXG Year: 11.14-
    Cupra Model: Ateca Model series: Ateca Model type: 4Drive Type of engine: TSI Size of motor: 2.0 Brand of engine: DNUE Type description: KH7 Body: Closed Off-Road Vehicle From date: 01-09-2018 Fuel: Gasoline Approved: Yes
    Seat Model: Leon Model series: Leon Cupra Size of motor: 2.0 Brand of engine: CJXC Type description: 5F1 Body: Hatchback From date: 01-01-2017 Fuel: Gasoline Approved: Yes
    Seat Model: Leon Model series: Leon Model type: 4Drive Type of engine: TSI Size of motor: 2.0 Brand of engine: DKZA Type description: 5F8 Body: Estate From date: 01-09-2018 Fuel: Gasoline Approved: Yes Manufacture type: ST
    Seat Model: Leon Model series: Leon Model type: Cupra Size of motor: 2.0 Brand of engine: CJXA Type description: 5F8 Body: Estate From date: 01-10-2013 Fuel: Gasoline Approved: Yes Manufacture type: Estate
    Seat Model: Leon Model series: Leon Model type: Cupra Size of motor: 2.0 Brand of engine: CJXH Type description: 5F1 From date: 01-09-2015 To date: 01-10-2016 Fuel: Gasoline Approved: Yes
    Seat Model: Leon Model series: Leon ST Size of motor: 2.0 Brand of engine: CJXC Type description: 5F8 Body: Estate From date: 01-11-2016 Fuel: Gasoline Approved: Yes
    Seat Model: Leon Model series: Leon Type of engine: TFSI Size of motor: 1.8 Brand of engine: CJSA Type description: 5F1 From date: 01-02-2013 Fuel: Gasoline Approved: Yes
    Seat Model: Leon Model series: Leon Type of engine: TFSI Size of motor: 1.8 Brand of engine: CJSA Type description: 5F8 Body: Estate From date: 01-10-2013 Fuel: Gasoline Approved: Yes Manufacture type: Estate
    Seat Model: Leon Model series: Leon Type of engine: TSI Size of motor: 2.0 Brand of engine: DKZA Type description: 5F1 Body: Hatchback From date: 01-09-2018 Fuel: Gasoline Approved: Yes
    Seat Model: Leon Model series: Leon Type of engine: TSI Size of motor: 2.0 Brand of engine: DKZA Type description: 5F8 Body: Estate From date: 01-09-2018 Fuel: Gasoline Approved: Yes Manufacture type: ST
    Seat Model: Tarraco Model series: Tarraco Model type: 4Drive Type of engine: TSI Size of motor: 2.0 Brand of engine: DKZA Type description: KN2_ Body: Closed Off-Road Vehicle From date: 01-11-2018 Fuel: Gasoline Approved: Yes
    Seat Series: Ateca Model: 2.0 TSI 4Drive Engine volume: 2.0 Engine type: CZPB/DKZA Year: 05.17-
    Seat Series: Leon ST (5F8) Model: 2.0 Cupra 4Drive Engine volume: 2.0 Engine type: CJXC / DNUE Year: 11.16-
    Seat Series: Leon ST (5F8) Model: 2.0 Cupra Engine volume: 2.0 Engine type: CJXC Year: 11.16-
    Skoda Model: Karoq Model series: Karoq Model type: 4x4 Type of engine: TSI Size of motor: 2.0 Brand of engine: DKZA Type description: NU7 Body: Closed Off-Road Vehicle From date: 01-04-2019 Fuel: Gasoline Approved: Yes
    Skoda Model: Kodiaq Model series: Kodiaq Model type: 4x4 Type of engine: TSI Size of motor: 2.0 Brand of engine: DKZA Type description: NS7 Body: Closed Off-Road Vehicle From date: 01-02-2019 Fuel: Gasoline Approved: Yes
    Skoda Model: Octavia Model series: Octavia Model type: 4x4 Type of engine: TSI Size of motor: 2.0 Brand of engine: DKZA Type description: 5,00E+05 Body: Estate From date: 01-02-2019 Fuel: Gasoline Approved: Yes Manufacture type: Combi
    Skoda Model: Octavia Model series: Octavia Model type: 4x4 Type of engine: TSI Size of motor: 2.0 Brand of engine: DKZA Type description: 5E3, NL3, NR3 Body: Hatchback From date: 01-02-2019 Fuel: Gasoline Approved: Yes
    Skoda Model: Octavia Model series: Octavia Type of engine: TSI Size of motor: 2.0 Brand of engine: DKZA Type description: 5,00E+05 Body: Estate From date: 01-02-2017 Fuel: Gasoline Approved: Yes Manufacture type: Combi
    Skoda Model: Octavia Model series: Octavia Type of engine: TSI Size of motor: 2.0 Brand of engine: DKZA Type description: 5E3, NL3, NR3 Body: Hatchback From date: 01-02-2017 Fuel: Gasoline Approved: Yes
    Skoda Model: Superb Model series: Superb Model type: 4x4 Type of engine: TSI Size of motor: 2.0 Brand of engine: DNUA Type description: 3V3 Body: Hatchback From date: 01-03-2015 Fuel: Gasoline Approved: Yes
    Skoda Model: Superb Model series: Superb Model type: 4x4 Type of engine: TSI Size of motor: 2.0 Brand of engine: DNUA Type description: 3V5 Body: Estate From date: 01-03-2015 Fuel: Gasoline Approved: Yes Manufacture type: Estate
    Skoda Model: Superb Model series: Superb Type of engine: TSI Size of motor: 2.0 Brand of engine: DKZA Type description: 3V3 Body: Hatchback From date: 01-07-2019 Fuel: Petrol Approved: Yes
    Skoda Model: Superb Model series: Superb Type of engine: TSI Size of motor: 2.0 Brand of engine: DKZA Type description: 3V5 Body: Estate From date: 01-07-2019 Fuel: Petrol Approved: Yes
    Skoda Series: Kodiaq (NS7) Model: 2.0 TSI 4x4 Engine volume: 2.0 Engine type: DKZA Year: 02.19-
    Skoda Series: Kodiaq (NS7) Model: 2.0 TSI 4x4 för PRNrr:1KU, 2EM Engine volume: 2.0 Engine type: CZPA Year: 10.16-
    Skoda Series: Octavia III (5E3) Model: 1.8 TSI Engine volume: 1.8 Engine type: CJSA Year: 11.12-
    Skoda Series: Octavia III (5E3) Model: 2.0 TSI RS Engine volume: 2.0 Engine type: CHHB Year: 05.13-
    Skoda Series: Octavia III Combi Model: 1.8 TSI Engine volume: 1.8 Engine type: CJSA Year: 11.12-
    Skoda Series: Octavia III Combi Model: 2.0 TSI RS Engine volume: 2.0 Engine type: DHGA/ DKTB/DLBA Year: 02.17-10.20
    Skoda Series: Superb III Kombi Model: 1.8 TSI Engine volume: 1.8 Engine type: CJSA / CJSC Year: 03.15-
    VW Model: Arteon Model series: Arteon Model type: 4motion Type of engine: TSI Size of motor: 2.0 Brand of engine: DNUA,DLRB Type description: 3H7 Body: Hatchback From date: 01-09-2018 Fuel: Gasoline Approved: Yes
    VW Model: Arteon Model series: Arteon Shooting Brake Type of engine: TSI Size of motor: 2.0 Brand of engine: CZPB, DNNA, DUNA, DKZA Type description: 3H9 Body: Estate From date: 01-09-2020 Fuel: Petrol Approved: Yes Manufacture type: Shooting B
    VW Model: California Model series: California T6 Camper Model type: 4motion Type of engine: TSI Size of motor: 2.0 Brand of engine: CJKA Type description: SGC, SGG, SHC Body: Bus From date: 01-06-2015 To date: 01-07-2019 Fuel: Petrol Approved: Yes
    VW Model: California Model series: California T6 Camper Type of engine: TSI Size of motor: 2.0 Brand of engine: CJKA Type description: SGC, SGG, SHC Body: Bus From date: 01-04-2015 To date: 01-07-2019 Fuel: Petrol Approved: Yes
    VW Model: California Model series: California T6 Camper Type of engine: TSI Size of motor: 2.0 Brand of engine: CJKB Type description: SGC, SGG, SHC Body: Bus From date: 01-04-2015 To date: 01-07-2019 Fuel: Petrol Approved: Yes
    VW Model: Golf Model series: Golf VII Model type: 4motion Size of motor: 2.0 Brand of engine: CJXG Type description: 5G1, BQ1, BE1, BE2 Body: Hatchback From date: 01-12-2016 Fuel: Gasoline Approved: Yes
    VW Model: Golf Model series: Golf VII Model type: 4motion Size of motor: 2.0 Brand of engine: DJHA Type description: 5G1, BQ1, BE1, BE2 Body: Hatchback From date: 01-12-2016 Fuel: Gasoline Approved: Yes
    VW Model: Golf Model series: Golf VII Model type: 4motion Size of motor: 2.0 Brand of engine: DJHA Type description: BA5, BV5 Body: Estate From date: 01-12-2016 Fuel: Gasoline Approved: Yes Manufacture type: Estate
    VW Model: Golf Model series: Golf VII Model type: Clubsport S Type of engine: GTi Size of motor: 2.0 Brand of engine: CJXG Type description: 5G1, BE1 Body: Hatchback From date: 01-09-2016 Fuel: Gasoline Approved: Yes
    VW Model: Golf Model series: Golf VII Model type: R 4motion Size of motor: 2.0 Type description: 5G1, BE1 Body: Hatchback From date: 01-11-2014 Fuel: Gasoline Approved: Yes
    VW Model: Golf Model series: Golf VII Van Model type: GTI Size of motor: 2.0 Brand of engine: CHHA Type description: 5G1 Body: Box Body / Hatchback From date: 01-04-2015 Fuel: Gasoline Approved: Yes
    VW Model: Golf Model series: Golf VII Van Model type: GTI Size of motor: 2.0 Brand of engine: CHHB Type description: 5G1 Body: Box Body / Hatchback From date: 01-04-2013 Fuel: Gasoline Approved: Yes
    VW Model: Golf Model series: Golf VII Van Model type: GTI TCR Size of motor: 2.0 Brand of engine: CJXH, DNUC Type description: 5G1, BQ1, BE1, BE2, AU1, AU2 Body: Hatchback From date: 01-01-2019 Fuel: Gasoline Approved: Yes
    VW Model: Passat Model series: Passat Alltrack Model type: 4Motion Type of engine: TSI Size of motor: 2.0 Brand of engine: CJXA Type description: 3G5, CB5 Body: Estate From date: 01-11-2018 Fuel: Petrol Approved: Yes
    VW Model: Passat Model series: Passat Alltrack Model type: 4motion Type of engine: TSI Size of motor: 2.0 Brand of engine: DNUA Type description: 3G5, CB5 Body: Estate From date: 01-08-2018 Fuel: Gasoline Approved: Yes
    VW Model: Passat Model series: Passat Model type: 4motion Type of engine: TSi Size of motor: 2.0 Brand of engine: CJXA Type description: 3G2 From date: 01-05-2015 Fuel: Gasoline Approved: Yes
    VW Model: Passat Model series: Passat Model type: 4motion Type of engine: TSi Size of motor: 2.0 Brand of engine: CJXA Type description: 3G5 Body: Estate From date: 01-05-2015 Fuel: Gasoline Approved: Yes Manufacture type: Variant
    VW Model: Passat Model series: Passat Model type: 4motion Type of engine: TSI Size of motor: 2.0 Brand of engine: DNUA Type description: 3G2, CB2 From date: 01-09-2018 Fuel: Gasoline Approved: Yes
    VW Model: Passat Model series: Passat Model type: 4motion Type of engine: TSI Size of motor: 2.0 Brand of engine: DNUA Type description: 3G5, CB5 Body: Estate From date: 01-09-2018 Fuel: Gasoline Approved: Yes Manufacture type: Variant
    VW Model: Passat Model series: Passat Type of engine: TSI Size of motor: 2.0 Brand of engine: CZPB,DKZA Type description: 3G2, CB2 From date: 01-11-2018 Fuel: Gasoline Approved: Yes
    VW Model: Passat Model series: Passat Type of engine: TSI Size of motor: 2.0 Brand of engine: DKZA,CZPB Type description: 3G5, CB5 Body: Estate From date: 01-11-2018 Fuel: Gasoline Approved: Yes Manufacture type: Variant
    VW Model: T-Roc Model series: T-Roc Model type: R 4Motion Size of motor: 2.0 Brand of engine: DNUE Type description: A11 Body: Closed Off-Road Vehicle From date: 01-09-2019 Fuel: Petrol Approved: Yes
    VW Model: Tiguan Model series: Tiguan Model type: 4motion Type of engine: TSI Size of motor: 2.0 Brand of engine: DKTA Type description: AD1 Body: Closed Off-Road Vehicle From date: 01-09-2018 Fuel: Gasoline Approved: Yes
    VW Model: Tiguan Model series: Tiguan Model type: 4motion Type of engine: TSI Size of motor: 2.0 Brand of engine: DKZA Type description: AD1 Body: Closed Off-Road Vehicle From date: 01-09-2018 Fuel: Gasoline Approved: Yes
    VW Model: Tiguan Model series: Tiguan Model type: 4motion Type of engine: TSI Size of motor: 2.0 Brand of engine: DNLA Type description: BW2 Body: Closed Off-Road Vehicle From date: 01-09-2018 Fuel: Gasoline Approved: Yes
    VW Model: Tiguan Model series: Tiguan Model type: 4motion Type of engine: TSI Size of motor: 2.0 Brand of engine: DNPA Type description: BW2, BJ2 Body: SUV From date: 01-09-2020 Fuel: Petrol Approved: Yes
    VW Series: ARTEON (3H7) Model: 2.0 TSi 4motion Engine volume: 2.0 Engine type: DLRB/ DNUA Year: 04.18-
    VW Series: Golf VII (5G1) Model: 2.0 GTI Engine volume: 2.0 Engine type: CHHA Year: 04.13-
    VW Series: Golf VII (5G1) Model: 2.0 R 4Motion Engine volume: 2.0 Engine type: CJXC Year: 11.13-
    VW Series: GOLF VII Van (5G1) Model: 2.0 GTi Engine volume: 2.0 Engine type: CHHA Year: 04.15-03.17
    VW Series: Golf VII Variant Model: 2.0 R 4motion Engine volume: 2.0 Engine type: CJXC/DNUE Year: 03.15-
    VW Series: Golf VII Variant Model: 2.0 R 4motion Engine volume: 2.0 Engine type: CJXG/DJHA Year: 12.16-08.20
    VW Series: GOLF VII(5G1,BQ1...) Model: 2.0 R 4motion Engine volume: 2,0 Engine type: CJXG/DJHA Year: 12.16-08.20
    VW Series: Passat (3G2) Model: 2.0 TSI Engine volume: 2.0 Engine type: CHHB / CXDA Year: 02.15-
    VW Series: Passat Variant (3G5) Model: 2.0 TSI Engine volume: 2.0 Engine type: CHHB / CXDA Year: 02.15-
    VW Series: T-ROC (A11) Model: 2.0 TSI 4motion Engine volume: 2.0 Engine type: CZPB Year: 07.17-
    VW Series: T-ROC (A11) Model: 2.0 TSI 4motion Engine volume: 2.0 Engine type: CZPB/DKZA/DNNA Year: 07.17-07.19
    VW Series: Tiguan Model: 2.0 TFSI 4motion Engine volume: 2.0 Engine type: CZPA Year: 01.16-
    VW Series: Tiguan Model: 2.0 TSI 4motion Engine volume: 2.0 Engine type: DKZA/ DNNA Year: 09.18-
