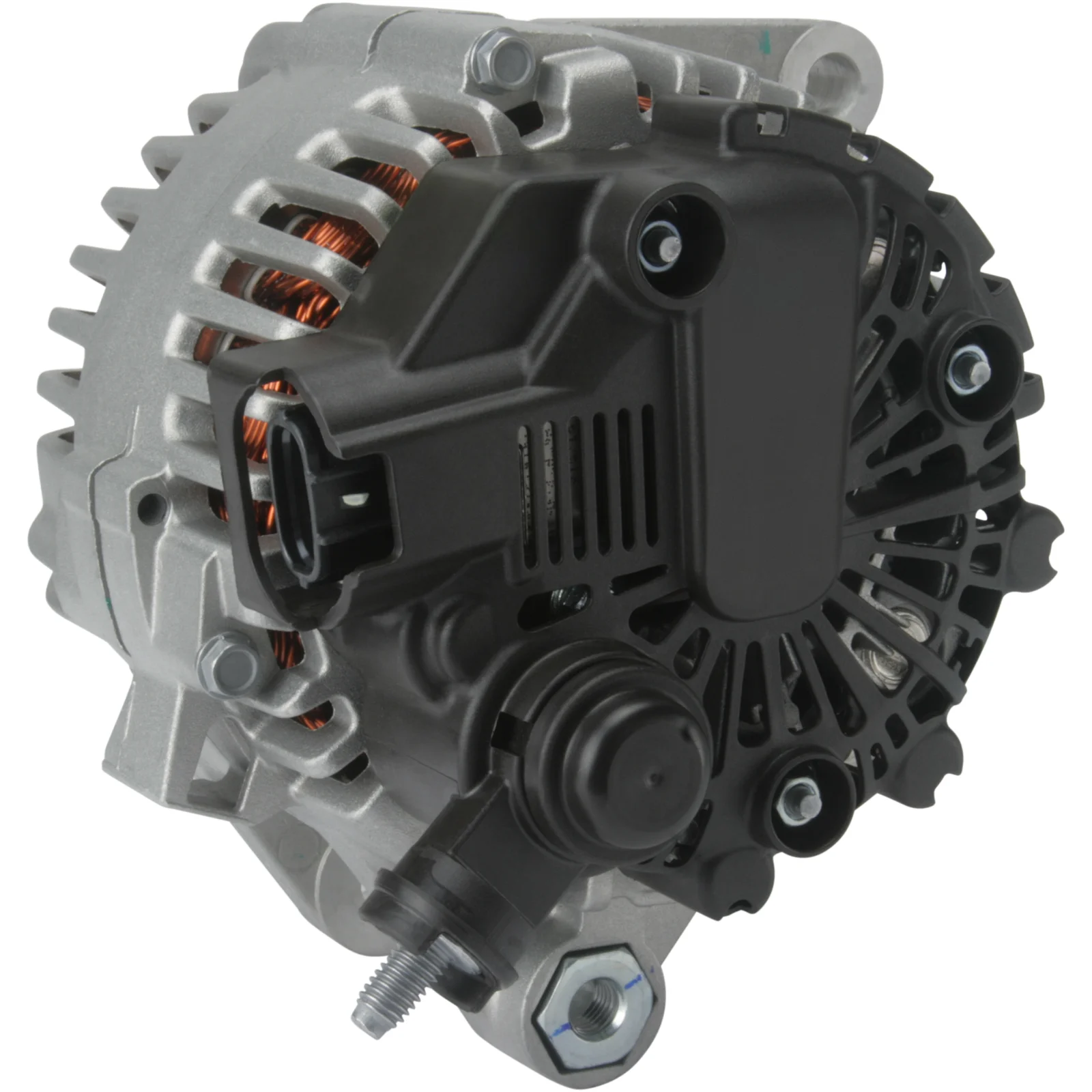

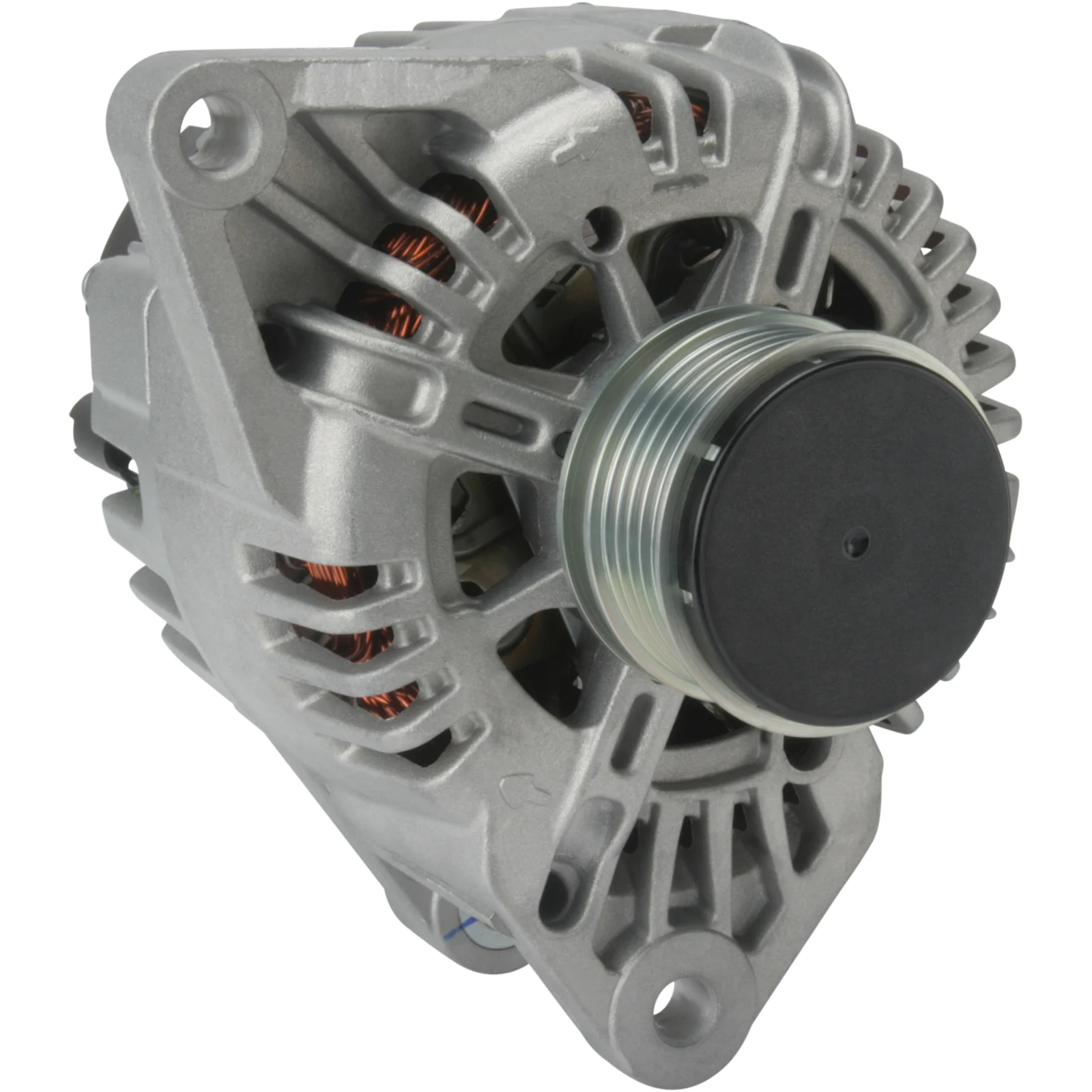

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032115587

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 120, Rotation: CW, Montagebeslag afst.: 50,50

Beskrivelse

Hyundai/Kia Generator 12V-120A 12V - 120A, 5gr (C, L, DF) 5gr (C, L, DF) For Yourex produkt ordre 90-228-2060 Strømforsyning: 14 Ampere: 120 Remskive afstand: 32,50 Bredde/holdearmsafstand: 13,00 Monteringsb hardware afstand: 50,50 Dørkirkefejl: 10,50 Bælte justering brakethole pos.: 9 Bælte justering brakethole 1: 10,50 Remskivediameter: 56,00 Riller/remskive: 5 Radius: 86,00 Radius 2: 97,00 B+: M8 Position/B+ i min.: 40 D+ Størrelse: Stik Rotation: med uret Stik nr.: PL176 Samlet længde mm: 175,00 Kommunikation: PWM Remskive: SP/FW Regulator type: IR Produktoplysninger: BN/OE

Filer

Specifikation

B+ M8
Communication PWM
Mount. bracket dist. 50.50
Belt. adj. bracket hole 1 10.50
Belt. adj. brackethole pos. 9
Plug no. PL176
Bracket hole 10.50
Position/B+ in min. 40
Prod. info BN/OE
Pulley SP/FW
Pulley dia. 56.00
Pulley dist. 32.50
Radius 86.00
D+ Size Plug
Radius 2 97.00
Regulator type IR
Rotation CW
Grooves/pulley 5
Voltage 14
Total length 175.00 mm
Width/holder arm 13.00
Amp 120

  • OEM
    F032115587, TG12C 090, TG12C 118, TG12C 140, TG12C 141, TG12C090, TG12C118, TG12C140, TG12C141, 2133ir, 37300-2A400, 37300-2A401, 37300-2A450, 37300-2A460, 37300-2A600, 37300-2a600, 37300-2A601, 37300-2A650, 37300-2A651, 115587, 439683, 440268, 2607316, 2607316A, 2616010, 2616019A, 2616021B

  • Konkurrentreferens
    A3192, A3192(VALEO), A3543S, CAL15383, CAL15454, CAL32169, DRA0802, DRA0989, DRA0989N, DRA1347, DRA1347N, LRA03306, 28-5918, 28-6905, 226.301.1202, 226.310.1202, 226.316.1202, 255.509.120, 20409N, 20409RW, 209026, 209026A, 209128, 209128A, 439683, 439760, 444354, 446765, 554309RI, 600205, 600716, 608366, 12061137, 12090644, 0986083830

  • Bilmärken
    Hyundai, Kia

  • NormaliseratArtNr
    a3192, a3192valeo, a3543s, cal15383, cal15454, cal32169, dra0802, dra0989, dra0989n, dra1347, dra1347n, f032115587, lra03306, tg12c090, tg12c118, tg12c140, tg12c141, 2133ir, 20409n, 20409rw, 115587, 209026, 209026a, 209128, 209128a, 285918, 286905, 373002a400, 373002a401, 373002a450, 373002a460, 373002a600, 373002a601, 373002a650, 373002a651, 439683, 439760, 440268, 444354, 446765, 554309ri, 600205, 600716, 608366, 2607316, 2607316a, 2616010, 2616019a, 2616021b, 12061137, 12090644, 255509120, 0986083830, 2263011202, 2263101202, 2263161202

  • Passar modeller
    Hyundai Model: Avante Model series: Avante Type of engine: CRDi Size of motor: 1.6 Brand of engine: D4FB Type description: FD Body: Hatchback From date: 01-10-2007 To date: 01-11-2011 Fuel: Diesel Approved: Yes
    Hyundai Model: Creta Model series: Creta Type of engine: CRDi Size of motor: 1.4 Brand of engine: D4FC Body: SUV From date: 01-01-2016 To date: 01-01-2021 Fuel: Diesel Approved: Yes
    Hyundai Model: i30 Model series: i30 CW Type of engine: CRDi Size of motor: 1.6 Brand of engine: D4FB Body: Estate From date: 01-02-2008 To date: 01-06-2012 Fuel: Diesel Approved: Yes Manufacture type: kombi
    Hyundai Model: i30 Model series: i30 Type of engine: CRDi Size of motor: 1.6 Brand of engine: D4FB Body: Hatchback From date: 01-10-2007 To date: 01-11-2011 Fuel: Diesel Approved: Yes
    Hyundai Series: i30 Model: 1.6 CRDi Engine volume: 1.6 Engine type: D4FB Year: 09.09-06.12
    Hyundai Series: i30 Model: 1.6 CRDi Engine volume: 1.6 Engine type: D4FB Year: 10.09-11.11
    Hyundai Series: ix20 (JC) Model: 1.4 CRDi Engine volume: 1.4 Engine type: D4FC Year: 11.10-
    Kia Model: Cee'd Model series: Cee'd Model type: 128 Type of engine: CRDi Size of motor: 1.6 Brand of engine: D4FB Type description: ED Body: Estate From date: 01-10-2010 To date: 01-12-2012 Fuel: Diesel Approved: Yes Manufacture type: Kombi
    Kia Model: Cee'd Model series: Cee'd Model type: 128 Type of engine: CRDi Size of motor: 1.6 Brand of engine: D4FB Type description: ED Body: Hatchback From date: 01-10-2010 To date: 01-12-2012 Fuel: Diesel Approved: Yes
    Kia Model: Cee'd Model series: Cee'd Type of engine: CRDi Size of motor: 1.6 Brand of engine: D4FB Body: Hatchback From date: 01-12-2006 To date: 01-12-2012 Fuel: Diesel Approved: Yes
    Kia Model: Cee'd Model series: Pro Cee'd Model type: 128 Type of engine: CRDi Size of motor: 1.6 Brand of engine: D4FB Type description: ED Body: Hatchback From date: 01-10-2010 To date: 01-09-2012 Fuel: Diesel Approved: Yes
    Kia Model: Rio Model series: Rio Type of engine: CRDi Size of motor: 1.1 Brand of engine: D3FA Type description: UB Body: Box Body / Hatchback From date: 01-09-2011 Fuel: Diesel Approved: Yes
    Kia Model: Rio Model series: Rio Type of engine: CRDi Size of motor: 1.4 Brand of engine: D4FC Type description: UB Body: Box Body / Hatchback From date: 01-04-2015 Fuel: Diesel Approved: Yes
    Kia Model: Venga Model series: Venga Type of engine: CRDi Size of motor: 1.4 Brand of engine: D4FC Type description: YN Body: Box Body / Hatchback From date: 01-04-2015 Fuel: Diesel Approved: Yes
    Kia Series: CEE´D SW Model: 1.6 CRDi 115 Engine volume: 1.6 Engine type: D4FB Year: 09.07-
    Kia Series: Venga Model: 1.4 CRDi 90 Engine volume: 1.4 Engine type: D4FC Year: 02.10-
    1 / 4
  • Beskrivelse
    Hyundai/Kia Generator 12V-120A 12V - 120A, 5gr (C, L, DF) 5gr (C, L, DF) For Yourex produkt ordre 90-228-2060 Strømforsyning: 14 Ampere: 120 Remskive afstand: 32,50 Bredde/holdearmsafstand: 13,00 Monteringsb hardware afstand: 50,50 Dørkirkefejl: 10,50 Bælte justering brakethole pos.: 9 Bælte justering brakethole 1: 10,50 Remskivediameter: 56,00 Riller/remskive: 5 Radius: 86,00 Radius 2: 97,00 B+: M8 Position/B+ i min.: 40 D+ Størrelse: Stik Rotation: med uret Stik nr.: PL176 Samlet længde mm: 175,00 Kommunikation: PWM Remskive: SP/FW Regulator type: IR Produktoplysninger: BN/OE

    Filer

  • Specifikation
    B+ M8
    Communication PWM
    Mount. bracket dist. 50.50
    Belt. adj. bracket hole 1 10.50
    Belt. adj. brackethole pos. 9
    Plug no. PL176
    Bracket hole 10.50
    Position/B+ in min. 40
    Prod. info BN/OE
    Pulley SP/FW
    Pulley dia. 56.00
    Pulley dist. 32.50
    Radius 86.00
    D+ Size Plug
    Radius 2 97.00
    Regulator type IR
    Rotation CW
    Grooves/pulley 5
    Voltage 14
    Total length 175.00 mm
    Width/holder arm 13.00
    Amp 120
  • Køretøjsmatchning

    • OEM
      F032115587, TG12C 090, TG12C 118, TG12C 140, TG12C 141, TG12C090, TG12C118, TG12C140, TG12C141, 2133ir, 37300-2A400, 37300-2A401, 37300-2A450, 37300-2A460, 37300-2A600, 37300-2a600, 37300-2A601, 37300-2A650, 37300-2A651, 115587, 439683, 440268, 2607316, 2607316A, 2616010, 2616019A, 2616021B

    • Konkurrentreferens
      A3192, A3192(VALEO), A3543S, CAL15383, CAL15454, CAL32169, DRA0802, DRA0989, DRA0989N, DRA1347, DRA1347N, LRA03306, 28-5918, 28-6905, 226.301.1202, 226.310.1202, 226.316.1202, 255.509.120, 20409N, 20409RW, 209026, 209026A, 209128, 209128A, 439683, 439760, 444354, 446765, 554309RI, 600205, 600716, 608366, 12061137, 12090644, 0986083830

    • Bilmärken
      Hyundai, Kia

    • NormaliseratArtNr
      a3192, a3192valeo, a3543s, cal15383, cal15454, cal32169, dra0802, dra0989, dra0989n, dra1347, dra1347n, f032115587, lra03306, tg12c090, tg12c118, tg12c140, tg12c141, 2133ir, 20409n, 20409rw, 115587, 209026, 209026a, 209128, 209128a, 285918, 286905, 373002a400, 373002a401, 373002a450, 373002a460, 373002a600, 373002a601, 373002a650, 373002a651, 439683, 439760, 440268, 444354, 446765, 554309ri, 600205, 600716, 608366, 2607316, 2607316a, 2616010, 2616019a, 2616021b, 12061137, 12090644, 255509120, 0986083830, 2263011202, 2263101202, 2263161202

    • Passar modeller
      Hyundai Model: Avante Model series: Avante Type of engine: CRDi Size of motor: 1.6 Brand of engine: D4FB Type description: FD Body: Hatchback From date: 01-10-2007 To date: 01-11-2011 Fuel: Diesel Approved: Yes
      Hyundai Model: Creta Model series: Creta Type of engine: CRDi Size of motor: 1.4 Brand of engine: D4FC Body: SUV From date: 01-01-2016 To date: 01-01-2021 Fuel: Diesel Approved: Yes
      Hyundai Model: i30 Model series: i30 CW Type of engine: CRDi Size of motor: 1.6 Brand of engine: D4FB Body: Estate From date: 01-02-2008 To date: 01-06-2012 Fuel: Diesel Approved: Yes Manufacture type: kombi
      Hyundai Model: i30 Model series: i30 Type of engine: CRDi Size of motor: 1.6 Brand of engine: D4FB Body: Hatchback From date: 01-10-2007 To date: 01-11-2011 Fuel: Diesel Approved: Yes
      Hyundai Series: i30 Model: 1.6 CRDi Engine volume: 1.6 Engine type: D4FB Year: 09.09-06.12
      Hyundai Series: i30 Model: 1.6 CRDi Engine volume: 1.6 Engine type: D4FB Year: 10.09-11.11
      Hyundai Series: ix20 (JC) Model: 1.4 CRDi Engine volume: 1.4 Engine type: D4FC Year: 11.10-
      Kia Model: Cee'd Model series: Cee'd Model type: 128 Type of engine: CRDi Size of motor: 1.6 Brand of engine: D4FB Type description: ED Body: Estate From date: 01-10-2010 To date: 01-12-2012 Fuel: Diesel Approved: Yes Manufacture type: Kombi
      Kia Model: Cee'd Model series: Cee'd Model type: 128 Type of engine: CRDi Size of motor: 1.6 Brand of engine: D4FB Type description: ED Body: Hatchback From date: 01-10-2010 To date: 01-12-2012 Fuel: Diesel Approved: Yes
      Kia Model: Cee'd Model series: Cee'd Type of engine: CRDi Size of motor: 1.6 Brand of engine: D4FB Body: Hatchback From date: 01-12-2006 To date: 01-12-2012 Fuel: Diesel Approved: Yes
      Kia Model: Cee'd Model series: Pro Cee'd Model type: 128 Type of engine: CRDi Size of motor: 1.6 Brand of engine: D4FB Type description: ED Body: Hatchback From date: 01-10-2010 To date: 01-09-2012 Fuel: Diesel Approved: Yes
      Kia Model: Rio Model series: Rio Type of engine: CRDi Size of motor: 1.1 Brand of engine: D3FA Type description: UB Body: Box Body / Hatchback From date: 01-09-2011 Fuel: Diesel Approved: Yes
      Kia Model: Rio Model series: Rio Type of engine: CRDi Size of motor: 1.4 Brand of engine: D4FC Type description: UB Body: Box Body / Hatchback From date: 01-04-2015 Fuel: Diesel Approved: Yes
      Kia Model: Venga Model series: Venga Type of engine: CRDi Size of motor: 1.4 Brand of engine: D4FC Type description: YN Body: Box Body / Hatchback From date: 01-04-2015 Fuel: Diesel Approved: Yes
      Kia Series: CEE´D SW Model: 1.6 CRDi 115 Engine volume: 1.6 Engine type: D4FB Year: 09.07-
      Kia Series: Venga Model: 1.4 CRDi 90 Engine volume: 1.4 Engine type: D4FC Year: 02.10-
