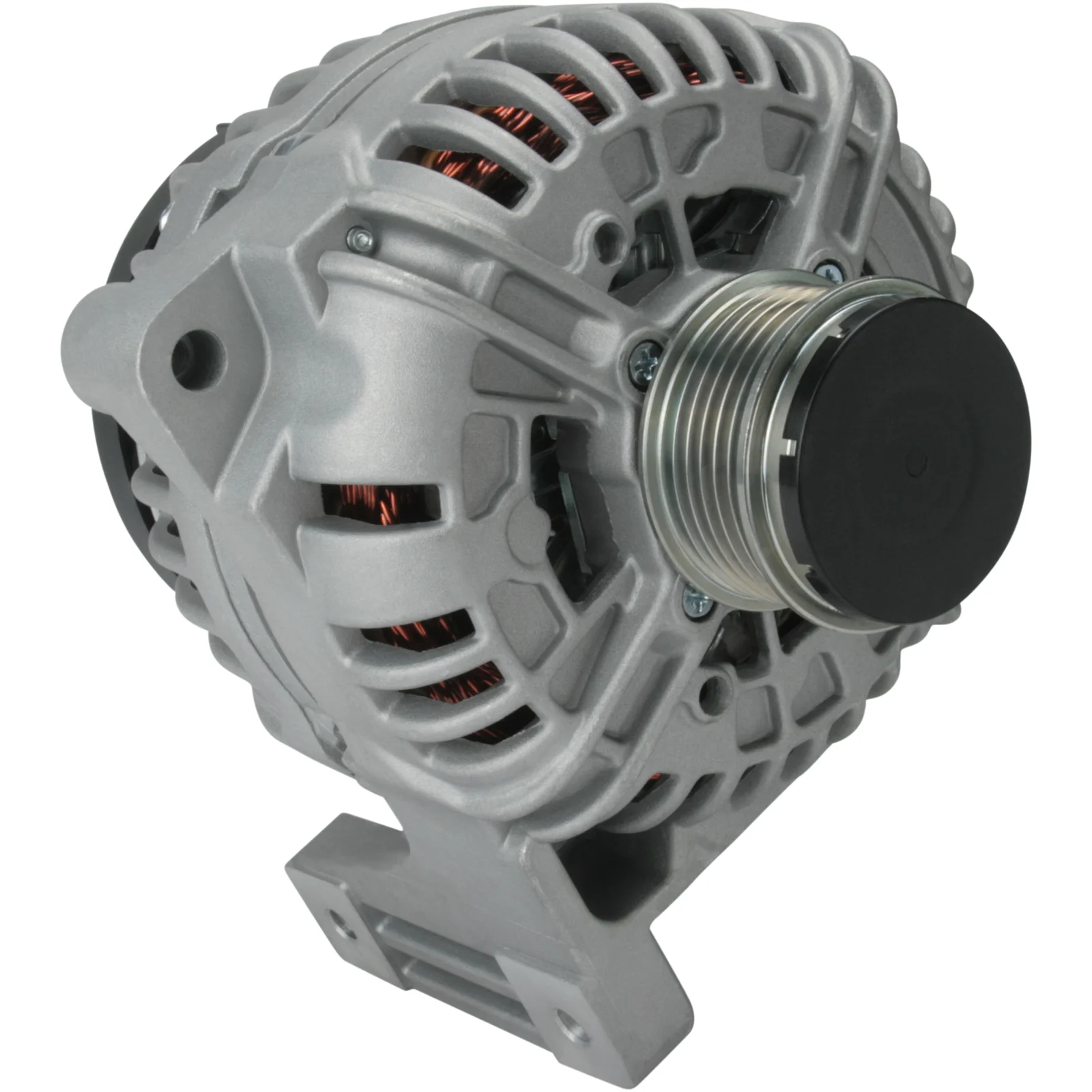

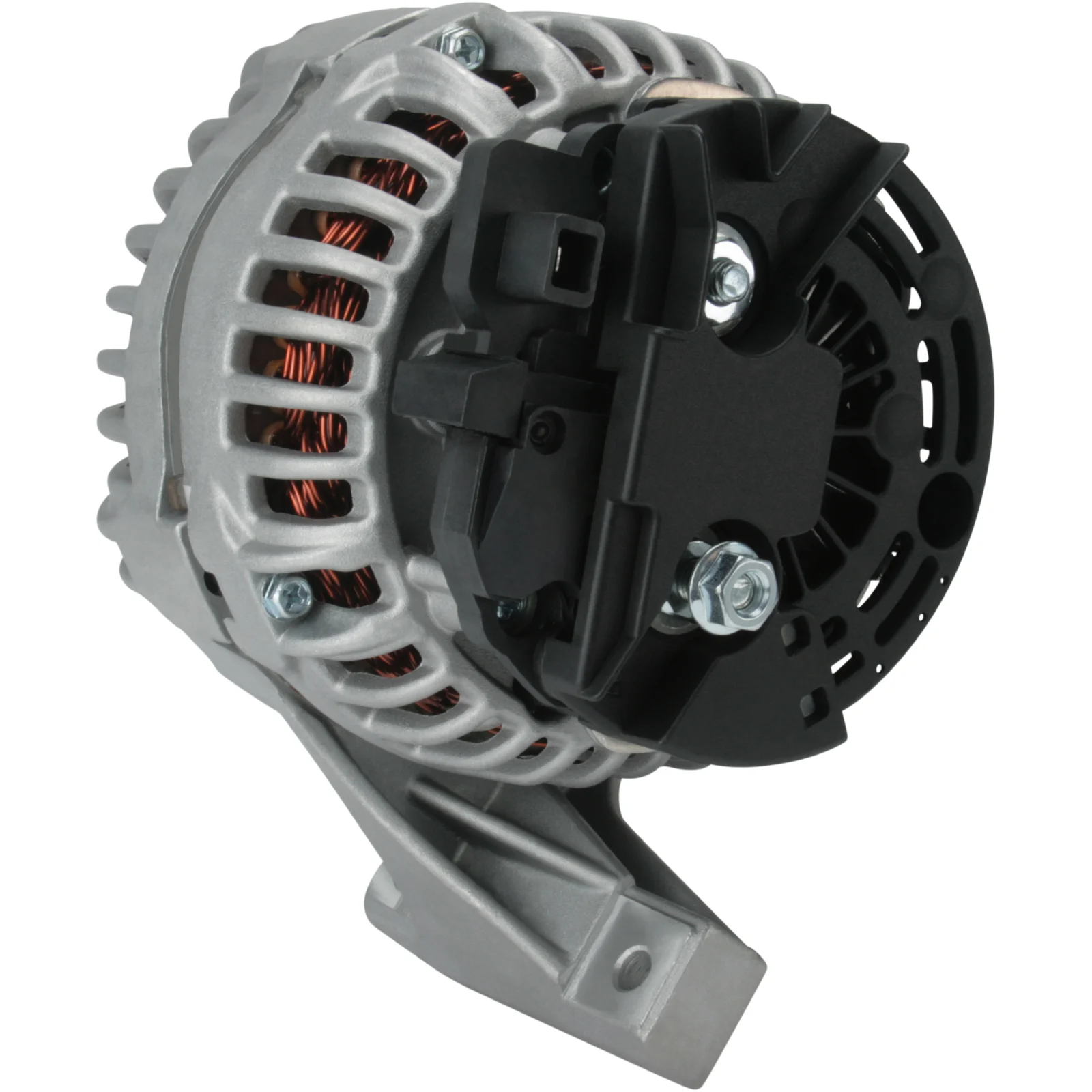

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032115709

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 160, Rotation: mod uret, Monteringsbeslag afstand: 82,00

Beskrivelse

Gen. 12V-160A passer til Volvo 12V - 160A, 6 pinde, (L), CCW Alternativ: 90-600-5029 (140A) For Yourex produktordre 90-600-4747

Spænding: 14
Amp: 160
Remskivesæt distance: 45.00
Bredde/holderarm: 20.00
Monteringsbeslag afstand: 82.00
Beslagshul: 8.50
Beslagshul 2: 8.50
Bæltejusterbar bøsning position.: 45
Bæltejusterbar bøsning hul 1: M8
Remskive diameter: 56.00
Skår: 6
B+: M8
Position/B+ i min.: 35
D+ Størrelse: Pluggestik
Rotation: CCW
Pluggestik nr.: PL149
Samlet længde mm: 192.00
Lyggetype: Aktiv
Remskive: SP/FW
Regulator type: IR
Produktoplysninger: BN
Info: Bosch 0124625001 ikke med koblingsremskive

Filer

Specifikation

B+ M8
Mount. bracket dist. 82.00
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 45
Plug no. PL149
Bracket hole 8.50
Bracket hole 2 8.50
Position/B+ in min. 35
Prod. info BN
Pulley SP/FW
Pulley dia. 56.00
Pulley dist. 45.00
D+ Size Plug
Regulator type IR
Rotation CCW
Grooves/pulley 6
Info Bosch 0124625001 not with clutch pulley
Lamp type Active
Voltage 14
Total length 192.00 mm
Width/holder arm 20.00
Amp 160

  • OEM
    A0146, CAL10342, DRB6310, DRB7470, F032115709, LRA02224, 8EL012426-011, 8EL738211-101, 28-4697, 0124 625 001, 0124 625 003, 238.150.1602, 815.512.160, 0986 046 310, 0986 047 470, 1861ir, 1986A01783, 11081N, 11082N, 111838, 115709, 209052, 209052A, 440869, 8602713, 8602714, 8637849, 8651665, 8676499, 9046310, 12046310, 12047470, 32047470, 36050268, 0124625001, 0124625003, 0986046313, 0986046317, 0986047470, 0986047473, 0986047477

  • Konkurrentreferens
    A0146, CAL10342, DRB6310, DRB7470, LRA02224, 8EL012426-011, 8EL738211-101, 28-4697, 238.150.1602, 815.512.160, 11081N, 11082N, 111838, 209052, 209052A, 440869, 9046310, 12046310, 12047470, 32047470, 0986046313, 0986046317, 0986047470, 0986047473, 0986047477

  • Bilmärken
    VOLVO

  • NormaliseratArtNr
    a0146, cal10342, drb6310, drb7470, f032115709, lra02224, 8el012426011, 8el738211101, 1861ir, 1986a01783, 11081n, 11082n, 111838, 115709, 209052, 209052a, 284697, 440869, 8602713, 8602714, 8637849, 8651665, 8676499, 9046310, 12046310, 12047470, 32047470, 36050268, 0124625001, 0124625003, 815512160, 0986046310, 0986046313, 0986046317, 0986047470, 0986047473, 0986047477, 2381501602

  • Passar modeller
    VOLVO S60 I (384) 2.0 T Engine volume: 2.0 Engine type: B 5204 T5 Year: 07.00-04.10
    VOLVO S60 I (384) 2.4 Bifuel (CNG) Engine volume: 2.4 Engine type: B 5244 SG, B 5244 SG2 Year: 07.01-04.10
    VOLVO S60 I (384) 2.4 Bifuel (LPG) Engine volume: 2.4 Engine type: B 5244 SG2 Year: 07.01-04.10
    VOLVO S60 I (384) 2.4 CDI Engine volume: 2.4 Engine type: D 5244 T3 Year: 10.03-12.05
    VOLVO S60 I (384) 2.4 D Engine volume: 2.4 Engine type: D 5244 T2 Year: 05.01-04.10
    VOLVO S60 I (384) 2.4 Engine volume: 2.4 Engine type: B 5244 S Year: 11.00-04.10
    VOLVO S60 I (384) 2.4 Engine volume: 2.4 Engine type: B 5244 S2 Year: 07.00-04.10
    VOLVO S60 I (384) 2.4 Engine volume: 2.4 Engine type: B 5244 T4 Year: 01.05-10.06
    VOLVO S60 I (384) 2.4 T AWD Engine volume: 2.4 Engine type: B 5244 T3 Year: 06.01-04.10
    VOLVO S60 I (384) 2.4 T Engine volume: 2.4 Engine type: B 5244 T3 Year: 07.00-04.10
    VOLVO S60 I (384) 2.5 T AWD Engine volume: 2.5 Engine type: B 5254 T2 Year: 07.02-04.10
    VOLVO S60 I (384) 2.5 T Engine volume: 2.5 Engine type: B 5254 T2 Year: 01.03-04.10
    VOLVO S60 I (384) D5 Engine volume: 2.4 Engine type: D 5244 T5, D 5244 T Year: 01.01-04.10
    VOLVO S60 I (384) R 2,5 T AWD Engine volume: 2.5 Engine type: B 5254 T4 Year: 01.03-04.10
    VOLVO S60 I (384) T5 Engine volume: 2.3 Engine type: B 5234 T3 Year: 07.00-04.10
    VOLVO S60 I (384) T5 Engine volume: 2.3 Engine type: B 5234 T7 Year: 07.00-09.02
    VOLVO S60 I (384) T5 Engine volume: 2.4 Engine type: B 5244 T5 Year: 04.04-04.10
    VOLVO S80 I (184) 2.0 T Engine volume: 2.0 Engine type: B 5204 T5 Year: 12.99-07.06
    VOLVO S80 I (184) 2.3 R Engine volume: 2.3 Engine type: B 5234 T7 Year: 04.00-08.05
    VOLVO S80 I (184) 2.4 Bifuel (CNG) Engine volume: 2.4 Engine type: B 5244 SG2 Year: 09.01-07.06
    VOLVO S80 I (184) 2.4 Bifuel (LPG) Engine volume: 2.4 Engine type: B 5244 SG Year: 09.01-07.06
    VOLVO S80 I (184) 2.4 D Engine volume: 2.4 Engine type: D 5244 T2 Year: 10.01-07.06
    VOLVO S80 I (184) 2.4 Engine volume: 2.4 Engine type: B 5244 S Year: 01.99-07.06
    VOLVO S80 I (184) 2.4 Engine volume: 2.4 Engine type: B 5244 S2 Year: 01.99-07.06
    VOLVO S80 I (184) 2.4 T Engine volume: 2.4 Engine type: B 5244 T3 Year: 06.00-07.06
    VOLVO S80 I (184) 2.5 T AWD Engine volume: 2.5 Engine type: B 5254 T2 Year: 07.03-07.06
    VOLVO S80 I (184) 2.5 T Engine volume: 2.5 Engine type: B 5254 T2 Year: 03.03-07.06
    VOLVO S80 I (184) 2.9 Engine volume: 2.9 Engine type: B 6294 S2 Year: 05.98-02.08
    VOLVO S80 I (184) 2.9 Engine volume: 2.9 Engine type: B 6304 S3 Year: 05.98-07.06
    VOLVO S80 I (184) D5 Engine volume: 2.4 Engine type: D 5244 T Year: 08.01-07.06
    VOLVO S80 I (184) T6 Engine volume: 2.8 Engine type: B 6284 T Year: 05.98-12.01
    VOLVO S80 I (184) T6 Engine volume: 3.0 Engine type: B 6294 T Year: 06.01-07.06
    VOLVO V70 II (285) 2.0 T Engine volume: 2.0 Engine type: B 5204 T5 Year: 11.99-08.07
    VOLVO V70 II (285) 2.4 Bifuel (CNG) Engine volume: 2.4 Engine type: B 5244 SG, B 5244 SG2 Year: 09.01-08.07
    VOLVO V70 II (285) 2.4 Bifuel (LPG) Engine volume: 2.4 Engine type: B 5244 SG2 Year: 09.01-08.07
    VOLVO V70 II (285) 2.4 D Engine volume: 2.4 Engine type: D 5244 T2 Year: 07.01-08.07
    VOLVO V70 II (285) 2.4 Engine volume: 2.4 Engine type: B 5244 S Year: 03.00-08.07
    VOLVO V70 II (285) 2.4 T AWD Engine volume: 2.4 Engine type: B 5244 T3 Year: 09.01-08.02
    VOLVO V70 II (285) 2.4 T Engine volume: 2.4 Engine type: B 5244 T3 Year: 11.99-08.03
    VOLVO V70 II (285) 2.5 T AWD Engine volume: 2.5 Engine type: B 5254 T2 Year: 07.02-08.07
    VOLVO V70 II (285) 2.5 T Engine volume: 2.5 Engine type: B 5254 T2 Year: 07.01-08.07
    VOLVO V70 II (285) 2.5 TDI Engine volume: 2.5 Engine type: D 5252 T Year: 11.99-08.07
    VOLVO V70 II (285) D5 AWD Engine volume: 2.4 Engine type: D 5244 T5, D 5244 T, D 5244 T2 Year: 07.02-08.07
    VOLVO V70 II (285) D5 Engine volume: 2.4 Engine type: D 5244 T5, D 5244 T, D 5244 T2 Year: 01.01-12.08
    VOLVO V70 II (285) R 2,5 T AWD Engine volume: 2.5 Engine type: B 5254 T4 Year: 03.03-08.07
    VOLVO V70 II (285) T5 Engine volume: 2.3 Engine type: B 5234 T3 Year: 11.99-12.04
    VOLVO V70 II (285) T5 Engine volume: 2.4 Engine type: B 5244 T5 Year: 04.04-08.07
    VOLVO XC70 I Cross Country (295) 2.4 T XC AWD Engine volume: 2.4 Engine type: B 5244 T3 Year: 03.00-09.02
    VOLVO XC70 I Cross Country (295) 2.5 T XC AWD Engine volume: 2.5 Engine type: B 5254 T2 Year: 09.02-08.07
    VOLVO XC70 I Cross Country (295) D5 XC AWD Engine volume: 2.4 Engine type: D 5244 T Year: 09.02-08.07
    VOLVO XC90 I (275) 2.5 AWD Engine volume: 2.5 Engine type: B 5254 T2 Year: 06.02-12.14
    VOLVO XC90 I (275) 2.5 Engine volume: 2.5 Engine type: B 5254 T2 Year: 01.03-12.06
    VOLVO XC90 I (275) 2.5 T AWD Engine volume: 2.5 Engine type: B 5254 T2 Year: 10.02-09.14
    VOLVO XC90 I (275) D5 AWD Engine volume: 2.4 Engine type: D 5244 T Year: 10.02-12.06
    VOLVO XC90 I (275) T6 AWD Engine volume: 2.9 Engine type: B 6294 T Year: 10.02-12.06
    1 / 11
