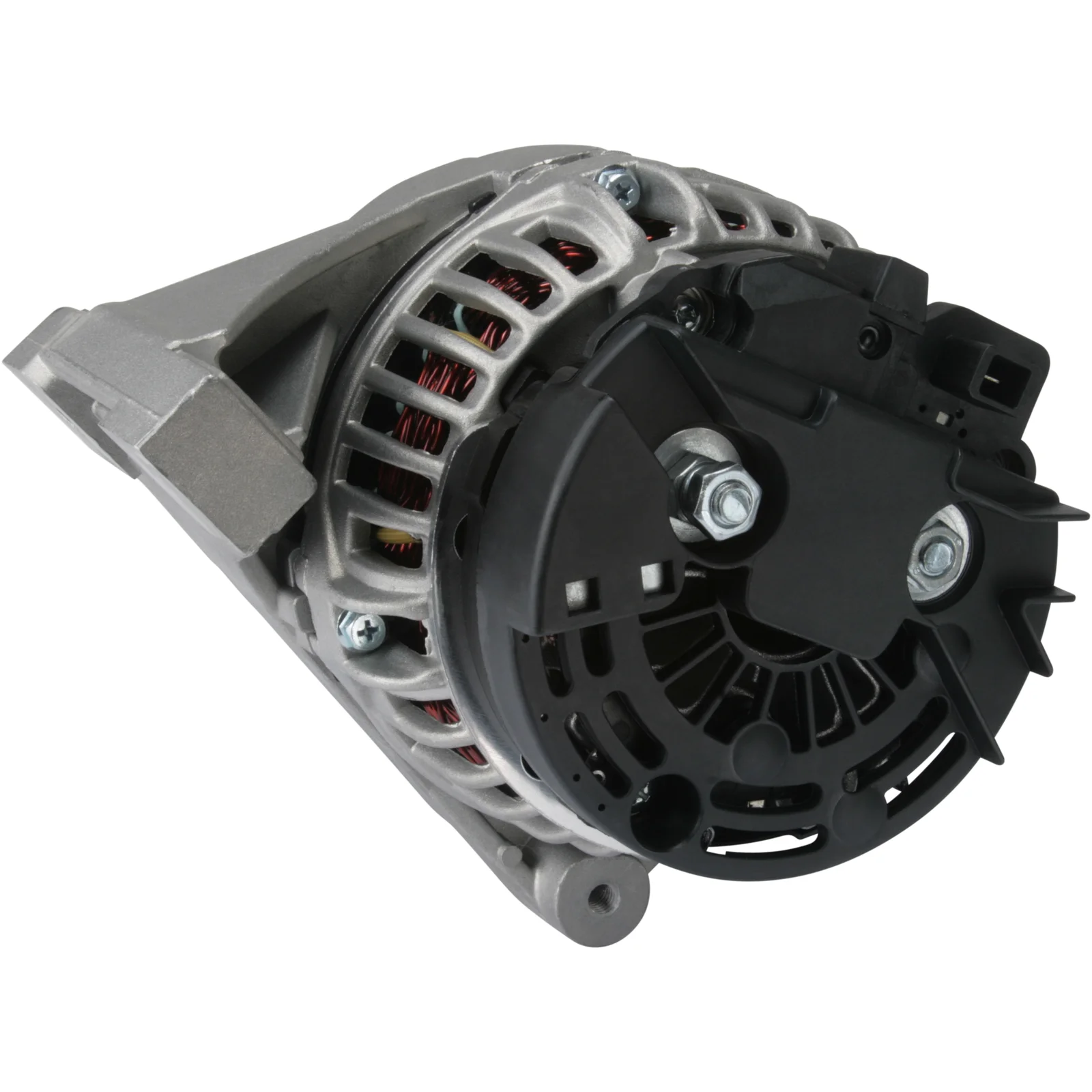

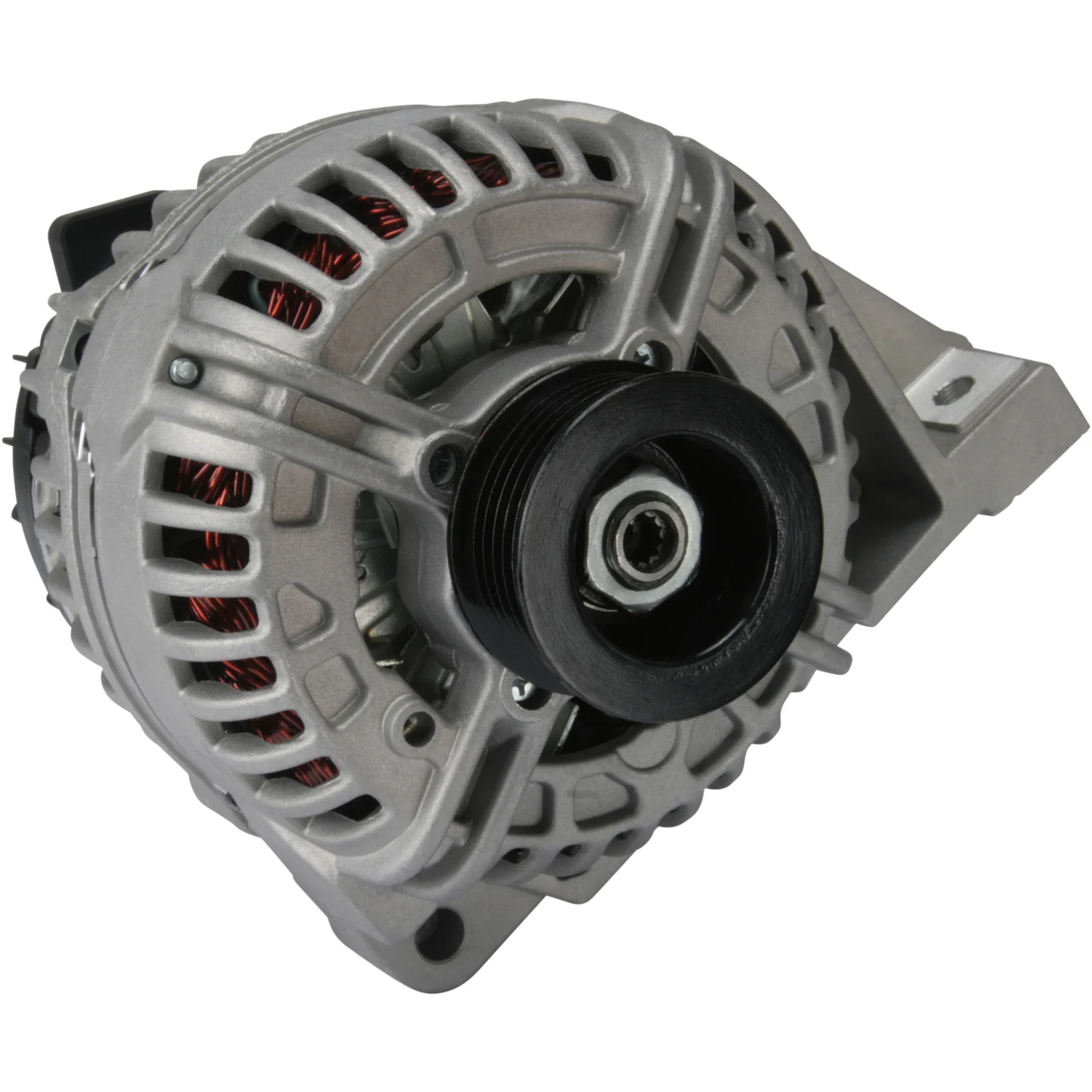

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032112078

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 120, Rotation: CCW, Monteringsbeslag afstand: 82,00

Beskrivelse

Generator 12V-120A passer til Volvo 12V - 120A, 6-r. CCW 12V - 120A, 6-r. CCW For Yourex produkt bestilling 90-600-4115 Spænding: 14 Ampere: 120 Skivens afstand: 44,50 Monteringsbeslagets afstand: 82,00 Beslagshuls distance: M8 Bæltes justeringsbeslagshuls pos.: 50 Bæltes justeringsbeslagshuls 1: 8,50 Bæltes justeringsbeslagshuls 2: 8,50 Skivens diameter: 55,70 Ribber/skive: 6 Radius 2: 87,00 B+: M8 Position/B+: i min.: 30 D+ størrelse: 6,30 Rotation: CCW Total længde mm: 194,00 Skive: SP Reguleringstype: IR Service: Volvo

Filer

Specifikation

B+ M8
Mount. bracket dist. 82.00
Belt. adj. bracket hole 1 8.50
Belt. adj. bracket hole 2 8.50
Belt. adj. brackethole pos. 50
Bracket hole M8
Position/B+ in min. 30
Pulley SP
Pulley dia. 55.70
Pulley dist. 44.50
D+ Size 6.30
Radius 2 87.00
Regulator type IR
Rotation CCW
Servicing Volvo
Grooves/pulley 6
Voltage 14
Total length 194.00 mm
Amp 120

  • OEM
    A0060, ALT10372, CAL10322, drb1150, F032112078, LEA0622, LRA01817, 1-2244-11BO, 8EL012428-121, 8el737641-001, 28-3637, 0124 515 017, 0124 515 018, 238.135.1202, 0986 041 150, 1443ir, 5746, 13802, 13802N, 13802R, 112078, 119009, 210881, 210881A, 301443RI, 437802, 8111001, 8602277, 9442841, 9459038, 12041150, 32041150, 63304000, 63304001, 63304002, 63304010, 63304020, 63304030, 63304040, 63304050, 63304075, 63304078, 63304079, 63304081, 63304082, 63304083, 63304084, 63304088, 63304090, 63304091, 63304093, 63304095, 81110010, 81110017, 94428410, 94428414, 0124515017, 0124515018, 0986041150, 0986041153, 0986041157, 944390411500

  • Konkurrentreferens
    A0060, ALT10372, CAL10322, drb1150, LEA0622, LRA01817, 1-2244-11BO, 8EL012428-121, 8el737641-001, 28-3637, 238.135.1202, 5746, 13802, 13802N, 13802R, 119009, 210881, 210881A, 301443RI, 437802, 12041150, 32041150, 0986041150, 0986041153, 0986041157, 944390411500

  • Bilmärken
    VOLVO

  • NormaliseratArtNr
    a0060, alt10372, cal10322, drb1150, f032112078, lea0622, lra01817, 8el012428121, 8el737641001, 1443ir, 5746, 13802, 13802n, 13802r, 112078, 119009, 210881, 210881a, 283637, 301443ri, 437802, 1224411bo, 8111001, 8602277, 9442841, 9459038, 12041150, 32041150, 63304000, 63304001, 63304002, 63304010, 63304020, 63304030, 63304040, 63304050, 63304075, 63304078, 63304079, 63304081, 63304082, 63304083, 63304084, 63304088, 63304090, 63304091, 63304093, 63304095, 81110010, 81110017, 94428410, 94428414, 0124515017, 0124515018, 0986041150, 0986041153, 0986041157, 2381351202, 944390411500

  • Passar modeller
    VOLVO S60 I (384) 2.0 T Engine volume: 2.0 Engine type: B 5204 T5 Year: 07.00-04.10
    VOLVO S60 I (384) 2.4 Bifuel (CNG) Engine volume: 2.4 Engine type: B 5244 SG, B 5244 SG2 Year: 07.01-04.10
    VOLVO S60 I (384) 2.4 Bifuel (LPG) Engine volume: 2.4 Engine type: B 5244 SG2 Year: 07.01-04.10
    VOLVO S60 I (384) 2.4 Engine volume: 2.4 Engine type: B 5244 S Year: 11.00-04.10
    VOLVO S60 I (384) 2.4 Engine volume: 2.4 Engine type: B 5244 S2 Year: 07.00-04.10
    VOLVO S60 I (384) 2.4 T AWD Engine volume: 2.4 Engine type: B 5244 T3 Year: 06.01-04.10
    VOLVO S60 I (384) 2.4 T Engine volume: 2.4 Engine type: B 5244 T3 Year: 07.00-04.10
    VOLVO S60 I (384) R 2,5 T AWD Engine volume: 2.5 Engine type: B 5254 T4 Year: 01.03-04.10
    VOLVO S60 I (384) T5 Engine volume: 2.3 Engine type: B 5234 T3 Year: 07.00-04.10
    VOLVO S60 I (384) T5 Engine volume: 2.3 Engine type: B 5234 T7 Year: 07.00-09.02
    VOLVO S80 I (184) 2.0 Engine volume: 2.0 Engine type: B 5204 T4 Year: 06.98-07.06
    VOLVO S80 I (184) 2.0 T Engine volume: 2.0 Engine type: B 5204 T3 Year: 06.98-07.06
    VOLVO S80 I (184) 2.0 T Engine volume: 2.0 Engine type: B 5204 T5 Year: 12.99-07.06
    VOLVO S80 I (184) 2.4 Bifuel (CNG) Engine volume: 2.4 Engine type: B 5244 SG2 Year: 09.01-07.06
    VOLVO S80 I (184) 2.4 Bifuel (LPG) Engine volume: 2.4 Engine type: B 5244 SG Year: 09.01-07.06
    VOLVO S80 I (184) 2.4 Engine volume: 2.4 Engine type: B 5244 S Year: 01.99-07.06
    VOLVO S80 I (184) 2.4 Engine volume: 2.4 Engine type: B 5244 S2 Year: 01.99-07.06
    VOLVO S80 I (184) 2.4 T Engine volume: 2.4 Engine type: B 5244 T3 Year: 06.00-07.06
    VOLVO S80 I (184) 2.9 Engine volume: 2.9 Engine type: B 6294 S Year: 03.99-07.06
    VOLVO S80 I (184) 2.9 Engine volume: 2.9 Engine type: B 6294 S2 Year: 05.98-02.08
    VOLVO S80 I (184) 2.9 Engine volume: 2.9 Engine type: B 6304 S3 Year: 05.98-07.06
    VOLVO S80 I (184) 3.0 Engine volume: 3.0 Engine type: B 6294 S2 Year: 06.01-07.06
    VOLVO S80 I (184) T5 AWD Engine volume: 2.4 Engine type: B 5244 T3 Year: 04.00-09.03
    VOLVO S80 I (184) T6 Engine volume: 2.8 Engine type: B 6284 T Year: 05.98-12.01
    VOLVO S80 I (184) T6 Engine volume: 3.0 Engine type: B 6294 T Year: 06.01-07.06
    VOLVO V70 II (285) 2.4 Bifuel (CNG) Engine volume: 2.4 Engine type: B 5244 SG, B 5244 SG2 Year: 09.01-08.07
    VOLVO V70 II (285) 2.4 Bifuel (LPG) Engine volume: 2.4 Engine type: B 5244 SG2 Year: 09.01-08.07
    VOLVO V70 II (285) 2.4 Engine volume: 2.4 Engine type: B 5244 S Year: 03.00-08.07
    VOLVO V70 II (285) 2.4 T AWD Engine volume: 2.4 Engine type: B 5244 T3 Year: 09.01-08.02
    VOLVO V70 II (285) 2.4 T Engine volume: 2.4 Engine type: B 5244 T3 Year: 11.99-08.03
    VOLVO V70 II (285) T5 Engine volume: 2.3 Engine type: B 5234 T3 Year: 11.99-12.04
    VOLVO XC70 I Cross Country (295) 2.4 T XC AWD Engine volume: 2.4 Engine type: B 5244 T3 Year: 03.00-09.02
    1 / 7
  • Beskrivelse
    Generator 12V-120A passer til Volvo 12V - 120A, 6-r. CCW 12V - 120A, 6-r. CCW For Yourex produkt bestilling 90-600-4115 Spænding: 14 Ampere: 120 Skivens afstand: 44,50 Monteringsbeslagets afstand: 82,00 Beslagshuls distance: M8 Bæltes justeringsbeslagshuls pos.: 50 Bæltes justeringsbeslagshuls 1: 8,50 Bæltes justeringsbeslagshuls 2: 8,50 Skivens diameter: 55,70 Ribber/skive: 6 Radius 2: 87,00 B+: M8 Position/B+: i min.: 30 D+ størrelse: 6,30 Rotation: CCW Total længde mm: 194,00 Skive: SP Reguleringstype: IR Service: Volvo

    Filer

  • Specifikation
    B+ M8
    Mount. bracket dist. 82.00
    Belt. adj. bracket hole 1 8.50
    Belt. adj. bracket hole 2 8.50
    Belt. adj. brackethole pos. 50
    Bracket hole M8
    Position/B+ in min. 30
    Pulley SP
    Pulley dia. 55.70
    Pulley dist. 44.50
    D+ Size 6.30
    Radius 2 87.00
    Regulator type IR
    Rotation CCW
    Servicing Volvo
    Grooves/pulley 6
    Voltage 14
    Total length 194.00 mm
    Amp 120
  • Køretøjsmatchning

    • OEM
      A0060, ALT10372, CAL10322, drb1150, F032112078, LEA0622, LRA01817, 1-2244-11BO, 8EL012428-121, 8el737641-001, 28-3637, 0124 515 017, 0124 515 018, 238.135.1202, 0986 041 150, 1443ir, 5746, 13802, 13802N, 13802R, 112078, 119009, 210881, 210881A, 301443RI, 437802, 8111001, 8602277, 9442841, 9459038, 12041150, 32041150, 63304000, 63304001, 63304002, 63304010, 63304020, 63304030, 63304040, 63304050, 63304075, 63304078, 63304079, 63304081, 63304082, 63304083, 63304084, 63304088, 63304090, 63304091, 63304093, 63304095, 81110010, 81110017, 94428410, 94428414, 0124515017, 0124515018, 0986041150, 0986041153, 0986041157, 944390411500

    • Konkurrentreferens
      A0060, ALT10372, CAL10322, drb1150, LEA0622, LRA01817, 1-2244-11BO, 8EL012428-121, 8el737641-001, 28-3637, 238.135.1202, 5746, 13802, 13802N, 13802R, 119009, 210881, 210881A, 301443RI, 437802, 12041150, 32041150, 0986041150, 0986041153, 0986041157, 944390411500

    • Bilmärken
      VOLVO

    • NormaliseratArtNr
      a0060, alt10372, cal10322, drb1150, f032112078, lea0622, lra01817, 8el012428121, 8el737641001, 1443ir, 5746, 13802, 13802n, 13802r, 112078, 119009, 210881, 210881a, 283637, 301443ri, 437802, 1224411bo, 8111001, 8602277, 9442841, 9459038, 12041150, 32041150, 63304000, 63304001, 63304002, 63304010, 63304020, 63304030, 63304040, 63304050, 63304075, 63304078, 63304079, 63304081, 63304082, 63304083, 63304084, 63304088, 63304090, 63304091, 63304093, 63304095, 81110010, 81110017, 94428410, 94428414, 0124515017, 0124515018, 0986041150, 0986041153, 0986041157, 2381351202, 944390411500

    • Passar modeller
      VOLVO S60 I (384) 2.0 T Engine volume: 2.0 Engine type: B 5204 T5 Year: 07.00-04.10
      VOLVO S60 I (384) 2.4 Bifuel (CNG) Engine volume: 2.4 Engine type: B 5244 SG, B 5244 SG2 Year: 07.01-04.10
      VOLVO S60 I (384) 2.4 Bifuel (LPG) Engine volume: 2.4 Engine type: B 5244 SG2 Year: 07.01-04.10
      VOLVO S60 I (384) 2.4 Engine volume: 2.4 Engine type: B 5244 S Year: 11.00-04.10
      VOLVO S60 I (384) 2.4 Engine volume: 2.4 Engine type: B 5244 S2 Year: 07.00-04.10
      VOLVO S60 I (384) 2.4 T AWD Engine volume: 2.4 Engine type: B 5244 T3 Year: 06.01-04.10
      VOLVO S60 I (384) 2.4 T Engine volume: 2.4 Engine type: B 5244 T3 Year: 07.00-04.10
      VOLVO S60 I (384) R 2,5 T AWD Engine volume: 2.5 Engine type: B 5254 T4 Year: 01.03-04.10
      VOLVO S60 I (384) T5 Engine volume: 2.3 Engine type: B 5234 T3 Year: 07.00-04.10
      VOLVO S60 I (384) T5 Engine volume: 2.3 Engine type: B 5234 T7 Year: 07.00-09.02
      VOLVO S80 I (184) 2.0 Engine volume: 2.0 Engine type: B 5204 T4 Year: 06.98-07.06
      VOLVO S80 I (184) 2.0 T Engine volume: 2.0 Engine type: B 5204 T3 Year: 06.98-07.06
      VOLVO S80 I (184) 2.0 T Engine volume: 2.0 Engine type: B 5204 T5 Year: 12.99-07.06
      VOLVO S80 I (184) 2.4 Bifuel (CNG) Engine volume: 2.4 Engine type: B 5244 SG2 Year: 09.01-07.06
      VOLVO S80 I (184) 2.4 Bifuel (LPG) Engine volume: 2.4 Engine type: B 5244 SG Year: 09.01-07.06
      VOLVO S80 I (184) 2.4 Engine volume: 2.4 Engine type: B 5244 S Year: 01.99-07.06
      VOLVO S80 I (184) 2.4 Engine volume: 2.4 Engine type: B 5244 S2 Year: 01.99-07.06
      VOLVO S80 I (184) 2.4 T Engine volume: 2.4 Engine type: B 5244 T3 Year: 06.00-07.06
      VOLVO S80 I (184) 2.9 Engine volume: 2.9 Engine type: B 6294 S Year: 03.99-07.06
      VOLVO S80 I (184) 2.9 Engine volume: 2.9 Engine type: B 6294 S2 Year: 05.98-02.08
      VOLVO S80 I (184) 2.9 Engine volume: 2.9 Engine type: B 6304 S3 Year: 05.98-07.06
      VOLVO S80 I (184) 3.0 Engine volume: 3.0 Engine type: B 6294 S2 Year: 06.01-07.06
      VOLVO S80 I (184) T5 AWD Engine volume: 2.4 Engine type: B 5244 T3 Year: 04.00-09.03
      VOLVO S80 I (184) T6 Engine volume: 2.8 Engine type: B 6284 T Year: 05.98-12.01
      VOLVO S80 I (184) T6 Engine volume: 3.0 Engine type: B 6294 T Year: 06.01-07.06
      VOLVO V70 II (285) 2.4 Bifuel (CNG) Engine volume: 2.4 Engine type: B 5244 SG, B 5244 SG2 Year: 09.01-08.07
      VOLVO V70 II (285) 2.4 Bifuel (LPG) Engine volume: 2.4 Engine type: B 5244 SG2 Year: 09.01-08.07
      VOLVO V70 II (285) 2.4 Engine volume: 2.4 Engine type: B 5244 S Year: 03.00-08.07
      VOLVO V70 II (285) 2.4 T AWD Engine volume: 2.4 Engine type: B 5244 T3 Year: 09.01-08.02
      VOLVO V70 II (285) 2.4 T Engine volume: 2.4 Engine type: B 5244 T3 Year: 11.99-08.03
      VOLVO V70 II (285) T5 Engine volume: 2.3 Engine type: B 5234 T3 Year: 11.99-12.04
      VOLVO XC70 I Cross Country (295) 2.4 T XC AWD Engine volume: 2.4 Engine type: B 5244 T3 Year: 03.00-09.02
