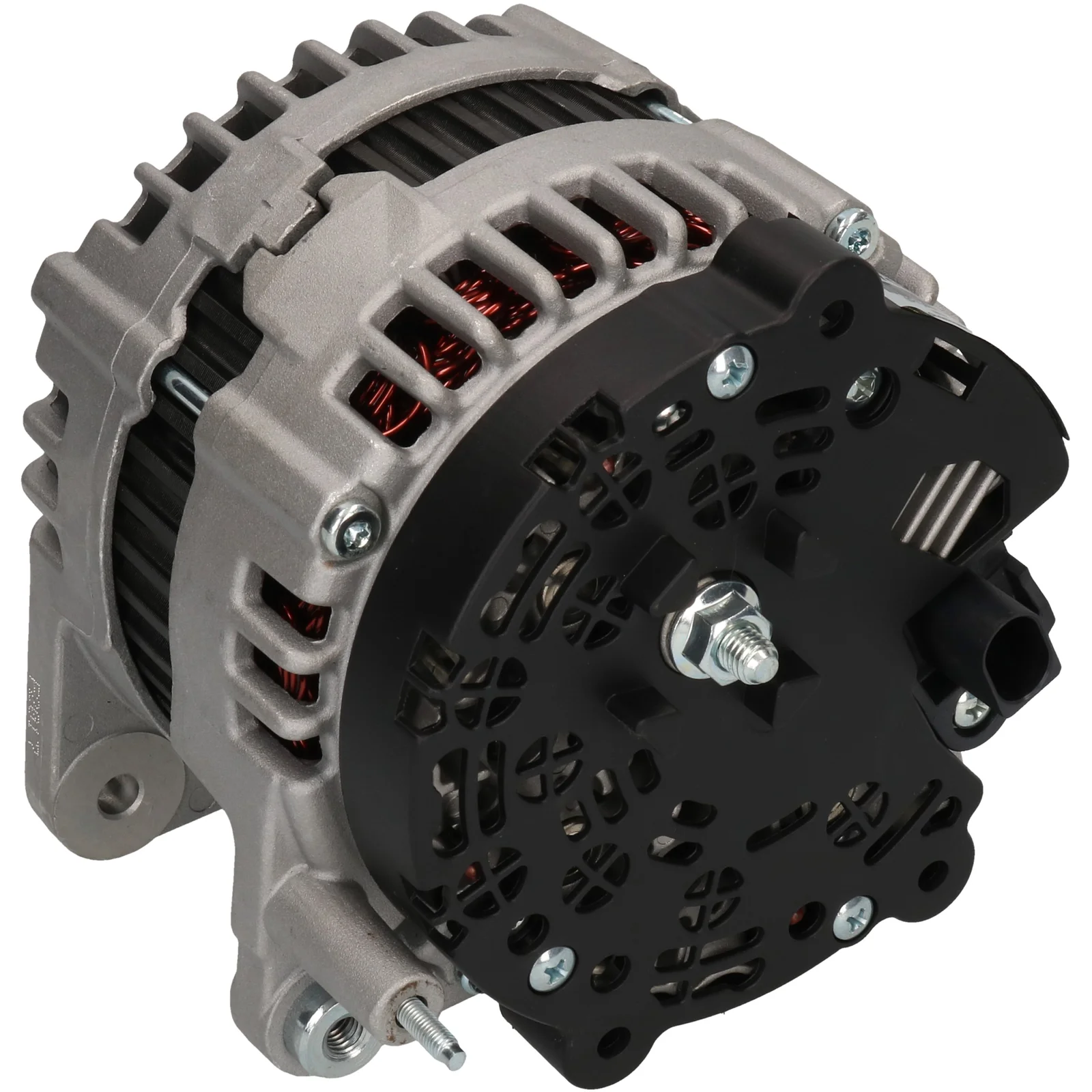

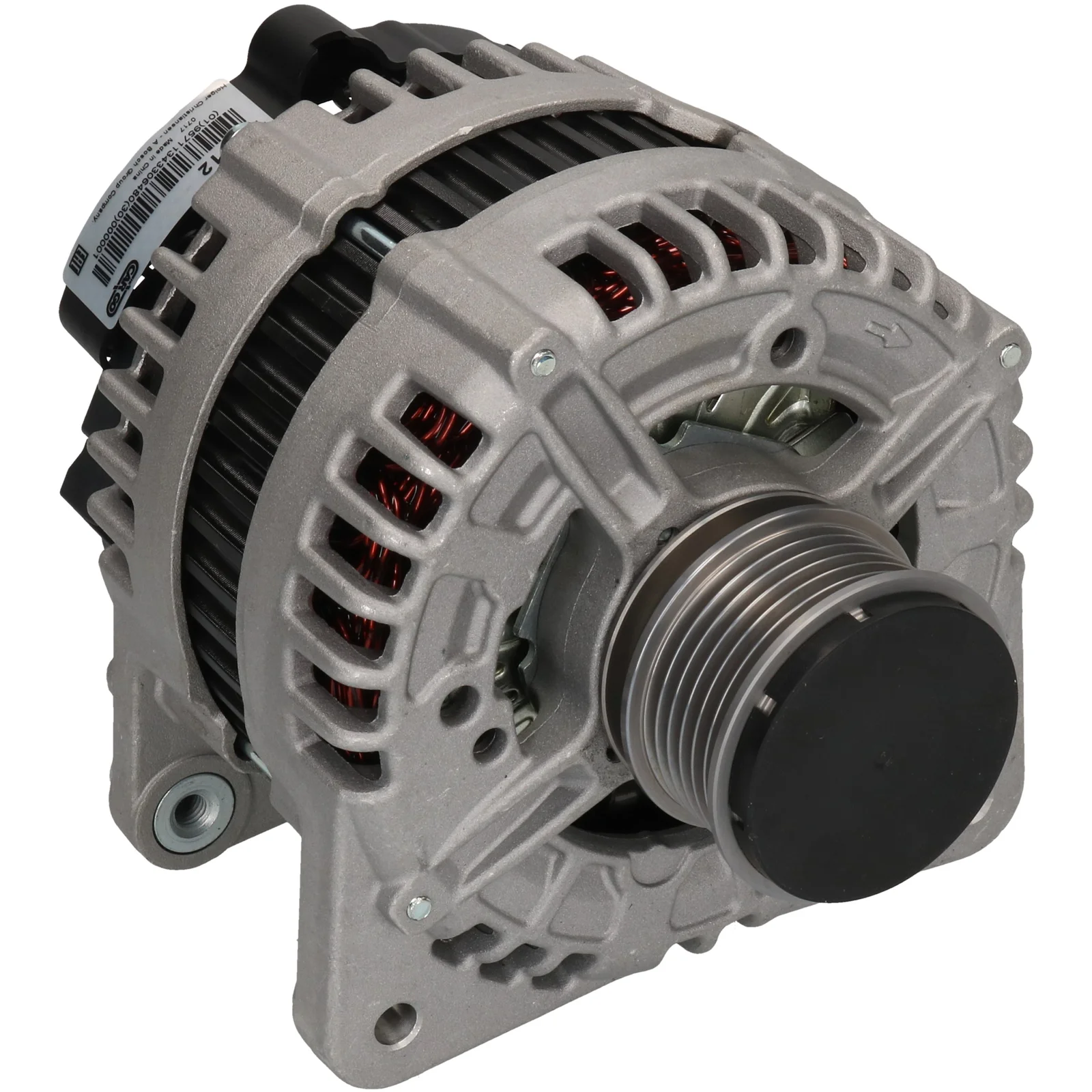

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032115712

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 180, Rotation: CW, Montering. bøjle fordelingsdæksel: 64,00

Beskrivelse

Generator 12V-180A 12V - 180A, 6gr.frg, (LIN) For Yourex produktordre 90-620-8189

Spenning: 14
Amp.: 180
Remskives afstand: 39.50
Bredde/holderarm: 14.30
Monteringsbeslag afstand: 64.00
Beslagshul: 8.50
Bæltejustering beslags hul pos.: 45
Bæltejustering beslags hul 1: 8.50
Remskive dia.: 55.80
Ribber/remskive: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ i min.: 5
Rotation: CW
Kontakt nr.: PL86
Total længde mm: 193.00
Terminaltype: COM
Kommunikation: LIN
Remskive: SP/FW
Regulator type: IR
Produktion info: BN
Bemærkninger: Denne generator har en COM-terminal på regulatoren. Det anbefales at bruge OEM-nummeret for at kontrollere egnethed, før der bestilles.

Filer

Specifikation

B+ M8
Communication LIN
Mount. bracket dist. 64.00
Belt. adj. bracket hole 1 8.50
Belt. adj. brackethole pos. 45
Plug no. PL86
Bracket hole 8.50
Position/B+ in min. 5
Prod. info BN
Pulley SP/FW
Pulley dia. 55.80
Pulley dist. 39.50
Radius 90.00
Radius 2 90.00
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Grooves/pulley 6
Terminal type COM
Voltage 14
Total length 193.00 mm
Width/holder arm 14.30
Amp 180

  • OEM
    F032115712, FG18T 051, 03L 903 023B, 03L 903 023D, 03L 903 024F, 03l903023d, 03L903023DX, 03L903024F, 03L903024FX, 0121 715 071, 0121 715 171, 0125 811 027, 0125 811 028, 0986 081 890, 1986A01048, 2188ir, 115712, 439718, 440308, 2608426, 0121715071, 0121715171, 0125811027, 0125811028

  • Konkurrentreferens
    A0433, A0433PR, A0608PR, A3310PR, DRA0539, MAN2048, 8EL011713-261, 20330N, 20330R, 20330RW, 209191, 209191A, 553481RI, 9090743, 12090445, 12090448, 32081890, 0986081890, 063537151710

  • Bilmärken
    Seat, Skoda, VW

  • NormaliseratArtNr
    a0433, a0433pr, a0608pr, a3310pr, dra0539, f032115712, fg18t051, man2048, 03l903023b, 03l903023d, 03l903023dx, 03l903024f, 03l903024fx, 8el011713261, 1986a01048, 2188ir, 20330n, 20330r, 20330rw, 115712, 209191, 209191a, 439718, 440308, 553481ri, 2608426, 9090743, 12090445, 12090448, 32081890, 0121715071, 0121715171, 0125811027, 0125811028, 0986081890, 063537151710

  • Passar modeller
    Seat Model: Alhambra Model series: Alhambra Type of engine: TDi Size of motor: 2.0 Brand of engine: CFFB Type description: 710 Body: MPV From date: 01-06-2010 Fuel: Diesel Approved: Yes
    Seat Model: Alhambra Model series: Alhambra Type of engine: TDi Size of motor: 2.0 Brand of engine: CFGB Type description: 710 Body: MPV From date: 01-06-2010 Fuel: Diesel Approved: Yes
    Seat Series: Alhambra (710, 711) Model: 2.0 TDI 4Drive Engine volume: 2.0 Engine type: CFFB Year: 05.11-
    Seat Series: Alhambra (710, 711) Model: 2.0 TDI Engine volume: 2.0 Engine type: CFFB Year: 06.10-
    Skoda Model: Superb Model series: Superb Type of engine: TDi Size of motor: 1.6 Brand of engine: CAYC Type description: 3T4 Body: Hatchback From date: 01-09-2010 To date: 01-05-2015 Fuel: Diesel Approved: Yes
    Skoda Model: Superb Model series: Superb Type of engine: TDi Size of motor: 2.0 Brand of engine: CFGB Type description: 3T5 Body: Estate From date: 01-10-2009 To date: 01-05-2015 Fuel: Diesel Approved: Yes Manufacture type: Kombi
    VW Model: Passat Model series: Passat B7 Model type: TDI Type of engine: TDI Size of motor: 2.0 Brand of engine: CFFA Type description: 365 Body: Estate Van Fuel: Diesel Approved: Yes Manufacture type: Estate
    VW Model: Passat Model series: Passat B7 Model type: TDI Type of engine: TDI Size of motor: 2.0 Brand of engine: CFGC Type description: 365 Body: Estate Van Fuel: Diesel Approved: Yes Manufacture type: Estate
    VW Model: Passat Model series: Passat Model type: Alltrack 4motion Type of engine: TDi Size of motor: 2.0 Brand of engine: CFGC Type description: 365 Body: Estate From date: 01-01-2013 To date: 01-12-2014 Fuel: Diesel Approved: Yes Manufacture type: Alltrack
    VW Model: Passat Model series: Passat Model type: BlueMotion Type of engine: TDi Size of motor: 1.6 Brand of engine: CAYC Type description: 365 Body: Box Body / Estate From date: 01-08-2010 To date: 01-12-2014 Fuel: Diesel Approved: Yes
    VW Model: Passat Model series: Passat Model type: BlueMotion Type of engine: TDi Size of motor: 2.0 Brand of engine: CFFB Type description: 365 Body: Box Body / Estate From date: 01-08-2010 To date: 01-12-2014 Fuel: Diesel Approved: Yes
    VW Model: Passat Model series: Passat Model type: BlueMotion Type of engine: TDi Size of motor: 2.0 Brand of engine: CLLA,CFGB Type description: 365 Body: Box Body / Estate From date: 01-08-2010 To date: 01-12-2014 Fuel: Diesel Approved: Yes
    VW Model: Passat Model series: Passat Model type: Variant 4motion Type of engine: TDi Size of motor: 2.0 Brand of engine: CFGC Type description: 365 Body: Estate From date: 01-01-2013 To date: 01-12-2014 Fuel: Diesel Approved: Yes Manufacture type: Variant
    VW Model: Passat Model series: Passat Type of engine: TDi Size of motor: 1.6 Brand of engine: CAYC Type description: 362 From date: 01-08-2010 To date: 01-12-2014 Fuel: Diesel Approved: Yes
    VW Model: Passat Model series: Passat Type of engine: TDi Size of motor: 1.6 Brand of engine: CAYC Type description: 365 Body: Estate From date: 01-08-2010 To date: 01-12-2014 Fuel: Diesel Approved: Yes Manufacture type: Variant
    VW Model: Passat Model series: Passat Type of engine: TDi Size of motor: 2.0 Brand of engine: CBBB Type description: 3C5 Body: Estate From date: 01-08-2005 To date: 01-11-2010 Fuel: Diesel Approved: Yes
    VW Model: Sharan Model series: Sharan Model type: 4motion Type of engine: TDi Size of motor: 2.0 Brand of engine: CFFB Type description: 7N Body: MPV From date: 01-05-2011 Fuel: Diesel Approved: Yes
    VW Model: Sharan Model series: Sharan Type of engine: TDi Size of motor: 2.0 Brand of engine: CFFA Type description: 7N Body: MPV From date: 01-05-2010 Fuel: Diesel Approved: Yes
    VW Model: Sharan Model series: Sharan Type of engine: TDi Size of motor: 2.0 Brand of engine: CFFB Type description: 7N Body: MPV From date: 01-05-2010 Fuel: Diesel Approved: Yes
    VW Model: Sharan Model series: Sharan Type of engine: TDi Size of motor: 2.0 Brand of engine: CFGB Type description: 7N Body: MPV From date: 01-08-2010 Fuel: Diesel Approved: Yes
    VW Model: Sharan Model series: Sharan Van Type of engine: TDi Size of motor: 2.0 Brand of engine: CFFA Type description: 7N1, 7N2 Body: Van From date: 01-05-2010 To date: 01-05-2011 Fuel: Diesel Approved: Yes
    VW Model: Sharan Model series: Sharan Van Type of engine: TDi Size of motor: 2.0 Brand of engine: CFFB Type description: 7N1, 7N2 Body: Van From date: 01-05-2010 To date: 01-11-2015 Fuel: Diesel Approved: Yes
    VW Model: Sharan Model series: Sharan Van Type of engine: TDi Size of motor: 2.0 Brand of engine: CFFE Type description: 7N1, 7N2 Body: Van From date: 01-05-2011 To date: 01-11-2015 Fuel: Diesel Approved: Yes
    VW Model: Sharan Model series: Sharan Van Type of engine: TDi Size of motor: 2.0 Brand of engine: CFGB Type description: 7N1, 7N2 Body: Van From date: 01-08-2010 To date: 01-01-2013 Fuel: Diesel Approved: Yes
    VW Series: CC (358) Model: 2.0 TDI 4motion Engine volume: 2.0 Engine type: CFGB Year: 11.11-
    VW Series: CC Coupé Model: 2.0 TDI Engine volume: 2.0 Engine type: CFGB Year: 11.11-01.13
    VW Series: Passat (362) Model: 1.6 TDI Engine volume: 1.6 Engine type: CAYC Year: 08.10-
    VW Series: Passat (362) Model: 2.0 TDI 4motion Engine volume: 2.0 Engine type: CFFB Year: 08.10-12.14
    VW Series: Passat (362) Model: 2.0 TDI 4motion Engine volume: 2.0 Engine type: CFGB / CLLA Year: 08.10-
    VW Series: Passat (362) Model: 2.0 TDI Engine volume: 2.0 Engine type: CFFB Year: 08.10-
    VW Series: Passat (362) Model: 2.0 TDI Engine volume: 2.0 Engine type: CFGB / CLLA Year: 08.10-
    VW Series: Passat Alltrack(365) Model: 2.0 TDI 4motion Engine volume: 2.0 Engine type: CFGB Year: 01.12-12.14
    VW Series: Passat Alltrack(365) Model: 2.0 TDI 4motion Engine volume: 2.0 Engine type: CFGC Year: 01.13-12.14
    VW Series: Passat Variant (365) Model: 1.6 TDI Engine volume: 1.6 Engine type: CAYC Year: 08.10-
    VW Series: Passat Variant (365) Model: 2.0 TDI 4motion Engine volume: 2.0 Engine type: CFFB Year: 08.10-
    VW Series: Passat Variant (365) Model: 2.0 TDI 4motion Engine volume: 2.0 Engine type: CFGB / CLLA Year: 08.10-
    VW Series: Passat Variant (365) Model: 2.0 TDI Engine volume: 2.0 Engine type: CFFB Year: 08.10-
    VW Series: Passat Variant (365) Model: 2.0 TDI Engine volume: 2.0 Engine type: CFGB / CLLA Year: 08.10-
    VW Series: Sharan Model: 2.0 TDI Engine volume: 2.0 Engine type: CFGB Year: 08.10-
