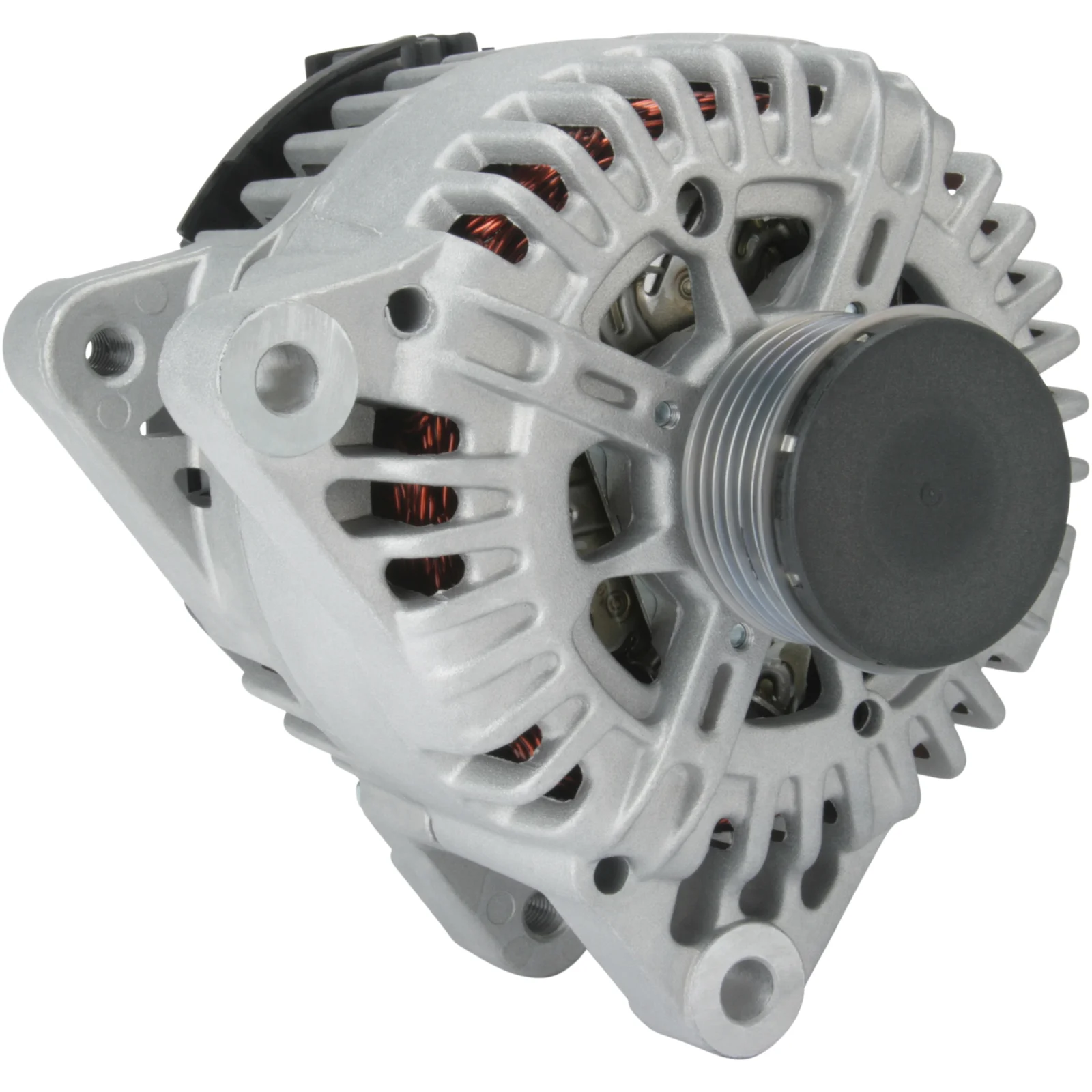

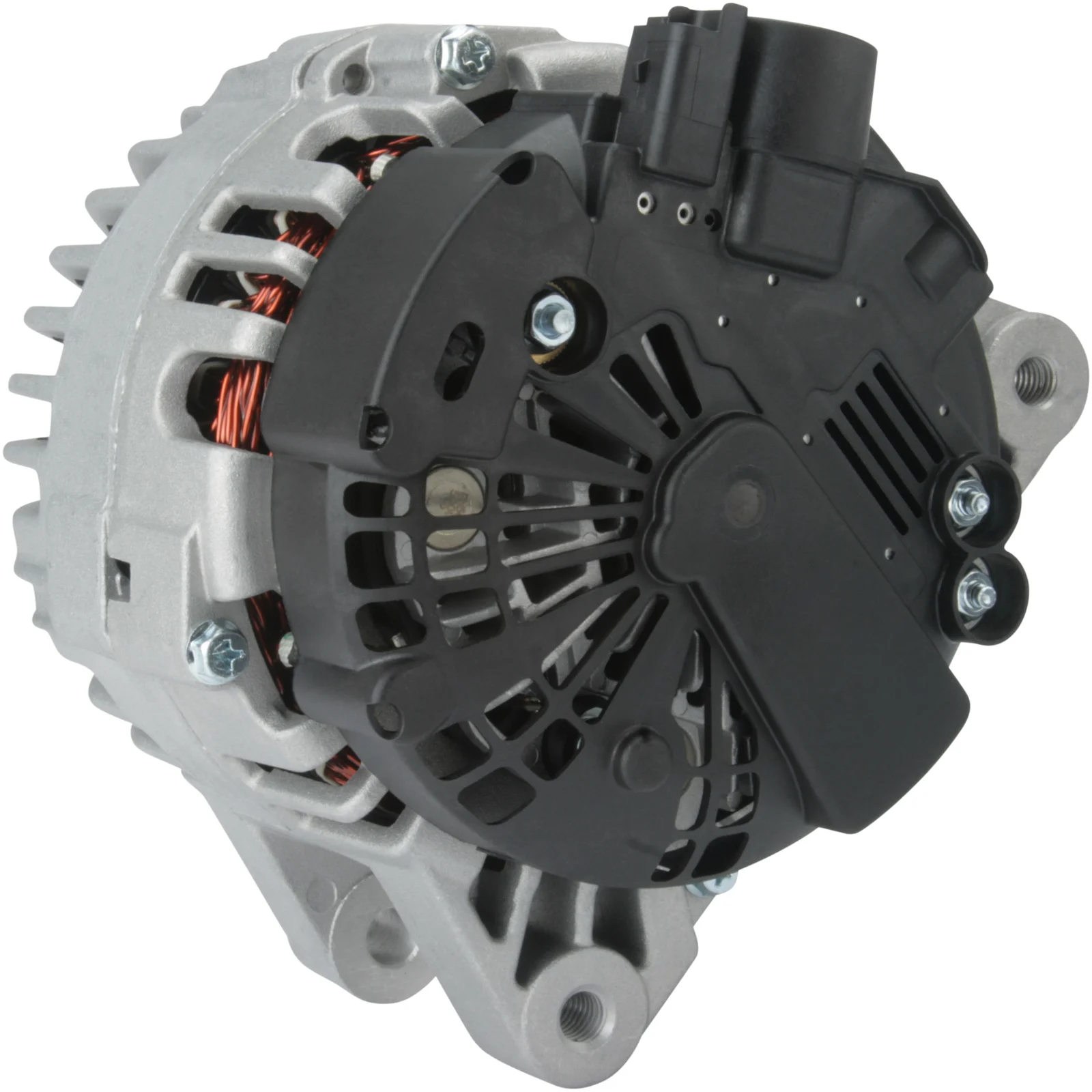

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032115369

HC-Cargo Generator

Tekniske oplysninger:

Voltage: 14, Amp: 150, Rotation: CW, Mount. bøsning dist.: 45,50

Beskrivelse

Mitsubishi/PSA Generator | Gen. 12V-150A 12V - 150A, frg 6gr. B+ (L - DF) Frg remskive, 6gr. B+ (L - DF) For Yourex produktordre 90-380-5112

Spænding: 14
Amp.: 150
Drevskivens afstand: 42.00
Bredde/holderarm: 21.00
Monteringsbeslag afstand: 45.50
Beslagshul: 10.20
Bæltejusteringsbeslags hul position: 45
Bæltejusteringsbeslags hul 1: 10.20
Drevskivens diameter: 54.00
Riller/drevskive: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ i min.: 17
Rotation: CW
Stik.no.: PL72
Drevskive: SP/FW
Reguleringstype: IR
Produktinfo: BN

Filer

Specifikation

B+ M8
Mount. bracket dist. 45.50
Belt. adj. bracket hole 1 10.20
Belt. adj. brackethole pos. 45
Plug no. PL72
Bracket hole 10.20
Position/B+ in min. 17
Prod. info BN
Pulley SP/FW
Pulley dia. 54.00
Pulley dist. 42.00
Radius 90.00
Radius 2 90.00
Regulator type IR
Rotation CW
Grooves/pulley 6
Voltage 14
Width/holder arm 21.00
Amp 150

  • OEM
    F032115369, PEU 5705 G8, PEU 5705 JV, SG15S025, TG15C 112, tg15c112, tg15c134, tg15c154, 1800A138, 2008ir, 115369, 440180, 440282, 2542726, 2543476, 2543476A, 2605546, 2605546A, 2607216, 2607216A, 9644037180, 9661152980, 9662731680, 9665617780, 9665735680

  • Konkurrentreferens
    CAL15474, DRA0608, DRA4128X, 8EL012430-961, 8EL738212-361, 28-4700, 28-5856, 229.147.1502, 5702G8, 5705JV, 5705NF, 20131N, 200192, 210471, 210471A, 210931, 210931A, 302008RI, 439447, 747077, 747113, 12090562, 0986083890

  • Bilmärken
    Citroen, Fiat, Mitsubishi, Peugeot

  • NormaliseratArtNr
    cal15474, dra0608, dra4128x, f032115369, peu5705g8, peu5705jv, sg15s025, tg15c112, tg15c134, tg15c154, 8el012430961, 8el738212361, 1800a138, 2008ir, 5702g8, 5705jv, 5705nf, 20131n, 115369, 200192, 210471, 210471a, 210931, 210931a, 284700, 285856, 302008ri, 439447, 440180, 440282, 747077, 747113, 2542726, 2543476, 2543476a, 2605546, 2605546a, 2607216, 2607216a, 12090562, 0986083890, 2291471502, 9644037180, 9661152980, 9662731680, 9665617780, 9665735680

  • Passar modeller
    Citroen Model: Berlingo Model series: Berlingo Type of engine: HDi Size of motor: 1.6 Brand of engine: 9HT(DV6BTED4) Body: MPV From date: 01-04-2008 Fuel: Diesel Approved: Yes
    Citroen Model: C-Crosser Model series: C-Crosser Type of engine: HDi Size of motor: 2.2 Brand of engine: 4HN (DW12MTED4) Type description: VU_ Body: Box Body / Estate From date: 01-06-2007 To date: 01-12-2012 Fuel: Diesel Approved: Yes
    Citroen Model: C-Crosser Model series: C-Crosser Type of engine: HDi Size of motor: 2.2 Brand of engine: 4HN(DW12MTED4) Type description: EP_ Body: SUV From date: 01-02-2007 Fuel: Diesel Approved: Yes
    Citroen Model: C3 Model series: C3 Type of engine: HDi Size of motor: 1.4 Brand of engine: 8HR (DV4C) Type description: A51 Body: Hatchback From date: 01-11-2009 Fuel: Diesel Approved: Yes
    Citroen Model: C3 Model series: C3 Type of engine: HDi Size of motor: 1.4 Brand of engine: 8HZ (DV4TD) Type description: A51 Body: Hatchback From date: 01-11-2009 Fuel: Diesel Approved: Yes
    Citroen Model: C5 Model series: C5 Model type: Break Type of engine: HDi Size of motor: 2.0 Brand of engine: RHF (DW10BTED4) Type description: TD_ Body: Estate From date: 01-04-2009 Fuel: Diesel Approved: Yes Manufacture type: Break
    Citroen Model: C5 Model series: C5 Type of engine: HDi Size of motor: 2.0 Brand of engine: RHF (DW10BTED4) Type description: RD_ From date: 01-11-2008 Fuel: Diesel Approved: Yes
    Citroen Model: C5 Model series: C5 Type of engine: HDi Size of motor: 2.0 Brand of engine: RHR (DW10BTED4) Type description: TD_ Body: Estate From date: 01-02-2008 Fuel: Diesel Approved: Yes Manufacture type: break
    Citroen Series: C 3 Model: 1.4 HDi 70 Engine volume: 1.4 Engine type: 8HZ(DV4TD) Year: 05.13-
    Citroen Series: C-Crosser Model: 2.2 HDi Engine volume: 2.2 Engine type: 4HN (DW12MTED4) Year: 02.07-
    Mitsubishi Model: Outlander Model series: Outlander Type of engine: Di-D Size of motor: 2.2 Brand of engine: 4HK Type description: CW7W Body: SUV From date: 01-08-2007 To date: 01-11-2012 Fuel: Diesel Approved: Yes
    Mitsubishi Model: Outlander Model series: Outlander Type of engine: Di-D Size of motor: 2.2 Brand of engine: 4HN Type description: CW7W Body: SUV From date: 01-08-2007 To date: 01-11-2012 Fuel: Diesel Approved: Yes
    Mitsubishi Series: Outlander II Model: 2.2 DI-D 4WD Engine volume: 2.2 Engine type: 4HK Year: 08.07-11.12
    Peugeot Model: 207 Model series: 207 Type of engine: HDi Size of motor: 1.4 Brand of engine: 8HR (DV4C) Type description: WA_, WC_ Body: Hatchback From date: 01-02-2006 To date: 01-12-2015 Fuel: Diesel Approved: Yes
    Peugeot Model: 207 Model series: 207 Type of engine: HDi Size of motor: 1.4 Brand of engine: 8HZ (DV4TD) Type description: WA_, WC_ Body: Hatchback From date: 01-02-2006 To date: 01-12-2015 Fuel: Diesel Approved: Yes
    Peugeot Model: 207 Model series: 207 Type of engine: HDi Size of motor: 1.6 Brand of engine: 9HR (DV6C) Type description: A7 Body: Hatchback From date: 01-08-2009 To date: 01-12-2012 Fuel: Diesel Approved: Yes
    Peugeot Model: 207 Model series: 270 CC Type of engine: HDi Size of motor: 1.6 Brand of engine: 9HR (DV6C) Type description: WD_ Body: Convertible From date: 01-08-2009 To date: 01-10-2013 Fuel: Diesel Approved: Yes
    Peugeot Model: 308 Model series: 308 SW Type of engine: VTi Size of motor: 1.6 Brand of engine: NFP(EC5) Body: Estate From date: 01-03-2014 Fuel: Gasoline Approved: Yes Manufacture type: SW
    Peugeot Model: 4007 Model series: 4007 Model type: 155 Type of engine: HDI Size of motor: 2.2 Brand of engine: 4HN (DW12MTED4),4HK (DW12ME5) Type description: VU_, VV_ Body: Box Body / Estate From date: 01-02-2007 To date: 01-03-2013 Fuel: Diesel Approved: Yes
    Peugeot Model: 4007 Model series: 4007 Type of engine: HDi Size of motor: 2.2 Brand of engine: 4HK (DW12MTED4) Type description: GP_ Body: SUV From date: 01-02-2007 To date: 01-03-2013 Fuel: Diesel Approved: Yes
    Peugeot Model: 4007 Model series: 4007 Type of engine: HDi Size of motor: 2.2 Brand of engine: 4HN (DW12MTED4) Type description: GP_ Body: SUV From date: 01-02-2007 To date: 01-03-2013 Fuel: Diesel Approved: Yes
    Peugeot Model: Partner Model series: Partner Origin Combispace Model type: 75 Type of engine: HDI Size of motor: 1.6 Brand of engine: 9HW (DV6BTED4) Type description: G_ Body: MPV From date: 01-08-2008 To date: 01-12-2013 Fuel: Diesel Approved: Yes
    Peugeot Series: 207 CC Model: 1.6 HDi Engine volume: 1.6 Engine type: 9HR (DV6C) Year: 08.09-
    Peugeot Series: 207 Model: 1.6 HDi 110 Engine volume: 1.6 Engine type: 9HR (DV6C) Year: 08.09-
    Peugeot Series: 4007 Model: 2.2 HDi Engine volume: 2.2 Engine type: 4HK/HN (DW12MTED4) Year: 02.07-
