Vare nr.: F032116219

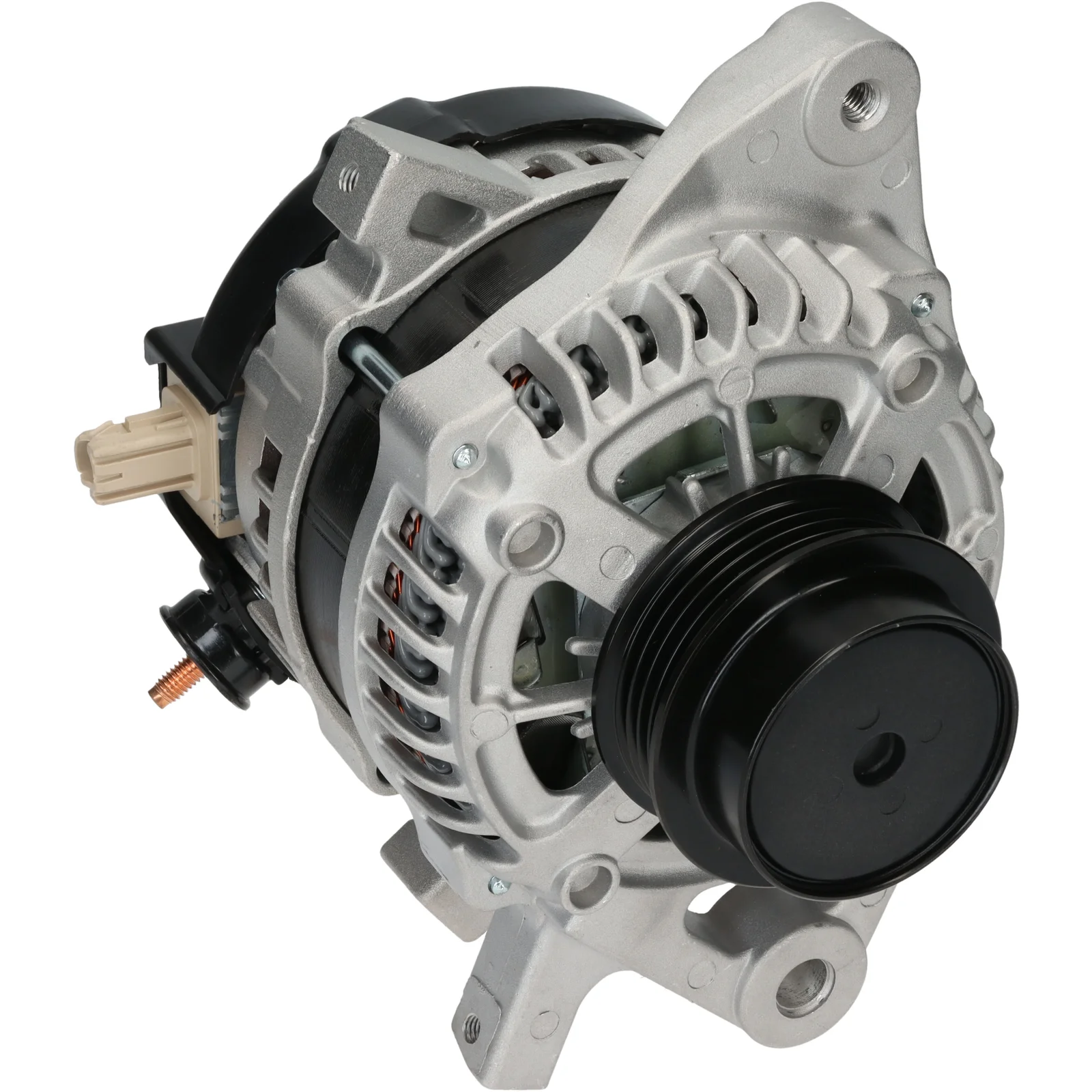

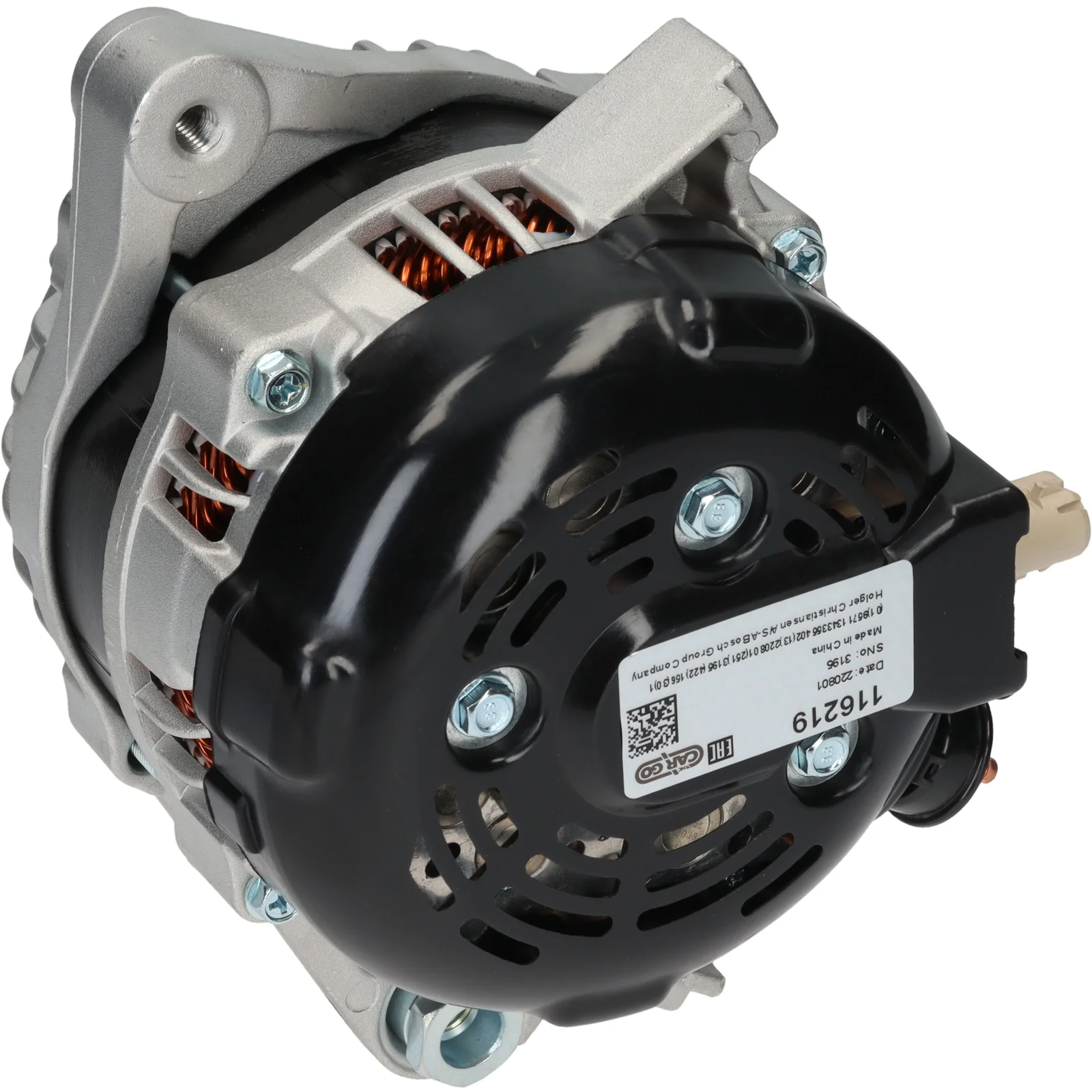

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 100, Rotation: CW, Monteringsbeslag fordel..: 37,50

Beskrivelse

Spænding: 14
Amp: 100
Remskive ford.: 29,70
Bredde/holderarm: 19,20
Monteringsbeslag afst.: 37,50
Beslagshul: 11,00
Bæltejusteringsbeslagshul pos.: 7
Bæltejusteringsbeslagshul 1: M8
Remskive dia.: 62,50
Riller/remskive: 4
Radius: 83,00
Radius 2: 87,00
B+: M6
Position/B+ i min.: 20
Rotation: CW
Stik nr.: PL204
Samlet længde mm: 163,00
Terminaltype: COM
Kommunikation: LIN
Remskive: SP/FW
Regulator type: IR
Bemærkninger: Denne Generator har en COM-terminal på regulatoren. Det anbefales at bruge OEM-nummeret til at kontrollere egnethed, før der bestilles.

Specifikation

B+ M6
Communication LIN
Mount. bracket dist. 37.50
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 7
Plug no. PL204
Bracket hole 11.00
Position/B+ in min. 20
Pulley SP/FW
Pulley dia. 62.50
Pulley dist. 29.70
Radius 83.00
Radius 2 87.00
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Grooves/pulley 4
Terminal type COM
Voltage 14
Total length 163.00 mm
Width/holder arm 19.20
Amp 100
  • OEM

    F032116219, 1986A00637, 1986A00740, 27060-0Y130, 27060-0Y160, 27060-47150, 27060-47260, 104210-1350, 104210-3020, 104211-3020, 104211-3021, 104211-3022, 104211-3090, 104211-3340, 63377572
  • Konkurrentreferens

    A6250(DENSO), A6250S, A6357, DAN1093, DRA1094, DRA1118, 28-6929, 235.348.1002, 20947-OS, 209107, 209107A, 12061146, 0986085080
  • NormaliseratArtNr

    a6250denso, a6250s, a6357, dan1093, dra1094, dra1118, f032116219, 1986a00637, 1986a00740, 20947os, 209107, 209107a, 270600y130, 270600y160, 286929, 12061146, 63377572, 0986085080, 1042101350, 1042103020, 1042113020, 1042113021, 1042113022, 1042113090, 1042113340, 2353481002, 2706047150, 2706047260
  • Passar modeller

    Toyota Model: Auris Model series: Auris Size of motor: 1.3 Brand of engine: 1NR-FE Type description: NZE18_, ZRE18_ Body: Hatchback From date: 01-10-2012 To date: 01-12-2018 Fuel: Gasoline Approved: Yes
    Toyota Model: Auris Model series: Auris Touring Sports Size of motor: 1.3 Brand of engine: 1NR-FE Body: Estate From date: 01-07-2013 To date: 01-12-2018 Fuel: Gasoline Approved: Yes Manufacture type: Touring Sp
    Toyota Model: Corolla Model series: Corolla Size of motor: 1.3 Brand of engine: 1NR-FE Type description: NRE18_, ZRE18_, NDE18_ From date: 01-06-2013 To date: 01-12-2018 Fuel: Gasoline Approved: Yes
    Toyota Model: Yaris Model series: Yaris Size of motor: 1.3 Brand of engine: 1NR-FE Type description: _P13_ Body: Hatchback From date: 01-09-2011 Fuel: Gasoline Approved: Yes
    Toyota Model: Yaris Model series: Yaris Size of motor: 1.3 Brand of engine: 1NR-FE Type description: _P13_ Body: Hatchback From date: 01-12-2010 Fuel: Gasoline Approved: Yes
    Toyota Model: Yaris Model series: Yaris Size of motor: 1.3 Brand of engine: 1NR-FKE Type description: _P13_ Body: Hatchback From date: 01-09-2011 Fuel: Gasoline Approved: Yes
    1 / 2
