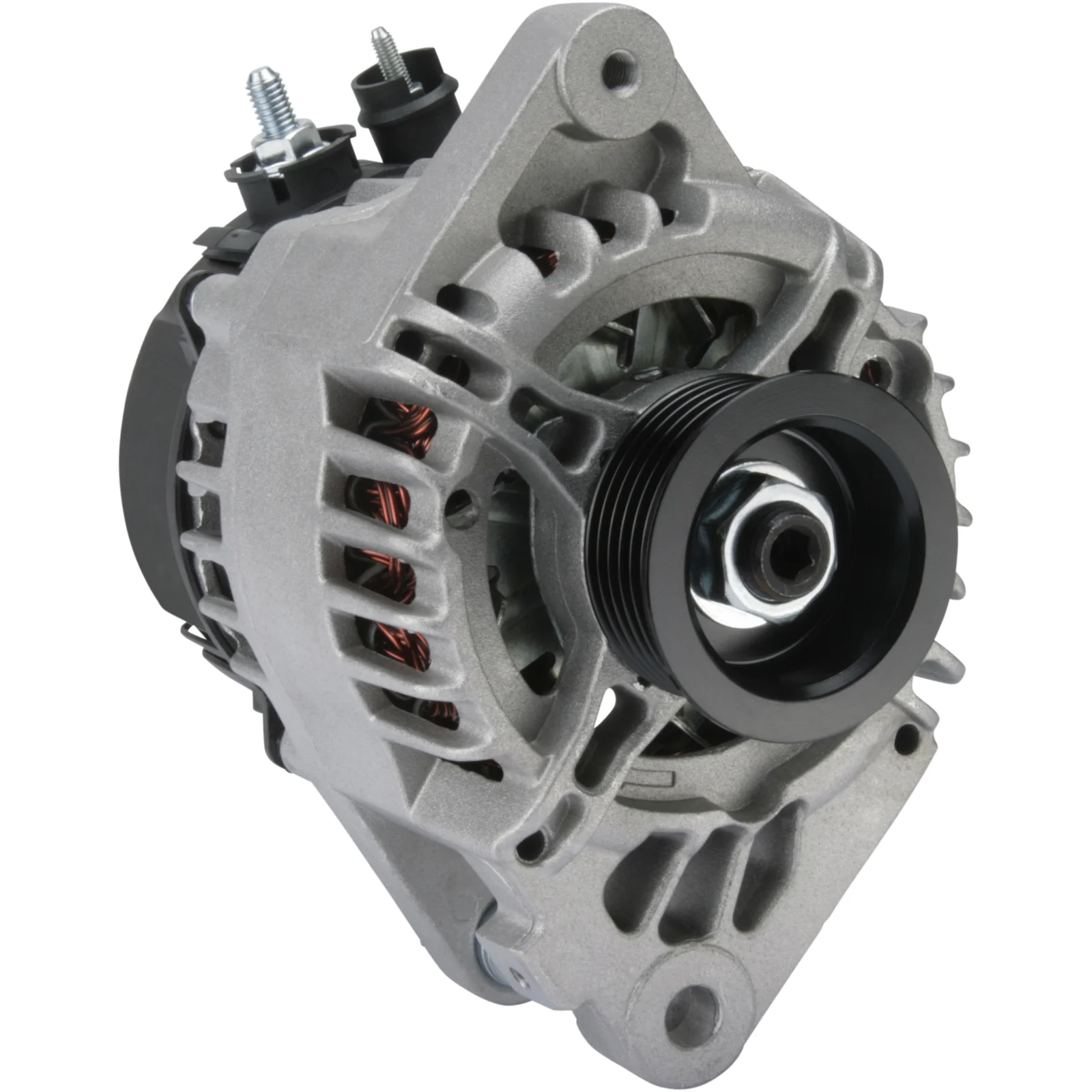

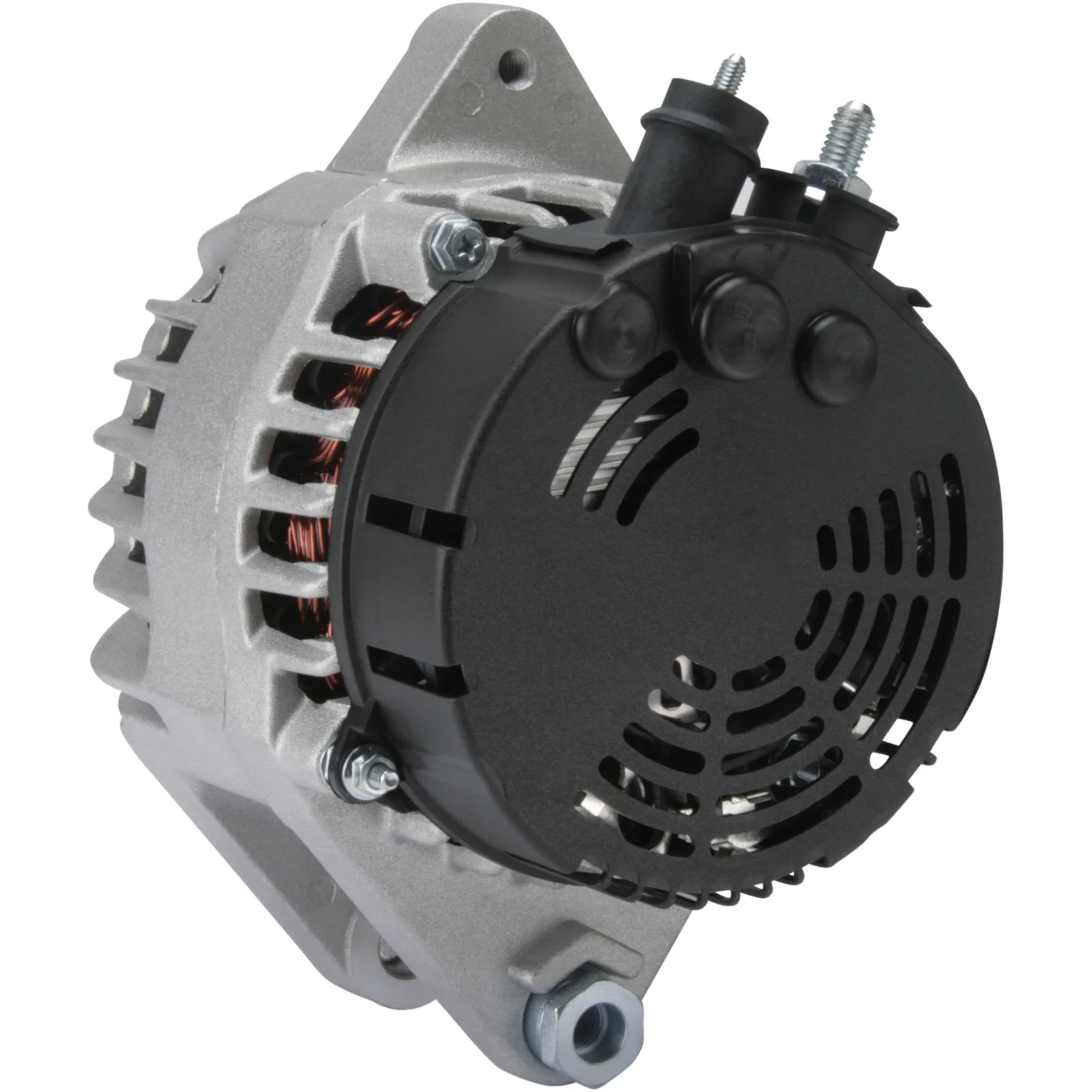

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032114099

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 80, Rotation: CW, Monteringsbeslag forfordelingshul.: 42.00

Beskrivelse

Toyota/PSA Generator 12V-80A 12V - 80A til Yourex produkt bestilling 90-450-2874

Spænding: 14
Amp: 80
Remskive diameter: 29.00
Bredde/bærer arm: 20.00
Fastgørelsesbeslag afstand: 42.00
Beslagshul: 11.00
Bæltejustering beslaghul position: 57
Bæltejustering beslag hul 1: M8
Remskive dia.: 57.50
Furer/remskive: 6
Radius: 88.00
Radius 2: 82.00
B+: M8
Position/B+ i min.: 5
D+ Størrelse: M5
Rotation: CW
Samlet længde mm: 167.00
Remskive: SP
Regulator type: IR

Filer

Specifikation

B+ M8
Mount. bracket dist. 42.00
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 57
Bracket hole 11.00
Position/B+ in min. 5
Pulley SP
Pulley dia. 57.50
Pulley dist. 29.00
Radius 88.00
D+ Size M5
Radius 2 82.00
Regulator type IR
Rotation CW
Grooves/pulley 6
Voltage 14
Total length 167.00 mm
Width/holder arm 20.00
Amp 80

  • OEM
    F032114099, PEU 5705 KJ, 1949ir, 1986A01573, 27060-00020, 27060-0Q020, 27060-0Q021, 27060-0Q100, 27060-0Q130, 101210-1410, 102211-8740, 102211-8741, 114099

  • Konkurrentreferens
    A4084, A6266(DENSO), ALT-H192, CAL40277, DAN1036, DENDAN1036, DRA0216, F042A0H192, 8EL012240-651, 8EL012430-331, 8EL738212-851, 28-5623, 195.910.080, 5702J2, 5702L1, 5705CP, 5705KJ, 5705NP, 20332N, 23966N, 112781, 200279, 210830, 210830A, 301949RI, 440445, 443269, 747026, 12090259, 0986081000, 063377549010

  • Bilmärken
    Citroen, Peugeot, Toyota

  • NormaliseratArtNr
    a4084, a6266denso, alth192, cal40277, dan1036, dendan1036, dra0216, f032114099, f042a0h192, peu5705kj, 8el012240651, 8el012430331, 8el738212851, 1949ir, 1986a01573, 5702j2, 5702l1, 5705cp, 5705kj, 5705np, 20332n, 23966n, 112781, 114099, 200279, 210830, 210830a, 270600q020, 270600q021, 270600q100, 270600q130, 285623, 301949ri, 440445, 443269, 747026, 12090259, 195910080, 0986081000, 1012101410, 1022118740, 1022118741, 2706000020, 063377549010

  • Passar modeller
    Citroen Model: C1 Model series: C1 Size of motor: 1.0 Brand of engine: 1KR-FE Type description: PM_, PN_ Body: Hatchback From date: 01-06-2005 To date: 01-09-2014 Fuel: Gasoline Approved: Yes
    Citroen Series: C 1 Model: 1.0 Engine volume: 1.0 Engine type: 1KR-FE Year: 06.05-
    Peugeot Model: 107 Model series: 107 Size of motor: 1.0 Brand of engine: 1KR (384F) Body: Hatchback From date: 01-06-2005 To date: 01-05-2014 Fuel: Gasoline Approved: Yes
    Peugeot Series: 107 Model: 1.0 Engine volume: 1.0 Engine type: 1KR (384 F) Year: 06.05-
    Toyota Model: Aygo Model series: Aygo Size of motor: 1.0 Brand of engine: 1KR-FE Type description: KGB10 Body: Hatchback From date: 01-07-2005 To date: 01-05-2014 Fuel: Bi-Fuel Approved: Yes
    Toyota Model: Aygo Model series: Aygo Type of engine: i Size of motor: 1.0 Brand of engine: 1KR-FE Body: Hatchback From date: 01-07-2005 To date: 01-05-2014 Fuel: Gasoline Approved: Yes
    Toyota Series: Aygo Model: 1.0 Engine volume: 1.0 Engine type: 1KR-FE Year: 07.05-
    1 / 2
  • Beskrivelse
    Toyota/PSA Generator 12V-80A 12V - 80A til Yourex produkt bestilling 90-450-2874

    Spænding: 14
    Amp: 80
    Remskive diameter: 29.00
    Bredde/bærer arm: 20.00
    Fastgørelsesbeslag afstand: 42.00
    Beslagshul: 11.00
    Bæltejustering beslaghul position: 57
    Bæltejustering beslag hul 1: M8
    Remskive dia.: 57.50
    Furer/remskive: 6
    Radius: 88.00
    Radius 2: 82.00
    B+: M8
    Position/B+ i min.: 5
    D+ Størrelse: M5
    Rotation: CW
    Samlet længde mm: 167.00
    Remskive: SP
    Regulator type: IR

    Filer

  • Specifikation
    B+ M8
    Mount. bracket dist. 42.00
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 57
    Bracket hole 11.00
    Position/B+ in min. 5
    Pulley SP
    Pulley dia. 57.50
    Pulley dist. 29.00
    Radius 88.00
    D+ Size M5
    Radius 2 82.00
    Regulator type IR
    Rotation CW
    Grooves/pulley 6
    Voltage 14
    Total length 167.00 mm
    Width/holder arm 20.00
    Amp 80
  • Køretøjsmatchning

    • OEM
      F032114099, PEU 5705 KJ, 1949ir, 1986A01573, 27060-00020, 27060-0Q020, 27060-0Q021, 27060-0Q100, 27060-0Q130, 101210-1410, 102211-8740, 102211-8741, 114099

    • Konkurrentreferens
      A4084, A6266(DENSO), ALT-H192, CAL40277, DAN1036, DENDAN1036, DRA0216, F042A0H192, 8EL012240-651, 8EL012430-331, 8EL738212-851, 28-5623, 195.910.080, 5702J2, 5702L1, 5705CP, 5705KJ, 5705NP, 20332N, 23966N, 112781, 200279, 210830, 210830A, 301949RI, 440445, 443269, 747026, 12090259, 0986081000, 063377549010

    • Bilmärken
      Citroen, Peugeot, Toyota

    • NormaliseratArtNr
      a4084, a6266denso, alth192, cal40277, dan1036, dendan1036, dra0216, f032114099, f042a0h192, peu5705kj, 8el012240651, 8el012430331, 8el738212851, 1949ir, 1986a01573, 5702j2, 5702l1, 5705cp, 5705kj, 5705np, 20332n, 23966n, 112781, 114099, 200279, 210830, 210830a, 270600q020, 270600q021, 270600q100, 270600q130, 285623, 301949ri, 440445, 443269, 747026, 12090259, 195910080, 0986081000, 1012101410, 1022118740, 1022118741, 2706000020, 063377549010

    • Passar modeller
      Citroen Model: C1 Model series: C1 Size of motor: 1.0 Brand of engine: 1KR-FE Type description: PM_, PN_ Body: Hatchback From date: 01-06-2005 To date: 01-09-2014 Fuel: Gasoline Approved: Yes
      Citroen Series: C 1 Model: 1.0 Engine volume: 1.0 Engine type: 1KR-FE Year: 06.05-
      Peugeot Model: 107 Model series: 107 Size of motor: 1.0 Brand of engine: 1KR (384F) Body: Hatchback From date: 01-06-2005 To date: 01-05-2014 Fuel: Gasoline Approved: Yes
      Peugeot Series: 107 Model: 1.0 Engine volume: 1.0 Engine type: 1KR (384 F) Year: 06.05-
      Toyota Model: Aygo Model series: Aygo Size of motor: 1.0 Brand of engine: 1KR-FE Type description: KGB10 Body: Hatchback From date: 01-07-2005 To date: 01-05-2014 Fuel: Bi-Fuel Approved: Yes
      Toyota Model: Aygo Model series: Aygo Type of engine: i Size of motor: 1.0 Brand of engine: 1KR-FE Body: Hatchback From date: 01-07-2005 To date: 01-05-2014 Fuel: Gasoline Approved: Yes
      Toyota Series: Aygo Model: 1.0 Engine volume: 1.0 Engine type: 1KR-FE Year: 07.05-
