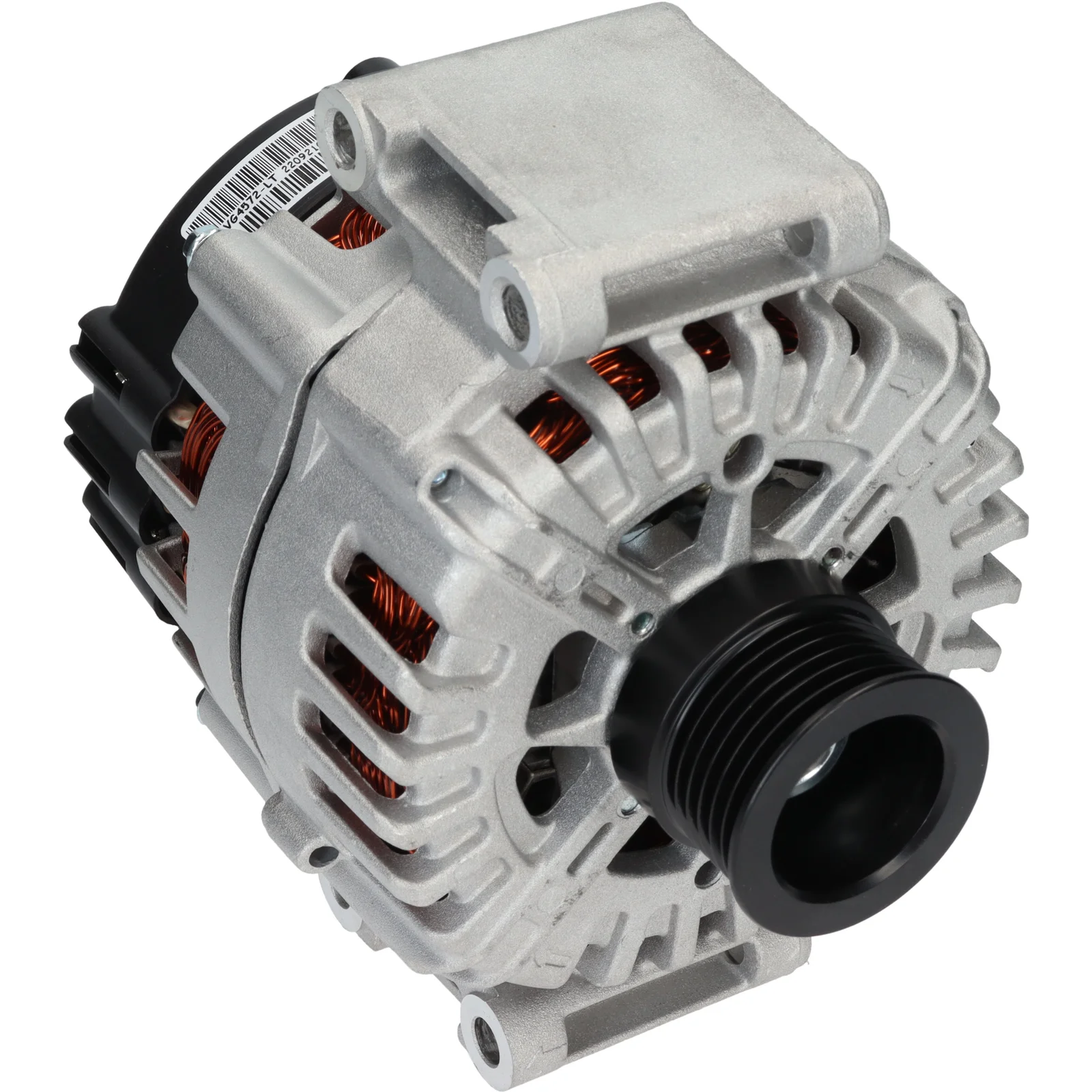

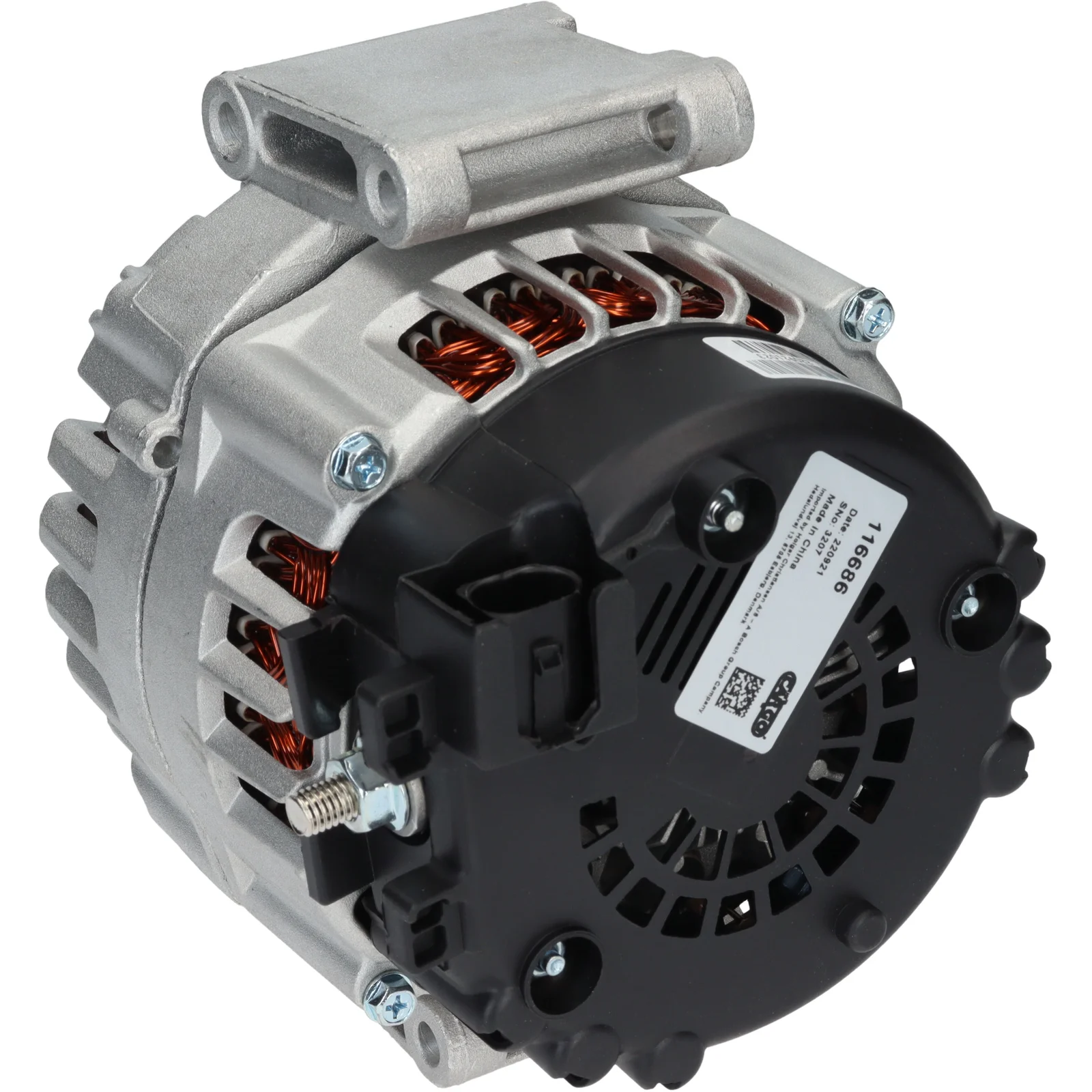

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032116686

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 180, Rotation: med uret, Monteringsbue skille: 56,00

Beskrivelse

Generator 12V-180A 12V - 180A, 6 rækker, (LIN) Biler med stop-start funktion For Yourex produkt ordre 90-365-7802 Spænding: 14
Ampere: 180
Remskive afstand: 32,00
Bredde/bærearms afstand: 70,00
Montagebeslag afstand: 56,00
Beslagshul: 9,00
Bæltejustering beslag hul 1: 9,00
Bæltejustering beslag hul 2: 8,00
Remskivens diameter: 50,00
Riller/remskive: 6
Radius: 81,50
Radius 2: 81,50
B+: M8
Posison/B+ i min.: 15
Rotation: med uret
Proppenummer: PL125
Samlet længde mm: 187,00
Terminaltype: COM
ID-kode: 57
Kommunikation: LIN
Remskive: SP
Blæser: IF
Regulator type: IR
Bemærkninger: Denne generator har en COM-terminal på regulatoren. Det anbefales at bruge OEM-nummeret for at kontrollere egnethed, inden der bestilles.

Filer

Specifikation

B+ M8
Communication LIN
Mount. bracket dist. 56.00
Belt. adj. bracket hole 1 9.00
Belt. adj. bracket hole 2 8.00
Plug no. PL125
Bracket hole 9.00
Position/B+ in min. 15
Pulley SP
Pulley dia. 50.00
Pulley dist. 32.00
Radius 81.50
Radius 2 81.50
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Fan IF
Grooves/pulley 6
ID Code 57
Terminal type COM
Voltage 14
Total length 187.00 mm
Width/holder arm 70.00
Amp 180

  • OEM
    000 906 7802, A000 9067802, A0009067802, A000906780280, A3125, A3125(VALEO), BJ3210300AC, BJ3210300AD, C2Z17063, C2Z31658, CAL15015, CZ231658, F032116686, FG18S 127, FG18S127, FGN18S127, LR028116, LR0281166, LR031026, LR088854, 28-6917, 555.918.180, 1986A00620, 1986A00640, 116686, 209188, 209188A, 439819, 440473, 553832RI, 2618187, 2618187A, 2618187B, 2618187C, 0009067802, 9067802, 12090598, 32084860, 000906780280, 906780280, 0986084860

  • Konkurrentreferens
    A3125, A3125(VALEO), CAL15015, 28-6917, 555.918.180, 209188, 209188A, 439819, 440473, 553832RI, 12090598, 32084860, 0986084860

  • Bilmärken
    JAGUAR, LAND ROVER, MERCEDES-BENZ

  • NormaliseratArtNr
    a0009067802, a000906780280, a3125, a3125valeo, bj3210300ac, bj3210300ad, c2z17063, c2z31658, cal15015, cz231658, f032116686, fg18s127, fgn18s127, lr028116, lr0281166, lr031026, lr088854, 1986a00620, 1986a00640, 116686, 209188, 209188a, 286917, 439819, 440473, 553832ri, 2618187, 2618187a, 2618187b, 2618187c, 0009067802, 9067802, 12090598, 32084860, 555918180, 000906780280, 906780280, 0986084860

  • Passar modeller
    JAGUAR XF I (X250) 2.2 D Engine volume: 2.2 Engine type: 224DT(DW12C) Year: 03.12-04.15
    JAGUAR XF I (X250) 2.2 D Engine volume: 2.2 Engine type: 224DT(DW12C) Year: 05.11-04.15
    JAGUAR XF SPORTBRAKE (X250) 2.2 D Engine volume: 2.2 Engine type: 224DT(DW12C) Year: 09.12-04.14
    LAND ROVER RANGE ROVER EVOQUE (L538) 2.2 D 4x4 Engine volume: 2.2 Engine type: 224DT(DW12BTED4) Year: 05.11-12.19
    LAND ROVER RANGE ROVER EVOQUE (L538) 2.2 D 4x4 Engine volume: 2.2 Engine type: 224DT(DW12BTED4) Year: 06.11-12.19
    LAND ROVER RANGE ROVER EVOQUE (L538) 2.2 D Engine volume: 2.2 Engine type: 224DT(DW12BTED4) Year: 06.11-12.19
    LAND ROVER RANGE ROVER EVOQUE VAN (L538) SD4 4x4 Engine volume: 2.2 Engine type: 224DT(DW12BTED4) Year: 05.15-12.19
    LAND ROVER RANGE ROVER EVOQUE VAN (L538) TD4 4x4 Engine volume: 2.2 Engine type: 224DT(DW12BTED4) Year: 05.15-12.19
    LAND ROVER RANGE ROVER EVOQUE VAN (L538) TD4 Engine volume: 2.2 Engine type: 224DT(DW12BTED4) Year: 05.15-12.19
    MERCEDES-BENZ C-KLASS (W204) C 220 CDI 4-matic (204.084) Engine volume: 2.2 Engine type: OM 651.912 Year: 02.13-01.14
    MERCEDES-BENZ C-KLASS (W204) C 250 CDI 4-matic (204.082) Engine volume: 2.2 Engine type: OM 651.912 Year: 01.11-01.14
    MERCEDES-BENZ C-KLASS (W205) C 200 d (205.007) Engine volume: 2.2 Engine type: OM 651.921 Year: 10.15-05.18
    MERCEDES-BENZ C-KLASS (W205) C 220 BlueTEC / d (205.002, 205.004) Engine volume: 2.2 Engine type: OM 651.921 Year: 02.14-05.18
    MERCEDES-BENZ C-KLASS (W205) C 220 BlueTEC / d (205.003) Engine volume: 2.2 Engine type: OM 651.921 Year: 03.14-05.16
    MERCEDES-BENZ C-KLASS (W205) C 220 d 4-matic (205.005) Engine volume: 2.2 Engine type: OM 651.921 Year: 04.15-05.18
    MERCEDES-BENZ C-KLASS (W205) C 250 BlueTEC / d (205.008, 205.006) Engine volume: 2.2 Engine type: OM 651.921 Year: 02.14-05.18
    MERCEDES-BENZ C-KLASS (W205) C 250 BlueTEC / d 4-matic (205.009) Engine volume: 2.2 Engine type: OM 651.921 Year: 02.14-05.18
    MERCEDES-BENZ C-KLASS Cabriolet (A205) C 220 d (205.404) Engine volume: 2.2 Engine type: OM 651.921 Year: 06.16-05.18
    MERCEDES-BENZ C-KLASS Cabriolet (A205) C 220 d 4-matic (205.405) Engine volume: 2.2 Engine type: OM 651.921 Year: 06.16-05.18
    MERCEDES-BENZ C-KLASS Cabriolet (A205) C 250 d (205.408) Engine volume: 2.2 Engine type: OM 651.921 Year: 06.16-05.18
    MERCEDES-BENZ C-KLASS Coupé (C205) C 220 d (205.304) Engine volume: 2.2 Engine type: OM 651.921 Year: 10.15-05.18
    MERCEDES-BENZ C-KLASS Coupé (C205) C 220 d 4-matic (205.305) Engine volume: 2.2 Engine type: OM 651.921 Year: 04.16-05.18
    MERCEDES-BENZ C-KLASS Coupé (C205) C 250 d (205.308) Engine volume: 2.2 Engine type: OM 651.921 Year: 10.15-05.18
    MERCEDES-BENZ C-KLASS Coupé (C205) C 250 d 4-matic (205.309) Engine volume: 2.2 Engine type: OM 651.921 Year: 04.16-05.18
    MERCEDES-BENZ C-KLASS T-Model (S204) C 220 CDI 4-matic (204.284) Engine volume: 2.2 Engine type: OM 651.912 Year: 02.13-08.14
    MERCEDES-BENZ C-KLASS T-Model (S204) C 250 CDI 4-matic (204.282) Engine volume: 2.2 Engine type: OM 651.912 Year: 04.10-08.14
    MERCEDES-BENZ C-KLASS T-Model (S205) C 200 d (205.207) Engine volume: 2.2 Engine type: OM 651.921 Year: 10.15-05.18
    MERCEDES-BENZ C-KLASS T-Model (S205) C 220 BlueTEC / d (205.204) Engine volume: 2.2 Engine type: OM 651.921 Year: 09.14-05.18
    MERCEDES-BENZ C-KLASS T-Model (S205) C 220 d 4-matic (205.205) Engine volume: 2.2 Engine type: OM 651.921 Year: 04.15-05.18
    MERCEDES-BENZ C-KLASS T-Model (S205) C 250 BlueTEC / d (205.208) Engine volume: 2.2 Engine type: OM 651.921 Year: 09.14-05.18
    MERCEDES-BENZ C-KLASS T-Model (S205) C 250 BlueTEC / d 4-matic (205.209) Engine volume: 2.2 Engine type: OM 651.921 Year: 10.14-05.18
    MERCEDES-BENZ E-KLASS (W212) E 220 BlueTEC 4-matic (212.011) Engine volume: 2.2 Engine type: OM 651.924 Year: 01.15-12.15
    MERCEDES-BENZ E-KLASS (W212) E 250 CDI / BlueTEC 4-matic (212.082, 212.097) Engine volume: 2.2 Engine type: OM 651.924 Year: 01.11-12.15
    MERCEDES-BENZ E-KLASS T-Model (S212) E 220 BlueTEC 4-matic (212.211) Engine volume: 2.2 Engine type: OM 651.924 Year: 12.14-12.16
    MERCEDES-BENZ E-KLASS T-Model (S212) E 250 CDI / BlueTEC 4-matic (212.282, 212.297) Engine volume: 2.2 Engine type: OM 651.924 Year: 07.10-12.16
    MERCEDES-BENZ GLK-KLASS (X204) 220 CDI 4-matic (204.984) Engine volume: 2.2 Engine type: OM 651.912 Year: 12.08-06.15
    MERCEDES-BENZ GLK-KLASS (X204) 220 CDI 4-matic (204.984, 204.997) Engine volume: 2.2 Engine type: OM 651.912 Year: 12.08-06.15
    MERCEDES-BENZ GLK-KLASS (X204) 250 CDI 4-matic (204.982, 204.904) Engine volume: 2.2 Engine type: OM 651.912 Year: 09.09-06.15
    1 / 8
  • Beskrivelse
    Generator 12V-180A 12V - 180A, 6 rækker, (LIN) Biler med stop-start funktion For Yourex produkt ordre 90-365-7802 Spænding: 14
    Ampere: 180
    Remskive afstand: 32,00
    Bredde/bærearms afstand: 70,00
    Montagebeslag afstand: 56,00
    Beslagshul: 9,00
    Bæltejustering beslag hul 1: 9,00
    Bæltejustering beslag hul 2: 8,00
    Remskivens diameter: 50,00
    Riller/remskive: 6
    Radius: 81,50
    Radius 2: 81,50
    B+: M8
    Posison/B+ i min.: 15
    Rotation: med uret
    Proppenummer: PL125
    Samlet længde mm: 187,00
    Terminaltype: COM
    ID-kode: 57
    Kommunikation: LIN
    Remskive: SP
    Blæser: IF
    Regulator type: IR
    Bemærkninger: Denne generator har en COM-terminal på regulatoren. Det anbefales at bruge OEM-nummeret for at kontrollere egnethed, inden der bestilles.

    Filer

  • Specifikation
    B+ M8
    Communication LIN
    Mount. bracket dist. 56.00
    Belt. adj. bracket hole 1 9.00
    Belt. adj. bracket hole 2 8.00
    Plug no. PL125
    Bracket hole 9.00
    Position/B+ in min. 15
    Pulley SP
    Pulley dia. 50.00
    Pulley dist. 32.00
    Radius 81.50
    Radius 2 81.50
    Regulator type IR
    Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
    Rotation CW
    Fan IF
    Grooves/pulley 6
    ID Code 57
    Terminal type COM
    Voltage 14
    Total length 187.00 mm
    Width/holder arm 70.00
    Amp 180
  • Køretøjsmatchning

    • OEM
      000 906 7802, A000 9067802, A0009067802, A000906780280, A3125, A3125(VALEO), BJ3210300AC, BJ3210300AD, C2Z17063, C2Z31658, CAL15015, CZ231658, F032116686, FG18S 127, FG18S127, FGN18S127, LR028116, LR0281166, LR031026, LR088854, 28-6917, 555.918.180, 1986A00620, 1986A00640, 116686, 209188, 209188A, 439819, 440473, 553832RI, 2618187, 2618187A, 2618187B, 2618187C, 0009067802, 9067802, 12090598, 32084860, 000906780280, 906780280, 0986084860

    • Konkurrentreferens
      A3125, A3125(VALEO), CAL15015, 28-6917, 555.918.180, 209188, 209188A, 439819, 440473, 553832RI, 12090598, 32084860, 0986084860

    • Bilmärken
      JAGUAR, LAND ROVER, MERCEDES-BENZ

    • NormaliseratArtNr
      a0009067802, a000906780280, a3125, a3125valeo, bj3210300ac, bj3210300ad, c2z17063, c2z31658, cal15015, cz231658, f032116686, fg18s127, fgn18s127, lr028116, lr0281166, lr031026, lr088854, 1986a00620, 1986a00640, 116686, 209188, 209188a, 286917, 439819, 440473, 553832ri, 2618187, 2618187a, 2618187b, 2618187c, 0009067802, 9067802, 12090598, 32084860, 555918180, 000906780280, 906780280, 0986084860

    • Passar modeller
      JAGUAR XF I (X250) 2.2 D Engine volume: 2.2 Engine type: 224DT(DW12C) Year: 03.12-04.15
      JAGUAR XF I (X250) 2.2 D Engine volume: 2.2 Engine type: 224DT(DW12C) Year: 05.11-04.15
      JAGUAR XF SPORTBRAKE (X250) 2.2 D Engine volume: 2.2 Engine type: 224DT(DW12C) Year: 09.12-04.14
      LAND ROVER RANGE ROVER EVOQUE (L538) 2.2 D 4x4 Engine volume: 2.2 Engine type: 224DT(DW12BTED4) Year: 05.11-12.19
      LAND ROVER RANGE ROVER EVOQUE (L538) 2.2 D 4x4 Engine volume: 2.2 Engine type: 224DT(DW12BTED4) Year: 06.11-12.19
      LAND ROVER RANGE ROVER EVOQUE (L538) 2.2 D Engine volume: 2.2 Engine type: 224DT(DW12BTED4) Year: 06.11-12.19
      LAND ROVER RANGE ROVER EVOQUE VAN (L538) SD4 4x4 Engine volume: 2.2 Engine type: 224DT(DW12BTED4) Year: 05.15-12.19
      LAND ROVER RANGE ROVER EVOQUE VAN (L538) TD4 4x4 Engine volume: 2.2 Engine type: 224DT(DW12BTED4) Year: 05.15-12.19
      LAND ROVER RANGE ROVER EVOQUE VAN (L538) TD4 Engine volume: 2.2 Engine type: 224DT(DW12BTED4) Year: 05.15-12.19
      MERCEDES-BENZ C-KLASS (W204) C 220 CDI 4-matic (204.084) Engine volume: 2.2 Engine type: OM 651.912 Year: 02.13-01.14
      MERCEDES-BENZ C-KLASS (W204) C 250 CDI 4-matic (204.082) Engine volume: 2.2 Engine type: OM 651.912 Year: 01.11-01.14
      MERCEDES-BENZ C-KLASS (W205) C 200 d (205.007) Engine volume: 2.2 Engine type: OM 651.921 Year: 10.15-05.18
      MERCEDES-BENZ C-KLASS (W205) C 220 BlueTEC / d (205.002, 205.004) Engine volume: 2.2 Engine type: OM 651.921 Year: 02.14-05.18
      MERCEDES-BENZ C-KLASS (W205) C 220 BlueTEC / d (205.003) Engine volume: 2.2 Engine type: OM 651.921 Year: 03.14-05.16
      MERCEDES-BENZ C-KLASS (W205) C 220 d 4-matic (205.005) Engine volume: 2.2 Engine type: OM 651.921 Year: 04.15-05.18
      MERCEDES-BENZ C-KLASS (W205) C 250 BlueTEC / d (205.008, 205.006) Engine volume: 2.2 Engine type: OM 651.921 Year: 02.14-05.18
      MERCEDES-BENZ C-KLASS (W205) C 250 BlueTEC / d 4-matic (205.009) Engine volume: 2.2 Engine type: OM 651.921 Year: 02.14-05.18
      MERCEDES-BENZ C-KLASS Cabriolet (A205) C 220 d (205.404) Engine volume: 2.2 Engine type: OM 651.921 Year: 06.16-05.18
      MERCEDES-BENZ C-KLASS Cabriolet (A205) C 220 d 4-matic (205.405) Engine volume: 2.2 Engine type: OM 651.921 Year: 06.16-05.18
      MERCEDES-BENZ C-KLASS Cabriolet (A205) C 250 d (205.408) Engine volume: 2.2 Engine type: OM 651.921 Year: 06.16-05.18
      MERCEDES-BENZ C-KLASS Coupé (C205) C 220 d (205.304) Engine volume: 2.2 Engine type: OM 651.921 Year: 10.15-05.18
      MERCEDES-BENZ C-KLASS Coupé (C205) C 220 d 4-matic (205.305) Engine volume: 2.2 Engine type: OM 651.921 Year: 04.16-05.18
      MERCEDES-BENZ C-KLASS Coupé (C205) C 250 d (205.308) Engine volume: 2.2 Engine type: OM 651.921 Year: 10.15-05.18
      MERCEDES-BENZ C-KLASS Coupé (C205) C 250 d 4-matic (205.309) Engine volume: 2.2 Engine type: OM 651.921 Year: 04.16-05.18
      MERCEDES-BENZ C-KLASS T-Model (S204) C 220 CDI 4-matic (204.284) Engine volume: 2.2 Engine type: OM 651.912 Year: 02.13-08.14
      MERCEDES-BENZ C-KLASS T-Model (S204) C 250 CDI 4-matic (204.282) Engine volume: 2.2 Engine type: OM 651.912 Year: 04.10-08.14
      MERCEDES-BENZ C-KLASS T-Model (S205) C 200 d (205.207) Engine volume: 2.2 Engine type: OM 651.921 Year: 10.15-05.18
      MERCEDES-BENZ C-KLASS T-Model (S205) C 220 BlueTEC / d (205.204) Engine volume: 2.2 Engine type: OM 651.921 Year: 09.14-05.18
      MERCEDES-BENZ C-KLASS T-Model (S205) C 220 d 4-matic (205.205) Engine volume: 2.2 Engine type: OM 651.921 Year: 04.15-05.18
      MERCEDES-BENZ C-KLASS T-Model (S205) C 250 BlueTEC / d (205.208) Engine volume: 2.2 Engine type: OM 651.921 Year: 09.14-05.18
      MERCEDES-BENZ C-KLASS T-Model (S205) C 250 BlueTEC / d 4-matic (205.209) Engine volume: 2.2 Engine type: OM 651.921 Year: 10.14-05.18
      MERCEDES-BENZ E-KLASS (W212) E 220 BlueTEC 4-matic (212.011) Engine volume: 2.2 Engine type: OM 651.924 Year: 01.15-12.15
      MERCEDES-BENZ E-KLASS (W212) E 250 CDI / BlueTEC 4-matic (212.082, 212.097) Engine volume: 2.2 Engine type: OM 651.924 Year: 01.11-12.15
      MERCEDES-BENZ E-KLASS T-Model (S212) E 220 BlueTEC 4-matic (212.211) Engine volume: 2.2 Engine type: OM 651.924 Year: 12.14-12.16
      MERCEDES-BENZ E-KLASS T-Model (S212) E 250 CDI / BlueTEC 4-matic (212.282, 212.297) Engine volume: 2.2 Engine type: OM 651.924 Year: 07.10-12.16
      MERCEDES-BENZ GLK-KLASS (X204) 220 CDI 4-matic (204.984) Engine volume: 2.2 Engine type: OM 651.912 Year: 12.08-06.15
      MERCEDES-BENZ GLK-KLASS (X204) 220 CDI 4-matic (204.984, 204.997) Engine volume: 2.2 Engine type: OM 651.912 Year: 12.08-06.15
      MERCEDES-BENZ GLK-KLASS (X204) 250 CDI 4-matic (204.982, 204.904) Engine volume: 2.2 Engine type: OM 651.912 Year: 09.09-06.15
