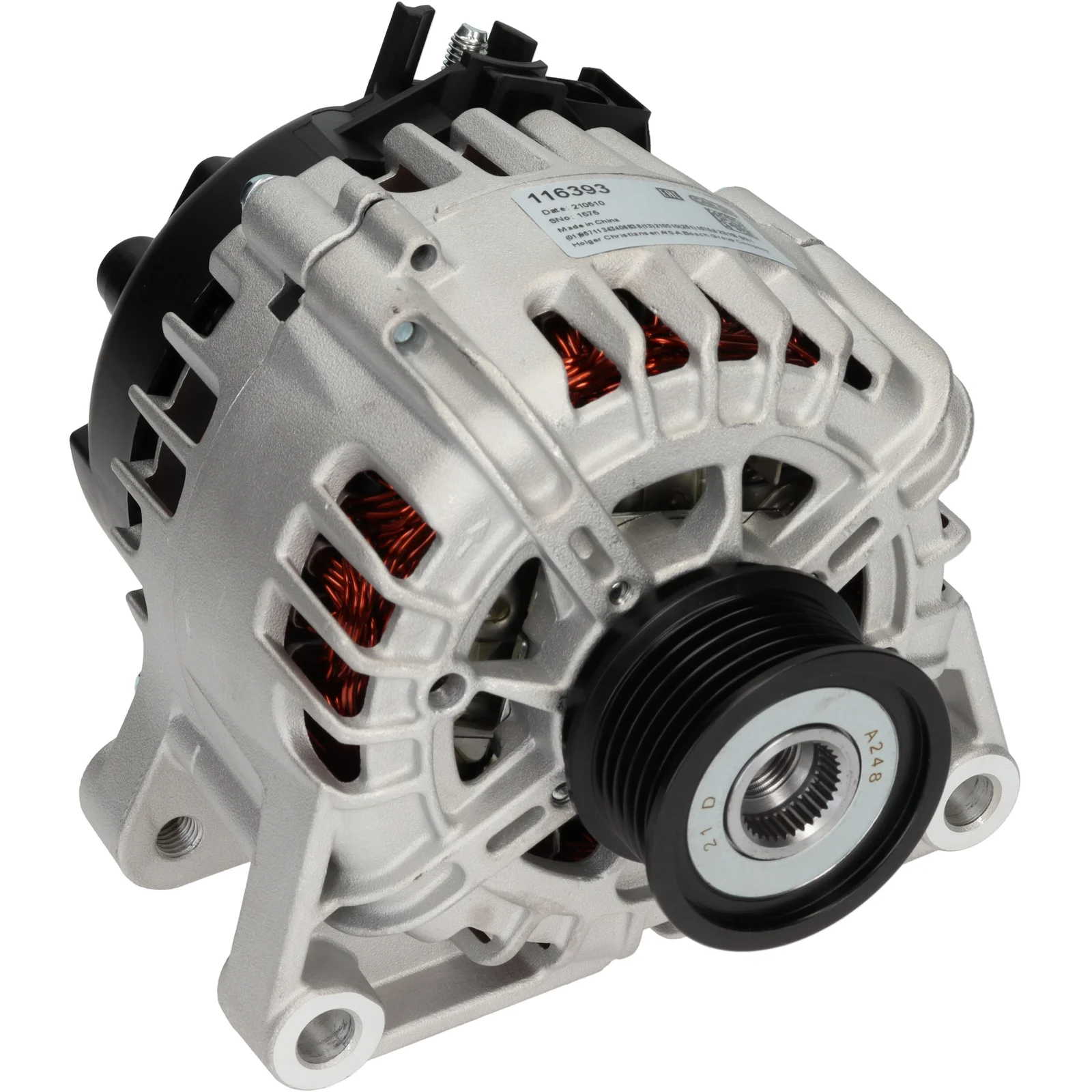

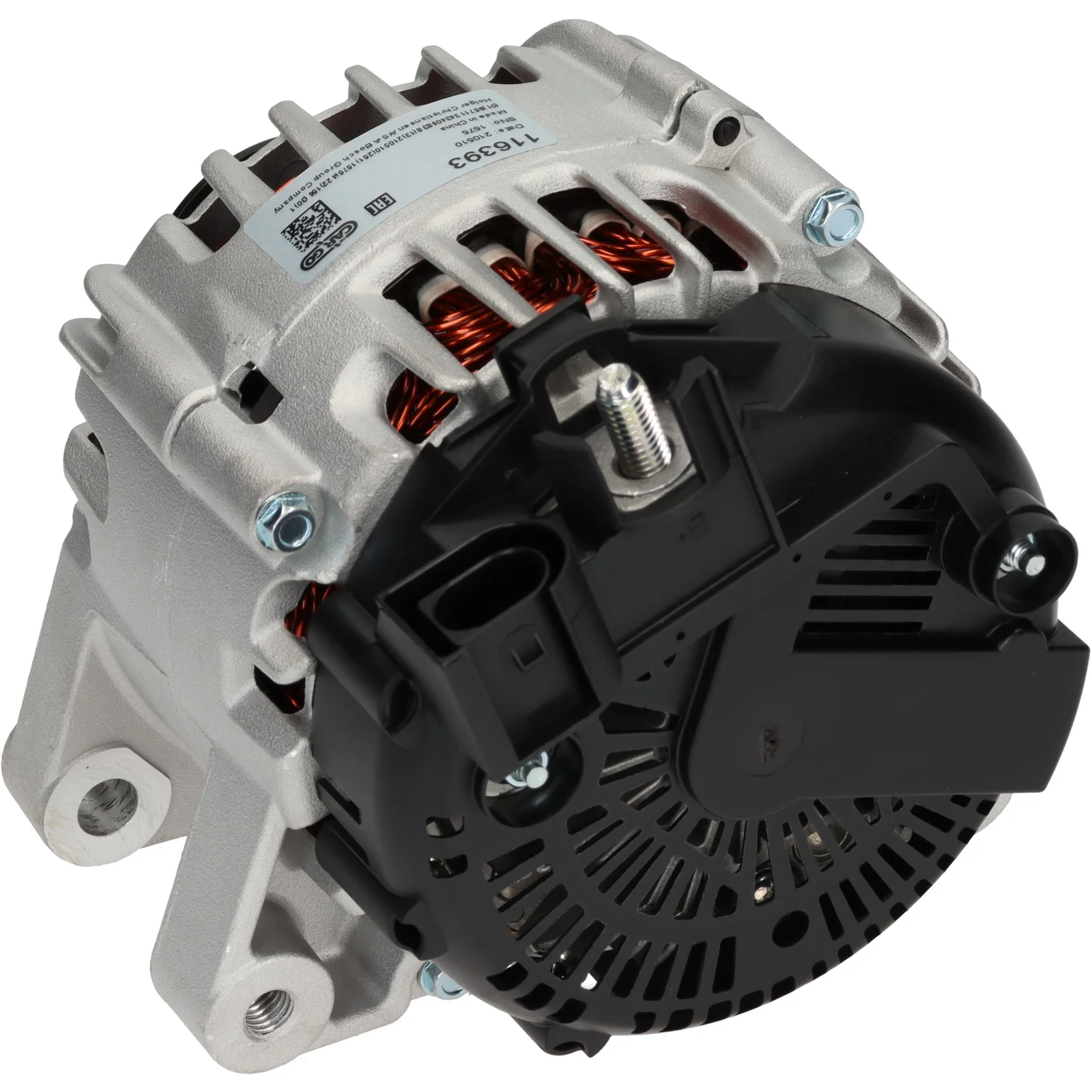

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032116393

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 150, Rotation: CW, Monteringsbøjle fordeler: 45,00

Beskrivelse

Spænding: 14
Amp: 150
Remskive fordeling: 43,00
Bredde/holderarm: 21,00
Monteringsbeslag afstand: 45,00
Beslagshul: 20,00
Bæltejusteringsbeslags hul stilling: 46
Bæltejusteringsbeslags hul 1: 11,20
Remskive dia.: 55,50
Riller/remskive: 6
Radie: 90,00
Radie 2: 90,00
B+: M8
Position/B+ i min.: 47
Rotation: CW
Stik nr.: PL174
Total længde mm: 193,50
Terminaltype: COM
ID-kode: 25
Kommunikation: LIN
Remskive: SP/FW
Blæser: IF
Regulator type: IR
Bemærkninger: Denne generator har en COM-terminal på regulatoren. Det anbefales at bruge OEM-nummeret til at kontrollere egnethed, inden der bestilles.

Filer

Specifikation

B+ M8
Communication LIN
Mount. bracket dist. 45.00
Belt. adj. bracket hole 1 11.20
Belt. adj. brackethole pos. 46
Plug no. PL174
Bracket hole 20.00
Position/B+ in min. 47
Pulley SP/FW
Pulley dia. 55.50
Pulley dist. 43.00
Radius 90.00
Radius 2 90.00
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Fan IF
Grooves/pulley 6
ID Code 25
Terminal type COM
Voltage 14
Total length 193.50 mm
Width/holder arm 21.00
Amp 150

  • OEM
    AV6N10300MB, AV6N10300MD, F032116393, FG15T052, fg15t074, TG15T074, 1762377, 2612685B

  • Konkurrentreferens
    A3267(VALEO), A3267S, A3383S, 28-7671, 595.945.150, 210860, 210860A, 439908, 12091035

  • NormaliseratArtNr
    a3267s, a3267valeo, a3383s, av6n10300mb, av6n10300md, f032116393, fg15t052, fg15t074, tg15t074, 210860, 210860a, 287671, 439908, 1762377, 2612685b, 12091035, 595945150

  • Passar modeller
    Ford Model: Focus Model series: Focus Type of engine: TDCi Size of motor: 2.0 Brand of engine: TXDB Body: Box Body / Hatchback From date: 01-01-2011 To date: 01-06-2014 Fuel: Diesel Approved: Yes
    Ford Model: Focusi Van Model series: Focusi Hatchback Van Type of engine: TDCi Size of motor: 2.0 Brand of engine: UFDB Body: Hatchback Van From date: 01-01-2011 To date: 01-06-2014 Fuel: Diesel Approved: Yes
    Ford Model: Kuga Model series: Kuga Model type: 4x4 Type of engine: TDCi Size of motor: 2.0 Brand of engine: TXDA From date: 01-03-2013 Fuel: Diesel Approved: Yes
  • Beskrivelse
    Spænding: 14
    Amp: 150
    Remskive fordeling: 43,00
    Bredde/holderarm: 21,00
    Monteringsbeslag afstand: 45,00
    Beslagshul: 20,00
    Bæltejusteringsbeslags hul stilling: 46
    Bæltejusteringsbeslags hul 1: 11,20
    Remskive dia.: 55,50
    Riller/remskive: 6
    Radie: 90,00
    Radie 2: 90,00
    B+: M8
    Position/B+ i min.: 47
    Rotation: CW
    Stik nr.: PL174
    Total længde mm: 193,50
    Terminaltype: COM
    ID-kode: 25
    Kommunikation: LIN
    Remskive: SP/FW
    Blæser: IF
    Regulator type: IR
    Bemærkninger: Denne generator har en COM-terminal på regulatoren. Det anbefales at bruge OEM-nummeret til at kontrollere egnethed, inden der bestilles.

    Filer

  • Specifikation
    B+ M8
    Communication LIN
    Mount. bracket dist. 45.00
    Belt. adj. bracket hole 1 11.20
    Belt. adj. brackethole pos. 46
    Plug no. PL174
    Bracket hole 20.00
    Position/B+ in min. 47
    Pulley SP/FW
    Pulley dia. 55.50
    Pulley dist. 43.00
    Radius 90.00
    Radius 2 90.00
    Regulator type IR
    Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
    Rotation CW
    Fan IF
    Grooves/pulley 6
    ID Code 25
    Terminal type COM
    Voltage 14
    Total length 193.50 mm
    Width/holder arm 21.00
    Amp 150
  • Køretøjsmatchning

    • OEM
      AV6N10300MB, AV6N10300MD, F032116393, FG15T052, fg15t074, TG15T074, 1762377, 2612685B

    • Konkurrentreferens
      A3267(VALEO), A3267S, A3383S, 28-7671, 595.945.150, 210860, 210860A, 439908, 12091035

    • NormaliseratArtNr
      a3267s, a3267valeo, a3383s, av6n10300mb, av6n10300md, f032116393, fg15t052, fg15t074, tg15t074, 210860, 210860a, 287671, 439908, 1762377, 2612685b, 12091035, 595945150

    • Passar modeller
      Ford Model: Focus Model series: Focus Type of engine: TDCi Size of motor: 2.0 Brand of engine: TXDB Body: Box Body / Hatchback From date: 01-01-2011 To date: 01-06-2014 Fuel: Diesel Approved: Yes
      Ford Model: Focusi Van Model series: Focusi Hatchback Van Type of engine: TDCi Size of motor: 2.0 Brand of engine: UFDB Body: Hatchback Van From date: 01-01-2011 To date: 01-06-2014 Fuel: Diesel Approved: Yes
      Ford Model: Kuga Model series: Kuga Model type: 4x4 Type of engine: TDCi Size of motor: 2.0 Brand of engine: TXDA From date: 01-03-2013 Fuel: Diesel Approved: Yes
