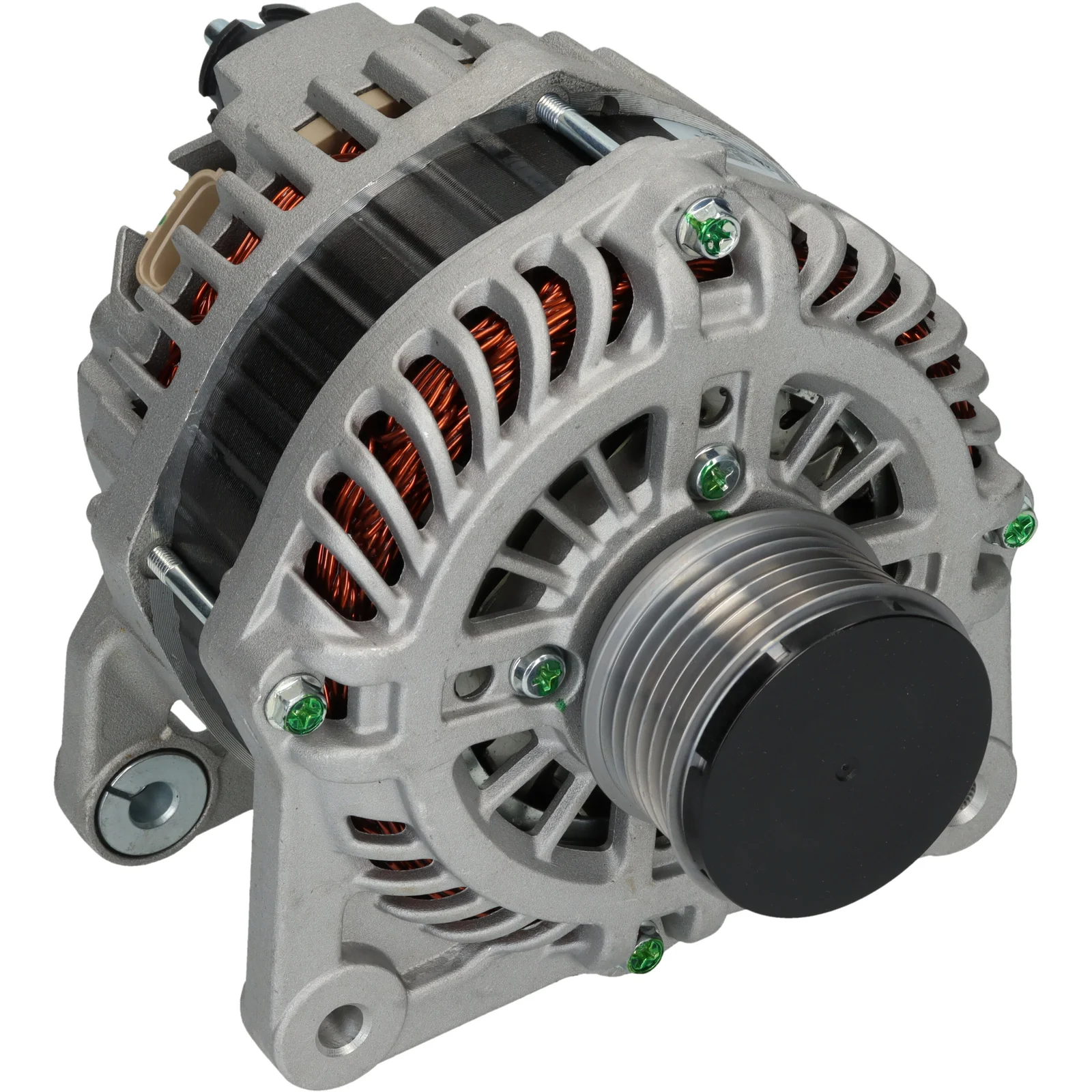

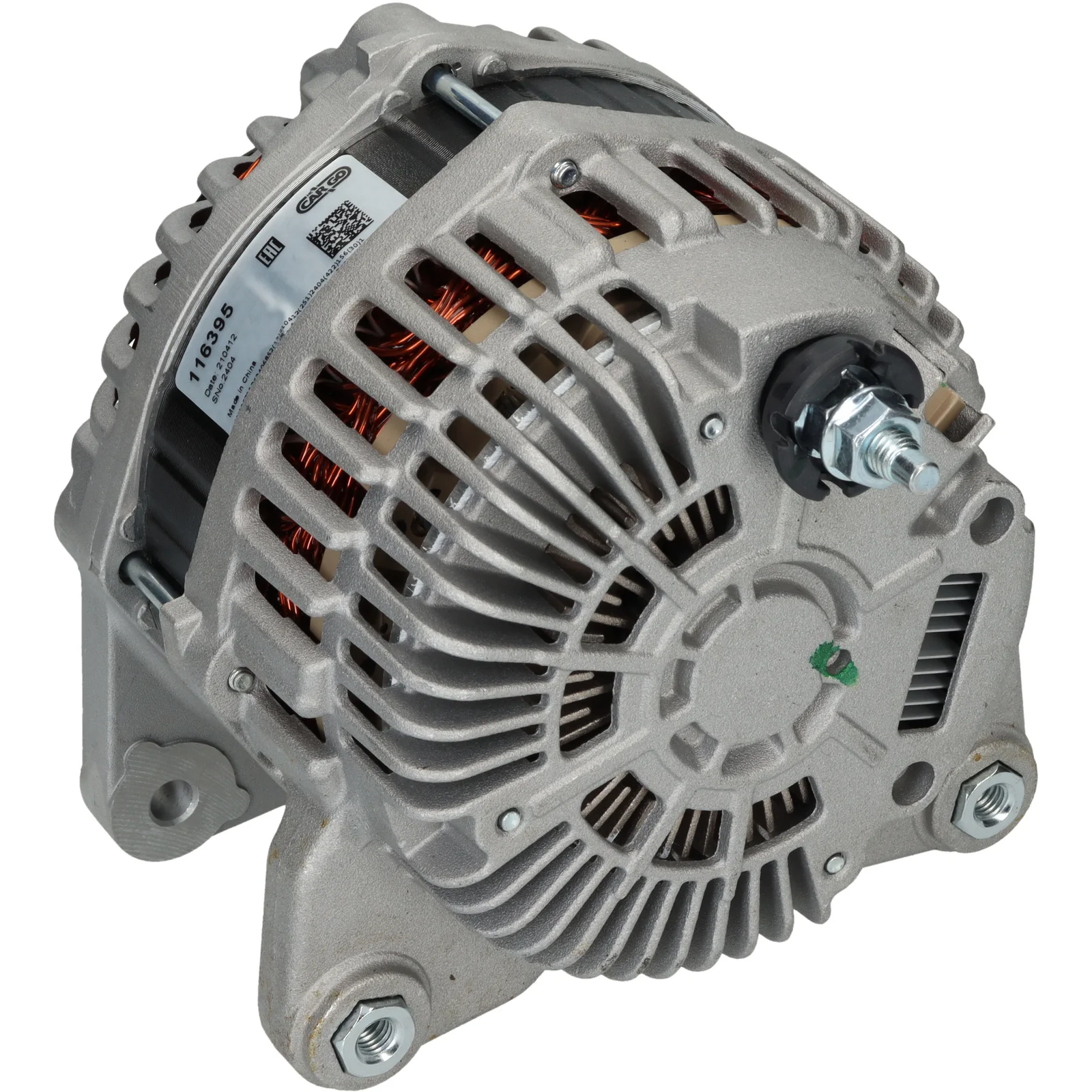

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032116395

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 150, Rotation: CW, Monteringsbøsning for fordeling: 60,00

Beskrivelse

Spænding: 14
Ampere: 150
Remskive afstand: 38,50
Bredde/beslag arm: 14,00
Montagebeslag afstand: 60,00
Beslag hul: 8,50
Bælte justering beslag hul position: 45
Bælte justering beslag hul 1: 8,50
Remskive diameter: 55,00
Riller/remskive: 6
Radius: 90,00
Radius 2: 90,00
B+: M8
Position/B+ i min.: 55
D+ Størrelse: Stik
Rotation: med uret
Stik nr.: PL163
Samlet længde mm: 195,00
Remskive: SP/FW
Blæser: IF
Regulator type: IR

Filer

Specifikation

B+ M8
Mount. bracket dist. 60.00
Belt. adj. bracket hole 1 8.50
Belt. adj. brackethole pos. 45
Plug no. PL163
Bracket hole 8.50
Position/B+ in min. 55
Pulley SP/FW
Pulley dia. 55.00
Pulley dist. 38.50
Radius 90.00
D+ Size Plug
Radius 2 90.00
Regulator type IR
Rotation CW
Fan IF
Grooves/pulley 6
Voltage 14
Total length 195.00 mm
Width/holder arm 14.00
Amp 150

  • OEM
    A003TJ4081, A3TJ4081, A3TJ4081ZE, F032116395, 23100-3VD1A, 23100-3VDIA

  • Konkurrentreferens
    A5397S, CAL35402, 28-7549, 165.913.150, 227.334.1502, 440939, 12061230

  • NormaliseratArtNr
    a003tj4081, a3tj4081, a3tj4081ze, a5397s, cal35402, f032116395, 231003vd1a, 231003vdia, 287549, 440939, 12061230, 165913150, 2273341502

  • Passar modeller
    Nissan Model: Juke Model series: Juke Type of engine: DCi Size of motor: 1.5 Brand of engine: K9K .. Body: Hatchback From date: 01-06-2010 Fuel: Diesel Approved: Yes
    Nissan Model: Juke Model series: Juke Type of engine: DCI Size of motor: 1.5 Brand of engine: K9K636 Type description: F15 Body: Box Body / Estate From date: 01-06-2010 Fuel: Diesel Approved: Yes
    Nissan Model: Note Model series: Note Type of engine: dCi Size of motor: 1.5 Brand of engine: K9K892 Body: Hatchback From date: 01-06-2013 Fuel: Diesel Approved: Yes
    Nissan Model: NV 200 Evalia Model series: NV 200 Evalia Type of engine: DCi Size of motor: 1.5 Brand of engine: K9K892 Body: Bus From date: 01-04-2011 Fuel: Diesel Approved: Yes
    Nissan Model: NV 200 Model series: NV 200 Type of engine: DCi Size of motor: 1.5 Brand of engine: K9K892 Body: Van From date: 01-04-2011 Fuel: Diesel Approved: Yes
    Nissan Model: NV200 Model series: NV200 Model type: dCi 105 (M20N) Type of engine: dci Size of motor: 1.5 Brand of engine: K9K Body: Van Fuel: Diesel Approved: Yes
