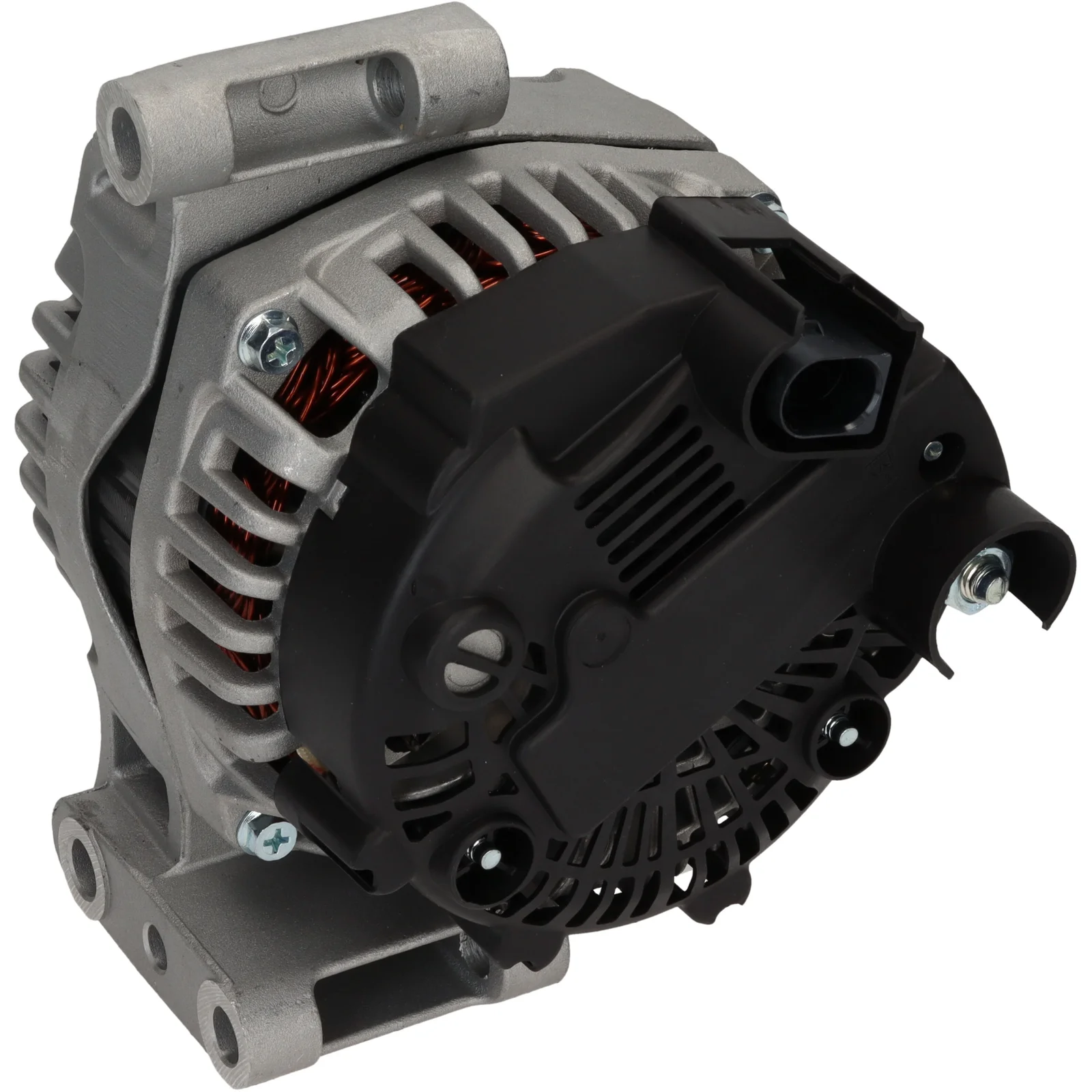

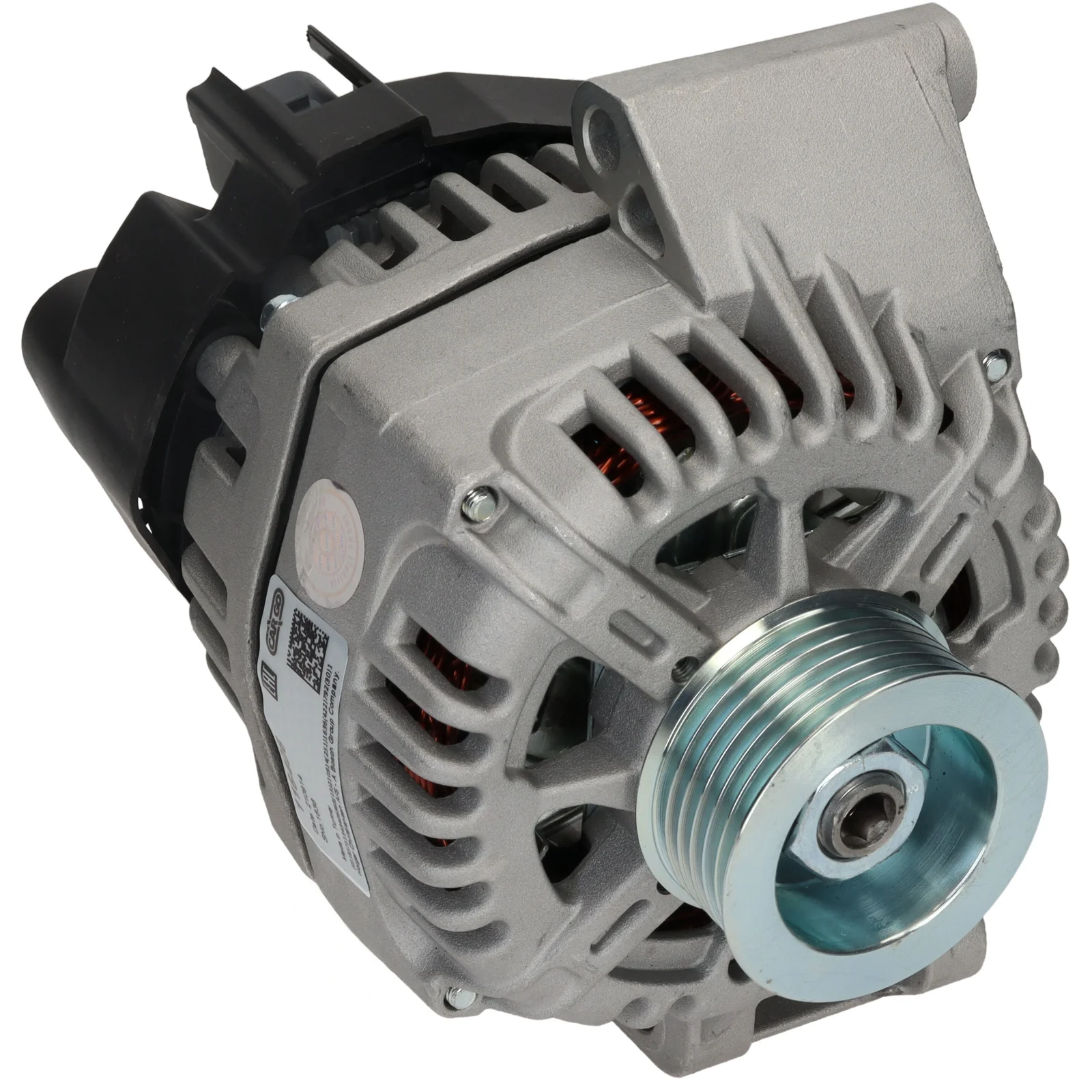

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032116406

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 90, Monteringsbeslag afstand: 55,30, Remskive diameter: 55,00

Beskrivelse

Spænding: 14
Amp: 90
Remskive dist.: 41.00
Bredde/bærerarm: 64.50
Monteringsbeslag dist.: 55.30
Beslagshul: 10.80
Remskive dia.: 55.00
Riller/remskive: 6
Radius: 81.00
Radius 2: 74.00
B+: M8
Position/B+ i min.: 14
Stik nr.: PL174
Total længde mm: 177.00
Terminaltype: COM
ID-kode: 9
Kommunikation: LIN
Remskive: SP
Regulator type: IR
Bemærkninger: Denne Generator har en COM-terminal på regulatoren. Det anbefales at bruge OEM-nummeret til at kontrollere egnethed inden bestilling.

Filer

Specifikation

B+ M8
Communication LIN
Mount. bracket dist. 55.30
Plug no. PL174
Bracket hole 10.80
Position/B+ in min. 14
Pulley SP
Pulley dia. 55.00
Pulley dist. 41.00
Radius 81.00
Radius 2 74.00
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Grooves/pulley 6
ID Code 9
Terminal type COM
Voltage 14
Total length 177.00 mm
Width/holder arm 64.50
Amp 90

  • OEM
    F032116406, TG9S100, 51984057

  • Konkurrentreferens
    LEA0839, 20581N, 210692, 210692A, 12090402

  • NormaliseratArtNr
    f032116406, lea0839, tg9s100, 20581n, 210692, 210692a, 12090402, 51984057

  • Passar modeller
    Alfa Romeo Model: Mito Model series: Mito Type of engine: JTDM Size of motor: 1.2 Brand of engine: 199B4.000 Type description: 955 Body: Hatchback From date: 01-01-2011 Fuel: Diesel Approved: Yes
    Alfa Romeo Model: Mito Model series: Mito Type of engine: JTDM Size of motor: 1.2 Brand of engine: 199B8.000 Type description: 955 Body: Hatchback From date: 01-12-2013 Fuel: Diesel Approved: Yes
    Alfa Romeo Model: Mito Model series: Mito Type of engine: JTDM Size of motor: 1.3 Brand of engine: 199A3.000 Body: Hatchback From date: 01-08-2008 To date: 01-08-2010 Fuel: Diesel Approved: Yes
    Alfa Romeo Model: Mito Model series: Mito Type of engine: JTDM Size of motor: 1.3 Brand of engine: 199B1.000 Body: Hatchback From date: 01-09-2009 To date: 01-12-2018 Fuel: Diesel Approved: Yes
    Fiat Model: 500 Model series: 500L Type of engine: Multijet Size of motor: 1.3 Brand of engine: 199B4.000 Body: Hatchback From date: 01-09-2012 Fuel: Diesel Approved: Yes
    Fiat Model: Fiorino Model series: Fiorino Model type: QUBO Type of engine: Multijet Size of motor: 1.3 Brand of engine: 199A2.000 Type description: 300 Body: MPV From date: 01-02-2008 Fuel: Diesel Approved: Yes
    Fiat Model: Fiorino Model series: Fiorino MPV Type of engine: Multijet Size of motor: 1.2 Brand of engine: 199A2.000,199A9.000 Type description: 225_ Body: MPV From date: 01-11-2007 Fuel: Diesel Approved: Yes
    Fiat Model: Fiorino Model series: Fiorino Type of engine: Multijet Size of motor: 1.3 Brand of engine: 199A2.000 Type description: 225 Body: Van From date: 01-11-2007 Fuel: Diesel Approved: Yes
    Fiat Model: Fiorino Model series: Fiorino Type of engine: Multijet Size of motor: 1.3 Brand of engine: 199A9.000 Type description: 225 Body: Van From date: 01-11-2007 Fuel: Diesel Approved: Yes
    Fiat Model: Punto Model series: Grande Punto Type of engine: Multijet Size of motor: 1.3 Brand of engine: 199B4.000 Type description: 199 Body: Hatchback From date: 01-04-2010 Fuel: Diesel Approved: Yes
    Fiat Model: Punto Model series: Grande Punto Type of engine: Multijet Size of motor: 1.3 Brand of engine: 223A9.000 Type description: 199 Body: Hatchback From date: 01-04-2010 Fuel: Diesel Approved: Yes
    Fiat Model: Punto Model series: Punto Evo Type of engine: 16V Multijet Size of motor: 1.3 Brand of engine: 199B4.000 Type description: 199 Body: Hatchback From date: 01-10-2009 To date: 01-02-2012 Fuel: Diesel Approved: Yes
    Fiat Model: Punto Model series: Punto Evo Type of engine: 16V Multijet Size of motor: 1.3 Brand of engine: 223A9.000 Type description: 199 Body: Hatchback From date: 01-10-2009 To date: 01-02-2012 Fuel: Diesel Approved: Yes
    Fiat Model: Punto Model series: Punto Evo Van Type of engine: Multijet Size of motor: 1.3 Brand of engine: 199B4.000 Type description: 199 Body: Van From date: 01-03-2012 Fuel: Diesel Approved: Yes
    Fiat Model: Punto Model series: Punto Type of engine: Multijet Size of motor: 1.2 Brand of engine: 199B8.000 Type description: 199 Body: Hatchback From date: 01-12-2013 Fuel: Diesel Approved: Yes
    Fiat Model: Punto Model series: Punto Type of engine: Multijet Size of motor: 1.3 Brand of engine: 199B4.000 Type description: 199 Body: Hatchback From date: 01-03-2012 Fuel: Diesel Approved: Yes
    1 / 4
  • Beskrivelse
    Spænding: 14
    Amp: 90
    Remskive dist.: 41.00
    Bredde/bærerarm: 64.50
    Monteringsbeslag dist.: 55.30
    Beslagshul: 10.80
    Remskive dia.: 55.00
    Riller/remskive: 6
    Radius: 81.00
    Radius 2: 74.00
    B+: M8
    Position/B+ i min.: 14
    Stik nr.: PL174
    Total længde mm: 177.00
    Terminaltype: COM
    ID-kode: 9
    Kommunikation: LIN
    Remskive: SP
    Regulator type: IR
    Bemærkninger: Denne Generator har en COM-terminal på regulatoren. Det anbefales at bruge OEM-nummeret til at kontrollere egnethed inden bestilling.

    Filer

  • Specifikation
    B+ M8
    Communication LIN
    Mount. bracket dist. 55.30
    Plug no. PL174
    Bracket hole 10.80
    Position/B+ in min. 14
    Pulley SP
    Pulley dia. 55.00
    Pulley dist. 41.00
    Radius 81.00
    Radius 2 74.00
    Regulator type IR
    Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
    Grooves/pulley 6
    ID Code 9
    Terminal type COM
    Voltage 14
    Total length 177.00 mm
    Width/holder arm 64.50
    Amp 90
  • Køretøjsmatchning

    • OEM
      F032116406, TG9S100, 51984057

    • Konkurrentreferens
      LEA0839, 20581N, 210692, 210692A, 12090402

    • NormaliseratArtNr
      f032116406, lea0839, tg9s100, 20581n, 210692, 210692a, 12090402, 51984057

    • Passar modeller
      Alfa Romeo Model: Mito Model series: Mito Type of engine: JTDM Size of motor: 1.2 Brand of engine: 199B4.000 Type description: 955 Body: Hatchback From date: 01-01-2011 Fuel: Diesel Approved: Yes
      Alfa Romeo Model: Mito Model series: Mito Type of engine: JTDM Size of motor: 1.2 Brand of engine: 199B8.000 Type description: 955 Body: Hatchback From date: 01-12-2013 Fuel: Diesel Approved: Yes
      Alfa Romeo Model: Mito Model series: Mito Type of engine: JTDM Size of motor: 1.3 Brand of engine: 199A3.000 Body: Hatchback From date: 01-08-2008 To date: 01-08-2010 Fuel: Diesel Approved: Yes
      Alfa Romeo Model: Mito Model series: Mito Type of engine: JTDM Size of motor: 1.3 Brand of engine: 199B1.000 Body: Hatchback From date: 01-09-2009 To date: 01-12-2018 Fuel: Diesel Approved: Yes
      Fiat Model: 500 Model series: 500L Type of engine: Multijet Size of motor: 1.3 Brand of engine: 199B4.000 Body: Hatchback From date: 01-09-2012 Fuel: Diesel Approved: Yes
      Fiat Model: Fiorino Model series: Fiorino Model type: QUBO Type of engine: Multijet Size of motor: 1.3 Brand of engine: 199A2.000 Type description: 300 Body: MPV From date: 01-02-2008 Fuel: Diesel Approved: Yes
      Fiat Model: Fiorino Model series: Fiorino MPV Type of engine: Multijet Size of motor: 1.2 Brand of engine: 199A2.000,199A9.000 Type description: 225_ Body: MPV From date: 01-11-2007 Fuel: Diesel Approved: Yes
      Fiat Model: Fiorino Model series: Fiorino Type of engine: Multijet Size of motor: 1.3 Brand of engine: 199A2.000 Type description: 225 Body: Van From date: 01-11-2007 Fuel: Diesel Approved: Yes
      Fiat Model: Fiorino Model series: Fiorino Type of engine: Multijet Size of motor: 1.3 Brand of engine: 199A9.000 Type description: 225 Body: Van From date: 01-11-2007 Fuel: Diesel Approved: Yes
      Fiat Model: Punto Model series: Grande Punto Type of engine: Multijet Size of motor: 1.3 Brand of engine: 199B4.000 Type description: 199 Body: Hatchback From date: 01-04-2010 Fuel: Diesel Approved: Yes
      Fiat Model: Punto Model series: Grande Punto Type of engine: Multijet Size of motor: 1.3 Brand of engine: 223A9.000 Type description: 199 Body: Hatchback From date: 01-04-2010 Fuel: Diesel Approved: Yes
      Fiat Model: Punto Model series: Punto Evo Type of engine: 16V Multijet Size of motor: 1.3 Brand of engine: 199B4.000 Type description: 199 Body: Hatchback From date: 01-10-2009 To date: 01-02-2012 Fuel: Diesel Approved: Yes
      Fiat Model: Punto Model series: Punto Evo Type of engine: 16V Multijet Size of motor: 1.3 Brand of engine: 223A9.000 Type description: 199 Body: Hatchback From date: 01-10-2009 To date: 01-02-2012 Fuel: Diesel Approved: Yes
      Fiat Model: Punto Model series: Punto Evo Van Type of engine: Multijet Size of motor: 1.3 Brand of engine: 199B4.000 Type description: 199 Body: Van From date: 01-03-2012 Fuel: Diesel Approved: Yes
      Fiat Model: Punto Model series: Punto Type of engine: Multijet Size of motor: 1.2 Brand of engine: 199B8.000 Type description: 199 Body: Hatchback From date: 01-12-2013 Fuel: Diesel Approved: Yes
      Fiat Model: Punto Model series: Punto Type of engine: Multijet Size of motor: 1.3 Brand of engine: 199B4.000 Type description: 199 Body: Hatchback From date: 01-03-2012 Fuel: Diesel Approved: Yes
