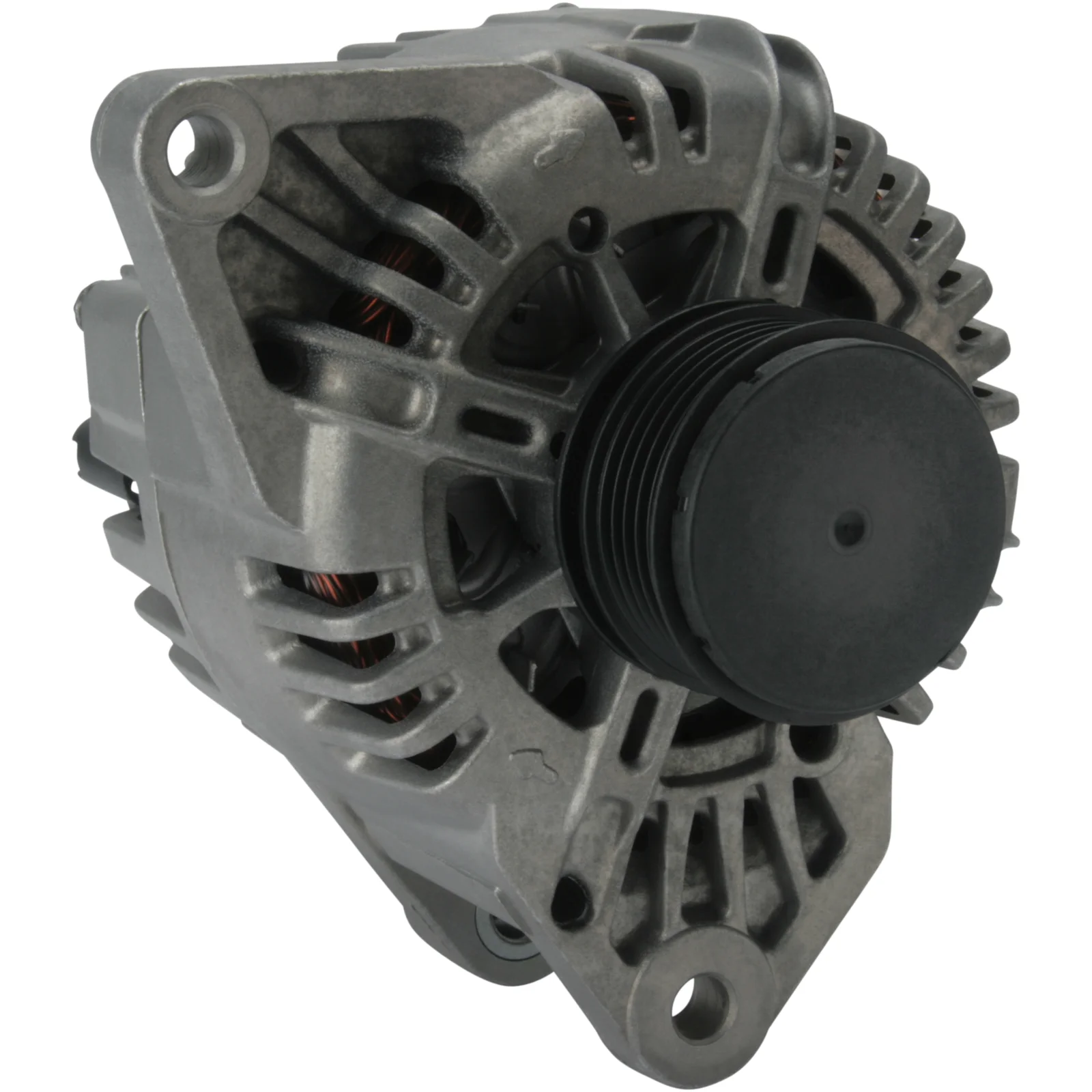

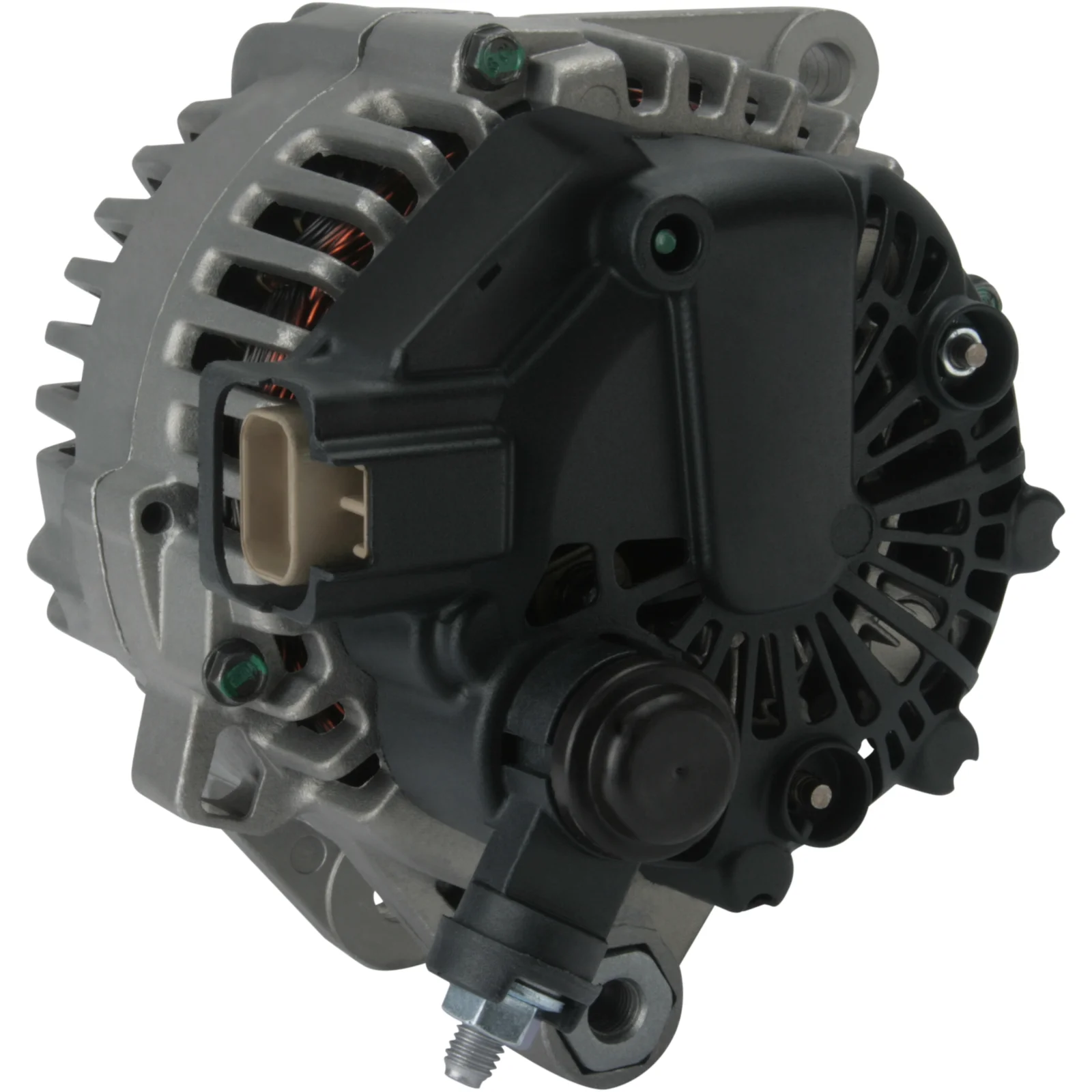

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032114495

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 120, Rotation: CW, Mount. bøjle afstand: 50.80

Beskrivelse

Hyundai Generator 12V-120A 12V - 120A, 5gr.frg, ( - , L) 12V - 120A, 5gr.frg, ( - , L) For Yourrex produktordre 90-228-2010

Spænding: 14
Ampere: 120
Remskive afstand: 33.00
Bredde/holderarm: 13.00
Montagebeslag afstand: 50.80
Beslagshul: 10.40
Bæltejustering beslaghul pos.: 50
Bæltejustering beslaghul 1: 10.80
Remskive dia.: 57.00
Riller/remskive: 5
Radius: 86.00
Radius 2: 97.00
B+: M8
Position/B+ i min.: 35
D+ Størrelse: Stik
Rotation: med uret
Stik nr.: PL100
Samlet længde mm: 195.00
Terminaltype: L
Lampetype: Inaktiv
Remskive: SP/FW
Fan: IF
Regulator type: IR
Produktinfo: BN

Filer

Specifikation

B+ M8
Mount. bracket dist. 50.80
Belt. adj. bracket hole 1 10.80
Belt. adj. brackethole pos. 50
Plug no. PL100
Bracket hole 10.40
Position/B+ in min. 35
Prod. info BN
Pulley SP/FW
Pulley dia. 57.00
Pulley dist. 33.00
Radius 86.00
D+ Size Plug
Radius 2 97.00
Regulator type IR
Rotation CW
Fan IF
Grooves/pulley 5
Lamp type Inactive
Terminal type L
Voltage 14
Total length 195.00 mm
Width/holder arm 13.00
Amp 120

  • OEM
    A0002655475, F032114495, TG12C 033, tg12c033, 0986 081 060, 1906ir, 37300-2A100, 37300-2A110, 37300-2a110, 37300-2A150, 37300-2a150, 37300-2A500, 114495, 2543370, 2543370a, 2606220, 2655475

  • Konkurrentreferens
    A3235(VALEO), A3235PR, A9295S, CAL32130, DRA0355, DRA0355N, DRA1092, DRA1092N, F042206027, 8EL012429-841, 28-5637, 224.194.1202, 9409, 20796N, 112495, 210518, 210518A, 210650, 210650A, 210814, 210814A, 439607, 446764, 600161, 600245, 600719, 600724, 12060892, 0986081060

  • Bilmärken
    Hyundai, Kia

  • NormaliseratArtNr
    a0002655475, a3235pr, a3235valeo, a9295s, cal32130, dra0355, dra0355n, dra1092, dra1092n, f032114495, f042206027, tg12c033, 8el012429841, 1906ir, 9409, 20796n, 112495, 114495, 210518, 210518a, 210650, 210650a, 210814, 210814a, 285637, 373002a100, 373002a110, 373002a150, 373002a500, 439607, 446764, 600161, 600245, 600719, 600724, 2543370, 2543370a, 2606220, 2655475, 12060892, 0986081060, 2241941202

  • Passar modeller
    Hyundai Model: Avante Model series: Avante Type of engine: CRDi Size of motor: 1.6 Brand of engine: D4FB Type description: FD Body: Hatchback From date: 01-10-2007 To date: 01-11-2011 Fuel: Diesel Approved: Yes
    Hyundai Model: Elantra Model series: Elantra Type of engine: CRDi Size of motor: 1.6 Brand of engine: D4FB Type description: HD From date: 01-11-2005 To date: 01-12-2011 Fuel: Diesel Approved: Yes
    Hyundai Model: I20 Model series: I20 Type of engine: CRDi Size of motor: 1.1 Brand of engine: D3FA Type description: PB, PBT Body: Hatchback From date: 01-03-2012 To date: 01-12-2015 Fuel: Diesel Approved: Yes
    Hyundai Model: i20 Model series: i20 Type of engine: CRDi Size of motor: 1.4 Brand of engine: D4FC Type description: PB.. Body: Hatchback From date: 01-09-2008 To date: 01-12-2012 Fuel: Diesel Approved: Yes
    Hyundai Model: i20 Model series: i20 Type of engine: CRDi Size of motor: 1.6 Brand of engine: D4FB Type description: PB, PBT Body: Hatchback From date: 01-01-2009 To date: 01-12-2012 Fuel: Diesel Approved: Yes
    Hyundai Model: i30 Model series: i30 CW Type of engine: CRDi Size of motor: 1.6 Brand of engine: D4FB Body: Estate From date: 01-02-2008 To date: 01-06-2012 Fuel: Diesel Approved: Yes Manufacture type: kombi
    Hyundai Model: I30 Model series: i30 Type of engine: CRDi Size of motor: 1.6 Brand of engine: D4FB Body: Hatchback From date: 01-01-2010 To date: 01-11-2011 Fuel: Diesel Approved: Yes
    Hyundai Model: i30 Model series: i30 Type of engine: CRDi Size of motor: 1.6 Brand of engine: D4FB Body: Hatchback From date: 01-10-2007 To date: 01-11-2011 Fuel: Diesel Approved: Yes
    Hyundai Model: Matrix Model series: Matrix Type of engine: CRDi Size of motor: 1.5 Brand of engine: D4FA Type description: FC Body: Estate From date: 01-12-2004 To date: 01-08-2010 Fuel: Diesel Approved: Yes
    Hyundai Series: Getz Model: 1.5 CRDi Engine volume: 1.5 Engine type: D4FA Year: 08.05-
    Hyundai Series: i30 CW Kombi Model: 1.6 CRDi Engine volume: 1.6 Engine type: D4FB Year: 02.08-
    Hyundai Series: i30 Model: 1.6 CRDi Engine volume: 1.6 Engine type: D4FB Year: 10.07-
    Hyundai Series: Matrix Model: 1.5 CRDi VGT Engine volume: 1.5 Engine type: D4FA Year: 08.05-
    Kia Model: Carens Model series: Carens Model type: 110 Type of engine: CRDi Size of motor: 1.6 Brand of engine: D4FB Type description: UN Body: MPV From date: 01-10-2010 Fuel: Diesel Approved: Yes
    Kia Model: Cee'd Model series: Cee'd Type of engine: CRDi Size of motor: 1.6 Brand of engine: D4FB Body: Estate From date: 01-09-2007 To date: 01-12-2012 Fuel: Diesel Approved: Yes
    Kia Model: Cee'd Model series: Cee'd Type of engine: CRDi Size of motor: 1.6 Brand of engine: D4FB Body: Hatchback From date: 01-12-2006 To date: 01-12-2012 Fuel: Diesel Approved: Yes
    Kia Model: Cee'd Model series: Cee'd Type of engine: CRDi Size of motor: 1.6 Brand of engine: D4FB-L Body: Estate From date: 01-09-2007 To date: 01-12-2012 Fuel: Diesel Approved: Yes
    Kia Model: Cee'd Model series: Cee'd Type of engine: CRDi Size of motor: 1.6 Brand of engine: D4FB-L Body: Hatchback From date: 01-12-2006 To date: 01-12-2012 Fuel: Diesel Approved: Yes
    Kia Model: Cee'd Model series: Pro Cee'd Type of engine: CRDi Size of motor: 1.6 Brand of engine: D4FB Body: Hatchback From date: 01-02-2008 To date: 01-09-2012 Fuel: Diesel Approved: Yes
    Kia Model: Cee'd Model series: Pro Cee'd Type of engine: CRDi Size of motor: 1.6 Brand of engine: D4FB-L Body: Hatchback From date: 01-02-2008 To date: 01-09-2012 Fuel: Diesel Approved: Yes
    Kia Model: Cerato Model series: Cerato Hatchback Type of engine: CRDi Size of motor: 1.5 Brand of engine: D4FA Type description: LD Body: Hatchback From date: 01-07-2005 To date: 01-08-2006 Fuel: Diesel Approved: Yes
    Kia Model: Cerato Model series: Cerato Type of engine: CRDi Size of motor: 1.5 Brand of engine: D4FA Body: Hatchback From date: 01-07-2005 Fuel: Diesel Approved: Yes
    Kia Model: Cerato Model series: Cerato Type of engine: CRDi Size of motor: 1.5 Brand of engine: D4FA From date: 01-07-2005 To date: 01-08-2006 Fuel: Diesel Approved: Yes
    Kia Model: Rio Model series: Rio Type of engine: CRDi Size of motor: 1.5 Brand of engine: D4FA From date: 01-03-2005 Fuel: Diesel Approved: Yes
    Kia Model: Rio Model series: Rio Type of engine: CRDi Size of motor: 1.5 Brand of engine: D4FA Type description: JB Body: Hatchback From date: 01-06-2008 Fuel: Diesel Approved: Yes
    Kia Model: Rio Model series: Rio Type of engine: CRDi Size of motor: 1.5 Brand of engine: D4FA Type description: JB From date: 01-06-2008 Fuel: Diesel Approved: Yes
    Kia Model: Soul Model series: Soul Type of engine: CRDi Size of motor: 1.6 Brand of engine: D4FB Body: Hatchback From date: 01-02-2009 Fuel: Diesel Approved: Yes
    Kia Model: Soul Model series: Soul Type of engine: CRDi Size of motor: 1.6 Brand of engine: D4FB Type description: AM Body: Hatchback From date: 01-02-2009 Fuel: Diesel Approved: Yes
    Kia Model: Venga Model series: Venga Model type: 75 Type of engine: CRDi Size of motor: 1.4 Brand of engine: D4FC Type description: YN Body: Hatchback From date: 01-02-2010 Fuel: Diesel Approved: Yes
    Kia Model: Venga Model series: Venga Type of engine: CRDi Size of motor: 1.4 Brand of engine: D4FC Body: Hatchback From date: 01-02-2010 Fuel: Diesel Approved: Yes
    Kia Model: Venga Model series: Venga Type of engine: CRDi Size of motor: 1.4 Brand of engine: D4FC Type description: YN Body: Box Body / Hatchback From date: 01-04-2015 Fuel: Diesel Approved: Yes
    Kia Model: Venga Model series: Venga Type of engine: CRDi Size of motor: 1.4 Brand of engine: D4FC Type description: YN Body: Hatchback From date: 01-02-2010 Fuel: Diesel Approved: Yes
    Kia Model: Venga Model series: Venga Type of engine: CRDi Size of motor: 1.6 Brand of engine: D4FB Body: Hatchback From date: 01-02-2010 Fuel: Diesel Approved: Yes
    Kia Model: Venga Model series: Venga Type of engine: CRDi Size of motor: 1.6 Brand of engine: D4FB Type description: YN Body: Hatchback From date: 01-02-2010 Fuel: Diesel Approved: Yes
    Kia Series: CEE`D Sportswagon Model: 1.6 CRDi Engine volume: 1.6 Engine type: D4FB Year: 09.12-
    Kia Series: CEE´D Model: 1.6 CRDi 115 Engine volume: 1.6 Engine type: D4FB Year: 12.06-
    Kia Series: CEE´D SW Model: 1.6 CRDi 115 Engine volume: 1.6 Engine type: D4FB Year: 09.07-
    Kia Series: CEE´D SW Model: 1.6 CRDi 90 Engine volume: 1.6 Engine type: D4FB-L Year: 12.06-07.09
    Kia Series: Soul (AM) Model: 1.6 CRDi Engine volume: 1.6 Engine type: D4 FB Year: 02.09-
    Kia Series: Venga Model: 1.4 CRDi 90 Engine volume: 1.4 Engine type: D4FC Year: 02.10-
    1 / 8
