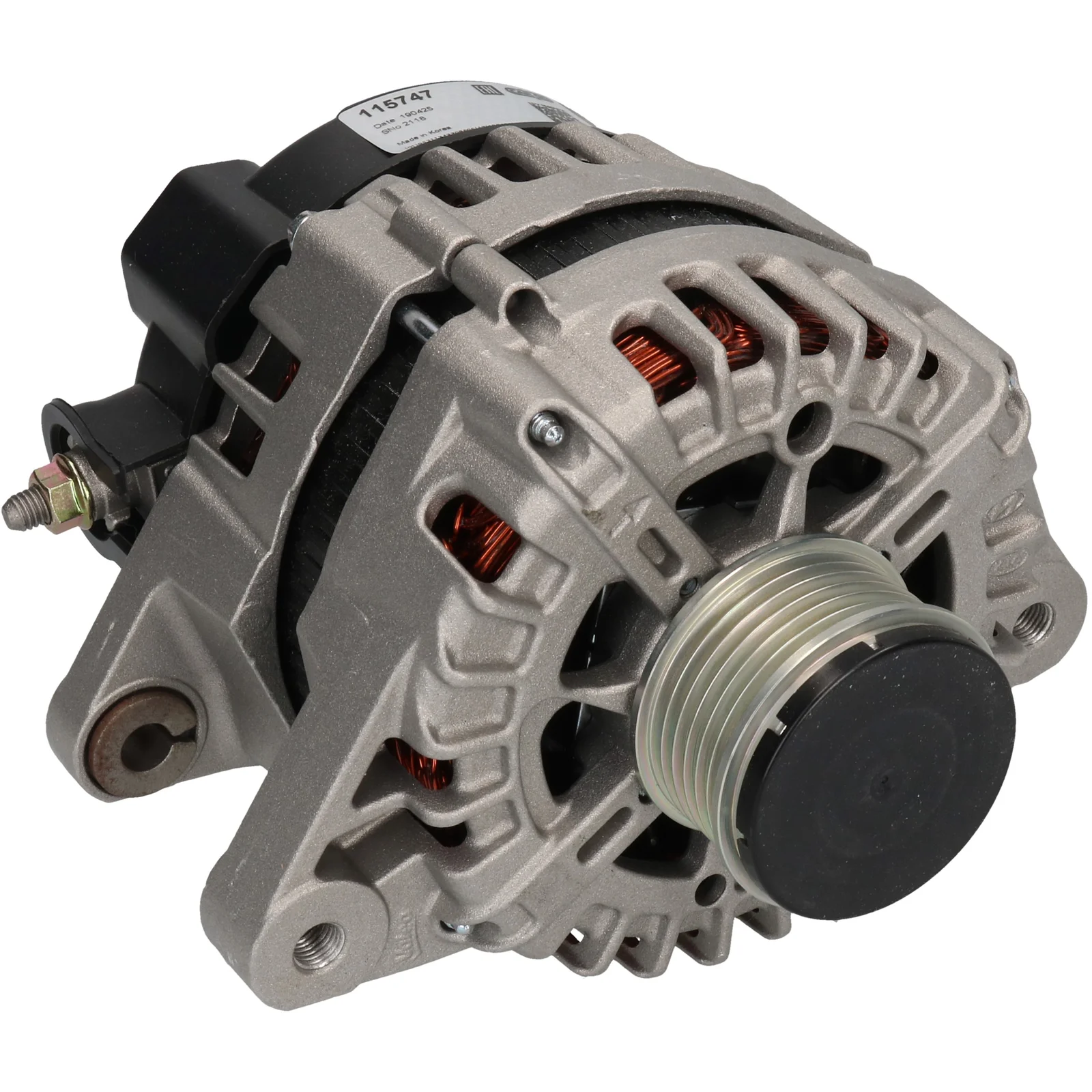

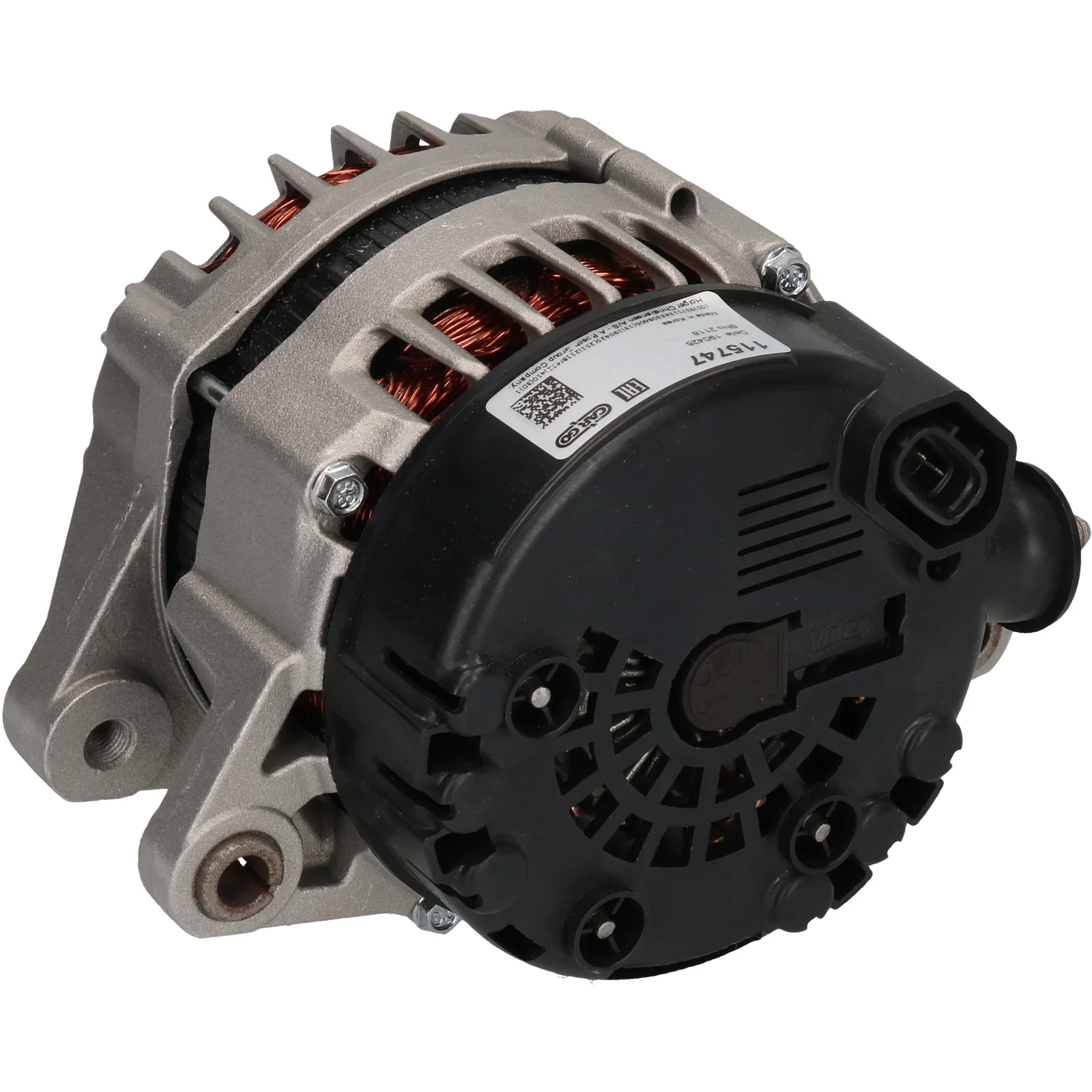

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032115747

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 150, Rotation: med uret, Montering. beslag afstand: 48,50

Beskrivelse

Spændingsfase: 14
Ampere: 150
Remskive dist.: 38,00
Bredde/holderarm: 20,00
MONTERINGSBESLAG afstanden: 48,50
BESLAGS hul: M10
Bæltejusteringsbeslag hul position: 7
Bæltejusteringsbeslag hul 1: M10
Remskive diameter: 55,00
Riller/remskive: 6
Radius: 90,00
Radius 2: 87,00
B+: M8
Position/B+ i minutter: 26
D+ Størrelse: Plug
Rotation: med uret
Plug nr.: PL176
Samlet længde mm: 177,00
Remskive: SP/FW
Regulator type: IR
Producentinfo: BN

Filer

Specifikation

B+ M8
Mount. bracket dist. 48.50
Belt. adj. bracket hole 1 M10
Belt. adj. brackethole pos. 7
Plug no. PL176
Bracket hole M10
Position/B+ in min. 26
Prod. info BN
Pulley SP/FW
Pulley dia. 55.00
Pulley dist. 38.00
Radius 90.00
D+ Size Plug
Radius 2 87.00
Regulator type IR
Rotation CW
Grooves/pulley 6
Voltage 14
Total length 177.00 mm
Width/holder arm 20.00
Amp 150

  • OEM
    F032115747, fg15s034, 1986A01711, 37300-2f100, 2606259

  • Konkurrentreferens
    A3238(VALEO), A3238S, CAL32155, DRA0792, DRA0792N, LRA03365, 8EL015637-121, 28-5977, 155.575.150, 226.303.1502, 20338N, 209009, 209009A, 554140RI, 600743, 608393, 12061174

  • NormaliseratArtNr
    a3238s, a3238valeo, cal32155, dra0792, dra0792n, f032115747, fg15s034, lra03365, 8el015637121, 1986a01711, 20338n, 209009, 209009a, 285977, 373002f100, 554140ri, 600743, 608393, 2606259, 12061174, 155575150, 2263031502

  • Passar modeller
    Hyundai Model: ix35 Model series: ix35 Model type: 4WD Type of engine: CRDi Size of motor: 2.0 Brand of engine: D4HA Body: Box Body / Estate From date: 01-08-2009 To date: 01-12-2015 Fuel: Diesel Approved: Yes
    Hyundai Model: ix35 Model series: ix35 Model type: 4x4 Type of engine: CRDi Size of motor: 2.0 Brand of engine: D4HA Type description: TM From date: 01-01-2010 Fuel: Diesel Approved: Yes
    Hyundai Model: ix35 Model series: ix35 Model type: AWD Type of engine: CRDi Size of motor: 2.0 Brand of engine: D4HA Type description: LM From date: 01-01-2011 Fuel: Diesel Approved: Yes
    Hyundai Model: ix35 Model series: ix35 Model type: CRDi 4WD Type of engine: CRDi Size of motor: 2.0 Brand of engine: D4HA Type description: LM, EL, ELH Body: SUV Fuel: Diesel Approved: Yes
    Hyundai Model: ix35 Model series: ix35 Type of engine: CRDi Size of motor: 2.0 Brand of engine: D4HA Body: Box Body / Estate From date: 01-08-2009 To date: 01-12-2015 Fuel: Diesel Approved: Yes
    Hyundai Model: ix35 Model series: ix35 Type of engine: CRDi Size of motor: 2.0 Brand of engine: D4HA Type description: LM From date: 01-01-2012 Fuel: Diesel Approved: Yes
    Hyundai Model: ix35 Model series: ix35 Type of engine: CRDi Size of motor: 2.0 Brand of engine: D4HA Type description: TM From date: 01-01-2010 Fuel: Diesel Approved: Yes
    Hyundai Model: Santa F Model series: Santa F Model type: 4WD Type of engine: CRDi Size of motor: 2.0 Brand of engine: D4HA From date: 01-09-2012 Fuel: Diesel Approved: Yes
    Hyundai Model: Santa F Model series: Santa F Model type: 4WD Type of engine: CRDi Size of motor: 2.2 Brand of engine: D4HB Type description: DM From date: 01-10-2015 Fuel: Diesel Approved: Yes
    Hyundai Model: Santa F Model series: Santa F Model type: 4x4 Type of engine: CRDi Size of motor: 2.0 Brand of engine: D4HA Type description: CM From date: 01-12-2010 To date: 01-12-2012 Fuel: Diesel Approved: Yes
    Hyundai Model: Santa F Model series: Santa F Model type: 4X4 Type of engine: CRDi Size of motor: 2.2 Brand of engine: D4HB Type description: CM Body: Box Body / Estate From date: 01-01-2009 To date: 01-05-2013 Fuel: Diesel Approved: Yes
    Hyundai Model: Santa F Model series: Santa F Model type: 4x4 Type of engine: CRDi Size of motor: 2.2 Brand of engine: D4HB Type description: CM Body: SUV From date: 01-01-2009 To date: 01-12-2012 Fuel: Diesel Approved: Yes
    Hyundai Model: Santa F Model series: Santa F Model type: 4x4 Type of engine: CRDi Size of motor: 2.2 Brand of engine: D4HB Type description: CM From date: 01-01-2009 To date: 01-12-2012 Fuel: Diesel Approved: Yes
    Hyundai Model: Santa F Model series: Santa F Model type: 4X4 Type of engine: CRDi Size of motor: 2.2 Brand of engine: D4HB Type description: DM Body: Box Body / Estate From date: 01-05-2015 Fuel: Diesel Approved: Yes
    Hyundai Model: Santa F Model series: Santa F Type of engine: CRDi Size of motor: 2.0 Brand of engine: D4HA From date: 01-09-2012 Fuel: Diesel Approved: Yes
    Hyundai Model: Santa F Model series: Santa F Type of engine: CRDi Size of motor: 2.0 Brand of engine: D4HA Type description: CM From date: 01-12-2010 To date: 01-12-2012 Fuel: Diesel Approved: Yes
    Hyundai Model: Santa F Model series: Santa F Type of engine: CRDi Size of motor: 2.0 Brand of engine: D4HA Type description: DM From date: 01-05-2015 Fuel: Diesel Approved: Yes
    Hyundai Model: Santa F Model series: Santa F Type of engine: CRDi Size of motor: 2.2 Brand of engine: D4HB Type description: CM Body: Box Body / Estate From date: 01-01-2009 To date: 01-05-2013 Fuel: Diesel Approved: Yes
    Hyundai Model: Santa F Model series: Santa F Type of engine: CRDi Size of motor: 2.2 Brand of engine: D4HB Type description: CM Body: SUV From date: 01-01-2009 To date: 01-12-2010 Fuel: Diesel Approved: Yes
    Hyundai Model: Santa F Model series: Santa F Type of engine: CRDi Size of motor: 2.2 Brand of engine: D4HB Type description: CM From date: 01-01-2009 To date: 01-12-2012 Fuel: Diesel Approved: Yes
    Hyundai Model: Santa F Model series: Santa F Type of engine: CRDi Size of motor: 2.2 Brand of engine: D4HB Type description: DM From date: 01-10-2015 Fuel: Diesel Approved: Yes
    Hyundai Model: Santa F? Model series: Santa F? Model type: CRDi 4WD Type of engine: CRDi Size of motor: 2.0 Brand of engine: D4HA Type description: DM, DMA Body: SUV Fuel: Diesel Approved: Yes
    Hyundai Model: Santa F? Model series: Santa F? Model type: CRDi 4WD Type of engine: CRDi Size of motor: 2.2 Brand of engine: D4HB Type description: DM, DMA Body: SUV Fuel: Diesel Approved: Yes
    Hyundai Model: Santa F? Model series: Santa F? Model type: CRDi Type of engine: CRDi Size of motor: 2.0 Brand of engine: D4HA Type description: CM Body: SUV Fuel: Diesel Approved: Yes
    Hyundai Model: Santa F? Model series: Santa F? Model type: CRDi Type of engine: CRDi Size of motor: 2.2 Brand of engine: D4HB Type description: DM, DMA Body: SUV Fuel: Diesel Approved: Yes
    Hyundai Model: Tucson Model series: Tucson Type of engine: CRDi Size of motor: 2.0 Brand of engine: D4HA Type description: LM, EL, ELH Body: Closed Off-Road Vehicle From date: 01-10-2012 To date: 01-06-2015 Fuel: Diesel Approved: Yes
    Kia Model: Carnival Model series: Carnival Type of engine: CRDi Size of motor: 2.2 Brand of engine: D4HB Type description: VQ Body: MPV From date: 01-01-2010 Fuel: Diesel Approved: Yes
    Kia Model: Sorento Model series: Sorento Model type: 4WD Type of engine: CRDi Size of motor: 2.2 Brand of engine: D4HB Type description: XM Body: SUV From date: 01-11-2009 Fuel: Diesel Approved: Yes
    Kia Model: Sorento Model series: Sorento Model type: 4x4 Type of engine: CRDi Size of motor: 2.0 Brand of engine: D4HA Type description: XM From date: 01-11-2010 Fuel: Diesel Approved: Yes
    Kia Model: Sorento Model series: Sorento SUV Van Model type: 4WD Type of engine: CRDi Size of motor: 2.2 Brand of engine: D4HB Type description: XM Body: Box Body / Estate From date: 01-11-2009 To date: 01-12-2015 Fuel: Diesel Approved: Yes
    Kia Model: Sorento Model series: Sorento SUV Van Type of engine: CRDi Size of motor: 2.2 Brand of engine: D4HB Type description: XM Body: Box Body / Estate From date: 01-11-2009 To date: 01-12-2015 Fuel: Diesel Approved: Yes
    Kia Model: Sorento Model series: Sorento Type of engine: CRDi Size of motor: 2.0 Brand of engine: D4HA Type description: XM From date: 01-11-2010 Fuel: Diesel Approved: Yes
    Kia Model: Sorento Model series: Sorento Type of engine: CRDi Size of motor: 2.2 Brand of engine: D4HB Type description: XM Body: SUV From date: 01-11-2009 Fuel: Diesel Approved: Yes
    Kia Model: Sorento Model series: Sorento Type of engine: CRDi Size of motor: 2.2 Brand of engine: D4HB Type description: XM From date: 01-11-2009 Fuel: Diesel Approved: Yes
    Kia Model: Sportage Model series: Sportage Model type: AWD Type of engine: CRDi Size of motor: 2.0 Brand of engine: D4HA Type description: SL From date: 01-07-2010 Fuel: Diesel Approved: Yes
    Kia Model: Sportage Model series: Sportage Model type: AWD Type of engine: CRDi Size of motor: 2.0 Brand of engine: D4HA Type description: SL From date: 01-08-2010 Fuel: Diesel Approved: Yes
    Kia Model: Sportage Model series: Sportage Type of engine: CRDi Size of motor: 2.0 Brand of engine: D4HA Type description: SL From date: 01-07-2010 Fuel: Diesel Approved: Yes
    Kia Model: Sportage Model series: Sportage Type of engine: CRDi Size of motor: 2.0 Brand of engine: D4HA Type description: SL From date: 01-08-2010 Fuel: Diesel Approved: Yes
    1 / 8
  • Beskrivelse
    Spændingsfase: 14
    Ampere: 150
    Remskive dist.: 38,00
    Bredde/holderarm: 20,00
    MONTERINGSBESLAG afstanden: 48,50
    BESLAGS hul: M10
    Bæltejusteringsbeslag hul position: 7
    Bæltejusteringsbeslag hul 1: M10
    Remskive diameter: 55,00
    Riller/remskive: 6
    Radius: 90,00
    Radius 2: 87,00
    B+: M8
    Position/B+ i minutter: 26
    D+ Størrelse: Plug
    Rotation: med uret
    Plug nr.: PL176
    Samlet længde mm: 177,00
    Remskive: SP/FW
    Regulator type: IR
    Producentinfo: BN

    Filer

  • Specifikation
    B+ M8
    Mount. bracket dist. 48.50
    Belt. adj. bracket hole 1 M10
    Belt. adj. brackethole pos. 7
    Plug no. PL176
    Bracket hole M10
    Position/B+ in min. 26
    Prod. info BN
    Pulley SP/FW
    Pulley dia. 55.00
    Pulley dist. 38.00
    Radius 90.00
    D+ Size Plug
    Radius 2 87.00
    Regulator type IR
    Rotation CW
    Grooves/pulley 6
    Voltage 14
    Total length 177.00 mm
    Width/holder arm 20.00
    Amp 150
  • Køretøjsmatchning

    • OEM
      F032115747, fg15s034, 1986A01711, 37300-2f100, 2606259

    • Konkurrentreferens
      A3238(VALEO), A3238S, CAL32155, DRA0792, DRA0792N, LRA03365, 8EL015637-121, 28-5977, 155.575.150, 226.303.1502, 20338N, 209009, 209009A, 554140RI, 600743, 608393, 12061174

    • NormaliseratArtNr
      a3238s, a3238valeo, cal32155, dra0792, dra0792n, f032115747, fg15s034, lra03365, 8el015637121, 1986a01711, 20338n, 209009, 209009a, 285977, 373002f100, 554140ri, 600743, 608393, 2606259, 12061174, 155575150, 2263031502

    • Passar modeller
      Hyundai Model: ix35 Model series: ix35 Model type: 4WD Type of engine: CRDi Size of motor: 2.0 Brand of engine: D4HA Body: Box Body / Estate From date: 01-08-2009 To date: 01-12-2015 Fuel: Diesel Approved: Yes
      Hyundai Model: ix35 Model series: ix35 Model type: 4x4 Type of engine: CRDi Size of motor: 2.0 Brand of engine: D4HA Type description: TM From date: 01-01-2010 Fuel: Diesel Approved: Yes
      Hyundai Model: ix35 Model series: ix35 Model type: AWD Type of engine: CRDi Size of motor: 2.0 Brand of engine: D4HA Type description: LM From date: 01-01-2011 Fuel: Diesel Approved: Yes
      Hyundai Model: ix35 Model series: ix35 Model type: CRDi 4WD Type of engine: CRDi Size of motor: 2.0 Brand of engine: D4HA Type description: LM, EL, ELH Body: SUV Fuel: Diesel Approved: Yes
      Hyundai Model: ix35 Model series: ix35 Type of engine: CRDi Size of motor: 2.0 Brand of engine: D4HA Body: Box Body / Estate From date: 01-08-2009 To date: 01-12-2015 Fuel: Diesel Approved: Yes
      Hyundai Model: ix35 Model series: ix35 Type of engine: CRDi Size of motor: 2.0 Brand of engine: D4HA Type description: LM From date: 01-01-2012 Fuel: Diesel Approved: Yes
      Hyundai Model: ix35 Model series: ix35 Type of engine: CRDi Size of motor: 2.0 Brand of engine: D4HA Type description: TM From date: 01-01-2010 Fuel: Diesel Approved: Yes
      Hyundai Model: Santa F Model series: Santa F Model type: 4WD Type of engine: CRDi Size of motor: 2.0 Brand of engine: D4HA From date: 01-09-2012 Fuel: Diesel Approved: Yes
      Hyundai Model: Santa F Model series: Santa F Model type: 4WD Type of engine: CRDi Size of motor: 2.2 Brand of engine: D4HB Type description: DM From date: 01-10-2015 Fuel: Diesel Approved: Yes
      Hyundai Model: Santa F Model series: Santa F Model type: 4x4 Type of engine: CRDi Size of motor: 2.0 Brand of engine: D4HA Type description: CM From date: 01-12-2010 To date: 01-12-2012 Fuel: Diesel Approved: Yes
      Hyundai Model: Santa F Model series: Santa F Model type: 4X4 Type of engine: CRDi Size of motor: 2.2 Brand of engine: D4HB Type description: CM Body: Box Body / Estate From date: 01-01-2009 To date: 01-05-2013 Fuel: Diesel Approved: Yes
      Hyundai Model: Santa F Model series: Santa F Model type: 4x4 Type of engine: CRDi Size of motor: 2.2 Brand of engine: D4HB Type description: CM Body: SUV From date: 01-01-2009 To date: 01-12-2012 Fuel: Diesel Approved: Yes
      Hyundai Model: Santa F Model series: Santa F Model type: 4x4 Type of engine: CRDi Size of motor: 2.2 Brand of engine: D4HB Type description: CM From date: 01-01-2009 To date: 01-12-2012 Fuel: Diesel Approved: Yes
      Hyundai Model: Santa F Model series: Santa F Model type: 4X4 Type of engine: CRDi Size of motor: 2.2 Brand of engine: D4HB Type description: DM Body: Box Body / Estate From date: 01-05-2015 Fuel: Diesel Approved: Yes
      Hyundai Model: Santa F Model series: Santa F Type of engine: CRDi Size of motor: 2.0 Brand of engine: D4HA From date: 01-09-2012 Fuel: Diesel Approved: Yes
      Hyundai Model: Santa F Model series: Santa F Type of engine: CRDi Size of motor: 2.0 Brand of engine: D4HA Type description: CM From date: 01-12-2010 To date: 01-12-2012 Fuel: Diesel Approved: Yes
      Hyundai Model: Santa F Model series: Santa F Type of engine: CRDi Size of motor: 2.0 Brand of engine: D4HA Type description: DM From date: 01-05-2015 Fuel: Diesel Approved: Yes
      Hyundai Model: Santa F Model series: Santa F Type of engine: CRDi Size of motor: 2.2 Brand of engine: D4HB Type description: CM Body: Box Body / Estate From date: 01-01-2009 To date: 01-05-2013 Fuel: Diesel Approved: Yes
      Hyundai Model: Santa F Model series: Santa F Type of engine: CRDi Size of motor: 2.2 Brand of engine: D4HB Type description: CM Body: SUV From date: 01-01-2009 To date: 01-12-2010 Fuel: Diesel Approved: Yes
      Hyundai Model: Santa F Model series: Santa F Type of engine: CRDi Size of motor: 2.2 Brand of engine: D4HB Type description: CM From date: 01-01-2009 To date: 01-12-2012 Fuel: Diesel Approved: Yes
      Hyundai Model: Santa F Model series: Santa F Type of engine: CRDi Size of motor: 2.2 Brand of engine: D4HB Type description: DM From date: 01-10-2015 Fuel: Diesel Approved: Yes
      Hyundai Model: Santa F? Model series: Santa F? Model type: CRDi 4WD Type of engine: CRDi Size of motor: 2.0 Brand of engine: D4HA Type description: DM, DMA Body: SUV Fuel: Diesel Approved: Yes
      Hyundai Model: Santa F? Model series: Santa F? Model type: CRDi 4WD Type of engine: CRDi Size of motor: 2.2 Brand of engine: D4HB Type description: DM, DMA Body: SUV Fuel: Diesel Approved: Yes
      Hyundai Model: Santa F? Model series: Santa F? Model type: CRDi Type of engine: CRDi Size of motor: 2.0 Brand of engine: D4HA Type description: CM Body: SUV Fuel: Diesel Approved: Yes
      Hyundai Model: Santa F? Model series: Santa F? Model type: CRDi Type of engine: CRDi Size of motor: 2.2 Brand of engine: D4HB Type description: DM, DMA Body: SUV Fuel: Diesel Approved: Yes
      Hyundai Model: Tucson Model series: Tucson Type of engine: CRDi Size of motor: 2.0 Brand of engine: D4HA Type description: LM, EL, ELH Body: Closed Off-Road Vehicle From date: 01-10-2012 To date: 01-06-2015 Fuel: Diesel Approved: Yes
      Kia Model: Carnival Model series: Carnival Type of engine: CRDi Size of motor: 2.2 Brand of engine: D4HB Type description: VQ Body: MPV From date: 01-01-2010 Fuel: Diesel Approved: Yes
      Kia Model: Sorento Model series: Sorento Model type: 4WD Type of engine: CRDi Size of motor: 2.2 Brand of engine: D4HB Type description: XM Body: SUV From date: 01-11-2009 Fuel: Diesel Approved: Yes
      Kia Model: Sorento Model series: Sorento Model type: 4x4 Type of engine: CRDi Size of motor: 2.0 Brand of engine: D4HA Type description: XM From date: 01-11-2010 Fuel: Diesel Approved: Yes
      Kia Model: Sorento Model series: Sorento SUV Van Model type: 4WD Type of engine: CRDi Size of motor: 2.2 Brand of engine: D4HB Type description: XM Body: Box Body / Estate From date: 01-11-2009 To date: 01-12-2015 Fuel: Diesel Approved: Yes
      Kia Model: Sorento Model series: Sorento SUV Van Type of engine: CRDi Size of motor: 2.2 Brand of engine: D4HB Type description: XM Body: Box Body / Estate From date: 01-11-2009 To date: 01-12-2015 Fuel: Diesel Approved: Yes
      Kia Model: Sorento Model series: Sorento Type of engine: CRDi Size of motor: 2.0 Brand of engine: D4HA Type description: XM From date: 01-11-2010 Fuel: Diesel Approved: Yes
      Kia Model: Sorento Model series: Sorento Type of engine: CRDi Size of motor: 2.2 Brand of engine: D4HB Type description: XM Body: SUV From date: 01-11-2009 Fuel: Diesel Approved: Yes
      Kia Model: Sorento Model series: Sorento Type of engine: CRDi Size of motor: 2.2 Brand of engine: D4HB Type description: XM From date: 01-11-2009 Fuel: Diesel Approved: Yes
      Kia Model: Sportage Model series: Sportage Model type: AWD Type of engine: CRDi Size of motor: 2.0 Brand of engine: D4HA Type description: SL From date: 01-07-2010 Fuel: Diesel Approved: Yes
      Kia Model: Sportage Model series: Sportage Model type: AWD Type of engine: CRDi Size of motor: 2.0 Brand of engine: D4HA Type description: SL From date: 01-08-2010 Fuel: Diesel Approved: Yes
      Kia Model: Sportage Model series: Sportage Type of engine: CRDi Size of motor: 2.0 Brand of engine: D4HA Type description: SL From date: 01-07-2010 Fuel: Diesel Approved: Yes
      Kia Model: Sportage Model series: Sportage Type of engine: CRDi Size of motor: 2.0 Brand of engine: D4HA Type description: SL From date: 01-08-2010 Fuel: Diesel Approved: Yes
