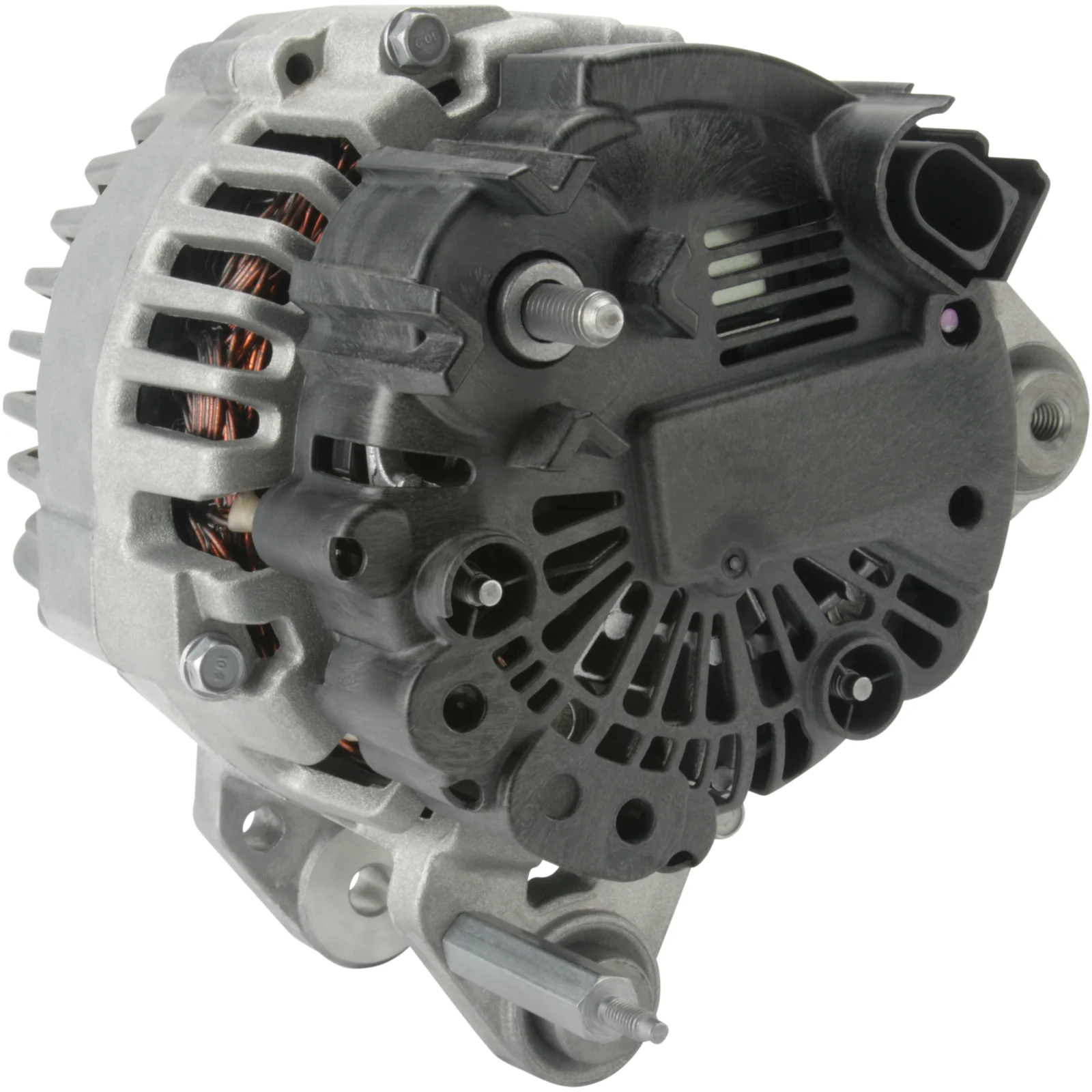

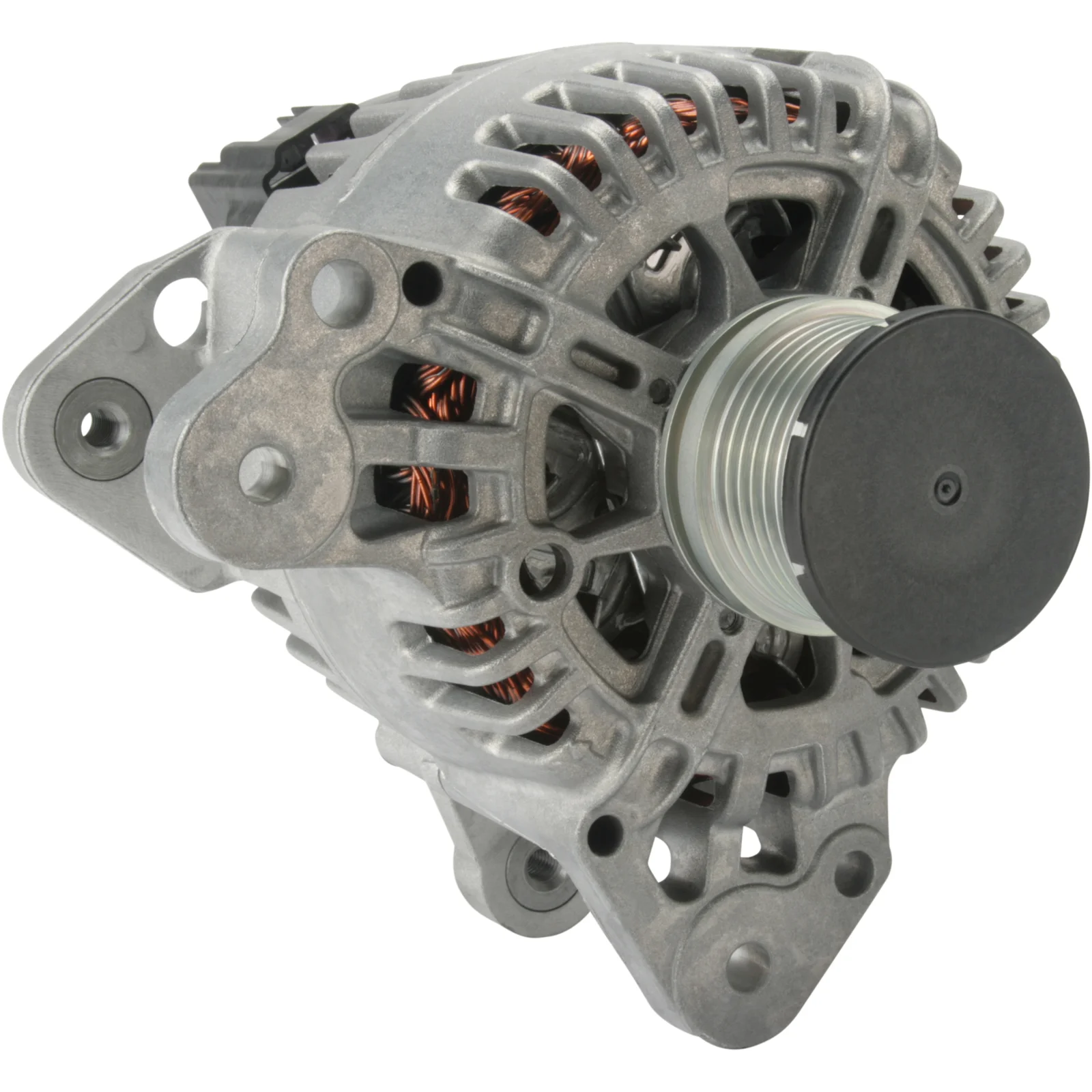

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032115707

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 110, Rotation: CW, Monteringsbeslag afs.: 61,00

Beskrivelse

VW Amarok Gen. 12V-110A, 6gr 12V - 110A, 6gr, (L, DFM) For Yourex produktordre 90-620-9752

Spenning: 14
Amp: 110
Skiveafstand: 39,50
Bredde/holderarm: 14,00
Monteringsbeslag afstand: 61,00
Beslagshulder: 8,50
Bæltejusteringsbeslag hulpos.: 45
Bæltejustering beslag hul 1: 8,50
Bæltejustering beslag hul 2: M8
Skivediameter: 49,30
Grene/skive: 6
Radius: 90,00
Radius 2: 90,00
B+: M8
Position/B+: i min.: 52
D+ Størrelse: Yumpekontakt
Rotation: CW
Yumpekontakt nr.: PL61
Samlet længde mm: 191,00
Skive: SP/FW
Regulator type: IR
Produktinfo: BN

Filer

Specifikation

B+ M8
Mount. bracket dist. 61.00
Belt. adj. bracket hole 1 8.50
Belt. adj. bracket hole 2 M8
Belt. adj. brackethole pos. 45
Plug no. PL61
Bracket hole 8.50
Position/B+ in min. 52
Prod. info BN
Pulley SP/FW
Pulley dia. 49.30
Pulley dist. 39.50
Radius 90.00
D+ Size Plug
Radius 2 90.00
Regulator type IR
Rotation CW
Grooves/pulley 6
Voltage 14
Total length 191.00 mm
Width/holder arm 14.00
Amp 110

  • OEM
    A3275(VALEO), A3275S, CAL15449, DRA0303X, DRA0555, F032115707, LRA03318, TG11C 067, TG11C067, TG11C116, 03L 903 024A, 03L903024A, 03L903024R, 06F 903 023M, 06F903023L, 06F903023M, 8EL011712-411, 8EL738213-421, 28-5930, 211.367.1102, 305.578.110, 1986A01488, 20412N, 20412R, 115707, 209217, 209217A, 439752, 440342, 553567RI, 9090857, 12090569, 12090597, 0124325190, 0986084810

  • Konkurrentreferens
    A3275(VALEO), A3275S, CAL15449, DRA0303X, DRA0555, LRA03318, 8EL011712-411, 8EL738213-421, 28-5930, 211.367.1102, 305.578.110, 20412N, 20412R, 209217, 209217A, 439752, 440342, 553567RI, 9090857, 12090569, 12090597, 0986084810

  • Bilmärken
    AUDI, VW

  • NormaliseratArtNr
    a3275s, a3275valeo, cal15449, dra0303x, dra0555, f032115707, lra03318, tg11c067, tg11c116, 03l903024a, 03l903024r, 06f903023l, 06f903023m, 8el011712411, 8el738213421, 1986a01488, 20412n, 20412r, 115707, 209217, 209217a, 285930, 439752, 440342, 553567ri, 9090857, 12090569, 12090597, 0124325190, 305578110, 0986084810, 2113671102

  • Passar modeller
    AUDI A3 Sportback (8PA) 1.4 TFSI Engine volume: 1.4 Engine type: CMSA, CAXC Year: 09.07-03.13
    VW AMAROK (2HA, 2HB, S1B, S6B, S7A, S7B, AGD) 2.0 BiTDI 4motion Engine volume: 2.0 Engine type: CDCA Year: 09.10-08.12
    VW AMAROK (2HA, 2HB, S1B, S6B, S7A, S7B, AGD) 2.0 BiTDI 4motion Engine volume: 2.0 Engine type: CNEA, CSHA Year: 11.11-05.22
    VW AMAROK (2HA, 2HB, S1B, S6B, S7A, S7B, AGD) 2.0 BiTDI Engine volume: 2.0 Engine type: CDCA Year: 09.10-08.12
    VW AMAROK (2HA, 2HB, S1B, S6B, S7A, S7B, AGD) 2.0 BiTDI Engine volume: 2.0 Engine type: CNEA, CSHA Year: 11.11-05.22
    VW AMAROK (2HA, 2HB, S1B, S6B, S7A, S7B, AGD) 2.0 TDI 4motion Engine volume: 2.0 Engine type: CDBA, CNFA Year: 09.10-10.13
    VW AMAROK (2HA, 2HB, S1B, S6B, S7A, S7B, AGD) 2.0 TDI 4motion Engine volume: 2.0 Engine type: CNFB Year: 06.12-05.22
    VW AMAROK (2HA, 2HB, S1B, S6B, S7A, S7B, AGD) 2.0 TDI Engine volume: 2.0 Engine type: CDBA, CNFA Year: 09.10-10.13
    VW AMAROK (2HA, 2HB, S1B, S6B, S7A, S7B, AGD) 2.0 TDI Engine volume: 2.0 Engine type: CNFB Year: 07.12-05.22
    VW AMAROK Flak/chassi (S1B, S6B, S7B) 2.0 BiTDI 4motion Engine volume: 2.0 Engine type: CNEA, CSHA Year: 09.11-05.22
    VW AMAROK Flak/chassi (S1B, S6B, S7B) 2.0 BiTDI Engine volume: 2.0 Engine type: CNEA, CSHA Year: 05.12-10.16
    VW AMAROK Flak/chassi (S1B, S6B, S7B) 2.0 TDI 4motion Engine volume: 2.0 Engine type: CNFB Year: 09.11-10.16
    VW AMAROK Flak/chassi (S1B, S6B, S7B) 2.0 TDI Engine volume: 2.0 Engine type: CDBA, CNFA Year: 09.11-10.13
    VW AMAROK Flak/chassi (S1B, S6B, S7B) 2.0 TDI Engine volume: 2.0 Engine type: CNFB Year: 09.11-10.16
    VW CALIFORNIA T5 Camper (7EC, 7EF, 7EG, 7HF, 7HC) 2.0 TDI 4motion Engine volume: 2.0 Engine type: CAAC, CCHA Year: 10.09-08.15
    VW CALIFORNIA T5 Camper (7EC, 7EF, 7EG, 7HF, 7HC) 2.0 TDI 4motion Engine volume: 2.0 Engine type: CAAE, CCHB Year: 05.10-08.15
    VW CALIFORNIA T5 Camper (7EC, 7EF, 7EG, 7HF, 7HC) 2.0 TDI 4motion Engine volume: 2.0 Engine type: CFCA Year: 01.10-08.15
    VW CALIFORNIA T5 Camper (7EC, 7EF, 7EG, 7HF, 7HC) 2.0 TDI Engine volume: 2.0 Engine type: CAAA Year: 09.09-08.15
    VW CALIFORNIA T5 Camper (7EC, 7EF, 7EG, 7HF, 7HC) 2.0 TDI Engine volume: 2.0 Engine type: CAAB Year: 09.09-08.15
    VW CALIFORNIA T5 Camper (7EC, 7EF, 7EG, 7HF, 7HC) 2.0 TDI Engine volume: 2.0 Engine type: CAAC, CCHA Year: 09.09-08.15
    VW CALIFORNIA T5 Camper (7EC, 7EF, 7EG, 7HF, 7HC) 2.0 TDI Engine volume: 2.0 Engine type: CAAD Year: 05.11-08.15
    VW CALIFORNIA T5 Camper (7EC, 7EF, 7EG, 7HF, 7HC) 2.0 TDI Engine volume: 2.0 Engine type: CAAE, CCHB Year: 05.10-08.15
    VW CALIFORNIA T5 Camper (7EC, 7EF, 7EG, 7HF, 7HC) 2.0 TDI Engine volume: 2.0 Engine type: CFCA Year: 09.09-08.15
    VW CALIFORNIA T6 Camper (SGC, SGG, SHC) 2.0 TDI 4motion Engine volume: 2.0 Engine type: CAAC Year: 06.15-12.19
    VW CALIFORNIA T6 Camper (SGC, SGG, SHC) 2.0 TDI 4motion Engine volume: 2.0 Engine type: CFCA Year: 06.15-12.19
    VW CALIFORNIA T6 Camper (SGC, SGG, SHC) 2.0 TDI Engine volume: 2.0 Engine type: CAAC Year: 04.15-12.19
    VW CALIFORNIA T6 Camper (SGC, SGG, SHC) 2.0 TDI Engine volume: 2.0 Engine type: CFCA Year: 04.15-12.19
    VW CALIFORNIA T6 Camper (SGC, SGG, SHC) 2.0 TDI Engine volume: 2.0 Engine type: CXGB, CAAB Year: 04.15-12.19
    VW CARAVELLE T5 Buss (7HB, 7HJ, 7EB, 7EJ) 2.0 BiTDI 4motion Engine volume: 2.0 Engine type: CFCA Year: 09.09-08.15
    VW CARAVELLE T5 Buss (7HB, 7HJ, 7EB, 7EJ) 2.0 BiTDI Engine volume: 2.0 Engine type: CFCA Year: 09.09-08.15
    VW CARAVELLE T5 Buss (7HB, 7HJ, 7EB, 7EJ) 2.0 TDI 4motion Engine volume: 2.0 Engine type: CAAC, CCHA Year: 09.09-08.15
    VW CARAVELLE T5 Buss (7HB, 7HJ, 7EB, 7EJ) 2.0 TDI 4motion Engine volume: 2.0 Engine type: CAAE, CCHB Year: 05.10-08.15
    VW CARAVELLE T5 Buss (7HB, 7HJ, 7EB, 7EJ) 2.0 TDI Engine volume: 2.0 Engine type: CAAA Year: 09.09-08.15
    VW CARAVELLE T5 Buss (7HB, 7HJ, 7EB, 7EJ) 2.0 TDI Engine volume: 2.0 Engine type: CAAB Year: 09.09-08.15
    VW CARAVELLE T5 Buss (7HB, 7HJ, 7EB, 7EJ) 2.0 TDI Engine volume: 2.0 Engine type: CAAC, CCHA Year: 09.09-08.15
    VW CARAVELLE T5 Buss (7HB, 7HJ, 7EB, 7EJ) 2.0 TDI Engine volume: 2.0 Engine type: CAAD Year: 05.11-08.15
    VW CARAVELLE T5 Buss (7HB, 7HJ, 7EB, 7EJ) 2.0 TDI Engine volume: 2.0 Engine type: CAAE, CCHB Year: 05.10-08.15
    VW CARAVELLE T5 Buss (7HB, 7HJ, 7EB, 7EJ) 2.0 TDI Engine volume: 2.0 Engine type: CSDA Year: 05.11-08.15
    VW CRAFTER 30-35 Buss (2E_) 2.0 TDI 4motion Engine volume: 2.0 Engine type: CSNA, CKUB Year: 11.11-12.16
    VW CRAFTER 30-35 Buss (2E_) 2.0 TDI Engine volume: 2.0 Engine type: CKTB, CSLA Year: 05.11-12.16
    VW CRAFTER 30-35 Buss (2E_) 2.0 TDI Engine volume: 2.0 Engine type: CKTC Year: 05.11-12.16
    VW CRAFTER 30-35 Buss (2E_) 2.0 TDI Engine volume: 2.0 Engine type: CSLB Year: 11.13-12.16
    VW CRAFTER 30-35 Buss (2E_) 2.0 TDI Engine volume: 2.0 Engine type: CSNA, CKUB Year: 07.11-12.16
    VW CRAFTER 30-50 Flak/chassi (2F_) 2.0 TDI 4motion Engine volume: 2.0 Engine type: CSNA, CKUB Year: 11.11-12.16
    VW CRAFTER 30-50 Flak/chassi (2F_) 2.0 TDI Engine volume: 2.0 Engine type: CKTB, CSLA Year: 05.11-12.16
    VW CRAFTER 30-50 Flak/chassi (2F_) 2.0 TDI Engine volume: 2.0 Engine type: CKTC Year: 05.11-12.16
    VW CRAFTER 30-50 Flak/chassi (2F_) 2.0 TDI Engine volume: 2.0 Engine type: CKUC Year: 10.11-12.16
    VW CRAFTER 30-50 Flak/chassi (2F_) 2.0 TDI Engine volume: 2.0 Engine type: CSLB Year: 11.13-12.16
    VW CRAFTER 30-50 Flak/chassi (2F_) 2.0 TDI Engine volume: 2.0 Engine type: CSLC Year: 11.15-12.16
    VW CRAFTER 30-50 Skåp (2E_) 2.0 TDI 4motion Engine volume: 2.0 Engine type: CSNA, CKUB Year: 07.11-12.16
    VW CRAFTER 30-50 Skåp (2E_) 2.0 TDI Engine volume: 2.0 Engine type: CKTB, CSLA Year: 05.11-12.16
    VW CRAFTER 30-50 Skåp (2E_) 2.0 TDI Engine volume: 2.0 Engine type: CKTC Year: 05.11-12.16
    VW CRAFTER 30-50 Skåp (2E_) 2.0 TDI Engine volume: 2.0 Engine type: CKUC Year: 10.11-12.16
    VW CRAFTER 30-50 Skåp (2E_) 2.0 TDI Engine volume: 2.0 Engine type: CSLB Year: 11.13-12.16
    VW CRAFTER 30-50 Skåp (2E_) 2.0 TDI Engine volume: 2.0 Engine type: CSLC Year: 11.15-12.16
    VW CRAFTER 30-50 Skåp (2E_) 2.0 TDI Engine volume: 2.0 Engine type: CSNA, CKUB Year: 07.11-12.16
    VW EOS (1F7, 1F8) 3.2 V6 Engine volume: 3.2 Engine type: CBRA, BUB Year: 06.06-05.09
    VW MULTIVAN T5 (7HM, 7HN, 7HF, 7EF, 7EM, 7EN) 2.0 BiTDI 4motion Engine volume: 2.0 Engine type: CFCA Year: 09.09-08.15
    VW MULTIVAN T5 (7HM, 7HN, 7HF, 7EF, 7EM, 7EN) 2.0 BiTDI Engine volume: 2.0 Engine type: CFCA Year: 09.09-08.15
    VW MULTIVAN T5 (7HM, 7HN, 7HF, 7EF, 7EM, 7EN) 2.0 TDI 4motion Engine volume: 2.0 Engine type: CAAC, CCHA Year: 09.09-08.15
    VW MULTIVAN T5 (7HM, 7HN, 7HF, 7EF, 7EM, 7EN) 2.0 TDI Engine volume: 2.0 Engine type: CAAA Year: 09.09-08.15
    VW MULTIVAN T5 (7HM, 7HN, 7HF, 7EF, 7EM, 7EN) 2.0 TDI Engine volume: 2.0 Engine type: CAAB Year: 09.09-08.15
    VW MULTIVAN T5 (7HM, 7HN, 7HF, 7EF, 7EM, 7EN) 2.0 TDI Engine volume: 2.0 Engine type: CAAC, CCHA Year: 09.09-08.15
    VW MULTIVAN T5 (7HM, 7HN, 7HF, 7EF, 7EM, 7EN) 2.0 TDI Engine volume: 2.0 Engine type: CAAD Year: 05.11-08.15
    VW MULTIVAN T5 (7HM, 7HN, 7HF, 7EF, 7EM, 7EN) 2.0 TDI Engine volume: 2.0 Engine type: CAAE, CCHB Year: 05.10-08.15
    VW MULTIVAN T6 (SGF, SGM, SGN, SHM, SHN) 2.0 TDI 4motion Engine volume: 2.0 Engine type: CAAC Year: 06.15-12.19
    VW MULTIVAN T6 (SGF, SGM, SGN, SHM, SHN) 2.0 TDI 4motion Engine volume: 2.0 Engine type: CFCA Year: 06.15-12.19
    VW MULTIVAN T6 (SGF, SGM, SGN, SHM, SHN) 2.0 TDI Engine volume: 2.0 Engine type: CAAA, CXGA Year: 04.15-07.19
    VW MULTIVAN T6 (SGF, SGM, SGN, SHM, SHN) 2.0 TDI Engine volume: 2.0 Engine type: CAAC Year: 04.15-12.19
    VW MULTIVAN T6 (SGF, SGM, SGN, SHM, SHN) 2.0 TDI Engine volume: 2.0 Engine type: CFCA Year: 04.15-12.19
    VW MULTIVAN T6 (SGF, SGM, SGN, SHM, SHN) 2.0 TDI Engine volume: 2.0 Engine type: CXGB, CAAB Year: 04.15-12.19
    VW TRANSPORTER T5 Flak/chassi (7JD, 7JE, 7JL, 7JY, 7JZ, 7FD, 7F 2.0 BiTDI 4motion Engine volume: 2.0 Engine type: CFCA Year: 09.09-08.15
    VW TRANSPORTER T5 Flak/chassi (7JD, 7JE, 7JL, 7JY, 7JZ, 7FD, 7F 2.0 BiTDI Engine volume: 2.0 Engine type: CFCA Year: 09.09-08.15
    VW TRANSPORTER T5 Flak/chassi (7JD, 7JE, 7JL, 7JY, 7JZ, 7FD, 7F 2.0 TDI 4motion Engine volume: 2.0 Engine type: CAAC, CCHA Year: 09.09-08.15
    VW TRANSPORTER T5 Flak/chassi (7JD, 7JE, 7JL, 7JY, 7JZ, 7FD, 7F 2.0 TDI 4motion Engine volume: 2.0 Engine type: CAAE, CCHB Year: 05.10-08.15
    VW TRANSPORTER T5 Flak/chassi (7JD, 7JE, 7JL, 7JY, 7JZ, 7FD, 7F 2.0 TDI Engine volume: 2.0 Engine type: CAAA Year: 09.09-08.15
    VW TRANSPORTER T5 Flak/chassi (7JD, 7JE, 7JL, 7JY, 7JZ, 7FD, 7F 2.0 TDI Engine volume: 2.0 Engine type: CAAB Year: 09.09-08.15
    VW TRANSPORTER T5 Flak/chassi (7JD, 7JE, 7JL, 7JY, 7JZ, 7FD, 7F 2.0 TDI Engine volume: 2.0 Engine type: CAAC, CCHA Year: 09.09-08.15
    VW TRANSPORTER T5 Flak/chassi (7JD, 7JE, 7JL, 7JY, 7JZ, 7FD, 7F 2.0 TDI Engine volume: 2.0 Engine type: CAAD Year: 05.11-08.15
    VW TRANSPORTER T5 Flak/chassi (7JD, 7JE, 7JL, 7JY, 7JZ, 7FD, 7F 2.0 TDI Engine volume: 2.0 Engine type: CAAE Year: 05.10-08.15
    VW TRANSPORTER T5 Skåp (7HA, 7HH, 7EA, 7EH) 2.0 BiTDI 4motion Engine volume: 2.0 Engine type: CFCA Year: 09.09-08.15
    VW TRANSPORTER T5 Skåp (7HA, 7HH, 7EA, 7EH) 2.0 BiTDI Engine volume: 2.0 Engine type: CFCA Year: 09.09-08.15
    VW TRANSPORTER T5 Skåp (7HA, 7HH, 7EA, 7EH) 2.0 TDI 4motion Engine volume: 2.0 Engine type: CAAC, CCHA Year: 09.09-08.15
    VW TRANSPORTER T5 Skåp (7HA, 7HH, 7EA, 7EH) 2.0 TDI 4motion Engine volume: 2.0 Engine type: CAAE, CCHB Year: 05.10-08.15
    VW TRANSPORTER T5 Skåp (7HA, 7HH, 7EA, 7EH) 2.0 TDI Engine volume: 2.0 Engine type: CAAA Year: 09.09-08.15
    VW TRANSPORTER T5 Skåp (7HA, 7HH, 7EA, 7EH) 2.0 TDI Engine volume: 2.0 Engine type: CAAB Year: 09.09-08.15
    VW TRANSPORTER T5 Skåp (7HA, 7HH, 7EA, 7EH) 2.0 TDI Engine volume: 2.0 Engine type: CAAC, CCHA Year: 09.09-08.15
    VW TRANSPORTER T5 Skåp (7HA, 7HH, 7EA, 7EH) 2.0 TDI Engine volume: 2.0 Engine type: CAAD Year: 05.11-08.15
    VW TRANSPORTER T5 Skåp (7HA, 7HH, 7EA, 7EH) 2.0 TDI Engine volume: 2.0 Engine type: CAAE, CCHB Year: 05.10-08.15
    VW TRANSPORTER T6 / CARAVELLE T6 Buss (SGB, SGJ, SHB, SHJ) 2.0 TDI 4motion Engine volume: 2.0 Engine type: CAAC Year: 06.15-12.19
    VW TRANSPORTER T6 / CARAVELLE T6 Buss (SGB, SGJ, SHB, SHJ) 2.0 TDI 4motion Engine volume: 2.0 Engine type: CFCA Year: 06.15-12.19
    VW TRANSPORTER T6 / CARAVELLE T6 Buss (SGB, SGJ, SHB, SHJ) 2.0 TDI Engine volume: 2.0 Engine type: CAAA, CXGA Year: 04.15-07.19
    VW TRANSPORTER T6 / CARAVELLE T6 Buss (SGB, SGJ, SHB, SHJ) 2.0 TDI Engine volume: 2.0 Engine type: CAAC Year: 04.15-12.19
    VW TRANSPORTER T6 / CARAVELLE T6 Buss (SGB, SGJ, SHB, SHJ) 2.0 TDI Engine volume: 2.0 Engine type: CFCA Year: 04.15-12.19
    VW TRANSPORTER T6 / CARAVELLE T6 Buss (SGB, SGJ, SHB, SHJ) 2.0 TDI Engine volume: 2.0 Engine type: CXGB, CAAB Year: 04.15-12.19
    VW TRANSPORTER T6 / CARAVELLE T6 Buss (SGB, SGJ, SHB, SHJ) 2.0 TSI Engine volume: 2.0 Engine type: CJKB Year: 04.15-07.19
    VW TRANSPORTER T6 Flak/chassi (SFD, SFE, SFL, SFZ, SJD, SJE, SJ 2.0 TDI 4motion Engine volume: 2.0 Engine type: CAAC Year: 06.15-11.19
    VW TRANSPORTER T6 Flak/chassi (SFD, SFE, SFL, SFZ, SJD, SJE, SJ 2.0 TDI 4motion Engine volume: 2.0 Engine type: CFCA Year: 06.15-11.19
    VW TRANSPORTER T6 Flak/chassi (SFD, SFE, SFL, SFZ, SJD, SJE, SJ 2.0 TDI Engine volume: 2.0 Engine type: CAAA, CXGA Year: 04.15-11.19
    VW TRANSPORTER T6 Flak/chassi (SFD, SFE, SFL, SFZ, SJD, SJE, SJ 2.0 TDI Engine volume: 2.0 Engine type: CAAC Year: 04.15-11.19
    VW TRANSPORTER T6 Flak/chassi (SFD, SFE, SFL, SFZ, SJD, SJE, SJ 2.0 TDI Engine volume: 2.0 Engine type: CFCA Year: 04.15-11.19
    VW TRANSPORTER T6 Flak/chassi (SFD, SFE, SFL, SFZ, SJD, SJE, SJ 2.0 TDI Engine volume: 2.0 Engine type: CXGB, CAAB Year: 04.15-11.19
    VW TRANSPORTER T6 Skåp (SGA, SGH, SHA, SHH) 2.0 TDI 4motion Engine volume: 2.0 Engine type: CAAC Year: 06.15-12.19
    VW TRANSPORTER T6 Skåp (SGA, SGH, SHA, SHH) 2.0 TDI 4motion Engine volume: 2.0 Engine type: CFCA Year: 06.15-12.19
    VW TRANSPORTER T6 Skåp (SGA, SGH, SHA, SHH) 2.0 TDI Engine volume: 2.0 Engine type: CAAA, CXGA Year: 04.15-07.19
    VW TRANSPORTER T6 Skåp (SGA, SGH, SHA, SHH) 2.0 TDI Engine volume: 2.0 Engine type: CAAC Year: 04.15-12.19
    VW TRANSPORTER T6 Skåp (SGA, SGH, SHA, SHH) 2.0 TDI Engine volume: 2.0 Engine type: CFCA Year: 04.15-12.19
    VW TRANSPORTER T6 Skåp (SGA, SGH, SHA, SHH) 2.0 TDI Engine volume: 2.0 Engine type: CXGB, CAAB Year: 04.15-12.19
