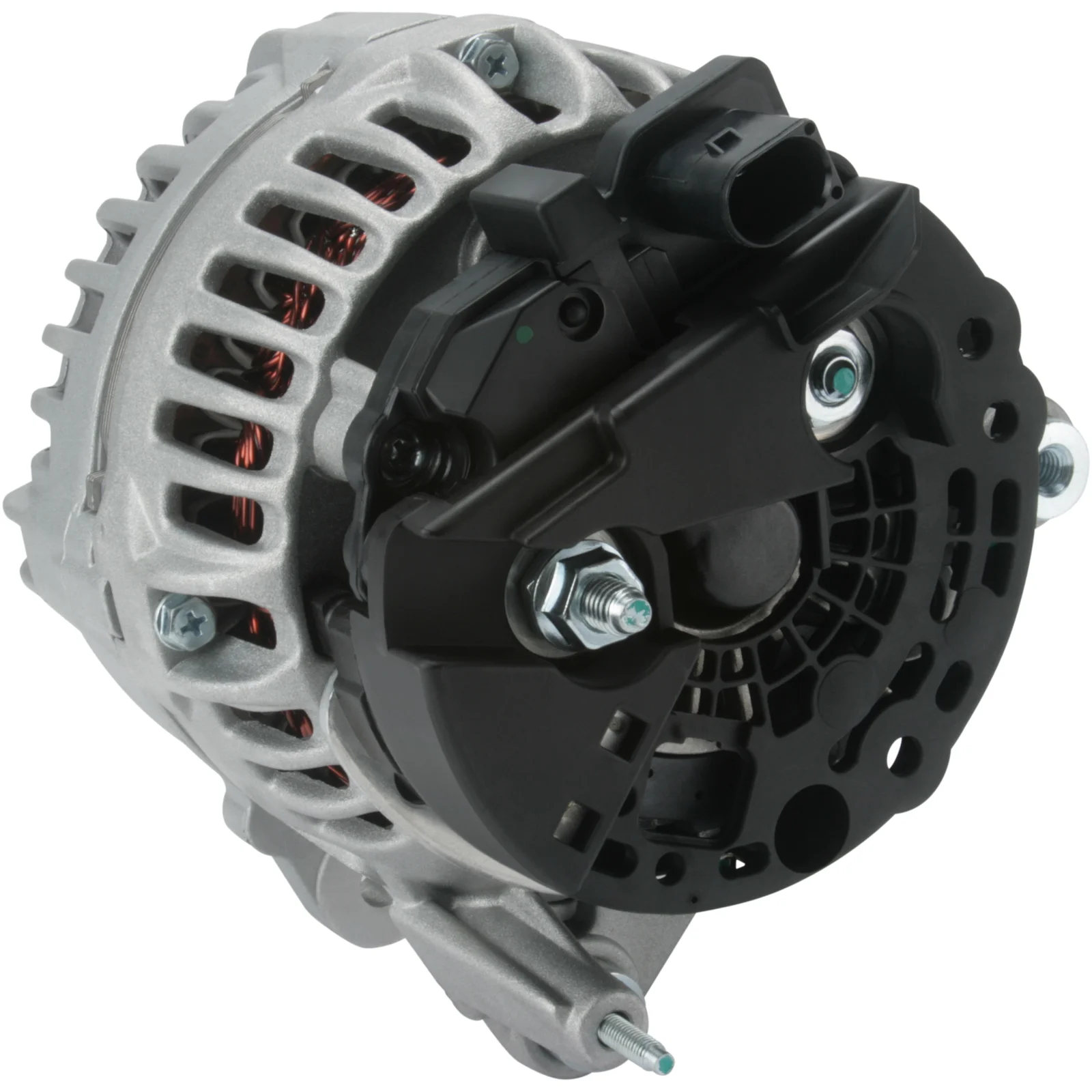

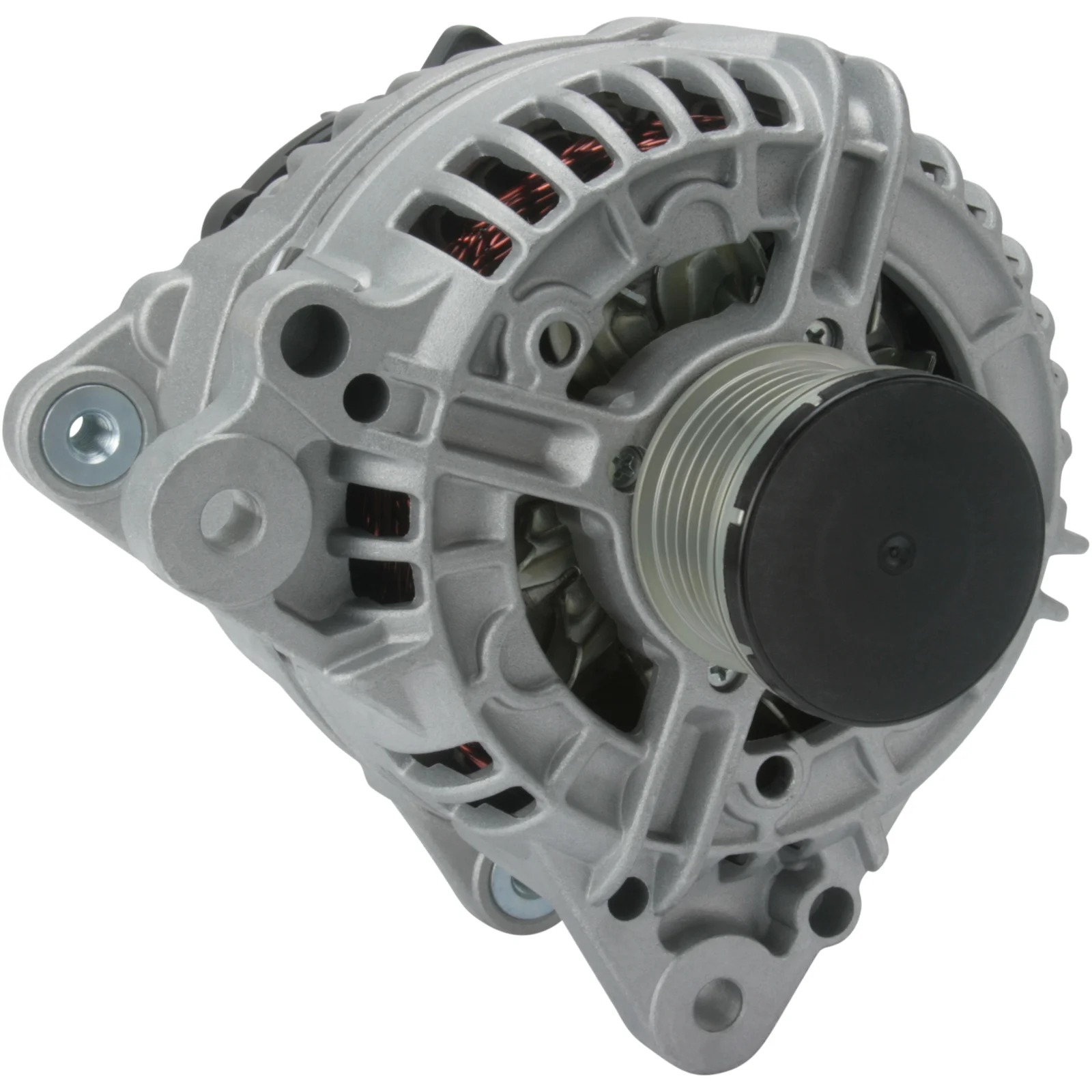

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032115767

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 140, Rotation: CW, Monteringsbeslag dist.: 61.00

Beskrivelse

Spænding: 14
Amp: 140
Remskivedist.: 30,50
Bredde/holderarm: 14,50
Monteringsbeslag dist.: 61,00
Beslagshul: 9,50
Bæltejusteringsbeslags hulpos.: 45
Bæltejusteringsbeslags hul 1: 9,50
Remskivediameter: 49,30
Riller/remskive: 6
Radius: 90,00
Radius 2: 90,00
B+: M8
Position/B+ i min.: 43
Rotation: med uret
Stiknr.: PL181
Total længde mm: 192,00
Terminaltype: COM
Kommunikation: LIN
Remskive: SP/FW
Regulator type: IR
Prod. info: BN
Bemærkninger: Denne generator har en COM-terminal på regulatoren. Det anbefales at bruge OEM-nummeret for at kontrollere egnethed inden bestilling.

Filer

Specifikation

B+ M8
Communication LIN
Mount. bracket dist. 61.00
Belt. adj. bracket hole 1 9.50
Belt. adj. brackethole pos. 45
Plug no. PL181
Bracket hole 9.50
Position/B+ in min. 43
Prod. info BN
Pulley SP/FW
Pulley dia. 49.30
Pulley dist. 30.50
Radius 90.00
Radius 2 90.00
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Grooves/pulley 6
Terminal type COM
Voltage 14
Total length 192.00 mm
Width/holder arm 14.50
Amp 140

  • OEM
    F032115767, 03C903025F, 03C903025FX, 03C903025J, 03C903025JX, 1986A00907, 1986A01509, 0124525200, 0124525220, 0124525223, 0124525544

  • Konkurrentreferens
    A0310, A0310PR, CAL15016, CAL15553, DRA0574, 8EL015630-621, 28-6539, 28-7777, 211.382.1402, 211.546.1402, 305.908.140, 445.509.140, 20148N, 12090431, 32082250, 0986082250, 0986085950

  • NormaliseratArtNr
    a0310, a0310pr, cal15016, cal15553, dra0574, f032115767, 03c903025f, 03c903025fx, 03c903025j, 03c903025jx, 8el015630621, 1986a00907, 1986a01509, 20148n, 286539, 287777, 12090431, 32082250, 0124525200, 0124525220, 0124525223, 0124525544, 305908140, 445509140, 0986082250, 0986085950, 2113821402, 2115461402

  • Passar modeller
    Audi Model: A3 Model series: A3 Model type: Sportback Type of engine: TSi Size of motor: 1.2 Brand of engine: CBZB Type description: 8PA Body: Hatchback From date: 01-04-2010 To date: 01-03-2013 Fuel: Gasoline Approved: Yes
    Audi Model: A3 Model series: A3 Type of engine: TSi Size of motor: 1.2 Brand of engine: CBZB Type description: 8P1 Body: Hatchback From date: 01-04-2010 To date: 01-08-2012 Fuel: Gasoline Approved: Yes
    Audi Model: A3 Model series: A3 Type of engine: TSi Size of motor: 1.2 Brand of engine: CBZB Type description: 8P7 Body: Convertible From date: 01-03-2010 To date: 01-05-2013 Fuel: Gasoline Approved: Yes
    Seat Model: Altea Model series: Altea Type of engine: TSi Size of motor: 1.2 Brand of engine: CBZB Type description: 5P1 Body: MPV From date: 01-04-2010 Fuel: Gasoline Approved: Yes
    Seat Model: Altea Model series: Altea XL Type of engine: TSi Size of motor: 1.2 Brand of engine: CBZB Type description: 5P5 Body: MPV From date: 01-04-2010 Fuel: Gasoline Approved: Yes
    Seat Model: Ibiza Model series: Ibiza Type of engine: TSI Size of motor: 1.2 Brand of engine: CBZA Type description: 6J5 Body: Hatchback From date: 01-08-2012 To date: 01-05-2015 Fuel: Gasoline Approved: Yes
    Seat Model: Ibiza Model series: Ibiza Type of engine: TSI Size of motor: 1.2 Brand of engine: CBZA Type description: 6J8 Body: Estate From date: 01-09-2012 To date: 01-05-2015 Fuel: Gasoline Approved: Yes
    Seat Model: Leon Model series: Leon Type of engine: TSi Size of motor: 1.2 Brand of engine: CBZB Type description: 1P1 Body: Hatchback From date: 01-02-2010 To date: 01-12-2012 Fuel: Gasoline Approved: Yes
    Seat Model: Toledo Model series: Toledo Type of engine: TSI Size of motor: 1.2 Brand of engine: CBZB Type description: KG3 From date: 01-07-2012 To date: 01-06-2015 Fuel: Gasoline Approved: Yes
    Skoda Model: Rapid Model series: Rapid Type of engine: TSi Size of motor: 1.2 Brand of engine: CBZA From date: 01-07-2012 To date: 01-05-2015 Fuel: Gasoline Approved: Yes
    Skoda Model: Rapid Model series: Rapid Type of engine: TSi Size of motor: 1.2 Brand of engine: CBZB From date: 01-07-2012 To date: 01-05-2015 Fuel: Gasoline Approved: Yes
    VW Model: Beetle Model series: Beetle Type of engine: TSi Size of motor: 1.2 Brand of engine: CBZB Type description: 5C1 Body: Hatchback From date: 01-07-2011 To date: 01-07-2019 Fuel: Gasoline Approved: Yes
    VW Model: Golf Model series: Golf VI Type of engine: TSi Size of motor: 1.2 Brand of engine: CBZA Type description: 5K1 Body: Hatchback From date: 01-05-2010 To date: 01-11-2012 Fuel: Gasoline Approved: Yes
    VW Model: Golf Model series: Golf Plus Type of engine: TSi Size of motor: 1.2 Brand of engine: CBZA Type description: 5M1, 521 Body: Hatchback From date: 01-05-2010 To date: 01-12-2013 Fuel: Gasoline Approved: Yes
    VW Model: Golf Model series: Golf Plus Van Type of engine: TSI Size of motor: 1.2 Brand of engine: CBZB Type description: 521 Body: Box Body / Hatchback From date: 01-11-2009 To date: 01-08-2014 Fuel: Gasoline Approved: Yes
    VW Model: Golf Model series: Golf V Model type: Plus Type of engine: TSi Size of motor: 1.2 Brand of engine: CBZB Type description: 5M1, 521 Body: Hatchback From date: 01-11-2009 To date: 01-12-2013 Fuel: Gasoline Approved: Yes
    VW Model: Golf Model series: Golf Van VI Variant Type of engine: TSI Size of motor: 1.2 Brand of engine: CBZB Type description: AJ5 Body: Box Body / Estate From date: 01-09-2009 To date: 01-05-2014 Fuel: Gasoline Approved: Yes
    VW Model: Golf Model series: Golf VI Model type: BlueMotion Type of engine: TSI Size of motor: 1.2 Brand of engine: CBZB Type description: 5K1_ Body: Box Body / Hatchback From date: 01-05-2009 To date: 01-11-2012 Fuel: Gasoline Approved: Yes
    VW Model: Golf Model series: Golf VI Type of engine: TSI Size of motor: 1.2 Brand of engine: CBZA Type description: 5K1_ Body: Box Body / Hatchback From date: 01-05-2010 To date: 01-11-2012 Fuel: Gasoline Approved: Yes
    VW Model: Golf Model series: Golf VI Type of engine: TSi Size of motor: 1.2 Brand of engine: CBZB Type description: 5K1 Body: Hatchback From date: 01-11-2008 To date: 01-11-2012 Fuel: Gasoline Approved: Yes
    VW Model: Golf Model series: Golf VI Type of engine: TSi Size of motor: 1.2 Brand of engine: CBZB Type description: AJ5 Body: Estate From date: 01-07-2009 To date: 01-07-2013 Fuel: Gasoline Approved: Yes Manufacture type: Variant
    VW Model: Jetta Model series: Jetta Type of engine: TSi Size of motor: 1.2 Brand of engine: CBZB Type description: 162 From date: 01-10-2010 Fuel: Gasoline Approved: Yes
    VW Model: Polo Model series: Polo Cityvan Model type: BlueMotion Size of motor: 1.2 Brand of engine: CGPA Type description: 6R Body: Box Body / Hatchback From date: 01-03-2009 To date: 01-05-2014 Fuel: Gasoline Approved: Yes
    VW Model: Polo Model series: Polo Cityvan Model type: BlueMotion Type of engine: TSI Size of motor: 1.2 Brand of engine: CBZB Type description: 6R Body: Box Body / Hatchback From date: 01-11-2009 To date: 01-05-2014 Fuel: Gasoline Approved: Yes
    VW Model: Polo Model series: Polo Cityvan Size of motor: 1.2 Brand of engine: CGPB Type description: 6R Body: Box Body / Hatchback From date: 01-03-2009 To date: 01-05-2014 Fuel: Gasoline Approved: Yes
    VW Model: Polo Model series: Polo Cityvan Type of engine: TSI Size of motor: 1.2 Brand of engine: CBZC Type description: 6R Body: Box Body / Hatchback From date: 01-05-2011 To date: 01-05-2014 Fuel: Gasoline Approved: Yes
    VW Model: Touran Model series: Touran Van Type of engine: TSI Size of motor: 1.2 Brand of engine: CBZB Type description: 1T3 Body: Van From date: 01-05-2010 To date: 01-05-2015 Fuel: Petrol Approved: Yes
