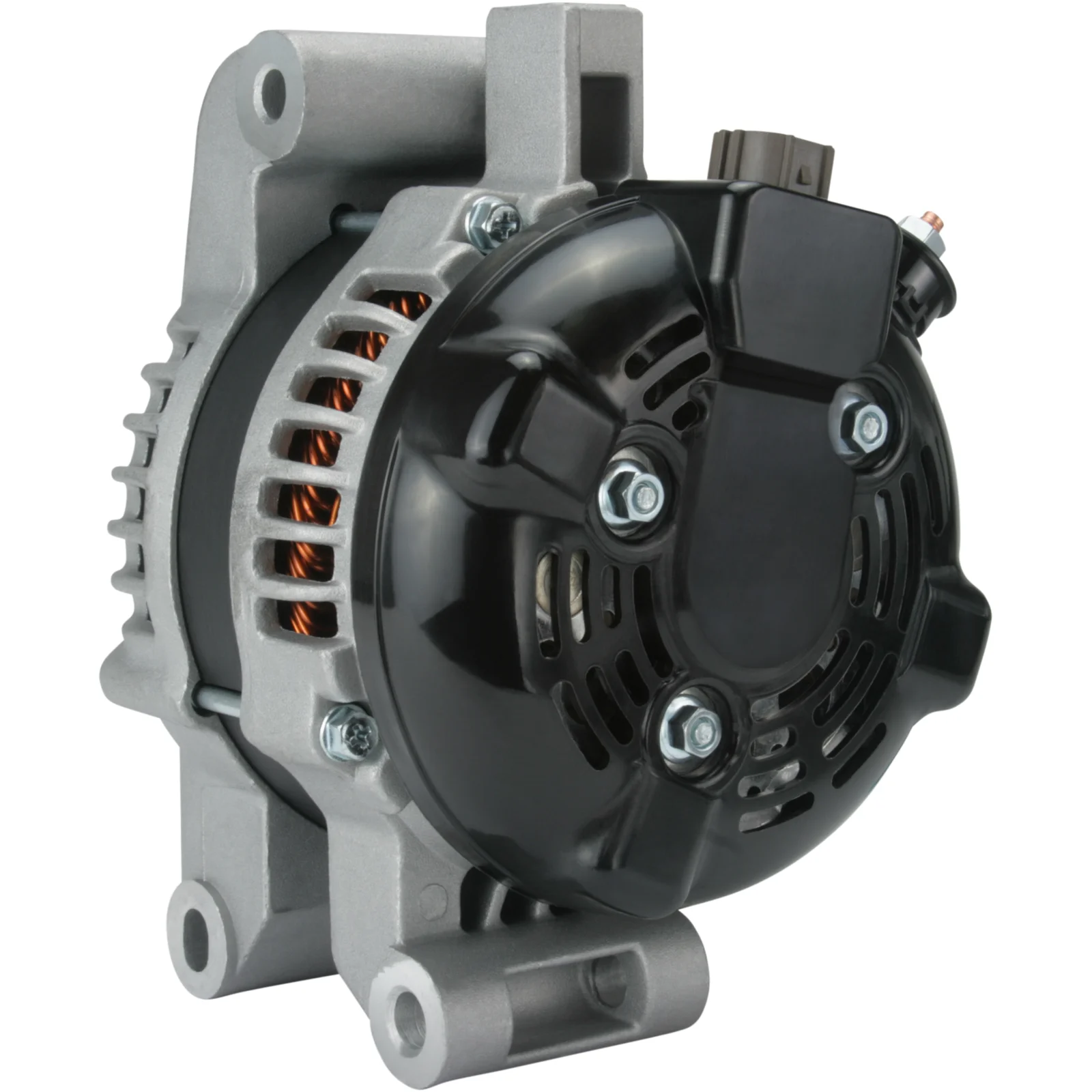

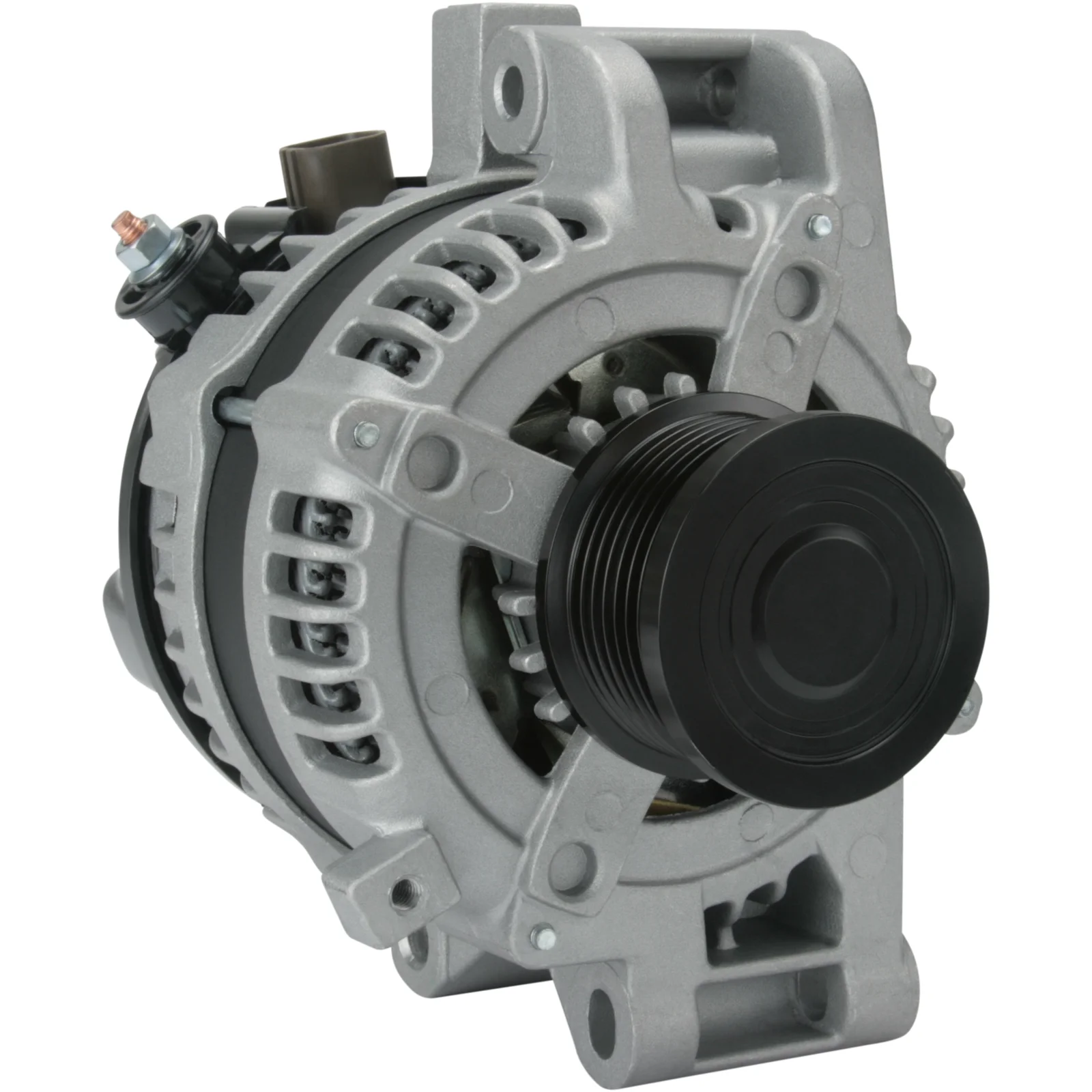

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032114390

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 100, Rotation: CW, Montering. bøsning for fordeling: 71.30

Beskrivelse

Toyota Diesel Gen. 12V-100A 12V - 100A, 7gr.frg, (IG, RLO, L, M) For Yourex produkt bestilling 90-555-4452

Spenning: 14
Ampere: 100
Poulie afstand: 24.50
Bredde/holderarm: 60.20
monteringsbeslag afstand: 71.30
Beslagshull: 9.00x11.80
Bælte justerbart beslaghul pos.: 60
Bælte justerbart beslaghul 1: 8.50
Poulie dia.: 58.00
Spore/poulie: 7
B+: M6
Position/B+ i min.: 7
D+ Størrelse: Stik
Rotation: CW
Stik nummer: PL146
Total længde mm: 167.50
Terminaltype: RLO
Poulie: SP/FW
Regulator type: IR
Produktinfo: BN
Service: Toyota

Filer

Specifikation

B+ M6
Mount. bracket dist. 71.30
Belt. adj. bracket hole 1 8.50
Belt. adj. brackethole pos. 60
Plug no. PL146
Bracket hole 9.00x11.80
Position/B+ in min. 7
Prod. info BN
Pulley SP/FW
Pulley dia. 58.00
Pulley dist. 24.50
D+ Size Plug
Regulator type IR
Rotation CW
Servicing Toyota
Grooves/pulley 7
Terminal type RLO
Voltage 14
Total length 167.50 mm
Width/holder arm 60.20
Amp 100

  • OEM
    A6052, A6052(DENSO), A6052PR, CAL40257, CAL40435, DAN 938, DAN1317, DAN938, DRA0152, DRA1528, F032114390, LRA02947, 8EL012240-951, 8EL015630-161, 8EL015630-681, 8EL738212-941, 28-5561, 195.568.100, 195.928.100, 235.318.1002, 1986A01340, 9322, 021080-6060, 23947, 23947N, 23947R, 27060-0G010, 27060-0G011, 27060-0G01184, 27060-0R060, 27060-0R070, 27060-0R071, 27060-26070, 104210-1461, 104210-2390, 104210-2410, 104210-4520, 104210-4521, 104210-4522, 104210-4523, 104211-3060, 104211-3061, 104211-3062, 104211-3410, 112954, 114390, 209298, 209298A, 210842, 210842A, 301965RI, 443111, 554461RI, 9212749, 12060862, 0986049970, 063377500010

  • Konkurrentreferens
    A6052, A6052(DENSO), A6052PR, CAL40257, CAL40435, DAN1317, DAN938, DRA0152, DRA1528, LRA02947, 8EL012240-951, 8EL015630-161, 8EL015630-681, 8EL738212-941, 28-5561, 195.568.100, 195.928.100, 235.318.1002, 9322, 23947, 23947N, 23947R, 112954, 209298, 209298A, 210842, 210842A, 301965RI, 443111, 554461RI, 9212749, 12060862, 0986049970, 063377500010

  • Bilmärken
    TOYOTA

  • NormaliseratArtNr
    a6052, a6052denso, a6052pr, cal40257, cal40435, dan1317, dan938, dra0152, dra1528, f032114390, lra02947, 8el012240951, 8el015630161, 8el015630681, 8el738212941, 1986a01340, 9322, 23947, 23947n, 23947r, 112954, 114390, 209298, 209298a, 210842, 210842a, 270600g010, 270600g011, 270600g01184, 270600r060, 270600r070, 270600r071, 285561, 301965ri, 443111, 554461ri, 9212749, 12060862, 195568100, 195928100, 0210806060, 0986049970, 1042101461, 1042102390, 1042102410, 1042104520, 1042104521, 1042104522, 1042104523, 1042113060, 1042113061, 1042113062, 1042113410, 2353181002, 2706026070, 063377500010

  • Passar modeller
    TOYOTA AURIS (_E15_) 2.0 D-4D (ADE150_, ADE150R) Engine volume: 2.0 Engine type: 1AD-FTV Year: 10.06-09.12
    TOYOTA AURIS (_E15_) 2.2 D (ADE157_, ADE151_, ADE151R, ADE157R) Engine volume: 2.2 Engine type: 2AD-FHV Year: 11.06-09.12
    TOYOTA AVENSIS (_T25_) 2.0 D-4D (ADT250_, ADT250R) Engine volume: 2.0 Engine type: 1AD-FTV Year: 03.06-11.08
    TOYOTA AVENSIS (_T25_) 2.2 D-4D (ADT251_, ADT251R) Engine volume: 2.2 Engine type: 2AD-FTV Year: 10.05-11.08
    TOYOTA AVENSIS (_T25_) 2.2 D-CAT (ADT251_, ADT251R) Engine volume: 2.2 Engine type: 2AD-FHV Year: 07.05-11.08
    TOYOTA AVENSIS Kombi (_T25_) 2.0 D-4D (ADT250_, ADT250R) Engine volume: 2.0 Engine type: 1AD-FTV Year: 03.06-11.08
    TOYOTA AVENSIS Kombi (_T25_) 2.2 D-4D (ADT251_, ADT251R) Engine volume: 2.2 Engine type: 2AD-FTV Year: 10.05-11.08
    TOYOTA AVENSIS Kombi (_T25_) 2.2 D-CAT (ADT251_, ADT251R) Engine volume: 2.2 Engine type: 2AD-FHV Year: 07.05-11.08
    TOYOTA AVENSIS Kombi (_T27_) 2.0 D-4D (ADT270_, ADT270R) Engine volume: 2.0 Engine type: 1AD-FTV Year: 11.08-10.18
    TOYOTA AVENSIS Kombi (_T27_) 2.0 D-4D (ADT270_, ADT270R) Engine volume: 2.0 Engine type: 1AD-FTV Year: 11.11-10.18
    TOYOTA AVENSIS Kombi (_T27_) 2.2 D-4D (ADT271_, ADT271R) Engine volume: 2.2 Engine type: 2AD-FHV Year: 11.08-10.18
    TOYOTA AVENSIS Sedan (_T25_) 2.0 D-4D (ADT250_, ADT250R) Engine volume: 2.0 Engine type: 1AD-FTV Year: 03.06-10.08
    TOYOTA AVENSIS Sedan (_T25_) 2.2 D-4D (ADT251_, ADT251R) Engine volume: 2.2 Engine type: 2AD-FTV Year: 10.05-11.08
    TOYOTA AVENSIS Sedan (_T25_) 2.2 D-CAT (ADT251_, ADT251R) Engine volume: 2.2 Engine type: 2AD-FHV Year: 07.05-11.08
    TOYOTA AVENSIS Sedan (_T27_) 2.0 D-4D (ADT270_, ADT270R) Engine volume: 2.0 Engine type: 1AD-FTV Year: 11.08-10.11
    TOYOTA AVENSIS Sedan (_T27_) 2.0 D-4D (ADT270_, ADT270R) Engine volume: 2.0 Engine type: 1AD-FTV Year: 11.11-10.18
    TOYOTA AVENSIS Sedan (_T27_) 2.2 D-4D (ADT271_, ADT271R) Engine volume: 2.2 Engine type: 2AD-FHV Year: 11.08-10.18
    TOYOTA AVENSIS Sedan (_T27_) 2.2 D-4D (ADT271_, ADT271R) Engine volume: 2.2 Engine type: 2AD-FHV, 2AD-FTV Year: 11.08-10.18
    TOYOTA COROLLA Verso (ZER_, ZZE12_, R1_) 2.2 D-4D (AUR10_, AUR10R) Engine volume: 2.2 Engine type: 2AD-FHV Year: 10.05-03.09
    TOYOTA COROLLA Verso (ZER_, ZZE12_, R1_) 2.2 D-4D (AUR10_, AUR10R) Engine volume: 2.2 Engine type: 2AD-FTV Year: 10.05-03.09
    TOYOTA VERSO (_R2_) 2.0 D-4D (AUR20_, AUR20R) Engine volume: 2.0 Engine type: 1AD-FTV Year: 04.09-08.18
    TOYOTA VERSO (_R2_) 2.0 D-4D (AUR20_, AUR20R) Engine volume: 2.0 Engine type: 1AD-FTV Year: 11.12-08.18
    TOYOTA VERSO (_R2_) 2.2 D-4D (AUR21) Engine volume: 2.2 Engine type: 2AD-FHV Year: 04.09-08.18
    TOYOTA VERSO (_R2_) 2.2 D-4D (AUR21_, AUR21R) Engine volume: 2.2 Engine type: 2AD-FHV Year: 04.09-08.18
    TOYOTA VERSO (_R2_) 2.2 D-CAT (AUR21_, AUR21R) Engine volume: 2.2 Engine type: 2AD-FHV Year: 04.09-08.18
    TOYOTA VERSO VAN (_R2_) D4d (AUR20) Engine volume: 2.0 Engine type: 1AD-FTV Year: 11.12-08.18
    TOYOTA VERSO VAN (_R2_) D4d (AUR21) Engine volume: 2.2 Engine type: 2AD-FHV Year: 04.09-08.18
    1 / 6
  • Beskrivelse
    Toyota Diesel Gen. 12V-100A 12V - 100A, 7gr.frg, (IG, RLO, L, M) For Yourex produkt bestilling 90-555-4452

    Spenning: 14
    Ampere: 100
    Poulie afstand: 24.50
    Bredde/holderarm: 60.20
    monteringsbeslag afstand: 71.30
    Beslagshull: 9.00x11.80
    Bælte justerbart beslaghul pos.: 60
    Bælte justerbart beslaghul 1: 8.50
    Poulie dia.: 58.00
    Spore/poulie: 7
    B+: M6
    Position/B+ i min.: 7
    D+ Størrelse: Stik
    Rotation: CW
    Stik nummer: PL146
    Total længde mm: 167.50
    Terminaltype: RLO
    Poulie: SP/FW
    Regulator type: IR
    Produktinfo: BN
    Service: Toyota

    Filer

  • Specifikation
    B+ M6
    Mount. bracket dist. 71.30
    Belt. adj. bracket hole 1 8.50
    Belt. adj. brackethole pos. 60
    Plug no. PL146
    Bracket hole 9.00x11.80
    Position/B+ in min. 7
    Prod. info BN
    Pulley SP/FW
    Pulley dia. 58.00
    Pulley dist. 24.50
    D+ Size Plug
    Regulator type IR
    Rotation CW
    Servicing Toyota
    Grooves/pulley 7
    Terminal type RLO
    Voltage 14
    Total length 167.50 mm
    Width/holder arm 60.20
    Amp 100
  • Køretøjsmatchning

    • OEM
      A6052, A6052(DENSO), A6052PR, CAL40257, CAL40435, DAN 938, DAN1317, DAN938, DRA0152, DRA1528, F032114390, LRA02947, 8EL012240-951, 8EL015630-161, 8EL015630-681, 8EL738212-941, 28-5561, 195.568.100, 195.928.100, 235.318.1002, 1986A01340, 9322, 021080-6060, 23947, 23947N, 23947R, 27060-0G010, 27060-0G011, 27060-0G01184, 27060-0R060, 27060-0R070, 27060-0R071, 27060-26070, 104210-1461, 104210-2390, 104210-2410, 104210-4520, 104210-4521, 104210-4522, 104210-4523, 104211-3060, 104211-3061, 104211-3062, 104211-3410, 112954, 114390, 209298, 209298A, 210842, 210842A, 301965RI, 443111, 554461RI, 9212749, 12060862, 0986049970, 063377500010

    • Konkurrentreferens
      A6052, A6052(DENSO), A6052PR, CAL40257, CAL40435, DAN1317, DAN938, DRA0152, DRA1528, LRA02947, 8EL012240-951, 8EL015630-161, 8EL015630-681, 8EL738212-941, 28-5561, 195.568.100, 195.928.100, 235.318.1002, 9322, 23947, 23947N, 23947R, 112954, 209298, 209298A, 210842, 210842A, 301965RI, 443111, 554461RI, 9212749, 12060862, 0986049970, 063377500010

    • Bilmärken
      TOYOTA

    • NormaliseratArtNr
      a6052, a6052denso, a6052pr, cal40257, cal40435, dan1317, dan938, dra0152, dra1528, f032114390, lra02947, 8el012240951, 8el015630161, 8el015630681, 8el738212941, 1986a01340, 9322, 23947, 23947n, 23947r, 112954, 114390, 209298, 209298a, 210842, 210842a, 270600g010, 270600g011, 270600g01184, 270600r060, 270600r070, 270600r071, 285561, 301965ri, 443111, 554461ri, 9212749, 12060862, 195568100, 195928100, 0210806060, 0986049970, 1042101461, 1042102390, 1042102410, 1042104520, 1042104521, 1042104522, 1042104523, 1042113060, 1042113061, 1042113062, 1042113410, 2353181002, 2706026070, 063377500010

    • Passar modeller
      TOYOTA AURIS (_E15_) 2.0 D-4D (ADE150_, ADE150R) Engine volume: 2.0 Engine type: 1AD-FTV Year: 10.06-09.12
      TOYOTA AURIS (_E15_) 2.2 D (ADE157_, ADE151_, ADE151R, ADE157R) Engine volume: 2.2 Engine type: 2AD-FHV Year: 11.06-09.12
      TOYOTA AVENSIS (_T25_) 2.0 D-4D (ADT250_, ADT250R) Engine volume: 2.0 Engine type: 1AD-FTV Year: 03.06-11.08
      TOYOTA AVENSIS (_T25_) 2.2 D-4D (ADT251_, ADT251R) Engine volume: 2.2 Engine type: 2AD-FTV Year: 10.05-11.08
      TOYOTA AVENSIS (_T25_) 2.2 D-CAT (ADT251_, ADT251R) Engine volume: 2.2 Engine type: 2AD-FHV Year: 07.05-11.08
      TOYOTA AVENSIS Kombi (_T25_) 2.0 D-4D (ADT250_, ADT250R) Engine volume: 2.0 Engine type: 1AD-FTV Year: 03.06-11.08
      TOYOTA AVENSIS Kombi (_T25_) 2.2 D-4D (ADT251_, ADT251R) Engine volume: 2.2 Engine type: 2AD-FTV Year: 10.05-11.08
      TOYOTA AVENSIS Kombi (_T25_) 2.2 D-CAT (ADT251_, ADT251R) Engine volume: 2.2 Engine type: 2AD-FHV Year: 07.05-11.08
      TOYOTA AVENSIS Kombi (_T27_) 2.0 D-4D (ADT270_, ADT270R) Engine volume: 2.0 Engine type: 1AD-FTV Year: 11.08-10.18
      TOYOTA AVENSIS Kombi (_T27_) 2.0 D-4D (ADT270_, ADT270R) Engine volume: 2.0 Engine type: 1AD-FTV Year: 11.11-10.18
      TOYOTA AVENSIS Kombi (_T27_) 2.2 D-4D (ADT271_, ADT271R) Engine volume: 2.2 Engine type: 2AD-FHV Year: 11.08-10.18
      TOYOTA AVENSIS Sedan (_T25_) 2.0 D-4D (ADT250_, ADT250R) Engine volume: 2.0 Engine type: 1AD-FTV Year: 03.06-10.08
      TOYOTA AVENSIS Sedan (_T25_) 2.2 D-4D (ADT251_, ADT251R) Engine volume: 2.2 Engine type: 2AD-FTV Year: 10.05-11.08
      TOYOTA AVENSIS Sedan (_T25_) 2.2 D-CAT (ADT251_, ADT251R) Engine volume: 2.2 Engine type: 2AD-FHV Year: 07.05-11.08
      TOYOTA AVENSIS Sedan (_T27_) 2.0 D-4D (ADT270_, ADT270R) Engine volume: 2.0 Engine type: 1AD-FTV Year: 11.08-10.11
      TOYOTA AVENSIS Sedan (_T27_) 2.0 D-4D (ADT270_, ADT270R) Engine volume: 2.0 Engine type: 1AD-FTV Year: 11.11-10.18
      TOYOTA AVENSIS Sedan (_T27_) 2.2 D-4D (ADT271_, ADT271R) Engine volume: 2.2 Engine type: 2AD-FHV Year: 11.08-10.18
      TOYOTA AVENSIS Sedan (_T27_) 2.2 D-4D (ADT271_, ADT271R) Engine volume: 2.2 Engine type: 2AD-FHV, 2AD-FTV Year: 11.08-10.18
      TOYOTA COROLLA Verso (ZER_, ZZE12_, R1_) 2.2 D-4D (AUR10_, AUR10R) Engine volume: 2.2 Engine type: 2AD-FHV Year: 10.05-03.09
      TOYOTA COROLLA Verso (ZER_, ZZE12_, R1_) 2.2 D-4D (AUR10_, AUR10R) Engine volume: 2.2 Engine type: 2AD-FTV Year: 10.05-03.09
      TOYOTA VERSO (_R2_) 2.0 D-4D (AUR20_, AUR20R) Engine volume: 2.0 Engine type: 1AD-FTV Year: 04.09-08.18
      TOYOTA VERSO (_R2_) 2.0 D-4D (AUR20_, AUR20R) Engine volume: 2.0 Engine type: 1AD-FTV Year: 11.12-08.18
      TOYOTA VERSO (_R2_) 2.2 D-4D (AUR21) Engine volume: 2.2 Engine type: 2AD-FHV Year: 04.09-08.18
      TOYOTA VERSO (_R2_) 2.2 D-4D (AUR21_, AUR21R) Engine volume: 2.2 Engine type: 2AD-FHV Year: 04.09-08.18
      TOYOTA VERSO (_R2_) 2.2 D-CAT (AUR21_, AUR21R) Engine volume: 2.2 Engine type: 2AD-FHV Year: 04.09-08.18
      TOYOTA VERSO VAN (_R2_) D4d (AUR20) Engine volume: 2.0 Engine type: 1AD-FTV Year: 11.12-08.18
      TOYOTA VERSO VAN (_R2_) D4d (AUR21) Engine volume: 2.2 Engine type: 2AD-FHV Year: 04.09-08.18
