- Generator
-

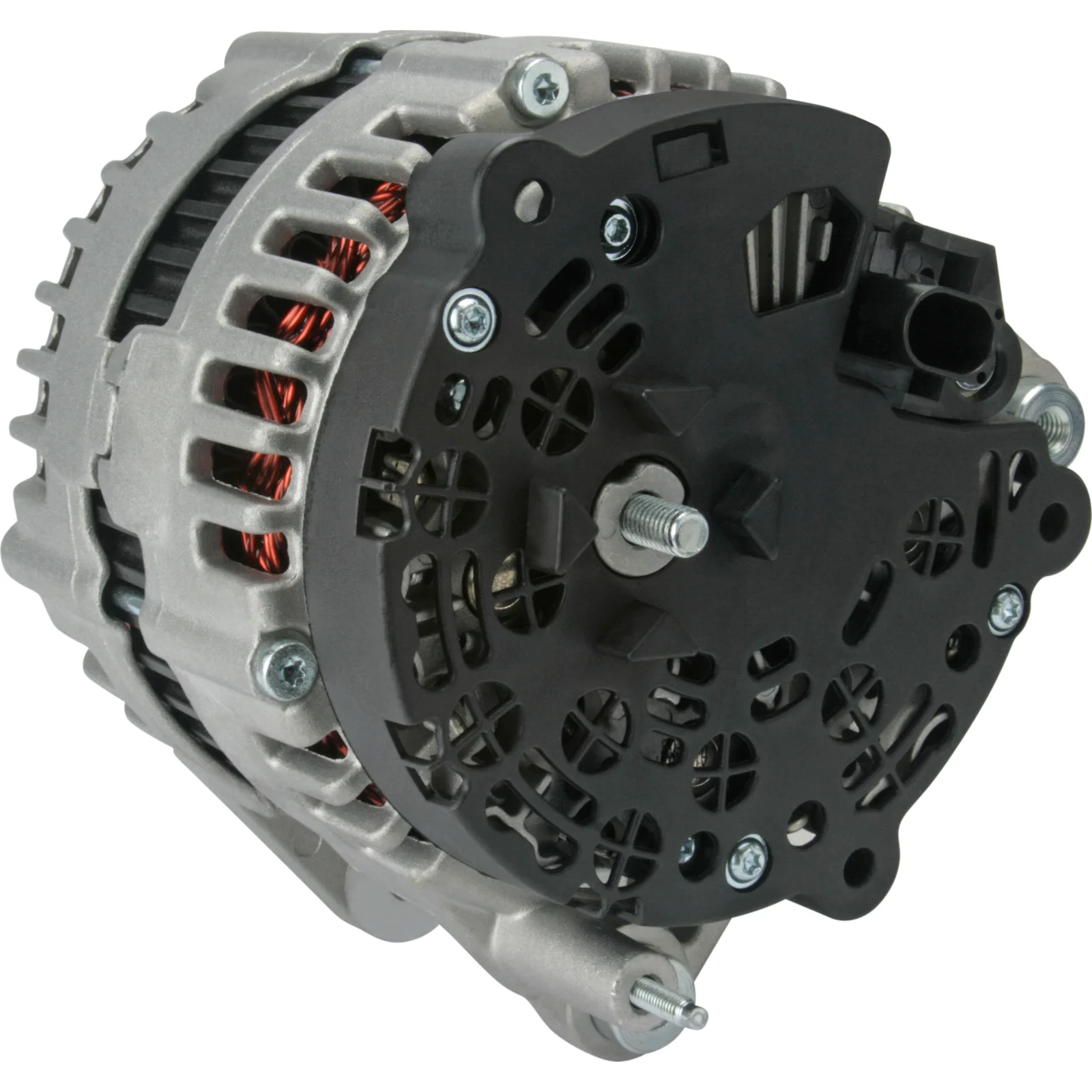

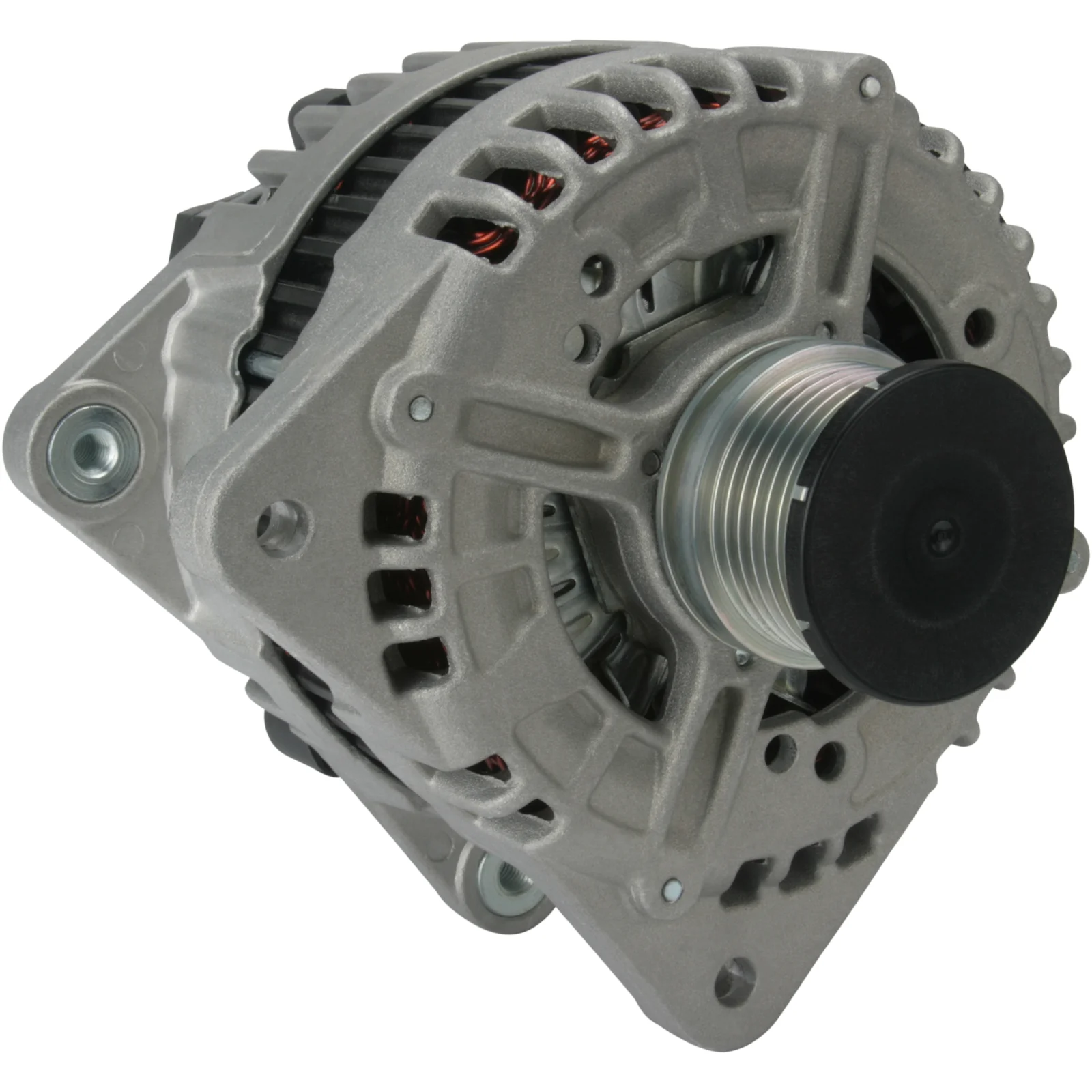

HC-Cargo Generator
- Generator
-
HC-Cargo Generator
Vare nr.: F032114697
HC-Cargo Generator
Spænding: 14, Amp: 180, Rotation: CW, Monteringsbeslag forfordelingsdæksel: 61,00
Beskrivelse
Generator 12V-180A 12V - 180A, frg. 6gr (L-DFM) Remskive Ø = 49mm. L-DFM, Remskive Ø = 49mm. Til køretøj uden start-stop-funktion. For Yourex produkt bestilling 90-620-8194
Voltage: 14
Amp: 180
Remskive diameter: 39,50
Bredde/bælteholder arm: 14,00
Monteringsbeslags afstand: 61,00
Beslags hul: 8,40
Bæltejusteringsbeslags hul position: 45
Bæltejusteringsbeslags hul 1: 8,40
Remskive diameter: 50,00
Riller/remskive: 6
Radie: 90,00
Radie 2: 90,00
B+: M8
Position/B+ i min.: 45
D+ Størrelse: Stik
Rotation: med uret
Stik nr.: PL61
Samlet længde mm: 167,00
Remskive: SP/FW
Regulator type: IR
Produktinfo: BN
Voltage: 14
Amp: 180
Remskive diameter: 39,50
Bredde/bælteholder arm: 14,00
Monteringsbeslags afstand: 61,00
Beslags hul: 8,40
Bæltejusteringsbeslags hul position: 45
Bæltejusteringsbeslags hul 1: 8,40
Remskive diameter: 50,00
Riller/remskive: 6
Radie: 90,00
Radie 2: 90,00
B+: M8
Position/B+ i min.: 45
D+ Størrelse: Stik
Rotation: med uret
Stik nr.: PL61
Samlet længde mm: 167,00
Remskive: SP/FW
Regulator type: IR
Produktinfo: BN
Filer
Specifikation
| B+ | M8 |
|---|---|
| Mount. bracket dist. | 61.00 |
| Belt. adj. bracket hole 1 | 8.40 |
| Belt. adj. brackethole pos. | 45 |
| Plug no. | PL61 |
| Bracket hole | 8.40 |
| Position/B+ in min. | 45 |
| Prod. info | BN |
| Pulley | SP/FW |
| Pulley dia. | 50.00 |
| Pulley dist. | 39.50 |
| Radius | 90.00 |
| D+ Size | Plug |
| Radius 2 | 90.00 |
| Regulator type | IR |
| Rotation | CW |
| Grooves/pulley | 6 |
| Voltage | 14 |
| Total length | 167.00 mm |
| Width/holder arm | 14.00 |
| Amp | 180 |
-
OEM
000 906 1100, F032114697, FG18T 062, FG18T 115, FG18T 116, FG18T062, FG18T102, FG18T115, FG18T116, 03G 903 023F, 03g903023f, 03G903023Q, 03L 903 024H, 03L903023Q, 03L903023QX, 03L903024C, 03L903024G, 03L903024GX, 03L903024H, 03L903024HX, 0121 715 042, 0121 715 142, 0986 081 940, 1986A00767, 114697, 440341, 2617861, 0121715042, 0121715142 -
Konkurrentreferens
A0471PR, A0471S, A3317, A3317PR, CAL15476, DRA0357, 8EL012430-371, 8EL738213-401, 28-5869, 211.367.1802, 305.597.180, 11714N, 200233, 209200, 209200A, 439751, 747118, 12090423, 32081940, 0986081940 -
Bilmärken
Skoda, VW, VW Trucks & Vans -
NormaliseratArtNr
a0471pr, a0471s, a3317, a3317pr, cal15476, dra0357, f032114697, fg18t062, fg18t102, fg18t115, fg18t116, 03g903023f, 03g903023q, 03l903023q, 03l903023qx, 03l903024c, 03l903024g, 03l903024gx, 03l903024h, 03l903024hx, 8el012430371, 8el738213401, 1986a00767, 11714n, 114697, 200233, 209200, 209200a, 285869, 439751, 440341, 747118, 2617861, 0009061100, 12090423, 32081940, 0121715042, 0121715142, 305597180, 0986081940, 2113671802 -
Passar modeller
Skoda Model: Superb Model series: Superb Model type: 4x4 Type of engine: V6 Size of motor: 3.6 Brand of engine: CDVA Type description: 3T5 Body: Estate From date: 01-10-2009 To date: 01-05-2015 Fuel: Gasoline Approved: Yes Manufacture type: Kombi Skoda Series: Superb Kombi Model: 3.6 V6 4x4 Engine volume: 3.6 Engine type: CDVA Year: 10.09- VW Model: Amarok Model series: Amarok Model type: BiTDI 4motion Type of engine: BiTDI Size of motor: 2.0 Brand of engine: CNEA Type description: S1B, S6B, S7B Body: Platform/Chassis From date: 01-09-2011 To date: 01-07-2019 Fuel: Diesel Approved: Yes VW Model: Amarok Model series: Amarok Type of engine: TDI Size of motor: 2.0 Brand of engine: CNFB Type description: S1B, S6B, S7B Body: Platform/Chassis From date: 01-09-2011 To date: 01-10-2016 Fuel: Diesel Approved: Yes VW Model: Caddy Model series: Caddy Model type: 4motion Type of engine: TDi 16V Size of motor: 2.0 Brand of engine: CFHC Type description: 2KB, 2KJ Body: Estate From date: 01-11-2010 To date: 01-05-2015 Fuel: Diesel Approved: Yes Manufacture type: Kombi VW Model: California Model series: California T5 Camper Model type: 4motion Type of engine: TDI Size of motor: 2.0 Brand of engine: CAAC, CCHA Type description: 7EC, 7EF, 7EG, 7HF Body: Bus From date: 01-10-2009 To date: 01-08-2015 Fuel: Diesel Approved: Yes VW Model: California Model series: California T5 Camper Model type: 4motion Type of engine: TDI Size of motor: 2.0 Brand of engine: CAAE, CCHB Type description: 7EC, 7EF, 7EG, 7HF Body: Bus From date: 01-05-2010 To date: 01-08-2015 Fuel: Diesel Approved: Yes VW Model: California Model series: California T5 Camper Model type: 4motion Type of engine: TDI Size of motor: 2.0 Brand of engine: CFCA Type description: 7EC, 7EF, 7EG, 7HF Body: Bus From date: 01-01-2010 To date: 01-08-2015 Fuel: Diesel Approved: Yes VW Model: California Model series: California T5 Camper Type of engine: TDI Size of motor: 2.0 Brand of engine: CAAA Type description: 7EC, 7EF, 7EG, 7HF Body: Bus From date: 01-09-2009 To date: 01-08-2015 Fuel: Diesel Approved: Yes VW Model: California Model series: California T5 Camper Type of engine: TDI Size of motor: 2.0 Brand of engine: CAAB Type description: 7EC, 7EF, 7EG, 7HF Body: Bus From date: 01-09-2009 To date: 01-08-2015 Fuel: Diesel Approved: Yes VW Model: California Model series: California T5 Camper Type of engine: TDI Size of motor: 2.0 Brand of engine: CAAC, CCHA Type description: 7EC, 7EF, 7EG, 7HF Body: Bus From date: 01-09-2009 To date: 01-08-2015 Fuel: Diesel Approved: Yes VW Model: California Model series: California T5 Camper Type of engine: TDI Size of motor: 2.0 Brand of engine: CAAD Type description: 7EC, 7EF, 7EG, 7HF Body: Bus From date: 01-05-2011 To date: 01-08-2015 Fuel: Diesel Approved: Yes VW Model: California Model series: California T5 Camper Type of engine: TDI Size of motor: 2.0 Brand of engine: CAAE, CCHB Type description: 7EC, 7EF, 7EG, 7HF Body: Bus From date: 01-05-2010 To date: 01-08-2015 Fuel: Diesel Approved: Yes VW Model: California Model series: California T5 Camper Type of engine: TDI Size of motor: 2.0 Brand of engine: CFCA Type description: 7EC, 7EF, 7EG, 7HF Body: Bus From date: 01-09-2009 To date: 01-08-2015 Fuel: Diesel Approved: Yes VW Model: California Model series: California T6 Camper Model type: 4motion Type of engine: TDI Size of motor: 2.0 Brand of engine: CAAC Type description: SGC, SGG, SHC Body: Bus From date: 01-06-2015 To date: 01-12-2019 Fuel: Diesel Approved: Yes VW Model: California Model series: California T6 Camper Model type: 4motion Type of engine: TDI Size of motor: 2.0 Brand of engine: CFCA Type description: SGC, SGG, SHC Body: Bus From date: 01-06-2015 To date: 01-12-2019 Fuel: Diesel Approved: Yes VW Model: California Model series: California T6 Camper Type of engine: TDI Size of motor: 2.0 Brand of engine: CAAC Type description: SGC, SGG, SHC Body: Bus From date: 01-04-2015 To date: 01-12-2019 Fuel: Diesel Approved: Yes VW Model: California Model series: California T6 Camper Type of engine: TDI Size of motor: 2.0 Brand of engine: CFCA Type description: SGC, SGG, SHC Body: Bus From date: 01-04-2015 To date: 01-12-2019 Fuel: Diesel Approved: Yes VW Model: California Model series: California T6 Camper Type of engine: TDI Size of motor: 2.0 Brand of engine: CXGB, CAAB Type description: SGC, SGG, SHC Body: Bus From date: 01-04-2015 To date: 01-12-2019 Fuel: Diesel Approved: Yes VW Model: Crafter Model series: Crafter 30-35 Type of engine: TDi Size of motor: 2.0 Brand of engine: CKTC Type description: 2E_ Body: Bus From date: 01-05-2011 To date: 01-12-2016 Fuel: Diesel Approved: Yes VW Model: Crafter Model series: Crafter 30-50 Type of engine: TDi Size of motor: 2.0 Brand of engine: CKTC Type description: 2E_ Body: Van From date: 01-05-2011 To date: 01-12-2016 Fuel: Diesel Approved: Yes VW Model: Crafter Model series: Crafter 30-50 Type of engine: TDi Size of motor: 2.0 Brand of engine: CKTC Type description: 2F_ Body: Platform / Chassis From date: 01-05-2011 To date: 01-12-2016 Fuel: Diesel Approved: Yes VW Model: Crafter Model series: Crafter 30-50 Type of engine: TDi Size of motor: 2.0 Brand of engine: CKUB Type description: 2E_ Body: Van From date: 01-07-2011 To date: 01-12-2016 Fuel: Diesel Approved: Yes VW Model: Crafter Model series: Crafter 30-50 Type of engine: TDi Size of motor: 2.0 Brand of engine: CSNA Type description: 2E_ Body: Van From date: 01-07-2011 To date: 01-12-2016 Fuel: Diesel Approved: Yes VW Model: Eos Model series: Eos Type of engine: TDi Size of motor: 2.0 Brand of engine: CFFA Type description: 1F7, 1F8 Body: Convertible From date: 01-11-2010 To date: 01-08-2015 Fuel: Diesel Approved: Yes VW Model: Kombi / Caravelle V Bus Model series: Kombi / Caravelle V Bus Type of engine: TDI Size of motor: 2.0 Brand of engine: CSDA Type description: 7HB, 7HJ, 7EB, 7EJ, 7EF, 7EG, 7HF, Body: Bus From date: 01-05-2011 To date: 01-08-2015 Fuel: Diesel Approved: Yes VW Model: Multivan Model series: Multivan Model type: 4 Motion Type of engine: BiTDI Size of motor: 2.0 Brand of engine: CFCA Type description: 7HM, 7HF Body: MPV From date: 01-09-2009 To date: 01-08-2015 Fuel: Diesel Approved: Yes VW Model: Multivan Model series: Multivan Model type: 4 Motion Type of engine: TDi Size of motor: 2.0 Brand of engine: CAAC Type description: 7HM, 7HF Body: MPV From date: 01-09-2009 To date: 01-08-2015 Fuel: Diesel Approved: Yes VW Model: Multivan Model series: Multivan Model type: 4 Motion Type of engine: TDi Size of motor: 2.0 Brand of engine: CCHA Type description: 7HM, 7HF Body: MPV From date: 01-09-2009 To date: 01-08-2015 Fuel: Diesel Approved: Yes VW Model: Multivan Model series: Multivan Model type: 4motion Type of engine: TDi Size of motor: 2.0 Brand of engine: CAAE Type description: 7HM, 7HF, 7HN, 7EF, 7EM, 7EN Body: MPV From date: 01-05-2010 To date: 01-08-2015 Fuel: Diesel Approved: Yes VW Model: Multivan Model series: Multivan Model type: 4motion Type of engine: TDi Size of motor: 2.0 Brand of engine: CCHB Type description: 7HM, 7HF, 7HN, 7EF, 7EM, 7EN Body: MPV From date: 01-05-2010 To date: 01-08-2015 Fuel: Diesel Approved: Yes VW Model: Multivan Model series: Multivan Type of engine: BiTDI Size of motor: 2.0 Brand of engine: CFCA Type description: 7HM, 7HF Body: MPV From date: 01-09-2009 To date: 01-08-2015 Fuel: Diesel Approved: Yes VW Model: Multivan Model series: Multivan Type of engine: TDi Size of motor: 2.0 Brand of engine: CAAA Type description: 7HM, 7HF Body: MPV From date: 01-09-2009 To date: 01-08-2015 Fuel: Diesel Approved: Yes VW Model: Multivan Model series: Multivan Type of engine: TDi Size of motor: 2.0 Brand of engine: CAAB Type description: 7HM, 7HF Body: MPV From date: 01-09-2009 To date: 01-08-2015 Fuel: Diesel Approved: Yes VW Model: Multivan Model series: Multivan Type of engine: TDi Size of motor: 2.0 Brand of engine: CAAC Type description: 7HM, 7HF Body: MPV From date: 01-09-2009 To date: 01-08-2015 Fuel: Diesel Approved: Yes VW Model: Multivan Model series: Multivan Type of engine: TDi Size of motor: 2.0 Brand of engine: CAAE Type description: 7HM, 7HF, 7HN, 7EF, 7EM, 7EN Body: MPV From date: 01-05-2010 To date: 01-08-2015 Fuel: Diesel Approved: Yes VW Model: Multivan Model series: Multivan Type of engine: TDi Size of motor: 2.0 Brand of engine: CCHA Type description: 7HM, 7HF Body: MPV From date: 01-09-2009 To date: 01-08-2015 Fuel: Diesel Approved: Yes VW Model: Multivan Model series: Multivan Type of engine: TDi Size of motor: 2.0 Brand of engine: CCHB Type description: 7HM, 7HF, 7HN, 7EF, 7EM, 7EN Body: MPV From date: 01-05-2010 To date: 01-08-2015 Fuel: Diesel Approved: Yes VW Model: Passat Model series: Passat Model type: 4 Motion Size of motor: 3.6 Brand of engine: BWS Body: Coupe From date: 01-02-2008 To date: 01-12-2011 Fuel: Gasoline Approved: Yes VW Model: Passat Model series: Passat Model type: R36 4motion Size of motor: 3.6 Brand of engine: BWS Type description: 3C2 From date: 01-04-2007 To date: 01-07-2010 Fuel: Gasoline Approved: Yes VW Model: Passat Model series: Passat Model type: R36 4motion Size of motor: 3.6 Brand of engine: BWS Type description: 3C5 Body: Estate From date: 01-04-2007 To date: 01-11-2010 Fuel: Gasoline Approved: Yes Manufacture type: variant VW Model: Scirocco Model series: Scirocco Type of engine: TDi Size of motor: 2.0 Brand of engine: CFHB Type description: 137 Body: Coupe From date: 01-11-2010 To date: 01-11-2017 Fuel: Diesel Approved: Yes VW Model: Transporter Model series: Transporter Model type: T5 4 Motion Type of engine: BiTDI Size of motor: 2.0 Brand of engine: CFCA Type description: 7HA, 7HH Body: Van From date: 01-09-2009 To date: 01-08-2015 Fuel: Diesel Approved: Yes VW Model: Transporter Model series: Transporter Model type: T5 4 Motion Type of engine: BiTDI Size of motor: 2.0 Brand of engine: CFCA Type description: 7HB, 7HJ Body: Bus From date: 01-09-2009 To date: 01-08-2015 Fuel: Diesel Approved: Yes VW Model: Transporter Model series: Transporter Model type: T5 4 Motion Type of engine: BiTDI Size of motor: 2.0 Brand of engine: CFCA Type description: 7JD, 7JE, 7JL, 7JY, 7JZ Body: Platform / Chassis From date: 01-09-2009 To date: 01-08-2015 Fuel: Diesel Approved: Yes VW Model: Transporter Model series: Transporter Model type: T5 4 Motion Type of engine: TDi Size of motor: 2.0 Brand of engine: CAAC Type description: 7HA, 7HH Body: Van From date: 01-09-2009 To date: 01-08-2015 Fuel: Diesel Approved: Yes VW Model: Transporter Model series: Transporter Model type: T5 4 Motion Type of engine: TDi Size of motor: 2.0 Brand of engine: CAAC Type description: 7HB, 7HJ Body: Bus From date: 01-09-2009 To date: 01-08-2015 Fuel: Diesel Approved: Yes VW Model: Transporter Model series: Transporter Model type: T5 4 Motion Type of engine: TDi Size of motor: 2.0 Brand of engine: CAAC Type description: 7JD, 7JE, 7JL, 7JY, 7JZ Body: Platform / Chassis From date: 01-09-2009 To date: 01-08-2015 Fuel: Diesel Approved: Yes VW Model: Transporter Model series: Transporter Model type: T5 4 Motion Type of engine: TDi Size of motor: 2.0 Brand of engine: CAAE Type description: 7HB, 7HJ, 7EB, 7EJ Body: Bus From date: 01-05-2010 To date: 01-08-2015 Fuel: Diesel Approved: Yes VW Model: Transporter Model series: Transporter Model type: T5 4 Motion Type of engine: TDi Size of motor: 2.0 Brand of engine: CCHA Type description: 7HA, 7HH Body: Van From date: 01-09-2009 To date: 01-08-2015 Fuel: Diesel Approved: Yes VW Model: Transporter Model series: Transporter Model type: T5 4 Motion Type of engine: TDi Size of motor: 2.0 Brand of engine: CCHA Type description: 7HB, 7HJ Body: Bus From date: 01-09-2009 To date: 01-08-2015 Fuel: Diesel Approved: Yes VW Model: Transporter Model series: Transporter Model type: T5 4 Motion Type of engine: TDi Size of motor: 2.0 Brand of engine: CCHB Type description: 7HB, 7HJ, 7EB, 7EJ Body: Bus From date: 01-05-2010 To date: 01-08-2015 Fuel: Diesel Approved: Yes VW Model: Transporter Model series: Transporter Model type: T5 Type of engine: BiTDI Size of motor: 2.0 Brand of engine: CFCA Type description: 7HA, 7HH Body: Van From date: 01-09-2009 To date: 01-08-2015 Fuel: Diesel Approved: Yes VW Model: Transporter Model series: Transporter Model type: T5 Type of engine: BiTDI Size of motor: 2.0 Brand of engine: CFCA Type description: 7HB, 7HJ Body: Bus From date: 01-09-2009 To date: 01-08-2015 Fuel: Diesel Approved: Yes VW Model: Transporter Model series: Transporter Model type: T5 Type of engine: BiTDI Size of motor: 2.0 Brand of engine: CFCA Type description: 7JD, 7JE, 7JL, 7JY, 7JZ Body: Platform / Chassis From date: 01-09-2009 To date: 01-08-2015 Fuel: Diesel Approved: Yes VW Model: Transporter Model series: Transporter Model type: T5 Type of engine: TDi Size of motor: 2.0 Brand of engine: CAAA Type description: 7HA, 7HH Body: Van From date: 01-09-2009 To date: 01-08-2015 Fuel: Diesel Approved: Yes VW Model: Transporter Model series: Transporter Model type: T5 Type of engine: TDi Size of motor: 2.0 Brand of engine: CAAA Type description: 7HB, 7HJ Body: Bus From date: 01-09-2009 To date: 01-08-2015 Fuel: Diesel Approved: Yes VW Model: Transporter Model series: Transporter Model type: T5 Type of engine: TDi Size of motor: 2.0 Brand of engine: CAAA Type description: 7JD, 7JE, 7JL, 7JY, 7JZ Body: Platform / Chassis From date: 01-09-2009 To date: 01-08-2015 Fuel: Diesel Approved: Yes VW Model: Transporter Model series: Transporter Model type: T5 Type of engine: TDI Size of motor: 2.0 Brand of engine: CAAB Type description: 7HA, 7HH Body: Van From date: 01-09-2009 To date: 01-08-2015 Fuel: Diesel Approved: Yes VW Model: Transporter Model series: Transporter Model type: T5 Type of engine: TDi Size of motor: 2.0 Brand of engine: CAAB Type description: 7HB, 7HJ Body: Bus From date: 01-09-2009 To date: 01-08-2015 Fuel: Diesel Approved: Yes VW Model: Transporter Model series: Transporter Model type: T5 Type of engine: TDi Size of motor: 2.0 Brand of engine: CAAB Type description: 7JD, 7JE, 7JL, 7JY, 7JZ Body: Platform / Chassis From date: 01-09-2009 To date: 01-08-2015 Fuel: Diesel Approved: Yes VW Model: Transporter Model series: Transporter Model type: T5 Type of engine: TDi Size of motor: 2.0 Brand of engine: CAAC Type description: 7HA, 7HH Body: Van From date: 01-09-2009 To date: 01-08-2015 Fuel: Diesel Approved: Yes VW Model: Transporter Model series: Transporter Model type: T5 Type of engine: TDi Size of motor: 2.0 Brand of engine: CAAC Type description: 7HB, 7HJ Body: Bus From date: 01-09-2009 To date: 01-08-2015 Fuel: Diesel Approved: Yes VW Model: Transporter Model series: Transporter Model type: T5 Type of engine: TDi Size of motor: 2.0 Brand of engine: CAAC Type description: 7JD, 7JE, 7JL, 7JY, 7JZ Body: Platform / Chassis From date: 01-09-2009 To date: 01-08-2015 Fuel: Diesel Approved: Yes VW Model: Transporter Model series: Transporter Model type: T5 Type of engine: TDi Size of motor: 2.0 Brand of engine: CAAE Type description: 7HB, 7HJ, 7EB, 7EJ Body: Bus From date: 01-05-2010 To date: 01-08-2015 Fuel: Diesel Approved: Yes VW Model: Transporter Model series: Transporter Model type: T5 Type of engine: TDi Size of motor: 2.0 Brand of engine: CCHA Type description: 7HA, 7HH Body: Van From date: 01-09-2009 To date: 01-08-2015 Fuel: Diesel Approved: Yes VW Model: Transporter Model series: Transporter Model type: T5 Type of engine: TDi Size of motor: 2.0 Brand of engine: CCHA Type description: 7HB, 7HJ Body: Bus From date: 01-09-2009 To date: 01-08-2015 Fuel: Diesel Approved: Yes VW Model: Transporter Model series: Transporter Model type: T5 Type of engine: TDi Size of motor: 2.0 Brand of engine: CCHB Type description: 7HB, 7HJ, 7EB, 7EJ Body: Bus From date: 01-05-2010 To date: 01-08-2015 Fuel: Diesel Approved: Yes VW Series: Multivan V Model: 2.0 BiTDI 4motion Engine volume: 2.0 Engine type: CFCA Year: 09.09-08.15 VW Series: Passat (3C2) Model: 3.6 R36 4motion Engine volume: 3.6 Engine type: BWS Year: 04.07-07.10 VW Series: Passat CC (357) Model: 3.6 FSI 4Motion Engine volume: 3.6 Engine type: BWS Year: 08.08-05.10 VW Series: Passat (3C2) Model: 3.2 FSI 4m Ch.nr:3C.7.140.001> Engine volume: 3.2 Engine type: AXZ Year: 01.07-07.10 VW Series: Passat Variant (3C5) Model: 3.2 FSI 4m Ch.nr:3C.7.140 001> Engine volume: 3.2 Engine type: AXZ Year: 01.07-11.10 VW Series: Passat Variant (3C5) Model: 3.6 R36 4motion Engine volume: 3.6 Engine type: BWS Year: 04.07-11.10 VW Trucks & Vans Series: Crafter 30-35 Buss Model: 2.0 TDI Engine volume: 2.0 Engine type: CKTB Year: 05.11-07.13 VW Trucks & Vans Series: Crafter 30-35 Buss Model: 2.0 TDI Engine volume: 2.0 Engine type: CKTC Year: 05.11-07.13 VW Trucks & Vans Series: Crafter 30-35 Buss Model: 2.0 TDI Engine volume: 2.0 Engine type: CKUB Year: 07.11-07.13 VW Trucks & Vans Series: Crafter 30-50 Flak Model: 2.0 TDI Engine volume: 2.0 Engine type: CKTB Year: 05.11-07.13 VW Trucks & Vans Series: Crafter 30-50 Flak Model: 2.0 TDI Engine volume: 2.0 Engine type: CKTC Year: 05.11-07.13 VW Trucks & Vans Series: Crafter 30-50 Flak Model: 2.0 TDI Engine volume: 2.0 Engine type: CKUB Year: 07.11-07.13 VW Trucks & Vans Series: Multivan V Model: 2.0 TDI Engine volume: 2.0 Engine type: CAAB Year: 09.09- VW Trucks & Vans Series: Multivan V Model: 2.0 TDI Engine volume: 2.0 Engine type: CAAB Year: 09.09-08.15 VW Trucks & Vans Series: Multivan V Model: 2.0 TDI Engine volume: 2.0 Engine type: CAAC Year: 02.09- VW Trucks & Vans Series: Multivan VI Model: 2.0 TDI Engine volume: 2.0 Engine type: CAAB Year: 04.15- VW Trucks & Vans Series: Transporter V Buss Model: 2.0 BiTDI 4motion Engine volume: 2.0 Engine type: CFCA Year: 09.09- VW Trucks & Vans Series: Transporter V Buss Model: 2.0 BiTDI Engine volume: 2.0 Engine type: CFCA Year: 09.09- VW Trucks & Vans Series: Transporter V Buss Model: 2.0 TDI 4motion Engine volume: 2.0 Engine type: CAAC / CCHA Year: 09.09- VW Trucks & Vans Series: Transporter V Buss Model: 2.0 TDI Engine volume: 2.0 Engine type: CAAB Year: 09.09- VW Trucks & Vans Series: Transporter V Buss Model: 2.0 TDI Engine volume: 2.0 Engine type: CAAC / CCHA Year: 09.09- VW Trucks & Vans Series: Transporter V Flak Model: 2.0 BiTDI 4motion Engine volume: 2.0 Engine type: CFCA Year: 09.09- VW Trucks & Vans Series: Transporter V Flak Model: 2.0 BiTDI Engine volume: 2.0 Engine type: CFCA Year: 09.09- VW Trucks & Vans Series: Transporter V Flak Model: 2.0 TDI 4motion Engine volume: 2.0 Engine type: CAAC Year: 09.09- VW Trucks & Vans Series: Transporter V Flak Model: 2.0 TDI Engine volume: 2.0 Engine type: CAAA Year: 09.09- VW Trucks & Vans Series: Transporter V Flak Model: 2.0 TDI Engine volume: 2.0 Engine type: CAAB Year: 09.09- VW Trucks & Vans Series: Transporter V Flak Model: 2.0 TDI Engine volume: 2.0 Engine type: CAAC Year: 09.09- VW Trucks & Vans Series: Transporter V Skåp Model: 2.0 BiTDI 4motion Engine volume: 2.0 Engine type: CFCA Year: 09.09- VW Trucks & Vans Series: Transporter V Skåp Model: 2.0 BiTDI Engine volume: 2.0 Engine type: CFCA Year: 09.09- VW Trucks & Vans Series: Transporter V Skåp Model: 2.0 TDI 4motion Engine volume: 2.0 Engine type: CAAC / CCHA Year: 09.09- VW Trucks & Vans Series: Transporter V Skåp Model: 2.0 TDI Engine volume: 2.0 Engine type: CAAC / CCHA Year: 09.09- 1 / 20
-
Beskrivelse
Generator 12V-180A 12V - 180A, frg. 6gr (L-DFM) Remskive Ø = 49mm. L-DFM, Remskive Ø = 49mm. Til køretøj uden start-stop-funktion. For Yourex produkt bestilling 90-620-8194
Voltage: 14
Amp: 180
Remskive diameter: 39,50
Bredde/bælteholder arm: 14,00
Monteringsbeslags afstand: 61,00
Beslags hul: 8,40
Bæltejusteringsbeslags hul position: 45
Bæltejusteringsbeslags hul 1: 8,40
Remskive diameter: 50,00
Riller/remskive: 6
Radie: 90,00
Radie 2: 90,00
B+: M8
Position/B+ i min.: 45
D+ Størrelse: Stik
Rotation: med uret
Stik nr.: PL61
Samlet længde mm: 167,00
Remskive: SP/FW
Regulator type: IR
Produktinfo: BNFiler
-
Specifikation
B+ M8 Mount. bracket dist. 61.00 Belt. adj. bracket hole 1 8.40 Belt. adj. brackethole pos. 45 Plug no. PL61 Bracket hole 8.40 Position/B+ in min. 45 Prod. info BN Pulley SP/FW Pulley dia. 50.00 Pulley dist. 39.50 Radius 90.00 D+ Size Plug Radius 2 90.00 Regulator type IR Rotation CW Grooves/pulley 6 Voltage 14 Total length 167.00 mm Width/holder arm 14.00 Amp 180 -
Køretøjsmatchning
-
OEM
000 906 1100, F032114697, FG18T 062, FG18T 115, FG18T 116, FG18T062, FG18T102, FG18T115, FG18T116, 03G 903 023F, 03g903023f, 03G903023Q, 03L 903 024H, 03L903023Q, 03L903023QX, 03L903024C, 03L903024G, 03L903024GX, 03L903024H, 03L903024HX, 0121 715 042, 0121 715 142, 0986 081 940, 1986A00767, 114697, 440341, 2617861, 0121715042, 0121715142 -
Konkurrentreferens
A0471PR, A0471S, A3317, A3317PR, CAL15476, DRA0357, 8EL012430-371, 8EL738213-401, 28-5869, 211.367.1802, 305.597.180, 11714N, 200233, 209200, 209200A, 439751, 747118, 12090423, 32081940, 0986081940 -
Bilmärken
Skoda, VW, VW Trucks & Vans -
NormaliseratArtNr
a0471pr, a0471s, a3317, a3317pr, cal15476, dra0357, f032114697, fg18t062, fg18t102, fg18t115, fg18t116, 03g903023f, 03g903023q, 03l903023q, 03l903023qx, 03l903024c, 03l903024g, 03l903024gx, 03l903024h, 03l903024hx, 8el012430371, 8el738213401, 1986a00767, 11714n, 114697, 200233, 209200, 209200a, 285869, 439751, 440341, 747118, 2617861, 0009061100, 12090423, 32081940, 0121715042, 0121715142, 305597180, 0986081940, 2113671802 -
Passar modeller
Skoda Model: Superb Model series: Superb Model type: 4x4 Type of engine: V6 Size of motor: 3.6 Brand of engine: CDVA Type description: 3T5 Body: Estate From date: 01-10-2009 To date: 01-05-2015 Fuel: Gasoline Approved: Yes Manufacture type: Kombi Skoda Series: Superb Kombi Model: 3.6 V6 4x4 Engine volume: 3.6 Engine type: CDVA Year: 10.09- VW Model: Amarok Model series: Amarok Model type: BiTDI 4motion Type of engine: BiTDI Size of motor: 2.0 Brand of engine: CNEA Type description: S1B, S6B, S7B Body: Platform/Chassis From date: 01-09-2011 To date: 01-07-2019 Fuel: Diesel Approved: Yes VW Model: Amarok Model series: Amarok Type of engine: TDI Size of motor: 2.0 Brand of engine: CNFB Type description: S1B, S6B, S7B Body: Platform/Chassis From date: 01-09-2011 To date: 01-10-2016 Fuel: Diesel Approved: Yes VW Model: Caddy Model series: Caddy Model type: 4motion Type of engine: TDi 16V Size of motor: 2.0 Brand of engine: CFHC Type description: 2KB, 2KJ Body: Estate From date: 01-11-2010 To date: 01-05-2015 Fuel: Diesel Approved: Yes Manufacture type: Kombi VW Model: California Model series: California T5 Camper Model type: 4motion Type of engine: TDI Size of motor: 2.0 Brand of engine: CAAC, CCHA Type description: 7EC, 7EF, 7EG, 7HF Body: Bus From date: 01-10-2009 To date: 01-08-2015 Fuel: Diesel Approved: Yes VW Model: California Model series: California T5 Camper Model type: 4motion Type of engine: TDI Size of motor: 2.0 Brand of engine: CAAE, CCHB Type description: 7EC, 7EF, 7EG, 7HF Body: Bus From date: 01-05-2010 To date: 01-08-2015 Fuel: Diesel Approved: Yes VW Model: California Model series: California T5 Camper Model type: 4motion Type of engine: TDI Size of motor: 2.0 Brand of engine: CFCA Type description: 7EC, 7EF, 7EG, 7HF Body: Bus From date: 01-01-2010 To date: 01-08-2015 Fuel: Diesel Approved: Yes VW Model: California Model series: California T5 Camper Type of engine: TDI Size of motor: 2.0 Brand of engine: CAAA Type description: 7EC, 7EF, 7EG, 7HF Body: Bus From date: 01-09-2009 To date: 01-08-2015 Fuel: Diesel Approved: Yes VW Model: California Model series: California T5 Camper Type of engine: TDI Size of motor: 2.0 Brand of engine: CAAB Type description: 7EC, 7EF, 7EG, 7HF Body: Bus From date: 01-09-2009 To date: 01-08-2015 Fuel: Diesel Approved: Yes VW Model: California Model series: California T5 Camper Type of engine: TDI Size of motor: 2.0 Brand of engine: CAAC, CCHA Type description: 7EC, 7EF, 7EG, 7HF Body: Bus From date: 01-09-2009 To date: 01-08-2015 Fuel: Diesel Approved: Yes VW Model: California Model series: California T5 Camper Type of engine: TDI Size of motor: 2.0 Brand of engine: CAAD Type description: 7EC, 7EF, 7EG, 7HF Body: Bus From date: 01-05-2011 To date: 01-08-2015 Fuel: Diesel Approved: Yes VW Model: California Model series: California T5 Camper Type of engine: TDI Size of motor: 2.0 Brand of engine: CAAE, CCHB Type description: 7EC, 7EF, 7EG, 7HF Body: Bus From date: 01-05-2010 To date: 01-08-2015 Fuel: Diesel Approved: Yes VW Model: California Model series: California T5 Camper Type of engine: TDI Size of motor: 2.0 Brand of engine: CFCA Type description: 7EC, 7EF, 7EG, 7HF Body: Bus From date: 01-09-2009 To date: 01-08-2015 Fuel: Diesel Approved: Yes VW Model: California Model series: California T6 Camper Model type: 4motion Type of engine: TDI Size of motor: 2.0 Brand of engine: CAAC Type description: SGC, SGG, SHC Body: Bus From date: 01-06-2015 To date: 01-12-2019 Fuel: Diesel Approved: Yes VW Model: California Model series: California T6 Camper Model type: 4motion Type of engine: TDI Size of motor: 2.0 Brand of engine: CFCA Type description: SGC, SGG, SHC Body: Bus From date: 01-06-2015 To date: 01-12-2019 Fuel: Diesel Approved: Yes VW Model: California Model series: California T6 Camper Type of engine: TDI Size of motor: 2.0 Brand of engine: CAAC Type description: SGC, SGG, SHC Body: Bus From date: 01-04-2015 To date: 01-12-2019 Fuel: Diesel Approved: Yes VW Model: California Model series: California T6 Camper Type of engine: TDI Size of motor: 2.0 Brand of engine: CFCA Type description: SGC, SGG, SHC Body: Bus From date: 01-04-2015 To date: 01-12-2019 Fuel: Diesel Approved: Yes VW Model: California Model series: California T6 Camper Type of engine: TDI Size of motor: 2.0 Brand of engine: CXGB, CAAB Type description: SGC, SGG, SHC Body: Bus From date: 01-04-2015 To date: 01-12-2019 Fuel: Diesel Approved: Yes VW Model: Crafter Model series: Crafter 30-35 Type of engine: TDi Size of motor: 2.0 Brand of engine: CKTC Type description: 2E_ Body: Bus From date: 01-05-2011 To date: 01-12-2016 Fuel: Diesel Approved: Yes VW Model: Crafter Model series: Crafter 30-50 Type of engine: TDi Size of motor: 2.0 Brand of engine: CKTC Type description: 2E_ Body: Van From date: 01-05-2011 To date: 01-12-2016 Fuel: Diesel Approved: Yes VW Model: Crafter Model series: Crafter 30-50 Type of engine: TDi Size of motor: 2.0 Brand of engine: CKTC Type description: 2F_ Body: Platform / Chassis From date: 01-05-2011 To date: 01-12-2016 Fuel: Diesel Approved: Yes VW Model: Crafter Model series: Crafter 30-50 Type of engine: TDi Size of motor: 2.0 Brand of engine: CKUB Type description: 2E_ Body: Van From date: 01-07-2011 To date: 01-12-2016 Fuel: Diesel Approved: Yes VW Model: Crafter Model series: Crafter 30-50 Type of engine: TDi Size of motor: 2.0 Brand of engine: CSNA Type description: 2E_ Body: Van From date: 01-07-2011 To date: 01-12-2016 Fuel: Diesel Approved: Yes VW Model: Eos Model series: Eos Type of engine: TDi Size of motor: 2.0 Brand of engine: CFFA Type description: 1F7, 1F8 Body: Convertible From date: 01-11-2010 To date: 01-08-2015 Fuel: Diesel Approved: Yes VW Model: Kombi / Caravelle V Bus Model series: Kombi / Caravelle V Bus Type of engine: TDI Size of motor: 2.0 Brand of engine: CSDA Type description: 7HB, 7HJ, 7EB, 7EJ, 7EF, 7EG, 7HF, Body: Bus From date: 01-05-2011 To date: 01-08-2015 Fuel: Diesel Approved: Yes VW Model: Multivan Model series: Multivan Model type: 4 Motion Type of engine: BiTDI Size of motor: 2.0 Brand of engine: CFCA Type description: 7HM, 7HF Body: MPV From date: 01-09-2009 To date: 01-08-2015 Fuel: Diesel Approved: Yes VW Model: Multivan Model series: Multivan Model type: 4 Motion Type of engine: TDi Size of motor: 2.0 Brand of engine: CAAC Type description: 7HM, 7HF Body: MPV From date: 01-09-2009 To date: 01-08-2015 Fuel: Diesel Approved: Yes VW Model: Multivan Model series: Multivan Model type: 4 Motion Type of engine: TDi Size of motor: 2.0 Brand of engine: CCHA Type description: 7HM, 7HF Body: MPV From date: 01-09-2009 To date: 01-08-2015 Fuel: Diesel Approved: Yes VW Model: Multivan Model series: Multivan Model type: 4motion Type of engine: TDi Size of motor: 2.0 Brand of engine: CAAE Type description: 7HM, 7HF, 7HN, 7EF, 7EM, 7EN Body: MPV From date: 01-05-2010 To date: 01-08-2015 Fuel: Diesel Approved: Yes VW Model: Multivan Model series: Multivan Model type: 4motion Type of engine: TDi Size of motor: 2.0 Brand of engine: CCHB Type description: 7HM, 7HF, 7HN, 7EF, 7EM, 7EN Body: MPV From date: 01-05-2010 To date: 01-08-2015 Fuel: Diesel Approved: Yes VW Model: Multivan Model series: Multivan Type of engine: BiTDI Size of motor: 2.0 Brand of engine: CFCA Type description: 7HM, 7HF Body: MPV From date: 01-09-2009 To date: 01-08-2015 Fuel: Diesel Approved: Yes VW Model: Multivan Model series: Multivan Type of engine: TDi Size of motor: 2.0 Brand of engine: CAAA Type description: 7HM, 7HF Body: MPV From date: 01-09-2009 To date: 01-08-2015 Fuel: Diesel Approved: Yes VW Model: Multivan Model series: Multivan Type of engine: TDi Size of motor: 2.0 Brand of engine: CAAB Type description: 7HM, 7HF Body: MPV From date: 01-09-2009 To date: 01-08-2015 Fuel: Diesel Approved: Yes VW Model: Multivan Model series: Multivan Type of engine: TDi Size of motor: 2.0 Brand of engine: CAAC Type description: 7HM, 7HF Body: MPV From date: 01-09-2009 To date: 01-08-2015 Fuel: Diesel Approved: Yes VW Model: Multivan Model series: Multivan Type of engine: TDi Size of motor: 2.0 Brand of engine: CAAE Type description: 7HM, 7HF, 7HN, 7EF, 7EM, 7EN Body: MPV From date: 01-05-2010 To date: 01-08-2015 Fuel: Diesel Approved: Yes VW Model: Multivan Model series: Multivan Type of engine: TDi Size of motor: 2.0 Brand of engine: CCHA Type description: 7HM, 7HF Body: MPV From date: 01-09-2009 To date: 01-08-2015 Fuel: Diesel Approved: Yes VW Model: Multivan Model series: Multivan Type of engine: TDi Size of motor: 2.0 Brand of engine: CCHB Type description: 7HM, 7HF, 7HN, 7EF, 7EM, 7EN Body: MPV From date: 01-05-2010 To date: 01-08-2015 Fuel: Diesel Approved: Yes VW Model: Passat Model series: Passat Model type: 4 Motion Size of motor: 3.6 Brand of engine: BWS Body: Coupe From date: 01-02-2008 To date: 01-12-2011 Fuel: Gasoline Approved: Yes VW Model: Passat Model series: Passat Model type: R36 4motion Size of motor: 3.6 Brand of engine: BWS Type description: 3C2 From date: 01-04-2007 To date: 01-07-2010 Fuel: Gasoline Approved: Yes VW Model: Passat Model series: Passat Model type: R36 4motion Size of motor: 3.6 Brand of engine: BWS Type description: 3C5 Body: Estate From date: 01-04-2007 To date: 01-11-2010 Fuel: Gasoline Approved: Yes Manufacture type: variant VW Model: Scirocco Model series: Scirocco Type of engine: TDi Size of motor: 2.0 Brand of engine: CFHB Type description: 137 Body: Coupe From date: 01-11-2010 To date: 01-11-2017 Fuel: Diesel Approved: Yes VW Model: Transporter Model series: Transporter Model type: T5 4 Motion Type of engine: BiTDI Size of motor: 2.0 Brand of engine: CFCA Type description: 7HA, 7HH Body: Van From date: 01-09-2009 To date: 01-08-2015 Fuel: Diesel Approved: Yes VW Model: Transporter Model series: Transporter Model type: T5 4 Motion Type of engine: BiTDI Size of motor: 2.0 Brand of engine: CFCA Type description: 7HB, 7HJ Body: Bus From date: 01-09-2009 To date: 01-08-2015 Fuel: Diesel Approved: Yes VW Model: Transporter Model series: Transporter Model type: T5 4 Motion Type of engine: BiTDI Size of motor: 2.0 Brand of engine: CFCA Type description: 7JD, 7JE, 7JL, 7JY, 7JZ Body: Platform / Chassis From date: 01-09-2009 To date: 01-08-2015 Fuel: Diesel Approved: Yes VW Model: Transporter Model series: Transporter Model type: T5 4 Motion Type of engine: TDi Size of motor: 2.0 Brand of engine: CAAC Type description: 7HA, 7HH Body: Van From date: 01-09-2009 To date: 01-08-2015 Fuel: Diesel Approved: Yes VW Model: Transporter Model series: Transporter Model type: T5 4 Motion Type of engine: TDi Size of motor: 2.0 Brand of engine: CAAC Type description: 7HB, 7HJ Body: Bus From date: 01-09-2009 To date: 01-08-2015 Fuel: Diesel Approved: Yes VW Model: Transporter Model series: Transporter Model type: T5 4 Motion Type of engine: TDi Size of motor: 2.0 Brand of engine: CAAC Type description: 7JD, 7JE, 7JL, 7JY, 7JZ Body: Platform / Chassis From date: 01-09-2009 To date: 01-08-2015 Fuel: Diesel Approved: Yes VW Model: Transporter Model series: Transporter Model type: T5 4 Motion Type of engine: TDi Size of motor: 2.0 Brand of engine: CAAE Type description: 7HB, 7HJ, 7EB, 7EJ Body: Bus From date: 01-05-2010 To date: 01-08-2015 Fuel: Diesel Approved: Yes VW Model: Transporter Model series: Transporter Model type: T5 4 Motion Type of engine: TDi Size of motor: 2.0 Brand of engine: CCHA Type description: 7HA, 7HH Body: Van From date: 01-09-2009 To date: 01-08-2015 Fuel: Diesel Approved: Yes VW Model: Transporter Model series: Transporter Model type: T5 4 Motion Type of engine: TDi Size of motor: 2.0 Brand of engine: CCHA Type description: 7HB, 7HJ Body: Bus From date: 01-09-2009 To date: 01-08-2015 Fuel: Diesel Approved: Yes VW Model: Transporter Model series: Transporter Model type: T5 4 Motion Type of engine: TDi Size of motor: 2.0 Brand of engine: CCHB Type description: 7HB, 7HJ, 7EB, 7EJ Body: Bus From date: 01-05-2010 To date: 01-08-2015 Fuel: Diesel Approved: Yes VW Model: Transporter Model series: Transporter Model type: T5 Type of engine: BiTDI Size of motor: 2.0 Brand of engine: CFCA Type description: 7HA, 7HH Body: Van From date: 01-09-2009 To date: 01-08-2015 Fuel: Diesel Approved: Yes VW Model: Transporter Model series: Transporter Model type: T5 Type of engine: BiTDI Size of motor: 2.0 Brand of engine: CFCA Type description: 7HB, 7HJ Body: Bus From date: 01-09-2009 To date: 01-08-2015 Fuel: Diesel Approved: Yes VW Model: Transporter Model series: Transporter Model type: T5 Type of engine: BiTDI Size of motor: 2.0 Brand of engine: CFCA Type description: 7JD, 7JE, 7JL, 7JY, 7JZ Body: Platform / Chassis From date: 01-09-2009 To date: 01-08-2015 Fuel: Diesel Approved: Yes VW Model: Transporter Model series: Transporter Model type: T5 Type of engine: TDi Size of motor: 2.0 Brand of engine: CAAA Type description: 7HA, 7HH Body: Van From date: 01-09-2009 To date: 01-08-2015 Fuel: Diesel Approved: Yes VW Model: Transporter Model series: Transporter Model type: T5 Type of engine: TDi Size of motor: 2.0 Brand of engine: CAAA Type description: 7HB, 7HJ Body: Bus From date: 01-09-2009 To date: 01-08-2015 Fuel: Diesel Approved: Yes VW Model: Transporter Model series: Transporter Model type: T5 Type of engine: TDi Size of motor: 2.0 Brand of engine: CAAA Type description: 7JD, 7JE, 7JL, 7JY, 7JZ Body: Platform / Chassis From date: 01-09-2009 To date: 01-08-2015 Fuel: Diesel Approved: Yes VW Model: Transporter Model series: Transporter Model type: T5 Type of engine: TDI Size of motor: 2.0 Brand of engine: CAAB Type description: 7HA, 7HH Body: Van From date: 01-09-2009 To date: 01-08-2015 Fuel: Diesel Approved: Yes VW Model: Transporter Model series: Transporter Model type: T5 Type of engine: TDi Size of motor: 2.0 Brand of engine: CAAB Type description: 7HB, 7HJ Body: Bus From date: 01-09-2009 To date: 01-08-2015 Fuel: Diesel Approved: Yes VW Model: Transporter Model series: Transporter Model type: T5 Type of engine: TDi Size of motor: 2.0 Brand of engine: CAAB Type description: 7JD, 7JE, 7JL, 7JY, 7JZ Body: Platform / Chassis From date: 01-09-2009 To date: 01-08-2015 Fuel: Diesel Approved: Yes VW Model: Transporter Model series: Transporter Model type: T5 Type of engine: TDi Size of motor: 2.0 Brand of engine: CAAC Type description: 7HA, 7HH Body: Van From date: 01-09-2009 To date: 01-08-2015 Fuel: Diesel Approved: Yes VW Model: Transporter Model series: Transporter Model type: T5 Type of engine: TDi Size of motor: 2.0 Brand of engine: CAAC Type description: 7HB, 7HJ Body: Bus From date: 01-09-2009 To date: 01-08-2015 Fuel: Diesel Approved: Yes VW Model: Transporter Model series: Transporter Model type: T5 Type of engine: TDi Size of motor: 2.0 Brand of engine: CAAC Type description: 7JD, 7JE, 7JL, 7JY, 7JZ Body: Platform / Chassis From date: 01-09-2009 To date: 01-08-2015 Fuel: Diesel Approved: Yes VW Model: Transporter Model series: Transporter Model type: T5 Type of engine: TDi Size of motor: 2.0 Brand of engine: CAAE Type description: 7HB, 7HJ, 7EB, 7EJ Body: Bus From date: 01-05-2010 To date: 01-08-2015 Fuel: Diesel Approved: Yes VW Model: Transporter Model series: Transporter Model type: T5 Type of engine: TDi Size of motor: 2.0 Brand of engine: CCHA Type description: 7HA, 7HH Body: Van From date: 01-09-2009 To date: 01-08-2015 Fuel: Diesel Approved: Yes VW Model: Transporter Model series: Transporter Model type: T5 Type of engine: TDi Size of motor: 2.0 Brand of engine: CCHA Type description: 7HB, 7HJ Body: Bus From date: 01-09-2009 To date: 01-08-2015 Fuel: Diesel Approved: Yes VW Model: Transporter Model series: Transporter Model type: T5 Type of engine: TDi Size of motor: 2.0 Brand of engine: CCHB Type description: 7HB, 7HJ, 7EB, 7EJ Body: Bus From date: 01-05-2010 To date: 01-08-2015 Fuel: Diesel Approved: Yes VW Series: Multivan V Model: 2.0 BiTDI 4motion Engine volume: 2.0 Engine type: CFCA Year: 09.09-08.15 VW Series: Passat (3C2) Model: 3.6 R36 4motion Engine volume: 3.6 Engine type: BWS Year: 04.07-07.10 VW Series: Passat CC (357) Model: 3.6 FSI 4Motion Engine volume: 3.6 Engine type: BWS Year: 08.08-05.10 VW Series: Passat (3C2) Model: 3.2 FSI 4m Ch.nr:3C.7.140.001> Engine volume: 3.2 Engine type: AXZ Year: 01.07-07.10 VW Series: Passat Variant (3C5) Model: 3.2 FSI 4m Ch.nr:3C.7.140 001> Engine volume: 3.2 Engine type: AXZ Year: 01.07-11.10 VW Series: Passat Variant (3C5) Model: 3.6 R36 4motion Engine volume: 3.6 Engine type: BWS Year: 04.07-11.10 VW Trucks & Vans Series: Crafter 30-35 Buss Model: 2.0 TDI Engine volume: 2.0 Engine type: CKTB Year: 05.11-07.13 VW Trucks & Vans Series: Crafter 30-35 Buss Model: 2.0 TDI Engine volume: 2.0 Engine type: CKTC Year: 05.11-07.13 VW Trucks & Vans Series: Crafter 30-35 Buss Model: 2.0 TDI Engine volume: 2.0 Engine type: CKUB Year: 07.11-07.13 VW Trucks & Vans Series: Crafter 30-50 Flak Model: 2.0 TDI Engine volume: 2.0 Engine type: CKTB Year: 05.11-07.13 VW Trucks & Vans Series: Crafter 30-50 Flak Model: 2.0 TDI Engine volume: 2.0 Engine type: CKTC Year: 05.11-07.13 VW Trucks & Vans Series: Crafter 30-50 Flak Model: 2.0 TDI Engine volume: 2.0 Engine type: CKUB Year: 07.11-07.13 VW Trucks & Vans Series: Multivan V Model: 2.0 TDI Engine volume: 2.0 Engine type: CAAB Year: 09.09- VW Trucks & Vans Series: Multivan V Model: 2.0 TDI Engine volume: 2.0 Engine type: CAAB Year: 09.09-08.15 VW Trucks & Vans Series: Multivan V Model: 2.0 TDI Engine volume: 2.0 Engine type: CAAC Year: 02.09- VW Trucks & Vans Series: Multivan VI Model: 2.0 TDI Engine volume: 2.0 Engine type: CAAB Year: 04.15- VW Trucks & Vans Series: Transporter V Buss Model: 2.0 BiTDI 4motion Engine volume: 2.0 Engine type: CFCA Year: 09.09- VW Trucks & Vans Series: Transporter V Buss Model: 2.0 BiTDI Engine volume: 2.0 Engine type: CFCA Year: 09.09- VW Trucks & Vans Series: Transporter V Buss Model: 2.0 TDI 4motion Engine volume: 2.0 Engine type: CAAC / CCHA Year: 09.09- VW Trucks & Vans Series: Transporter V Buss Model: 2.0 TDI Engine volume: 2.0 Engine type: CAAB Year: 09.09- VW Trucks & Vans Series: Transporter V Buss Model: 2.0 TDI Engine volume: 2.0 Engine type: CAAC / CCHA Year: 09.09- VW Trucks & Vans Series: Transporter V Flak Model: 2.0 BiTDI 4motion Engine volume: 2.0 Engine type: CFCA Year: 09.09- VW Trucks & Vans Series: Transporter V Flak Model: 2.0 BiTDI Engine volume: 2.0 Engine type: CFCA Year: 09.09- VW Trucks & Vans Series: Transporter V Flak Model: 2.0 TDI 4motion Engine volume: 2.0 Engine type: CAAC Year: 09.09- VW Trucks & Vans Series: Transporter V Flak Model: 2.0 TDI Engine volume: 2.0 Engine type: CAAA Year: 09.09- VW Trucks & Vans Series: Transporter V Flak Model: 2.0 TDI Engine volume: 2.0 Engine type: CAAB Year: 09.09- VW Trucks & Vans Series: Transporter V Flak Model: 2.0 TDI Engine volume: 2.0 Engine type: CAAC Year: 09.09- VW Trucks & Vans Series: Transporter V Skåp Model: 2.0 BiTDI 4motion Engine volume: 2.0 Engine type: CFCA Year: 09.09- VW Trucks & Vans Series: Transporter V Skåp Model: 2.0 BiTDI Engine volume: 2.0 Engine type: CFCA Year: 09.09- VW Trucks & Vans Series: Transporter V Skåp Model: 2.0 TDI 4motion Engine volume: 2.0 Engine type: CAAC / CCHA Year: 09.09- VW Trucks & Vans Series: Transporter V Skåp Model: 2.0 TDI Engine volume: 2.0 Engine type: CAAC / CCHA Year: 09.09- 1 / 20
-
