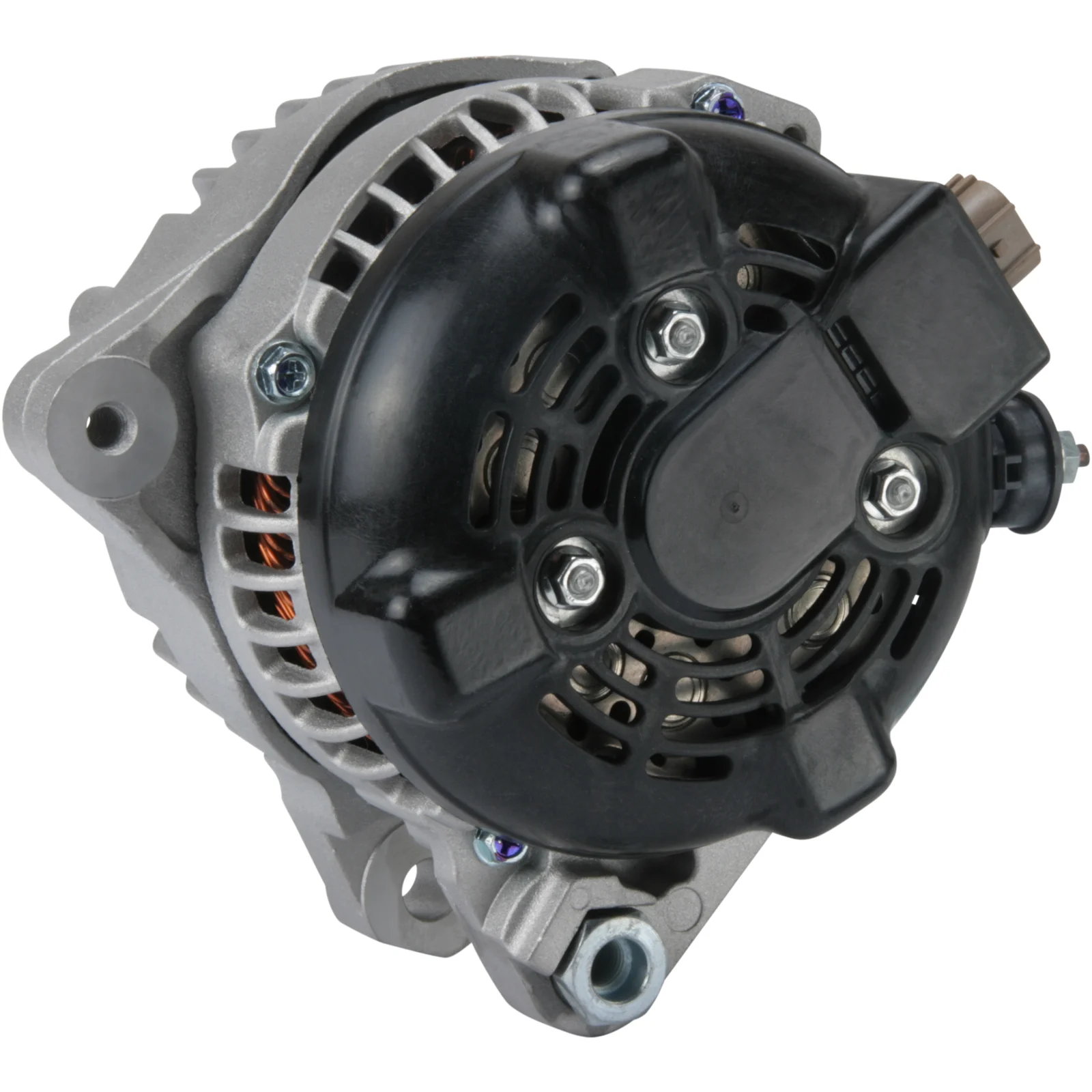

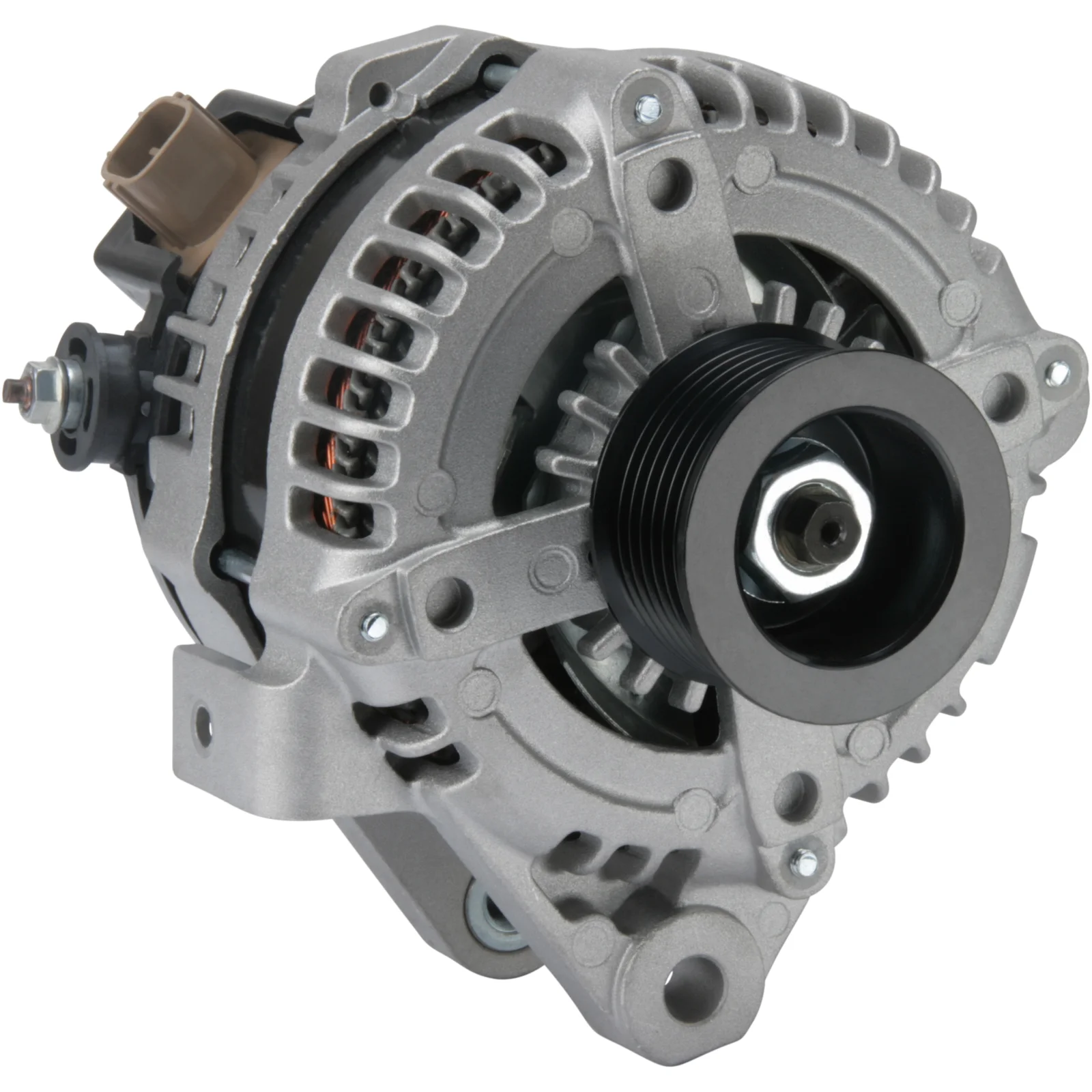

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032114273

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 100, Rotation: CW, Monteringsbeslag fordeler: 46,50

Beskrivelse

Toyota Generator 12V-100A 12V - 100A, 7gr. (S, IG, L, M/DF) 7gr. (S-IG-L-M) Til Yourex produktordre 90-555-2826

Spænding: 14
Ampere: 100
Remskive forskydning: 36,00
Bredde/holderarm: 17,50
Monteringsbeslag forskydning: 46,50
Beslagshul: 11,00
Bæltejusteringsbeslag hul position: 15
Bæltejusteringsbeslag hul 1: M8
Remskive diameter: 60,00
Ribber/remskive: 7
Radius: 83,00
Radius 2: 86,00
B+: M6
Position/B+ i min.: 15
D+ Størrelse: Stikkontakt
Rotation: CW
Stik no.: PL78
Samlet længde mm: 161,00
Remskive: SP
Regulator type: IR

Filer

Specifikation

B+ M6
Mount. bracket dist. 46.50
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 15
Plug no. PL78
Bracket hole 11.00
Position/B+ in min. 15
Pulley SP
Pulley dia. 60.00
Pulley dist. 36.00
Radius 83.00
D+ Size Plug
Radius 2 86.00
Regulator type IR
Rotation CW
Grooves/pulley 7
Voltage 14
Total length 161.00 mm
Width/holder arm 17.50
Amp 100

  • OEM
    F032114273, ja1613ir, 1986A01687, 27060-0H070, 27060-0H080, 27060-28070, 27060-28160, 27060-28260, 102211-0750, 104210-3780, 114273

  • Konkurrentreferens
    A6055, A6603S, DAN952, DENDAN952, DRA0468, F042205237, J5112149, 8EL738051-001, 11088, 209421, 209421A, 401613RI, 440518, 12060826, 063377435, 0986082060, 063377435010

  • Bilmärken
    Toyota

  • NormaliseratArtNr
    a6055, a6603s, dan952, dendan952, dra0468, f032114273, f042205237, j5112149, ja1613ir, 8el738051001, 1986a01687, 11088, 114273, 209421, 209421a, 270600h070, 270600h080, 401613ri, 440518, 12060826, 063377435, 0986082060, 1022110750, 1042103780, 2706028070, 2706028160, 2706028260, 063377435010

  • Passar modeller
    Toyota Model: Avensis Model series: Avensis Model type: Verso GLS Type of engine: VVTi Size of motor: 2.4 Brand of engine: 2AZ-FE Type description: AC_ Body: MPV From date: 01-08-2001 To date: 01-08-2007 Fuel: Gasoline Approved: Yes
    Toyota Model: Avensis Model series: Avensis Model type: Verso Type of engine: VVTi Size of motor: 2.0 Brand of engine: 1AZ-FE Type description: AC_ Body: MPV From date: 01-08-2001 To date: 01-11-2009 Fuel: Gasoline Approved: Yes
    Toyota Model: Camry Model series: Camry Size of motor: 2.4 Brand of engine: 2AZ-FE Type description: _V3_ Body: Saloon From date: 01-03-2002 To date: 01-11-2006 Fuel: Petrol Approved: Yes
    Toyota Model: Previa Model series: Previa Type of engine: 16V Size of motor: 2.4 Brand of engine: 2AZ-FE Type description: ACR3 Body: MPV From date: 01-02-2000 To date: 01-02-2006 Fuel: Gasoline Approved: Yes
    Toyota Model: RAV 4 Model series: RAV 4 Model type: 4WD Type of engine: i 16V Size of motor: 2.0 Brand of engine: 1AZ-FE Type description: XA2 From date: 01-05-2000 To date: 01-11-2005 Fuel: Gasoline Approved: Yes
    Toyota Model: RAV 4 Model series: RAV 4 Type of engine: VVTi Size of motor: 2.0 Brand of engine: 1AZ-FE Type description: ACA_, ACE_ From date: 01-02-2006 To date: 01-06-2013 Fuel: Gasoline Approved: Yes
    Toyota Series: Avensis Verso Model: 2.0 VVT-i Engine volume: 2.0 Engine type: 1AZ-FE Year: 08.01-
    Toyota Series: Previa II (ACR3_) Model: 2.4 16V Engine volume: 2.4 Engine type: 2AZ-FE Year: 08.00-01.06
    Toyota Series: RAV 4 II Model: 2.0 VVT-i 4WD Engine volume: 2.0 Engine type: 1AZ-FE Year: 07.03-11.05
    Toyota Series: RAV 4 III (ACA_) Model: 2.0 4WD Engine volume: 2.0 Engine type: 1AZ-FE Year: 11.05-11.12
    1 / 2
  • Beskrivelse
    Toyota Generator 12V-100A 12V - 100A, 7gr. (S, IG, L, M/DF) 7gr. (S-IG-L-M) Til Yourex produktordre 90-555-2826

    Spænding: 14
    Ampere: 100
    Remskive forskydning: 36,00
    Bredde/holderarm: 17,50
    Monteringsbeslag forskydning: 46,50
    Beslagshul: 11,00
    Bæltejusteringsbeslag hul position: 15
    Bæltejusteringsbeslag hul 1: M8
    Remskive diameter: 60,00
    Ribber/remskive: 7
    Radius: 83,00
    Radius 2: 86,00
    B+: M6
    Position/B+ i min.: 15
    D+ Størrelse: Stikkontakt
    Rotation: CW
    Stik no.: PL78
    Samlet længde mm: 161,00
    Remskive: SP
    Regulator type: IR

    Filer

  • Specifikation
    B+ M6
    Mount. bracket dist. 46.50
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 15
    Plug no. PL78
    Bracket hole 11.00
    Position/B+ in min. 15
    Pulley SP
    Pulley dia. 60.00
    Pulley dist. 36.00
    Radius 83.00
    D+ Size Plug
    Radius 2 86.00
    Regulator type IR
    Rotation CW
    Grooves/pulley 7
    Voltage 14
    Total length 161.00 mm
    Width/holder arm 17.50
    Amp 100
  • Køretøjsmatchning

    • OEM
      F032114273, ja1613ir, 1986A01687, 27060-0H070, 27060-0H080, 27060-28070, 27060-28160, 27060-28260, 102211-0750, 104210-3780, 114273

    • Konkurrentreferens
      A6055, A6603S, DAN952, DENDAN952, DRA0468, F042205237, J5112149, 8EL738051-001, 11088, 209421, 209421A, 401613RI, 440518, 12060826, 063377435, 0986082060, 063377435010

    • Bilmärken
      Toyota

    • NormaliseratArtNr
      a6055, a6603s, dan952, dendan952, dra0468, f032114273, f042205237, j5112149, ja1613ir, 8el738051001, 1986a01687, 11088, 114273, 209421, 209421a, 270600h070, 270600h080, 401613ri, 440518, 12060826, 063377435, 0986082060, 1022110750, 1042103780, 2706028070, 2706028160, 2706028260, 063377435010

    • Passar modeller
      Toyota Model: Avensis Model series: Avensis Model type: Verso GLS Type of engine: VVTi Size of motor: 2.4 Brand of engine: 2AZ-FE Type description: AC_ Body: MPV From date: 01-08-2001 To date: 01-08-2007 Fuel: Gasoline Approved: Yes
      Toyota Model: Avensis Model series: Avensis Model type: Verso Type of engine: VVTi Size of motor: 2.0 Brand of engine: 1AZ-FE Type description: AC_ Body: MPV From date: 01-08-2001 To date: 01-11-2009 Fuel: Gasoline Approved: Yes
      Toyota Model: Camry Model series: Camry Size of motor: 2.4 Brand of engine: 2AZ-FE Type description: _V3_ Body: Saloon From date: 01-03-2002 To date: 01-11-2006 Fuel: Petrol Approved: Yes
      Toyota Model: Previa Model series: Previa Type of engine: 16V Size of motor: 2.4 Brand of engine: 2AZ-FE Type description: ACR3 Body: MPV From date: 01-02-2000 To date: 01-02-2006 Fuel: Gasoline Approved: Yes
      Toyota Model: RAV 4 Model series: RAV 4 Model type: 4WD Type of engine: i 16V Size of motor: 2.0 Brand of engine: 1AZ-FE Type description: XA2 From date: 01-05-2000 To date: 01-11-2005 Fuel: Gasoline Approved: Yes
      Toyota Model: RAV 4 Model series: RAV 4 Type of engine: VVTi Size of motor: 2.0 Brand of engine: 1AZ-FE Type description: ACA_, ACE_ From date: 01-02-2006 To date: 01-06-2013 Fuel: Gasoline Approved: Yes
      Toyota Series: Avensis Verso Model: 2.0 VVT-i Engine volume: 2.0 Engine type: 1AZ-FE Year: 08.01-
      Toyota Series: Previa II (ACR3_) Model: 2.4 16V Engine volume: 2.4 Engine type: 2AZ-FE Year: 08.00-01.06
      Toyota Series: RAV 4 II Model: 2.0 VVT-i 4WD Engine volume: 2.0 Engine type: 1AZ-FE Year: 07.03-11.05
      Toyota Series: RAV 4 III (ACA_) Model: 2.0 4WD Engine volume: 2.0 Engine type: 1AZ-FE Year: 11.05-11.12
