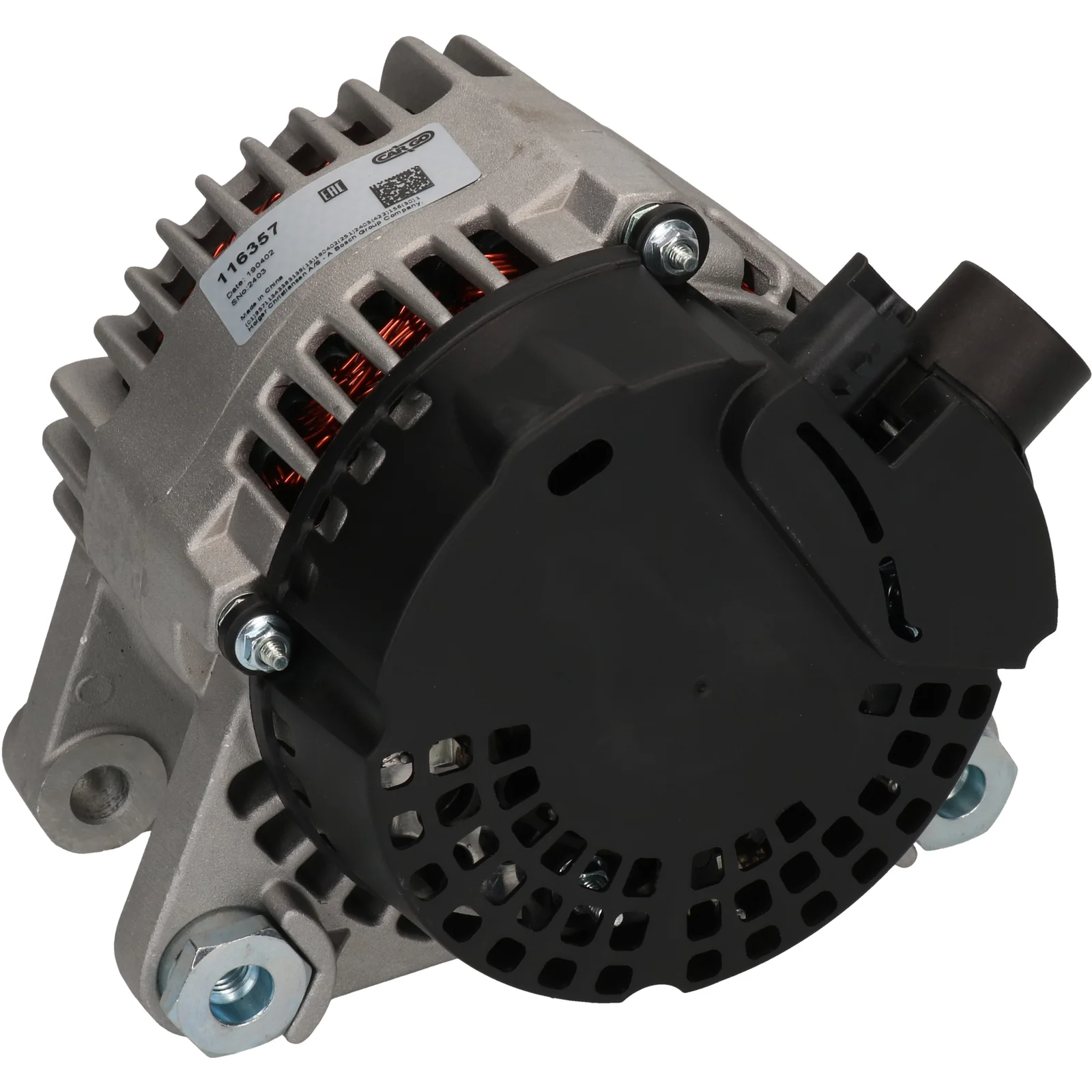

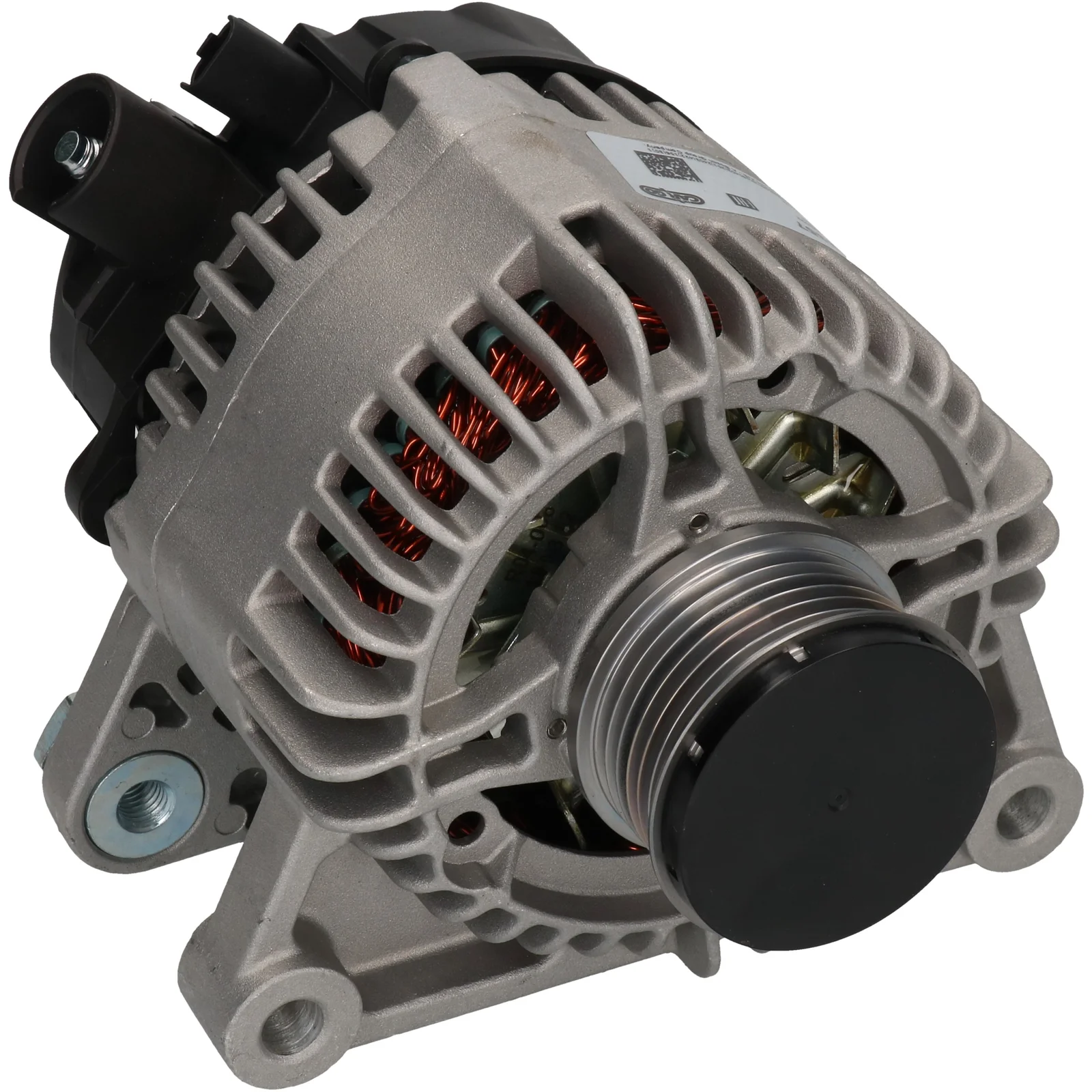

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032116357

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 80, Rotation: CW, Monteringsbeslag fordeler: 45.80

Beskrivelse

Spænding: 14
Ampere: 80
Hjuldist.: 42,40
Bredde/bærehåndtag: 21,00
Monteringsbeslag dist.: 45,80
Beslagsløjfe: 10,50
Bæltejustering beslag hul pos.: 47
Bæltejustering beslag hul 1: 10,50
Hjul diameter: 54,00
Riller/hjul: 6
Radius: 90,00
Radius 2: 90,00
B+: M8
Position/B+ i min.: 60
Rotation: CW
Stik nr.: PL132
Total længde mm: 178,00
Terminaltype: COM
Kommunikation: LIN
Hjul: SP/FW
Fans: IF
Regulator type: IR
Bemærkninger: Denne generator har en COM-terminal på regulatoren. Det anbefales at bruge OEM-nummeret til at tjekke egnethed, før der bestilles.

Filer

Specifikation

B+ M8
Communication LIN
Mount. bracket dist. 45.80
Belt. adj. bracket hole 1 10.50
Belt. adj. brackethole pos. 47
Plug no. PL132
Bracket hole 10.50
Position/B+ in min. 60
Pulley SP/FW
Pulley dia. 54.00
Pulley dist. 42.40
Radius 90.00
Radius 2 90.00
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Fan IF
Grooves/pulley 6
Terminal type COM
Voltage 14
Total length 178.00 mm
Width/holder arm 21.00
Amp 80

  • OEM
    F032116357, 101210-1720, 101210-1721, 63377566, 1608066080, 1610048280, 9606007480, 9688237380, 9806007480

  • Konkurrentreferens
    A6124, A6124(DENSO), CAL40368, DAN1071, DRA1104, 8EL011712-911, 28-6958, 225.564.090, 20631N, 20631N-OS, 210946, 210946A, 440691, 554330RI, 12090697, 0986083390, 063377566010

  • NormaliseratArtNr
    a6124, a6124denso, cal40368, dan1071, dra1104, f032116357, 8el011712911, 20631n, 20631nos, 210946, 210946a, 286958, 440691, 554330ri, 12090697, 63377566, 225564090, 0986083390, 1012101720, 1012101721, 1608066080, 1610048280, 9606007480, 9688237380, 9806007480, 063377566010

  • Passar modeller
    Citroen Model: C-Elysee Model series: C-Elysee Type of engine: VTi Size of motor: 1.2 Brand of engine: HMY (EB2M) From date: 01-11-2012 Fuel: Gasoline Approved: Yes
    Citroen Model: C3 Model series: C3 Model type: 68 Type of engine: VTi Size of motor: 1.0 Brand of engine: ZMZ (EB0) Body: Hatchback From date: 01-08-2012 Fuel: Gasoline Approved: Yes
    Citroen Model: C3 Model series: C3 Model type: 82 Type of engine: VTi Size of motor: 1.2 Brand of engine: HMZ (EB2F) Body: Hatchback From date: 01-06-2012 To date: 01-09-2016 Fuel: Gasoline Approved: Yes
    Citroen Model: C3 Model series: C3 Model type: Picasso Type of engine: THP Size of motor: 1.2 Brand of engine: HNZ (EB2DT) Body: MPV From date: 01-01-2015 Fuel: Gasoline Approved: Yes
    Citroen Model: C4 Model series: C4 Cactus Model type: Puretech 82 Size of motor: 1.2 Brand of engine: HMZ (EB2) Type description: 0B_, 0P_ Body: Box Body / Hatchback From date: 01-05-2019 Fuel: Petrol Approved: Yes
    Citroen Model: DS Model series: DS3 Model type: 82 Type of engine: VTi Size of motor: 1.2 Brand of engine: HMZ (EB2F) Body: Convertible From date: 01-01-2013 To date: 01-07-2015 Fuel: Gasoline Approved: Yes
    Citroen Model: DS Model series: DS3 Model type: 82 Type of engine: VTi Size of motor: 1.2 Brand of engine: HMZ (EB2F) Body: Hatchback From date: 01-01-2013 To date: 01-03-2015 Fuel: Gasoline Approved: Yes
    DS Model: DS 3 Model series: Ds 3 Convertible Model type: THP 110 Size of motor: 1.2 Brand of engine: HNP (EB2ADT), HNZ (EB2DT) Type description: SB_ Body: Convertible Fuel: Petrol Approved: Yes
    DS Model: DS 3 Model series: DS 3 Model type: THP 110 / PureTech 110 (S Size of motor: 1.2 Brand of engine: HNP (EB2ADT), HNZ (EB2DT) Type description: SA_ Body: Hatchback Fuel: Petrol Approved: Yes
    DS Model: DS 3 Model series: DS 3 Model type: VTi 82 (SAHMZ6) Size of motor: 1.2 Brand of engine: HMZ (EB2), HMZ (EB2F) Type description: SA_ Body: Hatchback Fuel: Petrol Approved: Yes
    DS Model: DS 4 Model series: DS 4 / DS 4 Crossback Model type: THP 130 (NXHNYM) Size of motor: 1.2 Brand of engine: HNY (EB2DTS) Type description: NX_ Body: Hatchback Fuel: Petrol Approved: Yes
    Peugeot Model: 2008 Model series: 2008 Model type: 110 Type of engine: THP Size of motor: 1.2 Brand of engine: HNZ (EB2DT) Body: Estate From date: 01-01-2015 Fuel: Gasoline Approved: Yes
    Peugeot Model: 2008 Model series: 2008 Model type: 130 Type of engine: THP Size of motor: 1.2 Brand of engine: HNZ (EB2DTS) Body: Estate From date: 01-01-2015 Fuel: Gasoline Approved: Yes
    Peugeot Model: 2008 Model series: 2008 Model type: PureTech 130 Size of motor: 1.2 Brand of engine: HNY (EB2DTS),HNS (EB2ADTS) Type description: CU_ Body: Box Body / Estate From date: 01-01-2018 Fuel: Petrol Approved: Yes
    Peugeot Model: 2008 Model series: 2008 Type of engine: VTi Size of motor: 1.2 Brand of engine: HMZ (EB2F) Body: Estate From date: 01-03-2013 To date: 01-12-2018 Fuel: Gasoline Approved: Yes
    Peugeot Model: 208 Model series: 208 Model type: Puretech 82 Type of engine: VTI Size of motor: 1.2 Brand of engine: HMZ (EB2F), HMZ (EB2), HMR (EB2FA) Type description: CR_ Body: Box From date: 01-06-2015 Fuel: Petrol Approved: Yes
    Peugeot Model: 208 Model series: 208 Size of motor: 1.0 Brand of engine: ZMZ (EB0) Body: Hatchback From date: 01-03-2012 Fuel: Gasoline Approved: Yes
    Peugeot Model: 208 Model series: 208 Size of motor: 1.2 Brand of engine: HMP (EB2FB) Body: Hatchback From date: 01-08-2016 Fuel: Gasoline Approved: Yes
    Peugeot Model: 208 Model series: 208 Size of motor: 1.2 Brand of engine: HMZ (EB2F) Body: Hatchback From date: 01-03-2012 Fuel: Gasoline Approved: Yes
    Peugeot Model: 208 Model series: 208 Type of engine: GPL Size of motor: 1.2 Brand of engine: HMZ (EB2F) Body: Hatchback From date: 01-06-2015 Fuel: Gasoline Approved: Yes
    Peugeot Model: 301 Model series: 301 Model type: 72 Type of engine: VTi Size of motor: 1.2 Brand of engine: HMY (EB2M) From date: 01-11-2012 Fuel: Gasoline Approved: Yes
    Peugeot Model: 301 Model series: 301 Model type: 82 Type of engine: VTi Size of motor: 1.2 Brand of engine: HMZ (EB2F) From date: 01-12-2014 Fuel: Gasoline Approved: Yes
    1 / 5
