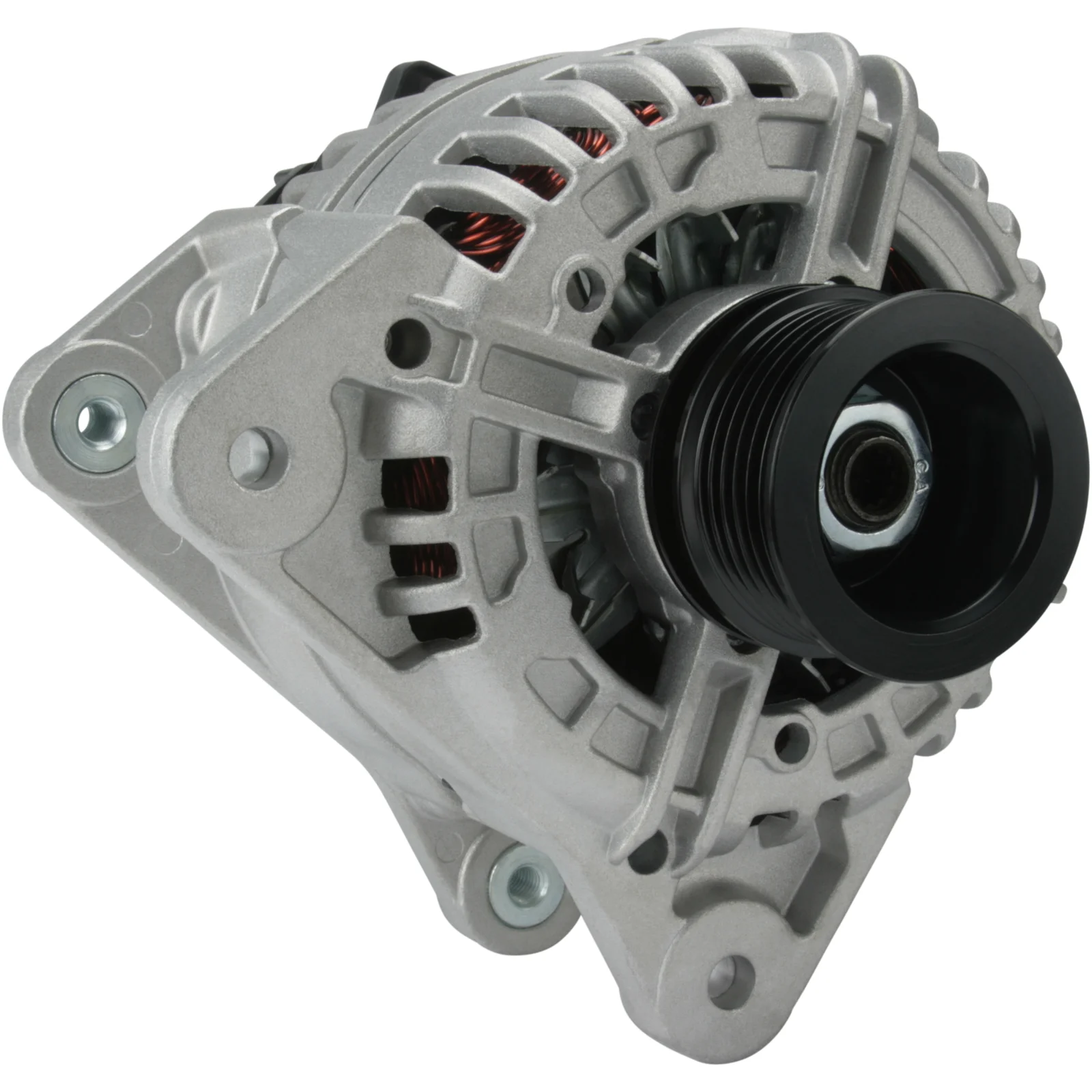

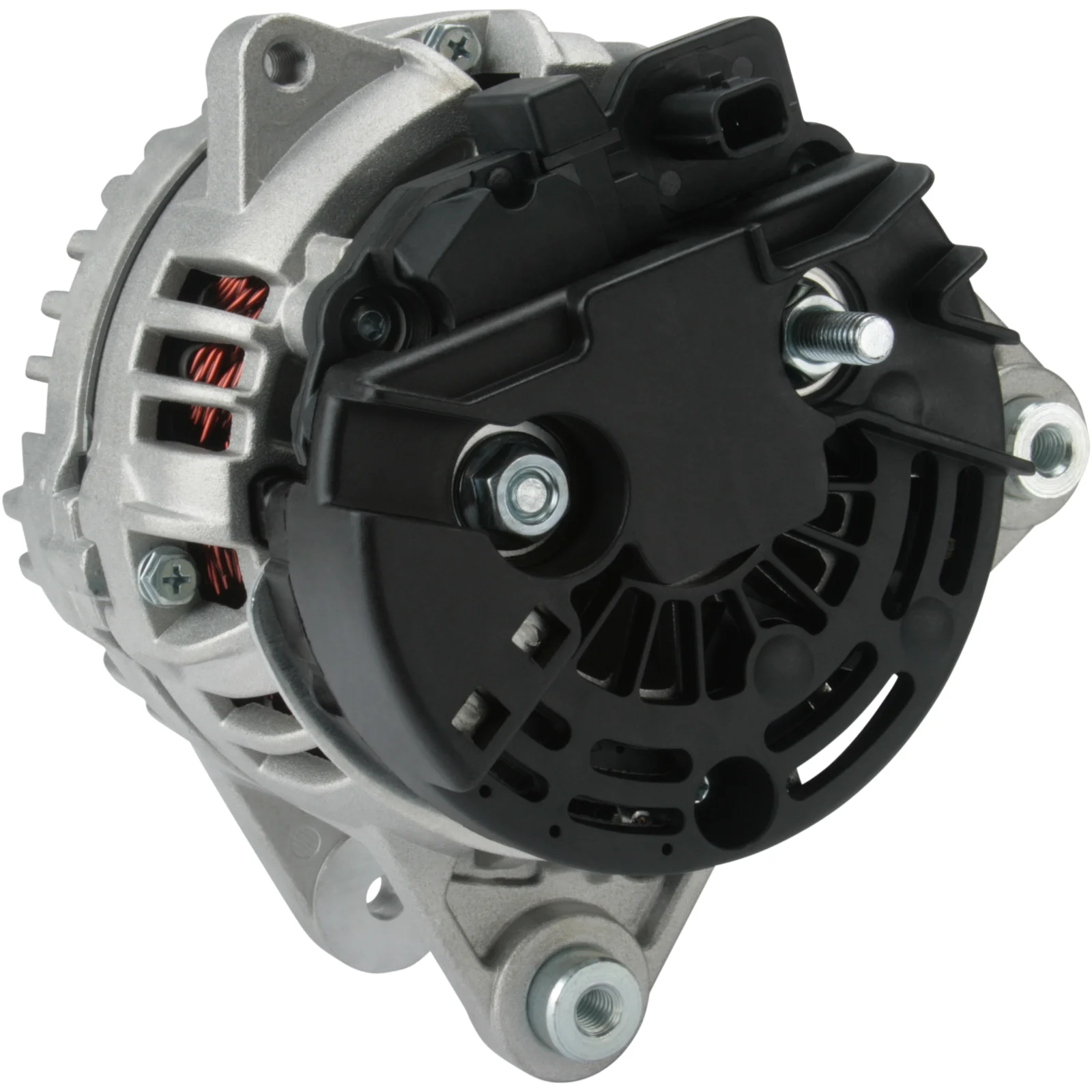

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032115382

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, A: 120, Rotation: CW, Monteringsbeslag afstand: 60,50

Beskrivelse

Spænding: 14
Amp: 120
Remskive fordeling: 38,50
Bredde/holderarm: 14,00
Monteringsbeslag afstand: 60,50
Beslagshul: 8,50
Bæltejustering beslaghul position: 15
Bæltejustering beslaghul 1: 8,50
Remskive diameter: 55,00
Riller/remskive: 6
Radius: 90,00
Radius 2: 90,00
B+: M8
Position/B+ i min.: 5
Rotation: CW
Stik nr.: PL124
Total længde mm: 190,00
Terminaltype: COM
Kommunikation: BSS
Remskive: SP
Regulator type: IR
Produktinfo: BN
Bemærkninger: Denne generator har en COM-terminal på regulatoren. Det anbefales, at OEM-nummeret bruges til at kontrollere egnethed, før der bestilles.

Filer

Specifikation

B+ M8
Communication BSS
Mount. bracket dist. 60.50
Belt. adj. bracket hole 1 8.50
Belt. adj. brackethole pos. 15
Plug no. PL124
Bracket hole 8.50
Position/B+ in min. 5
Prod. info BN
Pulley SP
Pulley dia. 55.00
Pulley dist. 38.50
Radius 90.00
Radius 2 90.00
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Grooves/pulley 6
Terminal type COM
Voltage 14
Total length 190.00 mm
Width/holder arm 14.00
Amp 120

  • OEM
    F032115382, 1887ir, 1986A00832, 0124425034, 0124425070, 0124425110, 8200323137, 8200660025

  • Konkurrentreferens
    A0278, CAL10346, DRA0361, ia1435, LRA03249, 8EL012426-311, 8EL738211-651, 28-5861, 230.343.1202, 23261N, 112640, 209098, 209098A, 301887RI, 440778, 9212279, 12090295, 32425034, 0986080990, 944390904580

  • NormaliseratArtNr
    a0278, cal10346, dra0361, f032115382, ia1435, lra03249, 8el012426311, 8el738211651, 1887ir, 1986a00832, 23261n, 112640, 209098, 209098a, 285861, 301887ri, 440778, 9212279, 12090295, 32425034, 0124425034, 0124425070, 0124425110, 0986080990, 2303431202, 8200323137, 8200660025, 944390904580

  • Passar modeller
    Renault Model: Clio Model series: Clio Size of motor: 1.6 Type description: BR0/1, CR0/1 Body: Hatchback From date: 01-09-2005 To date: 01-12-2010 Fuel: Petrol Approved: Yes
    Renault Model: Clio Model series: Clio Type of engine: 16V Size of motor: 1.4 Brand of engine: K4J780 Type description: BR0/1, CR0/1 Body: Hatchback From date: 01-06-2005 Fuel: Gasoline Approved: Yes
    Renault Model: Clio Model series: Clio Type of engine: 16V Size of motor: 1.4 Brand of engine: K4J780 Type description: KR0/1_ Body: Estate From date: 01-02-2010 Fuel: Gasoline Approved: Yes Manufacture type: Grandtour
    Renault Model: Clio Model series: Clio Type of engine: 16V Size of motor: 1.6 Brand of engine: K4M800 Type description: BR0/1, CR0/1 Body: Hatchback From date: 01-06-2005 Fuel: Gasoline Approved: Yes
    Renault Model: Clio Model series: Clio Type of engine: 16V Size of motor: 1.6 Brand of engine: K4M800 Type description: KR0/1_ Body: Estate From date: 01-02-2008 Fuel: Gasoline Approved: Yes Manufacture type: Grandtour
    Renault Model: Clio Model series: Clio Type of engine: 16V Size of motor: 1.6 Brand of engine: K4M801 Type description: BR0/1, CR0/1 Body: Hatchback From date: 01-06-2005 Fuel: Gasoline Approved: Yes
    Renault Model: Clio Model series: Clio Type of engine: 16V Size of motor: 1.6 Brand of engine: K4M801 Type description: KR0/1_ Body: Estate From date: 01-02-2008 Fuel: Gasoline Approved: Yes Manufacture type: Grandtour
    Renault Model: Clio Model series: Clio Type of engine: 16V Size of motor: 1.6 Brand of engine: K4M804 Type description: BR0/1, CR0/1 Body: Hatchback From date: 01-06-2005 To date: 01-10-2007 Fuel: Gasoline Approved: Yes
    Renault Model: Fluence Model series: Fluence Type of engine: 16V Size of motor: 1.6 Brand of engine: K4M839 From date: 01-02-2010 Fuel: Gasoline Approved: Yes
    Renault Model: Laguna Model series: Laguna Type of engine: 16V Size of motor: 1.6 Brand of engine: K4M824 Type description: BT0/1 Body: Hatchback From date: 01-10-2007 To date: 01-12-2015 Fuel: Gasoline Approved: Yes
    Renault Model: Laguna Model series: Laguna Type of engine: 16V Size of motor: 1.6 Brand of engine: K4M824 Type description: KT0/1 Body: Estate From date: 01-10-2007 To date: 01-12-2015 Fuel: Gasoline Approved: Yes Manufacture type: GRANDTOUR
    Renault Model: Megane Model series: Megane CC Type of engine: 16V Size of motor: 1.6 Brand of engine: K4M858 Type description: EZ1Y Body: Convertible From date: 01-06-2010 Fuel: Gasoline Approved: Yes
    Renault Model: Megane Model series: Megane Grandtour Model type: Flex Size of motor: 1.6 Brand of engine: K4M768 Type description: KM0/1_ Body: Estate From date: 01-11-2006 To date: 01-08-2012 Fuel: Petrol/Ethanol Approved: Yes Manufacture type: Grandtour
    Renault Model: Megane Model series: Megane Size of motor: 1.6 Brand of engine: K4M762 Type description: LM0/1_ From date: 01-05-2005 Fuel: Gasoline Approved: Yes
    Renault Model: Megane Model series: Megane Type of engine: 16V Bifuel Size of motor: 1.6 Brand of engine: K4M866 Type description: BZ0_ Body: Hatchback From date: 01-11-2008 To date: 01-08-2015 Fuel: Diesel Approved: Yes
    Renault Model: Megane Model series: Megane Type of engine: 16V Bifuel Size of motor: 1.6 Brand of engine: K4M866 Type description: DZ0_ Body: Coupe From date: 01-11-2008 Fuel: Diesel Approved: Yes
    Renault Model: Megane Model series: Megane Type of engine: 16V Bifuel Size of motor: 1.6 Brand of engine: K4M866 Type description: KZ0/1 Body: Estate From date: 01-11-2008 Fuel: Diesel Approved: Yes Manufacture type: Kombi
    Renault Model: Megane Model series: Megane Type of engine: 16V Size of motor: 1.6 Brand of engine: K4M858 Body: Coupe From date: 01-11-2008 Fuel: Gasoline Approved: Yes
    Renault Model: Megane Model series: Megane Type of engine: 16V Size of motor: 1.6 Brand of engine: K4M858 Body: Hatchback From date: 01-11-2008 Fuel: Gasoline Approved: Yes
    Renault Model: Megane Model series: Megane Type of engine: 16V Size of motor: 1.6 Brand of engine: K4M858 Type description: BZ0/1_ Body: Hatchback From date: 01-05-2009 To date: 01-08-2015 Fuel: LPG Approved: Yes
    Renault Model: Megane Model series: Megane Type of engine: 16V Size of motor: 1.6 Brand of engine: K4M858 Type description: KZ0/1 Body: Estate From date: 01-05-2009 Fuel: Gasoline Approved: Yes Manufacture type: Kombi
    Renault Model: Megane Model series: Megane Type of engine: 16V Size of motor: 1.6 Brand of engine: K4M866 Body: Coupe From date: 01-11-2008 Fuel: Gasoline Approved: Yes
    Renault Model: Megane Model series: Megane Type of engine: 16V Size of motor: 1.6 Brand of engine: K4M866 Body: Hatchback From date: 01-11-2008 Fuel: Gasoline Approved: Yes
    Renault Model: Megane Model series: Megane Type of engine: 16V Size of motor: 1.6 Brand of engine: K4M866 Type description: KZ0/1 Body: Estate From date: 01-05-2009 Fuel: Gasoline Approved: Yes Manufacture type: Kombi
    Renault Model: Megane Model series: Megane Type of engine: 16V Size of motor: 1.6 Type description: BZ0/1_ Body: Hatchback From date: 01-01-2010 To date: 01-08-2015 Fuel: Gasoline Approved: Yes
    Renault Model: Modus Model series: Modus Size of motor: 1.4 Brand of engine: K4J 770 Body: Hatchback From date: 01-12-2004 Fuel: Gasoline Approved: Yes
    Renault Model: Modus Model series: Modus Size of motor: 1.4 Brand of engine: K4J 780 Body: Hatchback From date: 01-12-2004 Fuel: Gasoline Approved: Yes
    Renault Model: Modus Model series: Modus Size of motor: 1.6 Brand of engine: K4M790 Body: Hatchback From date: 01-12-2004 Fuel: Gasoline Approved: Yes
    Renault Model: Modus Model series: Modus Size of motor: 1.6 Brand of engine: K4M800 Body: Hatchback From date: 01-12-2004 Fuel: Gasoline Approved: Yes
    Renault Model: Modus Model series: Modus Size of motor: 1.6 Brand of engine: K4M801 Body: Hatchback From date: 01-12-2004 Fuel: Gasoline Approved: Yes
    Renault Model: Modus Model series: Modus Type of engine: i 16V Size of motor: 1.6 Brand of engine: K4M791 Body: Hatchback From date: 01-12-2004 Fuel: Gasoline Approved: Yes
    Renault Model: Modus Model series: Modus Type of engine: i 16V Size of motor: 1.6 Brand of engine: K4M792 Body: Hatchback From date: 01-12-2004 Fuel: Gasoline Approved: Yes
    Renault Model: Modus Model series: Modus Type of engine: i 16V Size of motor: 1.6 Brand of engine: K4M794 Body: Hatchback From date: 01-12-2004 Fuel: Gasoline Approved: Yes
    Renault Model: Sc nic Model series: Grand Sc nic Type of engine: 16V Size of motor: 1.6 Brand of engine: K4M858 Type description: JZ0/1_ Body: MPV From date: 01-02-2009 Fuel: Gasoline Approved: Yes
    Renault Model: Sc nic Model series: Grand Sc nic Type of engine: Flexfuel Size of motor: 1.6 Brand of engine: K4M866 Type description: JZ0/1_ Body: MPV From date: 01-02-2009 Fuel: Diesel Approved: Yes
    Renault Model: Sc nic Model series: Sc nic Size of motor: 1.6 Brand of engine: K4M866 Type description: JZ0/1_ Body: MPV From date: 01-02-2009 Fuel: Bi-Fuel Approved: Yes
    Renault Model: Sc nic Model series: Sc nic Type of engine: 16V Size of motor: 1.6 Brand of engine: K4M858 Body: MPV From date: 01-02-2009 Fuel: Gasoline Approved: Yes
    Renault Model: Scenic Model series: Scenic Model type: VVT Size of motor: 1.6 Brand of engine: K4M858 Type description: JZ0/1_ Body: Van From date: 01-01-2013 Fuel: Petrol Approved: Yes
    1 / 8
  • Beskrivelse
    Spænding: 14
    Amp: 120
    Remskive fordeling: 38,50
    Bredde/holderarm: 14,00
    Monteringsbeslag afstand: 60,50
    Beslagshul: 8,50
    Bæltejustering beslaghul position: 15
    Bæltejustering beslaghul 1: 8,50
    Remskive diameter: 55,00
    Riller/remskive: 6
    Radius: 90,00
    Radius 2: 90,00
    B+: M8
    Position/B+ i min.: 5
    Rotation: CW
    Stik nr.: PL124
    Total længde mm: 190,00
    Terminaltype: COM
    Kommunikation: BSS
    Remskive: SP
    Regulator type: IR
    Produktinfo: BN
    Bemærkninger: Denne generator har en COM-terminal på regulatoren. Det anbefales, at OEM-nummeret bruges til at kontrollere egnethed, før der bestilles.

    Filer

  • Specifikation
    B+ M8
    Communication BSS
    Mount. bracket dist. 60.50
    Belt. adj. bracket hole 1 8.50
    Belt. adj. brackethole pos. 15
    Plug no. PL124
    Bracket hole 8.50
    Position/B+ in min. 5
    Prod. info BN
    Pulley SP
    Pulley dia. 55.00
    Pulley dist. 38.50
    Radius 90.00
    Radius 2 90.00
    Regulator type IR
    Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
    Rotation CW
    Grooves/pulley 6
    Terminal type COM
    Voltage 14
    Total length 190.00 mm
    Width/holder arm 14.00
    Amp 120
  • Køretøjsmatchning

    • OEM
      F032115382, 1887ir, 1986A00832, 0124425034, 0124425070, 0124425110, 8200323137, 8200660025

    • Konkurrentreferens
      A0278, CAL10346, DRA0361, ia1435, LRA03249, 8EL012426-311, 8EL738211-651, 28-5861, 230.343.1202, 23261N, 112640, 209098, 209098A, 301887RI, 440778, 9212279, 12090295, 32425034, 0986080990, 944390904580

    • NormaliseratArtNr
      a0278, cal10346, dra0361, f032115382, ia1435, lra03249, 8el012426311, 8el738211651, 1887ir, 1986a00832, 23261n, 112640, 209098, 209098a, 285861, 301887ri, 440778, 9212279, 12090295, 32425034, 0124425034, 0124425070, 0124425110, 0986080990, 2303431202, 8200323137, 8200660025, 944390904580

    • Passar modeller
      Renault Model: Clio Model series: Clio Size of motor: 1.6 Type description: BR0/1, CR0/1 Body: Hatchback From date: 01-09-2005 To date: 01-12-2010 Fuel: Petrol Approved: Yes
      Renault Model: Clio Model series: Clio Type of engine: 16V Size of motor: 1.4 Brand of engine: K4J780 Type description: BR0/1, CR0/1 Body: Hatchback From date: 01-06-2005 Fuel: Gasoline Approved: Yes
      Renault Model: Clio Model series: Clio Type of engine: 16V Size of motor: 1.4 Brand of engine: K4J780 Type description: KR0/1_ Body: Estate From date: 01-02-2010 Fuel: Gasoline Approved: Yes Manufacture type: Grandtour
      Renault Model: Clio Model series: Clio Type of engine: 16V Size of motor: 1.6 Brand of engine: K4M800 Type description: BR0/1, CR0/1 Body: Hatchback From date: 01-06-2005 Fuel: Gasoline Approved: Yes
      Renault Model: Clio Model series: Clio Type of engine: 16V Size of motor: 1.6 Brand of engine: K4M800 Type description: KR0/1_ Body: Estate From date: 01-02-2008 Fuel: Gasoline Approved: Yes Manufacture type: Grandtour
      Renault Model: Clio Model series: Clio Type of engine: 16V Size of motor: 1.6 Brand of engine: K4M801 Type description: BR0/1, CR0/1 Body: Hatchback From date: 01-06-2005 Fuel: Gasoline Approved: Yes
      Renault Model: Clio Model series: Clio Type of engine: 16V Size of motor: 1.6 Brand of engine: K4M801 Type description: KR0/1_ Body: Estate From date: 01-02-2008 Fuel: Gasoline Approved: Yes Manufacture type: Grandtour
      Renault Model: Clio Model series: Clio Type of engine: 16V Size of motor: 1.6 Brand of engine: K4M804 Type description: BR0/1, CR0/1 Body: Hatchback From date: 01-06-2005 To date: 01-10-2007 Fuel: Gasoline Approved: Yes
      Renault Model: Fluence Model series: Fluence Type of engine: 16V Size of motor: 1.6 Brand of engine: K4M839 From date: 01-02-2010 Fuel: Gasoline Approved: Yes
      Renault Model: Laguna Model series: Laguna Type of engine: 16V Size of motor: 1.6 Brand of engine: K4M824 Type description: BT0/1 Body: Hatchback From date: 01-10-2007 To date: 01-12-2015 Fuel: Gasoline Approved: Yes
      Renault Model: Laguna Model series: Laguna Type of engine: 16V Size of motor: 1.6 Brand of engine: K4M824 Type description: KT0/1 Body: Estate From date: 01-10-2007 To date: 01-12-2015 Fuel: Gasoline Approved: Yes Manufacture type: GRANDTOUR
      Renault Model: Megane Model series: Megane CC Type of engine: 16V Size of motor: 1.6 Brand of engine: K4M858 Type description: EZ1Y Body: Convertible From date: 01-06-2010 Fuel: Gasoline Approved: Yes
      Renault Model: Megane Model series: Megane Grandtour Model type: Flex Size of motor: 1.6 Brand of engine: K4M768 Type description: KM0/1_ Body: Estate From date: 01-11-2006 To date: 01-08-2012 Fuel: Petrol/Ethanol Approved: Yes Manufacture type: Grandtour
      Renault Model: Megane Model series: Megane Size of motor: 1.6 Brand of engine: K4M762 Type description: LM0/1_ From date: 01-05-2005 Fuel: Gasoline Approved: Yes
      Renault Model: Megane Model series: Megane Type of engine: 16V Bifuel Size of motor: 1.6 Brand of engine: K4M866 Type description: BZ0_ Body: Hatchback From date: 01-11-2008 To date: 01-08-2015 Fuel: Diesel Approved: Yes
      Renault Model: Megane Model series: Megane Type of engine: 16V Bifuel Size of motor: 1.6 Brand of engine: K4M866 Type description: DZ0_ Body: Coupe From date: 01-11-2008 Fuel: Diesel Approved: Yes
      Renault Model: Megane Model series: Megane Type of engine: 16V Bifuel Size of motor: 1.6 Brand of engine: K4M866 Type description: KZ0/1 Body: Estate From date: 01-11-2008 Fuel: Diesel Approved: Yes Manufacture type: Kombi
      Renault Model: Megane Model series: Megane Type of engine: 16V Size of motor: 1.6 Brand of engine: K4M858 Body: Coupe From date: 01-11-2008 Fuel: Gasoline Approved: Yes
      Renault Model: Megane Model series: Megane Type of engine: 16V Size of motor: 1.6 Brand of engine: K4M858 Body: Hatchback From date: 01-11-2008 Fuel: Gasoline Approved: Yes
      Renault Model: Megane Model series: Megane Type of engine: 16V Size of motor: 1.6 Brand of engine: K4M858 Type description: BZ0/1_ Body: Hatchback From date: 01-05-2009 To date: 01-08-2015 Fuel: LPG Approved: Yes
      Renault Model: Megane Model series: Megane Type of engine: 16V Size of motor: 1.6 Brand of engine: K4M858 Type description: KZ0/1 Body: Estate From date: 01-05-2009 Fuel: Gasoline Approved: Yes Manufacture type: Kombi
      Renault Model: Megane Model series: Megane Type of engine: 16V Size of motor: 1.6 Brand of engine: K4M866 Body: Coupe From date: 01-11-2008 Fuel: Gasoline Approved: Yes
      Renault Model: Megane Model series: Megane Type of engine: 16V Size of motor: 1.6 Brand of engine: K4M866 Body: Hatchback From date: 01-11-2008 Fuel: Gasoline Approved: Yes
      Renault Model: Megane Model series: Megane Type of engine: 16V Size of motor: 1.6 Brand of engine: K4M866 Type description: KZ0/1 Body: Estate From date: 01-05-2009 Fuel: Gasoline Approved: Yes Manufacture type: Kombi
      Renault Model: Megane Model series: Megane Type of engine: 16V Size of motor: 1.6 Type description: BZ0/1_ Body: Hatchback From date: 01-01-2010 To date: 01-08-2015 Fuel: Gasoline Approved: Yes
      Renault Model: Modus Model series: Modus Size of motor: 1.4 Brand of engine: K4J 770 Body: Hatchback From date: 01-12-2004 Fuel: Gasoline Approved: Yes
      Renault Model: Modus Model series: Modus Size of motor: 1.4 Brand of engine: K4J 780 Body: Hatchback From date: 01-12-2004 Fuel: Gasoline Approved: Yes
      Renault Model: Modus Model series: Modus Size of motor: 1.6 Brand of engine: K4M790 Body: Hatchback From date: 01-12-2004 Fuel: Gasoline Approved: Yes
      Renault Model: Modus Model series: Modus Size of motor: 1.6 Brand of engine: K4M800 Body: Hatchback From date: 01-12-2004 Fuel: Gasoline Approved: Yes
      Renault Model: Modus Model series: Modus Size of motor: 1.6 Brand of engine: K4M801 Body: Hatchback From date: 01-12-2004 Fuel: Gasoline Approved: Yes
      Renault Model: Modus Model series: Modus Type of engine: i 16V Size of motor: 1.6 Brand of engine: K4M791 Body: Hatchback From date: 01-12-2004 Fuel: Gasoline Approved: Yes
      Renault Model: Modus Model series: Modus Type of engine: i 16V Size of motor: 1.6 Brand of engine: K4M792 Body: Hatchback From date: 01-12-2004 Fuel: Gasoline Approved: Yes
      Renault Model: Modus Model series: Modus Type of engine: i 16V Size of motor: 1.6 Brand of engine: K4M794 Body: Hatchback From date: 01-12-2004 Fuel: Gasoline Approved: Yes
      Renault Model: Sc nic Model series: Grand Sc nic Type of engine: 16V Size of motor: 1.6 Brand of engine: K4M858 Type description: JZ0/1_ Body: MPV From date: 01-02-2009 Fuel: Gasoline Approved: Yes
      Renault Model: Sc nic Model series: Grand Sc nic Type of engine: Flexfuel Size of motor: 1.6 Brand of engine: K4M866 Type description: JZ0/1_ Body: MPV From date: 01-02-2009 Fuel: Diesel Approved: Yes
      Renault Model: Sc nic Model series: Sc nic Size of motor: 1.6 Brand of engine: K4M866 Type description: JZ0/1_ Body: MPV From date: 01-02-2009 Fuel: Bi-Fuel Approved: Yes
      Renault Model: Sc nic Model series: Sc nic Type of engine: 16V Size of motor: 1.6 Brand of engine: K4M858 Body: MPV From date: 01-02-2009 Fuel: Gasoline Approved: Yes
      Renault Model: Scenic Model series: Scenic Model type: VVT Size of motor: 1.6 Brand of engine: K4M858 Type description: JZ0/1_ Body: Van From date: 01-01-2013 Fuel: Petrol Approved: Yes
      1 / 8
