Vare nr.: F032114750

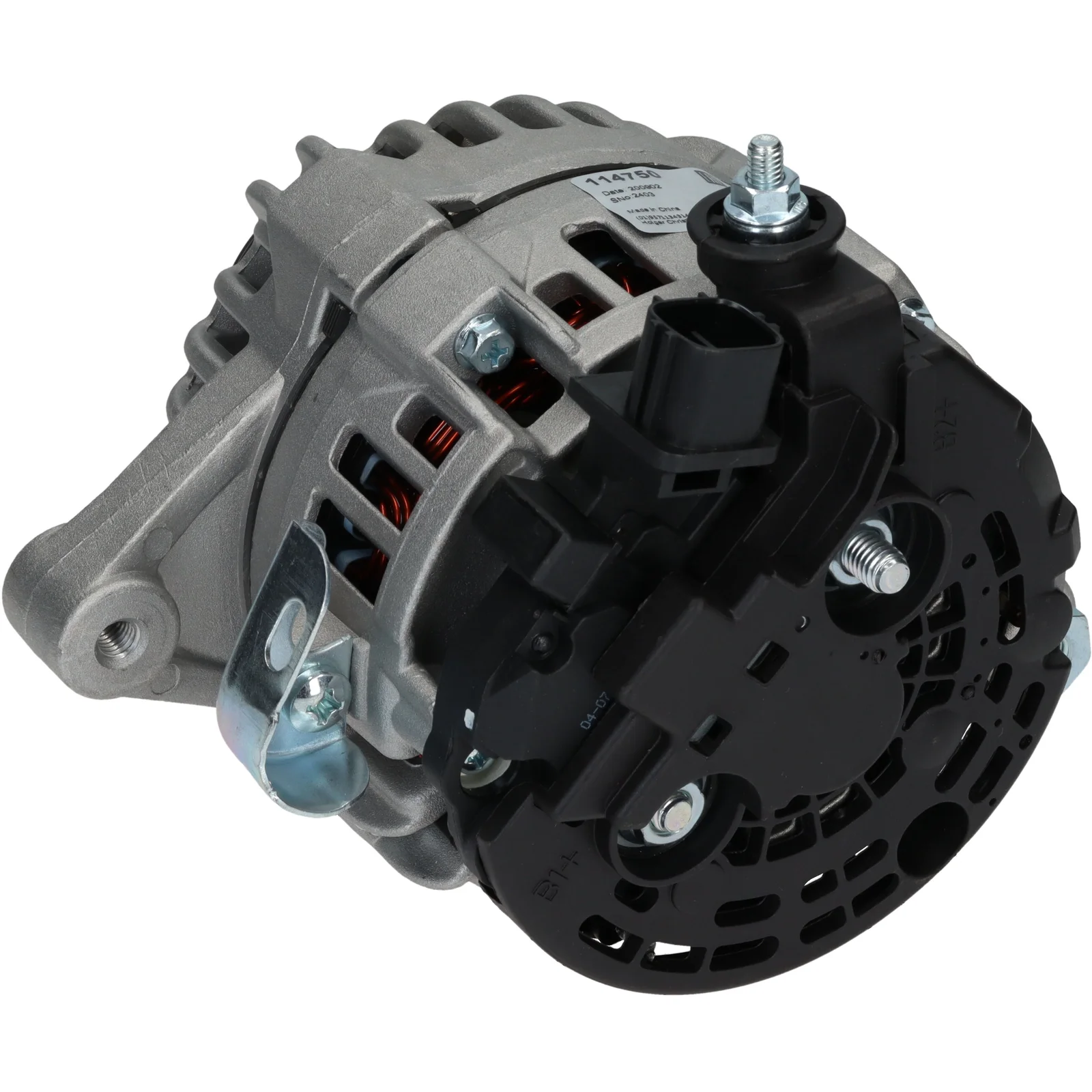

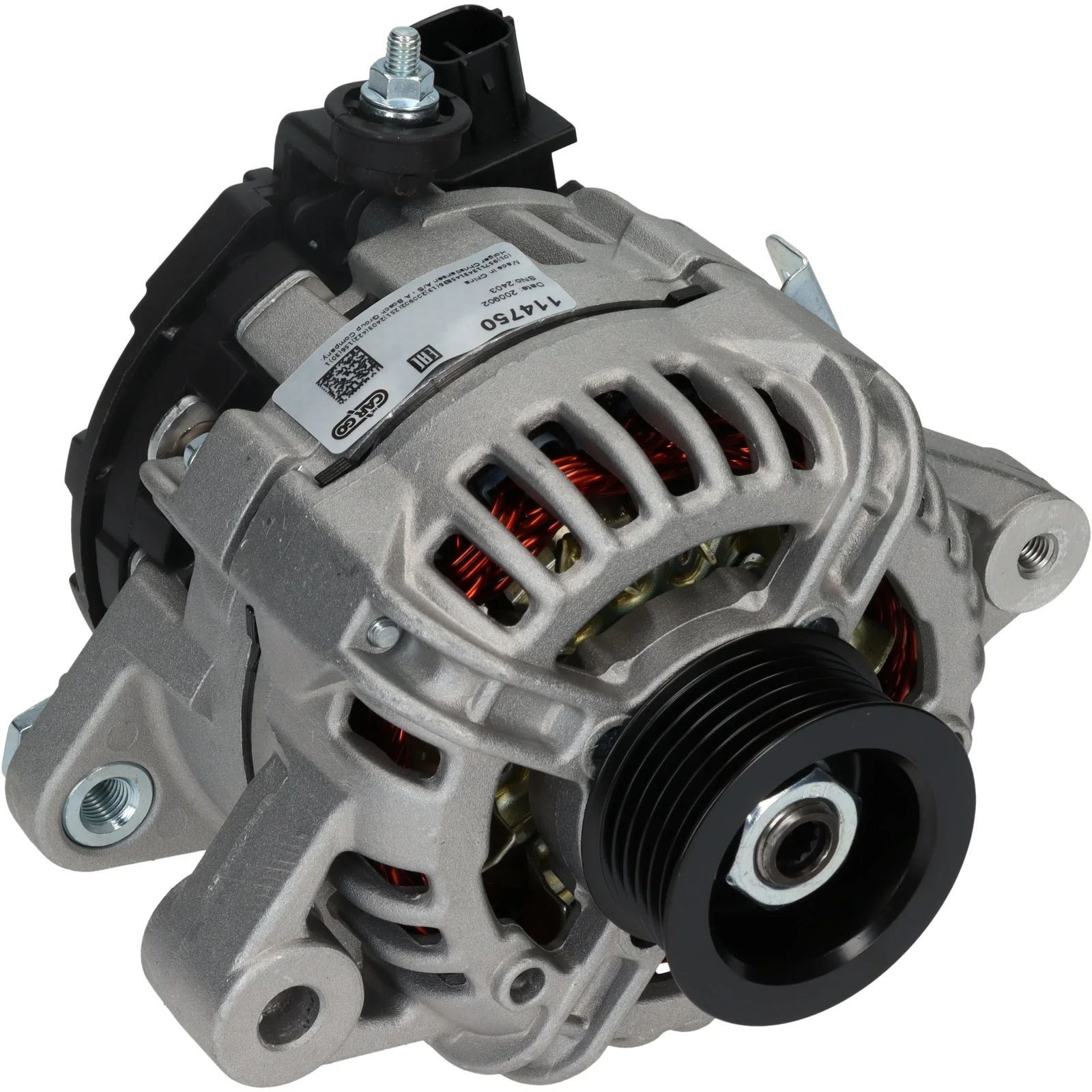

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 80, Rotation: CW, Montagebeslag tændrelæ: 39,00

Beskrivelse

Spænding: 14
Amp: 80
Remskive dist.: 48.00
Bredde/holderarm: 27.00
Monteringsbeslag dist.: 39.00
Beslagshul: 10.50
Bæltejustering beslag hul pos.: 3
Bæltejustering beslag hul 1: M8
Remskive dia.: 54.80
Furer/remskive: 6
Radius: 80.00
Radius 2: 90.00
B+: M6
Position/B+ i min.: 12
D+ Størrelse: Stik
Rotation: Uret
Stik nr.: PL78
Samlet længde mm: 170.00
Remskive: SP
Blæser: IF

Specifikation

B+ M6
Mount. bracket dist. 39.00
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 3
Plug no. PL78
Bracket hole 10.50
Position/B+ in min. 12
Pulley SP
Pulley dia. 54.80
Pulley dist. 48.00
Radius 80.00
D+ Size Plug
Radius 2 90.00
Rotation CW
Fan IF
Grooves/pulley 6
Voltage 14
Total length 170.00 mm
Width/holder arm 27.00
Amp 80
  • OEM

    F032114750, 1929ir, 1986A01670, 27060-0j051, 0124225054
  • Konkurrentreferens

    A0329PR, A6302, CAL10404, DRA0621, LRA03187, 28-5799, 195.929.080, 235.326.802, 20356R, 113245, 210941, 210941A, 440847, 9090849, 12060907, 0986080450
  • NormaliseratArtNr

    a0329pr, a6302, cal10404, dra0621, f032114750, lra03187, 1929ir, 1986a01670, 20356r, 113245, 210941, 210941a, 270600j051, 285799, 440847, 9090849, 12060907, 0124225054, 195929080, 235326802, 0986080450
  • Passar modeller

    Toyota Model: Yaris Model series: Yaris Type of engine: VVTi Size of motor: 1.3 Brand of engine: 2SZ-FE Body: Hatchback From date: 01-08-2005 To date: 01-11-2010 Fuel: Gasoline Approved: Yes
  • Beskrivelse
    Spænding: 14
    Amp: 80
    Remskive dist.: 48.00
    Bredde/holderarm: 27.00
    Monteringsbeslag dist.: 39.00
    Beslagshul: 10.50
    Bæltejustering beslag hul pos.: 3
    Bæltejustering beslag hul 1: M8
    Remskive dia.: 54.80
    Furer/remskive: 6
    Radius: 80.00
    Radius 2: 90.00
    B+: M6
    Position/B+ i min.: 12
    D+ Størrelse: Stik
    Rotation: Uret
    Stik nr.: PL78
    Samlet længde mm: 170.00
    Remskive: SP
    Blæser: IF
  • Specifikation
    B+ M6
    Mount. bracket dist. 39.00
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 3
    Plug no. PL78
    Bracket hole 10.50
    Position/B+ in min. 12
    Pulley SP
    Pulley dia. 54.80
    Pulley dist. 48.00
    Radius 80.00
    D+ Size Plug
    Radius 2 90.00
    Rotation CW
    Fan IF
    Grooves/pulley 6
    Voltage 14
    Total length 170.00 mm
    Width/holder arm 27.00
    Amp 80
  • Køretøjsmatchning
    • OEM

      F032114750, 1929ir, 1986A01670, 27060-0j051, 0124225054
    • Konkurrentreferens

      A0329PR, A6302, CAL10404, DRA0621, LRA03187, 28-5799, 195.929.080, 235.326.802, 20356R, 113245, 210941, 210941A, 440847, 9090849, 12060907, 0986080450
    • NormaliseratArtNr

      a0329pr, a6302, cal10404, dra0621, f032114750, lra03187, 1929ir, 1986a01670, 20356r, 113245, 210941, 210941a, 270600j051, 285799, 440847, 9090849, 12060907, 0124225054, 195929080, 235326802, 0986080450
    • Passar modeller

      Toyota Model: Yaris Model series: Yaris Type of engine: VVTi Size of motor: 1.3 Brand of engine: 2SZ-FE Body: Hatchback From date: 01-08-2005 To date: 01-11-2010 Fuel: Gasoline Approved: Yes
