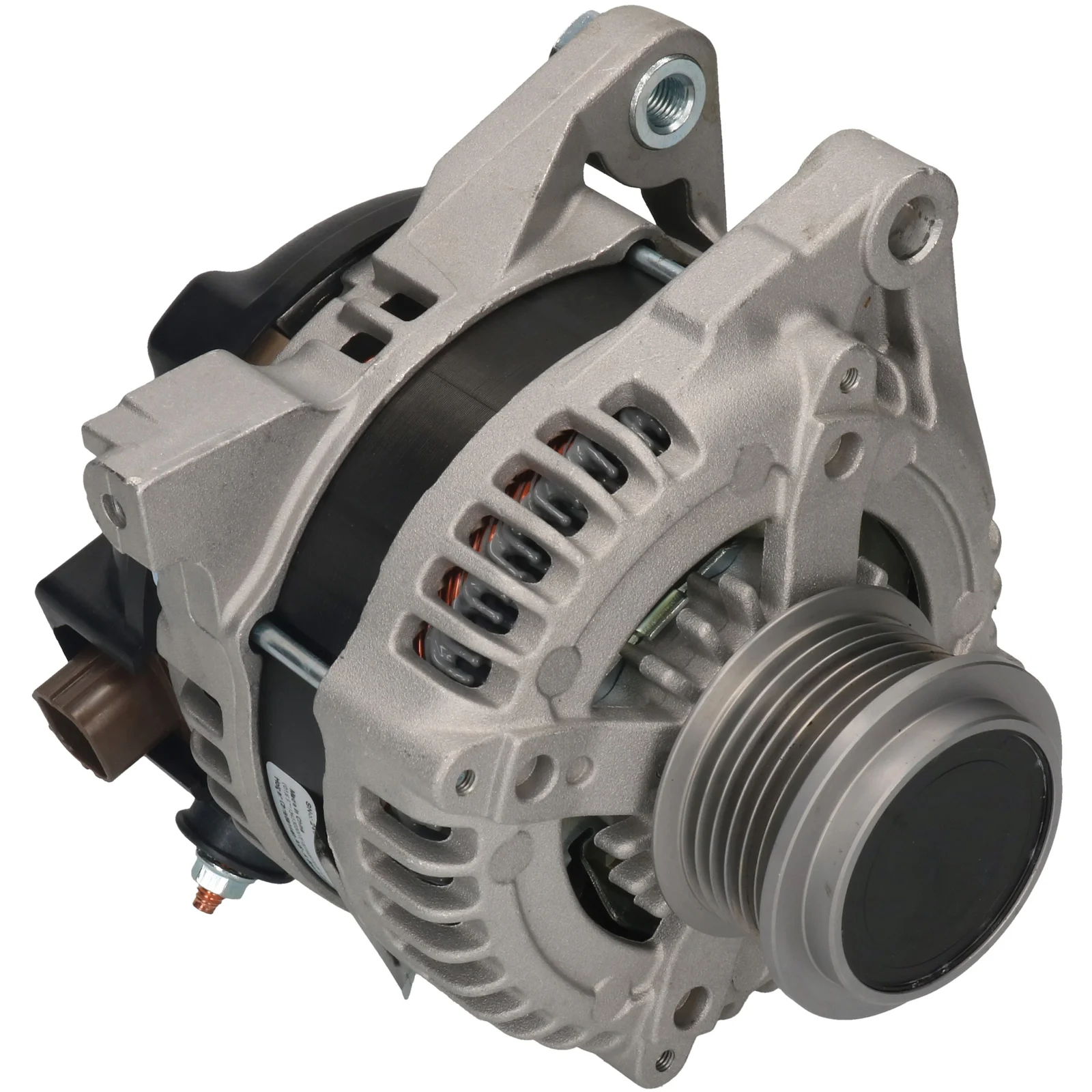

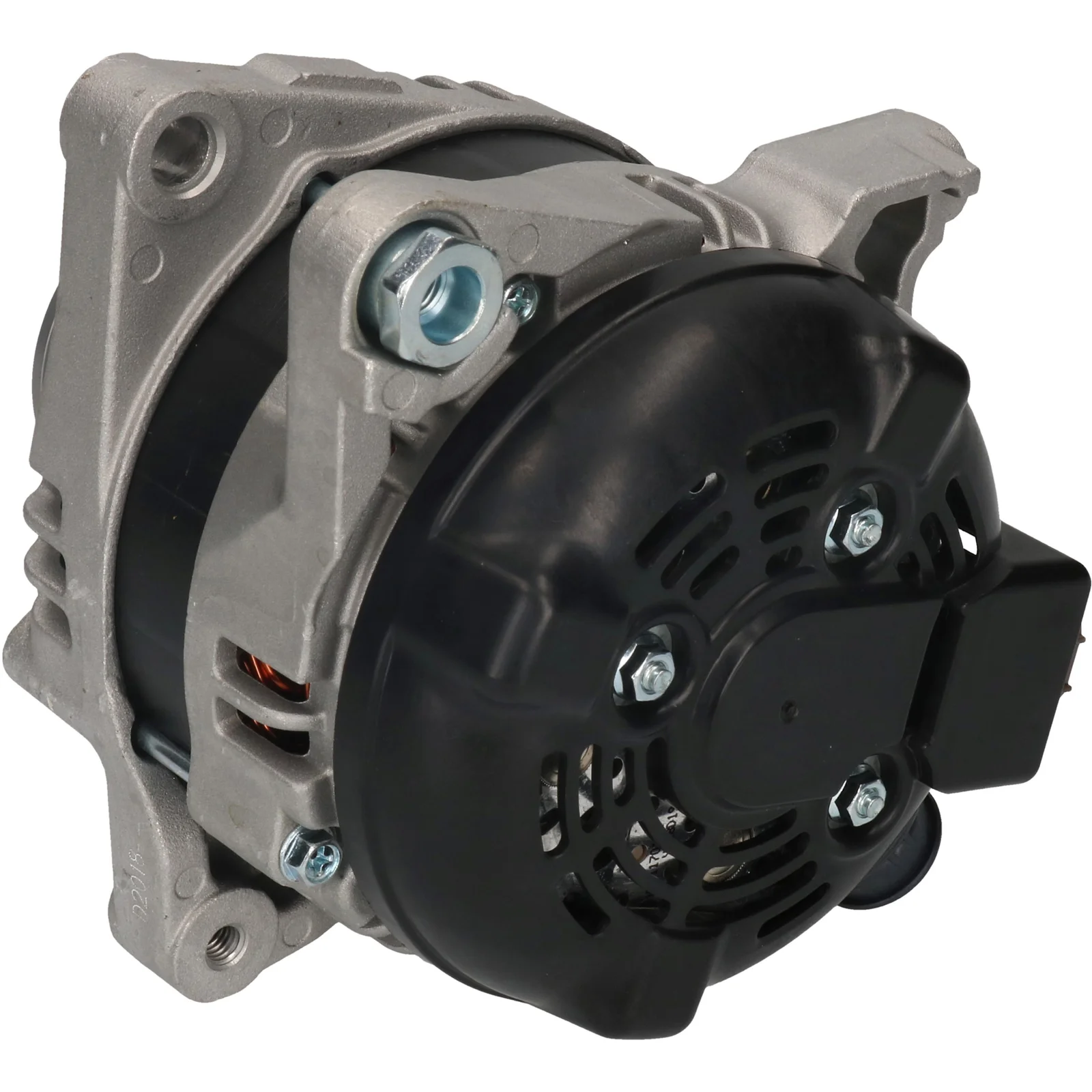

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032115657

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 100, Rotation: CW, Monteringsbeslag fordelingsdåse: 42,50

Beskrivelse

Gen.12V-100A passer til Toyota 12V - 100A, 6g. farvet, (IG, RLO, L, M) Yaris 1.4D-4D 11.2008-> Auris 1.4D-4D 02.2009-> For Yourex produkt ordre 90-555-3310

Spænding: 14
Ampere: 100
Pulley afstand: 47,00
Bredde/holderarm: 20,00
Montagebeslag afstand: 42,50
Beslag hul: 11,00
Bælte justeret bæltebeslag hulpos.: 48
Bælte justeret bæltebeslag hul 1: M8
Pulley diameter: 58,00
Riller/pulley: 6
Radie: 88,00
Radie 2: 82,00
B+: M6
Position/B+ i min.: 59
D+ Størrelse: Propper
Rotationsretning: CW
Prop no.: PL146
Total længde mm: 169,50
Pulley: SP/FW
Regulator type: IR
Produkt info: BN

Filer

Specifikation

B+ M6
Mount. bracket dist. 42.50
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 48
Plug no. PL146
Bracket hole 11.00
Position/B+ in min. 59
Prod. info BN
Pulley SP/FW
Pulley dia. 58.00
Pulley dist. 47.00
Radius 88.00
D+ Size Plug
Radius 2 82.00
Regulator type IR
Rotation CW
Grooves/pulley 6
Voltage 14
Total length 169.50 mm
Width/holder arm 20.00
Amp 100

  • OEM
    DAN 1018, F032115657, 1986A01303, 2097ir, 27060-0N040, 27060-0N050, 27060-33100, 104210-2320, 104210-2520, 104210-2522, 104210-2530, 115657

  • Konkurrentreferens
    A6065, A6065(DENSO), CAL40337, DAN1018, DRA1286, LRA03633, MAN7539, 8EL011712-931, 28-6773, 195.936.100, 195.936.120, 235.347.1002, 20538R, 113258, 210979, 210979A, 440853, 440892, 443067, 12060921, 0986082450, 063377539010

  • Bilmärken
    Toyota

  • NormaliseratArtNr
    a6065, a6065denso, cal40337, dan1018, dra1286, f032115657, lra03633, man7539, 8el011712931, 1986a01303, 2097ir, 20538r, 113258, 115657, 210979, 210979a, 270600n040, 270600n050, 286773, 440853, 440892, 443067, 12060921, 195936100, 195936120, 0986082450, 1042102320, 1042102520, 1042102522, 1042102530, 2353471002, 2706033100, 063377539010

  • Passar modeller
    Toyota Model: Auris Model series: Auris Type of engine: D-4D Size of motor: 1.4 Brand of engine: 1ND-TV Type description: NDE150 Body: Hatchback From date: 01-03-2007 To date: 01-09-2012 Fuel: Diesel Approved: Yes
    Toyota Model: Auris Model series: Auris Type of engine: D-4D Size of motor: 1.4 Brand of engine: 1ND-TV Type description: _E15_ Body: Box From date: 01-03-2007 To date: 01-09-2012 Fuel: Diesel Approved: Yes
    Toyota Model: Urban Cruiser Model series: Urban Cruiser Model type: 4x4 Type of engine: D-4D Size of motor: 1.4 Brand of engine: 1ND-TV Type description: NLP110/115 Body: Hatchback From date: 01-01-2009 To date: 01-04-2014 Fuel: Diesel Approved: Yes
    Toyota Model: Urban Cruiser Model series: Urban Cruiser Type of engine: D-4D Size of motor: 1.4 Brand of engine: 1ND-TV Type description: NLP110/115 Body: Hatchback From date: 01-01-2009 To date: 01-04-2014 Fuel: Diesel Approved: Yes
    Toyota Model: Yaris Model series: Yaris Type of engine: D-4D Size of motor: 1.4 Brand of engine: 1ND-TV Type description: NLP90 Body: Hatchback From date: 01-08-2005 To date: 01-12-2012 Fuel: Diesel Approved: Yes
    Toyota Series: Auris (_E15_) Model: 1.4 D-4D Engine volume: 1.4 Engine type: 1ND-TV Year: 02.09-09.12
    Toyota Series: Corolla (_E15_) Model: 1.4 D-4D Engine volume: 1.4 Engine type: 1ND-TV Year: 02.09-05.13
    Toyota Series: Urban Cruiser Model: 1.4 D-4D 4x4 Engine volume: 1.4 Engine type: 1ND-TV Year: 04.09-
    Toyota Series: Urban Cruiser Model: 1.4 D-4D Engine volume: 1.4 Engine type: 1ND-TV Year: 04.09-
    Toyota Series: Yaris (_P9_) Model: 1.4 D-4D Engine volume: 1.4 Engine type: 1ND-TV Year: 11.08-06.11
    1 / 2
  • Beskrivelse
    Gen.12V-100A passer til Toyota 12V - 100A, 6g. farvet, (IG, RLO, L, M) Yaris 1.4D-4D 11.2008-> Auris 1.4D-4D 02.2009-> For Yourex produkt ordre 90-555-3310

    Spænding: 14
    Ampere: 100
    Pulley afstand: 47,00
    Bredde/holderarm: 20,00
    Montagebeslag afstand: 42,50
    Beslag hul: 11,00
    Bælte justeret bæltebeslag hulpos.: 48
    Bælte justeret bæltebeslag hul 1: M8
    Pulley diameter: 58,00
    Riller/pulley: 6
    Radie: 88,00
    Radie 2: 82,00
    B+: M6
    Position/B+ i min.: 59
    D+ Størrelse: Propper
    Rotationsretning: CW
    Prop no.: PL146
    Total længde mm: 169,50
    Pulley: SP/FW
    Regulator type: IR
    Produkt info: BN

    Filer

  • Specifikation
    B+ M6
    Mount. bracket dist. 42.50
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 48
    Plug no. PL146
    Bracket hole 11.00
    Position/B+ in min. 59
    Prod. info BN
    Pulley SP/FW
    Pulley dia. 58.00
    Pulley dist. 47.00
    Radius 88.00
    D+ Size Plug
    Radius 2 82.00
    Regulator type IR
    Rotation CW
    Grooves/pulley 6
    Voltage 14
    Total length 169.50 mm
    Width/holder arm 20.00
    Amp 100
  • Køretøjsmatchning

    • OEM
      DAN 1018, F032115657, 1986A01303, 2097ir, 27060-0N040, 27060-0N050, 27060-33100, 104210-2320, 104210-2520, 104210-2522, 104210-2530, 115657

    • Konkurrentreferens
      A6065, A6065(DENSO), CAL40337, DAN1018, DRA1286, LRA03633, MAN7539, 8EL011712-931, 28-6773, 195.936.100, 195.936.120, 235.347.1002, 20538R, 113258, 210979, 210979A, 440853, 440892, 443067, 12060921, 0986082450, 063377539010

    • Bilmärken
      Toyota

    • NormaliseratArtNr
      a6065, a6065denso, cal40337, dan1018, dra1286, f032115657, lra03633, man7539, 8el011712931, 1986a01303, 2097ir, 20538r, 113258, 115657, 210979, 210979a, 270600n040, 270600n050, 286773, 440853, 440892, 443067, 12060921, 195936100, 195936120, 0986082450, 1042102320, 1042102520, 1042102522, 1042102530, 2353471002, 2706033100, 063377539010

    • Passar modeller
      Toyota Model: Auris Model series: Auris Type of engine: D-4D Size of motor: 1.4 Brand of engine: 1ND-TV Type description: NDE150 Body: Hatchback From date: 01-03-2007 To date: 01-09-2012 Fuel: Diesel Approved: Yes
      Toyota Model: Auris Model series: Auris Type of engine: D-4D Size of motor: 1.4 Brand of engine: 1ND-TV Type description: _E15_ Body: Box From date: 01-03-2007 To date: 01-09-2012 Fuel: Diesel Approved: Yes
      Toyota Model: Urban Cruiser Model series: Urban Cruiser Model type: 4x4 Type of engine: D-4D Size of motor: 1.4 Brand of engine: 1ND-TV Type description: NLP110/115 Body: Hatchback From date: 01-01-2009 To date: 01-04-2014 Fuel: Diesel Approved: Yes
      Toyota Model: Urban Cruiser Model series: Urban Cruiser Type of engine: D-4D Size of motor: 1.4 Brand of engine: 1ND-TV Type description: NLP110/115 Body: Hatchback From date: 01-01-2009 To date: 01-04-2014 Fuel: Diesel Approved: Yes
      Toyota Model: Yaris Model series: Yaris Type of engine: D-4D Size of motor: 1.4 Brand of engine: 1ND-TV Type description: NLP90 Body: Hatchback From date: 01-08-2005 To date: 01-12-2012 Fuel: Diesel Approved: Yes
      Toyota Series: Auris (_E15_) Model: 1.4 D-4D Engine volume: 1.4 Engine type: 1ND-TV Year: 02.09-09.12
      Toyota Series: Corolla (_E15_) Model: 1.4 D-4D Engine volume: 1.4 Engine type: 1ND-TV Year: 02.09-05.13
      Toyota Series: Urban Cruiser Model: 1.4 D-4D 4x4 Engine volume: 1.4 Engine type: 1ND-TV Year: 04.09-
      Toyota Series: Urban Cruiser Model: 1.4 D-4D Engine volume: 1.4 Engine type: 1ND-TV Year: 04.09-
      Toyota Series: Yaris (_P9_) Model: 1.4 D-4D Engine volume: 1.4 Engine type: 1ND-TV Year: 11.08-06.11
