HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032114247

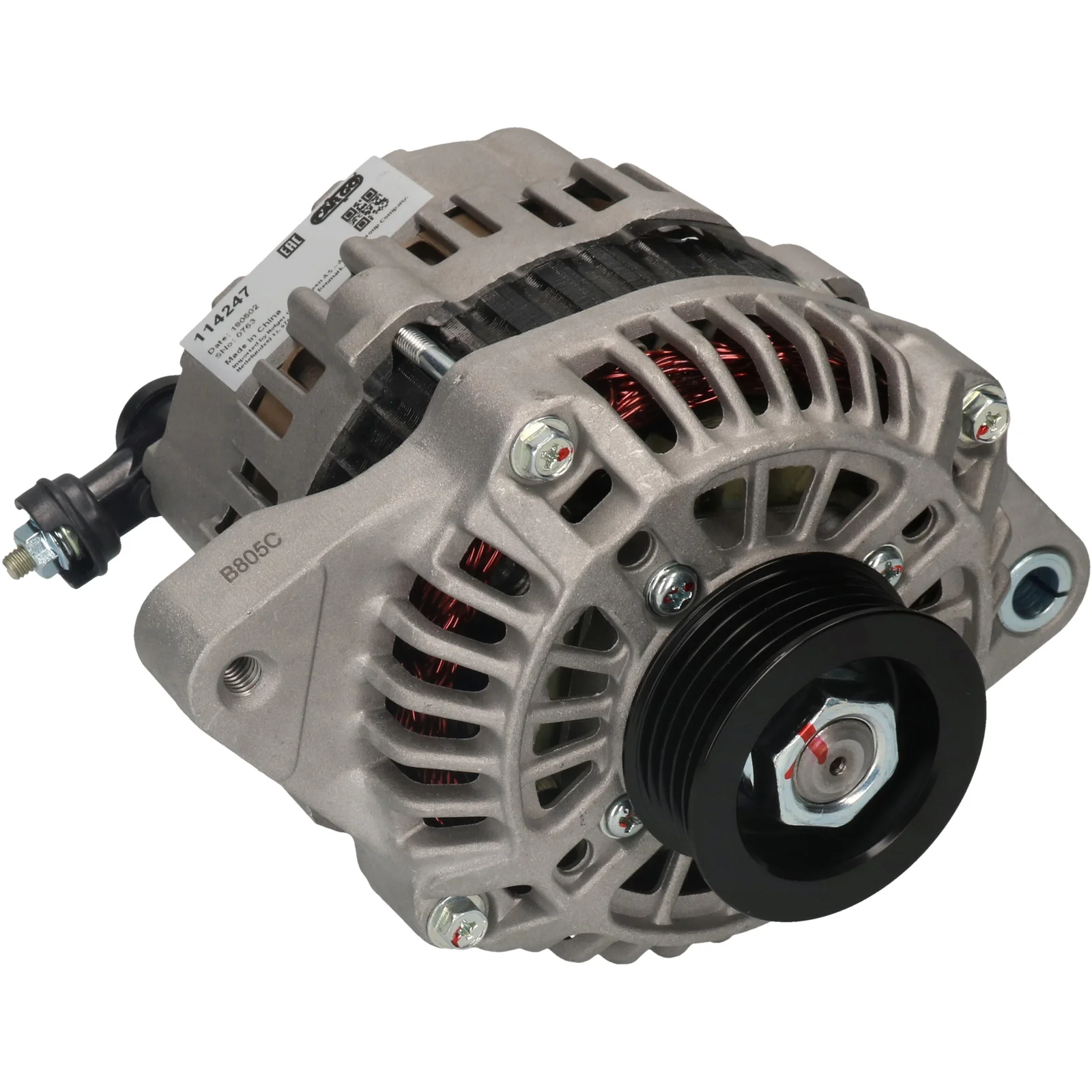

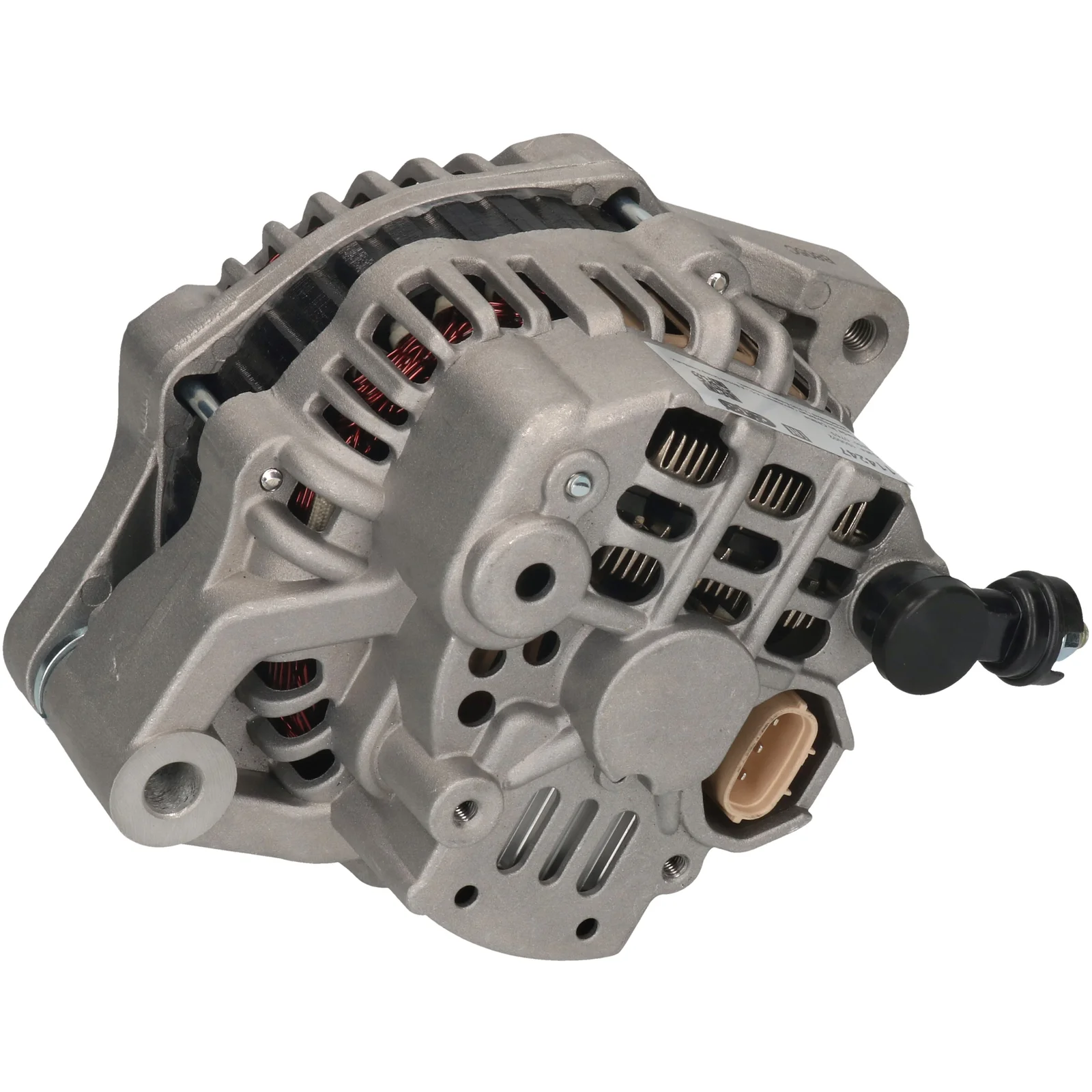

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 75, Rotation: CW, Remskive diameter: 56.00

Beskrivelse

Suzuki Generator 12V-70A 12V - 70A, 5gr. (D, IG, L) til Yourex produktbestilling 90-528-4291

Spænding: 14
Amp: 75
Remskive afstand: 90.40
Bredde/beslagarm: 58.00
BESLAG hul: 10.50
Bånd. just. beslaget hul 1: M8
Remskive diameter: 56.00
Riller/remskive: 5
Radius: 80.00
Radius 2: 85.00
B+: M6
Position/B+ i min.: 3
D+ Størrelse: Stik
Rotation: CW
Stik nr.: PL58
Samlet længde mm: 158.00
Terminaltype: L-IG
Lampetype: Inaktiv
Remskive: SP
Fan: IF
Regulator type: IR
Produktinformation: BN

Filer

Specifikation

B+ M6
Belt. adj. bracket hole 1 M8
Plug no. PL58
Bracket hole 10.50
Position/B+ in min. 3
Prod. info BN
Pulley SP
Pulley dia. 56.00
Pulley dist. 90.40
Radius 80.00
D+ Size Plug
Radius 2 85.00
Regulator type IR
Rotation CW
Fan IF
Grooves/pulley 5
Lamp type Inactive
Terminal type L-IG
Voltage 14
Total length 158.00 mm
Width/holder arm 58.00
Amp 75

  • OEM
    A005TA4291, A005TA4291ZC, A005TB1292, A005TB1292AE, A005TB2292ZE, A5T-A4291, A5T-A4291BC, A5T-A4291ZC, A5T-B1292, A5T-B1292AE, A5TA-4291AC, a5ta4291, A5TA4291AC, A5TA4291BC, A5TA4291ZC, A5TB1292, a5tb1292ae, A5TB2292, A5TB2292AE, A5TB2292ZE, F032114247, 0986 082 830, 2026ir, 31400-55L00, 31400-55l01, 31400-65D00, 31400-65D01, 31400-65D02, 31400-84E10, 31400-84E11, 31400-84E12, 114247, 4709920, 93194153

  • Konkurrentreferens
    A5049, ALT-H209, CAL35277, CAL35278, DRA0562, DRA0972, F042A0H209, 8EL011713-451, 8EL738213-141, 28-6572, 185.521.075, 245.131.752, 13781N, 200287, 209353, 209353A, 302026RI, 440897, 446543, 9090649, 12060998, 0986082830

  • Bilmärken
    Chevrolet, Suzuki

  • NormaliseratArtNr
    a005ta4291, a005ta4291zc, a005tb1292, a005tb1292ae, a005tb2292ze, a5049, a5ta4291, a5ta4291ac, a5ta4291bc, a5ta4291zc, a5tb1292, a5tb1292ae, a5tb2292, a5tb2292ae, a5tb2292ze, alth209, cal35277, cal35278, dra0562, dra0972, f032114247, f042a0h209, 8el011713451, 8el738213141, 2026ir, 13781n, 114247, 200287, 209353, 209353a, 286572, 302026ri, 440897, 446543, 3140055l00, 3140055l01, 3140065d00, 3140065d01, 3140065d02, 3140084e10, 3140084e11, 3140084e12, 4709920, 9090649, 12060998, 93194153, 185521075, 245131752, 0986082830

  • Passar modeller
    Opel Model: Agila Model series: Agila Model type: LPG Size of motor: 1.0 Brand of engine: K10B Body: Estate From date: 01-01-2010 To date: 01-06-2011 Fuel: Bi-Fuel Approved: Yes
    Opel Model: Agila Model series: Agila Model type: LPG Size of motor: 1.2 Brand of engine: K12B Body: Estate From date: 01-04-2008 To date: 01-10-2010 Fuel: Bi-Fuel Approved: Yes
    Opel Model: Agila Model series: Agila Size of motor: 1.0 Brand of engine: K10B Body: Estate From date: 01-04-2008 To date: 01-06-2011 Fuel: Gasoline Approved: Yes
    Opel Model: Agila Model series: Agila Size of motor: 1.2 Brand of engine: K12B Body: Estate From date: 01-04-2008 To date: 01-10-2012 Fuel: Gasoline Approved: Yes
    Opel Model: Agila Model series: Agila Size of motor: 1.2 Brand of engine: K12B Body: Estate From date: 01-04-2010 To date: 01-10-2014 Fuel: Gasoline Approved: Yes
    Suzuki Model: Grand Vitara Model series: Grand Vitara Model type: 4x4 Size of motor: 2.0 Brand of engine: J20A Type description: GT Body: Convertible From date: 01-03-1998 To date: 01-07-2003 Fuel: Gasoline Approved: Yes
    Suzuki Model: Splash Model series: Splash Size of motor: 1.0 Brand of engine: K10B Body: Hatchback From date: 01-01-2008 Fuel: Gasoline Approved: Yes
    Suzuki Model: Splash Model series: Splash Size of motor: 1.2 Brand of engine: K12B Body: Hatchback From date: 01-01-2008 Fuel: Gasoline Approved: Yes
    Suzuki Model: Splash Model series: Splash Type of engine: VVT Size of motor: 1.2 Brand of engine: K12B Body: Hatchback From date: 01-06-2011 Fuel: Gasoline Approved: Yes
    Suzuki Model: Swift Model series: Swift Size of motor: 1.3 Brand of engine: M13A Type description: ME, EZ Body: Hatchback From date: 01-02-2005 Fuel: Gasoline Approved: Yes
    Suzuki Model: Swift Model series: Swift Size of motor: 1.3 Brand of engine: M13A Type description: SG Body: Hatchback From date: 01-02-2005 To date: 01-06-2015 Fuel: Gasoline Approved: Yes
    Suzuki Model: SX4 Model series: SX4 / SX4 CLASSIC Model type: VVTi Size of motor: 1.5 Brand of engine: M15A Type description: EY, GY Body: Hatchback From date: 01-07-2007 To date: 01-12-2015 Fuel: Petrol Approved: Yes
    Suzuki Model: SX4 Model series: SX4 Model type: 4x4 Type of engine: VVT Size of motor: 1.6 Brand of engine: M16A Type description: GY Body: Hatchback From date: 01-07-2009 Fuel: Gasoline Approved: Yes
    Suzuki Model: SX4 Model series: SX4 Model type: 4x4 Type of engine: VVT Size of motor: 1.6 Brand of engine: M16A Type description: RW416 Body: Hatchback From date: 01-07-2009 Fuel: Gasoline Approved: Yes
    Suzuki Model: SX4 Model series: SX4 Model type: WT 4WD Size of motor: 1.6 Brand of engine: M16A From date: 01-06-2006 Fuel: Gasoline Approved: Yes
    Suzuki Model: SX4 Model series: SX4 Model type: WT Size of motor: 1.6 Brand of engine: M16A From date: 01-06-2006 Fuel: Gasoline Approved: Yes
    Suzuki Model: SX4 Model series: SX4 Size of motor: 1.5 Brand of engine: M15A From date: 01-06-2006 To date: 01-07-2010 Fuel: Gasoline Approved: Yes
    Suzuki Model: SX4 Model series: SX4 Type of engine: VVT Size of motor: 1.5 Brand of engine: M15A Type description: GY Body: Hatchback From date: 01-07-2010 Fuel: Gasoline Approved: Yes
    Suzuki Model: SX4 Model series: SX4 Type of engine: VVT Size of motor: 1.6 Brand of engine: M16A Type description: EY, GY Body: Hatchback From date: 01-11-2010 To date: 01-12-2015 Fuel: Gasoline Approved: Yes
    Suzuki Model: SX4 Model series: SX4 Type of engine: VVT Size of motor: 1.6 Brand of engine: M16A Type description: RW416 Body: Hatchback From date: 01-07-2009 Fuel: Gasoline Approved: Yes
    Suzuki Series: Grand Vitara XL-7 Model: 2.0 4X4 Engine volume: 2.0 Engine type: J 20 A Year: 03.98-07.03
    Suzuki Series: Splash Model: 1.0 Engine volume: 1.0 Engine type: K 10 B Year: 01.08-
    Suzuki Series: Splash Model: 1.2 Engine volume: 1.2 Engine type: K 12 B Year: 01.08-
    Suzuki Series: Swift III Model: 1.3 Ch.nr: 00500001> Engine volume: 1.3 Engine type: M 13 A Year: 02.05-
    Suzuki Series: SX 4 Model: 1.6 VVT 4x4 Engine volume: 1.6 Engine type: M 16 A Year: 06.06-
    Suzuki Series: SX 4 Model: 1.6 VVT 4x4 Engine volume: 1.6 Engine type: M 16 A Year: 07.09-
    Suzuki Series: SX 4 Model: 1.6 VVT Engine volume: 1.6 Engine type: M 16 A Year: 06.06-
    Vauxhall Model: Agila Model series: Agila Mk II Type of engine: i Size of motor: 1.0 Brand of engine: K10B Type description: B Body: Hatchback From date: 01-08-2011 To date: 01-11-2014 Fuel: Gasoline Approved: Yes
    Vauxhall Model: Agila Model series: Agila Size of motor: 1.0 Brand of engine: K10B Body: MPV From date: 01-01-2008 To date: 01-11-2014 Fuel: Gasoline Approved: Yes
    Vauxhall Model: Agila Model series: Agila Size of motor: 1.2 Brand of engine: K12B Body: MPV From date: 01-01-2008 To date: 01-11-2014 Fuel: Gasoline Approved: Yes
    Vauxhall Model: Agila Model series: Agila Type of engine: 16V Size of motor: 1.2 Brand of engine: K12B Body: MPV From date: 01-01-2008 To date: 01-11-2014 Fuel: Gasoline Approved: Yes
