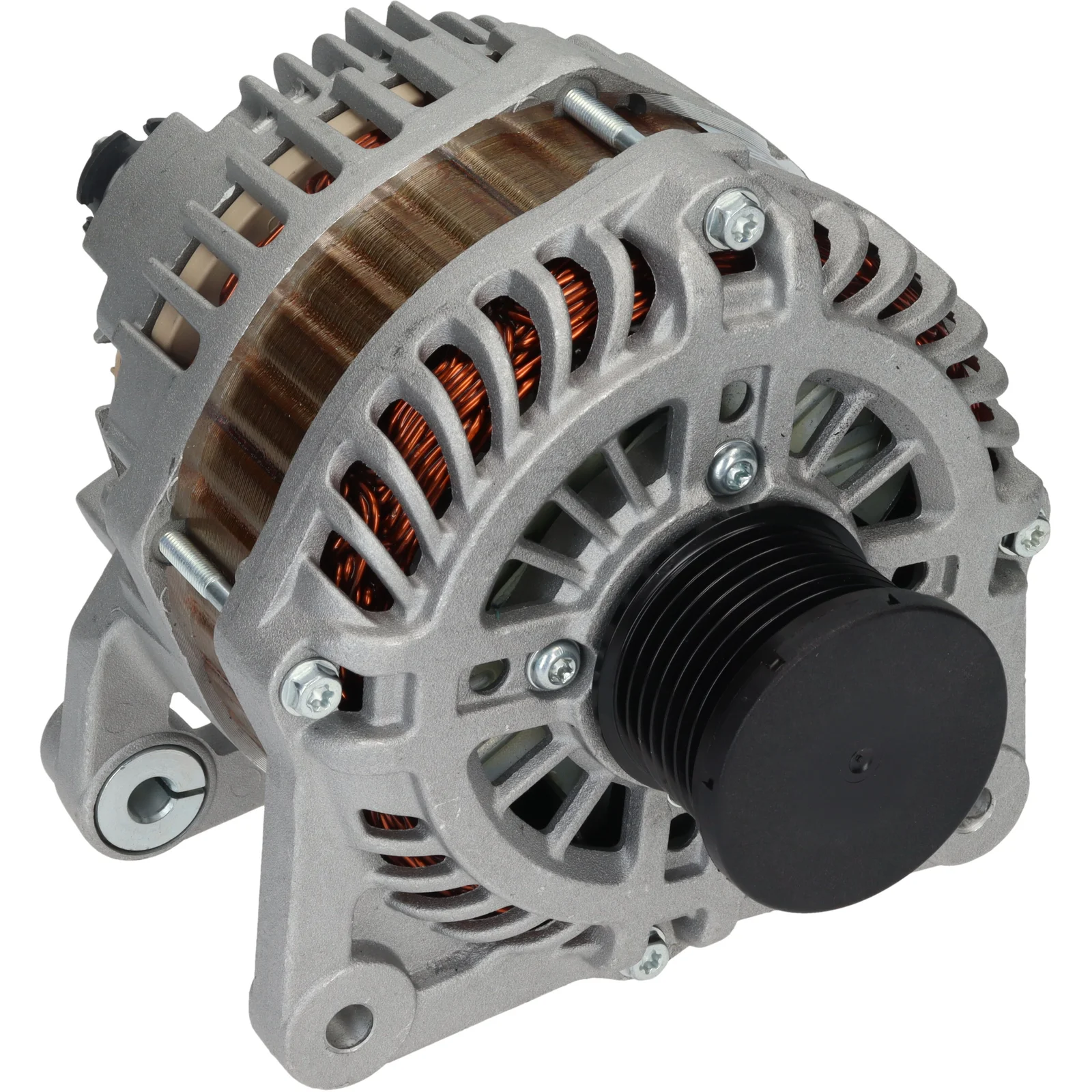

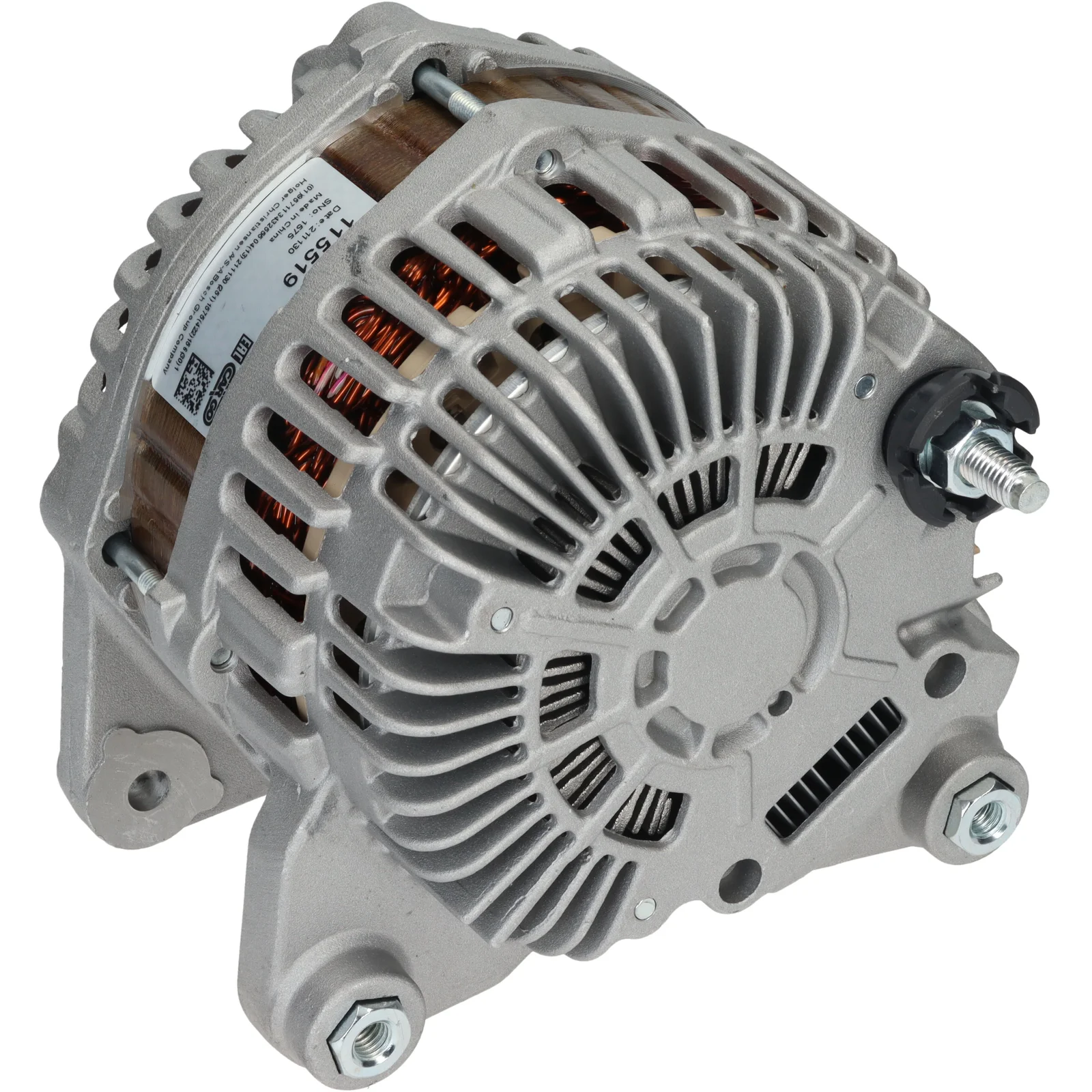

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032115519

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 150, Rotation: CW, Monteringsbøsning for fordeling: 60,00

Beskrivelse

Nissan X-Trail Gen. 12V-150A 12V - 150A, 7gr.frg, (C, S, L) 7gr.frg, (L, S, C) For Yourrex produkt ordre 90-400-3038

Spænding: 14
Amp.: 150
Klodsdiameter: 33,50
Bredde/beslag arm: 14,00
Monteringsbeslag afstand: 60,00
Beslagshul: 8,50
Bælte justeringsbeslag hulpos.: 45
Bælte justeringsbeslag hul 1: 8,50
Klodsdiameter: 49,00
Riller/klods: 7
Radius: 90,00
Radius 2: 90,00
B+: M8
Position/B+ i min.: 1
D+ Størrelse: Stik
Rotation: UWC
Stik nr.: PL163
Total længde mm: 193,00
Klods: SP/FW
Vifte: IF
Regulatortype: IR

Filer

Specifikation

B+ M8
Mount. bracket dist. 60.00
Belt. adj. bracket hole 1 8.50
Belt. adj. brackethole pos. 45
Plug no. PL163
Bracket hole 8.50
Position/B+ in min. 1
Pulley SP/FW
Pulley dia. 49.00
Pulley dist. 33.50
Radius 90.00
D+ Size Plug
Radius 2 90.00
Regulator type IR
Rotation CW
Fan IF
Grooves/pulley 7
Voltage 14
Total length 193.00 mm
Width/holder arm 14.00
Amp 150

  • OEM
    A003TJ3881, A003TJ3881ZE, A3T-J3881, A3T-J3881 ZE, A3TJ3881, A3TJ3881ZE, F032115519, 2185ir, 23100-JD71B, 23100-JG71B, 23100-jg71b, 115519

  • Konkurrentreferens
    A5097, A5168, CAL35362, lra03653, 8EL011713-671, 28-6793, 165.586.150, 227.325.1502, 443525, 554166RI, 12061041, 0986083540

  • Bilmärken
    Nissan

  • NormaliseratArtNr
    a003tj3881, a003tj3881ze, a3tj3881, a3tj3881ze, a5097, a5168, cal35362, f032115519, lra03653, 8el011713671, 2185ir, 23100jd71b, 23100jg71b, 115519, 286793, 443525, 554166ri, 12061041, 165586150, 0986083540, 2273251502

  • Passar modeller
    Nissan Model: Qashqai Model series: Qashqai / Qashqai +2 Model type: 4x4 Type of engine: DCI Size of motor: 1.6 Brand of engine: R9M Type description: J10, JJ10E Body: Box Body / Estate From date: 01-03-2013 To date: 01-04-2014 Fuel: Diesel Approved: Yes
    Nissan Model: Qashqai Model series: Qashqai / Qashqai +2 Model type: 4x4 Type of engine: DCI Size of motor: 2.0 Brand of engine: M9R Type description: J10, JJ10E Body: Box Body / Estate From date: 01-03-2013 To date: 01-04-2014 Fuel: Diesel Approved: Yes
    Nissan Model: Qashqai Model series: Qashqai / Qashqai +2 Type of engine: DCI Size of motor: 1.6 Brand of engine: R9M Type description: J10, JJ10E Body: Box Body / Estate From date: 01-03-2013 To date: 01-04-2014 Fuel: Diesel Approved: Yes
    Nissan Model: Qashqai Model series: Qashqai Model type: 4WD Type of engine: DCi Size of motor: 2.0 Brand of engine: M1D Body: MPV From date: 01-02-2007 To date: 01-12-2013 Fuel: Diesel Approved: Yes
    Nissan Model: Qashqai Model series: Qashqai Model type: 4WD Type of engine: DCi Size of motor: 2.0 Brand of engine: M9R Body: MPV From date: 01-02-2007 To date: 01-12-2013 Fuel: Diesel Approved: Yes
    Nissan Model: Qashqai Model series: Qashqai Model type: 4x4 Type of engine: DCi Size of motor: 1.6 Brand of engine: R9M Type description: J10, JJ10 From date: 01-10-2011 To date: 01-12-2013 Fuel: Diesel Approved: Yes
    Nissan Model: Qashqai Model series: Qashqai Type of engine: DCi Size of motor: 1.6 Brand of engine: R9M Type description: J10, JJ10 From date: 01-10-2011 To date: 01-12-2013 Fuel: Diesel Approved: Yes
    Nissan Model: Qashqai Model series: Qashqai Type of engine: DCi Size of motor: 2.0 Brand of engine: M1D Body: MPV From date: 01-02-2007 To date: 01-12-2013 Fuel: Diesel Approved: Yes
    Nissan Model: Qashqai Model series: Qashqai Type of engine: DCi Size of motor: 2.0 Brand of engine: M9R Body: MPV From date: 01-02-2007 To date: 01-12-2013 Fuel: Diesel Approved: Yes
    Nissan Model: X-Trail Model series: X-Trail Van Model type: 4X4 Type of engine: DCI Size of motor: 2.0 Brand of engine: M9R Type description: T31 Body: Box Body / Estate From date: 01-01-2013 To date: 01-02-2014 Fuel: Diesel Approved: Yes
    Nissan Model: X-Trail Model series: X-Trail Van Model type: 4X4 Type of engine: DCI Size of motor: 2.0 Brand of engine: M9R760 Type description: T31 Body: Box Body / Estate From date: 01-03-2013 To date: 01-02-2014 Fuel: Diesel Approved: Yes
    Nissan Model: X-Trail Model series: X-Trail Van Type of engine: DCI Size of motor: 2.0 Brand of engine: M9R Type description: T31 Body: Box Body / Estate From date: 01-01-2011 To date: 01-02-2014 Fuel: Diesel Approved: Yes
    Nissan Series: Qashqai (J10) Model: 2.0 dCi AWD Engine volume: 2.0 Engine type: M1D / M9R Year: 01.11-
    Nissan Series: Qashqai (J10) Model: 2.0 dCi AWD Engine volume: 2.0 Engine type: M9T 740 Year: 01.10-
    Nissan Series: Qashqai (J10) Model: 2.0 dCi Engine volume: 2.0 Engine type: M1D / M9R Year: 01.11-
    Nissan Series: Qashqai (J10) Model: 1.6 dCi Allhjulsdrift Engine volume: 1.6 Engine type: R9M Year: 11.10-
    Nissan Series: Qashqai (J10) Model: 1.6 dCi Engine volume: 1.6 Engine type: R9M Year: 10.11-
    Nissan Series: X-Trail (T31) Model: 2.0 dCi Engine volume: 2.0 Engine type: M9R (130kW) Year: 12.10-
    Nissan Series: X-Trail (T31) Model: 2.0 dCi FWD Engine volume: 2.0 Engine type: M9R Year: 01.11-
    Nissan Series: X-Trail (T31) Model: 2.0 dCi Engine volume: 2.0 Engine type: M9R (110kW) Year: 12.10-
    Renault Model: Koleos Model series: Koleos Model type: 4x4 Type of engine: DCI Size of motor: 2.0 Brand of engine: M9R830 Type description: HY_ From date: 01-09-2008 To date: 01-03-2013 Fuel: Diesel Approved: Yes
    1 / 5
  • Beskrivelse
    Nissan X-Trail Gen. 12V-150A 12V - 150A, 7gr.frg, (C, S, L) 7gr.frg, (L, S, C) For Yourrex produkt ordre 90-400-3038

    Spænding: 14
    Amp.: 150
    Klodsdiameter: 33,50
    Bredde/beslag arm: 14,00
    Monteringsbeslag afstand: 60,00
    Beslagshul: 8,50
    Bælte justeringsbeslag hulpos.: 45
    Bælte justeringsbeslag hul 1: 8,50
    Klodsdiameter: 49,00
    Riller/klods: 7
    Radius: 90,00
    Radius 2: 90,00
    B+: M8
    Position/B+ i min.: 1
    D+ Størrelse: Stik
    Rotation: UWC
    Stik nr.: PL163
    Total længde mm: 193,00
    Klods: SP/FW
    Vifte: IF
    Regulatortype: IR

    Filer

  • Specifikation
    B+ M8
    Mount. bracket dist. 60.00
    Belt. adj. bracket hole 1 8.50
    Belt. adj. brackethole pos. 45
    Plug no. PL163
    Bracket hole 8.50
    Position/B+ in min. 1
    Pulley SP/FW
    Pulley dia. 49.00
    Pulley dist. 33.50
    Radius 90.00
    D+ Size Plug
    Radius 2 90.00
    Regulator type IR
    Rotation CW
    Fan IF
    Grooves/pulley 7
    Voltage 14
    Total length 193.00 mm
    Width/holder arm 14.00
    Amp 150
  • Køretøjsmatchning

    • OEM
      A003TJ3881, A003TJ3881ZE, A3T-J3881, A3T-J3881 ZE, A3TJ3881, A3TJ3881ZE, F032115519, 2185ir, 23100-JD71B, 23100-JG71B, 23100-jg71b, 115519

    • Konkurrentreferens
      A5097, A5168, CAL35362, lra03653, 8EL011713-671, 28-6793, 165.586.150, 227.325.1502, 443525, 554166RI, 12061041, 0986083540

    • Bilmärken
      Nissan

    • NormaliseratArtNr
      a003tj3881, a003tj3881ze, a3tj3881, a3tj3881ze, a5097, a5168, cal35362, f032115519, lra03653, 8el011713671, 2185ir, 23100jd71b, 23100jg71b, 115519, 286793, 443525, 554166ri, 12061041, 165586150, 0986083540, 2273251502

    • Passar modeller
      Nissan Model: Qashqai Model series: Qashqai / Qashqai +2 Model type: 4x4 Type of engine: DCI Size of motor: 1.6 Brand of engine: R9M Type description: J10, JJ10E Body: Box Body / Estate From date: 01-03-2013 To date: 01-04-2014 Fuel: Diesel Approved: Yes
      Nissan Model: Qashqai Model series: Qashqai / Qashqai +2 Model type: 4x4 Type of engine: DCI Size of motor: 2.0 Brand of engine: M9R Type description: J10, JJ10E Body: Box Body / Estate From date: 01-03-2013 To date: 01-04-2014 Fuel: Diesel Approved: Yes
      Nissan Model: Qashqai Model series: Qashqai / Qashqai +2 Type of engine: DCI Size of motor: 1.6 Brand of engine: R9M Type description: J10, JJ10E Body: Box Body / Estate From date: 01-03-2013 To date: 01-04-2014 Fuel: Diesel Approved: Yes
      Nissan Model: Qashqai Model series: Qashqai Model type: 4WD Type of engine: DCi Size of motor: 2.0 Brand of engine: M1D Body: MPV From date: 01-02-2007 To date: 01-12-2013 Fuel: Diesel Approved: Yes
      Nissan Model: Qashqai Model series: Qashqai Model type: 4WD Type of engine: DCi Size of motor: 2.0 Brand of engine: M9R Body: MPV From date: 01-02-2007 To date: 01-12-2013 Fuel: Diesel Approved: Yes
      Nissan Model: Qashqai Model series: Qashqai Model type: 4x4 Type of engine: DCi Size of motor: 1.6 Brand of engine: R9M Type description: J10, JJ10 From date: 01-10-2011 To date: 01-12-2013 Fuel: Diesel Approved: Yes
      Nissan Model: Qashqai Model series: Qashqai Type of engine: DCi Size of motor: 1.6 Brand of engine: R9M Type description: J10, JJ10 From date: 01-10-2011 To date: 01-12-2013 Fuel: Diesel Approved: Yes
      Nissan Model: Qashqai Model series: Qashqai Type of engine: DCi Size of motor: 2.0 Brand of engine: M1D Body: MPV From date: 01-02-2007 To date: 01-12-2013 Fuel: Diesel Approved: Yes
      Nissan Model: Qashqai Model series: Qashqai Type of engine: DCi Size of motor: 2.0 Brand of engine: M9R Body: MPV From date: 01-02-2007 To date: 01-12-2013 Fuel: Diesel Approved: Yes
      Nissan Model: X-Trail Model series: X-Trail Van Model type: 4X4 Type of engine: DCI Size of motor: 2.0 Brand of engine: M9R Type description: T31 Body: Box Body / Estate From date: 01-01-2013 To date: 01-02-2014 Fuel: Diesel Approved: Yes
      Nissan Model: X-Trail Model series: X-Trail Van Model type: 4X4 Type of engine: DCI Size of motor: 2.0 Brand of engine: M9R760 Type description: T31 Body: Box Body / Estate From date: 01-03-2013 To date: 01-02-2014 Fuel: Diesel Approved: Yes
      Nissan Model: X-Trail Model series: X-Trail Van Type of engine: DCI Size of motor: 2.0 Brand of engine: M9R Type description: T31 Body: Box Body / Estate From date: 01-01-2011 To date: 01-02-2014 Fuel: Diesel Approved: Yes
      Nissan Series: Qashqai (J10) Model: 2.0 dCi AWD Engine volume: 2.0 Engine type: M1D / M9R Year: 01.11-
      Nissan Series: Qashqai (J10) Model: 2.0 dCi AWD Engine volume: 2.0 Engine type: M9T 740 Year: 01.10-
      Nissan Series: Qashqai (J10) Model: 2.0 dCi Engine volume: 2.0 Engine type: M1D / M9R Year: 01.11-
      Nissan Series: Qashqai (J10) Model: 1.6 dCi Allhjulsdrift Engine volume: 1.6 Engine type: R9M Year: 11.10-
      Nissan Series: Qashqai (J10) Model: 1.6 dCi Engine volume: 1.6 Engine type: R9M Year: 10.11-
      Nissan Series: X-Trail (T31) Model: 2.0 dCi Engine volume: 2.0 Engine type: M9R (130kW) Year: 12.10-
      Nissan Series: X-Trail (T31) Model: 2.0 dCi FWD Engine volume: 2.0 Engine type: M9R Year: 01.11-
      Nissan Series: X-Trail (T31) Model: 2.0 dCi Engine volume: 2.0 Engine type: M9R (110kW) Year: 12.10-
      Renault Model: Koleos Model series: Koleos Model type: 4x4 Type of engine: DCI Size of motor: 2.0 Brand of engine: M9R830 Type description: HY_ From date: 01-09-2008 To date: 01-03-2013 Fuel: Diesel Approved: Yes
      1 / 5
