HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032114006

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 90, Rotation: CW, Monteringsbøsning afstand: 38.00

Beskrivelse

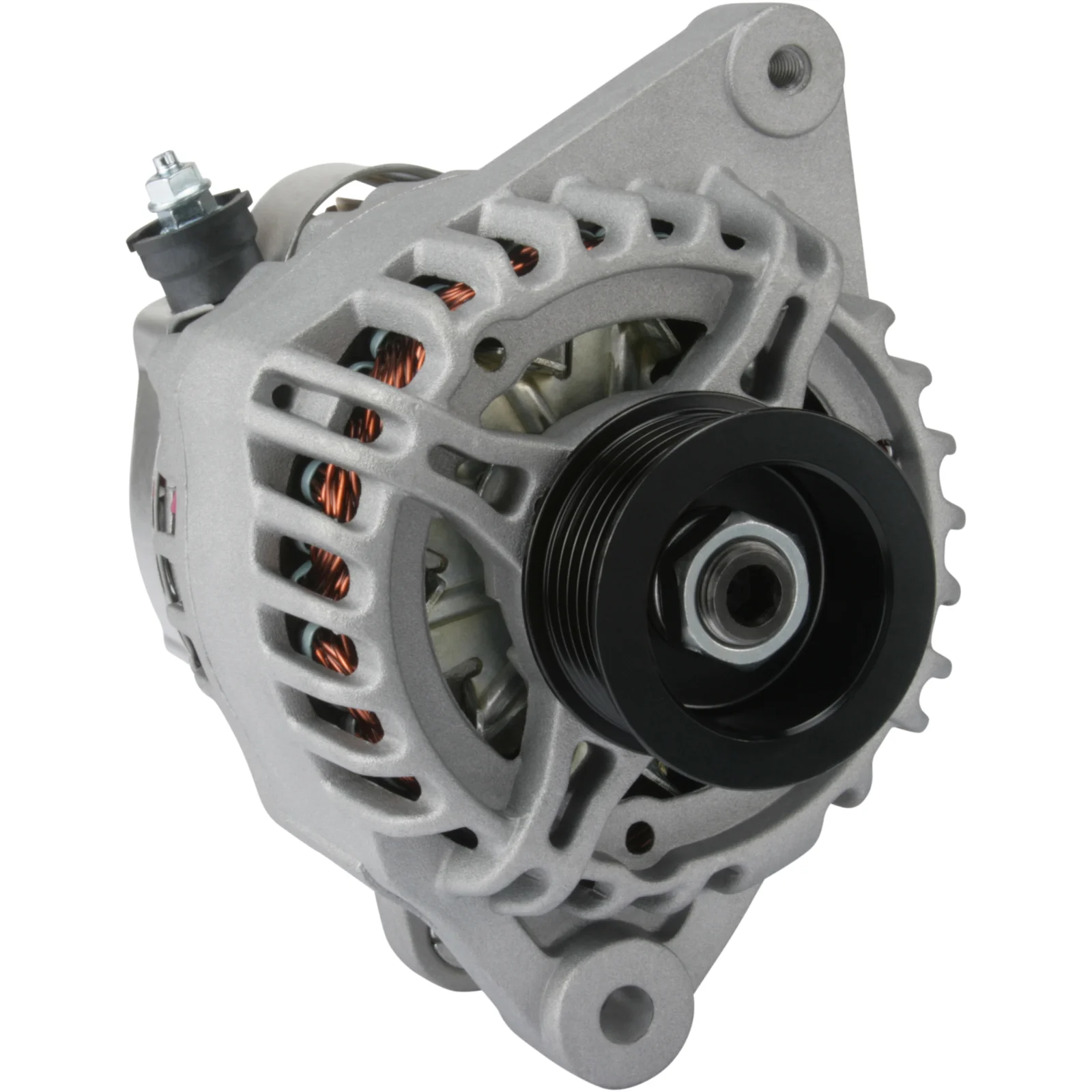

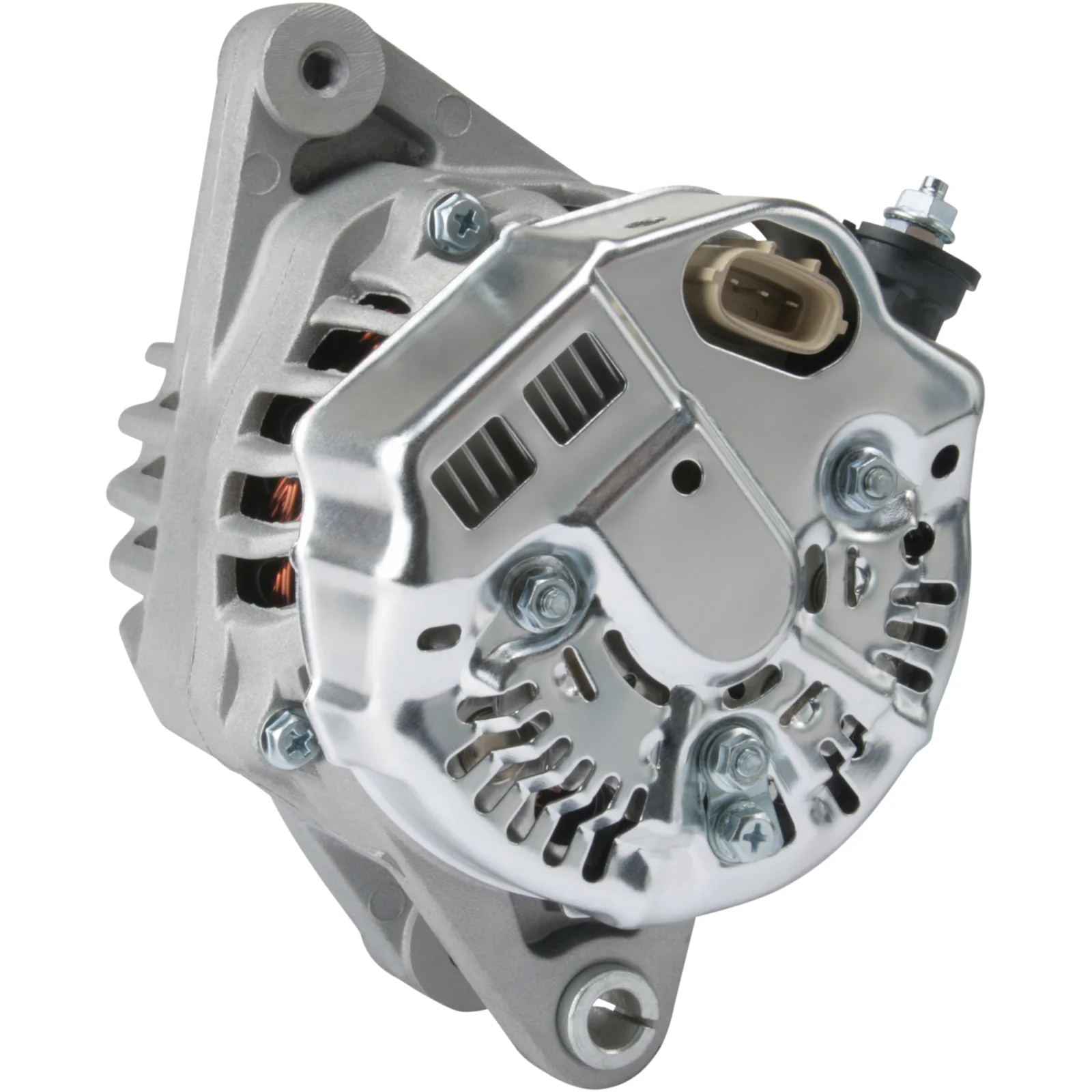

Toyota Yaris Generator 12V-90A 12V - 90A, 6gr (M, IG, L) Biler med europæiske dele Til Yourex produktordre 90-555-4921

Spenning: 14
Amp: 90
Remskive afstand: 48.00
Bredde/holderarm: 26.00
Monteringsbeslag afstand: 38.00
Beslagshuldring: 10.00
Bælte justering beslaghul pos.: 5
Bælte justering beslag hul 1: M8
Remskive dia.: 55.00
Riller/remskive: 6
Radius: 80.00
Radius 2: 90.00
B+: M6
Position/B+ i min.: 7
D+ Størrelse: Stik
Rotation: CW
Stiknummer: PL67
Total længde mm: 170.00
Remskive: SP
Regulator type: IR

Filer

Specifikation

B+ M6
Mount. bracket dist. 38.00
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 5
Plug no. PL67
Bracket hole 10.00
Position/B+ in min. 7
Pulley SP
Pulley dia. 55.00
Pulley dist. 48.00
Radius 80.00
D+ Size Plug
Radius 2 90.00
Regulator type IR
Rotation CW
Grooves/pulley 6
Voltage 14
Total length 170.00 mm
Width/holder arm 26.00
Amp 90

  • OEM
    F032114006, ja1800ir, 0986 049 211, 1986A01270, 27060-0J020, 27060-0J040, 102211-8010, 102211-8200, 114006

  • Konkurrentreferens
    A6013, A6013PR, A6013SR, CAL40163, DRA0122, LEA1098, 8EL012428-461, 28-4907, 23277N, 112404, 209304, 209304A, 401800RI, 443163, 9212761, 12060856, 0986049211

  • Bilmärken
    Toyota

  • NormaliseratArtNr
    a6013, a6013pr, a6013sr, cal40163, dra0122, f032114006, ja1800ir, lea1098, 8el012428461, 1986a01270, 23277n, 112404, 114006, 209304, 209304a, 270600j020, 270600j040, 284907, 401800ri, 443163, 9212761, 12060856, 0986049211, 1022118010, 1022118200

  • Passar modeller
    Toyota Model: Yaris Model series: Yaris Size of motor: 1.3 Brand of engine: 2SZ-FE Body: Hatchback From date: 01-04-2002 To date: 01-09-2005 Fuel: Gasoline Approved: Yes
    Toyota Model: Yaris Model series: Yaris Type of engine: 16V Size of motor: 1.0 Brand of engine: 1SZ-FE Type description: _CP10_ Body: Hatchback From date: 01-03-2003 To date: 01-09-2005 Fuel: Gasoline Approved: Yes
    Toyota Model: Yaris Model series: Yaris Type of engine: i Size of motor: 1.0 Brand of engine: 1SZ-FE Type description: SCP10 Body: Hatchback From date: 01-04-1999 To date: 01-09-2005 Fuel: Gasoline Approved: Yes
    Toyota Series: Yaris (_CP10) Model: 1.0 16V Europe Engine volume: 1.0 Engine type: 1SZ-FE Year: 01.01-10.05
    Toyota Series: Yaris (_CP10) Model: 1.0 16V Europe Engine volume: 1.0 Engine type: 1SZ-FE Year: 03.03-10.05
    Toyota Series: Yaris (_CP10) Model: 1.3 Engine volume: 1.3 Engine type: 2SZ-FE Year: 05.02-10.05
    1 / 2
  • Beskrivelse
    Toyota Yaris Generator 12V-90A 12V - 90A, 6gr (M, IG, L) Biler med europæiske dele Til Yourex produktordre 90-555-4921

    Spenning: 14
    Amp: 90
    Remskive afstand: 48.00
    Bredde/holderarm: 26.00
    Monteringsbeslag afstand: 38.00
    Beslagshuldring: 10.00
    Bælte justering beslaghul pos.: 5
    Bælte justering beslag hul 1: M8
    Remskive dia.: 55.00
    Riller/remskive: 6
    Radius: 80.00
    Radius 2: 90.00
    B+: M6
    Position/B+ i min.: 7
    D+ Størrelse: Stik
    Rotation: CW
    Stiknummer: PL67
    Total længde mm: 170.00
    Remskive: SP
    Regulator type: IR

    Filer

  • Specifikation
    B+ M6
    Mount. bracket dist. 38.00
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 5
    Plug no. PL67
    Bracket hole 10.00
    Position/B+ in min. 7
    Pulley SP
    Pulley dia. 55.00
    Pulley dist. 48.00
    Radius 80.00
    D+ Size Plug
    Radius 2 90.00
    Regulator type IR
    Rotation CW
    Grooves/pulley 6
    Voltage 14
    Total length 170.00 mm
    Width/holder arm 26.00
    Amp 90
  • Køretøjsmatchning

    • OEM
      F032114006, ja1800ir, 0986 049 211, 1986A01270, 27060-0J020, 27060-0J040, 102211-8010, 102211-8200, 114006

    • Konkurrentreferens
      A6013, A6013PR, A6013SR, CAL40163, DRA0122, LEA1098, 8EL012428-461, 28-4907, 23277N, 112404, 209304, 209304A, 401800RI, 443163, 9212761, 12060856, 0986049211

    • Bilmärken
      Toyota

    • NormaliseratArtNr
      a6013, a6013pr, a6013sr, cal40163, dra0122, f032114006, ja1800ir, lea1098, 8el012428461, 1986a01270, 23277n, 112404, 114006, 209304, 209304a, 270600j020, 270600j040, 284907, 401800ri, 443163, 9212761, 12060856, 0986049211, 1022118010, 1022118200

    • Passar modeller
      Toyota Model: Yaris Model series: Yaris Size of motor: 1.3 Brand of engine: 2SZ-FE Body: Hatchback From date: 01-04-2002 To date: 01-09-2005 Fuel: Gasoline Approved: Yes
      Toyota Model: Yaris Model series: Yaris Type of engine: 16V Size of motor: 1.0 Brand of engine: 1SZ-FE Type description: _CP10_ Body: Hatchback From date: 01-03-2003 To date: 01-09-2005 Fuel: Gasoline Approved: Yes
      Toyota Model: Yaris Model series: Yaris Type of engine: i Size of motor: 1.0 Brand of engine: 1SZ-FE Type description: SCP10 Body: Hatchback From date: 01-04-1999 To date: 01-09-2005 Fuel: Gasoline Approved: Yes
      Toyota Series: Yaris (_CP10) Model: 1.0 16V Europe Engine volume: 1.0 Engine type: 1SZ-FE Year: 01.01-10.05
      Toyota Series: Yaris (_CP10) Model: 1.0 16V Europe Engine volume: 1.0 Engine type: 1SZ-FE Year: 03.03-10.05
      Toyota Series: Yaris (_CP10) Model: 1.3 Engine volume: 1.3 Engine type: 2SZ-FE Year: 05.02-10.05
