HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032115544

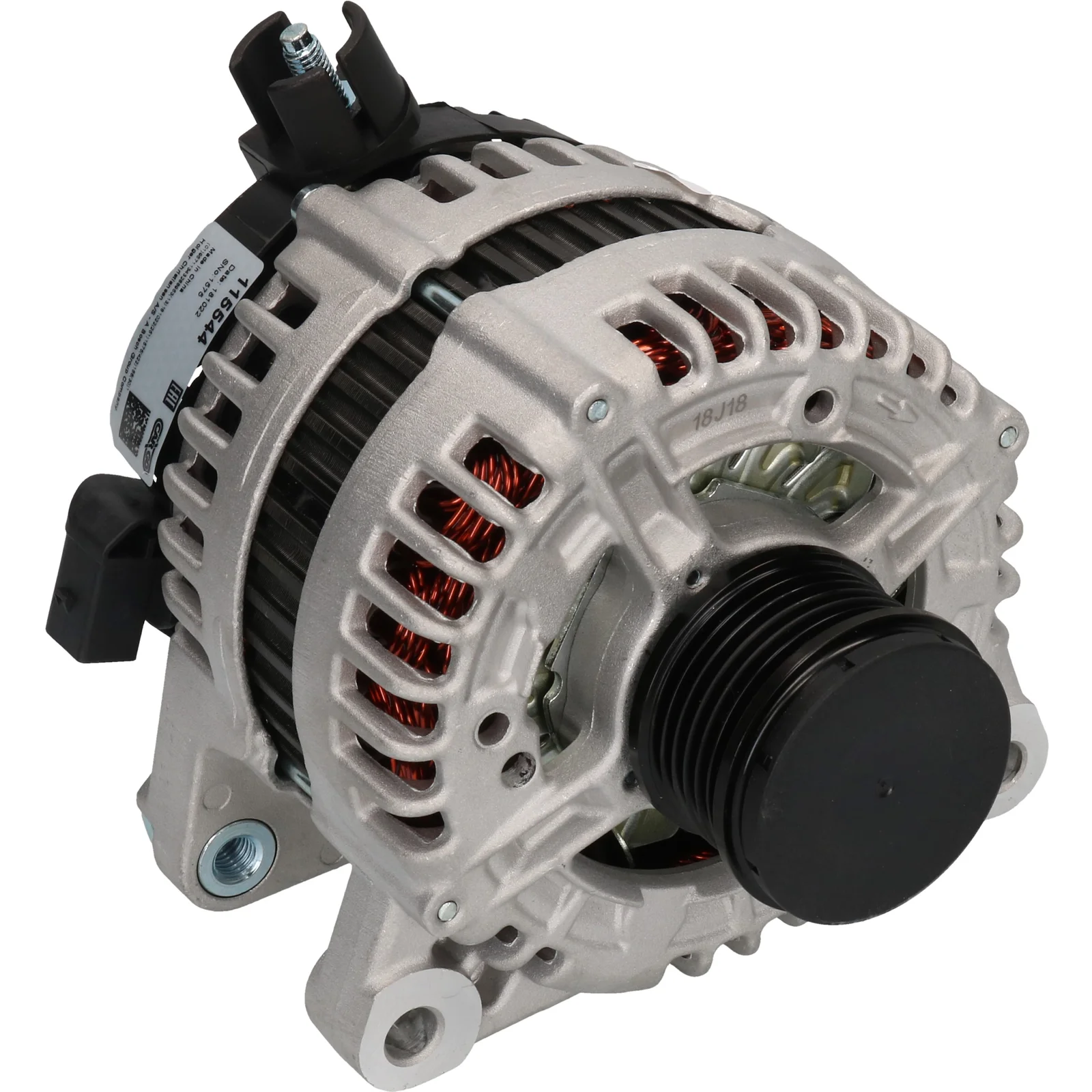

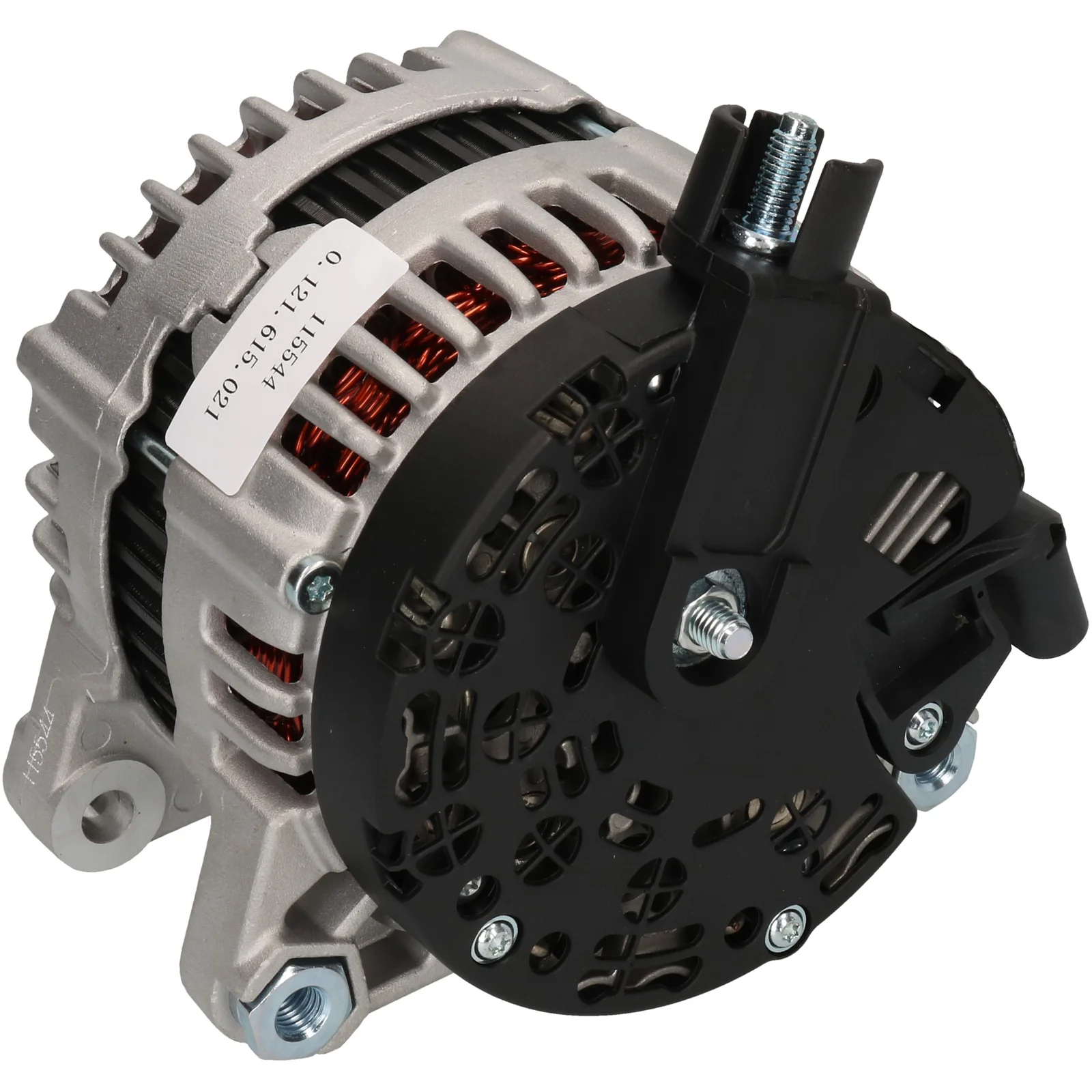

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 150, Rotation: CW, Monteringsbeslag fordeler: 46,00

Beskrivelse

Strømspænding: 14
Amp: 150
Remskive dist.: 42,50
Bredde/beslagarms afstand: 21,00
Monteringsbeslagets dist.: 46,00
Beslagshuls: 10,50
Bæltespændingsbeslagshuls position: 30
Bæltespændingsbeslagshuls 1: 10,50
Bæltespændingsbeslagshuls 2: M10
Remskive dia.: 54,50
Riller/remskive: 6
Radius: 90,00
Radius 2: 90,00
B+: M8
Position/B+ i min.: 60
Rotation: U.C.
Stik nr.: PL137
Total længde mm: 184,00
Terminaltype: COM
Kommunikation: LIN
Remskive: SP/FW
Regulator type: IR
Bemærkninger: Denne generator har en COM-terminal på regulatoren. Det anbefales at bruge OEM-nummeret til at kontrollere egnetheden inden bestilling.

Filer

Specifikation

B+ M8
Communication LIN
Mount. bracket dist. 46.00
Belt. adj. bracket hole 1 10.50
Belt. adj. bracket hole 2 M10
Belt. adj. brackethole pos. 30
Plug no. PL137
Bracket hole 10.50
Position/B+ in min. 60
Pulley SP/FW
Pulley dia. 54.50
Pulley dist. 42.50
Radius 90.00
Radius 2 90.00
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Grooves/pulley 6
Terminal type COM
Voltage 14
Total length 184.00 mm
Width/holder arm 21.00
Amp 150

  • OEM
    F032115544, lr002899, lr007088, 6G9J10300ADA, 6g9n10300ada, 6G9N10300ADB, 1986A00674, 2113ir, 1435647, 1455494, 1790385, 2099447, 0121615021, 0121615058, 0121615121

  • Konkurrentreferens
    A0288, A0288PR, CAL10375, DRA0059, LRA02973, 8EL011712-611, 28-5587, 219.191.1502, 23973, 23973N, 112976, 210426, 210426A, 440480, 12090257, 0986081400, 063536151210

  • NormaliseratArtNr
    a0288, a0288pr, cal10375, dra0059, f032115544, lr002899, lr007088, lra02973, 6g9j10300ada, 6g9n10300ada, 6g9n10300adb, 8el011712611, 1986a00674, 2113ir, 23973, 23973n, 112976, 210426, 210426a, 285587, 440480, 1435647, 1455494, 1790385, 2099447, 12090257, 0121615021, 0121615058, 0121615121, 0986081400, 2191911502, 063536151210

  • Passar modeller
    Ford Model: Galaxy Model series: Galaxy Type of engine: TDCi Size of motor: 2.2 Brand of engine: KNWA Type description: WA6 Body: MPV From date: 01-11-2010 To date: 01-06-2015 Fuel: Diesel Approved: Yes
    Ford Model: Galaxy Model series: Galaxy Type of engine: TDCi Size of motor: 2.2 Brand of engine: KNWA Type description: WA6 Body: Van From date: 01-03-2013 To date: 01-06-2015 Fuel: Diesel Approved: Yes
    Ford Model: Galaxy Model series: Galaxy Type of engine: TDCi Size of motor: 2.2 Brand of engine: Q4BA Body: MPV From date: 01-03-2008 To date: 01-12-2012 Fuel: Diesel Approved: Yes
    Ford Model: Galaxy Model series: Galaxy Type of engine: TDCi Size of motor: 2.2 Brand of engine: Q4WA Body: MPV From date: 01-03-2008 To date: 01-12-2012 Fuel: Diesel Approved: Yes
    Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.0 Brand of engine: AZBC Body: Estate From date: 01-03-2007 To date: 01-12-2014 Fuel: Diesel Approved: Yes Manufacture type: Turnier
    Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.0 Brand of engine: AZBC Body: Hatchback From date: 01-03-2007 To date: 01-12-2014 Fuel: Diesel Approved: Yes
    Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.0 Brand of engine: KLBA Body: Box Body / Estate From date: 01-11-2007 To date: 01-09-2014 Fuel: Diesel Approved: Yes
    Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.0 Brand of engine: KLBA Body: Estate From date: 01-11-2007 To date: 01-01-2015 Fuel: Diesel Approved: Yes Manufacture type: turnier
    Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.0 Brand of engine: KLBA Body: Hatchback From date: 01-11-2007 To date: 01-01-2015 Fuel: Diesel Approved: Yes
    Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.0 Brand of engine: KLBA From date: 01-11-2007 To date: 01-01-2015 Fuel: Diesel Approved: Yes
    Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.0 Brand of engine: LPBA Body: Estate From date: 01-11-2007 To date: 01-01-2015 Fuel: Diesel Approved: Yes Manufacture type: turnier
    Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.0 Brand of engine: LPBA Body: Hatchback From date: 01-11-2007 To date: 01-01-2015 Fuel: Diesel Approved: Yes
    Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.0 Brand of engine: LPBA From date: 01-11-2007 To date: 01-01-2015 Fuel: Diesel Approved: Yes
    Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.0 Brand of engine: QXBB Body: Box Body / Estate From date: 01-03-2007 To date: 01-09-2014 Fuel: Diesel Approved: Yes
    Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.0 Brand of engine: TYBA Body: Estate From date: 01-11-2007 To date: 01-01-2015 Fuel: Diesel Approved: Yes Manufacture type: turnier
    Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.0 Brand of engine: TYBA Body: Hatchback From date: 01-11-2007 To date: 01-01-2015 Fuel: Diesel Approved: Yes
    Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.0 Brand of engine: TYBA From date: 01-11-2007 To date: 01-01-2015 Fuel: Diesel Approved: Yes
    Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.0 Brand of engine: UKBA Body: Estate From date: 01-03-2007 To date: 01-12-2014 Fuel: Diesel Approved: Yes Manufacture type: Turnier
    Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.0 Brand of engine: UKBA Body: Hatchback From date: 01-03-2007 To date: 01-12-2014 Fuel: Diesel Approved: Yes
    Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.2 Brand of engine: KNBA Body: Box Body / Estate From date: 01-03-2013 To date: 01-09-2014 Fuel: Diesel Approved: Yes
    Ford Model: Mondeo Model series: Mondeo Type of engine: TDCI Size of motor: 2.2 Brand of engine: KNBA Type description: BA7 From date: 01-10-2010 To date: 01-01-2015 Fuel: Diesel Approved: Yes
    Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.2 Brand of engine: KNBA Type description: BE_ Body: Hatchback From date: 01-07-2010 To date: 01-01-2015 Fuel: Diesel Approved: Yes
    Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.2 Brand of engine: KNBA Type description: BG7 Body: Estate From date: 01-07-2010 To date: 01-01-2015 Fuel: Diesel Approved: Yes Manufacture type: Turnier
    Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.2 Brand of engine: Q4BA Body: Estate From date: 01-03-2008 To date: 01-10-2010 Fuel: Diesel Approved: Yes Manufacture type: turnier
    Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.2 Brand of engine: Q4BA Body: Hatchback From date: 01-03-2008 To date: 01-10-2010 Fuel: Diesel Approved: Yes
    Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.2 Brand of engine: Q4BA From date: 01-03-2008 To date: 01-10-2010 Fuel: Diesel Approved: Yes
    Ford Model: S-Max Model series: S-Max Type of engine: TDCi Size of motor: 2.2 Brand of engine: KNWA Type description: WA_ Body: MPV From date: 01-07-2010 To date: 01-12-2014 Fuel: Diesel Approved: Yes
    Ford Model: S-Max Model series: S-Max Type of engine: TDCi Size of motor: 2.2 Brand of engine: Q4WA Type description: WA6 Body: MPV From date: 01-03-2008 To date: 01-12-2012 Fuel: Diesel Approved: Yes
    Land Rover Model: Freelander Model series: Freelander Model type: 4x4 Type of engine: TDI Size of motor: 2.2 Brand of engine: 224DT Type description: L359 Body: Van From date: 01-10-2006 To date: 01-10-2014 Fuel: Diesel Approved: Yes
    Land Rover Model: Freelander Model series: Freelander Model type: SD4 Type of engine: Diesel Size of motor: 2.2 Brand of engine: 224DT Type description: FA_ From date: 01-08-2010 To date: 01-10-2014 Fuel: Diesel Approved: Yes
    Land Rover Model: Freelander Model series: Freelander Model type: TD4 4x4 Type of engine: Diesel Size of motor: 2.2 Brand of engine: 224DT Type description: FA_ From date: 01-10-2006 To date: 01-10-2014 Fuel: Diesel Approved: Yes
    Land Rover Model: Freelander Model series: Freelander Model type: TD4 4x4 Type of engine: Diesel Size of motor: 2.2 Brand of engine: DW12BTED4 Type description: FA_ From date: 01-10-2006 To date: 01-10-2014 Fuel: Diesel Approved: Yes
    Land Rover Model: Freelander Model series: Freelander Model type: TD4 Type of engine: Diesel Size of motor: 2.2 Brand of engine: 224DT Type description: FA_ From date: 01-08-2010 To date: 01-10-2014 Fuel: Diesel Approved: Yes
    Land Rover Model: Freelander Model series: Freelander Model type: TD4 Type of engine: Diesel Size of motor: 2.2 Brand of engine: DW12BTED4 Type description: FA_ From date: 01-08-2010 To date: 01-10-2014 Fuel: Diesel Approved: Yes
    Land Rover Model: Freelander Model series: Freelander Type of engine: Diesel Size of motor: 2.2 Brand of engine: 224DT Type description: FA_ From date: 01-10-2006 To date: 01-10-2014 Fuel: Diesel Approved: Yes
