HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032116438

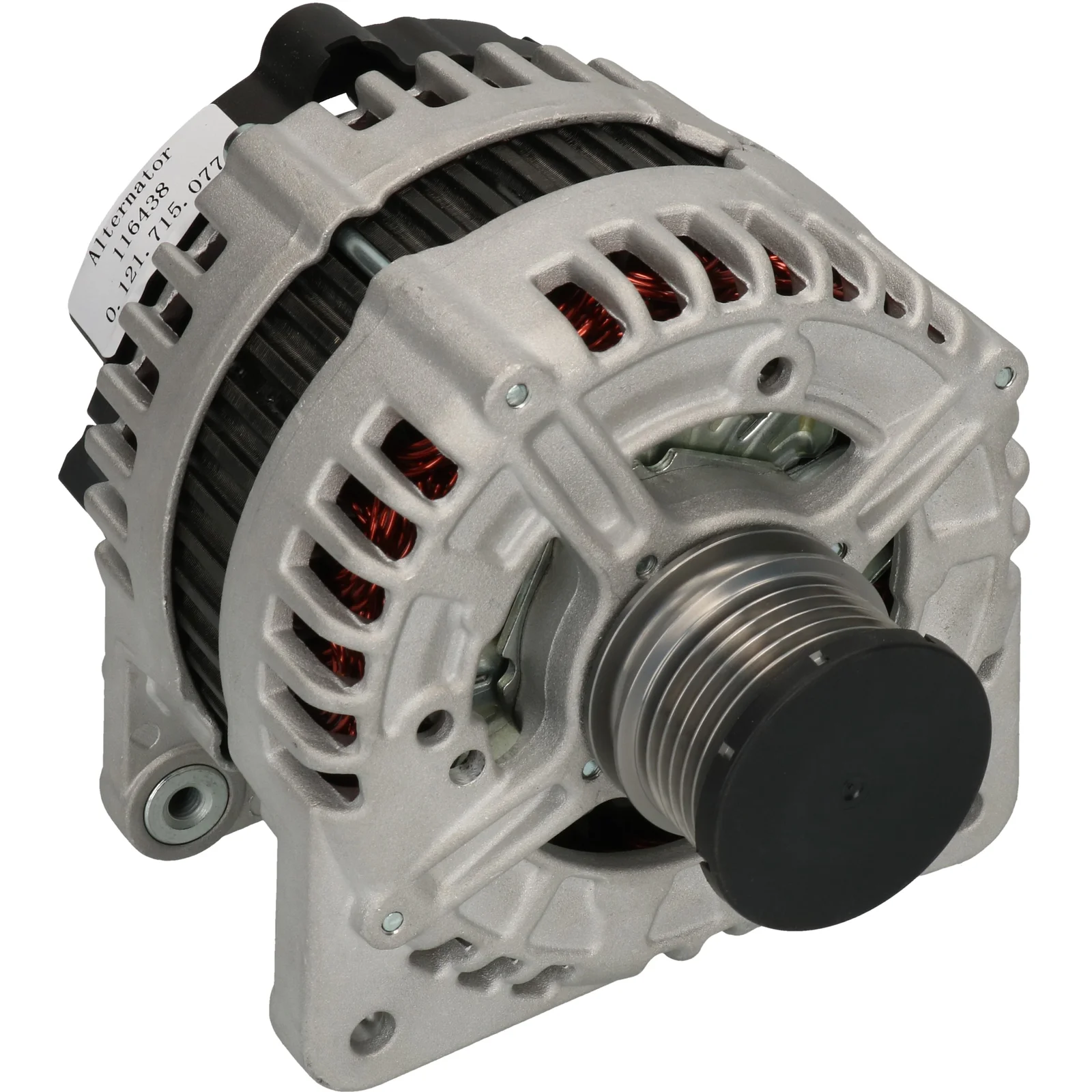

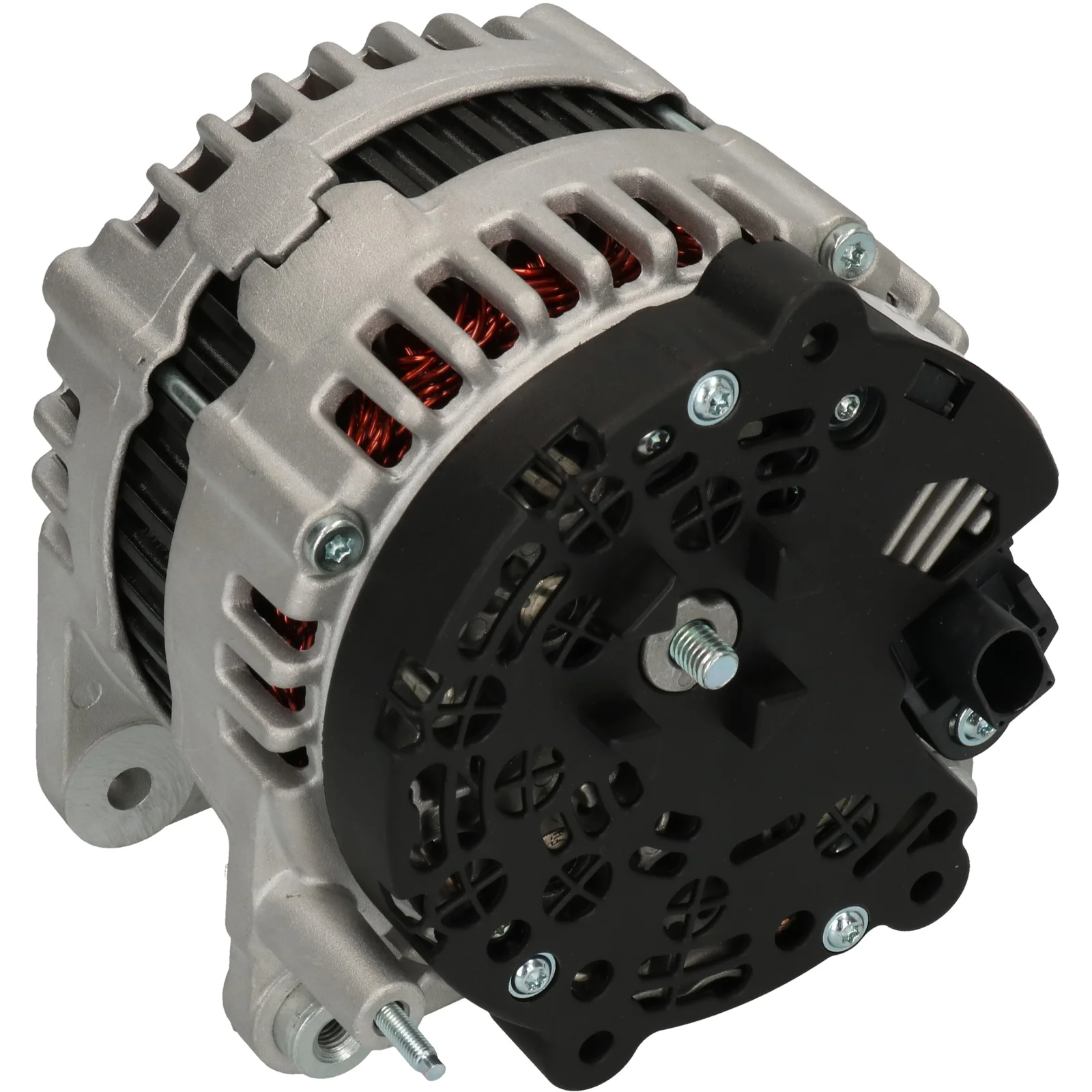

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 180, Rotation: CW, Monteringsbeslag for fordeling: 62.00

Beskrivelse

Spænding: 14
Amp.: 180
Remskive fordeling: 40,40
Bredde/beslag arm: 14,30
Monteringsbeslag afstand: 62,00
Beslag hul: 8,50
Bælte justering beslag hul position: 45
Bælte justering beslag hul 1: 8,50
Remskive diameter: 50,00
Riller/remskive: 6
Radius: 90,00
Radius 2: 90,00
B+: M8
Position/B+ i min.: 45
Rotation: CW
Stik nr.: PL181
Total længde mm: 190,00
Terminaltype: COM
Kommunikation: LIN
Remskive: SP/FW
Regulator type: IR
Bemærkninger: Denne generator har en COM-terminal på regulators. Det anbefales at bruge OEM-nummeret for at kontrollere egnethed før bestilling.

Filer

Specifikation

B+ M8
Communication LIN
Mount. bracket dist. 62.00
Belt. adj. bracket hole 1 8.50
Belt. adj. brackethole pos. 45
Plug no. PL181
Bracket hole 8.50
Position/B+ in min. 45
Pulley SP/FW
Pulley dia. 50.00
Pulley dist. 40.40
Radius 90.00
Radius 2 90.00
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Grooves/pulley 6
Terminal type COM
Voltage 14
Total length 190.00 mm
Width/holder arm 14.30
Amp 180

  • OEM
    F032116438, 03G903016L, 03G903016LX, 65.26101-6000, 65.26101-6005, 65.26101-6007, 65.26101-6008, 0121715077, 0121715177

  • Konkurrentreferens
    A3308PR, CAL15398, DRA0359, LEA0779, LRA03152, LRA04282, 28-5764, 28-7891, 205.539.180, 211.357.1802, 113057, 440836, 553625RI, 0986081920

  • NormaliseratArtNr
    a3308pr, cal15398, dra0359, f032116438, lea0779, lra03152, lra04282, 03g903016l, 03g903016lx, 113057, 285764, 287891, 440836, 553625ri, 0121715077, 0121715177, 205539180, 0986081920, 2113571802, 65261016000, 65261016005, 65261016007, 65261016008

  • Passar modeller
    Audi Model: A6 Model series: A6 Type of engine: TDi Size of motor: 2.0 Brand of engine: CAGB Type description: 4F2 From date: 01-07-2004 To date: 01-03-2011 Fuel: Diesel Approved: Yes
    Audi Model: A6 Model series: A6 Type of engine: TDi Size of motor: 2.0 Brand of engine: CAGB Type description: 4F5 Body: Estate From date: 01-06-2005 To date: 01-08-2011 Fuel: Diesel Approved: Yes Manufacture type: AVANT
    Audi Model: A6 Model series: A6 Type of engine: TDi Size of motor: 2.0 Brand of engine: CAHA Type description: 4F2 From date: 01-11-2008 To date: 01-03-2011 Fuel: Diesel Approved: Yes
    Audi Model: A6 Model series: A6 Type of engine: TDi Size of motor: 2.0 Brand of engine: CAHA Type description: 4F5 Body: Estate From date: 01-10-2008 To date: 01-08-2011 Fuel: Diesel Approved: Yes Manufacture type: AVANT
    Audi Model: A6 Model series: A6 Type of engine: TDi Size of motor: 2.0 Brand of engine: CAHB Type description: 4F2 From date: 01-04-2009 To date: 01-03-2011 Fuel: Diesel Approved: Yes
    Audi Model: A6 Model series: A6 Type of engine: TDi Size of motor: 2.0 Brand of engine: CAHB Type description: 4F5 Body: Estate From date: 01-04-2009 To date: 01-08-2011 Fuel: Diesel Approved: Yes Manufacture type: Avant
    MAN Model: TGE Model series: TGE Model type: RWD Type of engine: TDI Size of motor: 2.0 Brand of engine: DREC Body: Van From date: 01-11-2022 Fuel: Diesel Approved: Yes
    MAN Model: TGE Model series: TGE Model type: RWD Type of engine: TDI Size of motor: 2.0 Brand of engine: DREC Type description: UZ_ Body: Platform/Chassis From date: 01-11-2022 Fuel: Diesel Approved: Yes
    MAN Model: TGE Model series: TGE Type of engine: TDI Size of motor: 2.0 Brand of engine: DAUA Type description: UZ_ Body: Platform/Chassis From date: 01-11-2016 Fuel: Diesel Approved: Yes
    MAN Model: TGE Model series: TGE Type of engine: TDI Size of motor: 2.0 Brand of engine: DAUB Body: Van From date: 01-02-2017 Fuel: Diesel Approved: Yes
    VW Model: CC Model series: CC Model type: 4motion Type of engine: FSi Size of motor: 3.6 Brand of engine: BWS Body: Coupe From date: 01-11-2011 To date: 01-12-2016 Fuel: Gasoline Approved: Yes
    VW Model: Passat Model series: Passat CC Model type: 4motion Type of engine: FSi Size of motor: 3.6 Brand of engine: BLV Body: Coupe From date: 01-06-2008 To date: 01-01-2012 Fuel: Gasoline Approved: Yes
    VW Model: Passat Model series: Passat CC Model type: 4motion Type of engine: FSi Size of motor: 3.6 Brand of engine: CNNA Body: Coupe From date: 01-06-2008 To date: 01-01-2012 Fuel: Gasoline Approved: Yes
    VW Model: Passat Model series: Passat CC Type of engine: FSi Size of motor: 3.6 Brand of engine: BLV Body: Coupe From date: 01-06-2008 To date: 01-01-2012 Fuel: Gasoline Approved: Yes
    VW Model: Passat Model series: Passat CC Type of engine: FSi Size of motor: 3.6 Brand of engine: CNNA Body: Coupe From date: 01-06-2008 To date: 01-01-2012 Fuel: Gasoline Approved: Yes
    VW Model: Passat Model series: Passat Model type: 4 Motion Size of motor: 3.6 Brand of engine: BWS Body: Coupe From date: 01-02-2008 To date: 01-12-2011 Fuel: Gasoline Approved: Yes
    VW Model: Passat Model series: Passat Model type: 4motion Type of engine: FSi Size of motor: 3.6 Brand of engine: BWS Type description: 362 From date: 01-01-2011 To date: 01-12-2014 Fuel: Gasoline Approved: Yes
    VW Model: Passat Model series: Passat Model type: 4motion Type of engine: FSi Size of motor: 3.6 Brand of engine: BWS Type description: 365 Body: Box Body / Estate From date: 01-01-2011 To date: 01-12-2014 Fuel: Gasoline Approved: Yes
    VW Model: Passat Model series: Passat Model type: 4motion Type of engine: FSi Size of motor: 3.6 Brand of engine: BWS Type description: 365 Body: Estate From date: 01-01-2011 To date: 01-12-2014 Fuel: Gasoline Approved: Yes Manufacture type: Variant
    1 / 4
  • Beskrivelse
    Spænding: 14
    Amp.: 180
    Remskive fordeling: 40,40
    Bredde/beslag arm: 14,30
    Monteringsbeslag afstand: 62,00
    Beslag hul: 8,50
    Bælte justering beslag hul position: 45
    Bælte justering beslag hul 1: 8,50
    Remskive diameter: 50,00
    Riller/remskive: 6
    Radius: 90,00
    Radius 2: 90,00
    B+: M8
    Position/B+ i min.: 45
    Rotation: CW
    Stik nr.: PL181
    Total længde mm: 190,00
    Terminaltype: COM
    Kommunikation: LIN
    Remskive: SP/FW
    Regulator type: IR
    Bemærkninger: Denne generator har en COM-terminal på regulators. Det anbefales at bruge OEM-nummeret for at kontrollere egnethed før bestilling.

    Filer

  • Specifikation
    B+ M8
    Communication LIN
    Mount. bracket dist. 62.00
    Belt. adj. bracket hole 1 8.50
    Belt. adj. brackethole pos. 45
    Plug no. PL181
    Bracket hole 8.50
    Position/B+ in min. 45
    Pulley SP/FW
    Pulley dia. 50.00
    Pulley dist. 40.40
    Radius 90.00
    Radius 2 90.00
    Regulator type IR
    Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
    Rotation CW
    Grooves/pulley 6
    Terminal type COM
    Voltage 14
    Total length 190.00 mm
    Width/holder arm 14.30
    Amp 180
  • Køretøjsmatchning

    • OEM
      F032116438, 03G903016L, 03G903016LX, 65.26101-6000, 65.26101-6005, 65.26101-6007, 65.26101-6008, 0121715077, 0121715177

    • Konkurrentreferens
      A3308PR, CAL15398, DRA0359, LEA0779, LRA03152, LRA04282, 28-5764, 28-7891, 205.539.180, 211.357.1802, 113057, 440836, 553625RI, 0986081920

    • NormaliseratArtNr
      a3308pr, cal15398, dra0359, f032116438, lea0779, lra03152, lra04282, 03g903016l, 03g903016lx, 113057, 285764, 287891, 440836, 553625ri, 0121715077, 0121715177, 205539180, 0986081920, 2113571802, 65261016000, 65261016005, 65261016007, 65261016008

    • Passar modeller
      Audi Model: A6 Model series: A6 Type of engine: TDi Size of motor: 2.0 Brand of engine: CAGB Type description: 4F2 From date: 01-07-2004 To date: 01-03-2011 Fuel: Diesel Approved: Yes
      Audi Model: A6 Model series: A6 Type of engine: TDi Size of motor: 2.0 Brand of engine: CAGB Type description: 4F5 Body: Estate From date: 01-06-2005 To date: 01-08-2011 Fuel: Diesel Approved: Yes Manufacture type: AVANT
      Audi Model: A6 Model series: A6 Type of engine: TDi Size of motor: 2.0 Brand of engine: CAHA Type description: 4F2 From date: 01-11-2008 To date: 01-03-2011 Fuel: Diesel Approved: Yes
      Audi Model: A6 Model series: A6 Type of engine: TDi Size of motor: 2.0 Brand of engine: CAHA Type description: 4F5 Body: Estate From date: 01-10-2008 To date: 01-08-2011 Fuel: Diesel Approved: Yes Manufacture type: AVANT
      Audi Model: A6 Model series: A6 Type of engine: TDi Size of motor: 2.0 Brand of engine: CAHB Type description: 4F2 From date: 01-04-2009 To date: 01-03-2011 Fuel: Diesel Approved: Yes
      Audi Model: A6 Model series: A6 Type of engine: TDi Size of motor: 2.0 Brand of engine: CAHB Type description: 4F5 Body: Estate From date: 01-04-2009 To date: 01-08-2011 Fuel: Diesel Approved: Yes Manufacture type: Avant
      MAN Model: TGE Model series: TGE Model type: RWD Type of engine: TDI Size of motor: 2.0 Brand of engine: DREC Body: Van From date: 01-11-2022 Fuel: Diesel Approved: Yes
      MAN Model: TGE Model series: TGE Model type: RWD Type of engine: TDI Size of motor: 2.0 Brand of engine: DREC Type description: UZ_ Body: Platform/Chassis From date: 01-11-2022 Fuel: Diesel Approved: Yes
      MAN Model: TGE Model series: TGE Type of engine: TDI Size of motor: 2.0 Brand of engine: DAUA Type description: UZ_ Body: Platform/Chassis From date: 01-11-2016 Fuel: Diesel Approved: Yes
      MAN Model: TGE Model series: TGE Type of engine: TDI Size of motor: 2.0 Brand of engine: DAUB Body: Van From date: 01-02-2017 Fuel: Diesel Approved: Yes
      VW Model: CC Model series: CC Model type: 4motion Type of engine: FSi Size of motor: 3.6 Brand of engine: BWS Body: Coupe From date: 01-11-2011 To date: 01-12-2016 Fuel: Gasoline Approved: Yes
      VW Model: Passat Model series: Passat CC Model type: 4motion Type of engine: FSi Size of motor: 3.6 Brand of engine: BLV Body: Coupe From date: 01-06-2008 To date: 01-01-2012 Fuel: Gasoline Approved: Yes
      VW Model: Passat Model series: Passat CC Model type: 4motion Type of engine: FSi Size of motor: 3.6 Brand of engine: CNNA Body: Coupe From date: 01-06-2008 To date: 01-01-2012 Fuel: Gasoline Approved: Yes
      VW Model: Passat Model series: Passat CC Type of engine: FSi Size of motor: 3.6 Brand of engine: BLV Body: Coupe From date: 01-06-2008 To date: 01-01-2012 Fuel: Gasoline Approved: Yes
      VW Model: Passat Model series: Passat CC Type of engine: FSi Size of motor: 3.6 Brand of engine: CNNA Body: Coupe From date: 01-06-2008 To date: 01-01-2012 Fuel: Gasoline Approved: Yes
      VW Model: Passat Model series: Passat Model type: 4 Motion Size of motor: 3.6 Brand of engine: BWS Body: Coupe From date: 01-02-2008 To date: 01-12-2011 Fuel: Gasoline Approved: Yes
      VW Model: Passat Model series: Passat Model type: 4motion Type of engine: FSi Size of motor: 3.6 Brand of engine: BWS Type description: 362 From date: 01-01-2011 To date: 01-12-2014 Fuel: Gasoline Approved: Yes
      VW Model: Passat Model series: Passat Model type: 4motion Type of engine: FSi Size of motor: 3.6 Brand of engine: BWS Type description: 365 Body: Box Body / Estate From date: 01-01-2011 To date: 01-12-2014 Fuel: Gasoline Approved: Yes
      VW Model: Passat Model series: Passat Model type: 4motion Type of engine: FSi Size of motor: 3.6 Brand of engine: BWS Type description: 365 Body: Estate From date: 01-01-2011 To date: 01-12-2014 Fuel: Gasoline Approved: Yes Manufacture type: Variant
