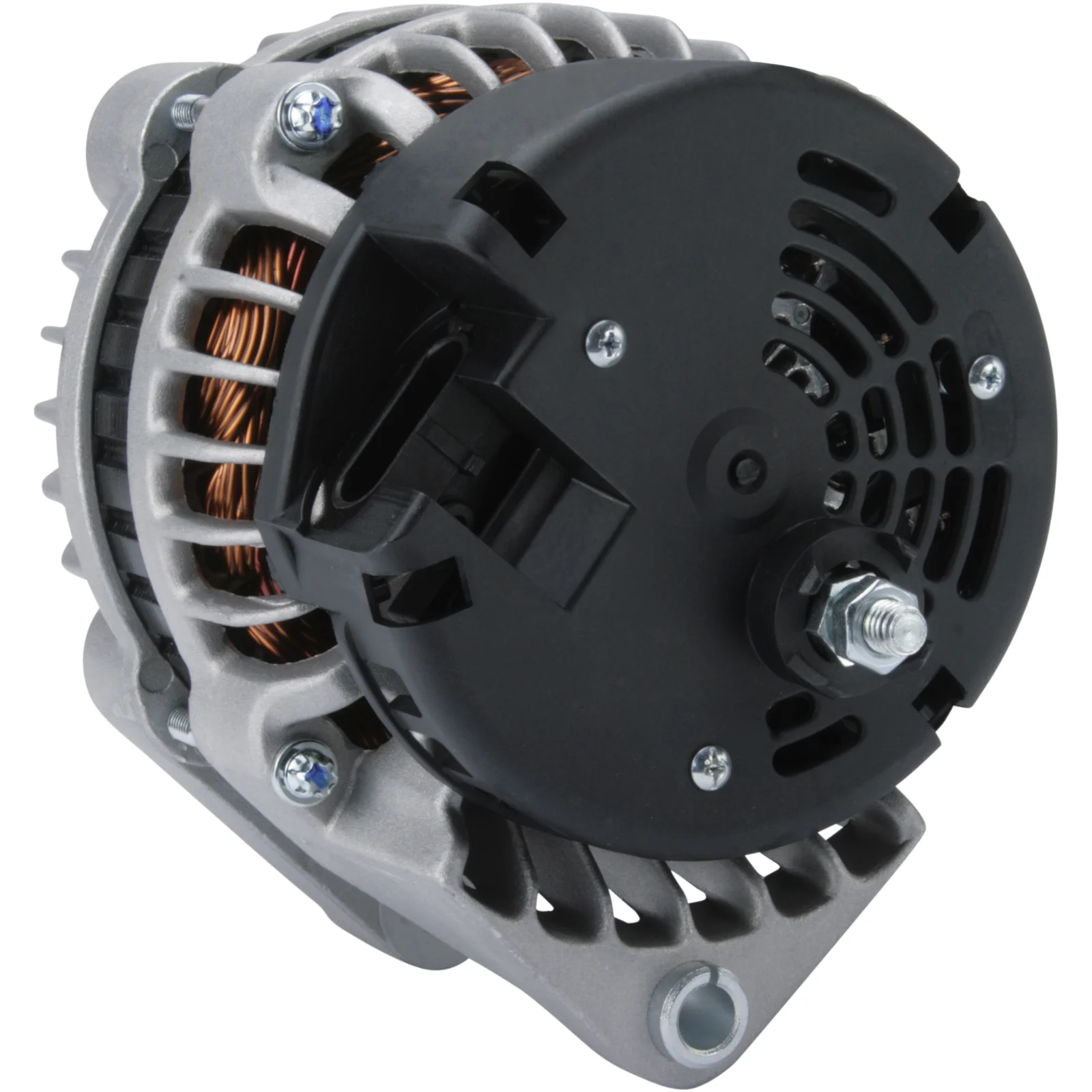

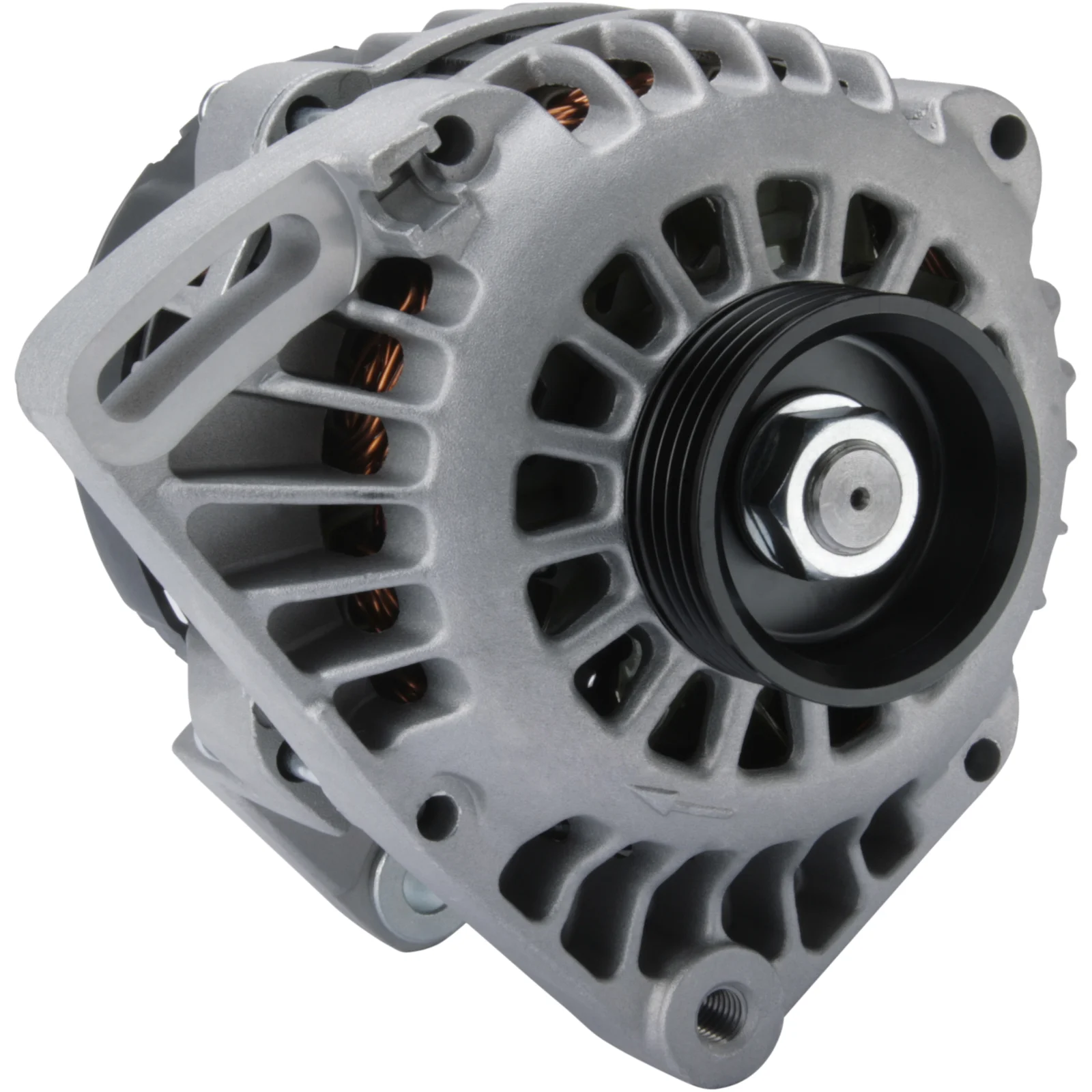

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032112165

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 75, Rotation: CW, Monteringsbeslag afstand: 66,50

Beskrivelse

Renault Clio Gen. 12V-75A 12V - 75A, 4-sporet remskive, (P-L I-S) 4-sporet remskive Til Yourex produktordre 90-480-0818

Spenning: 14
Amp: 75
Remskive dist.: 46,70
Bredde/hængelåsarm: 27,00
Mont. beslag dist.: 66,50
Beslagshuleste M10
Bæltejusteret beslaghul pos.: 47
Bæltejusteret beslaghul 1: 10,00/40,50
Remskive dia.: 59,50
Sporet/remskive: 4
Radius: 85,50
Radius 2: 97,50
B+: M8
Position/B+ i min.: 23
D+ Størrelse: Stik
Rotation: med uret
Stik nr.: PL122
Samlet længde mm: 179,00
Remskive: SP
Regulator type: IR
Produktinfo: BN
Service: Renault

Filer

Specifikation

B+ M8
Mount. bracket dist. 66.50
Belt. adj. bracket hole 1 10.00/40.50
Belt. adj. brackethole pos. 47
Plug no. PL122
Bracket hole M10
Position/B+ in min. 23
Prod. info BN
Pulley SP
Pulley dia. 59.50
Pulley dist. 46.70
Radius 85.50
D+ Size Plug
Radius 2 97.50
Regulator type IR
Rotation CW
Servicing Renault
Grooves/pulley 4
Voltage 14
Total length 179.00 mm
Width/holder arm 27.00
Amp 75

  • OEM
    AAK5503, F032112165, LRB 321, x08378, 11.209.004, 214, 215, 461, 1253ir, 1986A01690, 112165, 872258, 873348, 3493214, 8111838, 8111839, 10479214, 10479215, 10480214, 10480215, 7700870818, 7700870822, 7700872258, 7700872348, 7700876198, 7700972258, 7711134795

  • Konkurrentreferens
    A1014, A1014PR, ALT-1410, ALT1410, CAL12104, DRA3713, dra3736, DRA3736N, DRA3736X, F042003130, F042300149, F042A00149, F042S03130, lrb00321, MG723, QA2343, QA2601, ts-1682, 8EL011360-021, 8EL011710-241, 8EL011713-431, 8EL737399-001, 28-2869, 28-3715, 91-01-4527, 230.138.752, 4540, 6668N, 6668R, 8547N, 22857R, 118940, 200160, 200182, 200204, 210206, 210206A, 301253RI, 436701, 437119, 440051, 746174, 746199, 746886, 746974, 747899, 9212795, 12045200, 12090009, 32000321, 0986045201, 0986083770, 944390900280

  • Bilmärken
    Renault

  • NormaliseratArtNr
    a1014, a1014pr, aak5503, alt1410, cal12104, dra3713, dra3736, dra3736n, dra3736x, f032112165, f042003130, f042300149, f042a00149, f042s03130, lrb00321, lrb321, mg723, qa2343, qa2601, ts1682, x08378, 8el011360021, 8el011710241, 8el011713431, 8el737399001, 214, 215, 461, 1253ir, 1986a01690, 4540, 6668n, 6668r, 8547n, 22857r, 112165, 118940, 200160, 200182, 200204, 210206, 210206a, 282869, 283715, 301253ri, 436701, 437119, 440051, 746174, 746199, 746886, 746974, 747899, 872258, 873348, 3493214, 8111838, 8111839, 9212795, 10479214, 10479215, 10480214, 10480215, 11209004, 12045200, 12090009, 32000321, 91014527, 230138752, 0986045201, 0986083770, 7700870818, 7700870822, 7700872258, 7700872348, 7700876198, 7700972258, 7711134795, 944390900280

  • Passar modeller
    Renault Model: Clio Model series: Clio Size of motor: 1.1 Brand of engine: D7F720 Type description: SB0A Body: Van From date: 01-09-1998 Fuel: Gasoline Approved: Yes
    Renault Model: Clio Model series: Clio Size of motor: 1.2 Brand of engine: D7F720 Type description: B/CB0F,B/CB0A Body: Hatchback From date: 01-09-1998 Fuel: Gasoline Approved: Yes
    Renault Model: Clio Model series: Clio Size of motor: 1.2 Brand of engine: D7F726 Type description: B/CB0F,B/CB0A Body: Hatchback From date: 01-09-1998 Fuel: Gasoline Approved: Yes
    Renault Model: Clio Model series: Clio Size of motor: 1.2 Brand of engine: D7F730 Body: Hatchback From date: 01-01-1996 To date: 01-09-1998 Fuel: Gasoline Approved: Yes
    Renault Model: Clio Model series: Clio Size of motor: 1.2 Brand of engine: D7F730 Type description: B/C57 Body: Hatchback From date: 01-01-1996 To date: 01-09-1998 Fuel: Gasoline Approved: Yes
    Renault Model: Clio Model series: Clio Size of motor: 1.2 Brand of engine: D7F746 Type description: B/CB0F,B/CB0A Body: Hatchback From date: 01-09-1998 Fuel: Gasoline Approved: Yes
    Renault Model: Clio Model series: Clio Size of motor: 1.2 Brand of engine: D7F764 Type description: B/CB0F,B/CB0A Body: Hatchback From date: 01-09-1998 Fuel: Gasoline Approved: Yes
    Renault Model: Clio Model series: Clio Size of motor: 1.2 Brand of engine: D7F766 Type description: B/CB0F,B/CB0A Body: Hatchback From date: 01-09-1998 Fuel: Gasoline Approved: Yes
    Renault Model: Kangoo Model series: Kangoo Model type: Express Size of motor: 1.2 Brand of engine: D7F710 Body: Van From date: 01-08-1997 Fuel: Gasoline Approved: Yes
    Renault Model: Kangoo Model series: Kangoo Size of motor: 1.2 Brand of engine: D7F710 Body: MPV From date: 01-08-1997 Fuel: Gasoline Approved: Yes
    Renault Model: Twingo Model series: Twingo Hatchback Van Size of motor: 1.2 Brand of engine: D7F700 Type description: S06_ Body: Hatchback Van From date: 01-03-1997 To date: 01-08-2003 Fuel: Petrol Approved: Yes
    Renault Model: Twingo Model series: Twingo Size of motor: 1.2 Brand of engine: D7F700 Type description: C066,C068 Body: Hatchback From date: 01-05-1996 To date: 01-06-2007 Fuel: Gasoline Approved: Yes
    Renault Model: Twingo Model series: Twingo Size of motor: 1.2 Brand of engine: D7F700 Type description: C067 Body: Hatchback From date: 01-05-1996 To date: 01-03-2007 Fuel: Gasoline Approved: Yes
    Renault Model: Twingo Model series: Twingo Size of motor: 1.2 Brand of engine: D7F700 Type description: S06_ Body: Van From date: 01-05-1996 To date: 01-08-2004 Fuel: Gasoline Approved: Yes
    Renault Model: Twingo Model series: Twingo Size of motor: 1.2 Brand of engine: D7F701 Body: Hatchback From date: 01-05-1996 To date: 01-03-2007 Fuel: Gasoline Approved: Yes
    Renault Model: Twingo Model series: Twingo Size of motor: 1.2 Brand of engine: D7F701 Type description: C066,C068 Body: Hatchback From date: 01-05-1996 To date: 01-06-2007 Fuel: Gasoline Approved: Yes
    Renault Model: Twingo Model series: Twingo Size of motor: 1.2 Brand of engine: D7F701 Type description: S06_ Body: Van From date: 01-05-1996 To date: 01-08-2004 Fuel: Gasoline Approved: Yes
    Renault Series: Clio I Model: 1.2 Engine volume: 1.2 Engine type: D7F 730 Year: 04.96-02.98
    Renault Series: Clio II Model: 1.2 Engine volume: 1.2 Engine type: D7F 710 / 720 / 726 Year: 09.98-10.07
    Renault Series: Kangoo Express Model: 1.2 Engine volume: 1.2 Engine type: D7F 700/720/722 Year: 09.98-
    Renault Series: Twingo Model: 1.2 AC Engine volume: 1.2 Engine type: D7F Year: 09.96-01.98
    1 / 5
  • Beskrivelse
    Renault Clio Gen. 12V-75A 12V - 75A, 4-sporet remskive, (P-L I-S) 4-sporet remskive Til Yourex produktordre 90-480-0818

    Spenning: 14
    Amp: 75
    Remskive dist.: 46,70
    Bredde/hængelåsarm: 27,00
    Mont. beslag dist.: 66,50
    Beslagshuleste M10
    Bæltejusteret beslaghul pos.: 47
    Bæltejusteret beslaghul 1: 10,00/40,50
    Remskive dia.: 59,50
    Sporet/remskive: 4
    Radius: 85,50
    Radius 2: 97,50
    B+: M8
    Position/B+ i min.: 23
    D+ Størrelse: Stik
    Rotation: med uret
    Stik nr.: PL122
    Samlet længde mm: 179,00
    Remskive: SP
    Regulator type: IR
    Produktinfo: BN
    Service: Renault

    Filer

  • Specifikation
    B+ M8
    Mount. bracket dist. 66.50
    Belt. adj. bracket hole 1 10.00/40.50
    Belt. adj. brackethole pos. 47
    Plug no. PL122
    Bracket hole M10
    Position/B+ in min. 23
    Prod. info BN
    Pulley SP
    Pulley dia. 59.50
    Pulley dist. 46.70
    Radius 85.50
    D+ Size Plug
    Radius 2 97.50
    Regulator type IR
    Rotation CW
    Servicing Renault
    Grooves/pulley 4
    Voltage 14
    Total length 179.00 mm
    Width/holder arm 27.00
    Amp 75
  • Køretøjsmatchning

    • OEM
      AAK5503, F032112165, LRB 321, x08378, 11.209.004, 214, 215, 461, 1253ir, 1986A01690, 112165, 872258, 873348, 3493214, 8111838, 8111839, 10479214, 10479215, 10480214, 10480215, 7700870818, 7700870822, 7700872258, 7700872348, 7700876198, 7700972258, 7711134795

    • Konkurrentreferens
      A1014, A1014PR, ALT-1410, ALT1410, CAL12104, DRA3713, dra3736, DRA3736N, DRA3736X, F042003130, F042300149, F042A00149, F042S03130, lrb00321, MG723, QA2343, QA2601, ts-1682, 8EL011360-021, 8EL011710-241, 8EL011713-431, 8EL737399-001, 28-2869, 28-3715, 91-01-4527, 230.138.752, 4540, 6668N, 6668R, 8547N, 22857R, 118940, 200160, 200182, 200204, 210206, 210206A, 301253RI, 436701, 437119, 440051, 746174, 746199, 746886, 746974, 747899, 9212795, 12045200, 12090009, 32000321, 0986045201, 0986083770, 944390900280

    • Bilmärken
      Renault

    • NormaliseratArtNr
      a1014, a1014pr, aak5503, alt1410, cal12104, dra3713, dra3736, dra3736n, dra3736x, f032112165, f042003130, f042300149, f042a00149, f042s03130, lrb00321, lrb321, mg723, qa2343, qa2601, ts1682, x08378, 8el011360021, 8el011710241, 8el011713431, 8el737399001, 214, 215, 461, 1253ir, 1986a01690, 4540, 6668n, 6668r, 8547n, 22857r, 112165, 118940, 200160, 200182, 200204, 210206, 210206a, 282869, 283715, 301253ri, 436701, 437119, 440051, 746174, 746199, 746886, 746974, 747899, 872258, 873348, 3493214, 8111838, 8111839, 9212795, 10479214, 10479215, 10480214, 10480215, 11209004, 12045200, 12090009, 32000321, 91014527, 230138752, 0986045201, 0986083770, 7700870818, 7700870822, 7700872258, 7700872348, 7700876198, 7700972258, 7711134795, 944390900280

    • Passar modeller
      Renault Model: Clio Model series: Clio Size of motor: 1.1 Brand of engine: D7F720 Type description: SB0A Body: Van From date: 01-09-1998 Fuel: Gasoline Approved: Yes
      Renault Model: Clio Model series: Clio Size of motor: 1.2 Brand of engine: D7F720 Type description: B/CB0F,B/CB0A Body: Hatchback From date: 01-09-1998 Fuel: Gasoline Approved: Yes
      Renault Model: Clio Model series: Clio Size of motor: 1.2 Brand of engine: D7F726 Type description: B/CB0F,B/CB0A Body: Hatchback From date: 01-09-1998 Fuel: Gasoline Approved: Yes
      Renault Model: Clio Model series: Clio Size of motor: 1.2 Brand of engine: D7F730 Body: Hatchback From date: 01-01-1996 To date: 01-09-1998 Fuel: Gasoline Approved: Yes
      Renault Model: Clio Model series: Clio Size of motor: 1.2 Brand of engine: D7F730 Type description: B/C57 Body: Hatchback From date: 01-01-1996 To date: 01-09-1998 Fuel: Gasoline Approved: Yes
      Renault Model: Clio Model series: Clio Size of motor: 1.2 Brand of engine: D7F746 Type description: B/CB0F,B/CB0A Body: Hatchback From date: 01-09-1998 Fuel: Gasoline Approved: Yes
      Renault Model: Clio Model series: Clio Size of motor: 1.2 Brand of engine: D7F764 Type description: B/CB0F,B/CB0A Body: Hatchback From date: 01-09-1998 Fuel: Gasoline Approved: Yes
      Renault Model: Clio Model series: Clio Size of motor: 1.2 Brand of engine: D7F766 Type description: B/CB0F,B/CB0A Body: Hatchback From date: 01-09-1998 Fuel: Gasoline Approved: Yes
      Renault Model: Kangoo Model series: Kangoo Model type: Express Size of motor: 1.2 Brand of engine: D7F710 Body: Van From date: 01-08-1997 Fuel: Gasoline Approved: Yes
      Renault Model: Kangoo Model series: Kangoo Size of motor: 1.2 Brand of engine: D7F710 Body: MPV From date: 01-08-1997 Fuel: Gasoline Approved: Yes
      Renault Model: Twingo Model series: Twingo Hatchback Van Size of motor: 1.2 Brand of engine: D7F700 Type description: S06_ Body: Hatchback Van From date: 01-03-1997 To date: 01-08-2003 Fuel: Petrol Approved: Yes
      Renault Model: Twingo Model series: Twingo Size of motor: 1.2 Brand of engine: D7F700 Type description: C066,C068 Body: Hatchback From date: 01-05-1996 To date: 01-06-2007 Fuel: Gasoline Approved: Yes
      Renault Model: Twingo Model series: Twingo Size of motor: 1.2 Brand of engine: D7F700 Type description: C067 Body: Hatchback From date: 01-05-1996 To date: 01-03-2007 Fuel: Gasoline Approved: Yes
      Renault Model: Twingo Model series: Twingo Size of motor: 1.2 Brand of engine: D7F700 Type description: S06_ Body: Van From date: 01-05-1996 To date: 01-08-2004 Fuel: Gasoline Approved: Yes
      Renault Model: Twingo Model series: Twingo Size of motor: 1.2 Brand of engine: D7F701 Body: Hatchback From date: 01-05-1996 To date: 01-03-2007 Fuel: Gasoline Approved: Yes
      Renault Model: Twingo Model series: Twingo Size of motor: 1.2 Brand of engine: D7F701 Type description: C066,C068 Body: Hatchback From date: 01-05-1996 To date: 01-06-2007 Fuel: Gasoline Approved: Yes
      Renault Model: Twingo Model series: Twingo Size of motor: 1.2 Brand of engine: D7F701 Type description: S06_ Body: Van From date: 01-05-1996 To date: 01-08-2004 Fuel: Gasoline Approved: Yes
      Renault Series: Clio I Model: 1.2 Engine volume: 1.2 Engine type: D7F 730 Year: 04.96-02.98
      Renault Series: Clio II Model: 1.2 Engine volume: 1.2 Engine type: D7F 710 / 720 / 726 Year: 09.98-10.07
      Renault Series: Kangoo Express Model: 1.2 Engine volume: 1.2 Engine type: D7F 700/720/722 Year: 09.98-
      Renault Series: Twingo Model: 1.2 AC Engine volume: 1.2 Engine type: D7F Year: 09.96-01.98
